Jx: the jenkins-x can not create git repository

[msdemt]

Summary

when I did the follow command:
# jx install --provider=kubernetes
in the end ,the error shows like this:

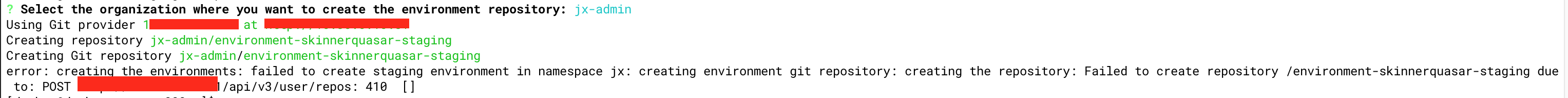

error: creating the environments: failed to create staging environment in namespace jx: creating environment git repository: creatakercanyon-staging due to: POST http://gitlab.xxx.com/api/v3/user/repos: 410 []

Steps to reproduce the behavior

when I do the follow command:
$ jx install --provider=kubernetes
and enter my gitlab address, successfully installed jenkins-x，but can not create git repository with gitlab.xxx.com

I used fowllow command installed gitlab with kubernetes:
helm upgrade --install gitlab gitlab/gitlab \
--timeout 600 \
--namespace gitlab-ce \
--set certmanager.install=false \
--set global.hosts.domain=xxx.com \
--set global.hosts.externalIP=192.168.15.141 \
--set global.ingress.configureCertmanager=false \
--set global.ingress.tls.enabled=false \
--set global.hosts.https=false \
--set global.edition=ce

Expected behavior

jenkins-x can create repository with gitlab

Actual behavior

jenkins-x can not create repository with gitlab

Jx version

# jx --version 1.3.1010

The output of jx version is:
NAME VERSION
jx 1.3.1030
jenkins x platform 0.0.3636
Kubernetes cluster v1.13.4
kubectl v1.13.4
helm client v2.13.0+g79d0794
helm server v2.13.0+g79d0794
git git version 1.8.3.1
Operating System CentOS Linux release 7.6.1810 (Core)

COPY OUTPUT HERE
`error: creating the environments: failed to create staging environment in namespace jx: creating environment git repository: creating the repository: Failed to create repository /environment-takercanyon-staging due to: POST http://gitlab.xxx.com/api/v3/user/repos: 410 []``

Jenkins type

Static Master Jenkins

Kubernetes cluster

kubectl version
Client Version: version.Info{Major:"1", Minor:"13", GitVersion:"v1.13.4", GitCommit:"c27b913fddd1a6c480c229191a087698aa92f0b1", GitTreeState:"clean", BuildDate:"2019-02-28T13:37:52Z", GoVersion:"go1.11.5", Compiler:"gc", Platform:"linux/amd64"}

Server Version: version.Info{Major:"1", Minor:"13", GitVersion:"v1.13.4", GitCommit:"c27b913fddd1a6c480c229191a087698aa92f0b1", GitTreeState:"clean", BuildDate:"2019-02-28T13:30:26Z", GoVersion:"go1.11.5", Compiler:"gc", Platform:"linux/amd64"}

the kubernetes is the Binary installation on Bare Metal

Operating system / Environment

cat /etc/redhat-release
CentOS Linux release 7.6.1810 (Core)

with xshell did the command.

Sorry For My Poor English.....

[msdemt]

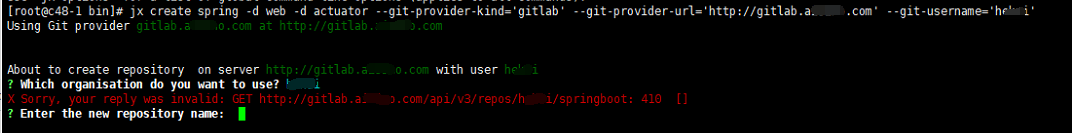

Also can not create spingproject....

[warrenbailey]

Looks like it's using the old v3 API and not the v4 API.

In the jx go modules the dependency for the git lab library is:

github.com/xanzy/go-gitlab v0.0.0-20180814191223-f3bc634ab936

Upgrading that to a newer released version may well fix this issue.

[jenkins-x-bot]

Issues go stale after 90d of inactivity.
Mark the issue as fresh with /remove-lifecycle stale.
Stale issues rot after an additional 30d of inactivity and eventually close.
If this issue is safe to close now please do so with /close.
Provide feedback via https://jenkins-x.io/community.
/lifecycle stale

[MehB]

Hi,

Same issue for me, when installing JX on a GitLab server.

I added the --no-default-environments option to bypass the issue, but potentially it will fail at some point as JX cannot create an environment on GitLab.

jx install --provider=kubernetes --external-ip 10.123.0.17 \ --ingress-service=$(yoursvcname) \ --ingress-deployment=$(yourdeployname) \ --ingress-namespace=kube-system --no-default-environments

/area/gitlab
/priority/important-soon
/remove-lifecycle/stale

[qingdi]

? Using Git user name: xxxx
DEBUG: About to create repository environment-shakerjuniper-staging on server http://gitlab.xxxx.com.cn with user xxxx
? Using organisation: packages
Creating repository packages/environment-shakerjuniper-staging
Creating Git repository packages/environment-shakerjuniper-staging
error: creating the environments: failed to create staging environment in namespace jx: creating environment git repository: creating the repository: POST http://gitlab.xxxx.com.cn/api/v4/projects: 400 {message: {limit_reached: []}, {namespace: [is not valid]}}

[withlin]

same problem

[root@localhost go-sample]# jx version
NAME               VERSION
jx                 2.0.842
jenkins x platform 2.0.1435
Kubernetes cluster v1.15.3
kubectl            v1.16.0
helm client        Client: v2.14.3+g0e7f3b6
git                1.8.3.1
Operating System   CentOS Linux release 7.6.1810 (Core)

[anhdle14]

JX

| NAME | VERSION |
|---|---|
|jx | 2.0.894|
|jenkins x platform |2.0.1493|
|Kubernetes cluster |v1.14.6-eks-5047ed|
|kubectl | v1.16.2|
|helm client | Client: v2.14.3+g0e7f3b6|
|git | 2.14.5|

Command

jx install --provider=aws \
  --cleanup-temp-files=true \
  --default-admin-password="xxx" \
  --default-admin-username="xxx" \
  --default-environment-prefix="xxx" \
  --domain="xxx.com" \
  --git-provider-kind="gitlab" \
  --git-provider-url="https://gitlab.xxx.com" \
  --git-public=false \
  --git-username="xxx" \
  --git-api-token="xxx" \
  --environment-git-owner="yyy" \
  --helm-client-only \
  --ingress-class=nginx \
  --ingress-cluster-role="cluster-admin" \
  --ingress-deployment="nginx-nginx-ingress-controller" \
  --ingress-namespace=nginx \
  --ingress-service="nginx-nginx-ingress-controller" \
  --namespace=jx \
  --no-tiller \
  --skip-ingress \
  --skip-setup-tiller \
  --static-jenkins \
  --tiller-cluster-role="cluster-admin" \
  --tiller-namespace="kube-system" \
  --timeout="6000" \
  --verbose

Output

error: creating the environments: failed to create staging environment in namespace jx: creating environment git repository: creating the repository: GET https://gitlab.xxx.com/api/v4/namespaces: 401 {message: 401 Unauthorized}

[jstrachan]

our go-scm library is using gitlabs v4 API; we maybe need to move the gitlab code in jx to use go-scm instead https://github.com/jenkins-x/go-scm

[TonyNoble]

Config:

$ jx version
NAME               VERSION
jx                 2.0.966
Kubernetes cluster v1.14.8
kubectl            v1.16.2
helm client        Client: v2.14.3+g0e7f3b6
git                2.17.1
Operating System   Ubuntu 18.04.3 LTS

Further verification - 'jx boot' fails with the below:

DEBUG: getting repository user1/environment-mydev-dev: failed to get repository user1/environment-mydev-dev due to: GET http://<our_gitlab_host>/api/v3/repos/min03/environment-mydev-dev: 410  []
error: creating remote for dev environment environment-mydev-dev: duplicating https://github.com/jenkins-x/jenkins-x-boot-config to user1/environment-mydev-dev: getting repo for https://github.com/jenkins-x/jenkins-x-boot-config: failed to get repository jenkins-x/jenkins-x-boot-config due to: GET http://<our_gitlab_host>/api/v3/repos/jenkins-x/jenkins-x-boot-config: 410  []
error: failed to interpret pipeline file jenkins-x.yml: failed to run '/bin/sh -c jx step verify env' command in directory '.', output: ''

v3 API has been deprecated since GitLab 11, so this would seem to prevent installation using any vaguely maintained GitLab instance, including GitLab.com

[TonyNoble]

Looks like it's using the old v3 API and not the v4 API.

In the jx go modules the dependency for the git lab library is:

github.com/xanzy/go-gitlab v0.0.0-20180814191223-f3bc634ab936

Upgrading that to a newer released version may well fix this issue.

Looks like 0.6.0 is the first version that supports v4 of the API.

I'd happily submit a PR, but unfortunately I can't get jx to build locally to test it - the host for one of the modules required (vbom.ml/util) is serving an invalid certificate and so the company firewall is killing the download.

[MehB]

Hi @TonyNoble,

jx boot should work with GitLab. Use lighthouse instead of prow for the webhook value.

[bdameh@docker-manager000 dbi_jx_boot]$ jx version
NAME               VERSION
jx                 2.0.921
Kubernetes cluster v1.15.3
kubectl            v1.15.3
helm client        Client: v2.14.1+g5270352
git                2.16.5
Operating System   CentOS Linux release 7.6.1810 (Core)

Below my jx-requirements.yaml

autoUpdate:
  enabled: false
  schedule: ""
bootConfigURL: https://github.com/jenkins-x/jenkins-x-boot-config
cluster:
  azure: {}
  clusterName: bdameh
  environmentGitOwner: bdameh
  gitKind: gitlab
  gitName: gitlab
  gitServer: https://gitlab-jx.nip.io
  namespace: bdameh
  project: bdameh
  provider: kubernetes
  zone: eu
environments:
- ingress:
    domain: ""
    externalDNS: false
    namespaceSubDomain: ""
    tls:
      email: ""
      enabled: false
      production: false
  key: dev
- ingress:
    domain: ""
    externalDNS: false
    namespaceSubDomain: ""
    tls:
      email: ""
      enabled: false
      production: false
  key: staging
- ingress:
    domain: ""
    externalDNS: false
    namespaceSubDomain: ""
    tls:
      email: ""
      enabled: false
      production: false
  key: production
ingress:
  domain: nip.io
  externalDNS: true
  namespaceSubDomain: -jx.
  tls:
    email: [email protected]
    enabled: true
    production: true
secretStorage: local
storage:
  backup:
    enabled: false
    url: ""
  logs:
    enabled: false
    url: ""
  reports:
    enabled: false
    url: ""
  repository:
    enabled: false
    url: ""
vault: {}
velero: {}
versionStream:
  ref: v1.0.164
  url: https://github.com/jenkins-x/jenkins-x-versions.git
webhook: lighthouse

[TonyNoble]

Hi @MehB

I've done that. However, as part of the initial setup process, jx boot is trying to query GitLab using version 3 of the API. V3 is deprecated as of GitLab 11, so any attempt to access the API results in a 410 'Gone' response, as shown above.

[vishveshv01]

Looks like it's using the old v3 API and not the v4 API.

In the jx go modules the dependency for the git lab library is:

github.com/xanzy/go-gitlab v0.0.0-20180814191223-f3bc634ab936

Upgrading that to a newer released version may well fix this issue.

Verified that jx boot or jx create quickstart works smoothly with Gitlab. I tested local compiled jx with github.com/xanzy/go-gitlab v0.22.1

[TonyNoble]

@vishveshv01
That's good to know, though I'm still coming up against https://github.com/jenkins-x/jx/issues/6158 - curious to know how you avoided that?

[vishveshv01]

jx                 2.0.1039
Kubernetes cluster v1.14.8
kubectl            v1.14.8

@TonyNoble jx boot -r jx-requirements.yml works fine with GitLab. Sample jx-requirements

cluster:
  clusterName: jx-experiment
  environmentGitOwner: <Repo_Owner>
  gitKind: gitlab
  gitName: gitlab
  gitServer: **https**://Gitlab;TLDR
  namespace: jx
  provider: kubernetes
environments:
...

But As mentioned earlier jx boot would fail for Gitlab at verify env step. I compiled jx code with latest version of xanzy/go-gitlab library and continued with --start-step=verify-jenkins-x-environment.
