Jspdf: Alignment?

[akshaybhoendie]

This is a very good framework and i also use this, the only thing i would like to see is an option to align text.

[simonbengtsson]

That would be nice indeed! In the meantime you could use the function attached below (from the jspdf-autotable plugin). It can be used like this doc.autoText("Hello", 10, 10, 'left'|'center'|'right', 'top'|'middle'|'bottom').

jsPDF.API.autoText = function (text, x, y, halign, valign) {
    if (typeof x !== 'number' || typeof y !== 'number') {
        console.error('The x and y parameters are required. Missing for the text: ', text);
    }
    let k = this.internal.scaleFactor;
    let fontSize = this.internal.getFontSize() / k;

    let splitRegex = /\r\n|\r|\n/g;
    let splitText = null;
    let lineCount = 1;
    if (valign === 'middle' || valign === 'bottom' || halign === 'center' || halign === 'right') {
        splitText = typeof text === 'string' ? text.split(splitRegex) : text;

        lineCount = splitText.length || 1;
    }

    // Align the top
    y += fontSize * (2 - FONT_ROW_RATIO);

    if (valign === 'middle')
        y -= (lineCount / 2) * fontSize * FONT_ROW_RATIO;
    else if (valign === 'bottom')
        y -= lineCount * fontSize * FONT_ROW_RATIO;

    if (halign === 'center' || halign === 'right') {
        let alignSize = fontSize;
        if (halign === 'center')
            alignSize *= 0.5;

        if (lineCount >= 1) {
            for (let iLine = 0; iLine < splitText.length; iLine++) {
                this.text(splitText[iLine], x - this.getStringUnitWidth(splitText[iLine]) * alignSize, y);
                y += fontSize;
            }
            return this;
        }
        x -= this.getStringUnitWidth(text) * alignSize;
    }

    this.text(text, x, y);

    return this;
};

[Flamenco]

You can also use the c2d plugin. HTML Context 2d has alignment and origin parameters for text.

[akshaybhoendie]

Hi,

Many thanks friend, what i basicaly need to do, are the following :

• make a new JS file in the plugin folder and attach the code to it
• use the doc.autoTableText("Hello", 10, 10, 'left'|'center'|'right',
  'top'|'middle'|'bottom') in the code where i want the text in the autotable
  to be aligned.

Are these the correct steps to do? Can you please correct me if i am wrong?
or send the correct instructions? i am new to javascript.

On Thu, Jan 12, 2017 at 6:44 PM, Flamenco [e-mail] wrote:

You can also use the c2d plugin. HTML Context 2d has alignment and origin
parameters for text.

—
You are receiving this because you authored the thread.
Reply to this email directly, view it on GitHub
https://github.com/MrRio/jsPDF/issues/1016#issuecomment-272293315, or mute
the thread
https://github.com/notifications/unsubscribe-auth/AXZNw51R0SI4dV3wZKt9pQydjttR-GKIks5rRp66gaJpZM4Lh_sD
.

--
MVG,

Akhsaykumar Bhoendie
Hannaslustweg #6
Wanica, Suriname
+(597)8549488

"It's hard enough to find an error in your code when you're looking for
it; it's even harder when you've assumed your code is error-free."

[Flamenco]

Do you need a table, or are you just using the function to align text on a single line?

[simonbengtsson]

You can use the function directly without a table.

And you don't need to add the function to the plugin folder. You just have to include the code before you are using the function.

[Flamenco]

I understand. If you are not working with tables there are other ways to align text.

[Flamenco]

IIRC all the canvas text align and baseline functions are supported using the context2d API.

http://www.w3schools.com/TagS/canvas_textalign.asp
http://www.w3schools.com/tags/canvas_textbaseline.asp

[akshaybhoendie]

Ok, here is a screenshot and what i want to do is align the text in the
cells right. see screenshot.
[image: Inline image 1]

On Fri, Jan 13, 2017 at 9:24 AM, Flamenco [e-mail] wrote:

IIRC all the canvas text align and baseline functions are supported using
the context2d API.

http://www.w3schools.com/TagS/canvas_textalign.asp
http://www.w3schools.com/tags/canvas_textbaseline.asp

—
You are receiving this because you authored the thread.
Reply to this email directly, view it on GitHub
https://github.com/MrRio/jsPDF/issues/1016#issuecomment-272431670, or mute
the thread
https://github.com/notifications/unsubscribe-auth/AXZNwwc6q8qLUUKRfrT5XdUY_MX1n6xHks5rR20MgaJpZM4Lh_sD
.

--
MVG,

Akhsaykumar Bhoendie
Hannaslustweg #6
Wanica, Suriname
+(597)8549488

"It's hard enough to find an error in your code when you're looking for
it; it's even harder when you've assumed your code is error-free."

[akshaybhoendie]

Hi there,

this may also be handy, here is the function i wrote for it:

function createPDF() {
var url = "/coci/report/registry/2015";
DataApiService.callApi(url,null,"GET").then(function(reportData){
if(reportData){
var doc = new jsPDF('p', 'pt');
var row = 45;
addPdfHeader(doc, row, "");

    /* doc.addPage(); */
    doc.setFillColor(33, 150, 243);
    doc.printingHeaderRow = true;
    var columns = [ "Description", "2014", "2013",

"2012","2011","2010","% t.o.v.'13" ];

    var rows = [];

    for(var j=0; j<reportData.length; j++){
    var obj = reportData[j];

    if (!obj.description ) {obj.description = '';}

    if (!obj.year5 ) {obj.year5 = '';}

    if (!obj.year4 ) {obj.year4 = '';}

    if (!obj.year3 ) {obj.year3 = '';}

    if (!obj.year2 ) {obj.year2 = '';}

    if (!obj.year1 ) {obj.year1 = '';}

    if (!obj.delta ) {obj.delta = '';}

    /*TODO : Align data right in grid*/
    var singleRow =

[obj.description,obj.year5,obj.year4,obj.year3,obj.year2,obj.year1,obj.delta];

    rows.push(singleRow);
    }

    doc.autoTable(columns, rows, {
    theme : 'grid',
    margin : {
    top : 100
    }

    });

On Fri, Jan 13, 2017 at 9:50 AM, akshay bhoendie [e-mail]
wrote:

Ok, here is a screenshot and what i want to do is align the text in the
cells right. see screenshot.
[image: Inline image 1]

On Fri, Jan 13, 2017 at 9:24 AM, Flamenco [e-mail]
wrote:

IIRC all the canvas text align and baseline functions are supported using
the context2d API.

http://www.w3schools.com/TagS/canvas_textalign.asp
http://www.w3schools.com/tags/canvas_textbaseline.asp

—
You are receiving this because you authored the thread.
Reply to this email directly, view it on GitHub
https://github.com/MrRio/jsPDF/issues/1016#issuecomment-272431670, or mute
the thread
https://github.com/notifications/unsubscribe-auth/AXZNwwc6q8qLUUKRfrT5XdUY_MX1n6xHks5rR20MgaJpZM4Lh_sD
.

--
MVG,

Akhsaykumar Bhoendie
Hannaslustweg #6
Wanica, Suriname
+(597)8549488 <+597%20854-9488>

"It's hard enough to find an error in your code when you're looking for
it; it's even harder when you've assumed your code is error-free."

--
MVG,

Akhsaykumar Bhoendie
Hannaslustweg #6
Wanica, Suriname
+(597)8549488

"It's hard enough to find an error in your code when you're looking for
it; it's even harder when you've assumed your code is error-free."

[Flamenco]

Definitely go with the autotable approach for that usecase.

[akshaybhoendie]

sir,

i think that you dont understand me, i am already using autotable and want
to know how the data in the cells can be aligned right.
please see screenshot, i really need your help on how to align the data
(text) in the cells right. thats why i sent you the screenshot and also the
function. I really need your help

On Fri, Jan 13, 2017 at 9:56 AM, Flamenco [e-mail] wrote:

Definitely go with the autotable approach with that usecase.

—
You are receiving this because you authored the thread.
Reply to this email directly, view it on GitHub
https://github.com/MrRio/jsPDF/issues/1016#issuecomment-272437170, or mute
the thread
https://github.com/notifications/unsubscribe-auth/AXZNw02W8Y19DkXDRdUfPmqk-x0xOU7Cks5rR3SRgaJpZM4Lh_sD
.

--
MVG,

Akhsaykumar Bhoendie
Hannaslustweg #6
Wanica, Suriname
+(597)8549488

"It's hard enough to find an error in your code when you're looking for
it; it's even harder when you've assumed your code is error-free."

[Flamenco]

Screenshot did not show up...

It looks like you might be able to tap into the hook, and then use the method provided by Simon to manually draw the cell right aligned when your target column is rendered.

    drawCell: function (cell, data) {},

see https://github.com/simonbengtsson/jsPDF-AutoTable#hooks

[akshaybhoendie]

Here the screenshot, see atachment

On Fri, Jan 13, 2017 at 10:26 AM, Flamenco [e-mail] wrote:

Screenshot did not show up...

It looks like you might be able to tap into the hook, and then use the
method provided by Simon to manually draw the cell right aligned when your
target column is rendered.

drawCell: function (cell, data) {},

see https://github.com/simonbengtsson/jsPDF-AutoTable#hooks

—
You are receiving this because you authored the thread.
Reply to this email directly, view it on GitHub
https://github.com/MrRio/jsPDF/issues/1016#issuecomment-272442246, or mute
the thread
https://github.com/notifications/unsubscribe-auth/AXZNw1TkiR6V8nVQnCk1nyhnpXrD0P1dks5rR3txgaJpZM4Lh_sD
.

--
MVG,

Akhsaykumar Bhoendie
Hannaslustweg #6
Wanica, Suriname
+(597)8549488

"It's hard enough to find an error in your code when you're looking for
it; it's even harder when you've assumed your code is error-free."

[Flamenco]

I'm still not seeing anything. Did you try the hook approach?

[akshaybhoendie]

oke i will send the pdf.
Do you have a example of a hook?

On Fri, Jan 13, 2017 at 10:34 AM, Flamenco [e-mail] wrote:

I'm still not seeing anything. Did you try the hook approach?

[image: screen shot 2017-01-13 at 8 33 49 am]
https://cloud.githubusercontent.com/assets/819940/21931734/0617f5e2-d96b-11e6-8fe5-c241ff00d31f.png

—
You are receiving this because you authored the thread.
Reply to this email directly, view it on GitHub
https://github.com/MrRio/jsPDF/issues/1016#issuecomment-272443840, or mute
the thread
https://github.com/notifications/unsubscribe-auth/AXZNw-wvlBJ2fjGVvLj5jEFbZI1wEEqpks5rR31jgaJpZM4Lh_sD
.

--
MVG,

Akhsaykumar Bhoendie
Hannaslustweg #6
Wanica, Suriname
+(597)8549488

"It's hard enough to find an error in your code when you're looking for
it; it's even harder when you've assumed your code is error-free."

[Flamenco]

I don't have an example, but the data parameter contains the cursor position, jsPDF instance. You should be able to use the cell to get your data, and then just draw the text.

[simonbengtsson]

If you are using autotable things becomes easy as there is a halign style. It can be used like this:

doc.autoTable(columns, rows, {
    styles: {
        halign: 'right'
    }
});

[ghost]

Hi,
Is there any plugin to align a text in justify?

[akshaybhoendie]

You can use the c2d plugin or :

doc.autoTable(columns, rows, {
styles: {
halign: 'center'
}
});

or

• use the doc.autoTableText("Hello", 10, 10, 'left'|'center'|'right',
  'top'|'middle'|'bottom') in the code where i want the text in the
  autotable to be aligned.

On Wed, Sep 6, 2017 at 7:38 AM, Md. Tahmidul Abedin <
[email protected]> wrote:

Hi,
Is there any plugin to align a text in justify?

—
You are receiving this because you authored the thread.
Reply to this email directly, view it on GitHub
https://github.com/MrRio/jsPDF/issues/1016#issuecomment-327445043, or mute
the thread
https://github.com/notifications/unsubscribe-auth/AXZNw2kQHtYdWRoTGJG94OagItMTVyNoks5sfnYTgaJpZM4Lh_sD
.

--
MVG,

Akhsaykumar Bhoendie
Hannaslustweg #6
Wanica, Suriname
+(597)8549488

"It's hard enough to find an error in your code when you're looking for
it; it's even harder when you've assumed your code is error-free."

[gpietro]

Any idea on how to get the right Tw (word spacing) by doing:
(pageWidth - textWidth) / (numberOfWords - 1)
Thanks

https://stackoverflow.com/questions/46181066/jspdf-justify-text

[Uzlopak]

@gpietro

Like this?

var doc = new jsPDF();
doc.text('Lorem ipsum dolor sit amet, consetetur abore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.', 10,10, {maxWidth: 150, align: "justify"});
doc.save("justify.pdf");

1419

[Uzlopak]

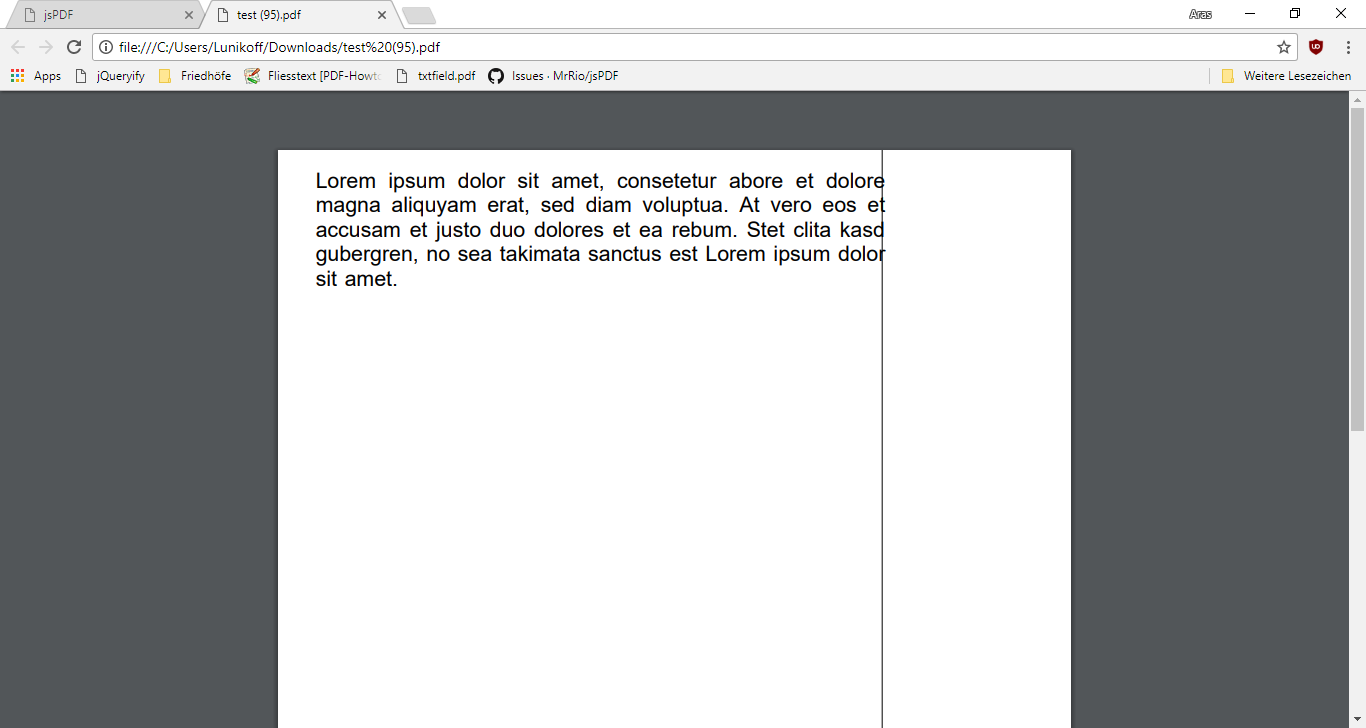

Forgot scaling... now we see a justify as expected. last line is left aligned

doc.text('Lorem ipsum dolor sit amet, consetetur abore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.', 10,10, {maxWidth: 150, align: "justify"});

doc.line(160,0,160,300)

[gpietro]

I did solve the problem without changing the API.
Here is my pull request: https://github.com/MrRio/jsPDF/pull/1469

[Uzlopak]

But by this, you have to specify marginright?

[gpietro]

By default is 0, and the result is the pageWidth - x (pos). Another way could be to pass the desired width. If you have a better approach is welcome. I tried to find the best fix by changing as little as possible.

[Uzlopak]

Well I am still waiting for @MrRio to merge my pull requests or comment on them. I refactored the text function properly and it is passing all tests. It has more functionality now and works as expected. It should be possible to modify it so that i can handle e.g. bb-code or something like this to have in the text bold/cursive or links in the text.

The merge-stop is kind of sad, because I wrote the changes, because I am in need of a proper PDF-Generator for a project I want to write in few months.

[francisgbh]

Hi! I urgently need to have justified text in my pdf. My english level is low and I do not really understand how to justify a paragraph. A simple example:

var doc = new jsPDF({ unit: 'cm', format: 'letter' }); var text1 = 'Lorem ipsum dolor sit amet, consetetur abore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.'; var text2 = doc.splitTextToSize(text1, 10); doc.text(text2, 2,2); doc.save("doc.pdf");

I apply doc.splitTextToSize to see the text in several lines. I apply in my code {maxWidth: 150, align: "justify"} but does not justify the text. I will be grateful if you can help me!!!

[Uzlopak]

I apply in my code {maxWidth: 150, align: "justify"} but does not justify the text.

Obviously, because you would have to make modifications to the code.

Replace atleast jspdf.js with this jspdf.js
https://github.com/arasabbasi/jsPDF/blob/refactor_text/jspdf.js

and then use jspdf.js, standard_fonts_metrics.js and all the other plugins you need or build your own jspdf.debug.js or jspdf.min.js

[gpietro]

@francisgbh unfortunately at the moment isn't possibile to justify text with jsPDF (that's why there still an open issue).
Me and @arasabbasi have proposed two PR to @MrRio to add this feature.
Meanwhile, you can choose to use one of the proposed solutions or implement your own.

[SilvioRamirez]

I'm sorry for my bad english. Greetings, I don't know how to use your modifications into my code for use justify text with jsPDF, I use your https://github.com/arasabbasi/jsPDF/blob/refactor_text/jspdf.js
then the original jspdf.js
later the standard_fonts_metrics.js

in my js file:

doc.text('Lorem ipsum dolor sit amet, consetetur abore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.', 10,10, {maxWidth: 150, align: "justify"});

doc.line(160,0,160,300)

doc.save('testpdf.pdf');

but I still can't get the result above of the justify text..

Please, give some help here, I really need this to my project! Thank you very much!

[Uzlopak]

Open jspdf.debug.js, find the code of the original jspdf.js and replace it with the new jspdf.js. use the manually updated jspdf.debug.js

If you need minified jspdf.min.js then minify the manually updated jspdf.debug.js

[gpietro]

@SilvioRamirez if you want to give a try at my implementation on this fork. We use it in production. The only thing you need to change is:

• set a margin right if you want:
  new jsPDF({ marginRight: margins.right});
• use property align: 'justify'

[Uzlopak]

Will be solved with #1433

[voldemortkein]

Forgot scaling... now we see a justify as expected. last line is left aligned

doc.text('Lorem ipsum dolor sit amet, consetetur abore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.', 10,10, {maxWidth: 150, align: "justify"});

doc.line(160,0,160,300)

@arasabbasi

What did you mean about "Forgot scaling... now we see a justify as expected. last line is left aligned"??

I'm trying to align a text, but the first line of text not respond to the justify but the next ones applies the justifying.

Just as you posted before, also I've read that you made a refactored jsPDF.js, that solves that, and you posted a GITHUB URL:
[(https://github.com/arasabbasi/jsPDF/blob/refactor_text/jspdf.js)]

But the link is Broken :( :(

If you can help me, would be very nice, have a good day!

[Uzlopak]

How about using latest release of jspdf?

[attilaking]

How about using latest release of jspdf?

I am using the latest one, justify works fine, but now linebreak in text won't work...
Before the update, \n worked in text. Now I can put in linebreak when the text is justified. ANy suggestions?
