Jetty.project: Server becomes unresponsive after sitting idle from a load spike

Created on 15 Apr 2019  路  33Comments  路  Source: eclipse/jetty.project

I tested Jetty 9.4.16 over the weekend with quite some load, although if's currently only available on Maven central and not officially been announced.

After a few hours, Jetty became unresponsive and I got 502 errors from my reverse proxy before it. I downgraded to Jetty 9.4.15 again and it seems to be running fine.

I really can't pinpoint what might cause this behavior, as it only happened after a few hours - but repeatedly. I use Glowroot to monitor the application and I found nothing obvious in the threaddump either. Out of ideas how to debug such situations.

Can somebody reproduce this? Any ideas how to further debug this?

Bug High Priority Sponsored
Source
picture tholu

Most helpful comment

I've experienced something similar starting today as well. 9.4.14 -> 9.4.16 upgrade, Java 8, Ubuntu 18.04. I'll try to get a Server.dump() shortly. Working on proving my theory below and will take it if my theory proves true. :)

As far as I can tell, the lockup (in my case) is caused when ReservedThreadExecutor.capacity > QueuedThreadPool.minThreads. When my service runs with capacity=8 and minThreads=10, it works correctly. But when I set capacity=16, then I notice any thread mentioning ReservedThread.run disappears from thread dumps over a short time. (We choose reserved capacity by using the heuristic, in case that's relevant.)

After doing some diving into code changes, I believe it is one of the changes introduced by one of these commits (which is new in 9.4.16): https://github.com/eclipse/jetty.project/commit/a982422b407cb168e921662b48801c1f60100e69 https://github.com/eclipse/jetty.project/commit/1097354611d9d71d87f290de8f240c0c89dfc4de https://github.com/eclipse/jetty.project/commit/5177abba6e736ba9155369731ee5acdb1282ec85 https://github.com/eclipse/jetty.project/commit/9cda1ce0923b3b4a6fd325db1dad88d34cdbad9e

In particular, in 9.4.14 (and 9.4.15) we only shrink QTP compared to maxThreads, not compared to minThreads. This was changed in https://github.com/eclipse/jetty.project/commit/1097354611d9d71d87f290de8f240c0c89dfc4de#diff-2572dae5bd06448110dfdfe5038ca01dL785. My gut tells me that minThreads is actually closer to the right logic, but I think it's producing incorrect behavior by removing reserved threads. Maybe it should be < minThreads + reservedThreads? (In my setup, maxThreads is 250, so it's unlikely to have ever stopped the threads before.)

picture cddude229 on 24 Apr 2019
👍2

All 33 comments

When it's unresponsive, please take a JVM thread dump and a Jetty server dump.

Using TLS?

What OS/JDK?

sbordet picture sbordet on 15 Apr 2019
Debian 4.9.0-6-amd64 #1 SMP Debian 4.9.88-1+deb9u1 (2018-05-07) x86_64 GNU/Linux
OpenJDK Runtime Environment (build 1.8.0_212-8u212-b01-1~deb9u1-b01)

No TLS. Thanks for the hint about the Jetty server dump, I'll revisit the issue as soon I can reproduce this.

tholu picture tholu on 15 Apr 2019

I strongly recommend that you shy away from any JDK provided by Debian.

Please use official versions from Oracle or adoptopenjdk.net, which are known to be A) stable and B) pass the TCK.
Otherwise we could be wondering why it fails and then figure out it was a badly merged backport or some Debian modification that introduced a problem.

The latest official JDK 8 release is 8u202. You are using some 8u212 with who knows what code in it and who knows how stable that is.

Using standard OpenJDK binaries would allow us to possibly replicate the issue.

sbordet picture sbordet on 15 Apr 2019

@sbordet Thanks for the recommendation & explanation! I stumbled upon AdoptOpenJDK anyway and am planning to migrate to it (from 8 to 11 as well).

tholu picture tholu on 15 Apr 2019

I think 8u212 is a release outside of the Oracle Java 8 public support window.
The last public Oracle Java 8 release was 8u202.
Being an open source project, it would be very difficult to support something that isn't public.

joakime picture joakime on 15 Apr 2019

I will migrate to AdoptOpenJDK 11, and try Jetty 9.4.16 (or whatever version is released by then), and see if the issue can be reproduced there. Until then I'll close this issue. Thanks!

tholu picture tholu on 15 Apr 2019

Looks like https://adoptopenjdk.net/upstream.html lists 8u212 as Early Access (EA) is that right?

joakime picture joakime on 16 Apr 2019

After upgrading our test system from Jetty 9.4.15 to Jetty 9.4.16 we seem to observe the same issue.
OS: CentOS 6.6
Java: OpenJDK 11.0.2
We did not yet investigate the issue any further (e.g. using JVM thread dumps and Jetty server dumps) and also did not try out 9.4.17, but will do it once we find the time (likely tomorrow). Just wanted to let you guys know about it. As this ticket is already closed, we would then likely create a new ticket if we have more details at hand.

e-hubert picture e-hubert on 23 Apr 2019

@e-hubert Thank you for reporting this! I'll reopen the issue, so you can add your findings here. We have yet to migrate to AdoptOpenJDK to contribute more to solving this.

tholu picture tholu on 23 Apr 2019

We're also seeing this issue, or something like it, on one of our systems, just updated to 9.4.17 (from 9.4.11, I think).

In our case we're running illumos (Solaris) with openjdk8u212, but I don't think it's the openjdk that's the problem - we've been running that openjdk for a week with the older jetty without any problem, but jetty 9.4.17 immediately started to fail.

ptribble picture ptribble on 23 Apr 2019

For those having issues, can you please enable the QueuedThreadPool.setDetailedDump(true) and perform a server dump when you experience this issue?
Then include that dump detail here, in this issue?

For those running jetty-home (or the older jetty-distribution) ...

  • enable the property jetty.threadPool.detailedDump=true
  • enable the jmx module
  • use any JMX console (jmc or jconsole) and perform a Server dump() operation when the server enters the state mentioned.
joakime picture joakime on 23 Apr 2019

I've experienced something similar starting today as well. 9.4.14 -> 9.4.16 upgrade, Java 8, Ubuntu 18.04. I'll try to get a Server.dump() shortly. Working on proving my theory below and will take it if my theory proves true. :)

As far as I can tell, the lockup (in my case) is caused when ReservedThreadExecutor.capacity > QueuedThreadPool.minThreads. When my service runs with capacity=8 and minThreads=10, it works correctly. But when I set capacity=16, then I notice any thread mentioning ReservedThread.run disappears from thread dumps over a short time. (We choose reserved capacity by using the heuristic, in case that's relevant.)

After doing some diving into code changes, I believe it is one of the changes introduced by one of these commits (which is new in 9.4.16): https://github.com/eclipse/jetty.project/commit/a982422b407cb168e921662b48801c1f60100e69 https://github.com/eclipse/jetty.project/commit/1097354611d9d71d87f290de8f240c0c89dfc4de https://github.com/eclipse/jetty.project/commit/5177abba6e736ba9155369731ee5acdb1282ec85 https://github.com/eclipse/jetty.project/commit/9cda1ce0923b3b4a6fd325db1dad88d34cdbad9e

In particular, in 9.4.14 (and 9.4.15) we only shrink QTP compared to maxThreads, not compared to minThreads. This was changed in https://github.com/eclipse/jetty.project/commit/1097354611d9d71d87f290de8f240c0c89dfc4de#diff-2572dae5bd06448110dfdfe5038ca01dL785. My gut tells me that minThreads is actually closer to the right logic, but I think it's producing incorrect behavior by removing reserved threads. Maybe it should be < minThreads + reservedThreads? (In my setup, maxThreads is 250, so it's unlikely to have ever stopped the threads before.)

cddude229 picture cddude229 on 24 Apr 2019
👍2

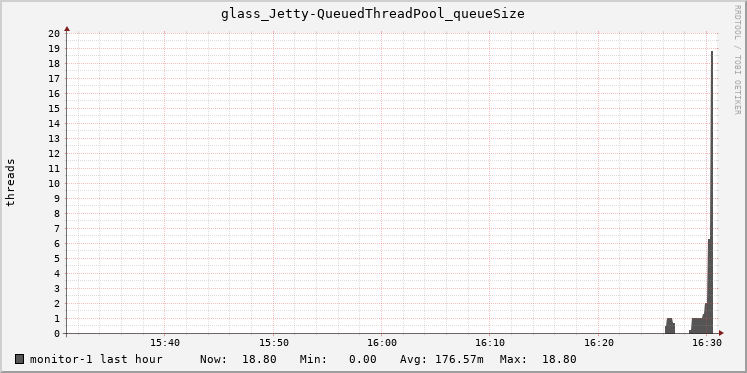

I believe I've confirmed my theory; I increased instance size (so reserved > minThreads) and it instantly locked up. Queue size continued to grow while locked up:

Here's the dump() (redacted classpath besides jetty; rest is unredacted):

$>run dump
#calling operation dump of mbean org.eclipse.jetty.server:id=0,type=server
#operation returns:
Server@f6c48ac{STARTED}[9.4.16.v20190411] - STARTED
+= QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}] - STARTED
|  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  += ReservedThreadExecutor@7791a895{s=0/16,p=0} - STARTED
|  +> threads size=10
|     +> 27 qtp1433867275-27 SELECTING RUNNABLE @ sun.nio.ch.EPollArrayWrapper.epollWait(Native Method)
|     +> 25 qtp1433867275-25 SELECTING RUNNABLE @ sun.nio.ch.EPollArrayWrapper.epollWait(Native Method)
|     +> 28 qtp1433867275-28 SELECTING RUNNABLE @ sun.nio.ch.EPollArrayWrapper.epollWait(Native Method)
|     +> 32 qtp1433867275-32-acceptor-1@3e0fe68f-ServerConnector@31dc339b{HTTP/1.1,[http/1.1]}{0.0.0.0:23668} ACCEPTING RUNNABLE @ sun.nio.ch.ServerSocketChannelImpl.accept0(Native Method)
|     +> 30 qtp1433867275-30 SELECTING RUNNABLE @ sun.nio.ch.EPollArrayWrapper.epollWait(Native Method)
|     +> 26 qtp1433867275-26 SELECTING RUNNABLE @ sun.nio.ch.EPollArrayWrapper.epollWait(Native Method)
|     +> 23 qtp1433867275-23 SELECTING RUNNABLE @ sun.nio.ch.EPollArrayWrapper.epollWait(Native Method)
|     +> 24 qtp1433867275-24 SELECTING RUNNABLE @ sun.nio.ch.EPollArrayWrapper.epollWait(Native Method)
|     +> 29 qtp1433867275-29 SELECTING RUNNABLE @ sun.nio.ch.EPollArrayWrapper.epollWait(Native Method)
|     +> 31 qtp1433867275-31-acceptor-0@1a6804d1-ServerConnector@31dc339b{HTTP/1.1,[http/1.1]}{0.0.0.0:23668} ACCEPTING BLOCKED @ sun.nio.ch.ServerSocketChannelImpl.accept(ServerSocketChannelImpl.java:234)
+= ScheduledExecutorScheduler@52d455b8{STARTED} - STARTED
|  +> sun.misc.Unsafe.park(Native Method)
|  +> java.util.concurrent.locks.LockSupport.parkNanos(LockSupport.java:215)
|  +> java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject.awaitNanos(AbstractQueuedSynchronizer.java:2078)
|  +> java.util.concurrent.ScheduledThreadPoolExecutor$DelayedWorkQueue.take(ScheduledThreadPoolExecutor.java:1093)
|  +> java.util.concurrent.ScheduledThreadPoolExecutor$DelayedWorkQueue.take(ScheduledThreadPoolExecutor.java:809)
|  +> java.util.concurrent.ThreadPoolExecutor.getTask(ThreadPoolExecutor.java:1074)
|  +> java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1134)
|  +> java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
|  +> java.lang.Thread.run(Thread.java:748)
+= GzipHandler@73846619{STARTED} - STARTED
|  += HandlerCollection@5649fd9b{STARTED} - STARTED
|  |  += ContextHandlerCollection@6adede5{STARTED} - STARTED
|  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |  += o.e.j.w.WebAppContext@13c27452{Glass,/glass,file:///usr/sumo/glass-20.1-13709/webapps/glass/,AVAILABLE}{/glass} - STARTED
|  |  |     += org.eclipse.jetty.server.session.SessionHandler2000584752==dftMaxIdleSec=1800 - STARTED
|  |  |     |  += ConstraintSecurityHandler@6b861a26{STARTED} - STARTED
|  |  |     |  |  +- org.eclipse.jetty.security.DefaultAuthenticatorFactory@44e31522
|  |  |     |  |  += ServletHandler@a0b8f79{STARTED} - STARTED
|  |  |     |  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |     |  |  |  +> listeners ServletHandler@a0b8f79{STARTED} size=4
|  |  |     |  |  |  |  +> ListenerHolder@37a963d7{STARTED}: org.eclipse.jetty.servlet.listener.ELContextCleaner - STARTED
|  |  |     |  |  |  |  +> ListenerHolder@41d1c2a9{STARTED}: org.eclipse.jetty.servlet.listener.IntrospectorCleaner - STARTED
|  |  |     |  |  |  |  +> ListenerHolder@706b1132{STARTED}: org.apache.logging.log4j.web.Log4jServletContextListener - STARTED
|  |  |     |  |  |  |  +> ListenerHolder@635887e2{STARTED}: com.sumologic.assembly.webapp.MetricsEnabledDoOrDieContextLoaderListener - STARTED
|  |  |     |  |  |  +> filters ServletHandler@a0b8f79{STARTED} size=3
|  |  |     |  |  |  |  +> glassAuthFilter@1f13f785==com.sumologic.glass.GlassAuthFilter,inst=true,async=false - STARTED
|  |  |     |  |  |  |  |  +> com.sumologic.glass.GlassAuthFilter@5018ba44
|  |  |     |  |  |  |  +> log4jServletFilter@78d2c3f4==org.apache.logging.log4j.web.Log4jServletFilter,inst=true,async=false - STARTED
|  |  |     |  |  |  |  |  +> org.apache.logging.log4j.web.Log4jServletFilter@5f922c9b
|  |  |     |  |  |  |  +> dynamicTracingFilter@5fbd4733==com.sumologic.webutil.filter.DynamicTracingFilter,inst=true,async=false - STARTED
|  |  |     |  |  |  |     +> com.sumologic.webutil.filter.DynamicTracingFilter@4a621c1a
|  |  |     |  |  |  +> filterMappings ServletHandler@a0b8f79{STARTED} size=3
|  |  |     |  |  |  |  +> [/*]/[]/[REQUEST]=>glassAuthFilter
|  |  |     |  |  |  |  +> [/*]/[]/[REQUEST, INCLUDE, ERROR, FORWARD]=>log4jServletFilter
|  |  |     |  |  |  |  +> [/*]/[]/[REQUEST]=>dynamicTracingFilter
|  |  |     |  |  |  +> servlets ServletHandler@a0b8f79{STARTED} size=4
|  |  |     |  |  |  |  +> default@5c13d641==org.eclipse.jetty.servlet.DefaultServlet,jsp=null,order=0,inst=true,async=false - STARTED
|  |  |     |  |  |  |  |  +> org.eclipse.jetty.servlet.DefaultServlet@26c22b11
|  |  |     |  |  |  |  |  +> initParams size=9
|  |  |     |  |  |  |  |     +> dirAllowed=false
|  |  |     |  |  |  |  |     +> maxCacheSize=256000000
|  |  |     |  |  |  |  |     +> maxCachedFileSize=200000000
|  |  |     |  |  |  |  |     +> welcomeServlets=false
|  |  |     |  |  |  |  |     +> useFileMappedBuffer=true
|  |  |     |  |  |  |  |     +> acceptRanges=true
|  |  |     |  |  |  |  |     +> etags=false
|  |  |     |  |  |  |  |     +> maxCachedFiles=2048
|  |  |     |  |  |  |  |     +> redirectWelcome=false
|  |  |     |  |  |  |  +> jsp@19c47==org.eclipse.jetty.servlet.NoJspServlet,jsp=null,order=0,inst=true,async=false - STARTED
|  |  |     |  |  |  |  |  +> org.eclipse.jetty.servlet.NoJspServlet@2071ae61
|  |  |     |  |  |  |  |  +> initParams size=5
|  |  |     |  |  |  |  |     +> fork=false
|  |  |     |  |  |  |  |     +> compilerSourceVM=1.7
|  |  |     |  |  |  |  |     +> logVerbosityLevel=DEBUG
|  |  |     |  |  |  |  |     +> compilerTargetVM=1.7
|  |  |     |  |  |  |  |     +> xpoweredBy=false
|  |  |     |  |  |  |  +> display@63a518c2==org.springframework.web.servlet.DispatcherServlet,jsp=null,order=1,inst=true,async=false - STARTED
|  |  |     |  |  |  |  |  +> org.springframework.web.servlet.DispatcherServlet@42f8f6f3
|  |  |     |  |  |  |  +> kubernetesProxy@9e6f2ac8==com.sumologic.glass.proxy.KubernetesProxyServlet,jsp=null,order=3,inst=true,async=false - STARTED
|  |  |     |  |  |  |     +> com.sumologic.glass.proxy.KubernetesProxyServlet@68f65c80
|  |  |     |  |  |  +> servletMappings ServletHandler@a0b8f79{STARTED} size=5
|  |  |     |  |  |     +> [/]=>default
|  |  |     |  |  |     +> [*.jsp, *.jspf, *.jspx, *.xsp, *.JSP, *.JSPF, *.JSPX, *.XSP]=>jsp
|  |  |     |  |  |     +> [/json/*, /api/json/*]=>display
|  |  |     |  |  |     +> [/proxy/kubernetes/*]=>kubernetesProxy
|  |  |     |  |  |     +> [/*]=>default
|  |  |     |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |     |  |  +> roles size=1
|  |  |     |  |  |  +> java.util.concurrent.CopyOnWriteArraySet@0(size=0)
|  |  |     |  |  +> constraints size=1
|  |  |     |  |     +> java.util.HashMap$EntrySet@a37740c0(size=1)
|  |  |     |  |        +: /={TRACE={RoleInfo,F,C[],None}, TRACE.omission={RoleInfo[],None}}
|  |  |     |  += org.eclipse.jetty.server.session.DefaultSessionCache@36bf28d2[evict=-1,removeUnloadable=false,saveOnCreate=false,saveOnInactiveEvict=false] - STARTED
|  |  |     |  |  += org.eclipse.jetty.server.session.NullSessionDataStore@5eab49e8[passivating=false,graceSec=3600] - STARTED
|  |  |     |  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |     |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |     |  +~ DefaultSessionIdManager@3f29e26{STARTED}[worker=node0] - STARTED
|  |  |     |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |     += ErrorPageErrorHandler@73a65712{STARTED} - STARTED
|  |  |     |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |     +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |     +> WebAppClassLoader=Glass@22eeefeb
|  |  |     |  +> URLs size=384
|  |  |     |  |  +> file:/usr/sumo/glass-20.1-13709/webapps/glass/WEB-INF/classes/
|  |  |     |  |  +> file:/usr/sumo/glass-20.1-13709/webapps/glass/WEB-INF/[redacted]
|  |  |     |  +> startJarLoader@28c97a5
|  |  |     +> Systemclasses o.e.j.w.WebAppContext@13c27452{Glass,/glass,file:///usr/sumo/glass-20.1-13709/webapps/glass/,AVAILABLE}{/glass} size=15
|  |  |     |  +> java.
|  |  |     |  +> javax.
|  |  |     |  +> org.eclipse.jetty.continuation.
|  |  |     |  +> org.eclipse.jetty.jaas.
|  |  |     |  +> org.eclipse.jetty.jmx.
|  |  |     |  +> org.eclipse.jetty.jndi.
|  |  |     |  +> org.eclipse.jetty.jsp.JettyJspServlet
|  |  |     |  +> org.eclipse.jetty.servlet.DefaultServlet
|  |  |     |  +> org.eclipse.jetty.servlets.PushCacheFilter
|  |  |     |  +> org.eclipse.jetty.servlets.PushSessionCacheFilter
|  |  |     |  +> org.eclipse.jetty.util.annotation.
|  |  |     |  +> org.eclipse.jetty.util.log.
|  |  |     |  +> org.eclipse.jetty.websocket.
|  |  |     |  +> org.w3c.
|  |  |     |  +> org.xml.
|  |  |     +> Serverclasses o.e.j.w.WebAppContext@13c27452{Glass,/glass,file:///usr/sumo/glass-20.1-13709/webapps/glass/,AVAILABLE}{/glass} size=18
|  |  |     |  +> -org.eclipse.jetty.alpn.
|  |  |     |  +> -org.eclipse.jetty.apache.
|  |  |     |  +> -org.eclipse.jetty.continuation.
|  |  |     |  +> -org.eclipse.jetty.jaas.
|  |  |     |  +> -org.eclipse.jetty.jmx.
|  |  |     |  +> -org.eclipse.jetty.jndi.
|  |  |     |  +> -org.eclipse.jetty.jsp.
|  |  |     |  +> -org.eclipse.jetty.server.session.SessionData
|  |  |     |  +> -org.eclipse.jetty.servlet.DefaultServlet
|  |  |     |  +> -org.eclipse.jetty.servlet.NoJspServlet
|  |  |     |  +> -org.eclipse.jetty.servlet.listener.
|  |  |     |  +> -org.eclipse.jetty.servlets.
|  |  |     |  +> -org.eclipse.jetty.util.annotation.
|  |  |     |  +> -org.eclipse.jetty.util.log.
|  |  |     |  +> -org.eclipse.jetty.websocket.
|  |  |     |  +> org.eclipse.jdt.
|  |  |     |  +> org.eclipse.jetty.
|  |  |     |  +> org.objectweb.asm.
|  |  |     +> Configurations o.e.j.w.WebAppContext@13c27452{Glass,/glass,file:///usr/sumo/glass-20.1-13709/webapps/glass/,AVAILABLE}{/glass} size=5
|  |  |     |  +> org.eclipse.jetty.webapp.WebInfConfiguration@773ef8c3
|  |  |     |  +> org.eclipse.jetty.webapp.WebXmlConfiguration@2df6b8f8
|  |  |     |  +> org.eclipse.jetty.webapp.MetaInfConfiguration@2968bf62
|  |  |     |  +> org.eclipse.jetty.webapp.FragmentConfiguration@7df0b188
|  |  |     |  +> org.eclipse.jetty.webapp.JettyWebXmlConfiguration@7d88a615
|  |  |     +> Handler attributes o.e.j.w.WebAppContext@13c27452{Glass,/glass,file:///usr/sumo/glass-20.1-13709/webapps/glass/,AVAILABLE}{/glass} size=2
|  |  |     |  +> javax.servlet.context.tempdir=/usr/sumo/temp/glass/jetty-0.0.0.0-23668-glass-_glass-any-4217001236733563270.dir
|  |  |     |  +> org.eclipse.jetty.server.Executor=QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}]
|  |  |     +> Context attributes o.e.j.w.WebAppContext@13c27452{Glass,/glass,file:///usr/sumo/glass-20.1-13709/webapps/glass/,AVAILABLE}{/glass} size=7
|  |  |     |  +> org.eclipse.jetty.util.DecoratedObjectFactory=org.eclipse.jetty.util.DecoratedObjectFactory[decorators=1]
|  |  |     |  +> org.apache.logging.log4j.spi.LoggerContext.INSTANCE=org.apache.logging.log4j.core.LoggerContext@6155d082
|  |  |     |  +> org.springframework.web.context.support.ServletContextScope=org.springframework.web.context.support.ServletContextScope@65a1f024
|  |  |     |  +> org.springframework.web.context.WebApplicationContext.ROOT=Root WebApplicationContext: startup date [Tue Apr 23 16:27:11 PDT 2019]; root of context hierarchy
|  |  |     |  +> resourceCache=ResourceCache[null,org.eclipse.jetty.servlet.DefaultServlet@26c22b11]@157208669
|  |  |     |  +> org.apache.logging.log4j.web.Log4jWebSupport.INSTANCE=org.apache.logging.log4j.web.Log4jWebInitializerImpl@71da4c0f
|  |  |     |  +> org.springframework.web.servlet.FrameworkServlet.CONTEXT.display=WebApplicationContext for namespace 'display-servlet': startup date [Tue Apr 23 16:27:28 PDT 2019]; parent: Root WebApplicationContext
|  |  |     +> Initparams o.e.j.w.WebAppContext@13c27452{Glass,/glass,file:///usr/sumo/glass-20.1-13709/webapps/glass/,AVAILABLE}{/glass} size=5
|  |  |        +> log4jConfiguration=classpath:glass_log4j2.xml
|  |  |        +> log4j2.contextSelector=org.apache.logging.log4j.core.async.AsyncLoggerContextSelector
|  |  |        +> org.eclipse.jetty.servlet.SessionCookie=SUMOGLASSID
|  |  |        +> org.eclipse.jetty.servlet.SessionURL=none
|  |  |        +> log4j.shutdownHookEnabled=false
|  |  += DefaultHandler@64bfbc86{STARTED} - STARTED
|  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
+= DeploymentManager@6e1ec318{STARTED} - STARTED
|  +~ WebAppProvider@23e028a9{STARTED} - STARTED
|  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
+= ServerConnector@31dc339b{HTTP/1.1,[http/1.1]}{0.0.0.0:23668} - STARTED
|  +~ Server@f6c48ac{STARTED}[9.4.16.v20190411] - STARTED
|  +~ QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}] - STARTED
|  +~ ScheduledExecutorScheduler@52d455b8{STARTED} - STARTED
|  +- org.eclipse.jetty.io.ArrayByteBufferPool@3631667d
|  += HttpConnectionFactory@6ea12c19[HTTP/1.1] - STARTED
|  |  +- HttpConfiguration@7481775c{32768/8192,16384/8192,http://:-1,[]}
|  |  |  +> customizers size=0
|  |  |  +> formEncodedMethods size=2
|  |  |  |  +> POST
|  |  |  |  +> PUT
|  |  |  +> outputBufferSize=32768
|  |  |  +> outputAggregationSize=8192
|  |  |  +> requestHeaderSize=16384
|  |  |  +> responseHeaderSize=8192
|  |  |  +> headerCacheSize=4096
|  |  |  +> secureScheme=http
|  |  |  +> securePort=-1
|  |  |  +> idleTimeout=-1
|  |  |  +> blockingTimeout=-1
|  |  |  +> sendDateHeader=true
|  |  |  +> sendServerVersion=false
|  |  |  +> sendXPoweredBy=false
|  |  |  +> delayDispatchUntilContent=true
|  |  |  +> persistentConnectionsEnabled=true
|  |  |  +> maxErrorDispatches=10
|  |  |  +> minRequestDataRate=0
|  |  |  +> minResponseDataRate=0
|  |  |  +> cookieCompliance=RFC6265
|  |  |  +> setRequestCookieCompliance=RFC6265
|  |  |  +> notifyRemoteAsyncErrors=true
|  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  += SelectorManager@ServerConnector@31dc339b{HTTP/1.1,[http/1.1]}{0.0.0.0:23668} - STARTED
|  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  += ManagedSelector@296eda6c{STARTED} id=0 keys=0 selected=0 updates=0 - STARTED
|  |  |  += EatWhatYouKill@3e024667/SelectorProducer@4f4a0e4/PRODUCING/p=false/QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}][pc=0,pic=0,pec=0,epc=0]@2019-04-23T16:29:09.267-07:00 - STARTED
|  |  |  |  +- SelectorProducer@4f4a0e4
|  |  |  |  +~ QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}] - STARTED
|  |  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |  +> updates @ 2019-04-23T16:29:09.264-07:00 size=0
|  |  |  +> keys @ 2019-04-23T16:29:09.265-07:00 size=0
|  |  += ManagedSelector@6f9de548{STARTED} id=1 keys=1 selected=0 updates=0 - STARTED
|  |  |  += EatWhatYouKill@2a8ff32/SelectorProducer@5a8f777/PRODUCING/p=false/QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}][pc=0,pic=0,pec=0,epc=0]@2019-04-23T16:29:09.268-07:00 - STARTED
|  |  |  |  +- SelectorProducer@5a8f777
|  |  |  |  +~ QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}] - STARTED
|  |  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |  +> updates @ 2019-04-23T16:29:09.268-07:00 size=0
|  |  |  +> keys @ 2019-04-23T16:29:09.268-07:00 size=1
|  |  |     +> SelectionKey@5a74e860{i=0}->null
|  |  += ManagedSelector@6c2dec7f{STARTED} id=2 keys=0 selected=0 updates=0 - STARTED
|  |  |  += EatWhatYouKill@4a6198a7/SelectorProducer@2e06a7e4/PRODUCING/p=false/QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}][pc=0,pic=0,pec=0,epc=0]@2019-04-23T16:29:09.269-07:00 - STARTED
|  |  |  |  +- SelectorProducer@2e06a7e4
|  |  |  |  +~ QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}] - STARTED
|  |  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |  +> updates @ 2019-04-23T16:29:09.269-07:00 size=0
|  |  |  +> keys @ 2019-04-23T16:29:09.269-07:00 size=0
|  |  += ManagedSelector@1c3577ec{STARTED} id=3 keys=0 selected=0 updates=0 - STARTED
|  |  |  += EatWhatYouKill@6b928c79/SelectorProducer@29c3dd33/PRODUCING/p=false/QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}][pc=0,pic=0,pec=0,epc=0]@2019-04-23T16:29:09.269-07:00 - STARTED
|  |  |  |  +- SelectorProducer@29c3dd33
|  |  |  |  +~ QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}] - STARTED
|  |  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |  +> updates @ 2019-04-23T16:29:09.269-07:00 size=0
|  |  |  +> keys @ 2019-04-23T16:29:09.269-07:00 size=0
|  |  += ManagedSelector@53a15397{STARTED} id=4 keys=0 selected=0 updates=0 - STARTED
|  |  |  += EatWhatYouKill@6fa1dc0c/SelectorProducer@74037f9b/PRODUCING/p=false/QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}][pc=0,pic=0,pec=0,epc=0]@2019-04-23T16:29:09.27-07:00 - STARTED
|  |  |  |  +- SelectorProducer@74037f9b
|  |  |  |  +~ QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}] - STARTED
|  |  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |  +> updates @ 2019-04-23T16:29:09.269-07:00 size=0
|  |  |  +> keys @ 2019-04-23T16:29:09.269-07:00 size=0
|  |  += ManagedSelector@53964b0e{STARTED} id=5 keys=0 selected=0 updates=0 - STARTED
|  |  |  += EatWhatYouKill@b0dc426/SelectorProducer@3c10ba31/PRODUCING/p=false/QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}][pc=0,pic=0,pec=0,epc=0]@2019-04-23T16:29:09.27-07:00 - STARTED
|  |  |  |  +- SelectorProducer@3c10ba31
|  |  |  |  +~ QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}] - STARTED
|  |  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |  +> updates @ 2019-04-23T16:29:09.27-07:00 size=0
|  |  |  +> keys @ 2019-04-23T16:29:09.27-07:00 size=0
|  |  += ManagedSelector@50db0b17{STARTED} id=6 keys=0 selected=0 updates=0 - STARTED
|  |  |  += EatWhatYouKill@5db05003/SelectorProducer@32200389/PRODUCING/p=false/QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}][pc=0,pic=0,pec=0,epc=0]@2019-04-23T16:29:09.27-07:00 - STARTED
|  |  |  |  +- SelectorProducer@32200389
|  |  |  |  +~ QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}] - STARTED
|  |  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |  |  +> updates @ 2019-04-23T16:29:09.27-07:00 size=0
|  |  |  +> keys @ 2019-04-23T16:29:09.27-07:00 size=0
|  |  += ManagedSelector@67668cf7{STARTED} id=7 keys=0 selected=0 updates=0 - STARTED
|  |     += EatWhatYouKill@57e9dd1f/SelectorProducer@6e1134e1/PRODUCING/p=false/QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}][pc=0,pic=0,pec=0,epc=0]@2019-04-23T16:29:09.27-07:00 - STARTED
|  |     |  +- SelectorProducer@6e1134e1
|  |     |  +~ QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}] - STARTED
|  |     |  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |     +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  |     +> updates @ 2019-04-23T16:29:09.27-07:00 size=0
|  |     +> keys @ 2019-04-23T16:29:09.27-07:00 size=0
|  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  +- sun.nio.ch.ServerSocketChannelImpl[/0:0:0:0:0:0:0:0:23668]
|  +- qtp1433867275-31-acceptor-0@1a6804d1-ServerConnector@31dc339b{HTTP/1.1,[http/1.1]}{0.0.0.0:23668}
|  +- qtp1433867275-32-acceptor-1@3e0fe68f-ServerConnector@31dc339b{HTTP/1.1,[http/1.1]}{0.0.0.0:23668}
+= LowResourceMonitor@21213b92{STARTED} - STARTED
|  +- Check if the ThreadPool from monitored connectors are lowOnThreads and if all connections number is higher than the allowed maxConnection
|  +- All connections number is higher than the allowed maxConnection
|  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
+- org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  +> java.util.concurrent.ConcurrentHashMap$EntrySetView@2a1661fb(size=59)
|     +: {}=java.util.concurrent:type=concurrenthashmap,id=0
|     +: qtp1433867275-32-acceptor-1@3e0fe68f-ServerConnector@31dc339b{HTTP/1.1,[http/1.1]}{0.0.0.0:23668}=org.eclipse.jetty.server:context=HTTP/1.1@31dc339b,type=abstractconnector$acceptor,id=1
|     +: ManagedSelector@296eda6c{STARTED} id=0 keys=0 selected=0 updates=0=org.eclipse.jetty.io:context=HTTP/1.1@31dc339b,type=managedselector,id=0
|     +: ReservedThreadExecutor@7791a895{s=0/16,p=0}=org.eclipse.jetty.util.thread:type=reservedthreadexecutor,id=0
|     +: SelectorManager@ServerConnector@31dc339b{HTTP/1.1,[http/1.1]}{0.0.0.0:23668}=org.eclipse.jetty.server:context=HTTP/1.1@31dc339b,type=serverconnector$serverconnectormanager,id=0
|     +: DeploymentManager@6e1ec318{STARTED}=org.eclipse.jetty.deploy:type=deploymentmanager,id=0
|     +: org.eclipse.jetty.server.session.SessionHandler2000584752==dftMaxIdleSec=1800=org.eclipse.jetty.server.session:context=glass,type=sessionhandler,id=0
|     +: o.e.j.w.WebAppContext@13c27452{Glass,/glass,file:///usr/sumo/glass-20.1-13709/webapps/glass/,AVAILABLE}{/glass}=org.eclipse.jetty.webapp:context=glass,type=webappcontext,id=0
|     +: SelectorProducer@4f4a0e4=org.eclipse.jetty.io:context=HTTP/1.1@31dc339b,type=managedselector$selectorproducer,id=0
|     +: ManagedSelector@67668cf7{STARTED} id=7 keys=0 selected=0 updates=0=org.eclipse.jetty.io:context=HTTP/1.1@31dc339b,type=managedselector,id=7
|     +: ManagedSelector@53964b0e{STARTED} id=5 keys=0 selected=0 updates=0=org.eclipse.jetty.io:context=HTTP/1.1@31dc339b,type=managedselector,id=5
|     +: SelectorProducer@74037f9b=org.eclipse.jetty.io:context=HTTP/1.1@31dc339b,type=managedselector$selectorproducer,id=4
|     +: EatWhatYouKill@2a8ff32/SelectorProducer@5a8f777/PRODUCING/p=false/QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}][pc=0,pic=0,pec=0,epc=0]@2019-04-23T16:29:09.271-07:00=org.eclipse.jetty.util.thread.strategy:context=HTTP/1.1@31dc339b,type=eatwhatyoukill,id=1
|     +: GzipHandler@73846619{STARTED}=org.eclipse.jetty.server.handler.gzip:type=gziphandler,id=0
|     +: ConstraintSecurityHandler@6b861a26{STARTED}=org.eclipse.jetty.security:context=glass,type=constraintsecurityhandler,id=0
|     +: SelectorProducer@3c10ba31=org.eclipse.jetty.io:context=HTTP/1.1@31dc339b,type=managedselector$selectorproducer,id=5
|     +: ErrorHandler@71423665{STARTED}=org.eclipse.jetty.server.handler:type=errorhandler,id=0
|     +: SelectorProducer@32200389=org.eclipse.jetty.io:context=HTTP/1.1@31dc339b,type=managedselector$selectorproducer,id=6
|     +: Check if the ThreadPool from monitored connectors are lowOnThreads and if all connections number is higher than the allowed maxConnection=org.eclipse.jetty.server:type=lowresourcemonitor$connectorsthreadpoollowresourcecheck,id=0
|     +: EatWhatYouKill@b0dc426/SelectorProducer@3c10ba31/PRODUCING/p=false/QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}][pc=0,pic=0,pec=0,epc=0]@2019-04-23T16:29:09.272-07:00=org.eclipse.jetty.util.thread.strategy:context=HTTP/1.1@31dc339b,type=eatwhatyoukill,id=5
|     +: EatWhatYouKill@6fa1dc0c/SelectorProducer@74037f9b/PRODUCING/p=false/QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}][pc=0,pic=0,pec=0,epc=0]@2019-04-23T16:29:09.272-07:00=org.eclipse.jetty.util.thread.strategy:context=HTTP/1.1@31dc339b,type=eatwhatyoukill,id=4
|     +: org.eclipse.jetty.util.log.Log@4e1d422d=org.eclipse.jetty.util.log:type=log,id=0
|     +: sun.nio.ch.ServerSocketChannelImpl[/0:0:0:0:0:0:0:0:23668]=sun.nio.ch:context=HTTP/1.1@31dc339b,type=serversocketchannelimpl,id=0
|     +: LowResourceMonitor@21213b92{STARTED}=org.eclipse.jetty.server:type=lowresourcemonitor,id=0
|     +: EatWhatYouKill@5db05003/SelectorProducer@32200389/PRODUCING/p=false/QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}][pc=0,pic=0,pec=0,epc=0]@2019-04-23T16:29:09.272-07:00=org.eclipse.jetty.util.thread.strategy:context=HTTP/1.1@31dc339b,type=eatwhatyoukill,id=6
|     +: ErrorPageErrorHandler@73a65712{STARTED}=org.eclipse.jetty.servlet:context=glass,type=errorpageerrorhandler,id=0
|     +: ManagedSelector@53a15397{STARTED} id=4 keys=0 selected=0 updates=0=org.eclipse.jetty.io:context=HTTP/1.1@31dc339b,type=managedselector,id=4
|     +: HttpConnectionFactory@6ea12c19[HTTP/1.1]=org.eclipse.jetty.server:context=HTTP/1.1@31dc339b,type=httpconnectionfactory,id=0
|     +: DefaultHandler@64bfbc86{STARTED}=org.eclipse.jetty.server.handler:type=defaulthandler,id=0
|     +: qtp1433867275-31-acceptor-0@1a6804d1-ServerConnector@31dc339b{HTTP/1.1,[http/1.1]}{0.0.0.0:23668}=org.eclipse.jetty.server:context=HTTP/1.1@31dc339b,type=abstractconnector$acceptor,id=0
|     +: Server@f6c48ac{STARTED}[9.4.16.v20190411]=org.eclipse.jetty.server:type=server,id=0
|     +: org.eclipse.jetty.security.DefaultAuthenticatorFactory@44e31522=org.eclipse.jetty.security:context=glass,type=defaultauthenticatorfactory,id=0
|     +: org.eclipse.jetty.server.session.NullSessionDataStore@5eab49e8[passivating=false,graceSec=3600]=org.eclipse.jetty.server.session:context=glass,type=nullsessiondatastore,id=0
|     +: HouseKeeper@507d20bb{STARTED}[interval=600000, ownscheduler=false]=org.eclipse.jetty.server.session:type=housekeeper,id=0
|     +: org.eclipse.jetty.jmx.MBeanContainer@55d56113=org.eclipse.jetty.jmx:type=mbeancontainer,id=0
|     +: EatWhatYouKill@4a6198a7/SelectorProducer@2e06a7e4/PRODUCING/p=false/QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}][pc=0,pic=0,pec=0,epc=0]@2019-04-23T16:29:09.272-07:00=org.eclipse.jetty.util.thread.strategy:context=HTTP/1.1@31dc339b,type=eatwhatyoukill,id=2
|     +: ServerConnector@31dc339b{HTTP/1.1,[http/1.1]}{0.0.0.0:23668}=org.eclipse.jetty.server:context=HTTP/1.1@31dc339b,type=serverconnector,id=0
|     +: ContextHandlerCollection@6adede5{STARTED}=org.eclipse.jetty.server.handler:type=contexthandlercollection,id=0
|     +: WebAppProvider@23e028a9{STARTED}=org.eclipse.jetty.deploy.providers:type=webappprovider,id=0
|     +: org.eclipse.jetty.io.ArrayByteBufferPool@3631667d=org.eclipse.jetty.io:context=HTTP/1.1@31dc339b,type=arraybytebufferpool,id=0
|     +: ManagedSelector@50db0b17{STARTED} id=6 keys=0 selected=0 updates=0=org.eclipse.jetty.io:context=HTTP/1.1@31dc339b,type=managedselector,id=6
|     +: HandlerCollection@5649fd9b{STARTED}=org.eclipse.jetty.server.handler:type=handlercollection,id=0
|     +: ManagedSelector@6c2dec7f{STARTED} id=2 keys=0 selected=0 updates=0=org.eclipse.jetty.io:context=HTTP/1.1@31dc339b,type=managedselector,id=2
|     +: DefaultSessionIdManager@3f29e26{STARTED}[worker=node0]=org.eclipse.jetty.server.session:type=defaultsessionidmanager,id=0
|     +: ManagedSelector@6f9de548{STARTED} id=1 keys=1 selected=0 updates=0=org.eclipse.jetty.io:context=HTTP/1.1@31dc339b,type=managedselector,id=1
|     +: ManagedSelector@1c3577ec{STARTED} id=3 keys=0 selected=0 updates=0=org.eclipse.jetty.io:context=HTTP/1.1@31dc339b,type=managedselector,id=3
|     +: HttpConfiguration@7481775c{32768/8192,16384/8192,http://:-1,[]}=org.eclipse.jetty.server:context=HTTP/1.1@31dc339b,type=httpconfiguration,id=0
|     +: SelectorProducer@5a8f777=org.eclipse.jetty.io:context=HTTP/1.1@31dc339b,type=managedselector$selectorproducer,id=1
|     +: SelectorProducer@2e06a7e4=org.eclipse.jetty.io:context=HTTP/1.1@31dc339b,type=managedselector$selectorproducer,id=2
|     +: EatWhatYouKill@3e024667/SelectorProducer@4f4a0e4/PRODUCING/p=false/QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}][pc=0,pic=0,pec=0,epc=0]@2019-04-23T16:29:09.273-07:00=org.eclipse.jetty.util.thread.strategy:context=HTTP/1.1@31dc339b,type=eatwhatyoukill,id=0
|     +: EatWhatYouKill@6b928c79/SelectorProducer@29c3dd33/PRODUCING/p=false/QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}][pc=0,pic=0,pec=0,epc=0]@2019-04-23T16:29:09.273-07:00=org.eclipse.jetty.util.thread.strategy:context=HTTP/1.1@31dc339b,type=eatwhatyoukill,id=3
|     +: ScheduledExecutorScheduler@52d455b8{STARTED}=org.eclipse.jetty.util.thread:type=scheduledexecutorscheduler,id=0
|     +: org.eclipse.jetty.server.session.DefaultSessionCache@36bf28d2[evict=-1,removeUnloadable=false,saveOnCreate=false,saveOnInactiveEvict=false]=org.eclipse.jetty.server.session:context=glass,type=defaultsessioncache,id=0
|     +: All connections number is higher than the allowed maxConnection=org.eclipse.jetty.server:type=lowresourcemonitor$maxconnectionslowresourcecheck,id=0
|     +: SelectorProducer@29c3dd33=org.eclipse.jetty.io:context=HTTP/1.1@31dc339b,type=managedselector$selectorproducer,id=3
|     +: SelectorProducer@6e1134e1=org.eclipse.jetty.io:context=HTTP/1.1@31dc339b,type=managedselector$selectorproducer,id=7
|     +: ServletHandler@a0b8f79{STARTED}=org.eclipse.jetty.servlet:context=glass,type=servlethandler,id=0
|     +: EatWhatYouKill@57e9dd1f/SelectorProducer@6e1134e1/PRODUCING/p=false/QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}][pc=0,pic=0,pec=0,epc=0]@2019-04-23T16:29:09.273-07:00=org.eclipse.jetty.util.thread.strategy:context=HTTP/1.1@31dc339b,type=eatwhatyoukill,id=7
|     +: QueuedThreadPool[qtp1433867275]@5577140b{STARTED,10<=10<=250,i=0,q=1}[ReservedThreadExecutor@7791a895{s=0/16,p=0}]=org.eclipse.jetty.util.thread:type=queuedthreadpool,id=0
+- org.eclipse.jetty.util.log.Log@4e1d422d
+= ErrorHandler@71423665{STARTED} - STARTED
|  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
+- java.util.concurrent.ConcurrentHashMap@0{size=0}
+- java.util.concurrent.ConcurrentHashMap@0{size=0}
+- java.util.concurrent.ConcurrentHashMap@0{size=0}
+= DefaultSessionIdManager@3f29e26{STARTED}[worker=node0] - STARTED
|  +~ org.eclipse.jetty.jmx.MBeanContainer@55d56113
|  += HouseKeeper@507d20bb{STARTED}[interval=600000, ownscheduler=false] - STARTED
+> startJarLoader@28c97a5
|  +> URLs size=16
|  |  +> file:/usr/sumo/glass-20.1-13709/lib/javax.servlet-api-3.1.0.jar
|  |  +> file:/usr/sumo/glass-20.1-13709/lib/jetty-continuation-9.4.16.v20190411.jar
|  |  +> file:/usr/sumo/glass-20.1-13709/lib/jetty-deploy-9.4.16.v20190411.jar
|  |  +> file:/usr/sumo/glass-20.1-13709/lib/jetty-http-9.4.16.v20190411.jar
|  |  +> file:/usr/sumo/glass-20.1-13709/lib/jetty-io-9.4.16.v20190411.jar
|  |  +> file:/usr/sumo/glass-20.1-13709/lib/jetty-jmx-9.4.16.v20190411.jar
|  |  +> file:/usr/sumo/glass-20.1-13709/lib/jetty-security-9.4.16.v20190411.jar
|  |  +> file:/usr/sumo/glass-20.1-13709/lib/jetty-server-9.4.16.v20190411.jar
|  |  +> file:/usr/sumo/glass-20.1-13709/lib/jetty-servlet-9.4.16.v20190411.jar
|  |  +> file:/usr/sumo/glass-20.1-13709/lib/jetty-servlets-9.4.16.v20190411.jar
|  |  +> file:/usr/sumo/glass-20.1-13709/lib/jetty-start.jar
|  |  +> file:/usr/sumo/glass-20.1-13709/lib/jetty-start-9.4.16.v20190411-shaded.jar
|  |  +> file:/usr/sumo/glass-20.1-13709/lib/jetty-util-9.4.16.v20190411.jar
|  |  +> file:/usr/sumo/glass-20.1-13709/lib/jetty-webapp-9.4.16.v20190411.jar
|  |  +> file:/usr/sumo/glass-20.1-13709/lib/jetty-xml-9.4.16.v20190411.jar
|  |  +> file:/usr/sumo/glass-20.1-13709/lib/slf4j-api-1.8.0-beta2.jar
|  +> sun.misc.Launcher$AppClassLoader@18b4aac2
|     +> URLs size=2
|     |  +> file:/usr/sumo/glass-20.1-13709/lib/jetty-start.jar
|     |  +> file:/usr/sumo/jmxetric-1.0.7-alpha7-refresh/jmxetric-1.0.7-alpha7-refresh.jar
|     +> sun.misc.Launcher$ExtClassLoader@2415fc55
|        +> URLs size=10
|           +> file:/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/ext/localedata.jar
|           +> file:/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/ext/jaccess.jar
|           +> file:/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/ext/cldrdata.jar
|           +> file:/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/ext/sunec.jar
|           +> file:/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/ext/sunjce_provider.jar
|           +> file:/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/ext/zipfs.jar
|           +> file:/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/ext/dnsns.jar
|           +> file:/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/ext/icedtea-sound.jar
|           +> file:/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/ext/sunpkcs11.jar
|           +> file:/usr/lib/jvm/java-8-openjdk-amd64/jre/lib/ext/nashorn.jar
+> AttributesMap@3391024
   +> java.util.concurrent.ConcurrentHashMap@5e521398{size=3}
      +@ org.eclipse.jetty.resources.cache=java.util.concurrent.ConcurrentHashMap@0{size=0}
      +@ org.eclipse.jetty.webFragments.cache=java.util.concurrent.ConcurrentHashMap@0{size=0}
      +@ org.eclipse.jetty.tlds.cache=java.util.concurrent.ConcurrentHashMap@0{size=0}
key: +- bean, += managed, +~ unmanaged, +? auto, +: iterable, +] array, +@ map, +> undefined
cddude229 picture cddude229 on 24 Apr 2019

I've experienced something similar starting today as well. 9.4.14 -> 9.4.16 upgrade, Java 8, Ubuntu 18.04. I'll try to get a Server.dump() shortly. Working on proving my theory below and will take it if my theory proves true. :)

As far as I can tell, the lockup (in my case) is caused when ReservedThreadExecutor.capacity > QueuedThreadPool.minThreads. When my service runs with capacity=8 and minThreads=10, it works correctly. But when I set capacity=16, then I notice any thread mentioning ReservedThread.run disappears from thread dumps over a short time. (We choose reserved capacity by using the heuristic, in case that's relevant.)

Nice work, we'll see if we can replicate on our end!
So far, various load testing setups we use have not triggered this issue.

After doing some diving into code changes, I believe it is one of the changes introduced by one of these commits (which is new in 9.4.16): a982422 1097354 5177abb 9cda1ce

We were are also looking closer at those same commits.
They've undergone multiple reviews, from different developers, without issue.
But the one that has a few of us going "hmmm" is 1097354611d9d71d87f290de8f240c0c89dfc4de

In particular, in 9.4.14 (and 9.4.15) we only shrink QTP compared to maxThreads, not compared to minThreads. This was changed in 1097354#diff-2572dae5bd06448110dfdfe5038ca01dL785. My gut tells me that minThreads is actually closer to the right logic, but I think it's producing incorrect behavior by removing reserved threads. Maybe it should be < minThreads + reservedThreads? (In my setup, maxThreads is 250, so it's unlikely to have ever stopped the threads before.)

Interesting observation, we'll dig into this with some fervor.

joakime picture joakime on 24 Apr 2019

Ok, a bit more info: My first "add more" attempt was actually NOT by changing jetty.xml config, but the same way we originally discovered it - differently sized clusters. When I switched from AWS's c3.2xlarge to c3.4xlarge it breaks. However, adjusting -1 to "16" in the config below does NOT break it, although it does appear to increase ReservedThreadExecutor.capacity to 16 still, so the change worked.

Config:

      <Set name="minThreads" type="int">
        <Property name="jetty.threadPool.minThreads" deprecated="threads.min" default="10"/>
      </Set>
      <Set name="maxThreads" type="int">
        <Property name="jetty.threadPool.maxThreads" deprecated="threads.max" default="250"/>
      </Set>
      <Set name="reservedThreads" type="int">
        <Property name="jetty.threadPool.reservedThreads" default="16"/>
      </Set>
      <Set name="idleTimeout" type="int">
        <Property name="jetty.threadPool.idleTimeout" deprecated="threads.timeout" default="30000"/>
      </Set>
      <Set name="detailedDump" type="boolean">
        <Property name="jetty.threadPool.detailedDump" default="false"/>
      </Set>
      <Set name="stopTimeout" type="long">30000</Set>
      <Set name="daemon" type="boolean">true</Set>

There's definitely continuous variation in the QTP idle threads, compared to before the change:

So that tells me they're coming and going (29:50 is about when I switched from -1 to 16.) We had to kill JUL logging because it doesn't play nice with log4j2 in our setup, so I can't get something exact there. I'll see if I can temporarily re-enable that.

cddude229 picture cddude229 on 24 Apr 2019

Additional experiments run + results (all on the "broken" instance type - c3.4xlarge)

  1. Set -1 to 8 (previous heuristic determined value) and saw it still break.
  2. Ran with all four commits (equiv of 9.4.15) I mentioned reverted and saw it work w/ -1.
  3. Ran with just 1097354611d9d71d87f290de8f240c0c89dfc4de. and a982422b407cb168e921662b48801c1f60100e69 reverted. Saw it break. This tells me the bug is in 5177abba6e736ba9155369731ee5acdb1282ec85 or 9cda1ce0923b3b4a6fd325db1dad88d34cdbad9e.
  4. Re-reverted 9cda1ce0923b3b4a6fd325db1dad88d34cdbad9e (so only 5177abba6e736ba9155369731ee5acdb1282ec85 is applied) and it worked.

So my conclusion says that my bug (which is similar to the original poster's and may or may not be the same) is attributed to 9cda1ce0923b3b4a6fd325db1dad88d34cdbad9e and not 1097354611d9d71d87f290de8f240c0c89dfc4de. So my theory about maxThreads appear wrong.

P.S. If my bug proves different from OP's, apologies for thread hijacking. It just seemed so similar that it felt right to include the info here.

cddude229 picture cddude229 on 24 Apr 2019

One thing I have noticed is that our changes have also broken the QueuedThreadPool dump. So while others are working on a reproduction of the issue, I've created branch jetty-9.4.x-3550-QueuedThreadPool-stalled and I will fix the dump, so we can have a better idea of what is going on.

gregw picture gregw on 24 Apr 2019

We believe that we have found the reason for the failure.

The QTP as modified in 9.4.16, allowed the number of idle threads to shrink to 0 if it does not violate minThreads requirement. When executing a new thread (or failing an existing thread), we need now need to check if a new thread should be started as there may not be an idle thread looking for queued tasks.

Can you please look at the branch referenced in PR #3586 and test that it fixes your problem, if so then we will get a new release out ASAP!

gregw picture gregw on 24 Apr 2019

Note that the number of reserved threads is not directly related to the issue, other than they can increase the number of threads that stay blocked long term.
For example, an idle server with minThreads=10, 4 accepting threads and 4 selecting threads will shrink to having 2 idle threads in a 10 thread pool.
An idle server with minThreads=10, 4 accepting threads, 4 selecting threads and 4 reserved threads will shrink to having 0 idle threads in a 12 thread pool.

The actual bug has existed for some time, but the behaviour of the running loop just avoided the circumstances, while the cleaned up running loop did not.

gregw picture gregw on 24 Apr 2019

Thanks, the fix looks very promising. We are facing the issue after longer idle times in our testing environment, which matches well. I will see that we can test your fix in our environment and get back to you as soon as possible.

e-hubert picture e-hubert on 24 Apr 2019

Just to be sure - building the branch associated with PR #3586 and only replacing the jetty-util jar should be fine for quick testing, or?

e-hubert picture e-hubert on 24 Apr 2019

@e-hubert that should be sufficient

gregw picture gregw on 24 Apr 2019

So far it looks like your fix is working fine in our environment. So far only servers which did not receive the updated jetty-util jar are stuck, the patched ones are still working fine. We will leave this mixed system deployment until tomorrow and report back to you. Do you already have plans regarding a release containing this rather critical bug fix?

e-hubert picture e-hubert on 24 Apr 2019

I can confirm that deploying https://github.com/eclipse/jetty.project/pull/3586 fixed my issues as well.

cddude229 picture cddude229 on 24 Apr 2019

@e-hubert @cddude229 thank you for testing this patch.
We are still reviewing the changes in the PR.

joakime picture joakime on 24 Apr 2019

Do you already have a rough schedule regarding the availability of a release containing this fix? It's just because we need to decide whether we will rollback to 9.4.15 for our next release or 9.4.18 will be ready early enough so we can update to that.
Meanwhile I build and deployed based on the branch of #3591 so we can also provide feedback regarding the latest improvements over this fix. Thanks, Eric

e-hubert picture e-hubert on 25 Apr 2019

@e-hubert we are attempting to get a release 9.4.18 out before the weekend.

joakime picture joakime on 25 Apr 2019

Many thanks for the speedy handling! This is just the perfect timing still allowing us to go for 9.4.18.

e-hubert picture e-hubert on 25 Apr 2019

Version 9.4.18.v20190429 is now available on maven central.

joakime picture joakime on 30 Apr 2019

I can confirm that the fix above fixed the issue I was seeing. Thanks everyone!

cddude229 picture cddude229 on 1 May 2019

A problem has been found in the 3550 cleanup, where a race in idle thread vs job queue size results in a thread not being started when one is needed.

gregw picture gregw on 24 May 2019

@gregw is this fixed? You reopened this and created PR #3694 which is now merged in commit 0c61ec3e4dcbb24e098ce8b515ff641909c1c6cc, which is available in release 9.4.19.v20190610

joakime picture joakime on 20 Jun 2019

I believe so.

gregw picture gregw on 21 Jun 2019
Was this page helpful?
0 / 5 - 0 ratings

Related issues

knaccc picture knaccc  路  3Comments
mymbrooks picture mymbrooks  路  8Comments
joakime picture joakime  路  8Comments
Auo picture Auo  路  4Comments
electrum picture electrum  路  5Comments
