Iotedge: IoT Edge service unable to start when using DPS provisioning

[gauravagarwal28]

I was previously unable to start IOT Edge service on windows. I was successful in doing so for manual provisioning thanks to the steps provided by @veyalla in #78

However, the service refuses to start when I configure it for dps provisioning. it shows the message:

PS C:\WINDOWS\system32> Start-Service iotedge
WARNING: Waiting for service 'iotedge (iotedge)' to start...
WARNING: Waiting for service 'iotedge (iotedge)' to start...
WARNING: Waiting for service 'iotedge (iotedge)' to start...
WARNING: Waiting for service 'iotedge (iotedge)' to start...
WARNING: Waiting for service 'iotedge (iotedge)' to start...
WARNING: Waiting for service 'iotedge (iotedge)' to start...

This is my config.yaml file:
config.txt

(I copied it to desktop and renamed it to config.txt so that it could be uploaded here)

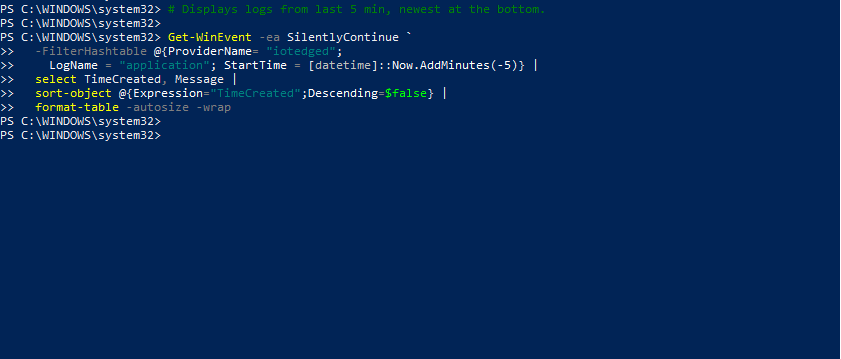

My Terminal:

I don't see any output from the logs (as was the case previously in #78 )

My registry:

I was following the instructions provided here:
https://docs.microsoft.com/en-us/azure/iot-edge/how-to-auto-provision-simulated-device-windows

[gauravagarwal28]

I am, however able to create a device when I execute registration script

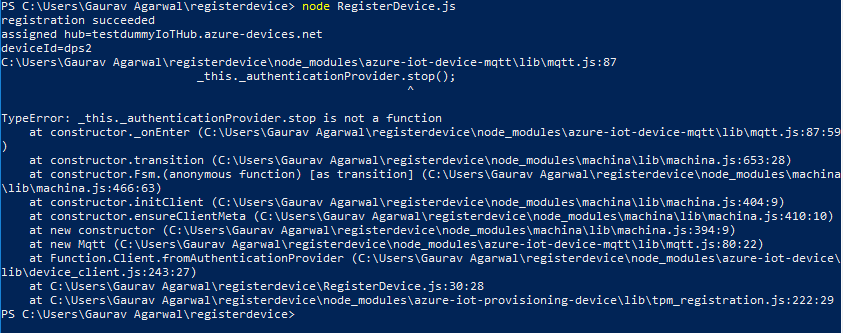

PS C:\Users\Gaurav Agarwal\registerdevice> node RegisterDevice.js

The device I have registered is visible on my portal as an Edge enabled device (configured it to be an Edge enabled device in the enrollment on the portal).

However, it is of no use if the edge service doesn't run with it.

[darobs]

Hello @gauravagarwal28

It might be nothing, but the first thing I see is that the "provisioning" section is indented by 1 space. YAML is very sensitive to whitespace, and that would be the first thing I would fix. The word "provisioning" should not have any white space in front of it.

If that's not the problem, we'll have to dig deeper.

Thank you,

[veyalla]

Hi @gauravagarwal28 - you can use the install script that worked for in https://github.com/Azure/iotedge/issues/78 for Dps as well.

1. Cleanup the current installation like before:

. { Invoke-WebRequest -useb aka.ms/iotedge-win} | Invoke-Expression; `
UnInstall-SecurityDaemon -v -Force

1. Use Dps mode with Linux containers (cmdlet will prompt for scope and registration id):

. { Invoke-WebRequest -useb aka.ms/iotedge-win} | Invoke-Expression; `
Install-SecurityDaemon -Dps

[gauravagarwal28]

@darobs You were right. It was the spaces in the YAML file that was causing the problem on my machine.

@veyalla I tried the steps provided by you and they worked seamlessly.

Thank you for the support 👍
