Ionic-framework: bug: Can't modify spacing of ion-item

[liquidcms]

Bug Report

Ionic version:
[x] 4.7.

Current behavior:

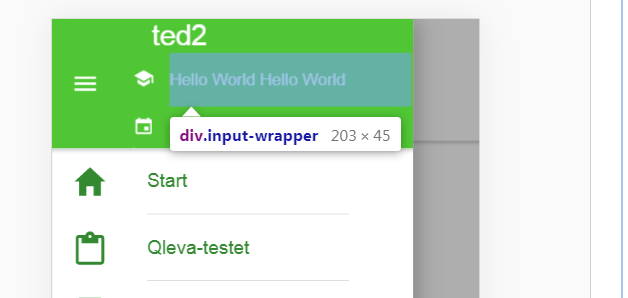

I am simply trying to reduce the spacing of the items in this ion-list:

Spent far too many hours reading tutorials on shadow dom and trying various variables. Nothing has worked (although i am able to make it bigger).

Google has returned numerous posts with people complaining about the same issue; with no solutions. After this much time i have to assume this is a bug.

And if not a bug.. certainly far too difficult to make this simple modification.

I can likely accomplish what i am trying to do by not using an ion-list and just using std html components; but it is so close and easy to get this close - it seems hard to believe it can't be tweaked a few pixels.

Expected behavior:
the same list with slightly smaller spacing

Steps to reproduce:

Related code:
```

{{name}}

      <ion-item color="secondary" class="ion-no-padding" *ngIf="school">
        <ion-label style="font-size: 14px" text-wrap innerHTML={{school}}></ion-label>
        <ion-icon size="small" name="school" slot="start"></ion-icon>
      </ion-item>
      <ion-item color="secondary" class="ion-no-padding"*ngIf="year">
        <ion-label style="font-size: 14px" >{{year}}</ion-label>
        <ion-icon size="small" name="calendar" slot="start"></ion-icon>
      </ion-item>

    </ion-list>

**Ionic info:**
<!-- (run `ionic info` from a terminal/cmd prompt and paste output below): -->

Ionic:

Ionic CLI : 5.2.5 (C:\Users\Peter\AppData\Roaming\npmnode_modules\ionic)
Ionic Framework : @ionic/angular 4.7.4
@angular-devkit/build-angular : 0.13.9
@angular-devkit/schematics : 7.3.9
@angular/cli : 7.3.9
@ionic/angular-toolkit : 1.5.1

Capacitor:

Capacitor CLI : 1.0.0-beta.24
@capacitor/core : 1.0.0-beta.24

Cordova:

Cordova CLI : 9.0.0 ([email protected])
Cordova Platforms : android 8.0.0
Cordova Plugins : cordova-plugin-ionic-keyboard 2.1.3, cordova-plugin-ionic-webview 4.0.1, (and 8 other plugins)

Utility:

cordova-res : 0.3.0
native-run : 0.2.8

System:

Android SDK Tools : 26.1.1 (C:android-sdk)
NodeJS : v10.13.0 (D:\Program Filesnodejsnode.exe)
npm : 6.11.3
OS : Windows 7

```

[sean118]

You probably have a few options here.

You might want to remove the _min-height_ on the ion-items by setting the css variable: ion-item { --min-height: 0; }.

But it might also just be enough to manually pull up the lower item with a negative top margin, eg. give the lower item a class “year” and pull it up via: ion-item.year { margin-top: -5px; }.

Then theres also margins on the ion-labels, which you can also remove: ion-label {margin: 0; }.

[liamdebeasi]

Thanks for the issue. These components are designed to match the iOS/MD spec by default so it's likely you will need to customize some of the margin/padding yourself. You should be able to adjust the margins on ion-label and possibly the padding on ion-icon.

Can you try that and let me know if it resolves your issue?

[liquidcms]

ion-label {margin: 0; } - no impact
ion-item {
margin-top: -5px; - no impact
min-height: 0; - no impact
}

but yes, ion-item {--min-height: 0;} has a small impact in that it changes the overall line height from 48 to 45px

[liamdebeasi]

I made a CodePen to show what I mean: https://codepen.io/liamdebeasi/pen/gOOgbyO

The top list has the customizations, the bottom list does not.

[liquidcms]

with your code cut/paste.. same result:

to be clear:

• pasted your entire css into global.scss
• took your top ion-list and replaced mine with it (left in the H1 ion-item)

You can see outer wrapping here: https://codepen.io/peter-lindstrom/pen/mddRVjg

[liamdebeasi]

Can you provide a full repo with the code required to reproduce this issue?

[liquidcms]

i'll put one together.

[brandyscarney]

Each element has its own styling. Item has two main elements that have padding left/right by default: ion-item and the inner item div. Those can be styled using the following custom properties:

--padding-top, --padding-end, --padding-bottom, --padding-start
--inner-padding-top, --inner-padding-end, --inner-padding-bottom, --inner-padding-start

Item custom properties docs

In addition to the padding the item sets a min-height. The following CSS should remove all existing padding/min-height:

ion-item {
  --padding-start: 0;
  --padding-end: 0;

  --inner-padding-start: 0;
  --inner-padding-end: 0;

  --min-height: 0;
}

Inside of the item each component will be styled differently in order to match the spec. Since you are using an ion-icon it has margin-top/margin-bottom on it, and the ion-label does as well. The following will remove all margin from those elements:

ion-item ion-label,
ion-item ion-icon {
  margin: 0;
}

Here's an example Codepen: https://codepen.io/brandyscarney/pen/rNNjewr?editors=0110

[liquidcms]

Hi Brandy, thanks as always.. that does the (painful) trick. Your suggestion reduces overall line height to 33px (from 48) - which is the size of the icon.

i'll need to tweak a little to center icon with text and prevent text from getting clipped - but this has fixed my issue.

Thank you and sorry for reporting this as a bug.

And thanks Liam for looking at this. I had most of a demo repo put together when Brandy posted.

[brandyscarney]

@liquidcms Glad that works! Item is a complex component because of all of the different scenarios it handles out of the box: avatars, thumbnails, icons, buttons, notes, inputs with floating/stacked/fixed labels, different width divider lines, multiple line items. These are all styled very specifically to match the spec for each device, for example, Material Design: https://material.io/components/lists/.

In most cases, if you need to fully customize an item and don't want it to look like native or handle the above scenarios, you should be able to use a combination of our grid or divs and CSS to accomplish what you need. Here's an example using our grid and removing all of the default padding: https://codepen.io/brandyscarney/pen/rNNjewr?editors=1100

Hope this helps! 🙂
