Ionic-framework: tabbarPlacement: 'top' not working in Ionic v4

[Manivannandurairaj]

Hello Team,

I am using ionic v4-beta13 version. In this last beta ionic tabbarPlacement:'top' not working in IonicConfig. Here I have attached the details.

Ionic version: (check one with "x")
[ ] 4.x

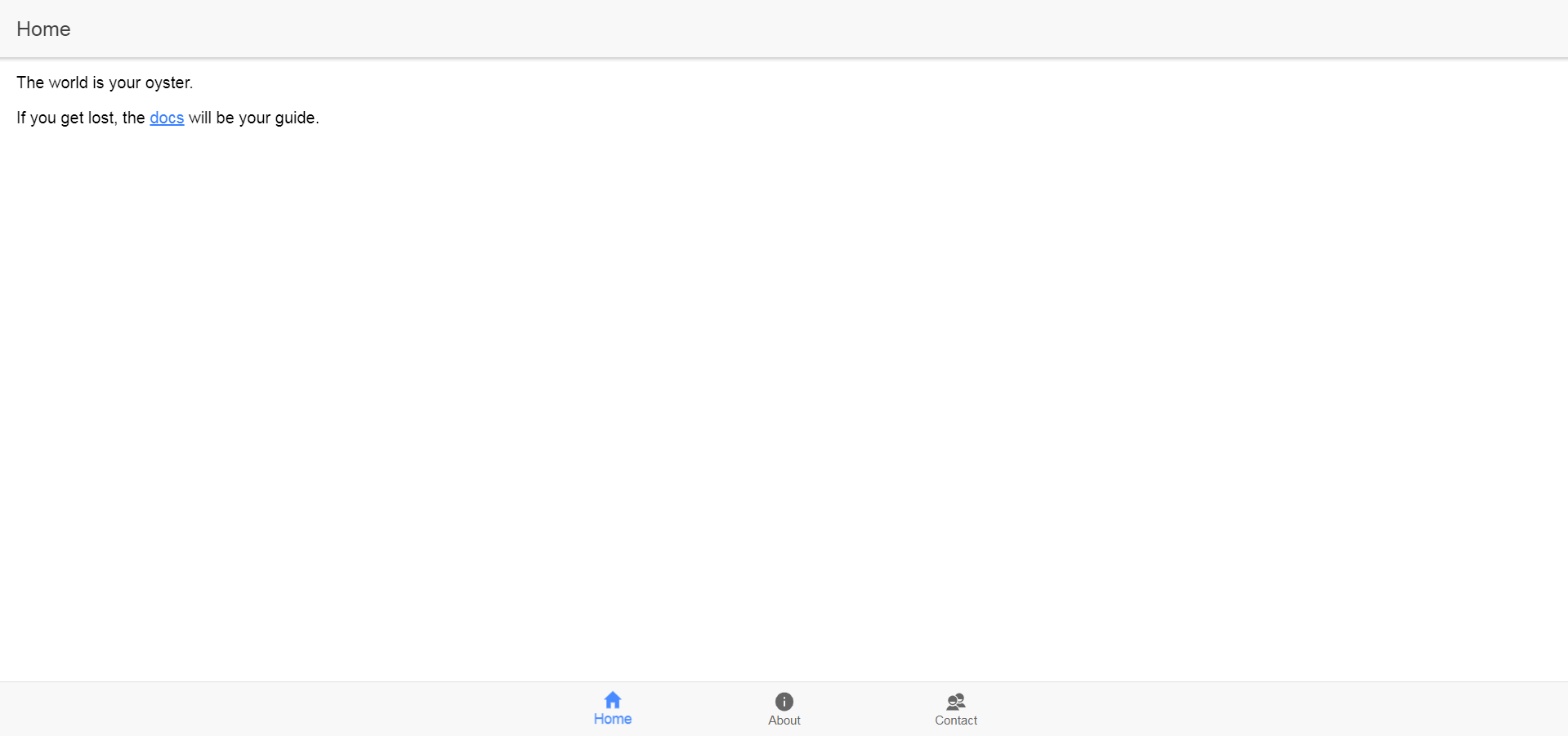

Current behavior:

Expected behavior:

The tabbarPlacement should be positioned in TOP

Steps to reproduce:

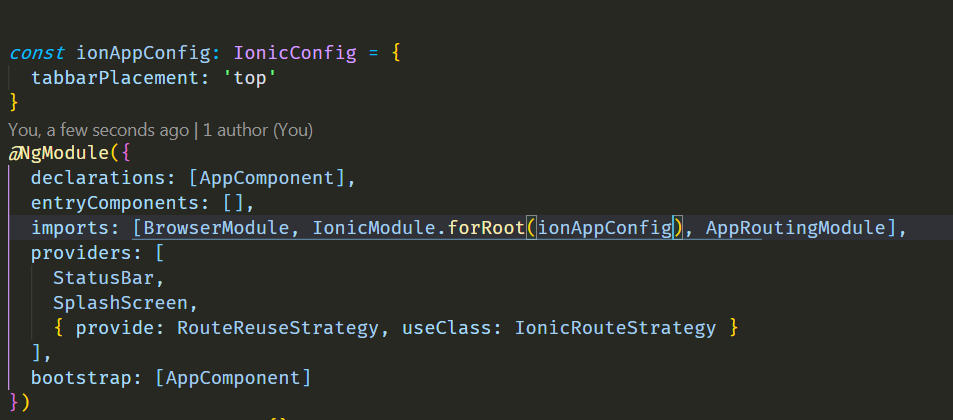

Here am declare IonicConfig in app.module.ts. I am attached with my code for more details.

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { RouteReuseStrategy } from '@angular/router';

import { IonicModule, IonicRouteStrategy } from '@ionic/angular';
import { SplashScreen } from '@ionic-native/splash-screen/ngx';
import { StatusBar } from '@ionic-native/status-bar/ngx';

import { AppRoutingModule } from './app-routing.module';
import { AppComponent } from './app.component';
import { IonicConfig } from '../../node_modules/@ionic/core';


const ionAppConfig: IonicConfig = {
  tabbarPlacement: 'top'
}
@NgModule({
  declarations: [AppComponent],
  entryComponents: [],
  imports: [BrowserModule, IonicModule.forRoot(ionAppConfig), AppRoutingModule],
  providers: [
    StatusBar,
    SplashScreen,
    { provide: RouteReuseStrategy, useClass: IonicRouteStrategy }
  ],
  bootstrap: [AppComponent]
})
export class AppModule {}

Related code:

insert short code snippets here

[VectraSA]

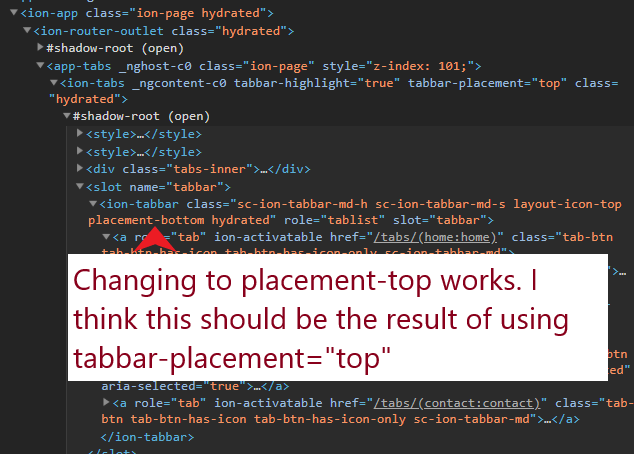

experiencing same issue - The tabbarHighlight property doesn't work either.
<ion-tabs tabbar-placement="top" tabbar-highlight="true">

[Tochukwuibe]

Same issue here, plus adding a color to the ion-tabs isn't working either

[OAnouman]

Same issue as @Tochukwuibe

[yuricamara]

Same issue here with "@ionic/angular": "4.0.0-beta.13" and <ion-tabs tabbar-placement="top" tabbar-highlight="true">

[yuricamara]

[yuricamara]

A workaround, until the problem is not solved:

export class TabsPage implements AfterViewChecked {
  ngAfterViewChecked() {
    const ionTabsEl = document.querySelector('ion-tabs');
    const ionTabbarEl = ionTabsEl.shadowRoot.querySelector('ion-tabbar');

    if(ionTabbarEl){
      ionTabbarEl.placement = 'top';
    }
  }
}

[chrisgriffith]

Heard there is some refactoring occurring with the tabs for Vue and React compatibility. Suspect that might have caused this to break. Did this work in earlier betas?

[Tochukwuibe]

@FdezRomero actually it worked fine in every beta and just broke in 4.0.0.beta13. At least for me anyways.

[FdezRomero]

Sorry! I meant alpha.7 🙏😅 Here is the original issue I opened at the time, albeit not exactly the same: https://github.com/ionic-team/ionic/issues/14610

[manucorporat]

We have take the decition to make ion-tab-bar a "bottom" only component, since it models the tabs of iOS (bottom only) and the Bottom Bar navigation of material design.

There are important technical limitations that makes it impossible to project the tab-bar behind the tab's toolbar.

However, we are investing to make ion-segment more powerful and integrate better with navigation, so developers could implement a top navigation like MD. Stay tuned! Thanks!

[ionitron-bot[bot]]

Thanks for the issue! This issue is being locked to prevent comments that are not relevant to the original issue. If this is still an issue with the latest version of Ionic, please create a new issue and ensure the template is fully filled out.
