Ionic-framework: [Ionic 4] Missing Methods on ion-content

[ganySA]

Ionic 4

It seems that there are many missing methods on ion-content compared to previous versions - are these work in progress or has approach changed?

e.g
getContentDimensions() is missing.

Is there a new ionic 4 way of getting the dimensions?

[manucorporat]

why do you need getContentDimensions()? in ionic 4 ion-content has been simplied and now the layout uses flex.

[ptitjes]

@manucorporat I also need getContentDimensions() to tie the dimensions of a descendant fixed component. How should we proceed in Ionic 4 ?

[manucorporat]

contentEl.offsetHeight
contentEl.offsetWidth

?
You can use slot="fixed" to place element that does not scroll with content

[ptitjes]

@manucorporat But then how to access the native element of a ionic component ? (There is no Ion base class anymore...)

[ptitjes]

@manucorporat Maybe I did not phrase my question correctly. So let me try again.

In v3, I was using content.getContentDimensions().contentHeight in order to compute the available height and tie some other elements on this height.

Now content.getScrollElement().clientHeight seems to be what I need but it does return undefined every time (and content.getScrollElement().scrollHeight returns NaN).

What am I supposed to use ? Thanks in advance for your help.

[enzonotario]

Hi! I'm also having the same issue.

If I do a console.debug of content.getScrollElement() I get:

ZoneAwarePromise {__zone_symbol__state: null, __zone_symbol__value: Array(0)}
__zone_symbol__state: true
__zone_symbol__value: div.inner-scroll.scroll-y
__proto__: Object

If I use:

this.content.getScrollElement().then((element: HTMLElement) => {
  // element...
});

It "works", but until I run ionic serve again (and thus the compiler run, and throws an error since HTMLElement is not a promise).

Anyone knows how to access to the equivalent nativeElement ?

Thanks!

[ptitjes]

Yep, observed the same as @enzonotario.

[enzonotario]

@ptitjes I'm following this tutorial: https://www.joshmorony.com/creating-a-custom-scroll-vanish-directive-with-ionic-web-components/ and, with some modifications, it works:

home.page.html

<ion-content #scrollArea> </ion-content>

home.page.ts

import {Component, OnInit, ViewChild} from '@angular/core';
import {Content} from "@ionic/angular";

@Component({
  selector: 'app-home',
  templateUrl: './home.page.html',
  styleUrls: ['./home.page.scss'],
})
export class HomePage implements OnInit {
  @ViewChild('scrollArea') content: Content;

  constructor() { }

  ngOnInit() {
    console.debug('content', this.content);

    let mutationObserver = new MutationObserver(() => {
      let scrollElement = this.content.nativeElement.getScrollElement();

      console.debug('scrollElement', scrollElement);
    });

    mutationObserver.observe(this.content.nativeElement.shadowRoot, {
      childList: true
    });
  }
}

@ganySA in that way, you can use scrollElement.clientHeight and such attributes...

[ptitjes]

@enzonotario Well using that, tsc says:

ERROR in src/app/toolkit/components/scroll-to-top.component.ts(76,43): error TS2339: Property 'nativeElement' does not exist on type 'Content'.

And my browser says:

ERROR TypeError: Cannot read property 'shadowRoot' of undefined

[ptitjes]

@manucorporat Any chance to have this issue and https://github.com/ionic-team/ionic/issues/15160 fixed for the next beta ?

[Chethannp]

+1

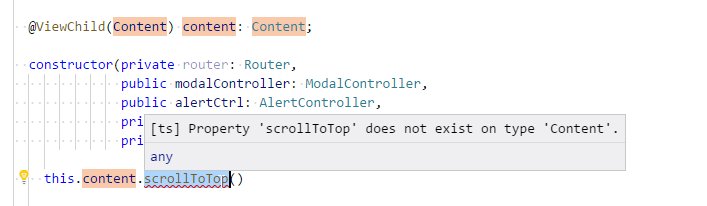

Also this.content.ScrollToTop() method is not present in the latest Ionic 4, Not sure on how to make the page scrollToTop or scrollToBottom :(

[ptitjes]

@Chethannp, yes it is present since beta.3. Note that it is spelled scrollToTop with a small 's'.

[Chethannp]

@ptitjes

I think mine is still in beta.2 how do I upgrade it as npm install -g ionic is not moving it to beta.3 :(

ionic (Ionic CLI) : 4.1.0 (C:\Users\Chethan\AppData\Roaming\npmnode_modules\ionic)
Ionic Framework : @ionic/angular 4.0.0-beta.2
@angular-devkit/core : 0.7.3
@angular-devkit/schematics : 0.7.3
@angular/cli : 6.1.3
@ionic/ng-toolkit : 1.0.6
@ionic/schematics-angular : 1.0.5

[ptitjes]

@Chethannp, I did manually update the package.json file.

[peterpeterparker]

@Chethannp also the viewchild might not be correct

@ViewChild(Content, { read: Content }) private content: Content;

[Chethannp]

Issue 1:
Hey @peterpeterparker -

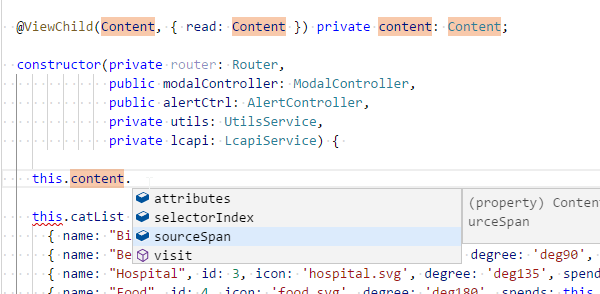

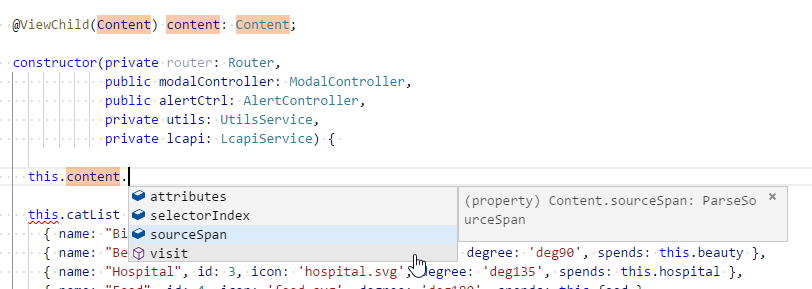

Its still the same, I am not getting any options relating to scroll.

and I am getting the below error for including Content in the imports.

ERROR Error: Uncaught (in promise): Error: Cannot find module 'tslib'
Error: Cannot find module 'tslib'

Issue 2:
Also any idea on how to access ion-scroll via shadow Dom? My App has drag and drop elements. So when the user starts dragging an item I want to disable or hide the overflow on the scroll content, The earlier version (Ionic 3) I was just adding a dynamic class to ion-content and then write a CSS like
ion-content.no-scroll .scroll-content{overflow:hidden;} but with this latest approach scroll-content is not there and ion-scroll inside shadow DOM not sure on how to catch hold of this :(

Fyi:

[peterpeterparker]

ion-scroll themselves don't exist anymore in beta.3 because they could be replaced with divs

[Chethannp]

Oh then? sorry I mean inner-scroll which is inside shadow-root.

[peterpeterparker]

1. for scrollToTop the above solution should work
2. for custom code, I guess update your custom code according the dom elements ;)

[ptitjes]

@manucorporat, @enzonotario I did dig the code a little. The implementation of the Angular proxy for getScrollElement() does indeed return a promise for an HTMLElement. (See https://github.com/ionic-team/ionic/blob/master/angular/src/directives/proxies.ts#L17-L29)

I did a PR (#15250) to change the signature of the getScrollElement() method in the core web component so that it returns a Promise, as are all Stencil @Method-annotated component methods.

With that PR, you would have to do

let scrollElement = await this.content.getScrollElement();

or depending on you tastes

this.content.getScrollElement().then(scrollElement => {
  // ...
});

I tested it inside the ionic/angular/test/testapp, and it works very well.

[manucorporat]

@ViewChild(Content, { read: Content }) private content: Content;

const scrollElement = await this.content.getScrollElement();

should work.

@ptitjes i don't understand what fixes that PR, can you try the code adobe without your fix? it should just work.

All methods in angular now return a promise.

[ptitjes]

@manucorporat Absolutely, using await works. But as the signature in the interface doesn't return a Promise<HTMLElement> but a HTMLElement, a decent IDE (or ngc) will not accept that you use then() on it. And completion is not good either...

[ptitjes]

@manucorporat To be more precise, the Content interface (from @ionic/angular) extends the StencilComponents.IonContent interface (from @ionic/core) which itself defines the getScrollElement() method as:

'getScrollElement': () => HTMLElement;

Finally, the backing implementation in content.tsx defines the method as:

@Method() getScrollElement(): HTMLElement { }

My pull request makes those definitions to return a Promise<HTMLElement> instead, which is what proxyMethod(...) (generated by Stencil) seems to expect.

[daem0ndev]

Until the API return type is fixed, here's what I did to work around the compile error: (this.content.getScrollElement() as any).then(el => this.scrollElement = el);

I'm using a view child for referencing this.content and then in my ngAfterViewInit() I am using this code to get a reference to the scroll element. This way I can use the scrollElement's scrollTop position in my scrollHandlers, I found no other way since the $event passed in the (ionScroll) handler does not have the scrollTop position anymore (its always set to 0 because the ion-content itself does not have a scrollTop, but instead the scroll element which is inside the shadow dom of ion-content is what has the scrollTop.

[ptitjes]

@daem0ndev Both the signature of getScrollElement() and the event details' scrollTop/scrollLeft are fixed in beta.5.

[ptitjes]

@ganySA, @manucorporat I think this issue can be closed.

[olivier-po]

Can you confirm that this actually works now in beta11 ?
I can't get my content attribute

@ViewChild(Content, { read: Content }) private content: Content;
const scrollElement = await this.content.getScrollElement(); // this.content is undefined

[ptitjes]

@olivier-po Your problem comes from your ViewChild() expression. It has to be defined in the component that contains the ion-content tag. Please read about ViewChild in the Angular documentation.

[peterpeterparker]

@olivier-po { read: Content } used to be needed for a ViewChild for one or two early betas but since a couple of releases it shouldn't be use anymore, try

@ViewChild(Content) private content: Content;

[ptitjes]

@peterpeterparker Out of curiosity, can you please tell me why the { read: Content } was necessary and since what change in Ionic it is now useless ? I am under the impression, that it was working without it for me before...

[peterpeterparker]

@ptitjes see following https://github.com/ionic-team/ionic/issues/15046

according the comments in that issue read was needed but after an update in Stencil which was then included in Ionic a month ago this isn't needed anymore

[ptitjes]

@peterpeterparker Thanks !

[brandyscarney]

I'm going to close this as from the comments the original issue seems to be resolved, please let me know if this is incorrect. Thanks!
