Incubator-superset: Dashboard not scroll up when user moving chart

[zuzana-vej]

Dashboard not scroll up when user moving chart, or adding a new chart at the bottom of long dashboard.

Expected results

Be able to scroll so that chart can go to the place user wants.

Actual results

Doesn't scroll.

How to reproduce the bug

1. open a large dashboard and start Edit mode
2. move chart from the bottom of page to dashboard top area
3. See dashbaord doesn't scroll

Environment

(please complete the following information):

• superset version: master

Screenshots

Checklist

Make sure to follow these steps before submitting your issue - thank you!

• [x] I have checked the superset logs for python stacktraces and included it here as text if there are any.
• [x] I have reproduced the issue with at least the latest released version of superset.
• [x] I have checked the issue tracker for the same issue and I haven't found one similar.

Additional context

This is regression - it was previously possible to scroll.

[junlincc]

@zuzana-vej is there a gif?

[zuzana-vej]

Added one into the description. There is also another weird thing when grabbing a single chart also grabs the chart next to it and section of the charts on the side. Attaching gif here. (note - there was no space on the dashboard so it didn't get moved, which is expected; but grabbing the whole section not just the chart is not expected)

[junlincc]

@zuzana-vej thanks for reporting both with gif! i consider both are pretty bad ux issues. and we should prioritize them.

@kkucharc Kasia, since you are already familiar with this area, do you mind taking it on? maybe in between of your back end tasks? lmk, thanks!

[kkucharc]

Sure @junlincc - I will take a look

[kkucharc]

Added one into the description. There is also another weird thing when grabbing a single chart also grabs the chart next to it and section of the charts on the side. Attaching gif here. (note - there was no space on the dashboard so it didn't get moved, which is expected; but grabbing the whole section not just the chart is not expected)

@zuzana-vej does it still happen? I have troubles to reproduce it. Maybe you could share some details about browser? Or maybe it was happening on some specific order of charts? Or those charts are in the tab?

[zuzana-vej]

Latest version of Chrome. Single tab dashboard. @graceguo-supercat reported this as well.

[junlincc]

the first issue can be easily reproduced, the second one. no luck i tried really hard.

.. hm, @kkucharc is on the first one, the PR should come soon, is alright we open a different issue next week if we still sees it? @graceguo-supercat @zuzana-vej 🙏

[zuzana-vej]

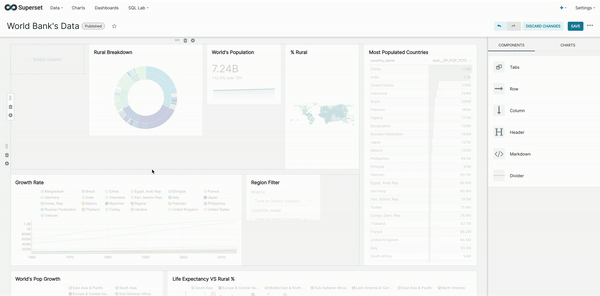

Yes I just reproduced the 1st issue as well. Couldn't repro the 2nd one today either (so I think we should just close off this bug once the 1st issue is fixed). The layout of my dashboard is here in a screenshot. It has 3 rows, and the top row still has space for another chart. I am trying to move the bottom chart to the top and it won't move.

[kkucharc]

I found 2nd issue. It happens when a chart has horizontal scroll (some svg inside are wider than chart box), I'm currently looking for solution.

[kkucharc]

I had to move to another issue due to some priority change. To sum up what I managed to discover:

1. General issue: the scroll area is hidden under the dashboard's header (z-index and position=relative of the header disables scroll). The best thing here would be to somehow move detecting scroll to top level, but I am not sure if it's possible. The other option is to use dnd component and detect that we are hovering header and then scroll top on hover.

2. Second issue: some charts and tables have scroll when the window is too narrow. When we drag an element, the preview of dragged element is as wide as table/chart inside this element. After my debugging nothing seemed helping: width: 100% or overflow: hidden for divs, svg, table. What I may suggest is to disable scroll while editing or pass width as HTML attribute directly to svg or table.
