Incubator-superset: Jinja macro url_params is not working from the dashboard

[rsdpyenugula]

URL filters are not working as expected. I created a query with the URL parameter and created a chart out of it. The chart won't work by itself unless the user explicitly passes the URL filter to the chart. Generated a chart view with by proving the URL parameter to the chart and saved it to a new dashboard. Now I am passing the URL parameter to the dashboard and it is not working. It will refresh and display the cache irrespective of the filter value

[rsdpyenugula]

@kristw please find the step to reproduce it and let me know if you need more information

Susperset Version Info
Superset 0.28.1
Flask 0.12.4
Python 3.6.6 |Anaconda, Inc.| (default, Jun 28 2018, 11:07:29)
[GCC 4.2.1 Compatible Clang 4.0.1 (tags/RELEASE_401/final)]

Steps

1. Create a query with the URL filter

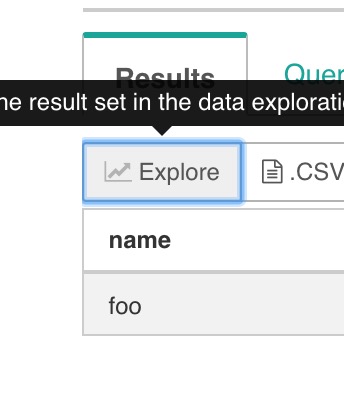

1. Explore it


The explore will throw an error by default

1. Pass the filter to the URL and run the chart

It will work fine

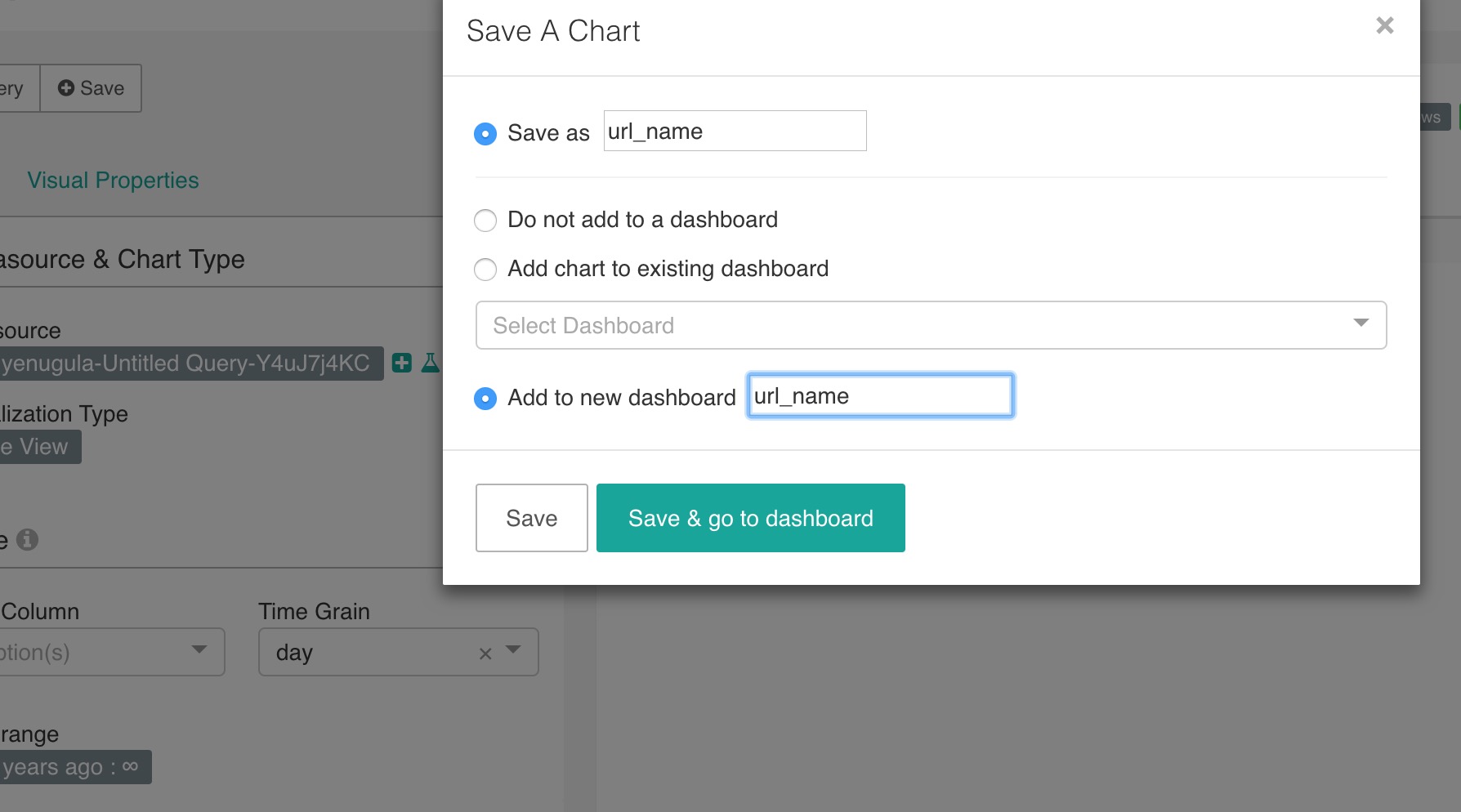

1. Now save the chart and add it to a dashboard

1. Now let's try to pass different values to the dashboard

   i. Value as Superset


   The Dashboard failed to run the chart with the value as "superset" and it still shows the previously cached value

   ii. Let's do it one more time with the value as "test"

Still, the same thing. It failed to run the dashboard with the URL parameters.

Console log
2019-01-17 13:30:03,496:DEBUG:root:[stats_logger] (incr) dashboard
2019-01-17 13:30:03,515:INFO:root:Database.get_sqla_engine(). Masked URL: sqlite:////Users/ravi/.superset/superset.db
2019-01-17 13:30:03,563:INFO:werkzeug:127.0.0.1 - - [17/Jan/2019 13:30:03] "GET /superset/dashboard/10/?name=test HTTP/1.1" 200 -
2019-01-17 13:30:04,195:INFO:werkzeug:127.0.0.1 - - [17/Jan/2019 13:30:04] "GET /superset/csrf_token/ HTTP/1.1" 200 -
2019-01-17 13:30:04,224:INFO:werkzeug:127.0.0.1 - - [17/Jan/2019 13:30:04] "GET /csstemplateasyncmodelview/api/read HTTP/1.1" 200 -
2019-01-17 13:30:04,276:INFO:werkzeug:127.0.0.1 - - [17/Jan/2019 13:30:04] "GET /superset/favstar/Dashboard/10/count/ HTTP/1.1" 200 -
2019-01-17 13:30:04,613:DEBUG:root:[stats_logger] (incr) explore_json

2019-01-17 13:30:04,652:INFO:root:Cache key: 0da9ec696f2af366a051fe0914aaa257
2019-01-17 13:30:04,656:INFO:root:Database.get_sqla_engine(). Masked URL: sqlite:////Users/ravi/.superset/superset.db
2019-01-17 13:30:04,657:INFO:root:SELECT name AS name
FROM (Select  'foo' as name) AS expr_qry
 LIMIT 1000 OFFSET 0

2019-01-17 13:30:04,664:DEBUG:root:[stats_logger] (incr) loaded_from_source
2019-01-17 13:30:04,670:INFO:werkzeug:127.0.0.1 - - [17/Jan/2019 13:30:04] "POST /superset/explore_json/?form_data=%7B%22slice_id%22%3A159%7D HTTP/1.1" 200 -
2019-01-17 13:30:04,698:DEBUG:root:[stats_logger] (incr) log
2019-01-17 13:30:04,701:INFO:werkzeug:127.0.0.1 - - [17/Jan/2019 13:30:04] "POST /superset/log/?dashboard_id=10 HTTP/1.1" 200 -

[rsdpyenugula]

@kristw bump

[stale[bot]]

This issue has been automatically marked as stale because it has not had recent activity. It will be closed if no further activity occurs. Thank you for your contributions.

[rsdpyenugula]

bump

[stale[bot]]

This issue has been automatically marked as stale because it has not had recent activity. It will be closed if no further activity occurs. Thank you for your contributions. For admin, please label this issue .pinned to prevent stale bot from closing the issue.

[jimhorng]

bump

[ZSMJ2014]

bump

[rsdpyenugula]

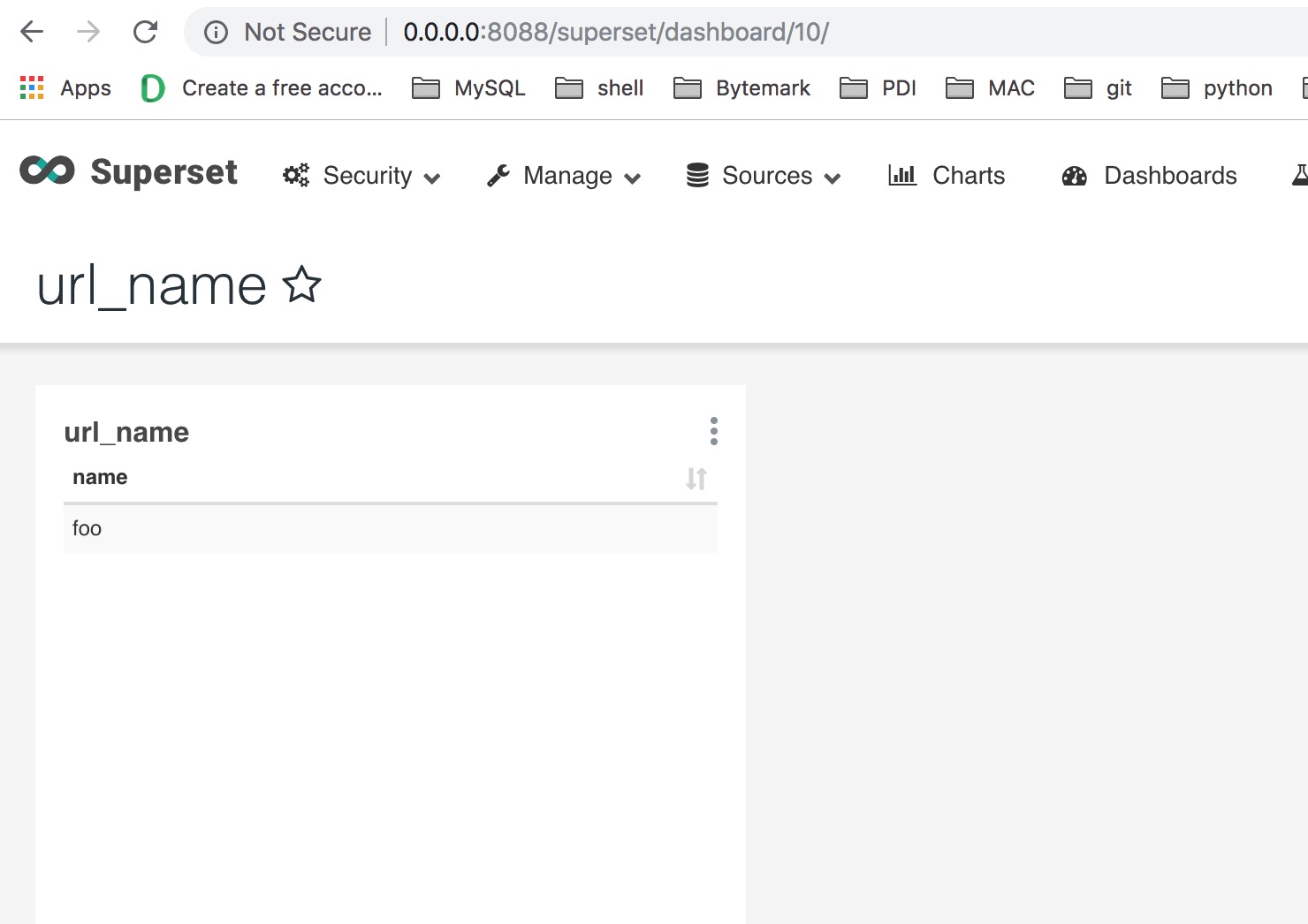

Hi, this ticket was created long back not sure in the current version it's fixed or not. I provided the screenshot of the issue please refer it. You can see the URL parameter was not injected into the dashboard.

[rsdpyenugula]

@kristw please find the step to reproduce it and let me know if you need more information

Susperset Version Info
Superset 0.28.1
Flask 0.12.4
Python 3.6.6 |Anaconda, Inc.| (default, Jun 28 2018, 11:07:29)
[GCC 4.2.1 Compatible Clang 4.0.1 (tags/RELEASE_401/final)]

Steps

1. Create a query with the URL filter

1. Explore it


The explore will throw an error by default

1. Pass the filter to the URL and run the chart

It will work fine

1. Now save the chart and add it to a dashboard

1. Now let's try to pass different values to the dashboard
   i. Value as Superset

   The Dashboard failed to run the chart with the value as "superset" and it still shows the previously cached value

ii. Let's do it one more time with the value as "test"

Still, the same thing. It failed to run the dashboard with the URL parameters.

Console log
2019-01-17 13:30:03,496:DEBUG:root:[stats_logger] (incr) dashboard
2019-01-17 13:30:03,515:INFO:root:Database.get_sqla_engine(). Masked URL: sqlite:////Users/ravi/.superset/superset.db
2019-01-17 13:30:03,563:INFO:werkzeug:127.0.0.1 - - [17/Jan/2019 13:30:03] "GET /superset/dashboard/10/?name=test HTTP/1.1" 200 -
2019-01-17 13:30:04,195:INFO:werkzeug:127.0.0.1 - - [17/Jan/2019 13:30:04] "GET /superset/csrf_token/ HTTP/1.1" 200 -
2019-01-17 13:30:04,224:INFO:werkzeug:127.0.0.1 - - [17/Jan/2019 13:30:04] "GET /csstemplateasyncmodelview/api/read HTTP/1.1" 200 -
2019-01-17 13:30:04,276:INFO:werkzeug:127.0.0.1 - - [17/Jan/2019 13:30:04] "GET /superset/favstar/Dashboard/10/count/ HTTP/1.1" 200 -
2019-01-17 13:30:04,613:DEBUG:root:[stats_logger] (incr) explore_json

2019-01-17 13:30:04,652:INFO:root:Cache key: 0da9ec696f2af366a051fe0914aaa257
2019-01-17 13:30:04,656:INFO:root:Database.get_sqla_engine(). Masked URL: sqlite:////Users/ravi/.superset/superset.db
2019-01-17 13:30:04,657:INFO:root:SELECT name AS name
FROM (Select  'foo' as name) AS expr_qry
 LIMIT 1000 OFFSET 0

2019-01-17 13:30:04,664:DEBUG:root:[stats_logger] (incr) loaded_from_source
2019-01-17 13:30:04,670:INFO:werkzeug:127.0.0.1 - - [17/Jan/2019 13:30:04] "POST /superset/explore_json/?form_data=%7B%22slice_id%22%3A159%7D HTTP/1.1" 200 -
2019-01-17 13:30:04,698:DEBUG:root:[stats_logger] (incr) log
2019-01-17 13:30:04,701:INFO:werkzeug:127.0.0.1 - - [17/Jan/2019 13:30:04] "POST /superset/log/?dashboard_id=10 HTTP/1.1" 200 -

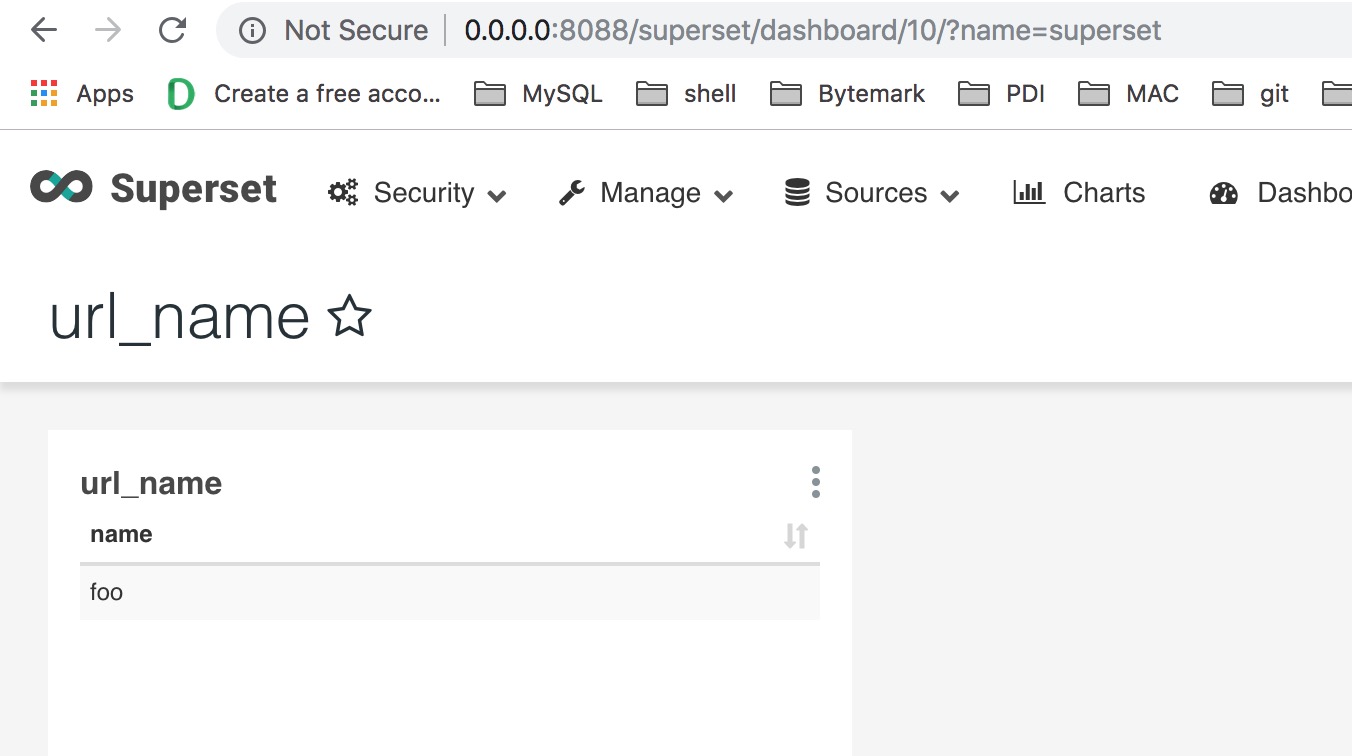

Please the see the url parameter in the scrrenshot and the value in the dashbaord

[villebro]

I assume you're using redis? Please put cache_key_wrapper(url_param("foo")) where you currently have url_param("foo") to make sure the cache includes the param in the cache key. Docs:

https://superset.apache.org/sqllab.html#superset.jinja_context.CacheKeyWrapper.cache_key_wrapper

[bkudria]

@villebro I'm running into the same issue. I've tried your fix and it's insufficient. I can get it working in the explore view, but it changes the ... chart? Slice? Not sure what the correct terminology is. Clicking the yellow 'Altered' bubble shows it altering the URL Parameters property. (The new URL does not include the parameter I added at the top level, but puts it in the URL-encoded form_data parameter.

This does not work on a dashboard view. Saving the chart alters the dashboard, and fixes it to that one value I provide in the explore view. My desired result is a URL-parameterized dashboard I can embed via iframe, that displays different data for different (non-superset) users, on-demand.

Any help with this issue would be greatly appreciated!

cc: @graceguo-supercat @mistercrunch

[villebro]

Thanks for trying out the proposed fix @bkudria , I will try to replicate the problem during the weekend.

[villebro]

I can confirm that this is not working properly. Crafting a fix will take some planning, as I believe some things need to be refactored at the same time. Will try to work out a fix proposal for this in the coming weeks.

[senturkayhan]

I solved this issue that I added this code to def dashboard (**kwargs ) in core.py
I used what i need parameters name in this code, you should change with your needs

if request.args.get('foo'):
slice_count = 0
for sss in dash.slices:
dashboard_data['slices'][slice_count]['form_data']['url_params'] = {'foo':request.args.get('foo')}
slice_count += 1

[rsdpyenugula]

@senturkayhan , As you are working on this I would suggest doing with security. This is the thing I would recommend to be implemented

Safe parameters
Developed/admin has the ability to set the dashboard parameter to a constant value for a user in that way the end-user won't have the ability to pass a different value to the dashboard.

My Idea of implications would be
1) An option for creating a global dictionary for the parameter with a key (check Airflow for ref)
2) An option to import the parameter key into the dashboard and charts
3) The main part. When logs into his account I am sure you will only display his / her charts or dashboards then pass this default parameter to it.

Her is the example of the parameter
{'Sales':{'roal':{'a':'value1','b':'value2},'users':{'c':'value3'},'exclude_users':(d,e,f) }}

Let's say I have a sales dashboard and employees should be able to see their regional information
only. Then we can have a parameter and values as per the above example and set them dynamically at the user login and the dashboard should not run with different values for that user.

[senturkayhan]

@rsdpyenugula Of course, you are right when you say it. I wrote it by combining the example with which the problem was described. these are not the parameters I use.

Thanks for your suggestion, very good idea and information for those who read this problem

after all, i'm not pyhton developer and admin, but as you mentioned, i've set up a structure where customers can only see their own information and the public_role_like_gamma parameter is valid and i need to take all security precautions.

only those logged in to the system where the reports are published can display data on this set. It is not possible to access any data set even if it is accessed from outside.

In fact, another issue that you need to pay attention to security: superset is moving your query to the front, it will be a good measure for security to prevent your query information from being moved to the front.

[villebro]

Thanks for the feedback, good pointers here. I think this has several parallels with Row Level Security, and probably should be done in several steps to avoid overcomplicating things for now. To keeps things simple I'm thinking we should first make sure url_params passed to the dashboard flow through to the chart like they do in the Explore view, and once that's done start introducing additional layers of security. I'm still planning on doing a PR for this, but if someone else wants to take the lead I'm happy to help as needed.

[rsdpyenugula]

@villebro Ok. Let me know if you need any help.
