Imagesharp: Maintain Xamarin iOS support by keeping the library "AOT-proof"

[antonfirsov]

Description

Xamarin iOS users need to be able to "seed" open-generic library API-s with the help of AotCompilerTools, otherwise it will lead to runtime exceptions on that platform.

Related: #767, #785, #776, #800

Problems

Currently we are struggling to maintain this feature because of the following reasons:

• There is no one in the core team having experience with Xamarin iOS or any other AOT platform.
• We don't have any regression tests for this, we never know when a change breaks the "AOT-proofness" of an existing API
• We have introduced a massive change with #904, which will most likely break AOT & Xamarin iOS for many existing API-s in RC1. I have defined a point in epic #907 to investigate this, however in practice it turned out that I hardly have the resources to do so during this summer. (Neither I think @JimBobSquarePants can make it.) Therefore it will most likely not happen for RC1.

Conclusion

With our current prioritites and resources, the only way to maintain this feature is community support. If you can provide any help (add missing AOT seeds, or fix regressions), feel free to open a Pull Request!

Long term solution

If someone could define a mono AOT test configuration for appveyor, that would be ace.

/CC @vicfergar @davilovick @gameleon-dev @Lapinou42 @dmanning23 @swoolcock

EDIT
PS: Could someone do a favor and chack the latest MyGet dev builds from on Xamarin iOS? (JPEG, PNG, Resize, Quantization etc.)

[dmanning23]

Cool, super appreciate the work yall have been putting into ImageSharp. I have some downtime this week and can take a look at the iOS build.

[JimBobSquarePants]

@dmanning23 That would be absolutely amazing if you can, thank you very much!

[dmanning23]

Opened a pull-request with a few changes to fix ImageSharp on iOS. I've verified with these changes that it works for jpg, gif, and image resizing.
I also rolled up some changes I've had in mind for the https://github.com/SixLabors/ImageSharp/issues/800 ticket. I've verified that the AoTCompilerTools.Seed methods never actually have to be called, that code just needs to be present for the AoT compiler to pick it up.

Since these AoT/JIT errors only pop up at runtime, and only on physical iOS devices (doesn't occur on simulator!), it'll be extremely difficult to come up with a CI solution to detect them before they pop up. I've started asking around if any other Xamarin developers know how to detect & fix these issues preemptively.

[leonluc-dev]

@dmanning23
Thanks for looking into this!

I've verified with these changes that it works for jpg, gif, and image resizing.

Would these changes also fix issues with PNG images? PNG was the format giving the most iOS based JIT/AOT issues in beta-0006.

[antonfirsov]

Would these changes also fix issues with PNG images? PNG was the format giving the most iOS based JIT/AOT issues in beta-0006.

I don't think so.

Suggested follow-up step:

• Run Image.Load(...) for all the test images within our test suite, inside a Xamarin iOS app (running on a device ...).
• Collect the failing ones into a checklist of missing seeds, so we can address the issue in a systematic way.

[dmanning23]

Ok, I can take a look at .png images also.
Are you having problems loading or saving to .png?

[leonluc-dev]

Mostly loading from PNG bytes. I haven't been able to properly test encoding to PNG yet in an iOS environment.

In beta0006 I can consistently reproduce the following error by loading png image bytes using Image.Load(pngbytes):

Unhandled managed exception: Attempting to JIT compile method 'SixLabors.ImageSharp.Formats.Png.PngScanlineProcessor:ProcessRgbaScanline<SixLabors.ImageSharp.PixelFormats.Rgba32> (SixLabors.ImageSharp.Configuration,SixLabors.ImageSharp.Formats.Png.PngHeader&,System.ReadOnlySpan`1<byte>,System.Span`1<SixLabors.ImageSharp.PixelFormats.Rgba32>,int,int)' while running in aot-only mode. See https://docs.microsoft.com/xamarin/ios/internals/limitations for more information.
 (System.ExecutionEngineException)
  at SixLabors.ImageSharp.Formats.Png.PngDecoderCore.ProcessDefilteredScanline[TPixel] (System.ReadOnlySpan`1[T] defilteredScanline, SixLabors.ImageSharp.ImageFrame`1[TPixel] pixels, SixLabors.ImageSharp.Formats.Png.PngMetaData pngMetaData) [0x00135] in <7430a37e6bca4100b1763856ff8f7867>:0
  at SixLabors.ImageSharp.Formats.Png.PngDecoderCore.DecodePixelData[TPixel] (System.IO.Stream compressedStream, SixLabors.ImageSharp.ImageFrame`1[TPixel] image, SixLabor
s.ImageSharp.Formats.Png.PngMetaData pngMetaData) [0x000e5] in <7430a37e6bca4100b1763856ff8f7867>:0
  at SixLabors.ImageSharp.Formats.Png.PngDecoderCore.ReadScanlines[TPixel] (System.IO.Stream dataStream, SixLabors.ImageSharp.ImageFrame`1[TPixel] image, SixLabors.ImageSharp.Formats.Png.PngMetaData pngMetaData) [0x00018] in <7430a37e6bca4100b1763856ff8f7867>:0
  at SixLabors.ImageSharp.Formats.Png.PngDecoderCore.Decode[TPixel] (System.IO.Stream stream) [0x00171] in <7430a37e6bca4100b1763856ff8f7867>:0
  at SixLabors.ImageSharp.Formats.Png.PngDecoder.Decode[TPixel] (SixLabors.ImageSharp.Configuration configuration, System.IO.Stream stream) [0x00008] in <7430a37e6bca4100b1763856ff8f7867>:0
  at SixLabors.ImageSharp.Image.Decode[TPixel] (System.IO.Stream stream, SixLabors.ImageSharp.Configuration config) [0x00015] in <7430a37e6bca4100b1763856ff8f7867>:0
  at SixLabors.ImageSharp.Image+<>c__DisplayClass55_0`1[TPixel].<Load>b__0 (System.IO.Stream s) [0x00000] in <7430a37e6bca4100b1763856ff8f7867>:0
  at SixLa
bors.ImageSharp.Image.WithSeekableStream[T] (SixLabors.ImageSharp.Configuration config, System.IO.Stream stream, System.Func`2[T,TResult] action) [0x0002b] in <7430a37e6bca4100b1763856ff8f7867>:0
  at SixLabors.ImageSharp.Image.Load[TPixel] (SixLabors.ImageSharp.Configuration config, System.IO.Stream stream, SixLabors.ImageSharp.Formats.IImageFormat& format) [0x00022] in <7430a37e6bca4100b1763856ff8f7867>:0
  at SixLabors.ImageSharp.Image.Load[TPixel] (SixLabors.ImageSharp.Configuration config, System.IO.Stream stream) [0x00000] in <7430a37e6bca4100b1763856ff8f7867>:0
  at SixLabors.ImageSharp.Image.Load[TPixel] (SixLabors.ImageSharp.Configuration config, System.Byte[] data) [0x00007] in <7430a37e6bca4100b1763856ff8f7867>:0
  at SixLabors.ImageSharp.Image.Load (System.Byte[] data) [0x00005] in <7430a37e6bca4100b1763856ff8f7867>:0

A similar error occurs when loading a png image from other sources such as a stream.

[antonfirsov]

Someone has to call all the PNG scanline decoder methods from AotCompilerTools.

I expect similar issues with gif, and probably even certain jpegs.

The following steps do not require any knowledge related of our codebase, and it would be really helpful if someone could do them:

1. Upload our whole test image suite to an iOS device.
2. Run this code from inside a Xamarin.iOS app. (If running into something like OutOfMemoryException: just delete the giant jpegs.)
3. Send back Report.txt

This will help getting a nice overview about how bad the situation is. I want to avoid doing the discussion overhead image-by-image.

[dmanning23]

Awesome, I will have some extra time next week and will create a quick iOS app with those images & code.

[dmanning23]

Ok wrote a quick&dirty iOS app that loads all the images in the test suite, and didn't run into any AoT/JIT errors. Whatever error it was hitting must have been fixed in https://github.com/SixLabors/ImageSharp/pull/949

@gameleon-dev If you want to send me the specific .png I can double check that it will work going forward.

Here is the sample app with output:
https://github.com/dmanning23/ImageSharpTest.iOS

[JimBobSquarePants]

@dmanning23 Legend! 👑

[leonluc-dev]

@dmanning23 Thank you so much!

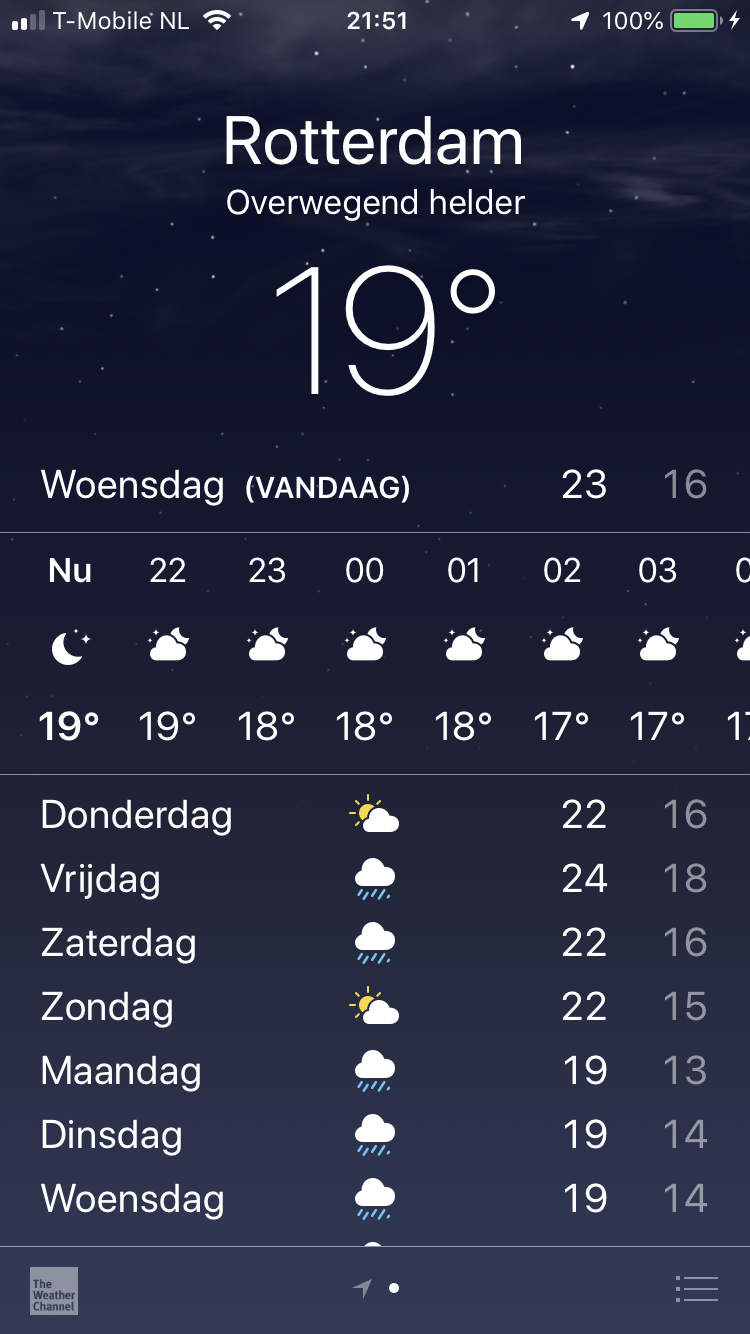

If it's any help testing, the images I used that generated the error were iOS screenshots. (Taken with the default iOS screenshot feature)

I've attached one of them to this comment.

Attachment: IMG_7829

[dmanning23]

You should be good to go, I was able to load the attached image:

2019-08-07 17:24:44.794 ImageSharpTest.iOS[2745:131288] Testing Content/62653769-9175ed80-b95e-11e9-9a8d-348b071cb714.png
2019-08-07 17:24:45.439 ImageSharpTest.iOS[2745:131288]    ... SUCCESS!

[omatrot]

@antonfirsov Following #1183 I have the same problem with RC1.

[brianpopow]

@antonfirsov Following #1183 I have the same problem with RC1.

@omatrot could you please provide the image which is failing for you? I have tried to reproduce this with mono as described here mono aot, but all the png work fine with RC1. My guess is you really need to run that on an iOS device to get this error.

[omatrot]

@brianpopow Here it is.

[greg-dickie]

@antonfirsov I'm getting this error when compiling my Xamarin Forms/iOS app after adding the ImageSharp NuGet package: error MT3001: Could not AOT the assembly '/Users/gregdickie/Library/Caches/Xamarin/mtbs/builds/Forms.Mobile.iOS/3888efad18065936af5713c2f604b75c/obj/iPhone/Debug/mtouch-cache/3-Build/SixLabors.ImageSharp.dll'. This is using rc0001.

Any ideas what could be causing this?

[antonfirsov]

@greg-dickie you have a compile-time error, any chance it's rather related #1183?

Since it's unrelated to the "seeding" concerns addressed by this issue, I suggest to move the discussion to our gitter channel, it has better visibility there. Do you have more info in your compiler output?

[unamed000]

@antonfirsov
I tried 1.0.1 version today and it seem to be an issue when rotating gif images.
The weird problem is it's only occur on an heavy gif, if i just use a small size gif, it doesn't throw this error.
And it's only the case when build in an ios device. Not on simulator. It does seem like a memory issue? But the stacktrace throw something else with "JIT compile method" though ....
Here is the stack trace:

2020-08-25 19:23:50.967 AulaNative.iOS[729:179997] Unhandled managed exception: Attempting to JIT compile method 'void SixLabors.ImageSharp.Formats.Gif.GifDecoderCore:ReadFrameColors<SixLabors.ImageSharp.PixelFormats.Rgba32> (SixLabors.ImageSharp.Image`1<SixLabors.ImageSharp.PixelFormats.Rgba32>&,SixLabors.ImageSharp.ImageFrame`1<SixLabors.ImageSharp.PixelFormats.Rgba32>&,SixLabors.ImageSharp.Memory.Buffer2D`1<byte>,System.ReadOnlySpan`1<SixLabors.ImageSharp.PixelFormats.Rgb24>,SixLabors.ImageSharp.Formats.Gif.GifImageDescriptor&)' while running in aot-only mode. See https://docs.microsoft.com/xamarin/ios/internals/limitations for more information.
 (System.ExecutionEngineException)
  at SixLabors.ImageSharp.Formats.Gif.GifDecoderCore.ReadFrame[TPixel] (SixLabors.ImageSharp.Image`1[TPixel]& image, SixLabors.ImageSharp.ImageFrame`1[TPixel]& previousFrame) [0x00096] in <b0936bd831134aeda01f0a913657f33a>:0
  at SixLabors.ImageSharp.Formats.Gif.GifDecoderCore.Decode[TPixel] (SixLabors.ImageSharp.IO.BufferedReadStream stream, System.Threading.CancellationToken cancellationToken) [0x0002d] in <b0936bd831134aeda01f0a913657f33a>:0
  at SixLabors.ImageSharp.Formats.ImageDecoderUtilities.Decode[TPixel] (SixLabors.ImageSharp.Formats.IImageDecoderInternals decoder, SixLabors.ImageSharp.Configuration configuration, System.IO.Stream stream, System.Func`3[T1,T2,TResult] largeImageExceptionFactory) [0x00008] in <b0936bd831134aeda01f0a913657f33a>:0
  at SixLabors.ImageSharp.Formats.ImageDecoderUtilities.Decode[TPixel] (SixLabors.ImageSharp.Formats.IImageDecoderInternals decoder, SixLabors.ImageSharp.Configuration configuration, System.IO.Stream stream) [0x00000] in <b0936bd831134aeda01f0a913657f33a>:0
  at SixLabors.ImageSharp.Formats.Gif.GifDecoder.Decode[TPixel] (SixLabors.ImageSharp.Configuration configuration, System.IO.Stream stream) [0x00007] in <b0936bd831134aeda01f0a913657f33a>:0
  at SixLabors.ImageSharp.Formats.Gif.GifDecoder.Decode (SixLabors.ImageSharp.Configuration configuration, System.IO.Stream stream) [0x00000] in <b0936bd831134aeda01f0a913657f33a>:0
  at SixLabors.ImageSharp.Image.Decode (System.IO.Stream stream, SixLabors.ImageSharp.Configuration config) [0x00015] in <b0936bd831134aeda01f0a913657f33a>:0
  at SixLabors.ImageSharp.Image+<>c__DisplayClass137_0.<Load>b__0 (System.IO.Stream s) [0x00000] in <b0936bd831134aeda01f0a913657f33a>:0
  at SixLabors.ImageSharp.Image.WithSeekableStream[T] (SixLabors.ImageSharp.Configuration configuration, System.IO.Stream stream, System.Func`2[T,TResult] action) [0x00041] in <b0936bd831134aeda01f0a913657f33a>:0
  at SixLabors.ImageSharp.Image.Load (SixLabors.ImageSharp.Configuration configuration, System.IO.Stream stream, SixLabors.ImageSharp.Formats.IImageFormat& format) [0x0000d] in <b0936bd831134aeda01f0a913657f33a>:0
  at SixLabors.ImageSharp.Image.Load (SixLabors.ImageSharp.Configuration configuration, System.IO.Stream stream) [0x00000] in <b0936bd831134aeda01f0a913657f33a>:0
  at SixLabors.ImageSharp.Image.Load (System.IO.Stream stream) [0x00005] in <b0936bd831134aeda01f0a913657f33a>:0

[antonfirsov]

The weird problem is it's only occur on an heavy gif.

@unamed000 this sounds crazy, Xamarin AOT is really weird if this is true. What happens if decoding a large gif is preceeded by decoding a small one?

As far as I understand, gif decoding is properly seeded.

[unamed000]

@antonfirsov i will try that tomorrow and let you know.

But i tried to clone the project and embedded the ImageSharp directly into my project. And i did some Seeding of my own for Decode method of GifDecoderCore. This time, it does not throw JIT error anymore, it just dies silently without throwing anything? Which is also the case for the large gif.

I did take a look around the Seeding and it does seem correct to me, it’s just ... something might be wrong with Xamarin ios

[JimBobSquarePants]

Thanks @unamed000 that stacktrace is really useful.

I don't think rotation is the issue here the first line indicates the method. Why it only happens with large gifs (how big btw?) I don't know.

c# void SixLabors.ImageSharp.Formats.Gif.GifDecoderCore:ReadFrameColors<SixLabors.ImageSharp.PixelFormats.Rgba32> (SixLabors.ImageSharp.Image`1<SixLabors.ImageSharp.PixelFormats.Rgba32>&,SixLabors.ImageSharp.ImageFrame`1<SixLabors.ImageSharp.PixelFormats.Rgba32>&,SixLabors.ImageSharp.Memory.Buffer2D`1<byte>,System.ReadOnlySpan`1<SixLabors.ImageSharp.PixelFormats.Rgb24>,SixLabors.ImageSharp.Formats.Gif.GifImageDescriptor&)

We've not done any work on AOT compilation in a long time because we simply don't have the tools and resources to do any investigation into potential issues, we rely purely on individual cases raised here.

@antonfirsov I can see looking at the code that our current Seed<TPixel>() methods are going to fail decoding early due to the input stream being null. I wonder if that affects the compilers ability to see the internal method calls?

Perhaps we should reverse the process and encode then decode a static byte array representing pixel data?

• WrapMemory
• Encode
• Decode

[unamed000]

@JimBobSquarePants
Yes, it does not relate anything to the rotate but in the Image.Load method only.
I tried that on an iPhone 8, which is fairly strong (not flagship but its pretty ok), and i tried with a gif image around 4 megabytes and 2 megabytes before (both crashes with this same issue). Then i tried it with a 25kb and 100kb, these are not crashing.

Let me know if you need any helps on my side. Maybe some code changes which i can test it directly from my side

[JimBobSquarePants]

Sorry, I meant unencoded dimensions not file size.

Any help would be really useful, thanks! I can experiment with my seed idea (if everyone thinks it is sound) and get you to test is when you are able.

[antonfirsov]

@JimBobSquarePants I like the idea.

@unamed000 any chance you can build the library from source, and try if the experiment works out?

[unamed000]

@antonfirsov yes, if you put in a branch, with some changes, i can try it out. I tried your idea today about uploading the small gif before uploading a large gif, the issue is still there.

@JimBobSquarePants Here are the 2 gif that i used to upload. When you mention about dimension, it could be because of the large dimensions, not file size, because the second image, have almost the same size, but much bigger dimension

EDIT:
I try to resize the second image into 50x50 but it's still the same issue, same like it was not the dimensions after all? I has just updated my Visual Studio to latest version with latest xamarin.ios version, and it does seem now ALL gif images have the same issue right now. Which is .... more failure stable i guess.

[JimBobSquarePants]

@unamed000 Can you please try building from source from this branch js/aot-experiments

I'm hoping the reference to Configuration.Default is enough to trigger the linker to preserve the relevant code since each codec is explicitly referenced in the construction of the default instance. If not' I'll explicitly reference the individual formats and codecs.

[unamed000]

Hi @JimBobSquarePants

It's not working, still the same stacktrace and error with the same line

[JimBobSquarePants]

It's not working, still the same stacktrace and error with the same line

I'm at a loss then....

Am I right in saying you can tell the linker to ignore the SixLabors binaries?

[unamed000]

There is a an attribute that we can tell the linker to ignore a class as far as i know which is:
[Preserve (AllMembers = true)]

But i'm not really so sure about this though.

[JimBobSquarePants]

You're ahead of me then. I've only briefly looked at the documentation. I don't do any application development.

[unamed000]

After trying to disable line by line. I figured out which line is causing this:
It was actually this in ReadFrameColors method. The Rgba32.FromRgb24 method

But i've no idea how to solve this.
I can workaround like this on my project:
private static void SetupAot() { var gifDecoderCore = new GifDecoderCore(null, null); gifDecoderCore.Decode<Rgba32>(null, CancellationToken.None); }

But then, the app will crash immediately without throwing any stacktrace if i send a high dimension gif file. And i guess this is memory issue problem? Is there anyway that i can workaround this?

Edit:
I've another bug the same with Rgba32 for PNG file (PngDecoderCore). Wonder why it's a special error for Rgba32 ....

[antonfirsov]

@unamed000 can you try what happens if you alter the implementation of Rgba32.FromRgb24 ?

Variant 1
```C#
[MethodImpl(InliningOptions.ShortMethod)]
public void FromRgb24(Rgb24 source)
{
this.R = source.R;
this.G = source.G;
this.B = source.B;
this.A = byte.MaxValue;
}

**Variant 2** (No inlining)
```C#
public void FromRgb24(Rgb24 source)
{
    this.R = source.R;
    this.G = source.G;
    this.B = source.B;
    this.A = byte.MaxValue;
}

EDIT: With and without the SetupAot workaround.

[JimBobSquarePants]

I might have to dig out the Raspberry Pi again if we change that.

Perhaps adding implementation calls for all of the IPixel methods to AotCompilerTools would be better. They're missing currently.

[unamed000]

@antonfirsov
I tried that already, for removing the InliningOptions and not.
The result is InliningOptions does not change anything. It's just my work around that will affect the result.

Also, any idea why a high dimension gif file is breaking on iOS device? Could it be because it's using too much memory?

[antonfirsov]

@JimBobSquarePants the difference between the "small" and "large" gifs might be actually a difference in transFlag here:
https://github.com/SixLabors/ImageSharp/blob/521fae35a14c7953f720a094d24b59b2f7d98555/src/ImageSharp/Formats/Gif/GifDecoderCore.cs#L485-L508

Does this make sense?
If this is true, the AOT compiler might probably fail to properly compile one of the paths.

It's probably worth to try seeding FromRgb24 and similar calls in Seed<TPixel>:
C# TPixel pixel = default; pixel.FromRgb24(default);
@unamed000 can you try if adding this changes anything? (Probably in combination with other hacks.)

[antonfirsov]

Also, any idea why a high dimension gif file is breaking on iOS device? Could it be because it's using too much memory?

@unamed000 in your previous comment you stated:

I try to resize the second image into 50x50 but it's still the same issue, same like it was not the dimensions after all?

Can you try if it works with the resized version with any of the hacks?

[unamed000]

Hi @antonfirsov , i'll try your suggestion tomorrow

Can you try if it works with the resized version with any of the hacks?

I actually tried that before, here is the summary for what i did

| | Small Image | Big Image |
|-------------------------|-------------------------------------------------|-------------------------------------------------|
| With my hack (SetupAot) | Able to Load | Crash without yielding any stacktrace |
| Without my hack | JIT Compiler stacktrace (ReadFromColors method) | JIT Compiler stack trace(ReadFromColors method) |

So i think with my current hack, i'm able to get rid of the AOT issue, though the crash without stacktrace could be something else, it could be either:

• Something loop forever inside (this is the case i usually see when Xamarin does not yield any stacktrace)
• Too high memory usage.

[antonfirsov]

Too high memory usage.

What if you upscale a different gif? (One that did noes not produce this issue originally)
If it also hangs, can you incrementally find a size where it starts to hang? (or maybe slow down very noticeably)

[unamed000]

It's probably worth to try seeding FromRgb24 and similar calls in Seed:

Tried that as well, somehow not working, it's only work if i seed directly for Rgba32.FromRgb24

the difference between the "small" and "large" gifs might be actually a difference in transFlag here:

The transFlag are the same for both images since the width and height ratio is the same.

What if you upscale a different gif? (One that did noes not produce this issue originally)

I've resize the gif to like your suggestion and here is the result:
250x250 gif, it's working fine

400x400 gif, it's crashing without stacktrace

Though these gif are very light, it crashes when only 400x400 pixels, so i don't think that could be high memory usage?

EDIT:
Sorry for wrong debugging information, actually it was Image.Save method that throw nothing with high dimension gif, it was crashing inside the Encode method of GifEncoderCore. And it was crashing at QuantizeFrame method.

And after further debugging, it was this method which crash silently

ErrorDither.ApplyQuantizationDither

[antonfirsov]

So far it looks like the crash is a completely separate problem. Does it happen on emulator as well?

Can you help us by filing a new GitHub issue for it (with templates filled) so we can track it?

[JimBobSquarePants]

Tried that as well, somehow not working, it's only work if i seed directly for Rgba32.FromRgb24

Just to clarify @unamed000 you are saying the following did not work when added to AotCompilerTools?

```c#
TPixel pixel = default;

Rgb24 rgb24 = default;
pixel.FromRgb24(rgb24);

@antonfirsov if that is the case then we should migrate to using T4 for generating the tools. Messier to extend but if it's the only thing that works we have little choice.

I would like to try this though before we go that route.

```c#
private static void AotPixelInterface<TPixel>()
    where TPixel : unmanaged, IPixel<TPixel>
{
    TPixel pixel = default;
    Rgba32 rgba32 = default;
    pixel.ToRgba32(ref rgba32);
    pixel.FromRgba32(rgba32);
    pixel.FromScaledVector4(pixel.ToScaledVector4());
    pixel.FromVector4(pixel.ToVector4());

    pixel.FromArgb32(default);
    pixel.FromBgr24(default);
    pixel.FromBgra32(default);
    pixel.FromBgra5551(default);
    pixel.FromL16(default);
    pixel.FromL8(default);
    pixel.FromLa16(default);
    pixel.FromLa32(default);
    pixel.FromRgb24(default);
    pixel.FromRgb48(default);
    pixel.FromRgba64(default);
    pixel.FromRgb24(default);
}

I've added them to https://github.com/SixLabors/ImageSharp/tree/cc84f6f66a73febd3c72ec93a932ac6868662acb for testing.

[unamed000]

@JimBobSquarePants
yes, i tried that before and i didn't workout.
But could you give me a little of explanation why we need to seed these? Even though i copied the entire code into my project seem like i need to seed them as well (I don't have much knowledge about these "seeding" things)

[JimBobSquarePants]

@unamed000 I just updated my branch as I realized I made a mistake in the loader code and was calling the Rgba32 version only. I would pull the latest from that branch and build/reference from that source code.

The reason we seed the code is to attempt to ensure the AOT compiler doesn't try to delete code branches it incorrectly thinks are not being used. By explicitly calling troublesome methods we try to get the compiler to recognize their use.

You shouldn't have to copy the code to your system I wouldn't think.

[unamed000]

@JimBobSquarePants would you indicate which branch you did the update?

[JimBobSquarePants]

https://github.com/SixLabors/ImageSharp/tree/js/aot-experiments

[JimBobSquarePants]

@unamed000 How did you get on building from the source in the branch?

[JimBobSquarePants]

We need someone to raise an issue upstream here for us to track. We can't fix issues with the AOT compiler.

[UltraNamahage]

I had a similar problem with Unity Android IL2CPP, but I found a solution.
Xamarin iOS and Unity Android IL2CPP both work with Mono, so I think you can solve it the same way.

According to the Unity manual, you need to write a specific code to make a particular generic method work.

This should probably cache all interface methods that have generic methods.
For example, this part.

I wanted to shrink a large PNG image, so I created the following code.

/// <summary>
/// Because it calls an internal class, it needs to be placed inside the ImageSharp project.
/// </summary>
static class UnityAoT<TPixel> where TPixel : unmanaged, IPixel<TPixel>
{
    /// <summary>
    /// call from <see cref="SixLabors.ImageSharp.Advanced.AotCompilerTools.Seed{TPixel}"/>
    /// </summary>
    internal static void UnitySeed()
    {
        AotCompileImageProcessor();
        AotCompileResampler();
        AotCompileEncoder();
    }
    private static void AotCompileEncoder()
    {
        default(PngEncoderCore).Encode<TPixel>(default, default, default);
    }
    private static void AotCompileImageProcessor()
    {
        AotCompilerPixelSpecifics<ResizeProcessor>();
    }
    private static void AotCompilerPixelSpecifics<TProc>()
        where TProc : class, ICloningImageProcessor
    {
        default(TProc).CreatePixelSpecificCloningProcessor<TPixel>(default, default, default);
        default(TProc).CreatePixelSpecificProcessor<TPixel>(default, default, default);
    }
    private static void AotCompileResampler()
    {
        AotCompileResamplers<BicubicResampler>();
    }
    private static void AotCompileResamplers<TResampler>()
        where TResampler : struct, IResampler
    {
        // TODO : Methodize it.
        default(ResizeProcessor<TPixel>).ApplyTransform<TResampler>(default);
        default(TResampler).ApplyTransform(default(ResizeProcessor<TPixel>));
    }
}

This is working fine, but doesn't allow me to do anything other than shrink.
I think we need to cache more methods to do all the processing.

[JimBobSquarePants]

@UltraNamahage Thanks for the additional info.

We have a class AotCompilerTools which we have used to for AOT issues previously. Perhaps you can update that? https://github.com/SixLabors/ImageSharp/blob/36018bdfe6da67b79ca3be1e85a0dde718929467/src/ImageSharp/Advanced/AotCompilerTools.cs#L26

[UltraNamahage]

@JimBobSquarePants Please wait a week.
