Identityserver4: integration test 's open id connect throw "System.Net.CookieException : The 'Path'='/signin-oidc' part of the cookie is invalid "

[jingliancui]

I have a mvc client use the oidc feature with asp.net identity.Config in startup is that:

            services.AddAuthentication(options =>
            {
                options.DefaultScheme = "Cookies";
                options.DefaultChallengeScheme = "oidc";
            })
            .AddCookie("Cookies")
            .AddOpenIdConnect("oidc", options =>
            {
                options.SignInScheme = "Cookies";

                //44341 is the port of Identity.API project
                options.Authority = "https://localhost:44341";

                options.RequireHttpsMetadata = false;

                options.ClientId = "mvc";

                options.ClientSecret = "secret";

                options.ResponseType = "code id_token";

                options.SaveTokens = true;

                options.GetClaimsFromUserInfoEndpoint = true;

                options.Scope.Add("api1");

                options.Scope.Add("offline_access");

            });

Integration test code use this httpclient:

             var client = mvcFactory.CreateClient(new
             Microsoft.AspNetCore.Mvc.Testing.WebApplicationFactoryClientOptions()
            {
                HandleCookies=true,
                AllowAutoRedirect=false,
                BaseAddress=new Uri ("https://localhost:44332/")
            })

or this from the identity model's code:

            var client = new BrowserClient(new BrowserHandler(mvcHandler))
            {
                AllowCookies=true,
                BaseAddress=new Uri("https://localhost:44332/"),
                AllowAutoRedirect=false
            };

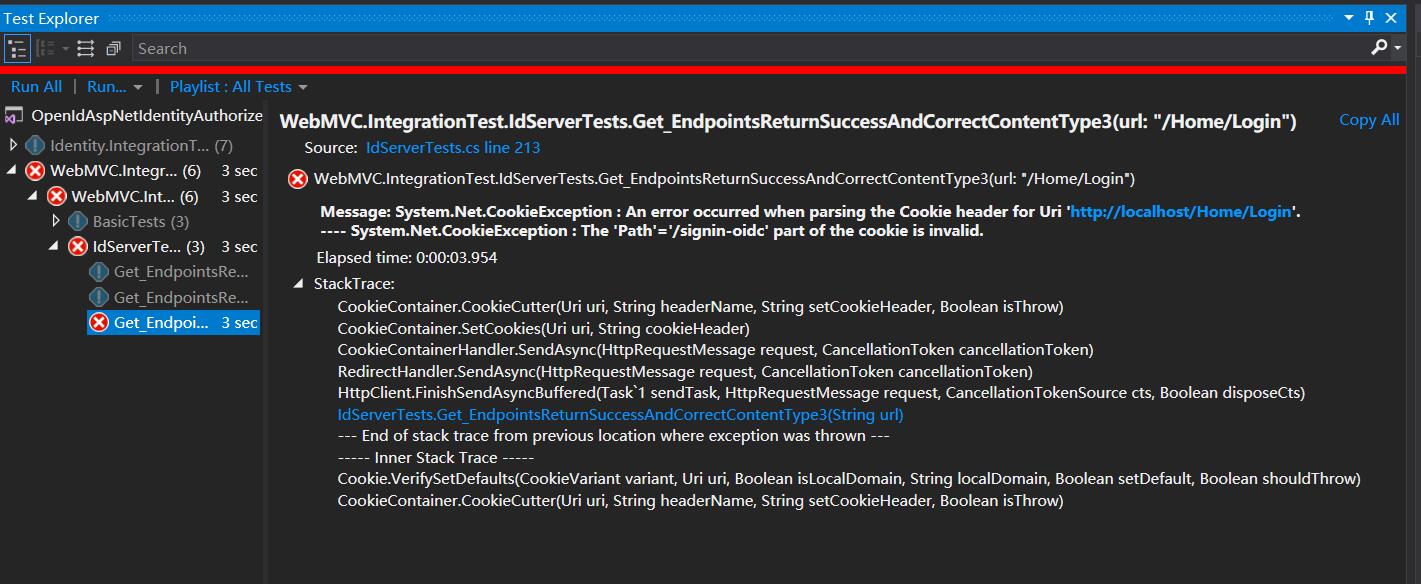

Then run the test show this error:

Message: System.Net.CookieException : An error occurred when parsing the Cookie header for Uri 'https://localhost:44332/Home/Login'.
---- System.Net.CookieException : The 'Path'='/signin-oidc' part of the cookie is invalid.

Do that because I want get the access_token from
HttpContext.GetTokenAsync("access_token");

Because I do the oidc with the authorize feature, so I can get access token by used the id and secure,but this token didn't had the correct role for access the protected api.
So I do above code to simulator the login round trip to get the logined access_token.

[jingliancui]

Then today I check the source code of the .net core 's CookieContainerHandler here

and the handler of the identity sample code here

exception throw in the SetCookies method of the class CookieContainer.

That all info now I can provide.

[AutismPatient]

Please show the configuration information code of your identity server for more information

[jingliancui]

Hi @AutismPatient
Here is the config of the identity server:

        public List<Client> GetClients()
        {
            var result = new List<Client>
            {
                new Client
                {
                    ClientId = "mvc",
                    ClientName = "MVC Client",
                    AllowedGrantTypes = GrantTypes.HybridAndClientCredentials,

                    RequireConsent = false,

                    AlwaysIncludeUserClaimsInIdToken = true,
                    AlwaysSendClientClaims = true,
                    //Claims=
                    UpdateAccessTokenClaimsOnRefresh = true,
                    RefreshTokenUsage = TokenUsage.OneTimeOnly,
                    ClientSecrets =
                    {
                        new Secret("secret".Sha256())
                    },
                    //44332 is the port of mvc porject
                    RedirectUris = { "https://localhost:44332/signin-oidc" },
                    PostLogoutRedirectUris = { "https://localhost:44332/signout-callback-oidc" },
                    AllowedScopes =
                    {
                        IdentityServerConstants.StandardScopes.OpenId,
                        IdentityServerConstants.StandardScopes.Profile,
                        "api1"
                    },
                    AllowOfflineAccess = true
            }
            };
            return result;
        }

and config in startup.cs :

            services.AddIdentityServer(options =>
            {
                options.Events.RaiseSuccessEvents = true;
                options.Events.RaiseFailureEvents = true;
                options.Events.RaiseErrorEvents = true;
            })
            .AddDeveloperSigningCredential()
            .AddConfigurationStore(options =>
            {
                options.ConfigureDbContext = builder =>
                builder.UseMySql(connStr,
                sql => sql.MigrationsAssembly(migrationsAssembly));
            })
            .AddOperationalStore(options =>
            {
                options.ConfigureDbContext = builder =>
                builder.UseMySql(connStr,
                sql => sql.MigrationsAssembly(migrationsAssembly));
                options.EnableTokenCleanup = true;
                options.TokenCleanupInterval = 30;
            })
            .AddAspNetIdentity<IdApiUser>();

[AutismPatient]

Do you use in pipe set Configure: Initializes the authentication method

[jingliancui]

app.UseIdentityServer();
had been in the Configure method.
Is it the initializes method you said ?

[AutismPatient]

app.UseAuthentication();

[jingliancui]

The mvc client's Configure method of startup.cs had been use the
app.UseAuthentication();

[AutismPatient]

options.RequireHttpsMetadata = false; Take it out and see what happens

[jingliancui]

Take it out options.RequireHttpsMetadata = false;
Same error :

[AutismPatient]

The url in your header is incorrect because it does not point to your identity server address

[jingliancui]

I understand your said ,but I can't figure it out all these run in in-memory(test environment).
And I had prepared 2 project, 1 is Identityserver with oidc, another is the mvc client.
Then ,2 project run fine in debug and release.(interact with the real webside).

Above things as the basis, I then create a mvc client's integration test project .

1. Reference idserver project and the mvc client project.
2. create 2 customize WebApplicationFactory , one for the identityserver and one for mvc client
3. config the testserver's baseurl (optional step)
4. use WebApplicationFactory.CreateClient create the mvc's httpclient to serve the home/login url

These 4 step is now I do, the httpclient create from the factory has been config handle cookie by default.

You said that it does not point to identityserver address because is it the integration test still can not be interact with two WebApplicationFactory(2 testserver,1 is identityserver and 1 is mvc client) ?

[AutismPatient]

This may be because the callback address specified by the identity server is not the same as the address you used in the integration test, typically /sigin-oidc instead of /login

[tamimehsas]

Hey dudes
could any one send me a sample of configured identity server4 with asp.net
core Mvc client and entityframework core

On Tue, Jan 15, 2019 at 6:11 AM Salif Dianda [e-mail]
wrote:

This may be because the callback address specified by the identity server
is not the same as the address you used in the integration test, typically
/sigin-oidc instead of /login

—
You are receiving this because you are subscribed to this thread.
Reply to this email directly, view it on GitHub
https://github.com/IdentityServer/IdentityServer4/issues/2925#issuecomment-454235817,
or mute the thread
https://github.com/notifications/unsubscribe-auth/AYmz-gul_KGZeCoHc83nyZaxwT38EAFjks5vDTG_gaJpZM4Zpszu
.

[jingliancui]

@tamimehsas EF' s Sample Just check here:
http://docs.identityserver.io/en/latest/reference/ef.html

and here:
https://github.com/IdentityServer/IdentityServer4.Samples

[jingliancui]

@AutismPatient
No/login for me .
The /Home/Login I pass to the test method just this in mvc controller:

        [Authorize]
        public IActionResult Login()
        {
            return Content("Login");
        }

Because I know after add [Authorize] to action will redirect user to the login page which in identity server oidc if user not logined.

[jingliancui]

@AutismPatient
Or do you need the sample code ?
if yes I upload this sample for you .

[AutismPatient]

 [Authorize]
public ....... Home(){
return View();
}

Your validator doesn't have to be on Login, it has to be somewhere else

[jingliancui]

I don't understand what you said.
Can you tell me more detail?please

[AutismPatient]

It also doesn't get to the root of the problem

[jingliancui]

@AutismPatient yep...

[brockallen]

So did you all sort out if there's a problem or not? I don't think anyone here has had time to look into this.

[twogood]

I just ran into a very similar problem today when trying to get an integration test working. I managed to solve it by setting the cookie paths like this:

.AddOpenIdConnect(OpenIdConnectDefaults.AuthenticationScheme, options =>
                {
                    options.CorrelationCookie.Path = "/";
                    options.NonceCookie.Path = "/";

It seems like the cookie paths defaults to the same value as that of options.CallbackPath. I think that "/" would be a better default for the cookie paths. (Some more security minded person might disagree...)

[twogood]

After devising my own solution I also found this example of the same fix in code by @Tratcher:

https://github.com/aspnet/AspNetCore/blob/d8381656429addead2e5eb22ba1356abfb419d86/src/Azure/AzureAD/test/FunctionalTests/WebAuthenticationTests.cs#L192-L194

[jingliancui]

@twogood Thanks so much , I'll test your solution later : )
So I want keep this issue still open status.
@brockallen
@AutismPatient

[jingliancui]

@twogood It's work!!!Thanks so much.It's really useful to use the cookie,or I have do much code work in the project code to do simulated.
And with your help , I have reach the last step of the process of the integration test.And the last problem here https://github.com/IdentityServer/IdentityServer4/issues/3067
It's seem like that is an issue,we can discuss in the new thread 😀

[westonpace]

FYI, there is more information about the underlying problem on https://github.com/dotnet/corefx/issues/27520 and here https://github.com/dotnet/corefx/issues/29651

Once that last issues is addressed this workaround should no longer be necessary.
