Ha-bridge: Help Comfortclick API - write to http device

[guardianhell]

Hi,

Kindly need help, i am trying to using HA-Bridge in comfortclick https://www.comfortclick.com/Software/Manuals/BOSServer but i don't know to use the http request in HA-Bridge, here is the documentation

To call a RPC Service a HTTP POST call must be preformed with data content-type = "application/json";

Service offers the following commands:

http://localhost:81/SetValue

POST data example (Turn ON a light): {"objectName":"Devices\EIB\Light 1","valueName":"Value","value":"true"}

http://localhost:81/GetValue

POST data example (Get light status): {"objectName":"Devices\EIB\Light 1","valueName":"Value"}

http://localhost:81/CallFunction

POST data example (Send alert to user):
{"objectName":"Building\General\Users\User","functionName":"SendAlert","value":["'Hello'"]}

please help, if this http post could be use in HA-bridge

Thank you

[bwssytems]

Just use the manual add function in the ha- bridge and use the HTTP Device type for your call. You can set it to POST with the drop downs. Don't forget to add the command line to your on/dim/off urls with the add button to the right.

[guardianhell]

hi,

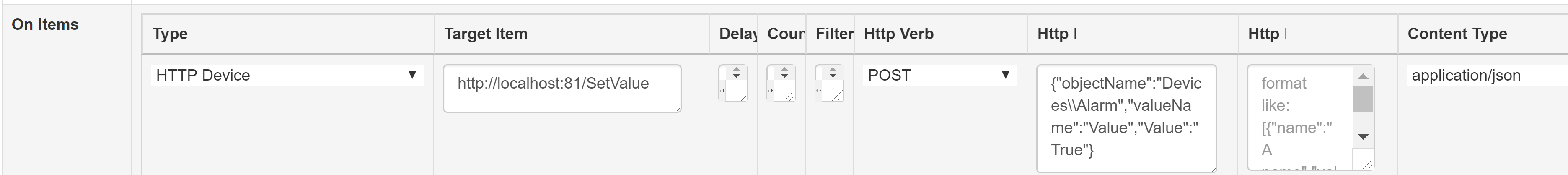

i've tried a couple times (below picture)

but still not works, please give me more detail,

Type : HTTP Device
target item : ???
HTTP Verb : POST
HTTP body : ???
HTTP headers : ????

Thank you

[bwssytems]

Your http body data needs to be quote escaped like so

"{\"filedname\":\"value\","\nextvalue\":\"nextdata\"}"

The gui is handling strings already and to get the quotes into the data to send it needs to be escaped in.

[guardianhell]

hi,

i've tried to change HTTP Body into this

"{"objectName":"Devices"\"Alarm","valueName":"Value","Value":"True"}"

but still not work

sorry i am newbie in this, please help

[bwssytems]

You need the slash quote to escape it..... not " but \"

[guardianhell]

hi,

is this correct?

"{"objectName":"Devices\Alarm","\valueName":"Value","\Value":"true"}"

would you just give the example using this arguments "objectName":"Devices\Alarm","\valueName":"Value","\Value":"true"

thank you

[bwssytems]

You cannot have quotes within quotes, they need to be escaped:

"{\"objectName\":\"DevicesAlarm\",\"valueName\":\"Value",\"Value\":\"true\"}"
