Graylog2-server: Disk journal and other node metrics do not load (3.2.2) with nginx as a reverse proxy

[s1shed]

Expected Behavior

There should not be an error when viewing the page for a node.

Current Behavior

On two systems using Nginx as a reverse proxy (one using a subpath and the other using a subdomain), upon going to the page there's a red box with an error 400. "Getting journal information on node ** failed.

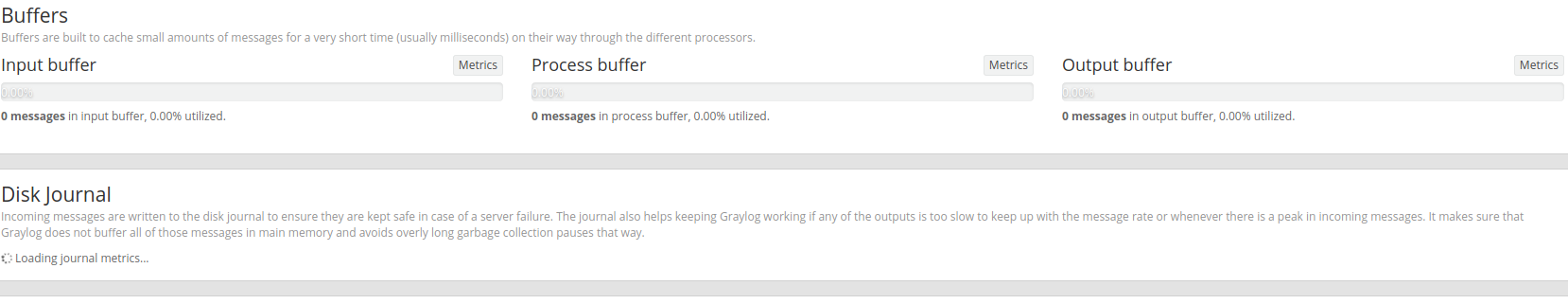

Additionally there is no sign of activity in the Buffers area.

Messages are still being processed.

The behaviour is the same whether using a subpath or not. I do not know if this is a problem when not using a reverse proxy.

Steps to Reproduce (for bugs)

1. Install graylog behind a reverse proxy.

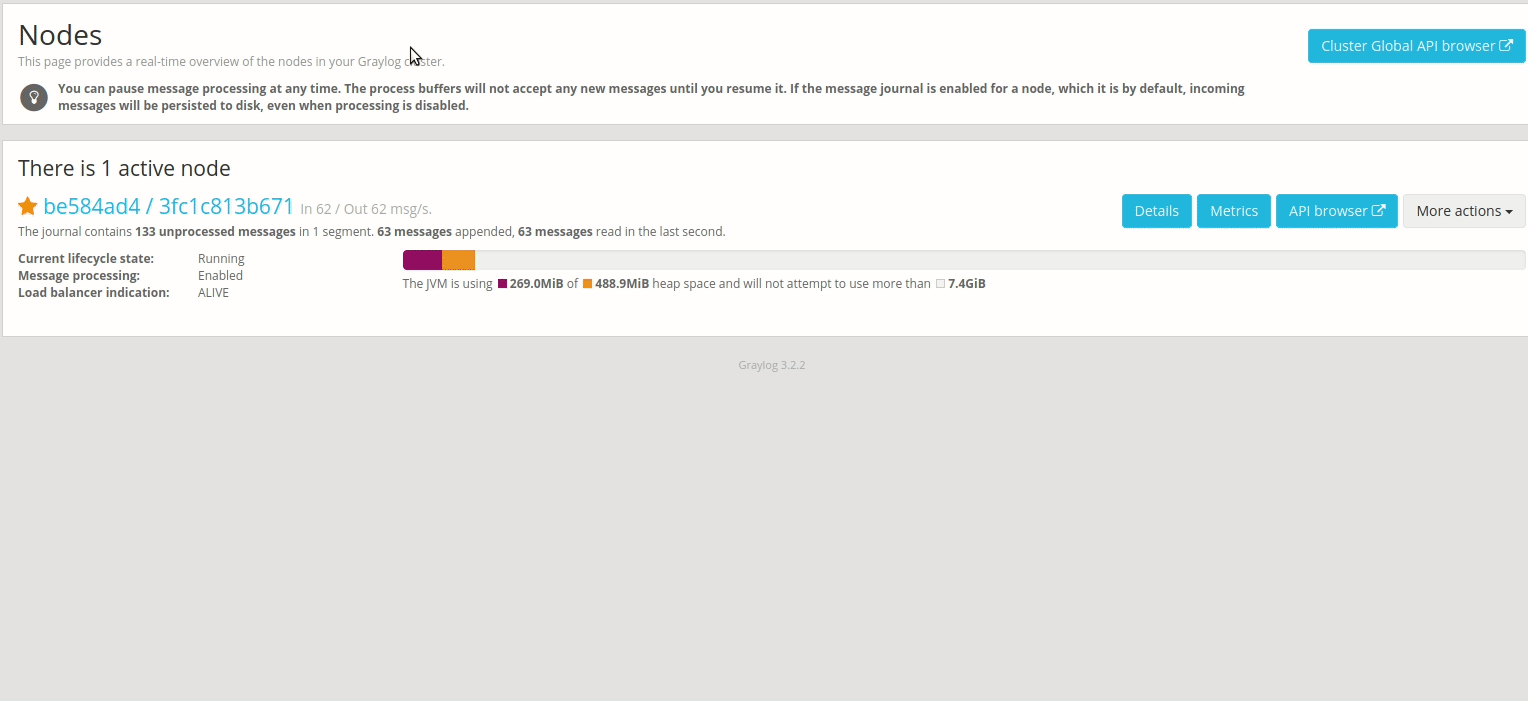

2. Try to go to a node's page
   3.
   4.

For example:

Your Environment

• Graylog Version: Graylog 3.2.2 (docker (tag graylog:3.2) and on another system I'm using the Debian package (3.2.2-1))
• Elasticsearch Version: docker tag elasticsearch-oss:6.8.2
• MongoDB Version: 3.6.17 (docker tag mongo:3)
• Operating System: Debian unstable
• Browser version: Firefox 73 & Chrome 80.0.3987.116

[mpfz0r]

Maybe this could be helpful: https://github.com/Graylog2/graylog2-server/issues/7265#issuecomment-578724992

[s1shed]

Maybe this could be helpful: #7265 (comment)

Thanks, I'll try. If it works I'll update the ticket while feeling like a jackass for wasting others' time.

These configurations I'm using didn't have this problem with the previous version I was running (perhaps it was 3.2.1)

[s1shed]

Maybe this could be helpful: #7265 (comment)

Thanks, I'll try. If it works I'll update the ticket while feeling like a jackass for wasting others' time.

These configurations I'm using didn't have this problem with the previous version I was running (perhaps it was 3.2.1)

I tested with my graylog installation which is behind nginx with a subpath.

I set http_external_uri=https://hostname.tld/gl/ , which is where graylog is accessible from.
I tried setting http_publish_uri=http://127.0.0.1:9000. This did not work. I then set it to match the value I set http_external_uri to. This also did not work. I saw the same error.

I commented http_external_uri and http_publish_uri and tried going to http://127.0.0.1:9000. The same behaviour persisted.

[vwbusguy]

I'm seeing this as well since upgrading to 3.2.2. We are not using nginx in our case, but we are proxying through an external load balancer service (Citrix NetScaler).

[vwbusguy]

I think the proxy might be a red herring? The net console in browser shows it tried to hit the correct proxied endpoint but the actual error response is:
{"type":"ApiError","message":"Unable to map property native_lib_dir.\nKnown properties include: flush_interval, plugin_dir, segment_age, max_age, bin_dir, data_dir, max_size, directory, flush_age, segment_size"}

[vwbusguy]

There are several changes in this version related to Netty's NativeLibraryUtil, so I'm guessing that the regression might be caused by one of those changes based on the message.

[vwbusguy]

It seems that the native lib directory was changed in 3.2.2 : https://github.com/Graylog2/graylog2-server/pull/7404

[vwbusguy]

Doing a diff on the conf in the new version, it seems a new section was added:

# Set the bin directory here (relative or absolute)
# This directory contains binaries that are used by the Graylog server.
# Default: bin
bin_dir = /usr/share/graylog-server/bin

# Set the data directory here (relative or absolute)
# This directory is used to store Graylog server state.
# Default: data
data_dir = /var/lib/graylog-server

The native lib dir is based on the data_dir conf being set and is failing with an unhelpful message as a result.

Adding this back into the conf and restarting graylog creates the /var/lib/graylog-server/libnative path but the error about key mapping persists. If I add native_lib_dir = /var/lib/graylog-server/libnative to the conf and restart, it still doesn't fix the problem.

There are defaults for bin_dir and data_dir, so settings these properties shouldn't be required. The problem seems to be that the native_lib_dir property derived from data_dir is not registered in the context of the journal API call.

[vwbusguy]

Interestingly, if I go to Metrics, all of the journal endpoints appear to work fine.

[bernd]

@s1shed @vwbusguy @mpfz0r I was able to reproduce the problem and am working on a fix.

As noted by @vwbusguy, this issue got introduced in #7404 (and #7359). It only happens on the node details page because that page is using a cluster wide API resource. That one has issues deserializing the journal response from all graylog nodes. (/api/cluster/<node-id>/journal) The nodes overview page is using another API resource (/api/system/journal) and is not affected.

This doesn't cause any processing issues, it's mainly a display issue in the UI.

We are working on a fix that will be in the next stable release. (3.2.3)

Thank you for the report!

[bernd]

@s1shed @vwbusguy This is the fix: https://github.com/Graylog2/graylog2-server/pull/7526

[s1shed]

I think the proxy might be a red herring?

Oops. I've run into a few problems that have been reverse proxy related. Sorry (to all) about the invalid assumption.

[bernd]

I think the proxy might be a red herring?

Oops. I've run into a few problems that have been reverse proxy related. Sorry (to all) about the invalid assumption.

No worries! :smiley: Thank you for the report!
