Graylog2-server: Clicking a stream's title from the streams page returns "page not found" when graylog is under a subpath

[s1shed]

Expected Behavior

I have nginx in front of graylog, accessible under a subpath using the instructions at https://docs.graylog.org/en/latest/pages/configuration/web_interface.html#making-the-web-interface-work-with-load-balancers-proxies .

Clicking a stream such as "All messages" when not using a subpath will load a page at https://hostname.tld/streams/000000000000000000000001/search which is essentially the search page with the stream selected. This should also work when using a subpath.

Current Behavior

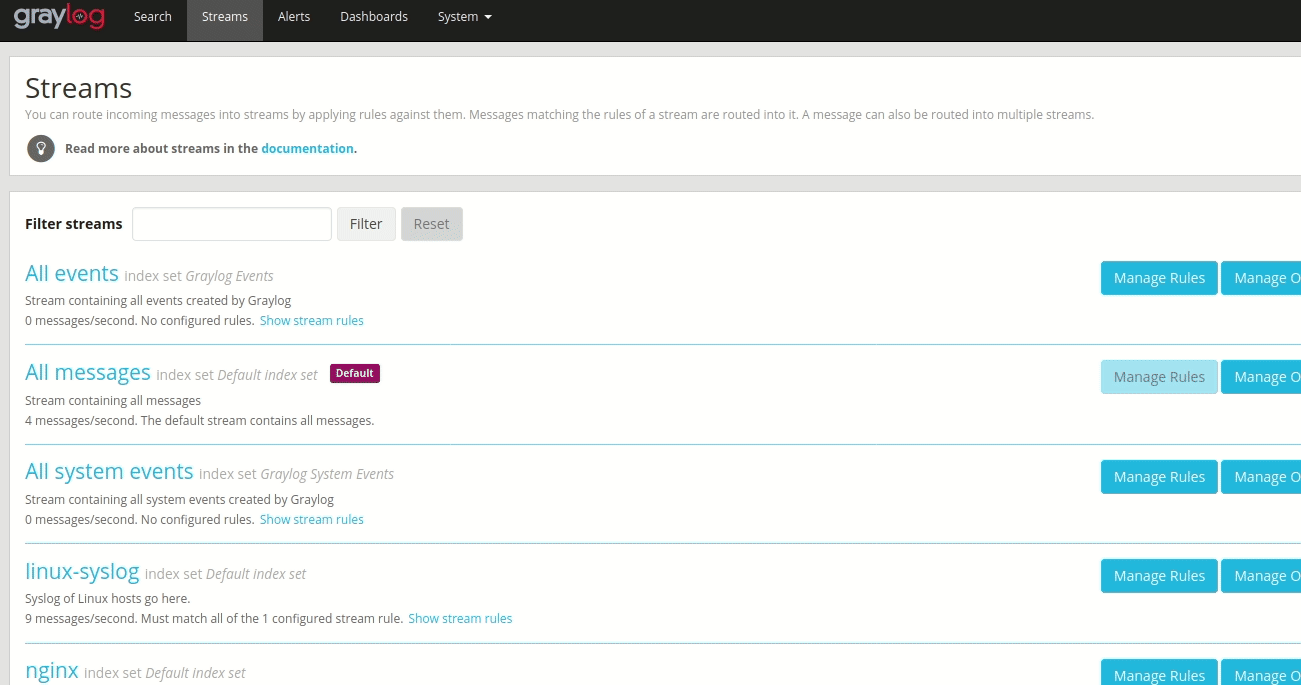

When clicking the stream name from the streams page when graylog is under a subpath I see the "page not found" page.

The rest of the application appears to be working normally.

Steps to Reproduce (for bugs)

1. Configure nginx as a reverse proxy, accessible under a subpath
2. Click the streams tab at the top
3. Click a stream such as "All events"
   4.

Your Environment

• Graylog Version: Graylog 3.2.1+dbaac33 (docker tag graylog:3.2)
• Elasticsearch Version: docker tag elasticsearch-oss:6.8.2
• MongoDB Version: 3.6.17 (docker tag mongo:3)
• Operating System: Debian unstable
• Browser version: Firefox 72.0.2 & Chrome 80.0.3987.87

[jalogisch]

he @s1shed
what is your nginx configuration look like? Did you include the rewrite?

[s1shed]

Hi,

My nginx config is practically the same as what's documented other than

• using /gl/ as the subpath instead of /graylog/ ; and
• adding proxy_set_header X-Forwarded-Proto $scheme; (the problem existed without this line)

  location /gl/ {
      proxy_set_header Host $http_host;
      proxy_set_header X-Forwarded-Proto $scheme;
      proxy_set_header X-Forwarded-Host $host;
      proxy_set_header X-Forwarded-Server $host;
      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
      proxy_set_header X-Graylog-Server-URL https://$server_name/gl/;
      rewrite ^/gl/(.*)$ /$1 break;
      proxy_pass http://127.0.0.1:9000;
    }
 ```

and the related config from the file `docker-compose.yml`

environment:
  - GRAYLOG_HTTP_EXTERNAL_URI=https://mydomain.tld/gl/

```

As said earlier, the other parts of the application appear to be functional for me when using nginx as a reverse proxy.

I do not see this behaviour when I access the application at http://127.0.0.1:9000 directly.

[zoledian]

FYI
You can reproduce this bug without a proxy by simply putting a subpath in these server.conf values:
http_publish_uri = http://example.com:9000/subpath/
http_external_uri = http://example.com:9000/subpath/

[cubed-it]

me too, why I did the update... ;)

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: monitoring-ingress
  namespace: monitoring
  annotations:
    kubernetes.io/ingress.class: nginx
    # kubernetes.io/ingress.allow-http: "false" gce only
    cert-manager.io/cluster-issuer: letsencrypt-prod
    nginx.ingress.kubernetes.io/rewrite-target: /$1
    nginx.ingress.kubernetes.io/lua-resty-waf: "active"
    #nginx.ingress.kubernetes.io/lua-resty-waf: "simulate"
    nginx.ingress.kubernetes.io/lua-resty-waf-allow-unknown-content-types: "true"
    nginx.ingress.kubernetes.io/lua-resty-waf-ignore-rulesets: "41000_sqli"
spec:
  tls:
  - hosts:
    -  <secret>
    secretName: tls-secret
  rules:
  - host: <secret>
    http:
      paths:
      - backend:
          serviceName: graylog3
          servicePort: 9000
        path: /gray/(.*)
      - backend:
          serviceName: prom-operator-grafana
          servicePort: 3000
        path: /(.*)

and

- name: GRAYLOG_HTTP_EXTERNAL_URI
          value: <secret>/gray/

[davama]

Wow!
I have been back and forth with this: https://community.graylog.org/t/stream-page-not-found-gorilla/13898/6

Was going to report but I guess it's done!

FYI: streams work when you do not use a subdirectoy in nginx.

Nice!

[dennisoelkers]

Thanks, @s1shed, @zoledian, @cubed-it & @davama for reporting this issue and supporting us debugging it.

I have found the underlying cause and created a PR for it, that is going into the next patch release of Graylog, hopefully being released soon.

[s1shed]

Perfect in 3.2.2 :+1:
