Grapesjs: In Firefox, unable to drag components unto an empty canvas

[roytang]

Tried this in grapesjs.com/demo:

• click "Empty canvas" to empty the canvas
• try to drag any component from the blocks menu into the canvas, unable to drop them there

Above is working fine in IE/Chrome. My Firefox version is 54.0

[artf]

Can't reproduce it (same versione). Do you have any error in console?

[roytang]

No errors in the console.

You know how there's a green bar that shows you where you can drop the component? When this problem happens, there is no green bar at all no matter where I drag the component over the canvas. Releasing the mouse button loses the component icon on the cursor, but otherwise does nothing.

(There is also an "e is null" JS error in the console if I try to drag the component beyond the upper border of the browser window, but that doesnt seem relevant.)

[artf]

Ok, I got the same behavior now (don't know why didn't get it in the last check). Seems like it's due to how differently html and body threaten in different render engines. Will try to fix it

[pournami17]

Got the same issue. Any fixes?

[artf]

At the moment is not possible as the fix I've tried (fill the height of html/body) breaks other stuff

[tribulant]

Same problem in Safari as well but it is intermittent.
In most browsers, dropping blocks onto empty canvas doesn't work.

Ideally the Javascript could just check if the canvas is empty when dropping a block and then first put an empty DIV on the canvas to drop the block into maybe?

[Bsm-B]

Same Problem also in Chrome
Console alert (grapes.min.js:2 Invalid target position)

[artf]

@tribulant @bassouma21001 I can't reproduce in either of them. Do you use the last version? Are you able to reproduce it in the demo?

[davellanedam]

I can reproduce it in the demo, try to delete everything, then drag and drop any component and it breaks. The error message I got in the console is "Invalid target position: Target collection not found, Target is not droppable, accepts [undefined], Component not draggable, acceptable by [undefined]" The message also appears as an orange alert box at top right.

[danaketh]

Same. With empty canvas you can't drag in anything. Once you have a single element in canvas, everything else seems to placed inside of it and there isn't a way of placing them outside. Like as if it needs some kind of wrapper element first.

[tribulant]

@artf

Same here, I can duplicate it locally as well as on the online demo.
As they said above, clear the canvas and try to drag an element onto the blank canvas.
Then you'll see the Javascript error in the browser's console.

[artf]

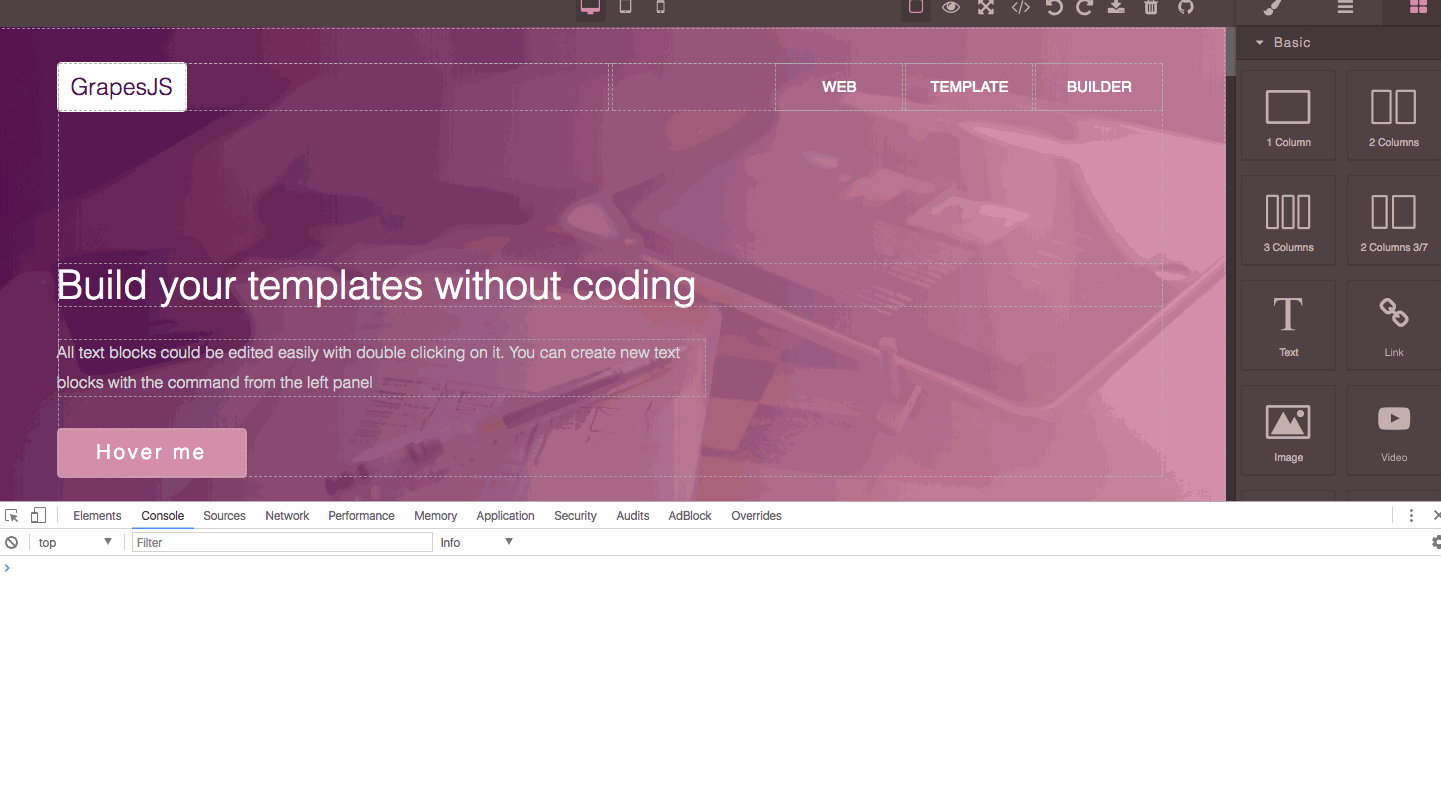

@davellanedam @danaketh @tribulant thanks guys, can you also provide the browser and OS? On my side (mac, chrome 59) I have a similar issue but the reason it's completely different with the on from the Firefox. The error is popping out when you drop the component near to the edge of the wrapper (fixable) but it works otherwise, here the screencast:

[tribulant]

@artf That is the problem I believe, the block just doesn't add to the canvas. See this video: https://goo.gl/RhsReH

[tribulant]

Btw, I'm in Safari on macOS, not Firefox although I could reproduce it on Firefox. The problem doesn't seem to occur in Chrome though.

[artf]

thanks @tribulant

[tribulant]

@artf You're welcome and thanks for everything you do. It will be nice to be able to start with a blank canvas and build a webpage from the blank canvas. At the moment, it just doesn't seem possible.

[artf]

@tribulant will do my best to fix it soon

[davellanedam]

@artf Thanks to you! Using macOS, I usually test in all browsers, but it´s on Firefox 55 where the problem is.

[tribulant]

@artf It happens to me in Safari on macOS. Cannot drag a block to an empty canvas. Nothing happens.

[danaketh]

Firefox 55.0 (64-bit) on Windows 10. I worked my way around it by adding styled <div> into #gjs element and having that one stripped away on saving the output into textarea in the page form.

[artf]

Would be great to hear someone else with macOS and Safari because I can't reproduce it.

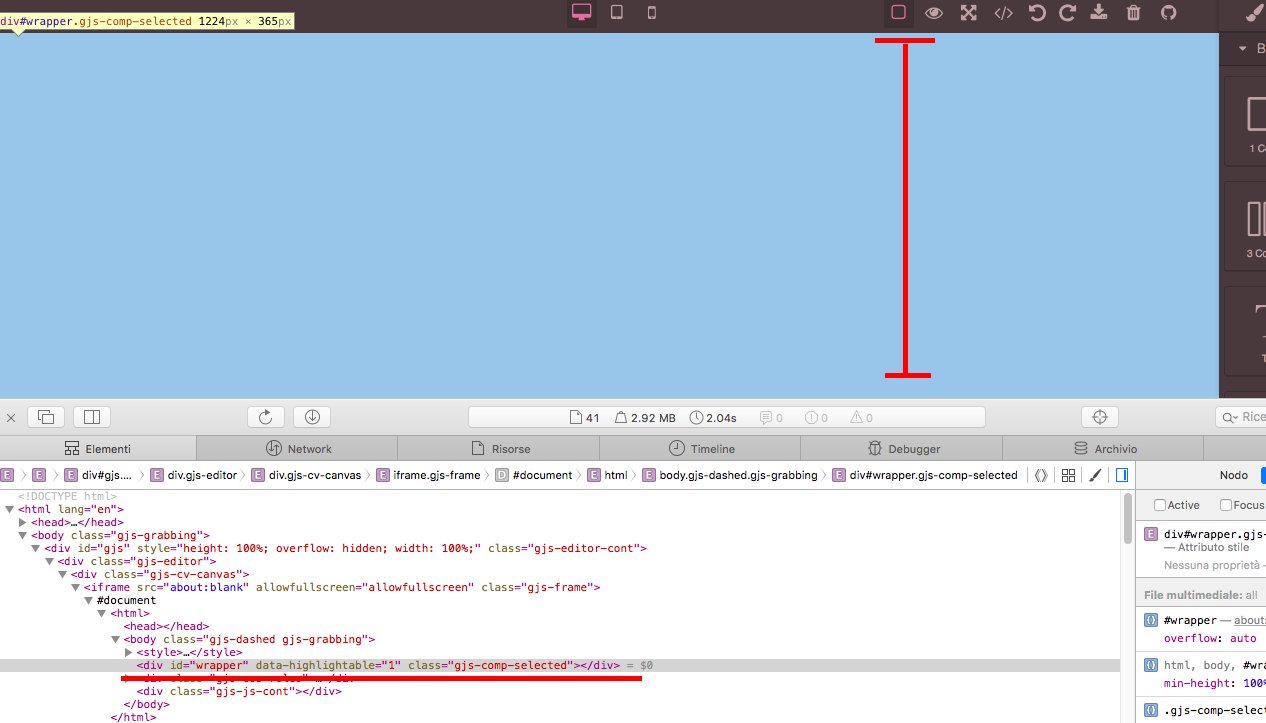

@tribulant in the inspector, does the empty wrapper fill all the canvas?

[artf]

Hi guys, I made a little update on this (v0.9.13, demo updated), besides the issue with edge corners you should be able to drag stuff in empty canvas even with Firefox (at least on my side it works now). Let me know

[davellanedam]

Besides the issue with edge corners, it´s working now on Firefox.

[oas]

Hi @artf! As for me, the issue is not fixed. I have the same problem, but not only in the corners. I tried the demo using Google Chrome (Version 61.0.3163.100) and Firefox (Version 61.0.3163.100).

Here is a short video:
https://gfycat.com/OldRepentantBeaver

Thank you in advance, great work! I hope this issue will be fixed so I can use this editor with my students!

[artf]

Seems like there is an issue with input blocks, which also affect next drops. Should work properly with other blocks

[artf]

The issue with edge corners should be fixed in the latest version https://github.com/artf/grapesjs/releases/tag/v0.12.15
