Godot: Android Animation Texture Abnormality

[316902108]

Dear Godot creator, I hope I can get your help.

I am a Chinese. I like the Godot engine very much. It's very good.
These questions puzzled me for a long time

Why does animation texture abnormal on Android?

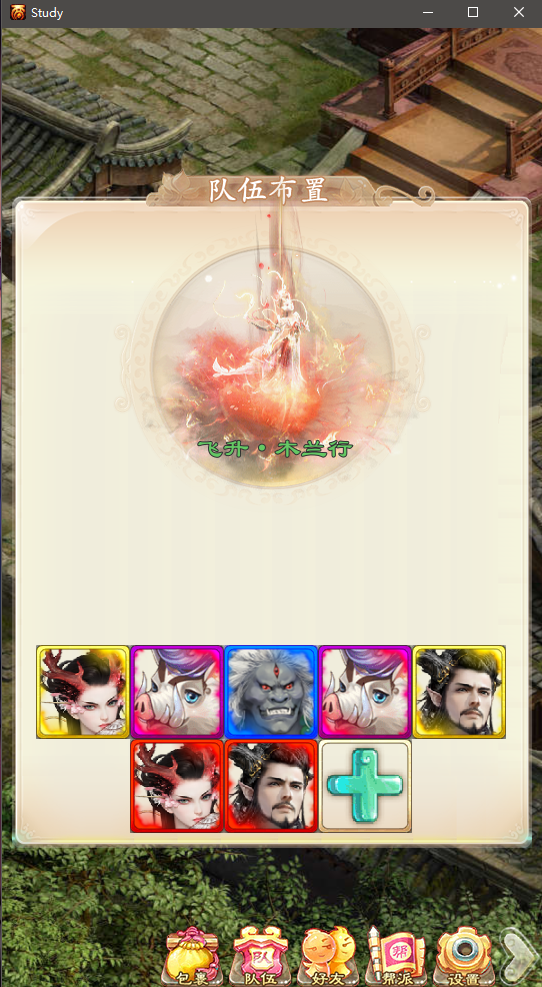

It's normal on the window desktop.

My project is over 10M and cannot be uploaded. Please provide your mail and I will send you the project file.

[Calinou]

What's the size (in pixels) of the animated textures? Most Android devices don't support displaying textures larger than 4096×4096.

My project is over 10M and cannot be uploaded. Please provide your mail and I will send you the project file.

You could upload it on Transfer.sh. The link will only be valid for 14 days, but it might be sufficient to troubleshoot the issue :slightly_smiling_face:

Also, I think GitHub allows uploading files up to 50 MB, but that may have changed recently.

[akien-mga]

Are you using GLES2 or GLES3?

If you use GLES2 and ETC (ETC1) compression for Android, I think it doesn't support transparency. So you might need to use lossless compression for transparent textures.

[316902108]

I have tried all kinds of compression modes,
I will send you my project, hope to get your help,
thank you very much for answering my question!

                    从QQ邮箱发来的超大附件

                 Project.zip (71.52M, 2019年9月5日 08:05 到期)                                       进入下载页面：http://mail.qq.com/cgi-bin/ftnExs_download?k=233663329eafb3cbbdbc80201532061f54545604500b00564c055a50061f0004540e4e53000b041d5402510b0b07510759015206333934601359095750461a4a0846630f4765&t=exs_ftn_download&code=a6c23240




                 APK.zip (54.91M, 2019年9月5日 08:05 到期)                                       进入下载页面：http://mail.qq.com/cgi-bin/ftnExs_download?k=0b6432647f1ca1cfe9eed1764463021c5105530101575302185d5701554e040351051f065005091e575102055050050554070a0762643072652f1c1e0b13300e4133&t=exs_ftn_download&code=5d2dbc03

[volzhs]

these files dimension under res://ZiYuan/Role/Man/CLJ/ are too big for mobile.
try to make it under 4096x4096

[316902108]

But this animation is normal(Q_Stand).

I don't think it's because of pixel size.

res://ZiYuan/Role/Man/CLJ/Q_Stand.png
this file dimension(7440x263) is too big for mobile.
try to make it under 4096x4096

[volzhs]

what do you mean normal?

[volzhs]

pixel size is matter.
https://www.google.com/search?q=android+texture+size+limit

[volzhs]

@akien-mga is it bettter to show warning message when exporting android if texture dimension is over 4096x4096?

[akien-mga]

is it bettter to show warning message when exporting android if texture dimension is over 4096x4096?

Probably yes, or even a blocking error.

[316902108]

@akien-mga is it bettter to show warning message when exporting android if texture dimension is over 4096x4096?

is it bettter to show warning message when exporting android if texture dimension is over 4096x4096?

Probably yes, or even a blocking error.

Texture greater than 4096x4096 export, no error

What can I do, please?

Some textures are really big.

Is that because the texture is too big?

Or for other reasons?

[Zireael07]

@316902108 Yes, your problem is because the texture is too big. They are discussing adding an error in the future if the textures are so big

[316902108]

@316902108 Yes, your problem is because the texture is too big. They are discussing adding an error in the future if the textures are so big

is it bettter to show warning message when exporting android if texture dimension is over 4096x4096?

Probably yes, or even a blocking error.

@akien-mga is it bettter to show warning message when exporting android if texture dimension is over 4096x4096?

What's the size (in pixels) of the animated textures? Most Android devices don't support displaying textures larger than 4096×4096.

My project is over 10M and cannot be uploaded. Please provide your mail and I will send you the project file.

You could upload it on Transfer.sh. The link will only be valid for 14 days, but it might be sufficient to troubleshoot the issue 🙂

Also, I think GitHub allows uploading files up to 50 MB, but that may have changed recently.

Thank you all very much.
Thank you for your dedication to Godot

When I narrowed one of the textures, the problem was solved.
I'm sorry to have caused you trouble.
In the future, I will control the texture in (4096X4096)

I often broadcasted on large live platforms in China (similar to YouToBe)
Doing Godot Teaching and Publicity

If my project makes any profit, I will donate at least 10% or more to Godot.
Godot enthusiasts are increasing in China
I hope Godot can support Chinese language better.

[volzhs]

I made a new issue about checking texture dimension when exporting for mobile. #31414
@akien-mga @316902108 can this be closed now?
