Godot: Unpredictable behaviour of aligning UI controls

[alkhimey]

Godot version:

3.0.2

OS/device including version:

Linux, Ubuntu 17.10 64 bit

Issue description:

First of all I must say that this might be a lack of knowledge from my side rather than a real issue.

It seems that sometimes when changing one UI related parameter of a control, the editor would change some other parameters in random and unpredictable way, with undo not able to reverse these changes.

Steps to reproduce:
These things looks arbitrary to me, so I cant specify the exact steps. All I can say is that I had a HBpxContainer and two Labels inside it. I was trying to make it to fill the screen horizontally and put the labels on opposite sides of it. I was playing with Align, Anchor, Margin, Rect and the Layout option at the top of the editor.

Minimal reproduction project:

This might help. In this scene, try to change the Margin of the HBoxContainer named GUI to something else. What I experienced is that the content is centered and Ctrl+Z will not reverse this.

Scene.zip

[guilhermefelipecgs]

Your project doesn't have a scene, can you post a new project?

[alkhimey]

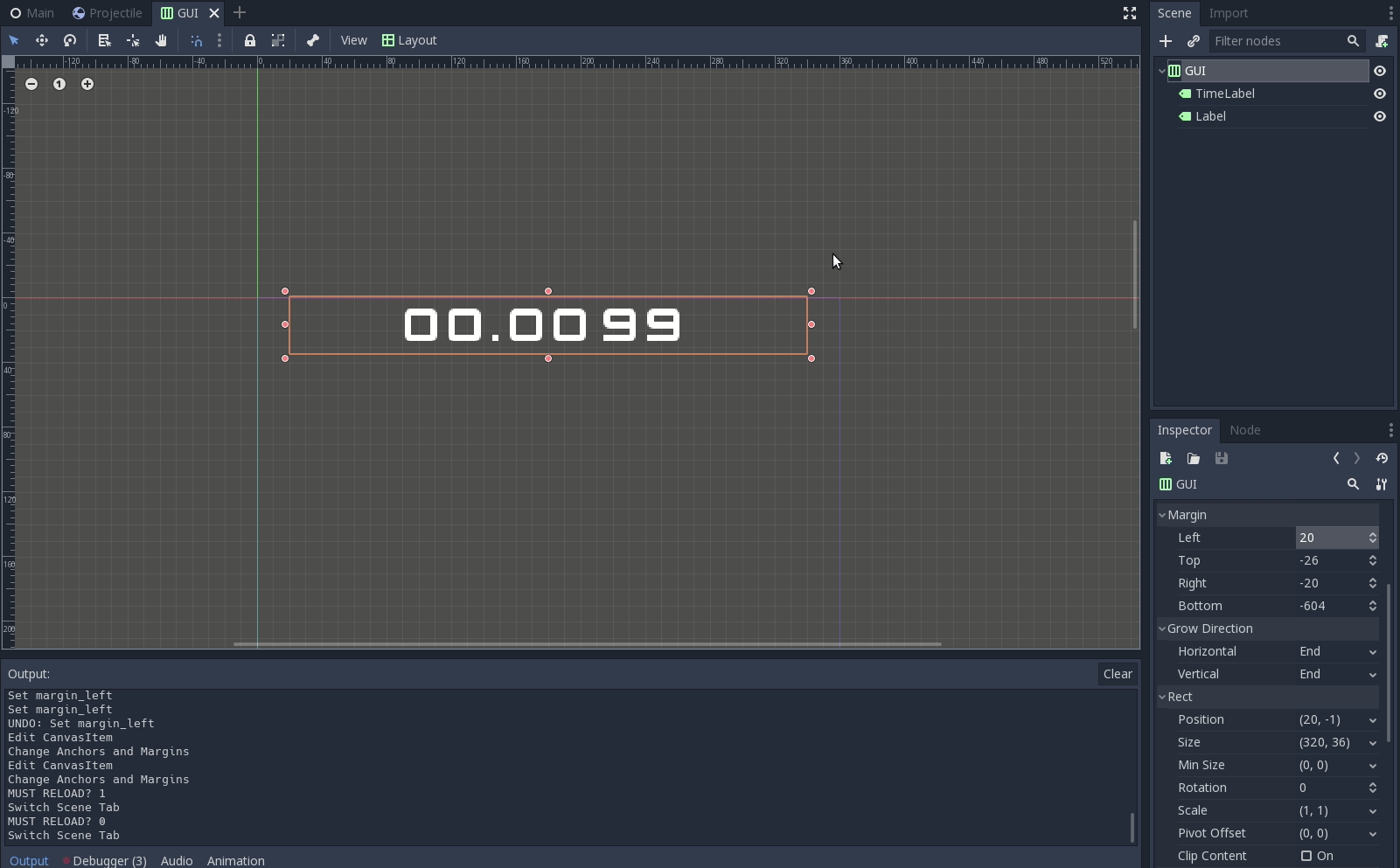

@guilhermefelipecgs Sorry accidentally uploaded a script, here is the scene as well as a GIF. This is only one example that I was able to consistently reproduce.

Scene.zip

[alkhimey]

Another mystery:

[mrcdk]

Containers arrange their contents automatically when they update. Any child inside a container will automatically update its anchors and margins from the container.

Manually changing these parameters in a child of a container won't work and whenever the container updates itself it will be overwritten. The editor letting you modify these parameters is a known issue and will be addressed sooner or later.

[alkhimey]

@mrcdk Oh, I understand now. Does it include the Layout menu at the top of the editor?

In my particular example, how can I make each label "float" to the right/left sides of the container?

[mrcdk]

Yes, it includes the Layout menu because that's just some shortcuts to different layouts.

It really depends on your design and what you want to achieve. Some times you don't even need a container. But if you need one a mix of rect min size and different size flags applied to its children will get the job done.

For your particular example you don't need a container. Set the layout of your labels just like you did in the first gif but change the parent to a Control.

[guilhermefelipecgs]

In my particular example, how can I make each label "float" to the right/left sides of the container?

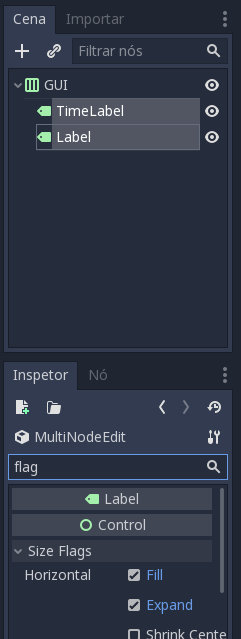

Set horizontal flag "Expand" for the two labels will do what you want:

[bojidar-bg]

Alternatively, you can add a Control node with Expand on between the labels, to push them away.

[groud]

I'll disable the layout menu when the control is a child of a container, that will be simpler.

[volzhs]

you mean greyed out instead of hiding?

[groud]

you mean greyed out instead of hiding?

Yes, with a warning message as a tooltip.
