Godot: Adding pos/rot key from 2D freezes the editor (regression)

[reduz]

Demo Scene
s2d.zip

Please use HEAD to test

[noidexe]

This affects 3.0.3 rc1 as well

[eon-s]

Got that yesterday on 3.0.2, touching the animation menu also fades the editor like trying to show a popup but never shown, the editor remains usable but in faded color state.

[Vega-KH]

Testing on Win10 (HEAD), it seems the issue doesn't happen if selected animation in the Animationplayer already has at least one track with at least one key already defined.

Steps to test:

1. Add an animation to the AnimationPlayer using the bottom "Animation" plugin.

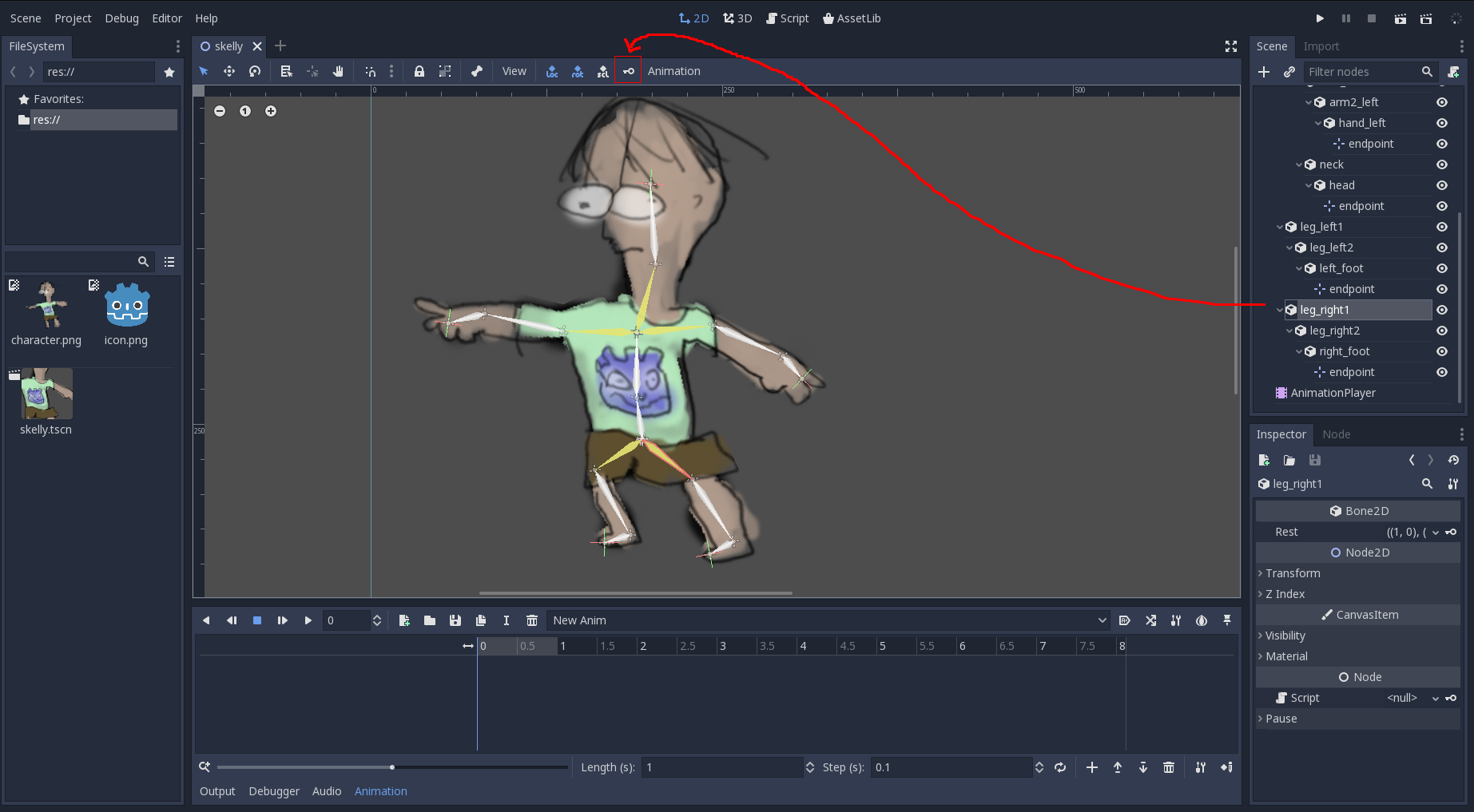

2. Select something that can be animated in the scene, then click the KEY next to the property in the inspector.
3. Now use the KEY button to create another keyframe using the top toolbar. Notice no error.

So basically, it only happens when you use the top toolbar to create the first track in an animation.

[noidexe]

Still present in 3.0.3 rc2

[adrianperreault]

Same issue here with the dimming like it's trying to show a modal.
(That's upon clicking the key icon)

The console output is displaying the following:

adrian@adrianscomp ~> ERROR: get_viewport_rect: Condition ' !is_inside_tree() ' is true. returned: Rect2()
   At: scene/2d/canvas_item.cpp:864.
ERROR: show_modal: Condition ' !is_inside_tree() ' is true.
   At: scene/gui/control.cpp:2121.
ERROR: get_global_transform: Condition ' !is_inside_tree() ' is true. returned: get_transform()
   At: scene/2d/canvas_item.cpp:379.
ERROR: get_viewport_rect: Condition ' !is_inside_tree() ' is true. returned: Rect2()
   At: scene/2d/canvas_item.cpp:864.
ERROR: grab_focus: Condition ' !is_inside_tree() ' is true.
   At: scene/gui/control.cpp:2095.
ERROR: get_tree: Condition ' !data.tree ' is true. returned: __null
   At: ./scene/main/node.h:263.
ERROR: texture_set_size_override: Condition ' p_width <= 0 || p_width > 16384 ' is true.
   At: drivers/gles3/rasterizer_storage_gles3.cpp:1093.
ERROR: texture_set_size_override: Condition ' p_width <= 0 || p_width > 16384 ' is true.
   At: drivers/gles3/rasterizer_storage_gles3.cpp:1093.
ERROR: get_pixel: Index p_x=288 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: get_pixel: Index p_x=281 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: get_pixel: Index p_x=113 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: get_pixel: Index p_x=84 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: get_pixel: Index p_y=95 out of size (height=64)
   At: core/image.cpp:1951.
ERROR: get_pixel: Index p_y=98 out of size (height=64)
   At: core/image.cpp:1951.
ERROR: get_pixel: Index p_y=798 out of size (height=64)
   At: core/image.cpp:1951.
ERROR: get_pixel: Index p_x=302 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: get_pixel: Index p_x=302 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: get_pixel: Index p_x=313 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: get_pixel: Index p_x=354 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: get_pixel: Index p_x=398 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: get_pixel: Index p_x=446 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: get_pixel: Index p_x=451 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: show_modal: Condition ' data.MI != __null ' is true.
   At: scene/gui/control.cpp:2127.
ERROR: show_modal: Condition ' data.MI != __null ' is true.
   At: scene/gui/control.cpp:2127.
ERROR: show_modal: Condition ' data.MI != __null ' is true.
   At: scene/gui/control.cpp:2127.
ERROR: get_pixel: Index p_x=529 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: get_pixel: Index p_x=787 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: get_pixel: Index p_x=979 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: show_modal: Condition ' data.MI != __null ' is true.
   At: scene/gui/control.cpp:2127.
ERROR: show_modal: Condition ' data.MI != __null ' is true.
   At: scene/gui/control.cpp:2127.
ERROR: show_modal: Condition ' data.MI != __null ' is true.
   At: scene/gui/control.cpp:2127.
ERROR: get_pixel: Index p_x=934 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: get_pixel: Index p_x=707 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: get_pixel: Index p_x=378 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: get_pixel: Index p_x=295 out of size (width=64)
   At: core/image.cpp:1950.
ERROR: get_pixel: Index p_x=238 out of size (width=64)
   At: core/image.cpp:1950.

[noidexe]

@akien-mga This is still happening with 3.0.3 rc 3. Being that it is a regression and it probably affects the workflow of a big chunk of the user base, shouldn't it be closed before marking a build as RC?

[akien-mga]

CC @hpvb

[akien-mga]

Got that yesterday on 3.0.2, touching the animation menu also fades the editor like trying to show a popup but never shown, the editor remains usable but in faded color state.

Can't reproduce on 3.0.2-stable. I can reproduce it in 3.0.3-rc3 though, the "Insert new animation" dialog doesn't show up properly, but still prevents any input.

[akien-mga]

I'm bisecting to find out what cherry-pick caused the regression in the 3.0 branch.

[akien-mga]

The regression comes from #18172 (d42b176), cherry-picked in the 3.0 branch as 826108e.
