Godot: Using the color picker gives wildly incorrect values

[ghost]

Godot version:
Godot 3.0 32d8b99

OS/device including version:
Linux Mint 18.3 Cinnamon x64. NVIDIA GTX 980 Ti, NVIDIA binary driver 384.90

Issue description:

Steps to reproduce:

1. Open any Color popup (for example, from the modulate property)
2. Activate the color picker
3. Hover over anything and monitor results

• [x] I searched the existing GitHub issues
  for potential duplicates.

[RabbitB]

Can confirm that this is an issue on Windows 10 OS Build 15063.726 and Godot Beta 2.

[staddy]

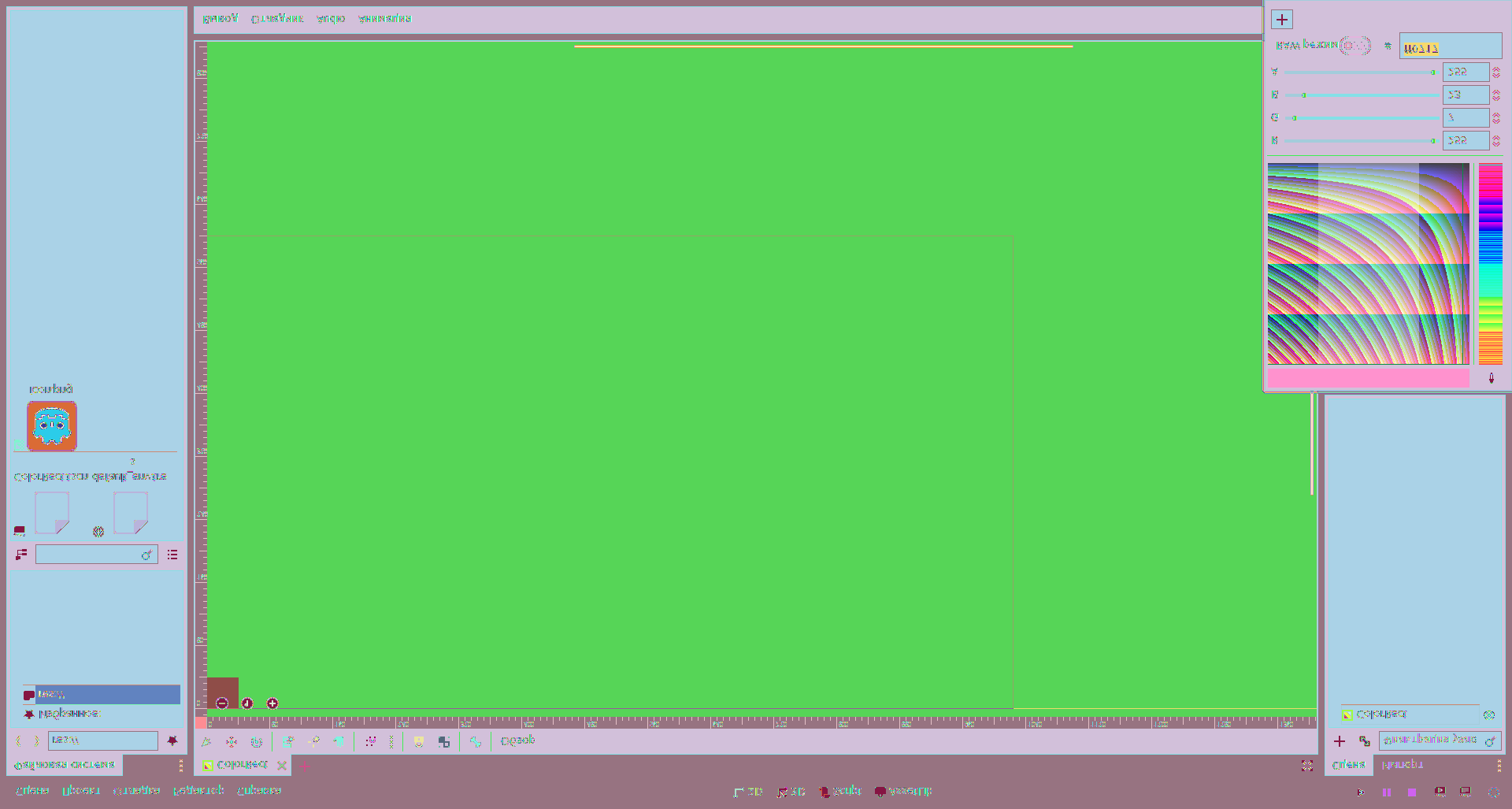

This is how get_tree()->get_root()->get_texture()->get_data() looks like, so the picker itself works correctly, problem is in getting the texture.

[binbitten]

glGetTexImage is called with type GL_INT_2_10_10_10_REV, when the rest of the code expects GL_BYTE/GL_UNSIGNED_BYTE. Think it has to do with the format being set to GL_RGB10_A2, but when it's unsupported the driver will choose another format (likely GL_RGBA). This might be the root of many other issues aswell.

[staddy]

The problem is here (rasterizer_storage_gles3.cpp):

        if (rt->flags[RENDER_TARGET_NO_3D_EFFECTS] && !rt->flags[RENDER_TARGET_TRANSPARENT]) {
            //if this is not used, linear colorspace looks pretty bad
            //this is the default mode used for mobile
            color_internal_format = GL_RGB10_A2;
            color_format = GL_RGBA;
            color_type = GL_UNSIGNED_INT_2_10_10_10_REV;
            image_format = Image::FORMAT_RGBA8;  // WRONG
        }

Not sure, but seems like Image doesn't have a Format to handle 2 10 10 10.
Easy fix is just to remove this case, though linear colorspace will look pretty bad.

[binbitten]

@staddy That's right :smiley:

I can implement FORMAT_RGB10A2. Just need the go ahead.

[reduz]

Solution is not implementing RGBA10A2 but converting to RGBA8 when obtaining the image. I reverted the PR.

[binbitten]

@reduz Thank you

So we just add a special case for GL_RGB10_A2 in texture_get_data() and convert it there?

EDIT:
It will be quite slow though as the color picker obtains the whole viewport for every mouse motion. Could use a method for obtaining sub-images, but that's probably an issue for another day..

[akien-mga]

Reopening as #15051 was reverted (see #15304 for details).

[poke1024]

@binbitten Faster color conversion for texture_get_data() might come in 3.1, see https://github.com/godotengine/godot/pull/14387

[akien-mga]

Related to #12570.

[reduz]

@binbitten yeah, manually converting RGB10A2 to RGBA8888 should be easy

[robfram]

Is there any way to test at color_pick function that the rasterizer is using RGB10A2?

Due to the 32bits of both format, the conversion can be done only for the selected pixel directly at that function. I tested it and it works, but it is assuming all rasters using color pick are RGB10A2, and I suppose it's not the case.

diff --git a/scene/gui/color_picker.cpp b/scene/gui/color_picker.cpp
index 08a39e9e7..874887242 100644
--- a/scene/gui/color_picker.cpp
+++ b/scene/gui/color_picker.cpp
@@ -439,7 +439,17 @@ void ColorPicker::_screen_input(const Ref<InputEvent> &p_event) {
                        Vector2 ofs = mev->get_global_position() - r->get_visible_rect().get_position();
                        Color c = img->get_pixel(ofs.x, r->get_visible_rect().size.height - ofs.y);
                        img->unlock();
-                       set_pick_color(c);
+                       uint8_t raw[4];
+                       for (int i=0; i<4; i++) {
+                               raw[i] = (uint8_t) (c.components[i] * 255);
+                       }
+                       uint32_t u = raw[0] | (raw[1] << 8) | (raw[2] << 16) | (raw[3] << 24);
+                       Color new_c = Color(
+                                       (u & 0x3FF) / 1023.0,
+                                       ((u >> 10) & 0x3FF) / 1023.0,
+                                       ((u >> 20) & 0x3FF) / 1023.0,
+                                       ((u >> 30) & 0x3) / 3.0);
+                       set_pick_color(new_c);
                }
        }
 }

[reduz]

anyone volunteers to add the special conversion case in texture_get_data? otherwise might kick to 3.1.
Atlernatively, you can use geteximage in a different format if GL_RGB10_A2 and GL shuold theoretically convert, so technically this may be doable with 1 or 2 lines of code.

[binbitten]

Had a go at letting GL do the converting, but testing showed various results for some vendors. So if we want consistent behavior, we might need to do the conversion ourselves.

Some pros/cons alternatives:

• Let GL do it. Easy, but some ambiguous behavior between vendors need to be expected.
• Manual conversion using only bitwise operations. Some tiny "inaccuracies", but _extremely_ fast.
• Manual conversion using floating points. More accurate, but painfully slow.

Just throwing some thoughts out. Can do any of the alternatives if desired.

[reduz]

i would do conversion using bitwise operations, this is a really corner case and accuracy is probably not needed.

[binbitten]

Agreed.
