Ghidra: MSVC float (conditional) division and multiplication not decompiled correctly

[madebr]

Describe the bug
De-compiling code that uses conditional float division and multiplication will not show these operations.
It also does not recognize the _ftol function and the conversion from float to dword.

Thanks

To Reproduce
Using standard options to decompile some code.
The code was presumably compiled using Visual Studio 6.0

Expected behavior
A clear and concise description of what you expected to happen.

Screenshots
If applicable, add screenshots to help explain your problem.

Attachments

Listing of the function

                             **************************************************************
                             *                          FUNCTION                          *
                             **************************************************************
                             float10 __stdcall FUN_01008f03(PVec3 * vec3, PVec2 * dest)
             float10           ST0:10         <RETURN>
             PVec3 *           Stack[0x4]:4   vec3                                    XREF[1]:     01008f0f(R)
             PVec2 *           Stack[0x8]:4   dest                                    XREF[1]:     01008f53(R)
             undefined4        Stack[-0x8]:4  local_8                                 XREF[2]:     01008f1c(R),
                                                                                                   01008f3c(R)
             undefined4        Stack[-0xc]:4  local_c                                 XREF[1]:     01008f50(R)
             undefined4        Stack[-0x10]:4 local_10                                XREF[2]:     01008f0b(*),
                                                                                                   01008f3f(R)
                             FUN_01008f03                                    XREF[1]:     FUN_01015c08:01015c47(c)
        01008f03 8b ff           MOV        EDI,EDI
        01008f05 55              PUSH       EBP
        01008f06 8b ec           MOV        EBP,ESP
        01008f08 83 ec 0c        SUB        ESP,0xc
        01008f0b 8d 45 f4        LEA        EAX=>local_10,[EBP + -0xc]
        01008f0e 50              PUSH       EAX
        01008f0f ff 75 08        PUSH       dword ptr [EBP + vec3]
        01008f12 68 60 81        PUSH       PMat4X3_01028160                                 =
                 02 01
        01008f17 e8 32 fe        CALL       Math_mul_mat4x3_vec3                             undefined Math_mul_mat4x3_vec3(P
                 ff ff
        01008f1c d9 45 fc        FLD        dword ptr [EBP + local_8]
        01008f1f dd 05 f8        FLD        qword ptr [DAT_010016f8]
                 16 00 01
        01008f25 da e9           FUCOMPP
        01008f27 df e0           FNSTSW     AX
        01008f29 f6 c4 44        TEST       AH,0x44
        01008f2c 7a 08           JP         LAB_01008f36
        01008f2e d9 05 18        FLD        dword ptr [DAT_01001718]                         = FEh
                 17 00 01
        01008f34 eb 09           JMP        LAB_01008f3f
                             LAB_01008f36                                    XREF[1]:     01008f2c(j)
        01008f36 d9 05 40        FLD        dword ptr [DAT_01028140]                         = ??
                 81 02 01
        01008f3c d8 75 fc        FDIV       dword ptr [EBP + local_8]
                             LAB_01008f3f                                    XREF[1]:     01008f34(j)
        01008f3f d9 45 f4        FLD        dword ptr [EBP + local_10]
        01008f42 56              PUSH       ESI
        01008f43 d8 c9           FMUL       ST1
        01008f45 d8 05 3c        FADD       dword ptr [DAT_0102813c]                         = ??
                 81 02 01
        01008f4b e8 16 82        CALL       _ftol                                            undefined _ftol()
                 01 00
        01008f50 d9 45 f8        FLD        dword ptr [EBP + local_c]
        01008f53 8b 75 0c        MOV        ESI,dword ptr [EBP + dest]
        01008f56 d8 c9           FMUL       ST1
        01008f58 89 06           MOV        dword ptr [ESI],EAX
        01008f5a d8 05 38        FADD       dword ptr [DAT_01028138]                         = ??
                 81 02 01
        01008f60 e8 01 82        CALL       _ftol                                            undefined _ftol()
                 01 00
        01008f65 dd d8           FSTP       ST0
        01008f67 d9 05 1c        FLD        dword ptr [DAT_0100171c]
                 17 00 01
        01008f6d 89 46 04        MOV        dword ptr [ESI + 0x4],EAX
        01008f70 5e              POP        ESI
        01008f71 c9              LEAVE
        01008f72 c2 08 00        RET        0x8
        01008f75 cc              ??         CCh
        01008f76 cc              ??         CCh
        01008f77 cc              ??         CCh
        01008f78 cc              ??         CCh
        01008f79 cc              ??         CCh

Result of decompilation

float10 FUN_01008f03(PVec3 *vec3,PVec2 *dest)

{
  float fVar1;
  PVec3 local_10;

  Math_mul_mat4x3_vec3(&PMat4X3_01028160,vec3,&local_10);
  fVar1 = (float)_ftol();
  dest->x = fVar1;
  fVar1 = (float)_ftol();
  dest->y = fVar1;
  return (float10)1.00000000;
}

Environment (please complete the following information):

• OS: Windows 10
• Java Version: 1.8.0_162
• Ghidra Version: 9.1

[madebr]

Also, note that this function is using global data DAT_010016f8, DAT_01001718, DAT_01028140, DAT_0102813c, DAT_01028138 and DAT_0100171c.
These are also not shown in the decompiled code.

[nightlark]

I'm not sure if it's specifically conditional floating point instructions that get messed up, but it seems like the decompiler struggles with floating point instruction sequences (e.g. nothing shows up in the decompiled output for several floating point instructions, sometimes very long sequences of floating point instructions).

It seemed like it was reading global data fine in some instances, so it maybe it gives up with subsequent floating point instructions after encountering one it doesn't understand.

[Jaguar83]

FUN_004ab350
     MOV        EAX ,[DAT_00542074 ]

     TEST       EAX ,EAX
     JLE        LAB_004ab372
     FILD       dword ptr [DAT_00542074 ]

     FMUL       qword ptr [DAT_004d27b0 ]

     FSQRT
     FMUL       qword ptr [DAT_004d27b8 ]

     CALL       stdc::__ftol

LAB_004ab372
     MOV        [DAT_0054206c ],EAX

     RET

Decompiles as:

void FUN_004ab350(void)
{
  int iVar1;

  iVar1 = DAT_00542074;
  if (0 < DAT_00542074) {
    iVar1 = __ftol();
  }
  DAT_0054206c = iVar1;
  return;
}

The issue is the fact that before __ftol, no value is returned to memory, as __ftol does that.

I've set the signature of __ftol to "longlong __ftol (double param_1)", with custom storage set as thus:
Return: longlong (EAX, EDX)
param1: double (ST0)

After setting this the decompilation shows:

void FUN_004ab350(void)
{
  int iVar1;
  longlong lVar2;

  iVar1 = DAT_00542074;
  if (0 < DAT_00542074) {
    lVar2 = __ftol(SQRT((double)DAT_00542074 * 0.00001526) * 65536.00000000);
    iVar1 = (int)lVar2;
  }
  DAT_0054206c = iVar1;
  return;
}

Which looks correct to me.

[nightlark]

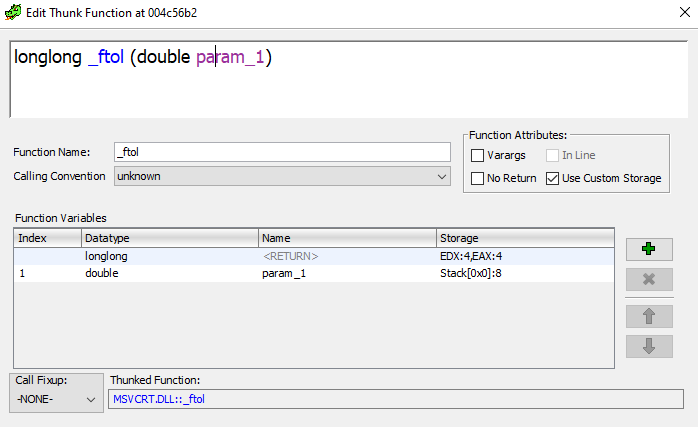

@Jaguar83 thanks for the tip! I'm still having some issues with it, the image below shows my settings:

An example of the instructions Ghidra is getting:

PUSH       EBP
    MOV        ECX,dword ptr [ESP + param_2]
    MOV        EBP,ESP
    SUB        ESP,0x4
    MOV        EAX,dword ptr [EBP + param_1]
    CMP        ECX,EAX
    JG         LAB_00424e33
    XOR        EAX,EAX
    JMP        LAB_00424e54
LAB_00424e33
    MOV        dword ptr [EBP + local_8],ECX
    FILD       dword ptr [EBP + local_8]
    MOV        dword ptr [EBP + local_8],EAX
    FLD        ST0
    FISUB      dword ptr [EBP + local_8]
    FDIVP
    FSUB       qword ptr [DOUBLE_004c8f18]
    FMUL       qword ptr [DOUBLE_004c8f28]
    CALL       _ftol
LAB_00424e54
    MOV        ESP,EBP
    POP        EBP
    RET

And the output I get after from Ghidra is this:

undefined4 uVar1;
longlong lVar2;

if (param_1 < param_2) {
  lVar2 = _ftol((double)CONCAT44(param_1,0x424e54));
  uVar1 = (undefined4)lVar2;
}
else {
  uVar1 = 0;
}
return uVar1;

Which still looks messed up, as the FDIV, FMUL, and FSUB aren't showing up -- the same function run through the HexRays decompiler shows the expected operations.

[Jaguar83]

Storage for param_1 needs to be ST0 - the FPU register, not Stack[0x0]

[nightlark]

Thanks! Yea, I realized that and made the change. The new output is much better, the relevant decompiler output now looks like:

lVar2 = _ftol(((double)param_2 / ((double)param_2 - (double)param_1) - 1.00000000) * 5000.00000000);

A screenshot of the settings I used for any people that come across this and want a visual:

[Jaguar83]

As a general note, it would seem that the analyser would need to pick up the signature of __ftol to fix this issue in the long term.
However, as this function uses a non-standard calling convention, I don't think it would fit under standard analysis rules, so a special rule would need to added for this function. Not sure if this is possible, as I haven't had a look at the relevant source code yet.

[nightlark]

Last night I was trying to figure out how ghidra knows what the function signatures and calling conventions for the other msvcrt functions -- it looks like a lot of the other msvcrt functions have entries in the gdt files here: https://github.com/NationalSecurityAgency/ghidra/tree/master/Ghidra/Features/Base/data/typeinfo/win32

I noticed that adding a _ftol function definition to the data type manager made it use that function signature for _ftol, though the data type manager doesn't seem to have any custom storage support to handle the special calling convention the _ftol function uses.

There seem to be a few other functions in the list of Internal CRT Globals and Functions microsoft has, with some of the subpages like _CIsin mentioning the special calling convention used. Interfacing with the _ftol2 function also appears in the LLVM mailing list with some talk about how it is called here and here
