Geonode: Styling issues at welcome page

[kikislater]

_edited by @gannebamm to hold all sub-issues as list_

Expected Behavior

We have a nice and smooth welcome page UI.

• [ ] Correct display without bar on the right
• [ ] Categories do display well without strange linebreaks
• [ ] Maps Thumbnails are resized proportionnal when resizing window
• [ ] themed cookie bar does have proper colors
• [ ] Search input ID is unique

Actual Behavior

We have some UI glitches in the welcome page UI.

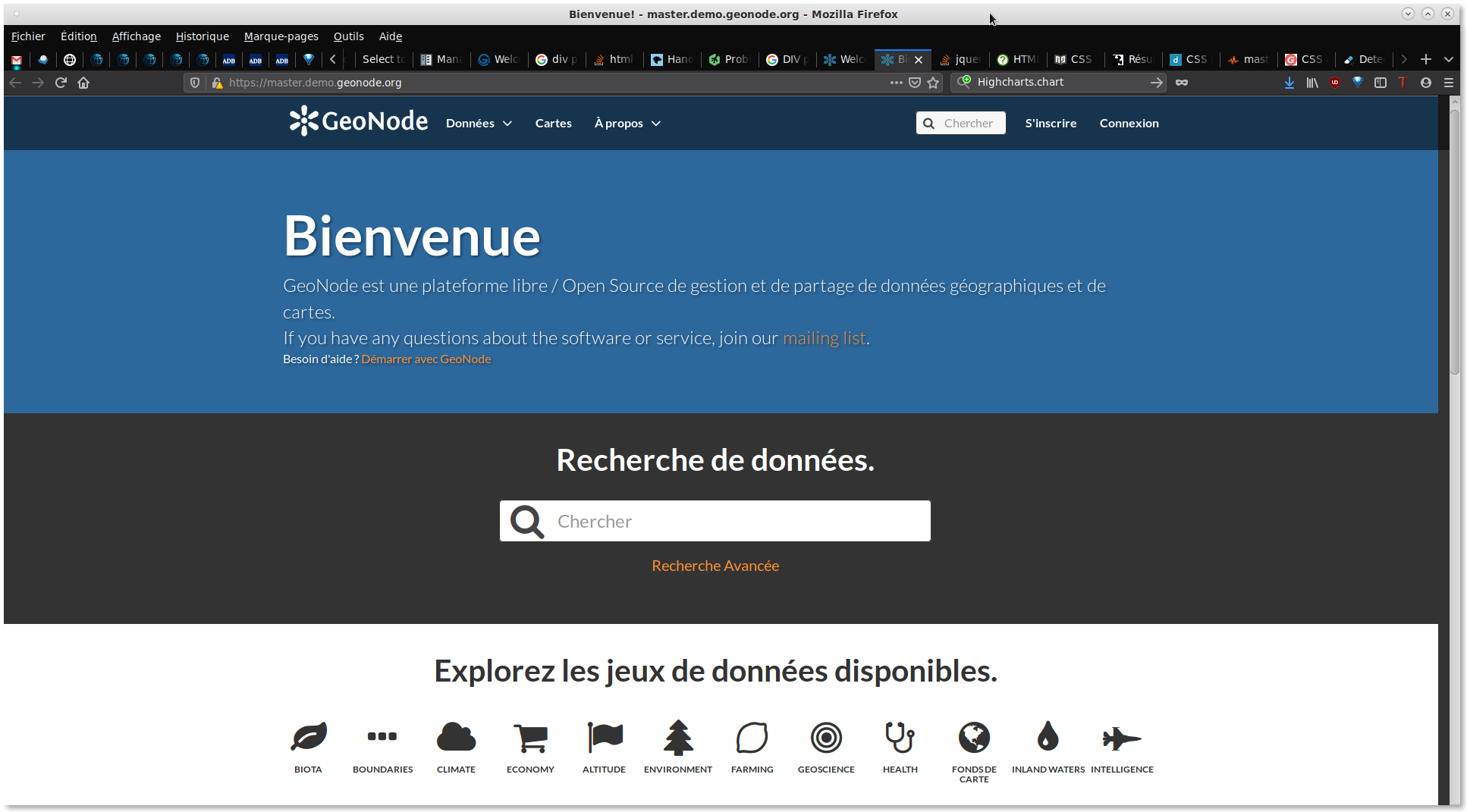

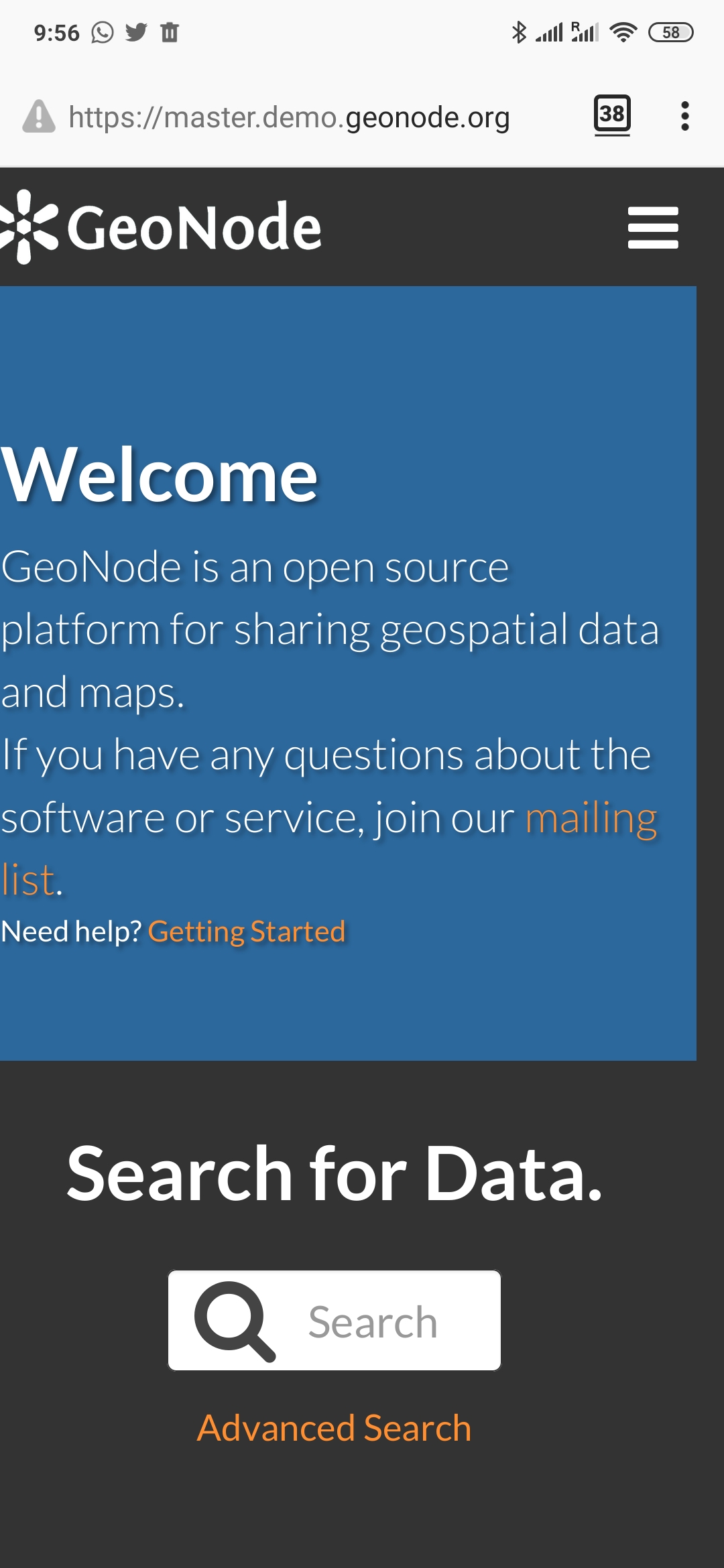

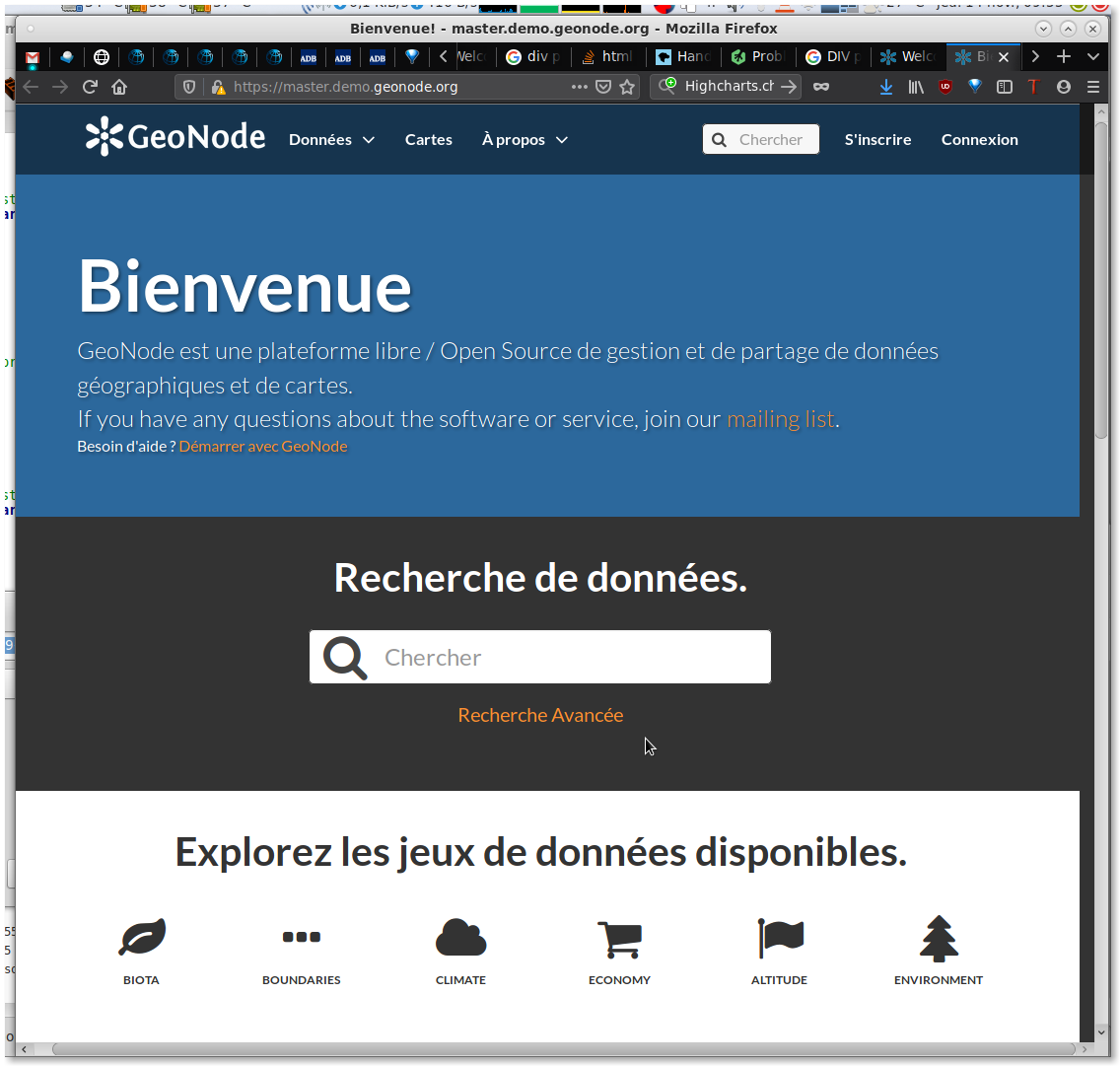

Bar on the right, resulting in horizontal scrolling:

Categories doesn't display well and do strange linebreaks: https://github.com/GeoNode/geonode/issues/5263#issuecomment-554609023

Maps Thumbnails are not resized proportionnal when resizing window: https://github.com/GeoNode/geonode/issues/5263#issuecomment-554834035

Issues with cookie bar (themes): https://github.com/GeoNode/geonode/issues/5263#issuecomment-554884478

ID for search input is used twice: https://github.com/GeoNode/geonode/issues/5263#issuecomment-554884478

Steps to Reproduce the Problem

1. Open Geonode demo
2. Inspect the welcome page ui and html

Specifications

• GeoNode version: 2.10
• Installation method (manual, GeoNode Docker, SPCGeoNode Docker): All
• Platform: All

[t-book]

This is caused by the negative margin of https://github.com/GeoNode/geonode/blob/0601f1575eb95ccbe620471bd29644fb0d9f0177/geonode/templates/index.html#L253

scrolls do not appear with chrome but ff.
might be a bug with bootstrap3 - a quick fix would be to give the row: margin: 0px 0px;

[kikislater]

Cool ! Thank you @t-book
So error is not here ? =>
https://github.com/GeoNode/geonode/blob/0601f1575eb95ccbe620471bd29644fb0d9f0177/geonode/static/geonode/css/base.css#L1600-L1603

It seems to be well known :

https://github.com/twbs/bootstrap/issues/10711

[kikislater]

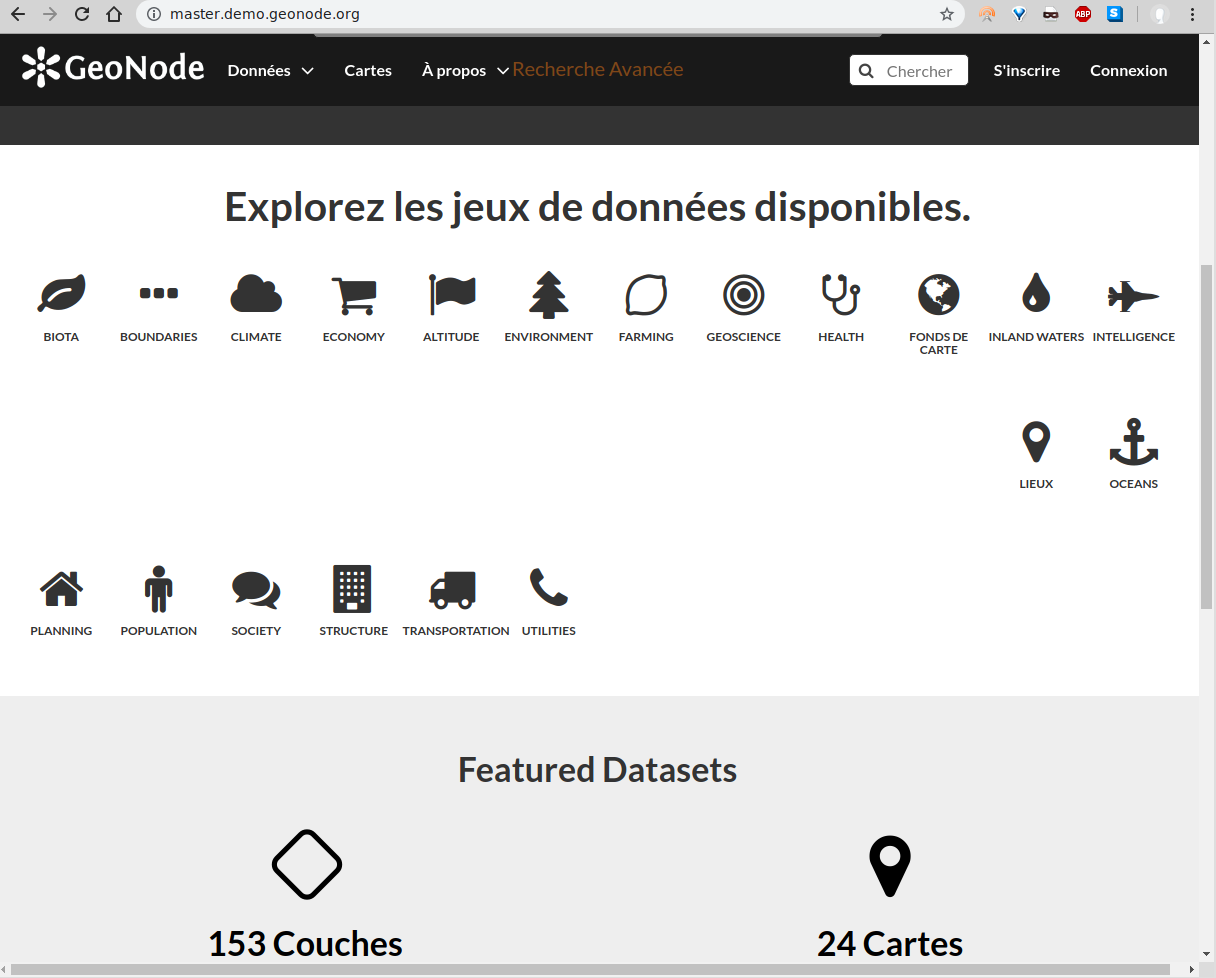

And another one. It happens in Firefox and Chrome if you switch to French language at some resizing window : Categories doesn't display well.

Problem disappear if we remove width line :

https://github.com/GeoNode/geonode/blob/0601f1575eb95ccbe620471bd29644fb0d9f0177/geonode/static/geonode/css/base.css#L2218-L2220

[t-book]

Oh that is ugly ;/ the problem here is that _Fonds de cart_ breaks in the next line. Doing so it's parent div has a different height. Hence the next row children order after it. I think making child divs flex-items by applying the following to the table row would be the way to go.

container.text-center .row {
    display: flex;
    display: -webkit-flex;
    flex-wrap: wrap;
}

[kikislater]

Thank you, it works !

Another ugly one IMO but I'm not using it :

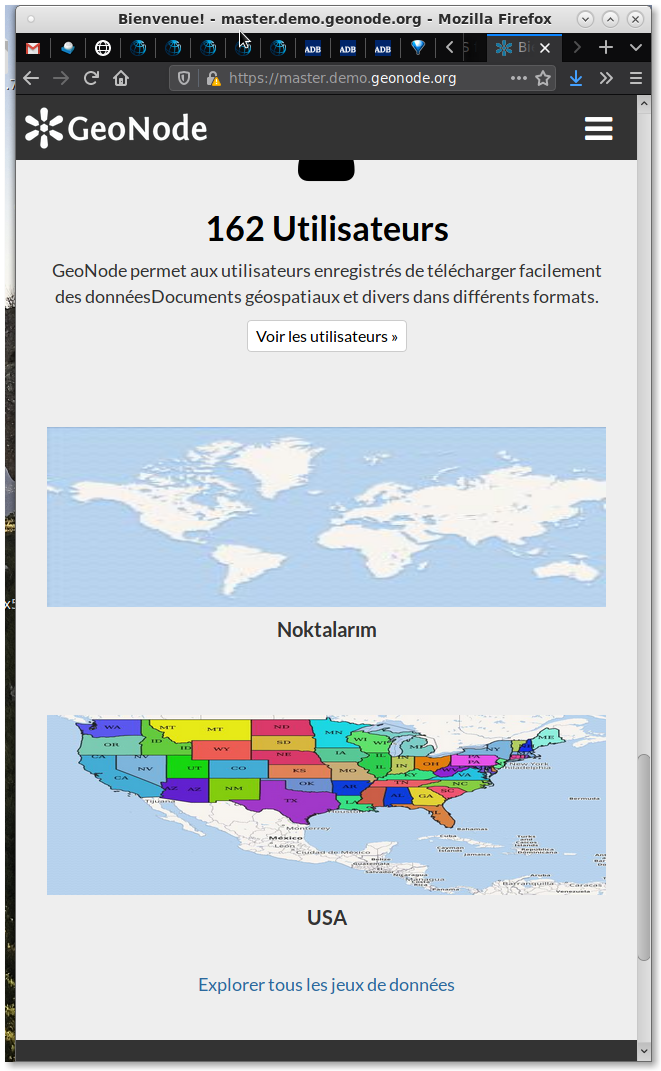

Maps are not proportionnal when resizing window

[t-book]

Oh I see. Problem here is the 100% width of the img and the fixed height.

it will get better when https://github.com/GeoNode/geonode/blob/0601f1575eb95ccbe620471bd29644fb0d9f0177/geonode/templates/index.html#L304

get's some more classes like: <div class="col-xs-12 col-sm-6 col-md-3"> further a bit more responsive height handling:

.home #showcase .col-md-3 img {
    max-height: 180px;
    width: auto;
}

@capooti the right image looks like a custom uploaded thumbnail. Where the left is resized to 180px height the curated one keeps it's original size of ~700px width. This is nothing urgent but wouldn't it be nice to downsize the thumb at curated section as well?

[t-book]

And as this is growing to something like a frontend wish list I will add two more:

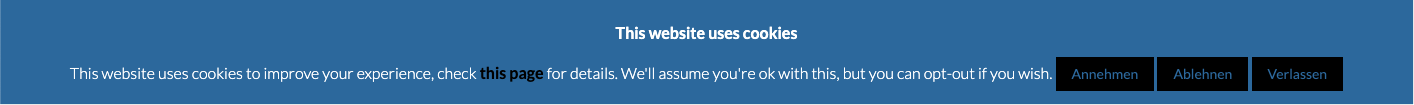

Issues with cookie bar (themes):

1. The bar is not the first item on the page and focus is not on the bar when the page loads. Keyboard users have to tab through all items on the page to access the cookie consent bar.
2. The anchor tag is being used as a button instead of a navigational link. (The href attribute contains a placeholder value that links to the same page but does not navigate to an anchor point). The semantically correct way would be the use of a button instead.

ID for search input is used twice

• the top search and the big search both use id="search_input" (An id should be unique no matter on which tag it's added.) I would suggest using either an data attribute for js access or some namespaced class like js_search

_(this is not urgent at all)_
