Foundation-sites: Menu icon: changing direction of submenu icons is not working

[onecreative]

<ul class="menu icons icon-top">
  <li>
    <a href="#"><i class="fi-list"></i> <span>One</span></a>
    <ul class="menu icons icon-left">
      <li><a href="#"><i class="fi-list"></i> <span>Two</span></a></li>
    </ul>
  </li>
</ul>

In the above snippet, the nested list picks up the icon orientation of the the outer one. This is because the CSS for the icons is written like:

.menu.icon-top li a {
    -webkit-box-orient: vertical;
    -webkit-box-direction: normal;
        -ms-flex-flow: column nowrap;
            flex-flow: column nowrap;}

If we change it to this, it will fix it:

.menu.icon-top li a,
.menu.icon-top>li>a {
    -webkit-box-orient: vertical;
    -webkit-box-direction: normal;
        -ms-flex-flow: column nowrap;
            flex-flow: column nowrap;}

[kball]

cc @IamManchanda

[rafibomb]

We'll accept a Pull Request for this @onecreative . Do you think you can add that?

[onecreative]

@rafibomb Kind of embarrassing, but I haven't submitted a pull request before. I'd love to contribute, but I'll need guidance the first time.

[colin-marshall]

@onecreative
https://help.github.com/articles/creating-a-pull-request/

[DanielRuf]

Hi, is there any update for us regarding this?

[evagm]

Hi @DanielRuf, can I take a look at this issue if it's available?

[DanielRuf]

Hi @DanielRuf, can I take a look at this issue if it's available?

Hi @evagm,

sure, feel free to pick any issues and work on them if you want.

[evagm]

Perfect! Thank you!

[evagm]

@DanielRuf - The "nested" class is not included in the example above but is part of the documentation for nested lists. Can I make the assumption that the class would always be required when nesting menu lists?

The styles above don't work as a solution but if we utilize the "nested" class we could create specificity for nested icons.

.menu {
  &,
  &.nested {
    // Icon Left
    &.icon-left {
      @include menu-icon-position(left);
    }

    ...
  }
}

The output would be:

.menu.icon-left li a,
.menu.nested.icon-left li a {}

[DanielRuf]

I guess so. At least it is recommended to use .nested for such use cases.

[evagm]

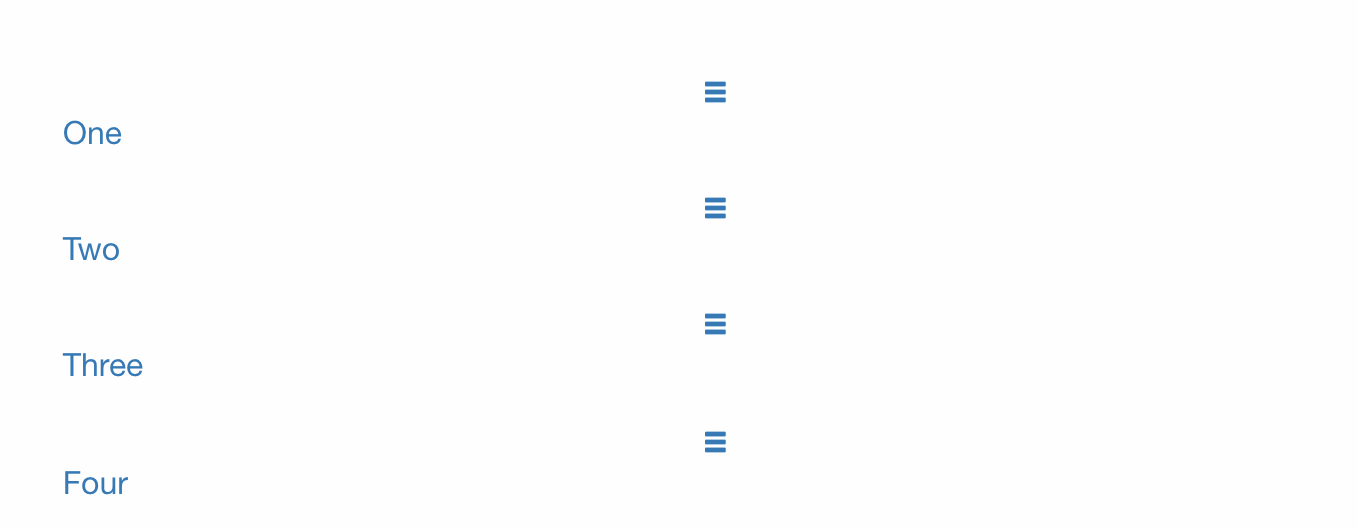

@DanielRuf Got one more question for you. I found a potential issue with the icons. When you have a vertical menu with icon-top, they don't align as you would expect. Would this be considered an issue and if so should I create a new issue for this or work on fixing it inside the same branch as this current issue?

<ul class="vertical menu icons icon-top">
  <li>
    <a href="#"><i class="fi-list"></i> <span>One</span></a>
  </li>
  <li><a href="#"><i class="fi-list"></i> <span>Two</span></a></li>
  <li><a href="#"><i class="fi-list"></i> <span>Three</span></a></li>
  <li><a href="#"><i class="fi-list"></i> <span>Four</span></a></li>
</ul>

[DanielRuf]

Hi @evagm,

You can create a new issue and a new branch for this but feel free to solve both in one and mention both bugs, for example by creating two commits.

[evagm]

Full bug findings

The icon inside the menu list does not align correctly when the icon is position top/bottom for menus with the classes:

• vertical
• vertical align-right
• expanded

Solution

The solution requiring the least amount of changes to the code would be to remove the text-align: center from the icon in those instances. @DanielRuf Thoughts?

[DanielRuf]

This looks good and the described solution sounds also good but I am not 100% sure. We will see then in the PR and when we do some tests with it. It's a bit late here (11pm) so I am not that good at thinking now.

I'm happy to review and test the PR then and provide feedback then =)
