Flutterfire: πŸ› [firebase_ml_vision] Getting inconsistent result while scanning bar code

Created on 26 Sep 2020  Β·  2Comments  Β·  Source: FirebaseExtended/flutterfire

Describe the bug
Im trying out the example code provided in the firebase_ml_vision and when i scan the bar code it gives displayValue as
"{"typeNumber": "0", "errorCode": "3", "version": "65"}", rarely it gives the correct displayValue, for the same barcode it sometime gives correct output and sometimes with the above error code

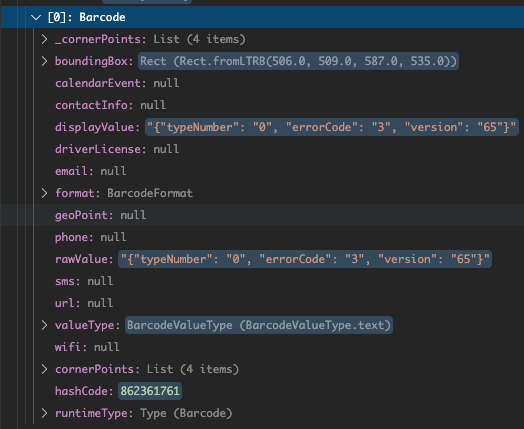

I have attached the image for reference


Steps to reproduce

Steps to reproduce the behavior:

  1. Clone the example app for firebase_ml_vision provided in the official Flutterfire repo.
  2. In main.dart file Initialise MaterialBarcodeScanner with height:400 and width:300
    i.e
    ... const MaterialBarcodeScanner( validRectangle: Rectangle(height: 400, width: 300), ), ...
  3. Setup the firebase project in the console.
  4. Once the app starts, select MaterialBarcodeScanner in the homepage.
  5. Generate a barcode online with default options.
  6. App shows wrong barcode value with error code.

Expected behavior

App should show correct barcode value

Flutter doctor

Click To Expand

Doctor summary (to see all details, run flutter doctor -v):
[βœ“] Flutter (Channel stable, 1.20.4, on Mac OS X 10.15.7 19H2, locale en-IN)

[βœ“] Android toolchain - develop for Android devices (Android SDK version 30.0.2)
[βœ“] Xcode - develop for iOS and macOS (Xcode 11.5)
[βœ“] Android Studio (version 4.0)
[βœ“] Connected device (1 available)


Flutter dependencies

Click To Expand

Dart SDK 2.9.2
Flutter SDK 1.20.4
ml_vision 1.0.0+1

dependencies:
- camera 0.5.8+7 [flutter]
- cupertino_icons 0.1.3
- firebase_core 0.5.0 [firebase_core_platform_interface flutter quiver meta firebase_core_web]
- firebase_ml_vision 0.9.6+2 [flutter]
- flutter 0.0.0 [characters collection meta typed_data vector_math sky_engine]
- image_picker 0.6.7+11 [flutter flutter_plugin_android_lifecycle image_picker_platform_interface]
- path_provider 1.6.18 [flutter path_provider_platform_interface path_provider_macos path_provider_linux path_provider_windows]

dev dependencies:
- flutter_test 0.0.0 [flutter test_api path fake_async clock stack_trace vector_math async boolean_selector characters charcode collection matcher meta source_span stream_channel string_scanner term_glyph typed_data]

transitive dependencies:
- async 2.4.2 [collection]
- boolean_selector 2.0.0 [source_span string_scanner]
- characters 1.0.0
- charcode 1.1.3
- clock 1.0.1 [meta]
- collection 1.14.13
- fake_async 1.1.0 [clock collection]
- ffi 0.1.3
- file 5.2.1 [intl meta path]
- firebase 7.3.0 [http http_parser js]
- firebase_core_platform_interface 2.0.0 [flutter meta plugin_platform_interface quiver]
- firebase_core_web 0.2.0 [firebase firebase_core_platform_interface flutter flutter_web_plugins meta js]
- flutter_plugin_android_lifecycle 1.0.11 [flutter]
- flutter_web_plugins 0.0.0 [flutter characters collection meta typed_data vector_math]
- http 0.12.2 [http_parser path pedantic]
- http_parser 3.1.4 [charcode collection source_span string_scanner typed_data]
- image_picker_platform_interface 1.1.1 [flutter meta http plugin_platform_interface]
- intl 0.16.1 [path]
- js 0.6.2
- matcher 0.12.8 [stack_trace]
- meta 1.1.8
- path 1.7.0
- path_provider_linux 0.0.1+2 [path xdg_directories path_provider_platform_interface flutter]
- path_provider_macos 0.0.4+4 [flutter]
- path_provider_platform_interface 1.0.3 [flutter meta platform plugin_platform_interface]
- path_provider_windows 0.0.4+1 [path_provider_platform_interface meta path flutter ffi win32]
- pedantic 1.9.0
- platform 2.2.1
- plugin_platform_interface 1.0.2 [meta]
- process 3.0.13 [file intl meta path platform]
- quiver 2.1.3 [matcher meta]
- sky_engine 0.0.99
- source_span 1.7.0 [charcode collection meta path term_glyph]
- stack_trace 1.9.5 [path]
- stream_channel 2.0.0 [async]
- string_scanner 1.0.5 [charcode meta source_span]
- term_glyph 1.1.0
- test_api 0.2.17 [async boolean_selector collection meta path source_span stack_trace stream_channel string_scanner term_glyph matcher]
- typed_data 1.2.0 [collection]
- vector_math 2.0.8
- win32 1.7.3 [ffi]
- xdg_directories 0.1.0 [path process flutter]


ml_vision bug

All 2 comments


code sample

// Copyright 2019 The Chromium Authors. All rights reserved.
// Use of this source code is governed by a BSD-style license that can be
// found in the LICENSE file.

import 'dart:async';
import 'dart:io';
import 'dart:ui' show lerpDouble;

import 'package:firebase_ml_vision/firebase_ml_vision.dart';
import 'package:flutter/foundation.dart';
import 'package:flutter/material.dart';
import 'package:camera/camera.dart';
import 'package:flutter/services.dart';
import 'package:path_provider/path_provider.dart';

import 'colors.dart';
import 'scanner_utils.dart';

enum AnimationState { search, barcodeNear, barcodeFound, endSearch }

class MaterialBarcodeScanner extends StatefulWidget {
  const MaterialBarcodeScanner({
    this.validRectangle = const Rectangle(width: 400, height: 300),
    this.frameColor = kShrineScrim,
    this.traceMultiplier = 1.2,
  });

  final Rectangle validRectangle;
  final Color frameColor;
  final double traceMultiplier;

  @override
  _MaterialBarcodeScannerState createState() => _MaterialBarcodeScannerState();
}

class _MaterialBarcodeScannerState extends State<MaterialBarcodeScanner>
    with TickerProviderStateMixin {
  CameraController _cameraController;
  AnimationController _animationController;
  String _scannerHint;
  bool _closeWindow = false;
  String _barcodePictureFilePath;
  Size _previewSize;
  AnimationState _currentState = AnimationState.search;
  CustomPainter _animationPainter;
  int _animationStart = DateTime.now().millisecondsSinceEpoch;
  final BarcodeDetector _barcodeDetector =
      FirebaseVision.instance.barcodeDetector();

  @override
  void initState() {
    super.initState();

    SystemChrome.setEnabledSystemUIOverlays(<SystemUiOverlay>[]);
    SystemChrome.setPreferredOrientations(
      <DeviceOrientation>[DeviceOrientation.portraitUp],
    );
    _initCameraAndScanner();
    _switchAnimationState(AnimationState.search);
  }

  void _initCameraAndScanner() {
    ScannerUtils.getCamera(CameraLensDirection.back).then(
      (CameraDescription camera) async {
        await _openCamera(camera);
        await _startStreamingImagesToScanner(camera.sensorOrientation);
      },
    );
  }

  void _initAnimation(Duration duration) {
    setState(() {
      _animationPainter = null;
    });

    _animationController?.dispose();
    _animationController = AnimationController(duration: duration, vsync: this);
  }

  void _switchAnimationState(AnimationState newState) {
    if (newState == AnimationState.search) {
      _initAnimation(const Duration(milliseconds: 750));

      _animationPainter = RectangleOutlinePainter(
        animation: RectangleTween(
          Rectangle(
            width: widget.validRectangle.width,
            height: widget.validRectangle.height,
            color: Colors.white,
          ),
          Rectangle(
            width: widget.validRectangle.width * widget.traceMultiplier,
            height: widget.validRectangle.height * widget.traceMultiplier,
            color: Colors.transparent,
          ),
        ).animate(_animationController),
      );

      _animationController.addStatusListener((AnimationStatus status) {
        if (status == AnimationStatus.completed) {
          Future<void>.delayed(const Duration(milliseconds: 1600), () {
            if (_currentState == AnimationState.search) {
              _animationController.forward(from: 0);
            }
          });
        }
      });
    } else if (newState == AnimationState.barcodeNear ||
        newState == AnimationState.barcodeFound ||
        newState == AnimationState.endSearch) {
      double begin;
      if (_currentState == AnimationState.barcodeNear) {
        begin = lerpDouble(0.0, 0.5, _animationController.value);
      } else if (_currentState == AnimationState.search) {
        _initAnimation(const Duration(milliseconds: 500));
        begin = 0.0;
      }

      _animationPainter = RectangleTracePainter(
        rectangle: Rectangle(
          width: widget.validRectangle.width,
          height: widget.validRectangle.height,
          color: newState == AnimationState.endSearch
              ? Colors.transparent
              : Colors.white,
        ),
        animation: Tween<double>(
          begin: begin,
          end: newState == AnimationState.barcodeNear ? 0.5 : 1.0,
        ).animate(_animationController),
      );

      if (newState == AnimationState.barcodeFound) {
        _animationController.addStatusListener((AnimationStatus status) {
          if (status == AnimationStatus.completed) {
            Future<void>.delayed(const Duration(milliseconds: 300), () {
              if (_currentState != AnimationState.endSearch) {
                _switchAnimationState(AnimationState.endSearch);
                setState(() {});
                _showBottomSheet();
              }
            });
          }
        });
      }
    }

    _currentState = newState;
    if (newState != AnimationState.endSearch) {
      _animationController.forward(from: 0);
      _animationStart = DateTime.now().millisecondsSinceEpoch;
    }
  }

  Future<void> _openCamera(CameraDescription camera) async {
    final ResolutionPreset preset =
        defaultTargetPlatform == TargetPlatform.android
            ? ResolutionPreset.medium
            : ResolutionPreset.low;

    _cameraController = CameraController(camera, preset);
    await _cameraController.initialize();
    _previewSize = _cameraController.value.previewSize;
    setState(() {});
  }

  Future<void> _startStreamingImagesToScanner(int sensorOrientation) async {
    bool isDetecting = false;
    final MediaQueryData data = MediaQuery.of(context);

    _cameraController.startImageStream((CameraImage image) {
      if (isDetecting) {
        return;
      }

      isDetecting = true;

      ScannerUtils.detect(
        image: image,
        detectInImage: _barcodeDetector.detectInImage,
        imageRotation: sensorOrientation,
      ).then(
        (dynamic result) {
          _handleResult(
            barcodes: result,
            data: data,
            imageSize: Size(image.width.toDouble(), image.height.toDouble()),
          );
        },
      ).whenComplete(() => isDetecting = false);
    });
  }

  bool get _barcodeNearAnimationInProgress {
    return _currentState == AnimationState.barcodeNear &&
        DateTime.now().millisecondsSinceEpoch - _animationStart < 2500;
  }

  void _handleResult({
    @required List<Barcode> barcodes,
    @required MediaQueryData data,
    @required Size imageSize,
  }) {
    if (!_cameraController.value.isStreamingImages) {
      return;
    }

    final EdgeInsets padding = data.padding;
    final double maxLogicalHeight =
        data.size.height - padding.top - padding.bottom;

    // Width & height are flipped from CameraController.previewSize on iOS
    final double imageHeight = defaultTargetPlatform == TargetPlatform.iOS
        ? imageSize.height
        : imageSize.width;

    final double imageScale = imageHeight / maxLogicalHeight;
    final double halfWidth = imageScale * widget.validRectangle.width / 2;
    final double halfHeight = imageScale * widget.validRectangle.height / 2;

    final Offset center = imageSize.center(Offset.zero);
    final Rect validRect = Rect.fromLTRB(
      center.dx - halfWidth,
      center.dy - halfHeight,
      center.dx + halfWidth,
      center.dy + halfHeight,
    );

    for (Barcode barcode in barcodes) {
      final Rect intersection = validRect.intersect(barcode.boundingBox);

      final bool doesContain = intersection == barcode.boundingBox;

      if (doesContain) {
        _cameraController.stopImageStream().then((_) => _takePicture());

        if (_currentState != AnimationState.barcodeFound) {
          _closeWindow = true;
          _scannerHint = 'Loading Information...';
          _switchAnimationState(AnimationState.barcodeFound);
          setState(() {});
        }
        return;
      } else if (barcode.boundingBox.overlaps(validRect)) {
        if (_currentState != AnimationState.barcodeNear) {
          _scannerHint = 'Move closer to the barcode';
          _switchAnimationState(AnimationState.barcodeNear);
          setState(() {});
        }
        return;
      }
    }

    if (_barcodeNearAnimationInProgress) {
      return;
    }

    if (_currentState != AnimationState.search) {
      _scannerHint = null;
      _switchAnimationState(AnimationState.search);
      setState(() {});
    }
  }

  @override
  void dispose() {
    _currentState = AnimationState.endSearch;
    _cameraController?.stopImageStream();
    _cameraController?.dispose();
    _animationController?.dispose();
    _barcodeDetector.close();

    SystemChrome.setPreferredOrientations(<DeviceOrientation>[]);
    SystemChrome.setEnabledSystemUIOverlays(<SystemUiOverlay>[
      SystemUiOverlay.top,
      SystemUiOverlay.bottom,
    ]);

    super.dispose();
  }

  Future<void> _takePicture() async {
    final Directory extDir = await getApplicationDocumentsDirectory();

    final String dirPath = '${extDir.path}/Pictures/barcodePics';
    await Directory(dirPath).create(recursive: true);

    final String timestamp = DateTime.now().millisecondsSinceEpoch.toString();

    final String filePath = '$dirPath/$timestamp.jpg';

    try {
      await _cameraController.takePicture(filePath);
    } on CameraException catch (e) {
      print(e);
    }

    _cameraController.dispose();
    _cameraController = null;

    setState(() {
      _barcodePictureFilePath = filePath;
    });
  }

  Widget _buildCameraPreview() {
    return Container(
      color: Colors.black,
      child: Transform.scale(
        scale: _getImageZoom(MediaQuery.of(context)),
        child: Center(
          child: AspectRatio(
            aspectRatio: _cameraController.value.aspectRatio,
            child: CameraPreview(_cameraController),
          ),
        ),
      ),
    );
  }

  double _getImageZoom(MediaQueryData data) {
    final double logicalWidth = data.size.width;
    final double logicalHeight = _previewSize.aspectRatio * logicalWidth;

    final EdgeInsets padding = data.padding;
    final double maxLogicalHeight =
        data.size.height - padding.top - padding.bottom;

    return maxLogicalHeight / logicalHeight;
  }

  void _showBottomSheet() {
    showModalBottomSheet<void>(
      context: context,
      builder: (BuildContext context) {
        return Container(
          width: double.infinity,
          height: 368,
          child: Column(
            children: <Widget>[
              Container(
                height: 56,
                alignment: Alignment.centerLeft,
                decoration: const BoxDecoration(
                  border: Border(bottom: BorderSide(color: Colors.grey)),
                ),
                child: Padding(
                  padding: const EdgeInsets.all(16),
                  child: Text(
                    '1 result found',
                    // TODO(bmparr): Switch body2 -> bodyText1 once https://github.com/flutter/flutter/pull/48547 makes it to stable.
                    // ignore: deprecated_member_use
                    style: Theme.of(context).textTheme.body2,
                  ),
                ),
              ),
              Expanded(
                child: Container(
                  padding: const EdgeInsets.all(24),
                  child: Column(
                    children: <Widget>[
                      Row(
                        crossAxisAlignment: CrossAxisAlignment.start,
                        children: <Widget>[
                          Image.asset(
                            'assets/span_book.jpg',
                            fit: BoxFit.cover,
                            width: 96,
                            height: 96,
                          ),
                          Container(
                            height: 96,
                            margin: const EdgeInsets.only(left: 16),
                            child: Column(
                              crossAxisAlignment: CrossAxisAlignment.start,
                              children: <Widget>[
                                Container(
                                  margin: const EdgeInsets.only(bottom: 4),
                                  child: Text(
                                    'SPAN Reader',
                                    // TODO(bmparr): Switch body2 -> bodyText1 once https://github.com/flutter/flutter/pull/48547 makes it to stable.
                                    // ignore: deprecated_member_use
                                    style: Theme.of(context).textTheme.body2,
                                  ),
                                ),
                                Text(
                                  'Vol. 2',
                                  // TODO(bmparr): Switch body2 -> bodyText1 once https://github.com/flutter/flutter/pull/48547 makes it to stable.
                                  // ignore: deprecated_member_use
                                  style: Theme.of(context).textTheme.body2,
                                ),
                                Expanded(
                                  child: Column(
                                    mainAxisAlignment: MainAxisAlignment.end,
                                    crossAxisAlignment:
                                        CrossAxisAlignment.start,
                                    children: <Widget>[
                                      Container(
                                        margin:
                                            const EdgeInsets.only(bottom: 3),
                                        child: const Text('Material Design'),
                                      ),
                                      const Text('120 pages'),
                                    ],
                                  ),
                                ),
                              ],
                            ),
                          )
                        ],
                      ),
                      Container(
                        margin: const EdgeInsets.only(top: 30),
                        child: const Text(
                          'A Japanese & English accompaniment to the 2016 SPAN '
                          'conference.',
                        ),
                      ),
                      Expanded(
                        child: Container(
                          padding: const EdgeInsets.only(bottom: 4),
                          alignment: Alignment.bottomCenter,
                          child: ButtonTheme(
                            minWidth: 312,
                            height: 48,
                            child: RaisedButton.icon(
                              onPressed: () => Navigator.of(context).pop(),
                              color: kShrinePink100,
                              label: const Text('ADD TO CART - \$12.99'),
                              icon: const Icon(Icons.add_shopping_cart),
                              elevation: 8.0,
                              shape: const BeveledRectangleBorder(
                                borderRadius: BorderRadius.all(
                                  Radius.circular(7.0),
                                ),
                              ),
                            ),
                          ),
                        ),
                      ),
                    ],
                  ),
                ),
              ),
            ],
          ),
        );
      },
    ).then((_) => _reset());
  }

  void _reset() {
    _initCameraAndScanner();
    setState(() {
      _closeWindow = false;
      _barcodePictureFilePath = null;
      _scannerHint = null;
      _switchAnimationState(AnimationState.search);
    });
  }

  @override
  Widget build(BuildContext context) {
    Widget background;
    if (_barcodePictureFilePath != null) {
      background = Container(
        color: Colors.black,
        child: Transform.scale(
          scale: _getImageZoom(MediaQuery.of(context)),
          child: Center(
            child: Image.file(
              File(_barcodePictureFilePath),
              fit: BoxFit.fitWidth,
            ),
          ),
        ),
      );
    } else if (_cameraController != null &&
        _cameraController.value.isInitialized) {
      background = _buildCameraPreview();
    } else {
      background = Container(
        color: Colors.black,
      );
    }

    return SafeArea(
      child: Scaffold(
        body: Stack(
          children: <Widget>[
            background,
            Container(
              constraints: const BoxConstraints.expand(),
              child: CustomPaint(
                painter: WindowPainter(
                  windowSize: Size(widget.validRectangle.width,
                      widget.validRectangle.height),
                  outerFrameColor: widget.frameColor,
                  closeWindow: _closeWindow,
                  innerFrameColor: _currentState == AnimationState.endSearch
                      ? Colors.transparent
                      : kShrineFrameBrown,
                ),
              ),
            ),
            Positioned(
              left: 0,
              right: 0,
              top: 0,
              child: Container(
                height: 56,
                decoration: BoxDecoration(
                  gradient: LinearGradient(
                    begin: Alignment.topCenter,
                    end: Alignment.bottomCenter,
                    colors: const <Color>[Colors.black87, Colors.transparent],
                  ),
                ),
              ),
            ),
            Positioned(
              left: 0.0,
              bottom: 0.0,
              right: 0.0,
              height: 56,
              child: Container(
                color: kShrinePink50,
                child: Center(
                  child: Text(
                    _scannerHint ?? 'Point your camera at a barcode',
                    style: Theme.of(context).textTheme.button,
                  ),
                ),
              ),
            ),
            Container(
              constraints: const BoxConstraints.expand(),
              child: CustomPaint(
                painter: _animationPainter,
              ),
            ),
            AppBar(
              leading: IconButton(
                icon: const Icon(Icons.close, color: Colors.white),
                onPressed: () => Navigator.of(context).pop(),
              ),
              backgroundColor: Colors.transparent,
              elevation: 0.0,
              actions: <Widget>[
                IconButton(
                  icon: const Icon(
                    Icons.flash_off,
                    color: Colors.white,
                  ),
                  onPressed: () {},
                ),
                IconButton(
                  icon: const Icon(
                    Icons.help_outline,
                    color: Colors.white,
                  ),
                  onPressed: () {},
                ),
              ],
            ),
          ],
        ),
      ),
    );
  }
}

class WindowPainter extends CustomPainter {
  WindowPainter({
    @required this.windowSize,
    this.outerFrameColor = Colors.white54,
    this.innerFrameColor = const Color(0xFF442C2E),
    this.innerFrameStrokeWidth = 3,
    this.closeWindow = false,
  });

  final Size windowSize;
  final Color outerFrameColor;
  final Color innerFrameColor;
  final double innerFrameStrokeWidth;
  final bool closeWindow;

  @override
  void paint(Canvas canvas, Size size) {
    final Offset center = size.center(Offset.zero);
    final double windowHalfWidth = windowSize.width / 2;
    final double windowHalfHeight = windowSize.height / 2;

    final Rect windowRect = Rect.fromLTRB(
      center.dx - windowHalfWidth,
      center.dy - windowHalfHeight,
      center.dx + windowHalfWidth,
      center.dy + windowHalfHeight,
    );

    final Rect left =
        Rect.fromLTRB(0, windowRect.top, windowRect.left, windowRect.bottom);
    final Rect top = Rect.fromLTRB(0, 0, size.width, windowRect.top);
    final Rect right = Rect.fromLTRB(
      windowRect.right,
      windowRect.top,
      size.width,
      windowRect.bottom,
    );
    final Rect bottom = Rect.fromLTRB(
      0,
      windowRect.bottom,
      size.width,
      size.height,
    );

    canvas.drawRect(
        windowRect,
        Paint()
          ..color = innerFrameColor
          ..style = PaintingStyle.stroke
          ..strokeWidth = innerFrameStrokeWidth);

    final Paint paint = Paint()..color = outerFrameColor;
    canvas.drawRect(left, paint);
    canvas.drawRect(top, paint);
    canvas.drawRect(right, paint);
    canvas.drawRect(bottom, paint);

    if (closeWindow) {
      canvas.drawRect(windowRect, paint);
    }
  }

  @override
  bool shouldRepaint(WindowPainter oldDelegate) =>
      oldDelegate.closeWindow != closeWindow;
}

class Rectangle {
  const Rectangle({this.width, this.height, this.color});

  final double width;
  final double height;
  final Color color;

  static Rectangle lerp(Rectangle begin, Rectangle end, double t) {
    Color color;
    if (t > .5) {
      color = Color.lerp(begin.color, end.color, (t - .5) / .25);
    } else {
      color = begin.color;
    }

    return Rectangle(
      width: lerpDouble(begin.width, end.width, t),
      height: lerpDouble(begin.height, end.height, t),
      color: color,
    );
  }
}

class RectangleTween extends Tween<Rectangle> {
  RectangleTween(Rectangle begin, Rectangle end)
      : super(begin: begin, end: end);

  @override
  Rectangle lerp(double t) => Rectangle.lerp(begin, end, t);
}

class RectangleOutlinePainter extends CustomPainter {
  RectangleOutlinePainter({
    @required this.animation,
    this.strokeWidth = 3,
  }) : super(repaint: animation);

  final Animation<Rectangle> animation;
  final double strokeWidth;

  @override
  void paint(Canvas canvas, Size size) {
    final Rectangle rectangle = animation.value;

    final Paint paint = Paint()
      ..strokeWidth = strokeWidth
      ..color = rectangle.color
      ..style = PaintingStyle.stroke;

    final Offset center = size.center(Offset.zero);
    final double halfWidth = rectangle.width / 2;
    final double halfHeight = rectangle.height / 2;

    final Rect rect = Rect.fromLTRB(
      center.dx - halfWidth,
      center.dy - halfHeight,
      center.dx + halfWidth,
      center.dy + halfHeight,
    );

    canvas.drawRect(rect, paint);
  }

  @override
  bool shouldRepaint(RectangleOutlinePainter oldDelegate) => false;
}

class RectangleTracePainter extends CustomPainter {
  RectangleTracePainter({
    @required this.animation,
    @required this.rectangle,
    this.strokeWidth = 3,
  }) : super(repaint: animation);

  final Animation<double> animation;
  final Rectangle rectangle;
  final double strokeWidth;

  @override
  void paint(Canvas canvas, Size size) {
    final double value = animation.value;

    final Offset center = size.center(Offset.zero);
    final double halfWidth = rectangle.width / 2;
    final double halfHeight = rectangle.height / 2;

    final Rect rect = Rect.fromLTRB(
      center.dx - halfWidth,
      center.dy - halfHeight,
      center.dx + halfWidth,
      center.dy + halfHeight,
    );

    final Paint paint = Paint()
      ..strokeWidth = strokeWidth
      ..color = rectangle.color;

    final double halfStrokeWidth = strokeWidth / 2;

    final double heightProportion = (halfStrokeWidth + rect.height) * value;
    final double widthProportion = (halfStrokeWidth + rect.width) * value;

    canvas.drawLine(
      Offset(rect.right, rect.bottom + halfStrokeWidth),
      Offset(rect.right, rect.bottom - heightProportion),
      paint,
    );

    canvas.drawLine(
      Offset(rect.right + halfStrokeWidth, rect.bottom),
      Offset(rect.right - widthProportion, rect.bottom),
      paint,
    );

    canvas.drawLine(
      Offset(rect.left, rect.top - halfStrokeWidth),
      Offset(rect.left, rect.top + heightProportion),
      paint,
    );

    canvas.drawLine(
      Offset(rect.left - halfStrokeWidth, rect.top),
      Offset(rect.left + widthProportion, rect.top),
      paint,
    );
  }

  @override
  bool shouldRepaint(RectangleTracePainter oldDelegate) => false;
}


flutter doctor -v

[βœ“] Flutter (Channel stable, 1.22.0, on Mac OS X 10.15.7 19H2, locale en-GB)
    β€’ Flutter version 1.22.0 at /Users/tahatesser/Code/flutter_stable
    β€’ Framework revision d408d302e2 (3 days ago), 2020-09-29 11:49:17 -0700
    β€’ Engine revision 5babba6c4d
    β€’ Dart version 2.10.0


[βœ“] Android toolchain - develop for Android devices (Android SDK version 30.0.2)
    β€’ Android SDK at /Users/tahatesser/Code/sdk
    β€’ Platform android-30, build-tools 30.0.2
    β€’ ANDROID_HOME = /Users/tahatesser/Code/sdk
    β€’ Java binary at: /Applications/Android Studio.app/Contents/jre/jdk/Contents/Home/bin/java
    β€’ Java version OpenJDK Runtime Environment (build 1.8.0_242-release-1644-b3-6222593)
    β€’ All Android licenses accepted.

[βœ“] Xcode - develop for iOS and macOS (Xcode 12.0.1)
    β€’ Xcode at /Applications/Xcode.app/Contents/Developer
    β€’ Xcode 12.0.1, Build version 12A7300
    β€’ CocoaPods version 1.9.3

[βœ“] Android Studio (version 4.0)
    β€’ Android Studio at /Applications/Android Studio.app/Contents
    β€’ Flutter plugin version 50.0.1
    β€’ Dart plugin version 193.7547
    β€’ Java version OpenJDK Runtime Environment (build 1.8.0_242-release-1644-b3-6222593)

[βœ“] VS Code (version 1.49.2)
    β€’ VS Code at /Applications/Visual Studio Code.app/Contents
    β€’ Flutter extension version 3.15.0

[βœ“] Connected device (1 available)
    β€’ Taha’s iPhone (mobile) β€’ 00008020-001059882212002E β€’ ios β€’ iOS 14.0.1

β€’ No issues found!

Set the ResolutionPreset.medium to ResolutionPreset.high will solve the issue

Was this page helpful?
0 / 5 - 0 ratings
