Firejail: --overlay-named exits with error as of linux 5.1.15

[lskrejci]

Distribution: Arch Linux
firejail: 0.9.60-1
linux: 5.1.15.arch1-1

Running firejail --noprofile --overlay-named=test fails:

• on a system with a separate /home partition:

  Error mounting overlayfs for mounted home directory: fs.c:1132 fs_overlayfs: Too many levels of symbolic links

• on a system with a single root partition:

  Error mounting overlayfs: fs.c:1077 fs_overlayfs: Too many levels of symbolic links

dmesg on both system configurations contains:

overlayfs: overlapping upperdir path

The same command works on linux 5.1.14.
Upstream commit that appears to have introduced the issue: ovl: detect overlapping layers

[Hello71]

I think --rbind might be able to work around this.

[Vincent43]

Fix for docker: https://github.com/moby/moby/commit/477bf1e413708076f9ed8cd316102765cc5bdb11

[smitsohu]

Maybe I don't fully understand the docker fix, but I wonder a bit what's the point of an overlay just to make the file system read-only.

@netblue30 do you have an idea regarding the way forward?

[smitsohu]

but I wonder a bit what's the point of an overlay just to make the file system read-only.

Or maybe it could serve as a simple switch for apps that really don't need to write anything at all.

[Vincent43]

There is some kernel fix available in Linux 5.3.1 and 5.2.17, @lskrejci could you try if you can still reproduce issue no those kernels?

[Vincent43]

Still fails on Linux 5.2.17 so some firejail changes are still needed:

firejail --noprofile --overlay-named=test
Parent pid 9167, child pid 9168

**     Warning: dropping all Linux capabilities     **
Error mounting overlayfs: fs.c:977 fs_overlayfs: Too many levels of symbolic links
Error: proc 9167 cannot sync with peer: unexpected EOF
Peer 9168 unexpectedly exited with status 1

[schendstok]

The same problem happens with the latest Linux kernel update in Debian Buster.

With the previous 4.19.0-5 kernel Firejail works fine with the overlay feature, but when you upgrade to 4.19.0-6 you get the same "fs_overlayfs: Too many levels of symbolic links" error

[Vincent43]

I guess debian backported upstream patches as they were security related.

[Hocuri]

I have the same problem (at least I think that it's the same) and some logs:

$ journalctl -f
...
Okt 20 10:21:37 j2 kernel: overlayfs: filesystem on '/home/hocuri/.firejail/4112/odiff' not supported as upperdir

and:

$ firejail --overlay --noprofile

Parent pid 4422, child pid 4423

**     Warning: dropping all Linux capabilities     **
Error mounting overlayfs: fs.c:1077 fs_overlayfs: Invalid argument
Error: proc 4422 cannot sync with peer: unexpected EOF
Peer 4423 unexpectedly exited with status 1

Kernel 4.19.79-1-MANJARO x86_64.

[netblue30]

For now, I ended up disabling --overlay feature for kernels 4.19 and newer.

I am getting "fs_overlayfs: Too many levels of symbolic links" on debian stable, kernel 4.19.

[Hello71]

I recall testing and finding that mount --rbind did fix the issue. I can't quite recall what I bind mounted though.

[Hello71]

I think it's a similar trick to making pivot_root works, you do mount --rbind $dir $dir and then that "tricks" the kernel into allowing it.

[netblue30]

thanks, I'll try it out!

[springzfx]

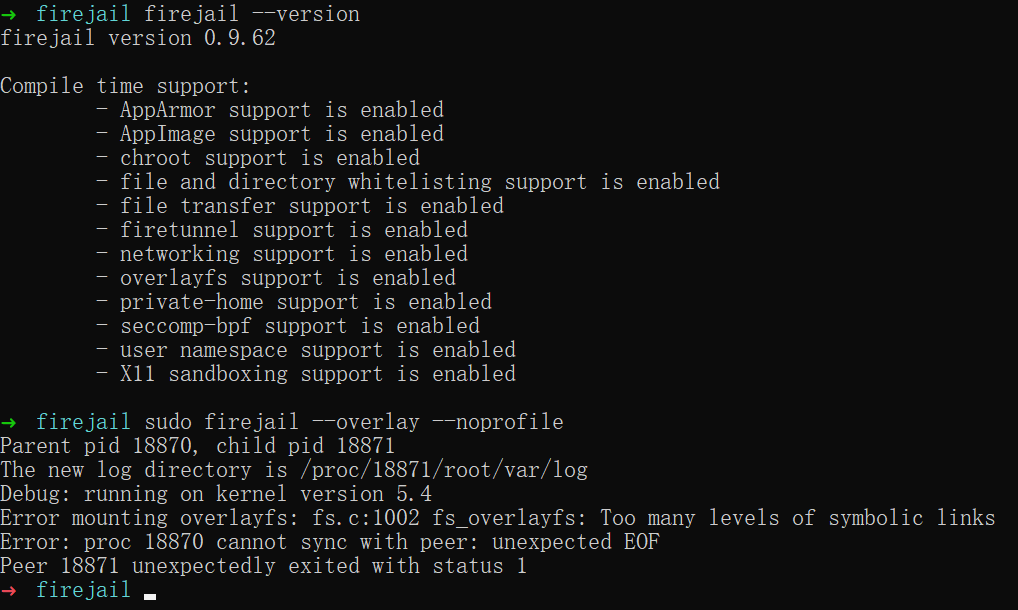

Distribution: Arch Linux
firejail: 0.9.60-1
linux: 5.4.3.arch1-1
still have the same problem.

[rusty-snake]

@springzfx OP use the same firejail version. There is a release coming, see release-0.9.62 branch.

[springzfx]

Distribution: Arch Linux
firejail: 0.9.62
linux: 5.4.3.arch1-1
No luck.

[darkf]

This still happens, any fixes in sight? Any viable workaround?

[jonleivent]

Instead of waiting for kernel fixes related to this, could it be worked around by having firejail use:
https://github.com/containers/fuse-overlayfs

[Rayqan]

@netblue30 Is there any planned fix or known workaround for this issue? It was one of my favorite things about this project.

[Hello71]

took another look at the issue. I think the kernel is valid to reject this mount. if you do firejail --overlay-named=x and then access $HOME/.firejail/x then there would be a cycle. but, that change also added runtime checking, so you can apply a patch like this:

From 507605925f22fa2ec3f3ef0ce9ac747139495f88 Mon Sep 17 00:00:00 2001
From: "Alex Xu (Hello71)" <[email protected]>
Date: Sun, 29 Mar 2020 17:18:20 -0400
Subject: [PATCH] ovl: add ignore_overlap option

check overlaps at runtime, allows firejail --overlay-named

Signed-off-by: Alex Xu (Hello71) <[email protected]>
---
 fs/overlayfs/ovl_entry.h |  1 +
 fs/overlayfs/super.c     | 37 +++++++++++++++++++++++++++++++++----
 2 files changed, 34 insertions(+), 4 deletions(-)

diff --git a/fs/overlayfs/ovl_entry.h b/fs/overlayfs/ovl_entry.h
index 89015ea822e7..f831c06f3bd5 100644
--- a/fs/overlayfs/ovl_entry.h
+++ b/fs/overlayfs/ovl_entry.h
@@ -17,6 +17,7 @@ struct ovl_config {
    bool nfs_export;
    int xino;
    bool metacopy;
+   bool ignore_overlap;
 };

 struct ovl_sb {
diff --git a/fs/overlayfs/super.c b/fs/overlayfs/super.c
index ac967f1cb6e5..f670559defdb 100644
--- a/fs/overlayfs/super.c
+++ b/fs/overlayfs/super.c
@@ -403,6 +403,8 @@ enum {
    OPT_XINO_AUTO,
    OPT_METACOPY_ON,
    OPT_METACOPY_OFF,
+   OPT_IGNORE_OVERLAP_ON,
+   OPT_IGNORE_OVERLAP_OFF,
    OPT_ERR,
 };

@@ -421,6 +423,8 @@ static const match_table_t ovl_tokens = {
    {OPT_XINO_AUTO,         "xino=auto"},
    {OPT_METACOPY_ON,       "metacopy=on"},
    {OPT_METACOPY_OFF,      "metacopy=off"},
+   {OPT_IGNORE_OVERLAP_ON,     "ignore_overlap=on"},
+   {OPT_IGNORE_OVERLAP_OFF,    "ignore_overlap=off"},
    {OPT_ERR,           NULL}
 };

@@ -559,6 +563,14 @@ static int ovl_parse_opt(char *opt, struct ovl_config *config)
            config->metacopy = false;
            break;

+       case OPT_IGNORE_OVERLAP_ON:
+           config->ignore_overlap = true;
+           break;
+
+       case OPT_IGNORE_OVERLAP_OFF:
+           config->ignore_overlap = false;
+           break;
+
        default:
            pr_err("unrecognized mount option \"%s\" or missing value\n",
                    p);
@@ -1024,6 +1036,19 @@ static int ovl_report_in_use(struct ovl_fs *ofs, const char *name)
    }
 }

+static int ovl_report_trap_inode(struct ovl_fs *ofs, const char *name)
+{
+   if (ofs->config.ignore_overlap) {
+       pr_warn("overlapping %s path, accessing overlapped path will result in ELOOP.\n",
+           name);
+       return 0;
+   } else {
+       pr_err("overlapping %s path, mount with '-o ignore_overlap=on' to override overlapping upperdir protection.\n",
+           name);
+       return -ELOOP;
+   }
+}
+
 static int ovl_get_upper(struct super_block *sb, struct ovl_fs *ofs,
             struct path *upperpath)
 {
@@ -1537,18 +1562,22 @@ static int ovl_check_layer(struct super_block *sb, struct ovl_fs *ofs,
    /* Walk back ancestors to root (inclusive) looking for traps */
    while (!err && parent != next) {
        if (ovl_lookup_trap_inode(sb, parent)) {
-           err = -ELOOP;
-           pr_err("overlapping %s path\n", name);
-       } else if (ovl_is_inuse(parent)) {
+           err = ovl_report_trap_inode(ofs, name);
+           if (err)
+               goto out;
+       }
+       if (ovl_is_inuse(parent)) {
            err = ovl_report_in_use(ofs, name);
+           if (err)
+               goto out;
        }
        next = parent;
        parent = dget_parent(next);
        dput(next);
    }

+out:
    dput(parent);
-
    return err;
 }

--
2.26.0

then, patch firejail to use mount -o ignore_overlap=on.

[firejailing]

@netblue30 where are you?

this has been broken for over a year now, ridiculous, new profiles are less important than fixing this

[shuhaowu]

Are there no workarounds for this for now?

[reinerh]

Another workaround has been suggested in: https://bugs.debian.org/971578
