Ffimageloading: Linear Gradients not working? [SVG]

[quakeulf]

Hi,
I am attempting linear gradients, but they do not work. Here is how it is done in the code:

<?xml version="1.0" encoding="UTF-8"?>
<svg version="1.1" baseProfile="tiny" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" height="512" width="512">

    <defs>
        <linearGradient id="LinearGradient" x1="0" x2="0" y1="0" y2="1">
            <stop offset="0%" stop-color="#ff0000"/>
            <stop offset="50%" stop-color="#ffffff"/>
            <stop offset="100%" stop-color="#0000ff"/>
        </linearGradient>
                <linearGradient id="LinearGradient2" x1="0" x2="0" y1="0" y2="1">
            <stop offset="0%" stop-color="#ff0000"/>
            <stop offset="100%" stop-color="#ffffff"/>
        </linearGradient>
                <linearGradient id="LinearGradient3">
            <stop offset="0%" stop-color="#ff0000"/>
            <stop offset="100%" stop-color="#0000ff"/>
                    </linearGradient>
    </defs>
    <filter id="blurMe">
        <feGaussianBlur in="SourceGraphic" stdDeviation="5" />
    </filter>

    <circle id="templateCircle" cx="128" cy="128" r="128" fill="url(#LinearGradient)" visibility="visible" />
    <circle id="templateCircle2" cx="128" cy="384" r="128" fill="url(#LinearGradient2)" visibility="visible" />
    <circle id="templateCircle3" cx="384" cy="128" r="128" fill="url(#LinearGradient3)" visibility="visible" />
    <circle id="templateCircle4" cx="384" cy="384" r="64" fill="#ff0000" filter="url(#blurMe)" visibility="visible" />
</svg>

And here is a link to the SVG online:
http://quakeulf.suxos.org/bilder/bearbeidet/variabelen/SVG/test7.svg

But when running this on an Android phone all we get are single-coloured shapes and no gradients.

What are we doing wrong? Please help.

[quakeulf]

I finally got linear gradients to "work" but their scale is really off in the mobile app.

The web-version is here:

http://quakeulf.suxos.org/bilder/bearbeidet/variabelen/SVG/test777.svg

But in the app "pad" does not seem to work for spreadMethod. Here is the code:

<?xml version="1.0" encoding="UTF-8"?>
<svg version="1.1" baseProfile="tiny" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" height="512" width="512">

    <defs>
        <animate
            xlink:href="#templateCircle2"
            attributeName="visibility"
            keyTimes="0; 0.2; 0.5; 1"
            values="visible; hidden; visible; visible"
            begin="0s"
            dur="1s"
            repeatCount="indefinite"/>
        <animateTransform
            xlink:href="#templateCircle4"
            attributeName="transform"
            type="translate"
            keyTimes="0; 0.2; .6; .9; 1"
            values="0 0; 0 20; 0 -20; 0 -25; 0 0"
            calcMode="spline"
            keySplines=".5,1,.5,1;
                .5,1,.5,1;
                1,1,1,1;
                .5,1,.5,1"
            begin="0s"
            dur="2s"
            repeatCount="indefinite"/>
        <linearGradient id="LinearGradient" x1="0" y1="0" x2="1" y2="1" spreadMethod="reflect">
            <stop offset="0%" stop-color="#ff0000"/>
            <stop offset="50%" stop-color="#ffffff"/>
            <stop offset="100%" stop-color="#0000ff"/>
        </linearGradient>
        <linearGradient id="LinearGradient2" x1="0" y1="0" x2="0" y2="1" spreadMethod="reflect">
            <stop offset="0%" stop-color="#ffff00"/>
            <stop offset="100%" stop-color="#00ffff"/>
        </linearGradient>
        <linearGradient id="LinearGradient3" x1="0" y1="0" x2="1" y2="0" spreadMethod="repeat">
            <stop offset="0%" stop-color="#ff0000"/>
            <stop offset="100%" stop-color="#0000ff"/>
        </linearGradient>
    </defs>
    <filter id="blurMe">
        <feGaussianBlur in="SourceGraphic" stdDeviation="5" />
    </filter>

    <circle id="templateCircle" cx="128" cy="128" r="128" fill="url(#LinearGradient)" visibility="visible" />
    <circle id="templateCircle2" cx="128" cy="384" r="128" fill="url(#LinearGradient2)" visibility="visible" />
    <circle id="templateCircle3" cx="384" cy="128" r="128" fill="url(#LinearGradient3)" visibility="visible" />
    <circle id="templateCircle4" cx="384" cy="384" r="64" fill="#ff0000" filter="url(#blurMe)" visibility="visible" />
</svg>

[daniel-luberda]

I strongly advice you to use this: https://jakearchibald.github.io/svgomg/ (it can really solve a lot of svg files loading issues).

It's even mentioned on our SVG Wiki page.

[lucky-c]

Hi, i'm also facing similar issue with lineargradient which render icon in only one color instead of two color. I tried open the file using the website you suggested (https://jakearchibald.github.io/svgomg/ ) but the image perfectly rendered as expected, or maybe i'm missing something?

Currently i'm using version 2.2.25, here's my SVG file in code:

```

[lucky-c]

I've been trying to slightly modify the SVG code and it is rendered nicely using FFImageLoading, i had notice that <lineargradient> must be set as decimal value rather as percentage value compared to my previous code. But weird thing happen when i open the SVG using SVGOMG, the file only rendered in one color.
(FYI my SVG file exported from Zeplin)

I hope my findings provide insight into this issue.
Here's the screenshot and the modified SVG file:

<svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" viewBox="0 0 62 53">
    <defs>
        <path id="a" d="M34.922.07H.005v34.84h34.917V.07z" />
        <linearGradient id="b" x1="5.29" x2="36.27" y1="5.29" y2="36.27">
            <stop offset="0%" stop-color="#F54EA2" />
            <stop offset="100%" stop-color="#5B2472" />
        </linearGradient>
    </defs>
    <g fill="none" fill-rule="evenodd">
        <path d="M0 0h62v53H0z" />
        <g transform="translate(14 10)">
            <mask id="c" fill="#fff">
                <use xlink:href="#a" />
            </mask>
            <path fill="url(#b)" d="M34.237 15.68L19.647.977a3.084 3.084 0 0 0-4.374 0L.683 15.68a2.367 2.367 0 0 0 0 3.33c.914.92 2.392.92 3.305 0l1.977-1.994v15.387a2.5 2.5 0 0 0 2.49 2.51h3.317a2 2 0 0 0 2-2V27.92a.98.98 0 0 1 .977-.984h5.424c.54 0 .976.44.976.984v4.99a2 2 0 0 0 2 2h3.318a2.5 2.5 0 0 0 2.49-2.508V17.017l1.976 1.99a2.32 2.32 0 0 0 3.303 0 2.366 2.366 0 0 0 0-3.328z" mask="url(#c)" />
        </g>
    </g>
</svg>

[daniel-luberda]

@lucky-c It's something with your file. Every modern browser renders your original SVG without gradient too. I'll close this one then.

[tompi]

Im also struggling with gradients. The last thing I tried before giving up was using the mozilla dev sample:
https://developer.mozilla.org/en-US/docs/Web/SVG/Tutorial/Gradients

And then running it through svgo, getting this:

<svg width="120" height="240" xmlns="http://www.w3.org/2000/svg"><defs><linearGradient id="a"><stop offset="0%" stop-color="red"/><stop offset="50%" stop-opacity="0"/><stop offset="100%" stop-color="#00f"/></linearGradient><linearGradient id="b" x2="0" y2="1"><stop offset="0%" stop-color="red"/><stop offset="50%" stop-opacity="0"/><stop offset="100%" stop-color="#00f"/></linearGradient></defs><rect x="10" y="10" rx="15" ry="15" width="100" height="100" fill="url(#a)"/><rect x="10" y="120" rx="15" ry="15" width="100" height="100" fill="url(#b)"/></svg>

Renders just as one red and one blue square on ios....
(havent really tried android, ios is my target p.t)

Hope there is a workaround or something I am missing!

[daniel-luberda]

@tompi Should be fixed with: https://github.com/luberda-molinet/FFImageLoading/commit/a95987563236a1edb93b1d2a4730d46970910a36

[tompi]

Great, thank you! Looking forward to be able to use the designers svg's
directly instead of exporting them to png and scaling them!

On 30 December 2017 at 17:39, Daniel Luberda [e-mail]
wrote:

@tompi https://github.com/tompi Should be fixed with: a959875
https://github.com/luberda-molinet/FFImageLoading/commit/a95987563236a1edb93b1d2a4730d46970910a36

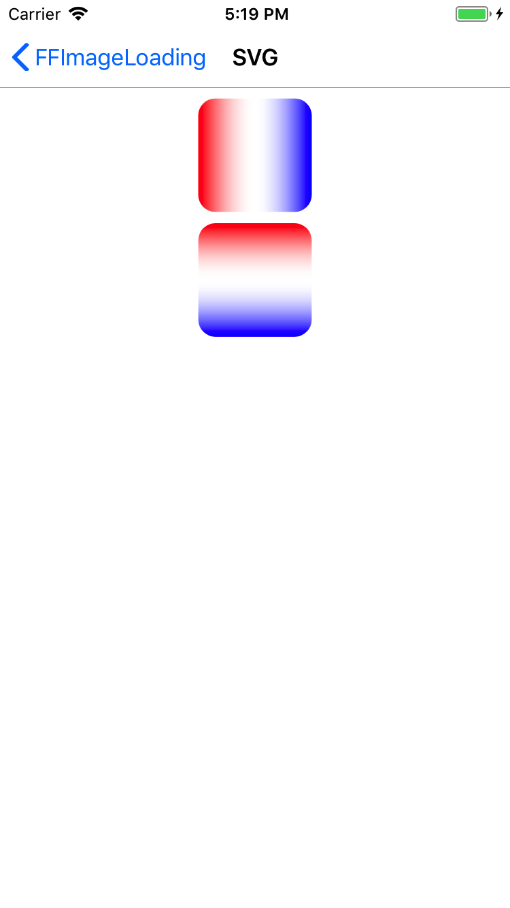

[image: simulator screen shot - iphone 8 - 2017-12-30 at 17 19 00]
https://user-images.githubusercontent.com/13569983/34455857-5ccd7a38-ed88-11e7-989b-e3be3b53a01c.png

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/luberda-molinet/FFImageLoading/issues/658#issuecomment-354555346,
or mute the thread
https://github.com/notifications/unsubscribe-auth/AAOJJXH5QJzhvkFyJs9rgFrOi0W-KJkqks5tFmdCgaJpZM4OOUT2
.

--
Thomas.[email protected], 90786985

[daniel-luberda]

You can test it with 2.3.3 stable

[tompi]

Thank you very much. Tested and verified it works on 2.3.4.
