Fastapi: [QUESTION] What URL should I use for OpenIdConnect?

[littlebrat]

I am using an external OAuth2 service for SSO which is basically a Keycloak server.

So far I have been able to use the implicit flow:

base_url = "https://some.keycloak.server.com/auth/realms/main/protocol/openid-connect/"

oauth2_scheme = OAuth2(
    flows=OAuthFlows(
        implicit=OAuthFlowImplicit(
            authorizationUrl=base_url + "auth" + "?client_id=my-app-id"
        )
    )
)

With this code I get the following prompt when I press authorize:

What is strange here is that I cannot prefill the _client_id_ prompt, so I have to give it an hard coded query header in the _authorizationUrl_. If I do this, swaggerUI ignores what I write in the _client_id_ prompt, but I am redirected into the SSO website and everything works fine.

But in reality, I should just be able to use the OpenIdConnect security scheme:

oauth2_scheme = OpenIdConnect(openIdConnectUrl=base_url)

So far, I've tried many combinations of URLs, but none of them work, including the automatic discovery URL that is said in the documentation:

https://some.keycloak.server.com/auth/realms/main/.well-known/openid-configuration

So my question is what is the expected URL from the API?
I checked the endpoints in https://connect2id.com/products/server/docs/api, but none of them worked.

Thanks! 😄

[zamiramir]

When you go to:
https://some.keycloak.server.com/auth/realms/main/.well-known/openid-configuration
You will retrieve an json output with keys and values.
One of the keys is 'authorization_endpoint', the value should be used as authorizationUrl.

[littlebrat]

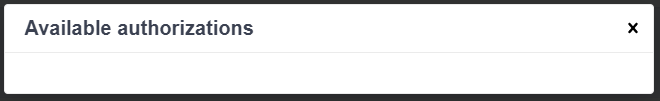

I tried that but I get an empty window when I press the authorize button:

Is this problem on the keycloak's server end then?

[zamiramir]

You might need to set a scope, my code:

OAUTH2_SCHEME = OAuth2(
    flows=OAuthFlows(
        implicit=OAuthFlowImplicit(
            authorizationUrl="some_authorization_endpoint_url",
            scopes={"scopekey": "scopevalue"},
        )
    )
)

Could you also take a look at the generated openapi.json?
Based the code above, the generated openapi.json, should have the securitySchemes value:

"securitySchemes": {
    "OAuth2": {
        "type": "oauth2",
        "flows": {
            "implicit": {
                "scopes": {
                    "scopekey": "scopevalue"
                },
                "authorizationUrl": "some_authorization_endpoint_url"
            }
        }
    }
}

EDIT:

No Scopes
Scopes are optional, and your API may not use any. In this case, specify an empty object {} in the > scopes definition, and an empty list of scopes [] in the security section:

Reference Swagger ui | OAuth 2.0 doc

[littlebrat]

But the implicit flow that you linked works for me, the problem is when I try to use the class OpenIdConnect. This class only takes one argument openIdConnectUrl that is not documented - in my opinion it should use https://some.keycloak.server.com/auth/realms/main/.well-known/openid-configuration but it doesn't seem to work.

EDIT:
Also on the implicit flow that works for me I didn't set any scope.

[zamiramir]

Swagger UI doesn't support OIDC:

OpenID Connect Discovery | Swagger UI
OIDC is currently not supported in Swagger Editor and Swagger UI. Please follow this issue for updates.

Reference Swagger UI | OpenID Connect Discovery

[zamiramir]

What is strange here is that I cannot prefill the _client_id_ prompt

See #499

[tiangolo]

Thanks for the help here @zamiramir ! :bow: :clap:

Thanks @littlebrat for coming back to close the issue. :+1:
