External-dns: DigitalOcean creates entries with host in them twice

[Noah-Huppert]

tldr: Ingress resource with annotation of external-dns.alpha.kubernetes.io/hostname: k8s.noahh.io created an A record with the hostname of k8s.noahh.io.noahh.io in DigitalOcean DNS.

The Context

I am using external-dns with DigitalOcean. I run the external-dns pod configured to watch ingress resources.

I have a deployment which runs my personal website. Which I have manually been creating DNS entries for. I deleted any manually created entries before deploying external-dns.

It has a pretty typical structure. With a service of type LoadBalancer. And an ingress with the external-dns.alpha.kubernetes.io/hostname annotation.

The Unexpected Behavior

When I deploy my personal website's ingress resource with external-dns.alpha.kubernetes.io/hostname: k8s.noahh.io external-dns will create an A record with the hostname k8s.noahh.io.noahh.io. Which points towards my website ingress resource.

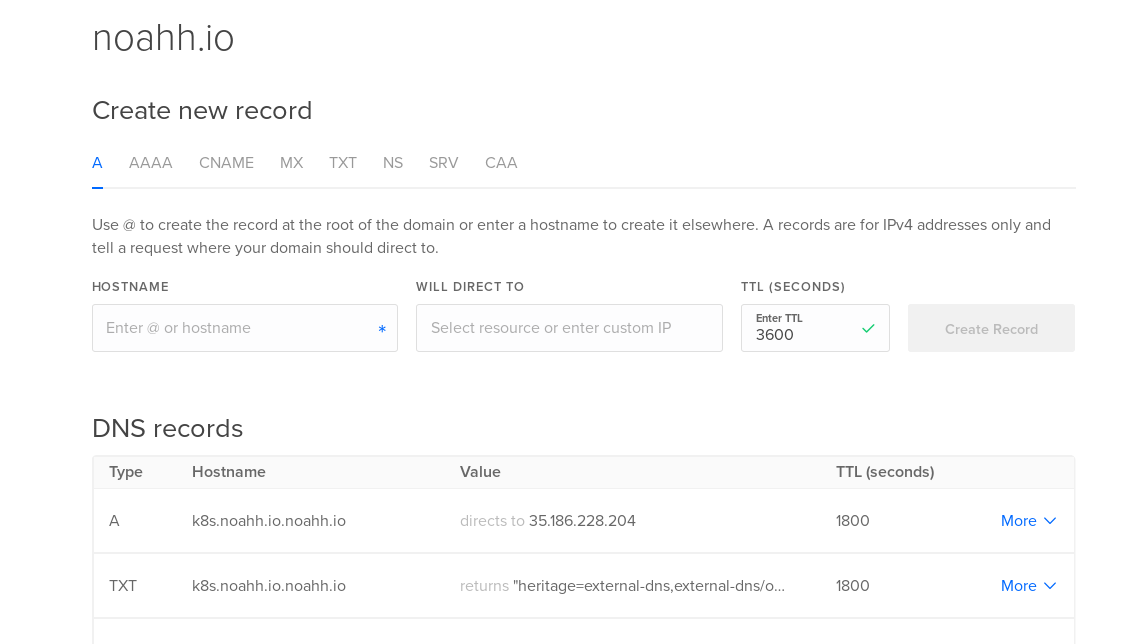

As you can see in the DigitalOcean dashboard:

The IP listed in the screenshot is the IP of my website ingress resource at the time.

I also verified that this is not an oddity of the DigitalOcean DNS UI with dig:

$ dig +short k8s.noahh.io
$ dig +short k8s.noahh.io.noahh.io
35.186.228.204

As we can see, the subdomain is k8s.noahh.io and the host is noahh.io. Resulting in a hostname of k8s.noahh.io.noahh.io.

What I Have Tried

Setting the annotation to just the subdomain

The issue still occurs when I deploy the same ingress resource with the annotation external-dns.alpha.kubernetes.io/hostname: k8s.

Reducing specificity in the ingress spec

I tried removing any hosts from the spec.rules section of the ingress resource. Because I suspected that external-dns might be reading hostnames off of the spec.rules.$.host parameter. And getting confused somehow.

However the issue still occurred.

Adding a peroid onto the end of the annotation value

I tried deploying an ingress resource with the annotion external-dns.alpha.kubernetes.io/hostname: k8s.noahh.io..

The difference being the additional peroid following the tld. The issue still ocurred.

Guesses

I specify a list of full hostnames (subdomain and tld) in order to use kube-lego. Maybe this is interfering with external-dns? Although I have used kube-lego and external-dns together before (using GCP DNS instead of DigitalOcean) so I don't see why this would happen.

I am almost convinced that this is an issue with my setup. However I have checked it so many times that I feel that there is a slight possibility that this might be a bug with the DigitalOcean external-dns controller. As I have previously only worked with the GCP external-dns controller.

Files

External DNS Deployment
Website Service file
Website Ingress file (contains external-dns annotation)

[Noah-Huppert]

I was able to create a sub zone hosted on GCP Cloud DNS at k8s.noahh.io. I then added the GCP Cloud DNS name servers to the DigitslOcean DNS under k8s.noahh.io.

External-dns successfully created entries in the GCP Cloud DNS k8s.noahh.io zone (Ex: www.k8s.noahh.io).

I then made a couple CNAME records in my root zone hosted on DigitalOcean DNS pointing towards the entries in the GCP Cloud DNS zone (CNAME www -> www.k8s.noahh.io)

So I was able to work around the issue in a slightly roundabout way. But I think this confirms that the DigitalOcean controller has a bug of some sort.

[njuettner]

@Noah-Huppert since it is merged into master, could you verify if the issue still occurs?

Otherwise I will close the issue and thanks again for creating this issue.

[Noah-Huppert]

To test the new code, do I just have to relaunch my External DNS container? Are there any special steps I need to take to run the new code?

[njuettner]

You could get the latest image via docker pull registry.opensource.zalan.do/teapot/external-dns

[njuettner]

Latest tag would be v0.5.0-alpha.1

[Noah-Huppert]

Ok. I will try switching my cluster back over to DigitalOcean DNS and see what happens.

[Noah-Huppert]

$ dig +short www.noahh.io
35.201.93.41
$ dig +short www.noahhuppert.com
35.201.93.41

Success. Thank you!

[linki]

@Noah-Huppert thanks for reporting and testing it.
@njuettner thanks for the fix.

😄
