Essentials: [Question] How to configure redirect URI of google while using webAuthenticator ?

[manonaga2188]

Sample of web authenticator and asp core API works fine. But I wrote similar API for google web authentication and got below error.

This test.company.com page can’t be found
No web page was found for the web address: https://test.company.com/Authentocator/signin-google?state=*************************************************&scope=email+profile+https%3A%2F%2Fwww.googleapis.com%2Fauth%2Fuserinfo.profile+https%3A%2F%2Fwww.googleapis.com%2Fauth%2Fuserinfo.email+openid&authuser=1&prompt=none#
HTTP ERROR 404

Its not return back to application.
How and what do I need to configure in my google console. Can you help on this?

[jamesmontemagno]

If you can take a look at the samples: https://github.com/xamarin/Essentials/tree/develop/Samples/Sample.Server.WebAuthenticator has the full asp.net core backend that is setup to redirect back to the application.

Then you will need to configure the app to accept the redirect: https://docs.microsoft.com/en-us/xamarin/essentials/web-authenticator?context=xamarin%2Fxamarin-forms&tabs=android

[manonaga2188]

    [Route("mobileauth")]
    [ApiController]
    public class CflowAuthController : ControllerBase
    {

        const string callbackScheme = "cflow";
        [HttpGet("{scheme}")]
        public async Task Get([FromRoute]string scheme)
        {
            var auth = await Request.HttpContext.AuthenticateAsync(scheme);

            if (!auth.Succeeded
                || auth?.Principal == null
                || !auth.Principal.Identities.Any(id => id.IsAuthenticated)
                || string.IsNullOrEmpty(auth.Properties.GetTokenValue("access_token")))
            {
                // Not authenticated, challenge
                await Request.HttpContext.ChallengeAsync(scheme);
            }
            else
            {
                // Get parameters to send back to the callback
                var qs = new Dictionary<string, string>
            {
                { "access_token", auth.Properties.GetTokenValue("access_token") },
                { "refresh_token", auth.Properties.GetTokenValue("refresh_token") ?? string.Empty },
                { "expires", (auth.Properties.ExpiresUtc?.ToUnixTimeSeconds() ?? -1).ToString() }
            };

                // Build the result url
                var url = callbackScheme + "://#" + string.Join(
                    "&",
                    qs.Where(kvp => !string.IsNullOrEmpty(kvp.Value) && kvp.Value != "-1")
                    .Select(kvp => $"{WebUtility.UrlEncode(kvp.Key)}={WebUtility.UrlEncode(kvp.Value)}"));

                // Redirect to final url
                Request.HttpContext.Response.Redirect(url);
            }
        }
    }

And added this in my MainActivity too.

        [Activity(NoHistory = true, LaunchMode = LaunchMode.SingleTop)]
        [IntentFilter(new[] { Intent.ActionView },
    Categories = new[] { Intent.CategoryDefault, Intent.CategoryBrowsable },
    DataScheme = "cflow")]
        public class WebAuthenticationCallbackActivity : Xamarin.Essentials.WebAuthenticatorCallbackActivity
        {
        }

On Button click event

        async Task OnAuthenticate(string scheme)
        {
            try
            {
                WebAuthenticatorResult r = null;

                if (scheme.Equals("Apple")
                    && DeviceInfo.Platform == DevicePlatform.iOS
                    && DeviceInfo.Version.Major >= 13)
                {
                    r = await AppleSignInAuthenticator.AuthenticateAsync();
                }
                else
                {
                    var authUrl = new Uri(authenticationUrl + scheme);
                    var callbackUrl = new Uri("cflow://");
                    r = await WebAuthenticator.AuthenticateAsync(authUrl, callbackUrl);
                }

                AuthToken = r?.AccessToken ?? r?.IdToken;
                Debug.WriteLine(AuthToken);
            }
            catch (Exception ex)
            {
                AuthToken = string.Empty;
                Debug.WriteLine(ex.Message);
                await DisplayAlert("Cflow",$"Failed: {ex.Message}","OK");
            }
        }

@jamesmontemagno But after authentication its not return back to app.

[jamesmontemagno]

Are you able to take a video of it? It is opening in chrome custom tab or a generic browser?

[manonaga2188]

https://github.com/manonaga2188/WebAuthenticatorSampleIssue/blob/master/Record_2020-04-17-10-18-53_dda8afad953d6e78dd3cf84d7b4fe286.mp4
@jamesmontemagno Here I attached video of my issue.

I added redirect URI in google console as "https://test.cflowapps.com/Authentocator/signin-google",
My Startup class:
`public class Startup
{
public Startup(IConfiguration configuration, IWebHostEnvironment webHostEnvironment)
{
Configuration = configuration;
WebHostEnvironment = webHostEnvironment;
}

    public IConfiguration Configuration { get; }
    IWebHostEnvironment WebHostEnvironment { get; }
    // This method gets called by the runtime. Use this method to add services to the container.
    public void ConfigureServices(IServiceCollection services)
    {
        services.AddControllers();
        services.AddAuthentication(o =>
        {
            o.DefaultScheme = CookieAuthenticationDefaults.AuthenticationScheme;
        })
            .AddCookie()
            .AddGoogle(g =>
            {
                g.ClientId = "{Google client id}";
                g.ClientSecret = "{Google client secret id}";
                g.SaveTokens = true;
            })
            .AddMicrosoftAccount(ms =>
            {
                ms.ClientId = "{Microsoft client id}";
                ms.ClientSecret = "{Microsoft secret id}";
                ms.SaveTokens = true;
            });
            //.AddApple(a =>
            //{
            //    a.ClientId = Configuration["AppleClientId"];
            //    a.KeyId = Configuration["AppleKeyId"];
            //    a.TeamId = Configuration["AppleTeamId"];
            //    a.UsePrivateKey(keyId
            //        => WebHostEnvironment.ContentRootFileProvider.GetFileInfo($"AuthKey_{keyId}.p8"));
            //    a.SaveTokens = true;
            //});
    }

    // This method gets called by the runtime. Use this method to configure the HTTP request pipeline.
    public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
    {
        if (env.IsDevelopment())
        {
            app.UseDeveloperExceptionPage();
        }

        app.UseHttpsRedirection();
        app.UseRouting();
        app.UseAuthorization();
        //app.UseAuthentication();
        app.UseEndpoints(endpoints =>
        {
            endpoints.MapControllers();
        });
    }
}`

[Redth]

You're using the wrong redirect uri. You need to redirect back to your mobileauth uri of your app so that the request returns to the custom controller.

[manonaga2188]

I added below redirect URI in google console
https://test.cflowapps.com/Authentocator/mobileauth
and
https://test.cflowapps.com/Authentocator/signin-google

[manonaga2188]

Fixed it. Thanks for your time @Redth @jamesmontemagno

[jamesmontemagno]

@manonaga2188 can you share some insight into how you solved it. I would like to update the documentation to ensure it is easier for other devs in the future.

[manonaga2188]

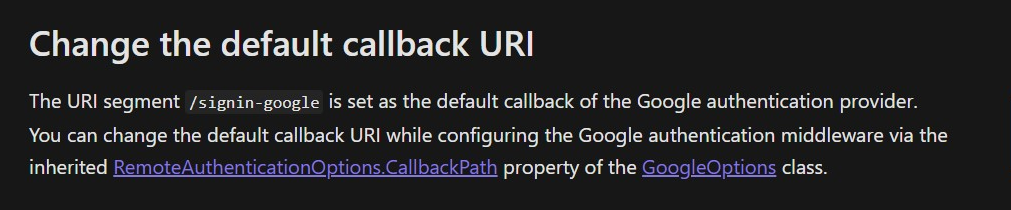

@jamesmontemagno This part is helped me.

After Google authentication, return to https://{API-URL}/signin-google. So its not return to the app. It should return to api controller. So configure "CallbackPath" property of the GoogleOption as
.AddGoogle(g => { g.ClientId = "{Client ID}"; g.ClientSecret = "{Client Secret}"; g.CallbackPath = "/mobileauth"; //mobileauth is api controller g.SaveTokens = true; })

Also added redirect URI "https://{API-URL}/signin-google" and "https://{API-URL}/mobileauth" in google console. In my case "mobileauth" is api controller.

[manishkungwani]

@manonaga2188 @Redth @jamesmontemagno can the Google login be implemented without the backend?

[Redth]

@manishkungwani technically I think so, but you have to use an iOS/Android oauth secret/token and specify the redirect uri on google's configuration to be that which your app is registered to handle (and what you tell the Essentials API to listen for).

Many OAuth providers do not allow this implicit flow, and for good reason, since it's less secure. We are not documenting or encouraging this type of flow, but in the case of Google I think it can still be accomplished. Use at your own risk.
