Espeasy: CSE7766 strange low voltage
I have Sonoff POW R2 to control home ventilation sytem with domoticz.
I use ROM:
ESP_Easy_mega-20181017_dev_ESP8266_4096

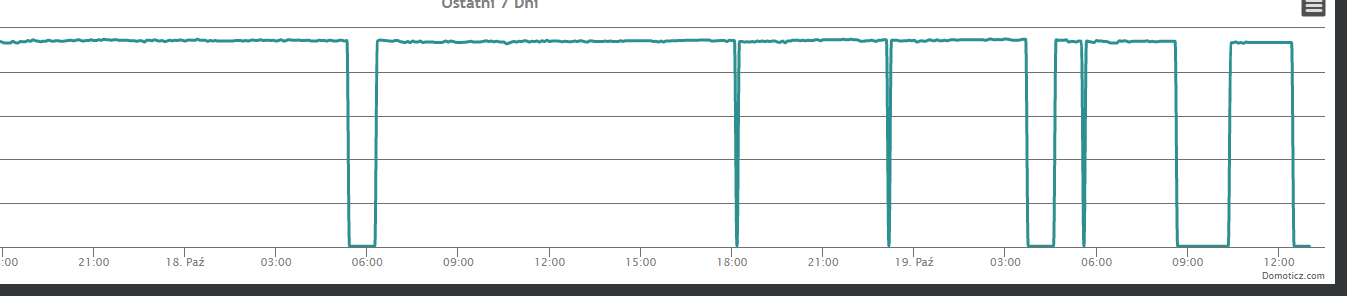

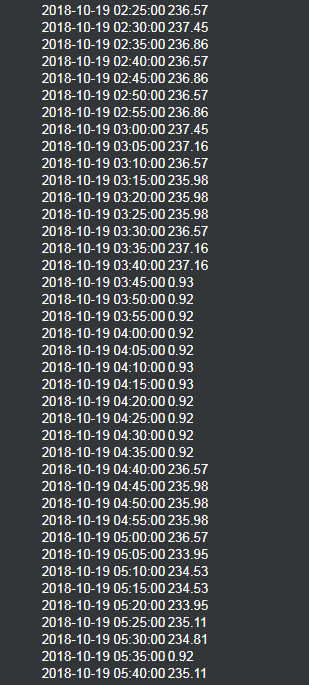

Time to time I have:
I know, when i go to ESPEasy control panel -> Devices -> CSE7766 and submit, then everything go back to normal.
How to repair this issue?
Best Regards
Michał
michass
All 32 comments
try to catch debug log, so. we can find something
uzi18
on 19 Oct 2018
@TD-er looks like serial communication problems
uzi18
on 19 Oct 2018
I'm out of home, i have only acces to domoticz, I can't connect to ESP even via VPN, local only.
michass
on 19 Oct 2018
ok so we will wait for that data
looks like log. is possible to fetch via weblog subpage or you can log to. syslog on domoticz host, but first you need to change espeasy settings
uzi18
on 19 Oct 2018
The number looks like the power factor, not voltage.
So indeed issues with serial communication
TD-er
on 19 Oct 2018
It is soft issue or this unit hardware problem or maybe who knows?
michass
on 19 Oct 2018
@TD-er maybe controller sends wrong values?
uzi18
on 19 Oct 2018
Controller you mean Sonof device?
In Device tab parameters are also wrong
michass
on 19 Oct 2018
debug.txt
My log
michass
on 19 Oct 2018
@TD-er
8692145: CSE: packet received
8692145: CSE: Checksum Failure
8692147: CSE: Header received
8692248: CSE: packet received
8692249: CSE: Checksum Failure
8692250: CSE: Header received
8692333: sendcontent free: 10920 chunk size:400
8692338: sendcontent free: 9536 chunk size:353
8692341: sendcontent free: 9536 chunk size:0
8692353: CSE: packet received
8692354: CSE: Checksum Failure
8692355: CSE: Header received
8692458: CSE: packet received
8692459: CSE: Checksum Failure
8692462: CSE: Header received
8692561: sendcontent free: 10920 chunk size:400
8692746: CSE: plugin read
8692749: EVENT: PoborWent#Voltage=0.92
8692774: CSE: packet received
8692775: CSE: Checksum Failure
8692777: EVENT: PoborWent#Voltage=0.92 Processing time:28 milliSeconds
8692778: CSE: Header received
8692780: EVENT: PoborWent#Power=0.00
8692812: DEBUG DEV: Parsed String='SendToHTTP 192.168.0.109,8084,/json.htm?type=commandśm=udevice&idx=78&nvalue=0&svalue=0.92'
8692816: ACT : SendToHTTP 192.168.0.109,8084,/json.htm?type=commandśm=udevice&idx=78&nvalue=0&svalue=0.92
8692843: sendcontent free: 10064 chunk size:400
8692847: sendcontent free: 8464 chunk size:400
8693029: GET /json.htm?type=commandśm=udevice&idx=78&nvalue=0&svalue=0.92 HTTP/1.1^^Host: 192.168.0.109:8084^^User-Agent: ESP Easy/2
8693030: GET /json.htm?type=commandśm=udevice&idx=78&nvalue=0&svalue=0.92 HTTP/1.1^^Host: 192.168.0.109:8084^^User-Agent: ESP Easy/2
8693030: HTTP : Command_HTTP_SendToHTTP closing connection
8693049: Command: sendtohttp
8693050: SendToHTTP: Host: 192.168.0.109 port: 8084
8693050: SendToHTTP: Path: /json.htm?type=commandśm=udevice&idx=79&nvalue=0&svalue=0.00
8693055: GET /json.htm?type=commandśm=udevice&idx=79&nvalue=0&svalue=0.00 HTTP/1.1^^Host: 192.168.0.109:8084^^User-Agent: ESP Easy/2
8693055: GET /json.htm?type=commandśm=udevice&idx=79&nvalue=0&svalue=0.00 HTTP/1.1^^Host: 192.168.0.109:8084^^User-Agent: ESP Easy/2
8693056: HTTP : Command_HTTP_SendToHTTP closing connection
8693070: sendcontent free: 9808 chunk size:400
Should be fixed by @uzi18
See PR #1924
TD-er
on 20 Oct 2018
I will check after package update
Pobierz aplikację Outlook dla systemu Androidhttps://aka.ms/ghei36
From: Gijs Noorlander notifications@github.com
Sent: Saturday, October 20, 2018 6:52:19 PM
To: letscontrolit/ESPEasy
Cc: Michał Pawłowski; Author
Subject: Re: [letscontrolit/ESPEasy] CSE7766 strange low voltage (#1920)
Should be fixed by @uzi18https://github.com/uzi18
See PR #1924https://github.com/letscontrolit/ESPEasy/pull/1924
—
You are receiving this because you authored the thread.
Reply to this email directly, view it on GitHubhttps://github.com/letscontrolit/ESPEasy/issues/1920#issuecomment-431598389, or mute the threadhttps://github.com/notifications/unsubscribe-auth/Apwbs7qQZzfG0_Z6qAhzekzYM7ydP48zks5um1TDgaJpZM4XwJ9v.
michass
on 20 Oct 2018
@michass mozesz wejsc na gitter.im i napisac do mnie na priv?
uzi18
on 20 Oct 2018
Patch is reverted, see comments @ #1924
TD-er
on 20 Oct 2018
definitely we need to log buffer when checksum is wrong, so we can investigate what is wrong here, maybe protocol. is different in new devices?
uzi18
on 20 Oct 2018
@TD-er thx to @michass we investigate problem and it is indeed trivial.
if someone is interested #1934 is ready to test
uzi18
on 21 Oct 2018
I have latest Log:
35429684: GET /json.htm?type=command¶m=udevice&idx=75&nvalue=0&svalue=1 HTTP/1.1^^Host: 192.168.0.109:8084^^User-Agent: ESP Easy/2010
35429684: GET /json.htm?type=command¶m=udevice&idx=75&nvalue=0&svalue=1 HTTP/1.1^^Host: 192.168.0.109:8084^^User-Agent: ESP Easy/2010
35429685: HTTP : Command_HTTP_SendToHTTP closing connection
35429735: CSE: B0: 90+2+230+248+0+3+47+0
35429735: CSE: B8: 64+31+6+75+183+80+78+152
35429735: CSE: B16: 79+29+147+225+127+0+14+242
35429735: CSE: B24: 0+0+0+0+0+0+0+0
35429735: CSE: s: 26
35429736: CSE: Checksum Failure
35429862: CSE: B24: 0+0+0+0+0+0+0+0
35429862: CSE: s: 24
35429863: CSE: Checksum Failure
35429945: CSE: B0: 90+2+230+248+0+3+47+0
35429945: CSE: B8: 64+31+6+75+183+80+78+152
35429945: CSE: B16: 82+81+92+225+127+0+14+242
35429945: CSE: B24: 0+0+0+0+0+0+0+0
35429945: CSE: s: 26
35429946: CSE: Checksum Failure
35430052: CSE: B24: 0+0+0+0+0+0+0+0
35430053: CSE: s: 24
35430053: CSE: Checksum Failure
35430155: CSE: B0: 90+2+230+248+0+3+47+0
35430155: CSE: B8: 64+31+6+75+183+80+78+152
35430155: CSE: B16: 85+132+38+225+127+0+14+242
35430155: CSE: B24: 0+0+0+0+0+0+0+0
35430155: CSE: s: 26
35430156: CSE: Checksum Failure
35430260: CSE: B24: 0+0+0+0+0+0+0+0
35430260: CSE: s: 26
35430261: CSE: Checksum Failure
35430365: CSE: B0: 90+2+230+248+0+3+47+0
35430365: CSE: B8: 64+31+6+75+183+80+78+152
35430365: CSE: B16: 88+181+241+225+127+0+13+242
35430365: CSE: B24: 0+0+0+0+0+0+0+0
35430365: CSE: s: 24
35430366: CSE: Checksum Failure
35430524: EVENT: PoborWent#Power=1.02
35430560: EVENT: PoborWent#Power=1.02 Processing time:36 milliSeconds
35430562: EVENT: PoborWent#Current=0.02
35430576: CSE: B0: 90+2+230+248+0+3+47+0
35430576: CSE: B8: 64+31+6+75+183+80+78+152
35430576: CSE: B16: 91+233+186+225+127+0+13+242
35430576: CSE: B24: 0+0+0+0+0+0+0+0
35430577: CSE: s: 24
35430577: CSE: Checksum Failure
35430751: GET /json.htm?type=command¶m=udevice&idx=75&nvalue=0&svalue=1 HTTP/1.1^^Host: 192.168.0.109:8084^^User-Agent: ESP Easy/2010
35430751: GET /json.htm?type=command¶m=udevice&idx=75&nvalue=0&svalue=1 HTTP/1.1^^Host: 192.168.0.109:8084^^User-Agent: ESP Easy/2010
35430752: HTTP : Command_HTTP_SendToHTTP closing connection
35430783: CSE: B0: 90+2+230+248+0+3+47+0
35430783: CSE: B8: 64+31+6+75+183+80+78+152
35430783: CSE: B16: 95+28+132+225+127+0+14+242
35430783: CSE: B24: 0+0+0+0+0+0+0+0
35430784: CSE: s: 26
35430784: CSE: Checksum Failure
35430889: CSE: B0: 90+2+230+248+0+3+47+0
35430889: CSE: B8: 64+31+6+75+183+80+78+152
35430889: CSE: B16: 96+181+233+225+127+0+13+242
35430889: CSE: B24: 0+0+0+0+0+0+0+0
35430889: CSE: s: 24
35430890: CSE: Checksum Failure
35431937: CSE: B24: 0+0+0+0+0+0+0+0
35431937: CSE: s: 228
35431937: CSE: Checksum Failure
35432041: CSE: B0: 90+2+230+248+0+3+47+0
35432041: CSE: B8: 64+31+5+88+17+80+78+152
35432042: CSE: B16: 114+77+64+225+127+0+116+242
35432042: CSE: B24: 0+0+0+0+0+0+0+0
35432042: CSE: s: 230
35432042: CSE: Checksum Failure
35432149: CSE: B24: 0+0+0+0+0+0+0+0
35432149: CSE: s: 228
35432150: CSE: Checksum Failure
35432251: CSE: B0: 90+2+230+248+0+3+47+0
35432251: CSE: B8: 64+31+5+88+17+80+78+152
35432252: CSE: B16: 117+127+11+225+127+0+116+242
35432252: CSE: B24: 0+0+0+0+0+0+0+0
35432252: CSE: s: 230
35432252: CSE: Checksum Failure
35432549: EVENT: PoborWent#Current=0.02
35432567: CSE: B0: 90+2+230+248+0+3+43+0
35432567: CSE: B8: 64+31+5+88+17+80+78+152
35432567: CSE: B16: 122+76+57+225+127+0+112+242
35432567: CSE: B24: 0+0+0+0+0+0+0+0
35432567: CSE: s: 222
35432568: CSE: Checksum Failure
35432571: EVENT: PoborWent#Current=0.02 Processing time:22 milliSeconds
35432573: EVENT: PoborWent#Pulses=65018.00
35432742: Delay queue C001 stats: Count: 656 Avg/min/max 14496.87/8987/465201 usec
35432742: timeDiff() stats: Count: 935908450 - CPU cycles per call: 3.86
35432743: Scheduler stats: (called/tasks/max_length/idle%) 164465792/2160447/9/63.80
35432776: CSE: B0: 90+2+230+248+0+3+43+0
35432776: CSE: B8: 64+31+5+88+17+80+78+152
35432777: CSE: B16: 125+126+4+225+127+0+112+242
35432777: CSE: B24: 0+0+0+0+0+0+0+0
35432777: CSE: s: 222
@TD-er have found another issue related to this one, basically all data are in the buffer but shifted so checksum is wrong, like on log posted by @michass
uzi18
on 22 Oct 2018
Hi,

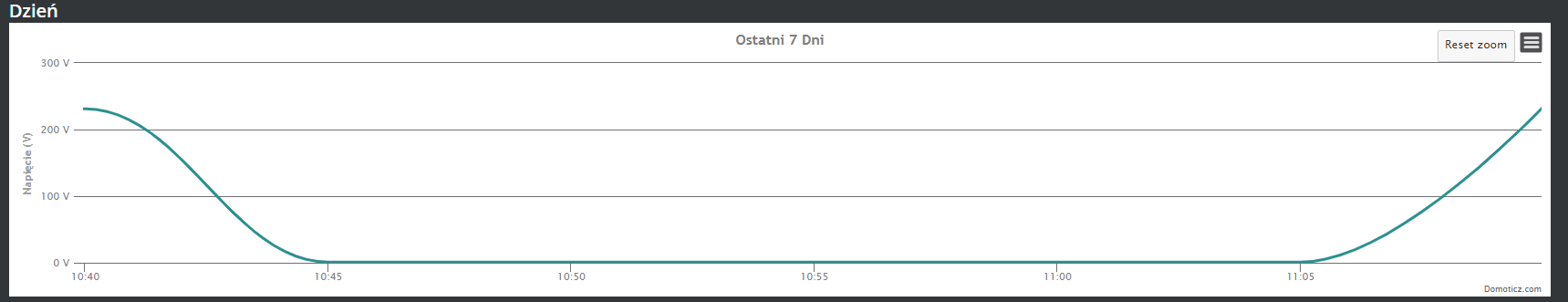

after update to new firmware dedicated for Sonoff POW R2
Problem came back. Maybe you don't merge @uzi18 changes.
2018-10-25 10:40:00 | 231
2018-10-25 10:45:00 | 1
2018-10-25 10:50:00 | 1
2018-10-25 10:55:00 | 1
2018-10-25 11:00:00 | 1
2018-10-25 11:05:00 | 1
2018-10-25 11:10:00 | 235
michass
on 25 Oct 2018
@michass Indeed the latest fixes of @uzi18 were not merged yet.
He mentioned he would add some changes, so I waited.
And my last merges were around 2:30 am, so I thought going to bed was probably a better idea.
At least I now have one POW R2 running ESPeasy too, so I can test myself.
TD-er
on 25 Oct 2018
I can't get logs.
Before update I had possibility to log from VPN (other IP range), now I can't connect via VPN.
I there default setting "Local only"?
michass
on 25 Oct 2018
Yep, the default is to allow local network only.
If you have access to some computer on the other side, you could disable it using a command.
TD-er
on 25 Oct 2018

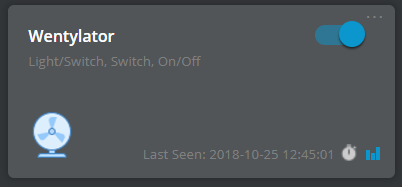

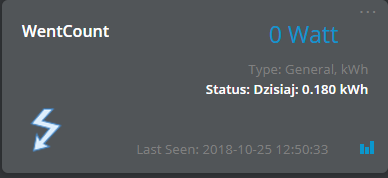

Another strange behaviour:
As I sayd, no acces to logs
michass
on 25 Oct 2018
Strange also is, then on @uzi18 i can connect via VPN, on official test rom for POW R2 i can't. Even if I allow for that.
michass
on 25 Oct 2018
I have build for You standard dev_ESP8266_4096, with only changes from #1934 , branch is 20181020 with revert of #1924
If you want I can pull last changes and rebuild it one more time
uzi18
on 25 Oct 2018
Yes, sure, but i you can remove useless plugins
michass
on 25 Oct 2018
@uzi18 thanks!
michass
on 25 Oct 2018
@michass is it work for You?
uzi18
on 25 Oct 2018
Looks nice ;)
`
1810009: CSE: B0: 242+90+2+230+248+0+3+41
1810009: CSE: B8: 0+64+31+4+61+126+80+78
1810009: CSE: B16: 152+250+232+156+97+202+229+238
1810009: CSE: B24: 242+90+0+0+0+0+0+0
1810009: CSE: s: 238
1810010: CSE voltage: 235.11
1810010: CSE power: 0.00
1810010: CSE current: 0.00
1810010: CSE pulses: 51941
1811269: CSE: B0: 242+90+2+230+248+0+3+41
1811269: CSE: B8: 0+64+31+4+50+155+80+78
1811269: CSE: B16: 152+0+0+128+97+202+229+2
1811269: CSE: B24: 242+90+0+0+0+0+0+0
1811269: CSE: s: 2
1811269: CSE voltage: 235.11
1811270: CSE power: 0.00
1811270: CSE current: 0.00
1811270: CSE pulses: 51941
1812318: CSE: B0: 242+90+2+230+248+0+3+43
1812319: CSE: B8: 0+64+31+4+50+155+80+78
1812319: CSE: B16: 152+31+23+74+97+202+229+4
1812319: CSE: B24: 242+90+0+0+0+0+0+0
1812319: CSE: s: 4
1812319: CSE voltage: 234.53
1812319: CSE power: 0.00
1812319: CSE current: 0.00
1812320: CSE pulses: 51941
1812525: CSE: B0: 242+90+2+230+248+0+3+43
1812525: CSE: B8: 0+64+31+4+50+155+80+78
1812526: CSE: B16: 152+34+75+19+97+202+229+4
1812526: CSE: B24: 242+90+0+0+0+0+0+0
1812526: CSE: s: 4
1812526: CSE voltage: 234.53
1812526: CSE power: 0.00
1812526: CSE current: 0.00
1812527: CSE pulses: 51941
1812841: CSE: B0: 242+90+2+230+248+0+3+43
1812841: CSE: B8: 0+64+31+4+50+155+80+78
1812841: CSE: B16: 152+39+22+67+97+202+229+4
1812842: CSE: B24: 242+90+0+0+0+0+0+0
1812842: CSE: s: 4
1812842: CSE voltage: 234.53
1812842: CSE power: 0.00
1812842: CSE current: 0.00
1812842: CSE pulses: 51941
1813887: CSE: B0: 242+90+2+230+248+0+3+43
1813887: CSE: B8: 0+64+31+3+130+70+80+78
1813887: CSE: B16: 152+55+21+52+97+202+229+254
1813887: CSE: B24: 242+90+0+0+0+0+0+0
1813888: CSE: s: 254
1813888: CSE voltage: 234.53
1813888: CSE power: 0.00
1813888: CSE current: 0.00
1813888: CSE pulses: 51941
1815042: CSE: B0: 242+90+2+230+248+0+3+43
1815042: CSE: B8: 0+64+31+3+130+70+80+78
1815042: CSE: B16: 152+72+172+139+97+202+229+253
1815042: CSE: B24: 242+90+0+0+0+0+0+0
1815042: CSE: s: 253
1815043: CSE voltage: 234.53
1815043: CSE power: 0.00
1815043: CSE current: 0.00
1815043: CSE pulses: 51941
1816195: CSE: B0: 242+90+2+230+248+0+3+43
1816196: CSE: B8: 0+64+31+3+130+70+80+78
1816196: CSE: B16: 152+90+67+226+97+202+229+253
1816196: CSE: B24: 242+90+0+0+0+0+0+0
1816196: CSE: s: 253
1816196: CSE voltage: 234.53
1816196: CSE power: 0.00
1816196: CSE current: 0.00
1816197: CSE pulses: 51941
1816405: CSE: B0: 242+90+2+230+248+0+3+43
1816405: CSE: B8: 0+64+31+3+171+26+80+78
1816405: CSE: B16: 152+93+118+172+97+202+229+250
1816406: CSE: B24: 242+90+0+0+0+0+0+0
1816406: CSE: s: 250
1816406: CSE voltage: 234.53
1816406: CSE power: 0.00
1816406: CSE current: 0.00
1816406: CSE pulses: 51941
1817768: CSE: B0: 242+90+2+230+248+0+3+43
1817769: CSE: B8: 0+64+31+3+171+26+80+78
1817769: CSE: B16: 152+114+63+206+97+202+229+250
1817769: CSE: B24: 242+90+0+0+0+0+0+0
1817769: CSE: s: 250
1817769: CSE voltage: 234.53
1817769: CSE power: 0.00
1817769: CSE current: 0.00
1817770: CSE pulses: 51941
1818083: CSE: B0: 242+90+2+230+248+0+3+43
1818084: CSE: B8: 0+64+31+3+171+26+80+78
1818084: CSE: B16: 152+119+11+253+97+202+229+250
1818084: CSE: B24: 242+90+0+0+0+0+0+0
1818084: CSE: s: 250
1818084: CSE voltage: 234.53
1818084: CSE power: 0.00
1818085: CSE current: 0.00
1818085: CSE pulses: 51941
1818293: CSE: B0: 242+90+2+230+248+0+3+43
1818294: CSE: B8: 0+64+31+3+171+26+80+78
1818294: CSE: B16: 152+122+63+198+97+202+229+250
1818294: CSE: B24: 242+90+0+0+0+0+0+0
1818294: CSE: s: 250
1818294: CSE voltage: 234.53
1818295: CSE power: 0.00
1818295: CSE current: 0.00
1818295: CSE pulses: 51941
1818502: CSE: B0: 242+90+2+230+248+0+3+43
1818502: CSE: B8: 0+64+31+6+119+24+80+78
1818502: CSE: B16: 152+125+113+145+97+202+229+199
1818502: CSE: B24: 242+90+0+0+0+0+0+0
1818502: CSE: s: 199
1818503: CSE voltage: 234.53
1818503: CSE power: 0.00
1818503: CSE current: 0.00
1818503: CSE pulses: 51941
1819658: CSE: B0: 242+90+2+230+248+0+3+41
1819659: CSE: B8: 0+64+31+6+119+24+80+78
1819659: CSE: B16: 152+143+8+232+97+202+229+197
1819659: CSE: B24: 242+90+0+0+0+0+0+0
1819659: CSE: s: 197
1819659: CSE voltage: 235.11
1819659: CSE power: 0.00
1819660: CSE current: 0.00
1819660: CSE pulses: 51941
1819867: CSE: B0: 242+90+2+230+248+0+3+41
1819867: CSE: B8: 0+64+31+6+119+24+80+78
1819867: CSE: B16: 152+146+60+177+97+202+229+197
1819867: CSE: B24: 242+90+0+0+0+0+0+0
1819867: CSE: s: 197
1819868: CSE voltage: 235.11
1819868: CSE power: 0.00
1819868: CSE current: 0.00
1819868: CSE pulses: 51941
1821020: CSE: B0: 242+90+2+230+248+0+3+41
1821020: CSE: B8: 0+64+31+4+226+123+80+78
1821020: CSE: B16: 152+163+211+9+97+202+229+145
1821020: CSE: B24: 242+90+0+0+0+0+0+0
1821021: CSE: s: 145
1821021: CSE voltage: 235.11
1821021: CSE power: 0.00
1821021: CSE current: 0.00
1821021: CSE pulses: 51941
1822173: CSE: B0: 242+90+2+230+248+0+3+41
1822174: CSE: B8: 0+64+31+4+226+123+80+78
1822174: CSE: B16: 152+181+107+95+97+202+229+145
1822174: CSE: B24: 242+90+0+0+0+0+0+0
1822174: CSE: s: 145
1822174: CSE voltage: 235.11
1822174: CSE power: 0.00
1822175: CSE current: 0.00
1822175: CSE pulses: 51941
1822383: CSE: B0: 242+90+2+230+248+0+3+41
1822383: CSE: B8: 0+64+31+4+226+123+80+78
1822384: CSE: B16: 152+184+158+41+97+202+229+145
1822384: CSE: B24: 242+90+0+0+0+0+0+0
1822384: CSE: s: 145
1822384: CSE voltage: 235.11
1822384: CSE power: 0.00
1822384: CSE current: 0.00
1822384: CSE pulses: 51941
1823536: CSE: B0: 242+90+2+230+248+0+3+41
1823537: CSE: B8: 0+64+31+4+226+123+80+78
1823537: CSE: B16: 152+202+53+128+97+202+229+145
1823537: CSE: B24: 242+90+0+0+0+0+0+0
1823537: CSE: s: 145
1823537: CSE voltage: 235.11
1823538: CSE power: 0.00
1823538: CSE current: 0.00
1823538: CSE pulses: 51941
1823851: CSE: B0: 242+90+2+230+248+0+3+41
1823852: CSE: B8: 0+64+31+4+226+123+80+78
1823852: CSE: B16: 152+207+1+175+97+202+229+145
1823852: CSE: B24: 242+90+0+0+0+0+0+0
1823852: CSE: s: 145
1823852: CSE voltage: 235.11
1823853: CSE power: 0.00
1823853: CSE current: 0.00
1823853: CSE pulses: 51941
1824061: CSE: B0: 242+90+2+230+248+0+3+41
1824062: CSE: B8: 0+64+31+4+102+232+80+78
1824062: CSE: B16: 152+210+52+121+97+202+229+130
1824062: CSE: B24: 242+90+0+0+0+0+0+0
1824062: CSE: s: 130
1824062: CSE voltage: 235.11
1824062: CSE power: 0.00
1824063: CSE current: 0.00
1824063: CSE pulses: 51941
1824376: CSE: B0: 242+90+2+230+248+0+3+41
1824377: CSE: B8: 0+64+31+4+102+232+80+78
1824377: CSE: B16: 152+213+148+23+97+202+230+132
1824377: CSE: B24: 242+90+0+0+0+0+0+0
1824377: CSE: s: 132
1824377: CSE voltage: 235.11
1824377: CSE power: 0.00
1824378: CSE current: 0.00
1824378: CSE pulses: 51942
1824690: CSE: B0: 242+90+2+230+248+0+3+41
1824690: CSE: B8: 0+64+31+4+102+232+80+78
1824690: CSE: B16: 152+213+148+23+97+202+230+132
1824691: CSE: B24: 242+90+0+0+0+0+0+0
1824691: CSE: s: 132
1824691: CSE voltage: 235.11
1824691: CSE power: 0.00
1824691: CSE current: 0.00
1824691: CSE pulses: 51942
1825845: CSE: B0: 242+90+2+230+248+0+3+41
1825845: CSE: B8: 0+64+31+4+102+232+80+78
1825845: CSE: B16: 152+23+37+195+97+202+230+3
1825845: CSE: B24: 242+90+0+0+0+0+0+0
1825845: CSE: s: 3
1825846: CSE voltage: 235.11
1825846: CSE power: 0.00
1825846: CSE current: 0.00
1825846: CSE pulses: 51942
1826998: CSE: B0: 242+90+2+230+248+0+3+41
1826998: CSE: B8: 0+64+31+4+102+232+80+78
1826998: CSE: B16: 152+40+188+27+97+202+230+3
1826999: CSE: B24: 242+90+0+0+0+0+0+0
1826999: CSE: s: 3
1826999: CSE voltage: 235.11
1826999: CSE power: 0.00
1826999: CSE current: 0.00
1826999: CSE pulses: 51942
1828257: CSE: B0: 242+90+2+230+248+0+3+41
1828257: CSE: B8: 0+64+31+4+192+108+80+78
1828257: CSE: B16: 152+59+237+214+97+202+230+224
1828257: CSE: B24: 242+90+0+0+0+0+0+0
1828257: CSE: s: 224
1828257: CSE voltage: 235.11
1828258: CSE power: 0.00
1828258: CSE current: 0.00
1828258: CSE pulses: 51942
1829410: CSE: B0: 242+90+2+230+248+0+3+41
1829410: CSE: B8: 0+64+31+4+192+108+80+78
1829410: CSE: B16: 152+77+132+46+97+202+230+225
1829410: CSE: B24: 242+90+0+0+0+0+0+0
1829410: CSE: s: 225
1829411: CSE voltage: 235.11
1829411: CSE power: 0.00
1829411: CSE current: 0.00
1829411: CSE pulses: 51942
1830668: CSE: B0: 242+90+2+230+248+0+3+41
1830668: CSE: B8: 0+64+31+4+205+183+80+78
1830668: CSE: B16: 152+96+180+234+97+202+230+56
1830668: CSE: B24: 242+90+0+0+0+0+0+0
1830669: CSE: s: 56
1830669: CSE voltage: 235.11
1830669: CSE power: 0.00
1830669: CSE current: 0.00
1830669: CSE pulses: 51942
1831821: CSE: B0: 242+90+2+230+248+0+3+41
1831821: CSE: B8: 0+64+31+4+205+183+80+78
1831822: CSE: B16: 152+114+76+65+97+202+230+57
1831822: CSE: B24: 242+90+0+0+0+0+0+0
1831822: CSE: s: 57
1831822: CSE voltage: 235.11
1831822: CSE power: 0.00
1831822: CSE current: 0.00
1831822: CSE pulses: 51942
1833079: CSE: B0: 242+90+2+230+248+0+3+41
1833080: CSE: B8: 0+64+31+4+205+183+80+78
1833080: CSE: B16: 152+133+125+252+97+202+230+56
1833080: CSE: B24: 242+90+0+0+0+0+0+0
1833080: CSE: s: 56
1833080: CSE voltage: 235.11
1833080: CSE power: 0.00
1833081: CSE current: 0.00
1833081: CSE pulses: 51942
1833290: CSE: B0: 242+90+2+230+248+0+3+41
1833290: CSE: B8: 0+64+31+4+205+183+80+78
1833290: CSE: B16: 152+136+176+198+97+202+230+56
1833290: CSE: B24: 242+90+0+0+0+0+0+0
1833290: CSE: s: 56
1833291: CSE voltage: 235.11
1833291: CSE power: 0.00
1833291: CSE current: 0.00
1833291: CSE pulses: 51942
1834443: CSE: B0: 242+90+2+230+248+0+3+41
1834443: CSE: B8: 0+64+31+4+205+183+80+78
1834443: CSE: B16: 152+154+72+29+97+202+230+57
1834443: CSE: B24: 242+90+0+0+0+0+0+0
1834443: CSE: s: 57
1834444: CSE voltage: 235.11
1834444: CSE power: 0.00
1834444: CSE current: 0.00
1834444: CSE pulses: 51942
1835699: CSE: B0: 242+90+2+230+248+0+3+41
1835700: CSE: B8: 0+64+31+3+167+156+80+78
1835700: CSE: B16: 152+173+119+218+97+202+230+246
1835700: CSE: B24: 242+90+0+0+0+0+0+0
1835700: CSE: s: 246
1835700: CSE voltage: 235.11
1835700: CSE power: 0.00
1835700: CSE current: 0.00
1835701: CSE pulses: 51942
1835909: CSE: B0: 242+90+2+230+248+0+3+41
1835910: CSE: B8: 0+64+31+3+167+156+80+78
1835910: CSE: B16: 152+176+170+164+97+202+230+246
1835910: CSE: B24: 242+90+0+0+0+0+0+0
1835910: CSE: s: 246
1835910: CSE voltage: 235.11
1835910: CSE power: 0.00
1835910: CSE current: 0.00
1835911: CSE pulses: 51942
`
michass
on 25 Oct 2018
do You have access to webpage with VPN now?
uzi18
on 25 Oct 2018
No :(
If I try, then Unit don't respond, only switch power off can resolve problem.
michass
on 25 Oct 2018
So something went wrong between 20-25 october
uzi18
on 25 Oct 2018
Related issues
TD-er
·
5Comments
tedenda
·
6Comments
ronnythomas
·
3Comments
wolverinevn
·
4Comments
DittelHome
·
5Comments
