Esp8266_deauther: Deauther OLED V6 - "resistor beside IPEX connector removing"

Created on 3 Jun 2020 · 5Comments · Source: SpacehuhnTech/esp8266_deauther

Good morning, I would like additional information about "resistor beside IPEX connector removing".
1) Was this resistance also present on the OLED V5 model?
2) The image below indicates the possibility of removing the resistance in order to obtain the "best effect" from the antenna. Why was the resistance included in the project? Is it because of the national regulations on the power Tx (mW)?
immagine

question stale

Source

MrCook1es

All 5 comments

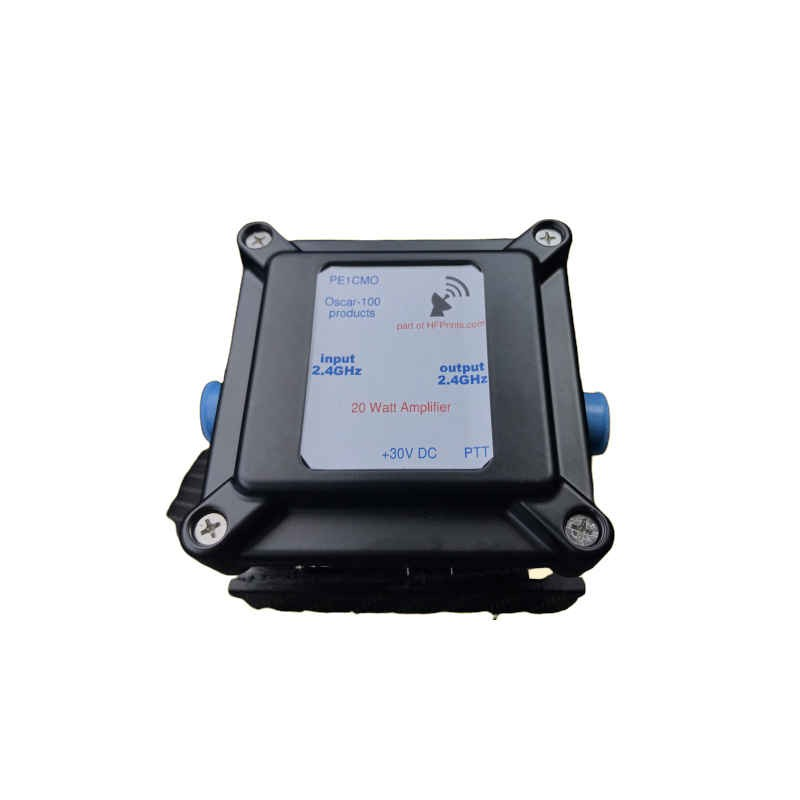

for a "best effect", nothing beats an amplifier

edit: source

tobozo on 3 Jun 2020

❤1

I think this is simply due to the use of the ESP-07 module. A common ESP8266 module that comes with the antenna connector but also a ceramic antenna. And if you remove the resistor, it will only be connected to IPX connector. Which means you have to have an external antenna connected (otherwise you can damange the device) but you also don't lose any energy to the less powerful ceramic antenna.
grafik

spacehuhn on 17 Jun 2020

❤1

@spacehuhn thanks for the precise information.
I will be careful never to turn on my DSTIKE oled V5, without an external antenna connected.

there are different types of IPEX connectors, can you confirm that the one on your DSTIKE is an IPEX (MHF-4) type?
immagine

MrCook1es on 17 Jun 2020

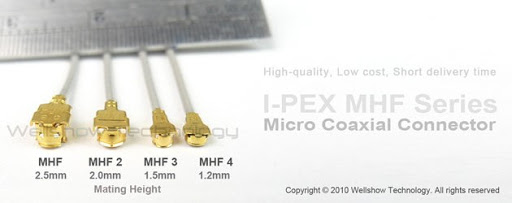

It's this one, don't ask me about the mess and confusion over the different connector standard and names
https://en.wikipedia.org/wiki/Hirose_U.FL

spacehuhn on 17 Jun 2020

❤1

This issue has been automatically marked as stale because it has not had recent activity. It will be closed if no further activity occurs. Thank you for your contributions.
