Envoy: gRPC-Web requests on Safari fail when using Envoy 1.13
When attempting to use gRPC-Web on Safari using Envoy 1.13, the request succeeds, but in the inspector in Safari, this is the error I see:
Failed to load resource: WebKit encountered an internal error
Here's the web inspector output from Safari:
Summary
URL: https://myurl.io/svc.Authentication/Login
Status: —
Source: —
Initiator:
2.c85f5bc6.chunk.js:2:583533
Request
Content-Type: application/grpc-web-text
Accept: application/grpc-web-text
Origin: https://my-url.com
Referer: https://my-url.com/login
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_3) AppleWebKit/605.1.15 (KHTML, like Gecko) Version/13.0.5 Safari/605.1.15
X-User-Agent: grpc-web-javascript/0.1
X-Grpc-Web: 1
grpc-timeout: 4999m
Response
No response headers
Request Data
MIME Type: application/grpc-web-text
Request Data:
This issue was initially raised under the https://github.com/grpc/grpc-web repo: https://github.com/grpc/grpc-web/issues/759
The request should return a successful response.
To give you more context, I'm personally running envoy via https://github.com/projectcontour/contour, though I don't think it's specific to contour since @phlippieb seems to be experiencing the same issue without contour I think.
I'm running envoy on GKE 1.15.9 as an ingress via a LoadBalancer (hence why I'm using contour).
yoitsro
All 27 comments
@yoitsro sorry, does this consistently happen? Could you provide some screenshots? Thanks!

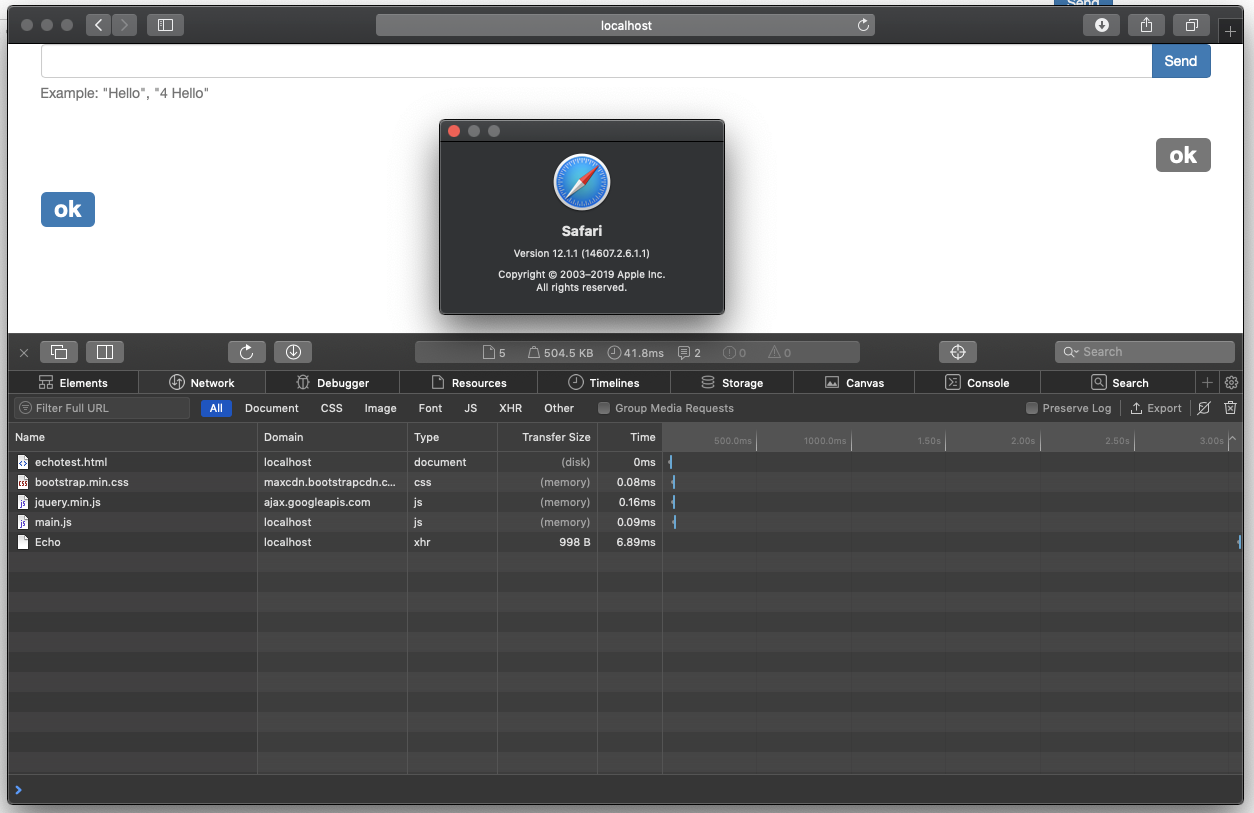

I tried to run the grpc-web example (echotest). However, I couldn't repro this case (both for safari 12 and 13).
Note the warning there is from grammarly ext that I have.
dio
on 25 Mar 2020

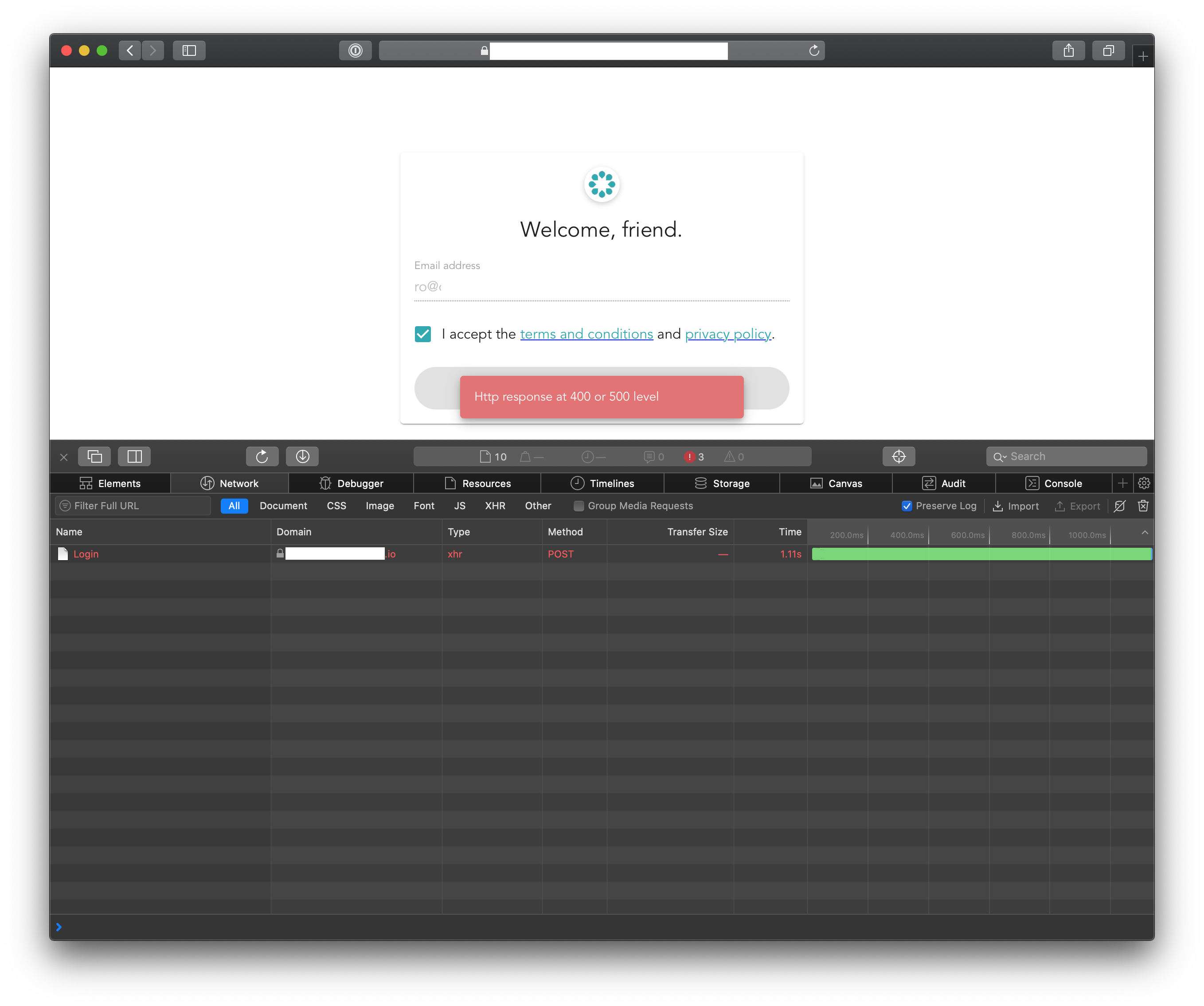

This does consistently happen. Here's what I see with the URLs obfuscated. If you'd like more details, let me know and we could potentially do a screen share.
yoitsro
on 25 Mar 2020
It's also worth noting that envoy is being used to terminate TLS too - I've noticed your setup is just over HTTP to localhost.
yoitsro
on 25 Mar 2020
Same issue, with envoy (gloo)... managing the TLS as well with gloo.
Safari 13.0.5
chrome and firefox perform as expected.
eselkin
on 31 Mar 2020
are there any updates on this, we are facing the same issue after updating to istio 1.5.1, running envoy 1.13 - tested with
safari 13.05 and 13.1
neno-k
on 3 Apr 2020
I have the same exact issue, also with Gloo (1.3.14) running on GKE it seem to be a crash WebKit side in their network process on queue com.apple.CFNetwork.HTTP2.HTTP2Stream triggered by some new behaviour of envoy, so while the problem is not in Envoy maybe there is a way workaround the problem envoy-side.
I couldn't find any issue on WebKit bugzilla so I created one: https://bugs.webkit.org/show_bug.cgi?id=210108
The crash looks like that:
Process: com.apple.WebKit.Networking [55694]
Path: /System/Library/StagedFrameworks/Safari/WebKit.framework/Versions/A/XPCServices/com.apple.WebKit.Networking.xpc/Contents/MacOS/com.apple.WebKit.Networking
Identifier: com.apple.WebKit.Networking
Version: 14608 (14608.5.12)
Build Info: WebKit2-7608005012000000~4
Code Type: X86-64 (Native)
Parent Process: ??? [1]
Responsible: Safari [55672]
User ID: 502
Date/Time: 2020-04-06 17:30:11.502 +0200
OS Version: Mac OS X 10.14.6 (18G3020)
Report Version: 12
Bridge OS Version: 4.2 (17P3050)
Anonymous UUID: 874D8B32-6898-4020-64F8-21AA02638A09
Sleep/Wake UUID: 09C3F802-395E-44B9-88C3-9D71B8E92310
Time Awake Since Boot: 260000 seconds
Time Since Wake: 16000 seconds
System Integrity Protection: enabled
Crashed Thread: 4 Dispatch queue: com.apple.CFNetwork.HTTP2.HTTP2Stream
Exception Type: EXC_BAD_ACCESS (SIGSEGV)
Exception Codes: KERN_INVALID_ADDRESS at 0x0000000000000000
Exception Note: EXC_CORPSE_NOTIFY
Termination Signal: Segmentation fault: 11
Termination Reason: Namespace SIGNAL, Code 0xb
Terminating Process: exc handler [55694]
VM Regions Near 0:
-->
__TEXT 000000010faea000-000000010faeb000 [ 4K] r-x/rwx SM=COW /System/Library/StagedFrameworks/Safari/WebKit.framework/Versions/A/XPCServices/com.apple.WebKit.Networking.xpc/Contents/MacOS/com.apple.WebKit.Networking
Thread 0:: Dispatch queue: com.apple.main-thread
0 libsystem_kernel.dylib 0x00007fff5899421a mach_msg_trap + 10
1 libsystem_kernel.dylib 0x00007fff58994768 mach_msg + 60
2 com.apple.CoreFoundation 0x00007fff2c8d499e __CFRunLoopServiceMachPort + 328
3 com.apple.CoreFoundation 0x00007fff2c8d3f0c __CFRunLoopRun + 1612
4 com.apple.CoreFoundation 0x00007fff2c8d366e CFRunLoopRunSpecific + 455
5 com.apple.Foundation 0x00007fff2eb392ff -[NSRunLoop(NSRunLoop) runMode:beforeDate:] + 280
6 com.apple.Foundation 0x00007fff2eb391d4 -[NSRunLoop(NSRunLoop) run] + 76
7 libxpc.dylib 0x00007fff58a9805b _xpc_objc_main + 552
8 libxpc.dylib 0x00007fff58a97b5d xpc_main + 433
9 com.apple.WebKit 0x000000010fccfeb1 WebKit::XPCServiceMain(int, char const**) + 547
10 libdyld.dylib 0x00007fff5885f3d5 start + 1
Thread 1:: JavaScriptCore bmalloc scavenger
0 libsystem_kernel.dylib 0x00007fff58997866 __psynch_cvwait + 10
1 libsystem_pthread.dylib 0x00007fff58a5656e _pthread_cond_wait + 722
2 libc++.1.dylib 0x00007fff55a90b31 std::__1::condition_variable::__do_timed_wait(std::__1::unique_lock<std::__1::mutex>&, std::__1::chrono::time_point<std::__1::chrono::system_clock, std::__1::chrono::duration<long long, std::__1::ratio<1l, 1000000000l> > >) + 93
3 com.apple.JavaScriptCore 0x0000000115110ec6 bmalloc::Scavenger::threadRunLoop() + 774
4 com.apple.JavaScriptCore 0x0000000115110889 bmalloc::Scavenger::threadEntryPoint(bmalloc::Scavenger*) + 9
5 com.apple.JavaScriptCore 0x0000000115113097 void* std::__1::__thread_proxy<std::__1::tuple<std::__1::unique_ptr<std::__1::__thread_struct, std::__1::default_delete<std::__1::__thread_struct> >, void (*)(bmalloc::Scavenger*), bmalloc::Scavenger*> >(void*) + 39
6 libsystem_pthread.dylib 0x00007fff58a532eb _pthread_body + 126
7 libsystem_pthread.dylib 0x00007fff58a56249 _pthread_start + 66
8 libsystem_pthread.dylib 0x00007fff58a5240d thread_start + 13
Thread 2:: com.apple.NSURLConnectionLoader
0 libsystem_kernel.dylib 0x00007fff5899421a mach_msg_trap + 10
1 libsystem_kernel.dylib 0x00007fff58994768 mach_msg + 60
2 com.apple.CoreFoundation 0x00007fff2c8d499e __CFRunLoopServiceMachPort + 328
3 com.apple.CoreFoundation 0x00007fff2c8d3f0c __CFRunLoopRun + 1612
4 com.apple.CoreFoundation 0x00007fff2c8d366e CFRunLoopRunSpecific + 455
5 com.apple.CFNetwork 0x00007fff2b7b8078 -[__CoreSchedulingSetRunnable runForever] + 210
6 com.apple.Foundation 0x00007fff2eb2f0e2 __NSThread__start__ + 1194
7 libsystem_pthread.dylib 0x00007fff58a532eb _pthread_body + 126
8 libsystem_pthread.dylib 0x00007fff58a56249 _pthread_start + 66
9 libsystem_pthread.dylib 0x00007fff58a5240d thread_start + 13
Thread 3:
0 libsystem_pthread.dylib 0x00007fff58a523f0 start_wqthread + 0
Thread 4 Crashed:: Dispatch queue: com.apple.CFNetwork.HTTP2.HTTP2Stream
0 com.apple.CoreFoundation 0x00007fff2c8b1b6e CFArrayGetCount + 10
1 com.apple.CFNetwork 0x00007fff2b7e5269 HTTP2Stream::_onqueue_processRawHeaders() + 45
2 com.apple.CFNetwork 0x00007fff2b91bc4a HTTP2Stream::_onqueue_endTrailers() + 18
3 libdispatch.dylib 0x00007fff588115f8 _dispatch_call_block_and_release + 12
4 libdispatch.dylib 0x00007fff5881263d _dispatch_client_callout + 8
5 libdispatch.dylib 0x00007fff588188e0 _dispatch_lane_serial_drain + 602
6 libdispatch.dylib 0x00007fff58819396 _dispatch_lane_invoke + 385
7 libdispatch.dylib 0x00007fff588216ed _dispatch_workloop_worker_thread + 598
8 libsystem_pthread.dylib 0x00007fff58a52611 _pthread_wqthread + 421
9 libsystem_pthread.dylib 0x00007fff58a523fd start_wqthread + 13
Thread 5:: WebCore: AsyncFileStream
0 libsystem_kernel.dylib 0x00007fff58997866 __psynch_cvwait + 10
1 libsystem_pthread.dylib 0x00007fff58a5656e _pthread_cond_wait + 722
2 com.apple.JavaScriptCore 0x000000011509f217 WTF::ParkingLot::parkConditionallyImpl(void const*, WTF::ScopedLambda<bool ()> const&, WTF::ScopedLambda<void ()> const&, WTF::TimeWithDynamicClockType const&) + 3927
3 com.apple.WebCore 0x0000000110e275b5 bool WTF::Condition::waitUntil<WTF::Lock>(WTF::Lock&, WTF::TimeWithDynamicClockType const&) + 165
4 com.apple.WebCore 0x00000001111f8f83 std::__1::unique_ptr<WTF::Function<void ()>, std::__1::default_delete<WTF::Function<void ()> > > WTF::MessageQueue<WTF::Function<void ()> >::waitForMessageFilteredWithTimeout<WTF::MessageQueue<WTF::Function<void ()> >::waitForMessage()::'lambda'(WTF::Function<void ()> const&)>(WTF::MessageQueueWaitResult&, WTF::MessageQueue<WTF::Function<void ()> >::waitForMessage()::'lambda'(WTF::Function<void ()> const&)&&, WTF::Seconds) + 211
5 com.apple.WebCore 0x0000000111ea546d WebCore::callOnFileThread(WTF::Function<void ()>&&)::$_9::operator()() const::'lambda'()::operator()() const + 93
6 com.apple.WebCore 0x0000000111ea5409 WTF::Detail::CallableWrapper<WebCore::callOnFileThread(WTF::Function<void ()>&&)::$_9::operator()() const::'lambda'(), void>::call() + 9
7 com.apple.JavaScriptCore 0x00000001150b87c3 WTF::Thread::entryPoint(WTF::Thread::NewThreadContext*) + 403
8 com.apple.JavaScriptCore 0x00000001150bb379 WTF::wtfThreadEntryPoint(void*) (.llvm.12532219493473948909) + 9
9 libsystem_pthread.dylib 0x00007fff58a532eb _pthread_body + 126
10 libsystem_pthread.dylib 0x00007fff58a56249 _pthread_start + 66
11 libsystem_pthread.dylib 0x00007fff58a5240d thread_start + 13
Thread 6:: IndexedDatabase Server
0 libsystem_kernel.dylib 0x00007fff58997866 __psynch_cvwait + 10
1 libsystem_pthread.dylib 0x00007fff58a5656e _pthread_cond_wait + 722
2 com.apple.JavaScriptCore 0x000000011509f217 WTF::ParkingLot::parkConditionallyImpl(void const*, WTF::ScopedLambda<bool ()> const&, WTF::ScopedLambda<void ()> const&, WTF::TimeWithDynamicClockType const&) + 3927
3 com.apple.JavaScriptCore 0x0000000114a8b545 bool WTF::Condition::waitUntil<WTF::Lock>(WTF::Lock&, WTF::TimeWithDynamicClockType const&) + 165
4 com.apple.JavaScriptCore 0x000000011507cb3e WTF::Detail::CallableWrapper<WTF::CrossThreadTaskHandler::CrossThreadTaskHandler(char const*, WTF::CrossThreadTaskHandler::AutodrainedPoolForRunLoop)::$_0, void>::call() + 302
5 com.apple.JavaScriptCore 0x00000001150b87c3 WTF::Thread::entryPoint(WTF::Thread::NewThreadContext*) + 403
6 com.apple.JavaScriptCore 0x00000001150bb379 WTF::wtfThreadEntryPoint(void*) (.llvm.12532219493473948909) + 9
7 libsystem_pthread.dylib 0x00007fff58a532eb _pthread_body + 126
8 libsystem_pthread.dylib 0x00007fff58a56249 _pthread_start + 66
9 libsystem_pthread.dylib 0x00007fff58a5240d thread_start + 13
Thread 7:
0 libsystem_pthread.dylib 0x00007fff58a523f0 start_wqthread + 0
Thread 8:: Dispatch queue: com.apple.CFNetwork.Connection
0 libobjc.A.dylib 0x00007fff57086bbe -[NSObject autorelease] + 20
1 com.apple.LaunchServices 0x00007fff2ded3769 -[_UTTypeQuery resolve] + 76
2 com.apple.LaunchServices 0x00007fff2ded5649 UTTypeCopyAllTagsWithClass + 116
3 com.apple.LaunchServices 0x00007fff2ded5591 UTTypeCopyPreferredTagWithClass + 12
4 com.apple.CFNetwork 0x00007fff2b7e2d8e copyMIMETypeForExtension + 65
5 com.apple.CFNetwork 0x00007fff2b7e2cfe +[NSURLSessionTaskDependencyTree mimeTypeForURLString:] + 55
6 com.apple.CFNetwork 0x00007fff2b7e6968 -[__NSCFURLSessionTaskActiveStreamDependencyInfo removeStreamWithStreamID:requestURLString:] + 242
7 com.apple.CFNetwork 0x00007fff2b7e6799 __NSURLSessionTaskDependency_RemoveRequest + 135
8 com.apple.CFNetwork 0x00007fff2b7e66a8 HTTP2Stream::cleanUpInUserDataResetCallback(nghttp2_session*, int, unsigned int, HTTP2Connection*) + 90
9 com.apple.CFNetwork 0x00007fff2b7e6616 cf_nghttp2_on_stream_close_callback(nghttp2_session*, int, unsigned int, void*) + 111
10 libapple_nghttp2.dylib 0x00007fff558ddacd nghttp2_session_close_stream + 147
11 libapple_nghttp2.dylib 0x00007fff558db5e4 nghttp2_session_mem_recv + 8010
12 libapple_nghttp2.dylib 0x00007fff558d9621 nghttp2_session_recv + 98
13 com.apple.CFNetwork 0x00007fff2b7e3f1b HTTP2Connection::_onqueue_performRead() + 21
14 com.apple.CFNetwork 0x00007fff2b7e3167 HTTP2Connection::_onqueue_scheduleIO() + 153
15 libdispatch.dylib 0x00007fff588115f8 _dispatch_call_block_and_release + 12
16 libdispatch.dylib 0x00007fff5881263d _dispatch_client_callout + 8
17 libdispatch.dylib 0x00007fff588188e0 _dispatch_lane_serial_drain + 602
18 libdispatch.dylib 0x00007fff588193c6 _dispatch_lane_invoke + 433
19 libdispatch.dylib 0x00007fff5881a667 _dispatch_workloop_invoke + 2100
20 libdispatch.dylib 0x00007fff588216ed _dispatch_workloop_worker_thread + 598
21 libsystem_pthread.dylib 0x00007fff58a52611 _pthread_wqthread + 421
22 libsystem_pthread.dylib 0x00007fff58a523fd start_wqthread + 13
Thread 4 crashed with X86 Thread State (64-bit):
rax: 0x0000000000000001 rbx: 0x00007fd3df564dc0 rcx: 0x00000000000001b1 rdx: 0x00007fff8efc1388
rdi: 0x0000000000000000 rsi: 0x00007fff588115ec rbp: 0x000070000c6948a0 rsp: 0x000070000c6948a0
r8: 0x00000000840f4000 r9: 0x00007fd3df5270e0 r10: 0x0000000000000004 r11: 0x0000000000000004
r12: 0x0000000000000000 r13: 0x0000000000000000 r14: 0x00007fd3e9022cf0 r15: 0x0000000118a02880
rip: 0x00007fff2c8b1b6e rfl: 0x0000000000010246 cr2: 0x0000000000000000
Logical CPU: 10
Error Code: 0x00000004
Trap Number: 14
vbfox
on 7 Apr 2020
cc @lizan @qiwzhang @fengli79
mattklein123
on 7 Apr 2020
Someone responded on WebKit bugzilla that the problem is not inside WebKit but on a lower level library & now tracked Apple side in Radar as rdar://problem/61383605 (If anyone wants to reference it with them)
vbfox
on 8 Apr 2020
This issue has been automatically marked as stale because it has not had activity in the last 30 days. It will be closed in the next 7 days unless it is tagged "help wanted" or other activity occurs. Thank you for your contributions.
![stale[bot] picture](https://avatars3.githubusercontent.com/in/1724?v=4&s=40)
stale[bot]
on 9 May 2020
It does not have any problem regarding to version v1.12.0. I am noting it down here, if any of you would like to have quick solution, until the bug fixed.
mrturkmencom
on 13 May 2020

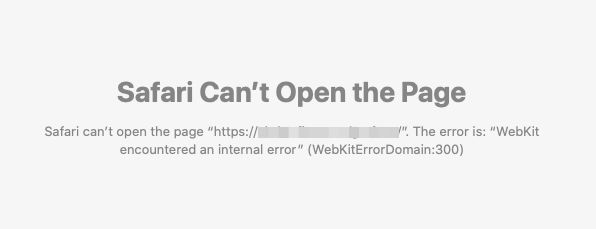

The same problem on 1.14.1
engineerdev
on 21 May 2020
I set the parameters:
alpn_protocols:
- "http/1.1"
- "h2"
And everything worked
engineerdev
on 21 May 2020
We are experiencing the same issues, but also note that it seems to effect certain versions of Windows 10 and Internet Explorer/Edge (pre Chromium versions) as well as Safari.
@engineerdev 's fix to enable ALPN for HTTP/1.1 does indeed work; but requests are now forced to use HTTP/1.1 even when HTTP/2 is available; so this workaround is not a long term solution.
You may want to downgrade to Envoy 1.12 until a full (HTTP/2) solutions is available.
rogchap
on 11 Jun 2020
We are experiencing the same issues, but also note that it seems to effect certain versions of Windows 10 and Internet Explorer/Edge (pre Chromium versions) as well as Safari.
@engineerdev 's fix to enable ALPN for HTTP/1.1 does indeed work; but requests are now forced to use HTTP/1.1 even when HTTP/2 is available; so this workaround is not a long term solution.
You may want to downgrade to Envoy 1.12 until a full (HTTP/2) solutions is available.
Yes, issue in Safari is resolved in 1.14 with @engineerdev 's alpn_protocol options, but IE/edge still has issues with the same setup.
eselkin
on 12 Jun 2020
This issue has been automatically marked as stale because it has not had activity in the last 30 days. It will be closed in the next 7 days unless it is tagged "help wanted" or other activity occurs. Thank you for your contributions.
stale[bot]
on 12 Jul 2020
Hey @eselkin @rogchap - did this issue also surface with you in Envoy 1.13 or was it potentially happening on 1.12 too?
yoitsro
on 12 Jul 2020
Just on 1.13. People reverted to 1.12 and said the issue was resolved. But I could not revert.
eselkin
on 12 Jul 2020
Yea, issue was there for 1.13 too, but not 1.12. One theory was that it was related to the upgrade of nghttp2 as it seems fine on http2 with chrome and firefox.
rogchap
on 13 Jul 2020
We're currently experiencing this issue. Is this fixed with any of the later versions of envoy without having to enable ALPN for HTTP/1.1?
LukeHickling
on 17 Jul 2020
@LukeHickling Sadly not; still hoping that someone on the envoy core team can look into this.
We've had to roll out with using HTTP/1.1 again 😞.
rogchap
on 17 Jul 2020
envoy 1.15.0 the same problem :(
engineerdev
on 17 Jul 2020
I'm going to start digging into this soon. I have no experience with envoy's source, but I'll start documenting progress here.
Given all of three minutes, I've naïvely headed straight to the grpc_web filter code (https://github.com/envoyproxy/envoy/commits/master/source/extensions/filters/http/grpc_web) and I can see there a couple of commits made between the v1.12.2 release and the v1.13.0 release.
There's this commit, which very much seems like a big ol' find and replace, so nothing so specific to us: https://github.com/envoyproxy/envoy/commit/5248a4fb7d4c2a3d1fa151f944d3a63f6b7a06cf#diff-27a67954e6368bb1ca4f2bb23d271a50
And then there's this, which seems likely unrelated: https://github.com/envoyproxy/envoy/commit/2d5a4e94720cc195324f79ca68f0e7a7dc83ee9e#diff-181baa129c5643cbe0aba4b4357d2905
BUT then there's this: https://github.com/envoyproxy/envoy/commit/cbf565fed3ecf04df7be9b90c3f1384396c54012#diff-181baa129c5643cbe0aba4b4357d2905
This seems somewhat related. From our experience, the gRPC request is successfully called on the server application and the application returns the response. This suggests the error is then in the _encoding_ of a gRPC response into a gRPC-web response, which is what this commit deals with. Can anybody else confirm that their application receives the gRPC request successfully?
@mattklein123 and @Chuongv, is there anything in that commit which stands out to you which might cause the behaviour we're seeing?
EDIT: I _know_ this is inherently a bug in Safari, as opposed to a direct bug in envoy, but I guess we can only control what we can control :) thanks in advance for any help from anyone 🙏
yoitsro
on 17 Jul 2020
@yoitsro The only thing that might be the issue is that the trailers for the grpc web response might not be encoded which might put Safari in a bad state? But then that does not explain why it works on the other web browsers 🤷 ?
You could try turning on enable_trailers on the listener to check and see if that would fix the issue?
Chuongv
on 20 Jul 2020
Seems like skipping trailers.clear() for HTTP/2 could help this. @yoitsro could you try my image: dio123/envoy:grpc-web-debug (note that this one is ubuntu-based, not the alpine one)? From my local testing here, it seems to be working (I could reproduce this issue using the latest release).
Basically, the following:
if (encoder_callbacks_->streamInfo().protocol().value() != Http::Protocol::Http2) {
// Clear out the trailers so they don't get added since it is now in the body
trailers.clear();
}
I can confirm that this is working :tears_of_joy:
yoitsro
on 20 Jul 2020
Is there anything I/we can do to help get this released?
yoitsro
on 20 Jul 2020
@yoitsro sorry for the late reply, but I have submitted a PR: https://github.com/envoyproxy/envoy/pull/12178.
dio
on 20 Jul 2020
Related issues
justConfused
·
3Comments
karthequian
·
3Comments
jeremybaumont
·
3Comments
yanniszark
·
3Comments
jmillikin-stripe
·
3Comments
Most helpful comment
Seems like skipping
trailers.clear()for HTTP/2 could help this. @yoitsro could you try my image:dio123/envoy:grpc-web-debug(note that this one is ubuntu-based, not the alpine one)? From my local testing here, it seems to be working (I could reproduce this issue using the latest release).Basically, the following:
