Elasticsearch: Elasticsearch not working on macOS Catalina with file permission error

Created on 18 Jun 2019  ·  24Comments  ·  Source: elastic/elasticsearch

Elasticsearch version (bin/elasticsearch --version):
Version: 6.8.0, Build: oss/tar/65b6179/2019-05-15T20:06:13.172855Z, JVM: 1.8.0_121

Plugins installed: []

JVM version (java -version):

java version "1.8.0_121"
Java(TM) SE Runtime Environment (build 1.8.0_121-b13)
Java HotSpot(TM) 64-Bit Server VM (build 25.121-b13, mixed mode)

OS version (uname -a if on a Unix-like system):
I'm running on macOS Catalina Beta

uname -a -> Darwin Coconut 19.0.0 Darwin Kernel Version 19.0.0: Thu Jun 13 21:52:56 PDT 2019; root:xnu-6110.0.0.121.5~2/RELEASE_X86_64 x86_64

Description of the problem including expected versus actual behavior:

After I updated to macOS Catalina, running elasticsearch gives me a failure, seems to be due to this:

java.security.AccessControlException: access denied ("java.io.FilePermission" "/System/Volumes/Data/usr/local/var/lib/elasticsearch/nodes/0" "write")

I have reinstalled with multiple versions of ES, 5.6 (brew), 6.8 (brew) and also7.1` from the official website, but they all hit the same issue.

For now as a workaround, I'm running ElasticSearch on Docker

Steps to reproduce:

Please include a minimal but complete recreation of the problem, including
(e.g.) index creation, mappings, settings, query etc. The easier you make for
us to reproduce it, the more likely that somebody will take the time to look at it.

  1. Update to macOS Catalina
  2. Run elasticsearch

Provide logs (if relevant):

[2019-06-18T17:16:54,961][WARN ][o.e.c.l.LogConfigurator  ] [unknown] Some logging configurations have %marker but don't have %node_name. We will automatically add %node_name to the pattern to ease the migration for users who customize log4j2.properties but will stop this behavior in 7.0. You should manually replace `%node_name` with `[%node_name]%marker ` in these locations:
  /usr/local/etc/elasticsearch/log4j2.properties
[2019-06-18T17:16:56,619][WARN ][o.e.b.ElasticsearchUncaughtExceptionHandler] [unknown] uncaught exception in thread [main]
org.elasticsearch.bootstrap.StartupException: java.security.AccessControlException: access denied ("java.io.FilePermission" "/System/Volumes/Data/usr/local/var/lib/elasticsearch/nodes/0" "write")
    at org.elasticsearch.bootstrap.Elasticsearch.init(Elasticsearch.java:163) ~[elasticsearch-6.8.0.jar:6.8.0]
    at org.elasticsearch.bootstrap.Elasticsearch.execute(Elasticsearch.java:150) ~[elasticsearch-6.8.0.jar:6.8.0]
    at org.elasticsearch.cli.EnvironmentAwareCommand.execute(EnvironmentAwareCommand.java:86) ~[elasticsearch-6.8.0.jar:6.8.0]
    at org.elasticsearch.cli.Command.mainWithoutErrorHandling(Command.java:124) ~[elasticsearch-cli-6.8.0.jar:6.8.0]
    at org.elasticsearch.cli.Command.main(Command.java:90) ~[elasticsearch-cli-6.8.0.jar:6.8.0]
    at org.elasticsearch.bootstrap.Elasticsearch.main(Elasticsearch.java:116) ~[elasticsearch-6.8.0.jar:6.8.0]
    at org.elasticsearch.bootstrap.Elasticsearch.main(Elasticsearch.java:93) ~[elasticsearch-6.8.0.jar:6.8.0]
Caused by: java.security.AccessControlException: access denied ("java.io.FilePermission" "/System/Volumes/Data/usr/local/var/lib/elasticsearch/nodes/0" "write")
    at java.security.AccessControlContext.checkPermission(AccessControlContext.java:472) ~[?:1.8.0_121]
    at java.security.AccessController.checkPermission(AccessController.java:884) ~[?:1.8.0_121]
    at java.lang.SecurityManager.checkPermission(SecurityManager.java:549) ~[?:1.8.0_121]
    at java.lang.SecurityManager.checkWrite(SecurityManager.java:979) ~[?:1.8.0_121]
    at sun.nio.fs.UnixPath.checkWrite(UnixPath.java:801) ~[?:?]
    at sun.nio.fs.UnixFileSystemProvider.createDirectory(UnixFileSystemProvider.java:376) ~[?:?]
    at java.nio.file.Files.createDirectory(Files.java:674) ~[?:1.8.0_121]
    at java.nio.file.Files.createAndCheckIsDirectory(Files.java:781) ~[?:1.8.0_121]
    at java.nio.file.Files.createDirectories(Files.java:727) ~[?:1.8.0_121]
    at org.apache.lucene.store.NativeFSLockFactory.obtainFSLock(NativeFSLockFactory.java:92) ~[lucene-core-7.7.0.jar:7.7.0 8c831daf4eb41153c25ddb152501ab5bae3ea3d5 - jimczi - 2019-02-04 23:16:28]
    at org.apache.lucene.store.FSLockFactory.obtainLock(FSLockFactory.java:41) ~[lucene-core-7.7.0.jar:7.7.0 8c831daf4eb41153c25ddb152501ab5bae3ea3d5 - jimczi - 2019-02-04 23:16:28]
    at org.apache.lucene.store.BaseDirectory.obtainLock(BaseDirectory.java:45) ~[lucene-core-7.7.0.jar:7.7.0 8c831daf4eb41153c25ddb152501ab5bae3ea3d5 - jimczi - 2019-02-04 23:16:28]
    at org.elasticsearch.env.NodeEnvironment$NodeLock.<init>(NodeEnvironment.java:211) ~[elasticsearch-6.8.0.jar:6.8.0]
    at org.elasticsearch.env.NodeEnvironment.<init>(NodeEnvironment.java:270) ~[elasticsearch-6.8.0.jar:6.8.0]
    at org.elasticsearch.node.Node.<init>(Node.java:296) ~[elasticsearch-6.8.0.jar:6.8.0]
    at org.elasticsearch.node.Node.<init>(Node.java:266) ~[elasticsearch-6.8.0.jar:6.8.0]
    at org.elasticsearch.bootstrap.Bootstrap$5.<init>(Bootstrap.java:212) ~[elasticsearch-6.8.0.jar:6.8.0]
    at org.elasticsearch.bootstrap.Bootstrap.setup(Bootstrap.java:212) ~[elasticsearch-6.8.0.jar:6.8.0]
    at org.elasticsearch.bootstrap.Bootstrap.init(Bootstrap.java:333) ~[elasticsearch-6.8.0.jar:6.8.0]
    at org.elasticsearch.bootstrap.Elasticsearch.init(Elasticsearch.java:159) ~[elasticsearch-6.8.0.jar:6.8.0]
    ... 6 more
:CorInfrCore >bug
Source
picture edisonywh
👍3

Most helpful comment

I’m closing this issue out since macOS Catalina Beta 6 has introduced changes that render the initial problem moot. The problem was earlier versions of macOS Catalina were leaking implementation details about the underlying firm links, and that was interacting poorly with the Java security manager because toRealPath was not following those firm links to the path Catalina was presenting. The fix was going to be in our implementation on macOS to understand this relationship and add extra permissions. Now that Catalina has changed, we no longer need this and our current implementation continues to work.

picture jasontedor on 2 Sep 2019
👍2

All 24 comments

Thanks for your report. This appears to happen because of a new feature in MacOS Catalina (10.15) called "Dedicated system volume" (source) that changes the data directory from /usr/local/var/lib/elasticsearch/nodes to /System/Volumes/Data/usr/local/var/lib/elasticsearch/nodes and Elasticsearch is unaware of this path remapping.

I don't have access to MacOS Catalina but you can try to explicitly specify a data path in elasticsearch.yml to e.g.:

path.data: /Users/edisonywh/elasticsearch/data
danielmitterdorfer picture danielmitterdorfer on 18 Jun 2019

Pinging @elastic/es-core-infra

elasticmachine picture elasticmachine on 18 Jun 2019

Thanks for the quick reply!

I tried what you suggested, and while I could see that the folders are /Users/edisonywh/elasticsearch/data are being created, it still throws the same error when I try elasticsearch

edisonywh picture edisonywh on 18 Jun 2019

I'm having the same error on macOS Catalina beta 2 (19A487l), with the default path.data or a custom one.

bkazez picture bkazez on 19 Jun 2019

so glad I found this issue, I'm having the same problem. When I set the path.data manually I get this error:

➜  ~ elasticsearch -v
[2019-07-06T14:12:36,570][WARN ][o.e.c.l.LogConfigurator  ] [dev-1] Some logging configurations have %marker but don't have %node_name. We will automatically add %node_name to the pattern to ease the migration for users who customize log4j2.properties but will stop this behavior in 7.0. You should manually replace `%node_name` with `[%node_name]%marker ` in these locations:
  /usr/local/etc/elasticsearch/log4j2.properties
[2019-07-06T14:12:37,331][INFO ][o.e.e.NodeEnvironment    ] [dev-1] using [1] data paths, mounts [[/System/Volumes/Data (/dev/disk1s1)]], net usable_space [103.9gb], net total_space [465.6gb], types [apfs]
[2019-07-06T14:12:37,332][INFO ][o.e.e.NodeEnvironment    ] [dev-1] heap size [1.9gb], compressed ordinary object pointers [true]
[2019-07-06T14:12:37,728][INFO ][o.e.n.Node               ] [dev-1] node name [dev-1], node ID [SYTQdM5JTHi7wbT6Y07AbQ]
[2019-07-06T14:12:37,729][INFO ][o.e.n.Node               ] [dev-1] version[6.8.1], pid[38121], build[oss/tar/1fad4e1/2019-06-18T13:16:52.517138Z], OS[Mac OS X/10.15/x86_64], JVM[Oracle Corporation/Java HotSpot(TM) 64-Bit Server VM/1.8.0_144/25.144-b01]
[2019-07-06T14:12:37,729][INFO ][o.e.n.Node               ] [dev-1] JVM arguments [-Xms2g, -Xmx2g, -XX:+UseConcMarkSweepGC, -XX:CMSInitiatingOccupancyFraction=75, -XX:+UseCMSInitiatingOccupancyOnly, -XX:+AlwaysPreTouch, -Xss1m, -Djava.awt.headless=true, -Dfile.encoding=UTF-8, -Djna.nosys=true, -Djdk.io.permissionsUseCanonicalPath=true, -Dio.netty.noUnsafe=true, -Dio.netty.noKeySetOptimization=true, -Dio.netty.recycler.maxCapacityPerThread=0, -Dlog4j.shutdownHookEnabled=false, -Dlog4j2.disable.jmx=true, -Dlog4j.skipJansi=true, -XX:+HeapDumpOnOutOfMemoryError, -Des.path.home=/usr/local/Cellar/elasticsearch/6.8.1/libexec, -Des.path.conf=/usr/local/etc/elasticsearch, -Des.distribution.flavor=oss, -Des.distribution.type=tar]
[2019-07-06T14:12:37,761][WARN ][o.e.b.ElasticsearchUncaughtExceptionHandler] [dev-1] uncaught exception in thread [main]
org.elasticsearch.bootstrap.StartupException: java.lang.IllegalStateException: failed to load plugin percolator due to jar hell
    at org.elasticsearch.bootstrap.Elasticsearch.init(Elasticsearch.java:163) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.bootstrap.Elasticsearch.execute(Elasticsearch.java:150) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.cli.EnvironmentAwareCommand.execute(EnvironmentAwareCommand.java:86) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.cli.Command.mainWithoutErrorHandling(Command.java:124) ~[elasticsearch-cli-6.8.1.jar:6.8.1]
    at org.elasticsearch.cli.Command.main(Command.java:90) ~[elasticsearch-cli-6.8.1.jar:6.8.1]
    at org.elasticsearch.bootstrap.Elasticsearch.main(Elasticsearch.java:116) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.bootstrap.Elasticsearch.main(Elasticsearch.java:93) ~[elasticsearch-6.8.1.jar:6.8.1]
Caused by: java.lang.IllegalStateException: failed to load plugin percolator due to jar hell
    at org.elasticsearch.plugins.PluginsService.checkBundleJarHell(PluginsService.java:524) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.plugins.PluginsService.loadBundles(PluginsService.java:469) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.plugins.PluginsService.<init>(PluginsService.java:163) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.node.Node.<init>(Node.java:339) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.node.Node.<init>(Node.java:266) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.bootstrap.Bootstrap$5.<init>(Bootstrap.java:212) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.bootstrap.Bootstrap.setup(Bootstrap.java:212) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.bootstrap.Bootstrap.init(Bootstrap.java:333) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.bootstrap.Elasticsearch.init(Elasticsearch.java:159) ~[elasticsearch-6.8.1.jar:6.8.1]
    ... 6 more
Caused by: java.security.AccessControlException: access denied ("java.io.FilePermission" "/System/Volumes/Data/usr/local/Cellar/elasticsearch/6.8.1/libexec/modules/percolator/percolator-client-6.8.1.jar" "read")
    at java.security.AccessControlContext.checkPermission(AccessControlContext.java:472) ~[?:1.8.0_144]
    at java.security.AccessController.checkPermission(AccessController.java:884) ~[?:1.8.0_144]
    at java.lang.SecurityManager.checkPermission(SecurityManager.java:549) ~[?:1.8.0_144]
    at java.lang.SecurityManager.checkRead(SecurityManager.java:888) ~[?:1.8.0_144]
    at java.util.zip.ZipFile.<init>(ZipFile.java:216) ~[?:1.8.0_144]
    at java.util.zip.ZipFile.<init>(ZipFile.java:155) ~[?:1.8.0_144]
    at java.util.jar.JarFile.<init>(JarFile.java:166) ~[?:1.8.0_144]
    at java.util.jar.JarFile.<init>(JarFile.java:103) ~[?:1.8.0_144]
    at org.elasticsearch.bootstrap.JarHell.checkJarHell(JarHell.java:178) ~[elasticsearch-core-6.8.1.jar:6.8.1]
    at org.elasticsearch.plugins.PluginsService.checkBundleJarHell(PluginsService.java:510) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.plugins.PluginsService.loadBundles(PluginsService.java:469) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.plugins.PluginsService.<init>(PluginsService.java:163) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.node.Node.<init>(Node.java:339) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.node.Node.<init>(Node.java:266) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.bootstrap.Bootstrap$5.<init>(Bootstrap.java:212) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.bootstrap.Bootstrap.setup(Bootstrap.java:212) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.bootstrap.Bootstrap.init(Bootstrap.java:333) ~[elasticsearch-6.8.1.jar:6.8.1]
    at org.elasticsearch.bootstrap.Elasticsearch.init(Elasticsearch.java:159) ~[elasticsearch-6.8.1.jar:6.8.1]
    ... 6 more
jondruse picture jondruse on 6 Jul 2019

I'm seeing the same issue, running elasticsearch on docker as a temporary workaround. I'm on macOS 10.15 Beta (19A471t)

1vanhelsing1 picture 1vanhelsing1 on 10 Jul 2019

@jasontedor any word on this issue?

1vanhelsing1 picture 1vanhelsing1 on 1 Aug 2019

i solved the java-permission-error by explicitly setting in the elasticsearch.yml:

path.data: /System/Volumes/Data/Users/<my_user>/<path_to_elastic>/data

but then ended up with the next permission issue:

Caused by: java.security.AccessControlException: access denied ("java.io.FilePermission" "/System/Volumes/Data/Users/<my_user>/<path_to_elastic>/modules/percolator/percolator-6.2.2.jar" "read")
    at java.security.AccessControlContext.checkPermission(AccessControlContext.java:472) ~[?:1.8.0_181]
    at java.security.AccessController.checkPermission(AccessController.java:884) ~[?:1.8.0_181]
    at java.lang.SecurityManager.checkPermission(SecurityManager.java:549) ~[?:1.8.0_181]
    at java.lang.SecurityManager.checkRead(SecurityManager.java:888) ~[?:1.8.0_181]
    at java.util.zip.ZipFile.<init>(ZipFile.java:216) ~[?:1.8.0_181]
    at java.util.zip.ZipFile.<init>(ZipFile.java:155) ~[?:1.8.0_181]
    at java.util.jar.JarFile.<init>(JarFile.java:166) ~[?:1.8.0_181]
    at java.util.jar.JarFile.<init>(JarFile.java:103) ~[?:1.8.0_181]
    at org.elasticsearch.bootstrap.JarHell.checkJarHell(JarHell.java:180) ~[elasticsearch-core-6.2.2.jar:6.2.2]
    at org.elasticsearch.plugins.PluginsService.checkBundleJarHell(PluginsService.java:460) ~[elasticsearch-6.2.2.jar:6.2.2]
    at org.elasticsearch.plugins.PluginsService.loadBundles(PluginsService.java:420) ~[elasticsearch-6.2.2.jar:6.2.2]
    at org.elasticsearch.plugins.PluginsService.<init>(PluginsService.java:146) ~[elasticsearch-6.2.2.jar:6.2.2]
    at org.elasticsearch.node.Node.<init>(Node.java:303) ~[elasticsearch-6.2.2.jar:6.2.2]
    at org.elasticsearch.node.Node.<init>(Node.java:246) ~[elasticsearch-6.2.2.jar:6.2.2]
    at org.elasticsearch.bootstrap.Bootstrap$5.<init>(Bootstrap.java:213) ~[elasticsearch-6.2.2.jar:6.2.2]
    at org.elasticsearch.bootstrap.Bootstrap.setup(Bootstrap.java:213) ~[elasticsearch-6.2.2.jar:6.2.2]
    at org.elasticsearch.bootstrap.Bootstrap.init(Bootstrap.java:323) ~[elasticsearch-6.2.2.jar:6.2.2]
    at org.elasticsearch.bootstrap.Elasticsearch.init(Elasticsearch.java:121) ~[elasticsearch-6.2.2.jar:6.2.2]
    ... 6 more
arauchberger picture arauchberger on 5 Aug 2019

Any update on this?

richessler picture richessler on 7 Aug 2019

At this time, I am fairly certain I know what the issue is (related to the notion of firm links and how the JVM follows them), but I am not prioritizing a fix at the moment since Catalina is still in beta.

jasontedor picture jasontedor on 7 Aug 2019

i agree it's still beta (nr. 5 now) but i don't think that apple is going to change the so called "Dedicated system volume" approach.
What makes me wonder is that i can start wildfly without any of this class loading issues. and both are installed under the same user-directory/volume.
so if you do have a clue, it would be really cool if you could share it with us.

thanks

arauchberger picture arauchberger on 8 Aug 2019

I don't see any issue with this, based on my understanding all java source files have clear headers, and any files that do not have headers do not contain significant IP that belongs under the Elastic License.

My “beta” comment is about prioritizing a fix, not that we should wait and see if Apple backs away from this (they almost surely won’t, it’s almost too late for that, we all know roughly what their schedule is and when they need to have the golden master builds ready for that).

What makes me wonder is that i can start wildfly without any of this class loading issues. and both are installed under the same user-directory/volume.

Our issues here are because of the security manager.

so if you do have a clue, it would be really cool if you could share it with us.

It’s likely going to require code changes. I intend to work on macOS Mojave readiness in the next week to two.

jasontedor picture jasontedor on 13 Aug 2019

FYI, I got it to work by:

  • changing the paths in elasticsearch.yml
    path.data: /System/Volumes/Data/Users/ path.logs: /System/Volumes/Data/Users/

AND changing the elasticsearch shellscript to:

!/bin/bash

SVD=/System/Volumes/Data
JAVA_HOME="$(/usr/libexec/java_home --version 1.8)" exec "${SVD}/usr/local/Cellar/elasticsearch/6.8.2/libexec/bin/elasticsearch" "$@"

(First I also changed JAVA_HOME, but it doesn't seem to matter, while the real executable path does matter).

raff picture raff on 20 Aug 2019

Good news, it seems Catalina beta 6 has fixed this issue at system level.

waylybaye picture waylybaye on 20 Aug 2019
👍1

I just finished upgrading to beta 6, and can confirm that the original configuration now works!

raff picture raff on 20 Aug 2019

Im on beta 7 (19A546d) and getting this issue which i think might be related?

Screen Shot 2019-09-01 at 10 24 13 PM

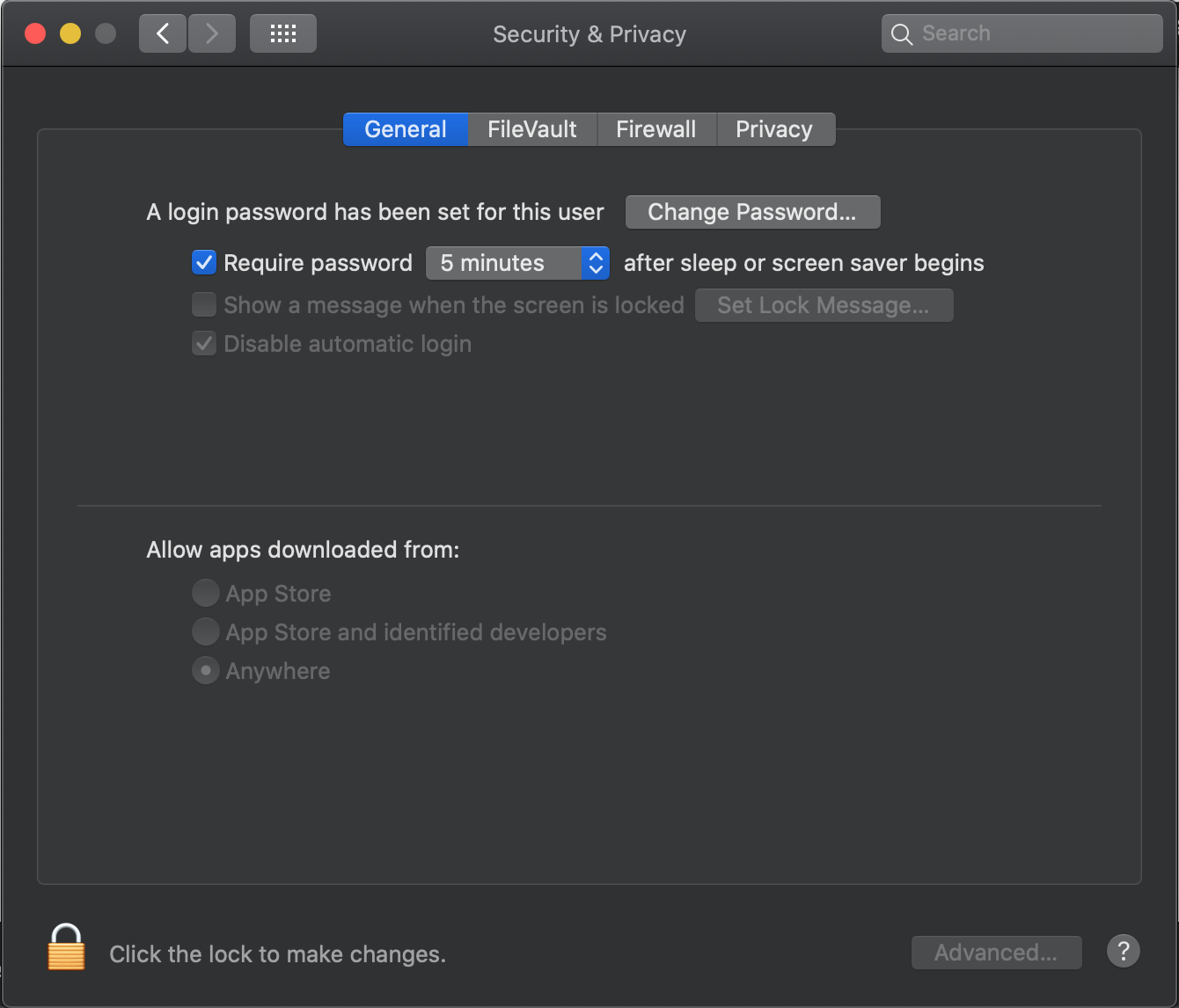

Screen Shot 2019-09-01 at 10 24 19 PM

ChadTaljaardt picture ChadTaljaardt on 2 Sep 2019

@ChadTaljaardt That’s an unrelated issue that is due to the notarization requirements in macOS Catalina. We are actively working on a solution there.

jasontedor picture jasontedor on 2 Sep 2019
🎉1

I’m closing this issue out since macOS Catalina Beta 6 has introduced changes that render the initial problem moot. The problem was earlier versions of macOS Catalina were leaking implementation details about the underlying firm links, and that was interacting poorly with the Java security manager because toRealPath was not following those firm links to the path Catalina was presenting. The fix was going to be in our implementation on macOS to understand this relationship and add extra permissions. Now that Catalina has changed, we no longer need this and our current implementation continues to work.

jasontedor picture jasontedor on 2 Sep 2019
👍2

@jasontedor Is there a related issue tracking this problem that i can view?

ChadTaljaardt picture ChadTaljaardt on 9 Sep 2019

@ChadTaljaardt That's a great point. We have an internal issue for tracking this across our stack as we iterate on progress on this, let me open an issue for public consumption though, so that you can at least get notified when we think we have solved the problems for Elasticsearch.

jasontedor picture jasontedor on 9 Sep 2019
👍1

@ChadTaljaardt I opened #46498.

jasontedor picture jasontedor on 9 Sep 2019
👍1

Thanks @jasontedor

ChadTaljaardt picture ChadTaljaardt on 9 Sep 2019

Im on beta 7 (19A546d) and getting this issue which i think might be related?

Screen Shot 2019-09-01 at 10 24 13 PM

Screen Shot 2019-09-01 at 10 24 19 PM

Is there an update on this issue?

rbs76 picture rbs76 on 29 Nov 2019

@rbs76 See #46498.

jasontedor picture jasontedor on 29 Nov 2019
Was this page helpful?
0 / 5 - 0 ratings

Related issues

eryabitskiy picture eryabitskiy  ·  94Comments
bubo77 picture bubo77  ·  43Comments
fakeh picture fakeh  ·  53Comments
kul picture kul  ·  72Comments
mayya-sharipova picture mayya-sharipova  ·  45Comments
