Dietpi: pi zero missing network link

[tcurdt]

Creating a bug report/issue

Required Information

• DietPi version | 6, 30, 0, master, MichaIng
• Distro version | 10.4
• Kernel version | 4.19.118+
• SBC model | RPi Zero W (armv6l)
• Power supply used | 5V 2A
• SDcard used | SanDisk ultra

Additional Information (if applicable)

Steps to reproduce

1. Flash Diepi
2. Change `diepi-wifi.txt' to have two wifi entries

aWIFI_SSID[0]='x'
aWIFI_KEY[0]='x'
aWIFI_KEYMGR[0]='WPA-PSK'
aWIFI_PROTO[0]=''
aWIFI_PAIRWISE[0]=''
aWIFI_AUTH_ALG[0]=''
aWIFI_EAP[0]=''
aWIFI_IDENTITY[0]=''
aWIFI_PASSWORD[0]=''
aWIFI_PHASE1[0]=''
aWIFI_PHASE2[0]=''
aWIFI_CERT[0]=''

aWIFI_SSID[1]='x'
aWIFI_KEY[1]='x'
aWIFI_KEYMGR[1]='WPA-PSK'
aWIFI_PROTO[1]=''
aWIFI_PAIRWISE[1]=''
aWIFI_AUTH_ALG[1]=''
aWIFI_EAP[1]=''
aWIFI_IDENTITY[1]=''
aWIFI_PASSWORD[1]=''
aWIFI_PHASE1[1]=''
aWIFI_PHASE2[1]=''
aWIFI_CERT[1]=''

1. Change diepi.txt

AUTO_SETUP_LOCALE=C.UTF-8
AUTO_SETUP_KEYBOARD_LAYOUT=us
AUTO_SETUP_TIMEZONE=Europe/Berlin
AUTO_SETUP_NET_ETHERNET_ENABLED=0
AUTO_SETUP_NET_WIFI_ENABLED=1
AUTO_SETUP_NET_ETH_FORCE_SPEED=0
AUTO_SETUP_NET_WIFI_COUNTRY_CODE=DE
AUTO_SETUP_NET_USESTATIC=0
AUTO_SETUP_NET_STATIC_IP=192.168.0.100
AUTO_SETUP_NET_STATIC_MASK=255.255.255.0
AUTO_SETUP_NET_STATIC_GATEWAY=192.168.0.1
AUTO_SETUP_NET_STATIC_DNS=9.9.9.9
AUTO_SETUP_NET_HOSTNAME=PiZero
AUTO_SETUP_SWAPFILE_SIZE=1569
AUTO_SETUP_SWAPFILE_LOCATION=/var/swap
AUTO_SETUP_HEADLESS=0
AUTO_UNMASK_LOGIND=0
AUTO_SETUP_CUSTOM_SCRIPT_EXEC=0
AUTO_SETUP_SSH_SERVER_INDEX=-1
AUTO_SETUP_FILE_SERVER_INDEX=0
AUTO_SETUP_LOGGING_INDEX=-1
AUTO_SETUP_RAMLOG_MAXSIZE=50
AUTO_SETUP_WEB_SERVER_INDEX=-2
AUTO_SETUP_AUTOSTART_TARGET_INDEX=0
AUTO_SETUP_AUTOSTART_LOGIN_USER=root
AUTO_SETUP_AUTOMATED=1
AUTO_SETUP_GLOBAL_PASSWORD=dietpi
SURVEY_OPTED_IN=0
CONFIG_CPU_GOVERNOR=ondemand
CONFIG_CPU_ONDEMAND_SAMPLE_RATE=25000
CONFIG_CPU_ONDEMAND_SAMPLE_DOWNFACTOR=40
CONFIG_CPU_USAGE_THROTTLE_UP=50
CONFIG_CPU_MAX_FREQ=Disabled
CONFIG_CPU_MIN_FREQ=Disabled
CONFIG_CPU_DISABLE_TURBO=0
CONFIG_PROXY_ADDRESS=MyProxyServer.com
CONFIG_PROXY_PORT=8080
CONFIG_PROXY_USERNAME=
CONFIG_PROXY_PASSWORD=
CONFIG_BOOT_WAIT_FOR_NETWORK=2
CONFIG_G_CHECK_URL_TIMEOUT=10
CONFIG_G_CHECK_URL_ATTEMPTS=2
CONFIG_CHECK_CONNECTION_IP=9.9.9.9
CONFIG_CHECK_DNS_DOMAIN=dns9.quad9.net
CONFIG_CHECK_DIETPI_UPDATES=1
CONFIG_NTP_MODE=2
CONFIG_SERIAL_CONSOLE_ENABLE=1
CONFIG_SOUNDCARD=none
CONFIG_LCDPANEL=none
CONFIG_ENABLE_IPV6=1
CONFIG_PREFER_IPV4=1
CONFIG_APT_RASPBIAN_MIRROR=http://raspbian.raspberrypi.org/raspbian/
CONFIG_APT_DEBIAN_MIRROR=https://deb.debian.org/debian/
CONFIG_NTP_MIRROR=debian.pool.ntp.org
SOFTWARE_EMONHUB_APIKEY=
SOFTWARE_VNCSERVER_WIDTH=1280
SOFTWARE_VNCSERVER_HEIGHT=720
SOFTWARE_VNCSERVER_DEPTH=16
SOFTWARE_VNCSERVER_DISPLAY_INDEX=1
SOFTWARE_VNCSERVER_SHARE_DESKTOP=0
SOFTWARE_OWNCLOUD_NEXTCLOUD_USERNAME=admin
SOFTWARE_OWNCLOUD_DATADIR=/mnt/dietpi_userdata/owncloud_data
SOFTWARE_NEXTCLOUD_DATADIR=/mnt/dietpi_userdata/nextcloud_data
SOFTWARE_WIFI_HOTSPOT_SSID=DietPi-HotSpot
SOFTWARE_WIFI_HOTSPOT_KEY=dietpihotspot
SOFTWARE_WIFI_HOTSPOT_CHANNEL=3
SOFTWARE_XORG_DPI=96
SOFTWARE_CHROMIUM_RES_X=1280
SOFTWARE_CHROMIUM_RES_Y=720
SOFTWARE_CHROMIUM_AUTOSTART_URL=https://dietpi.com
SOFTWARE_HOMEASSISTANT_APT_DEPS=
SOFTWARE_HOMEASSISTANT_PIP_DEPS=
DEV_GITBRANCH=master
DEV_GITOWNER=MichaIng

1. Boot

Expected behaviour

It should boot, do all the first run things and at least join the wifi to be accessible via ssh

Actual behaviour

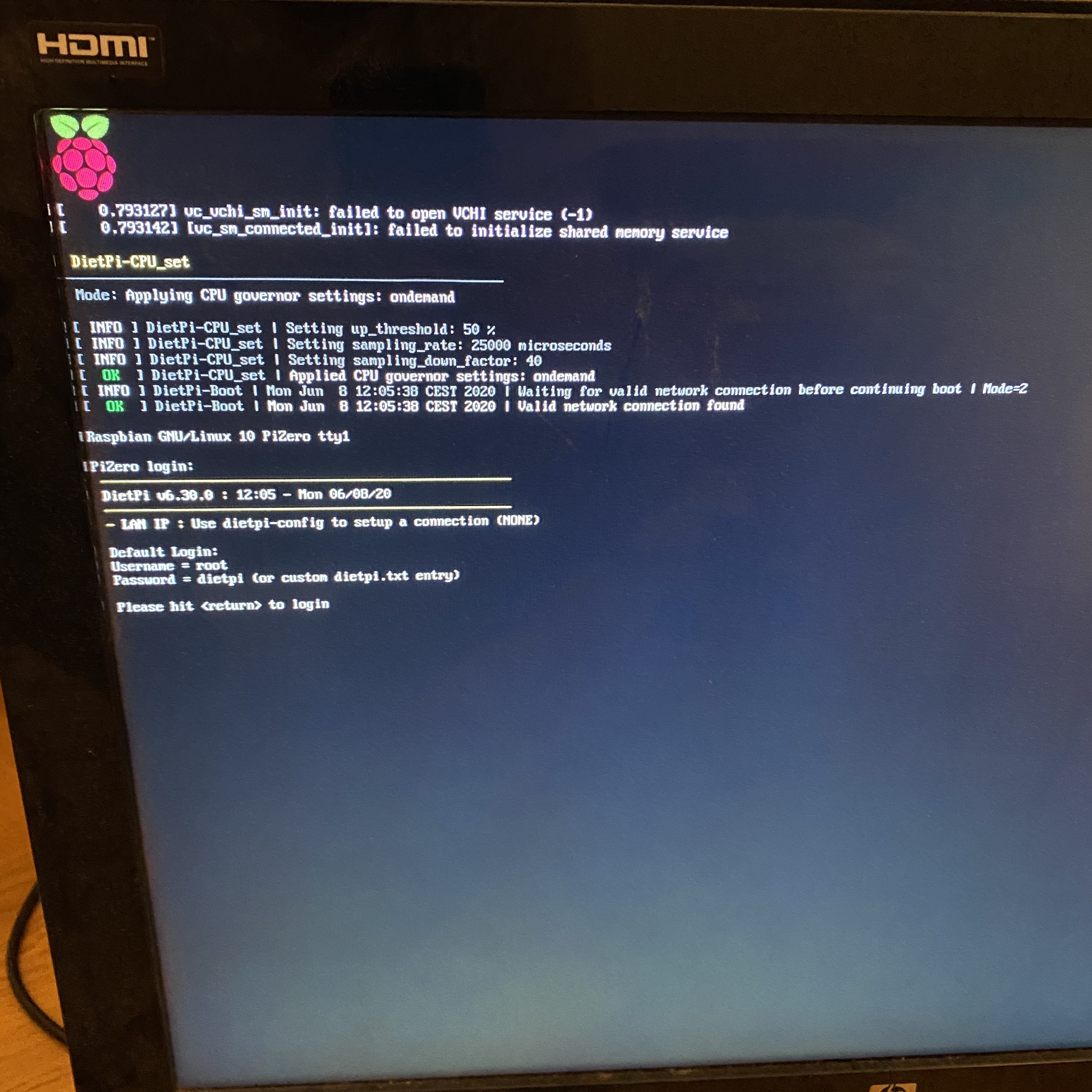

It starts up and gets stuck like this:

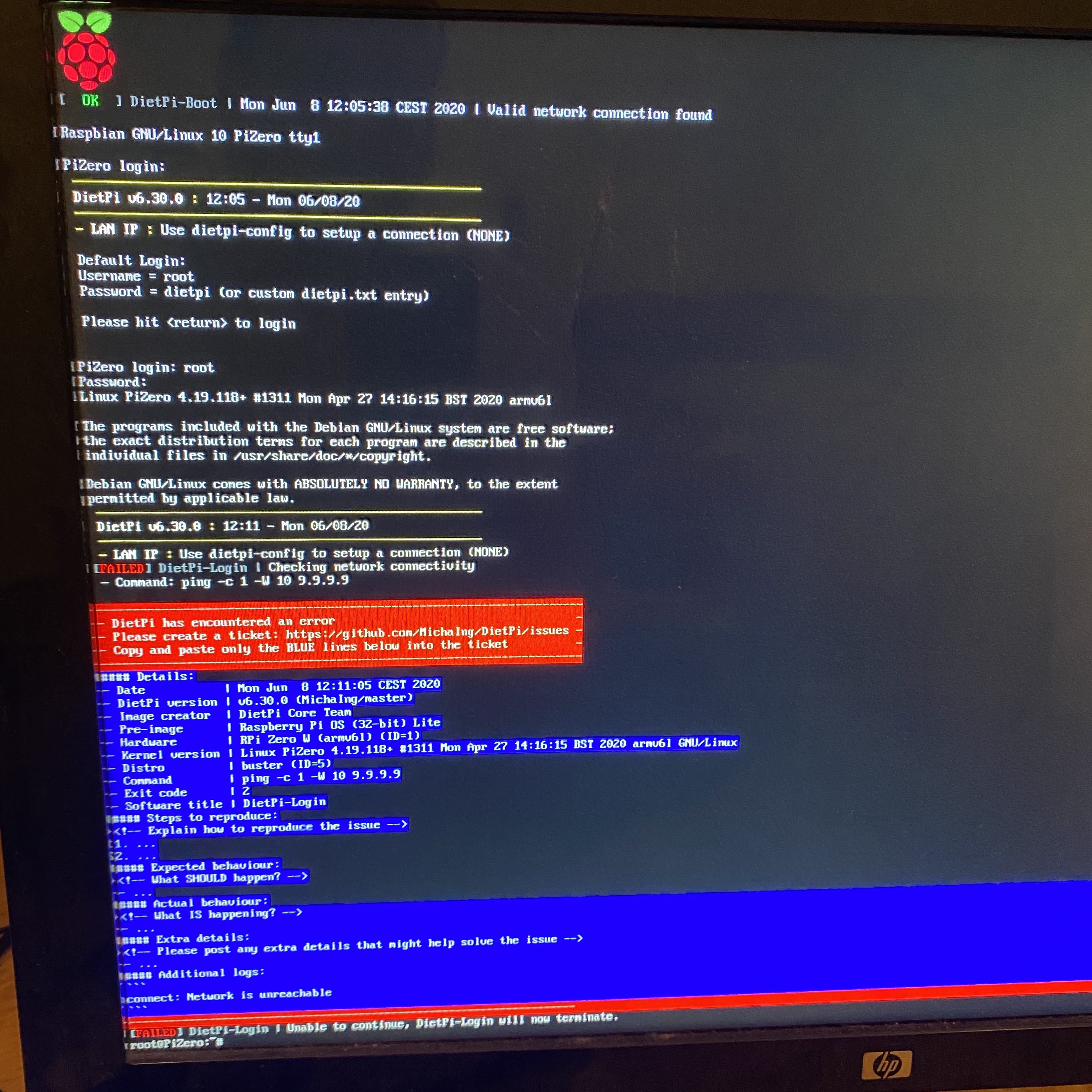

When I then log in I get this:

There is no network link but lo.

[MichaIng]

Many thanks for your report. I ran some tests and indeed the network check can succeed even if not route exists. Fixed this for next release: https://github.com/MichaIng/DietPi/commit/729dd7bb750876c5334f3e1f5990f63fc462a936

However, this does not explain why you have no network device at all.

What I am indeed missing is the output of the dietpi-firstboot.service, which should run between DietPi-Set_CPU and DietPi-Boot can you please check if this:

cat /var/tmp/dietpi/logs/dietpi-firstboot.log
systemctl status dietpi-firstboot

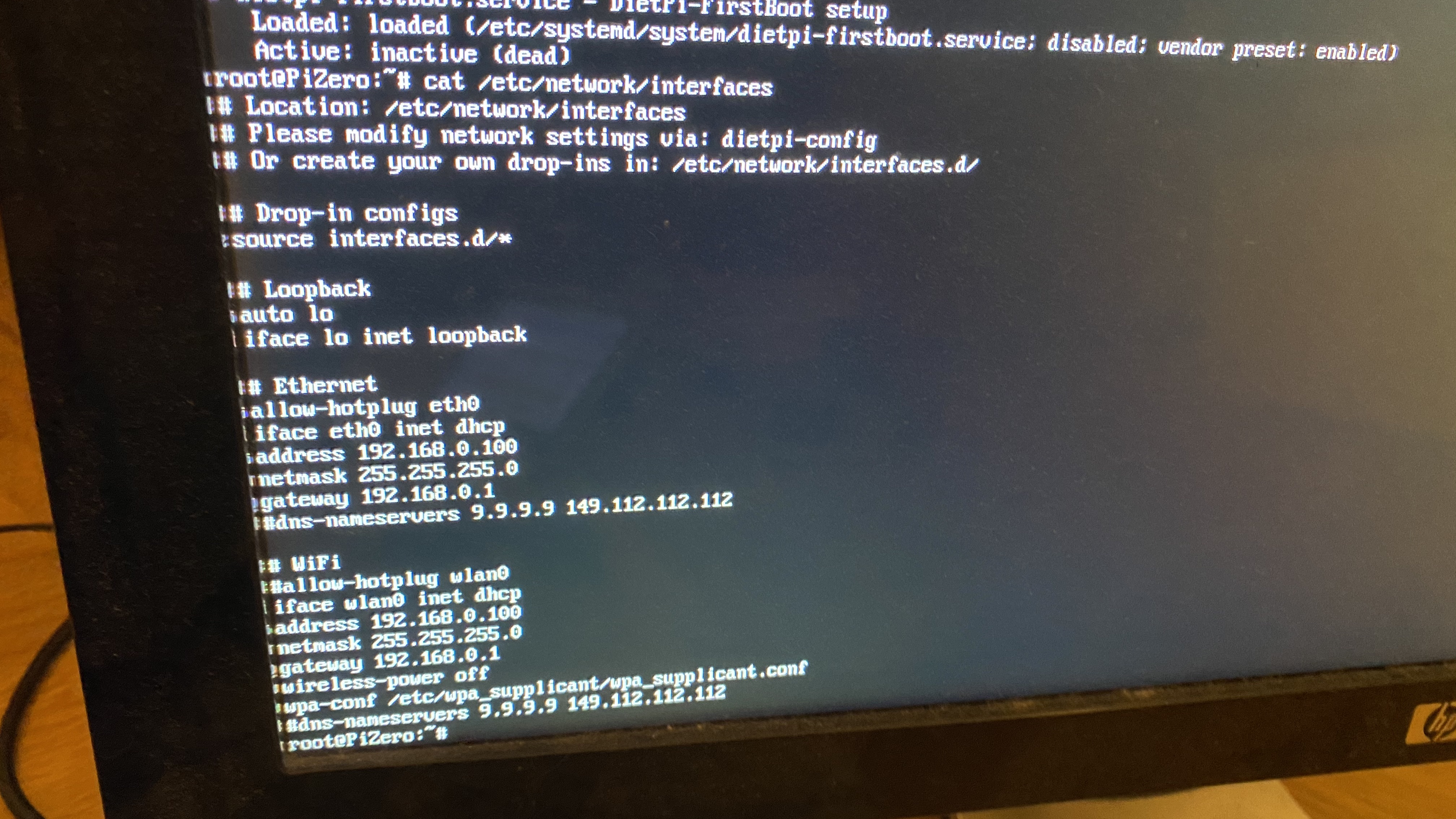

cat /etc/network/interfaces

[tcurdt]

Many thanks for the quick feedback!

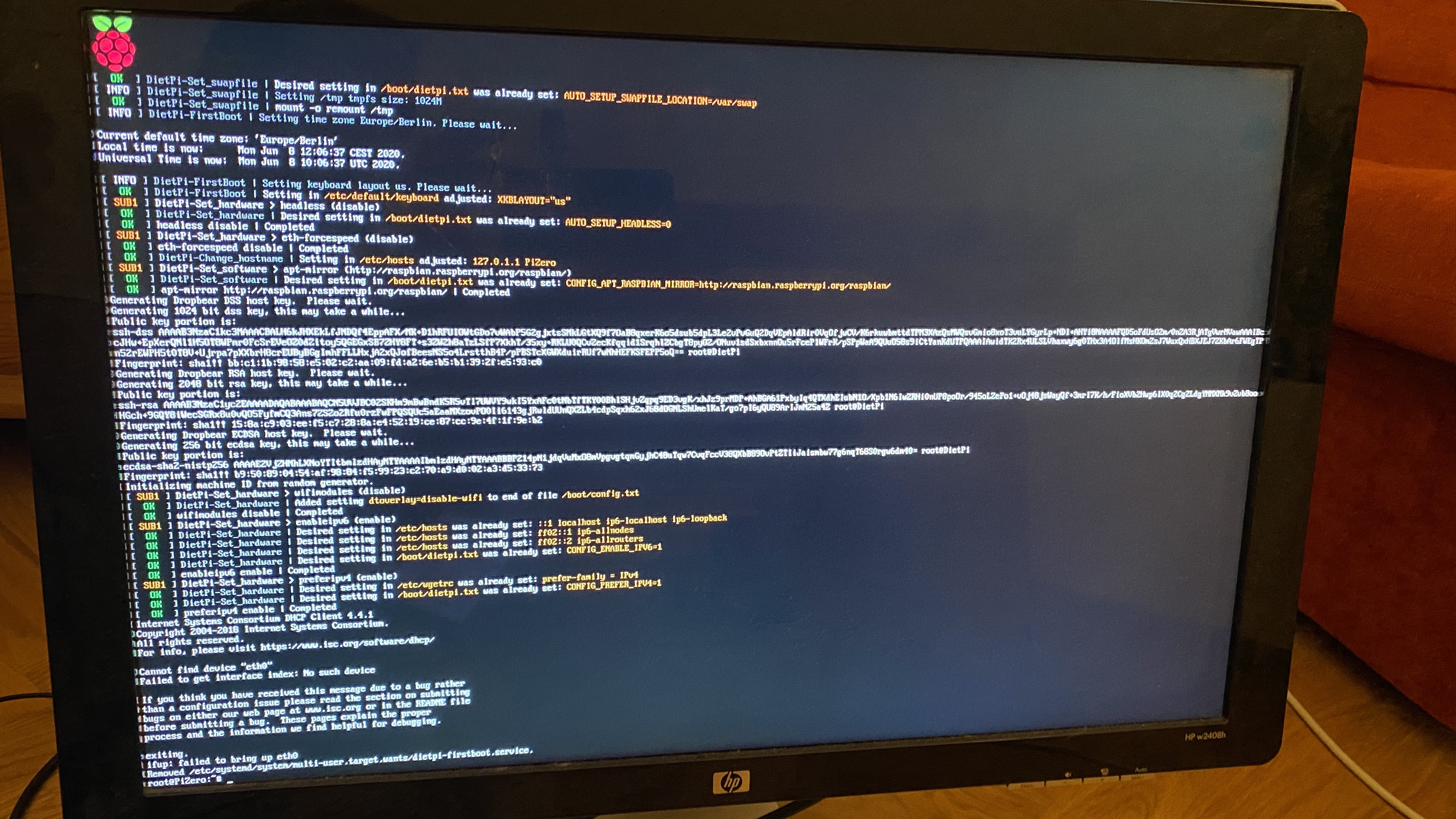

The log shows that wireless is disabled wifimodules (disabled) - but I don't get why

[Joulinar]

according your screen shot, it's adding dtoverlay=disable-wifi to /boot/config.txt. Removing this will enable WiFi. Somehow strange. As I can see you have set following, which should enable WiFi 🤔

AUTO_SETUP_NET_ETHERNET_ENABLED=0
AUTO_SETUP_NET_WIFI_ENABLED=1

[MichaIng]

Yeah strange, this is the check we do:

grep -cm1 '^[[:blank:]]*AUTO_SETUP_NET_WIFI_ENABLED=1' /boot/dietpi.txt

This should report 1 and WiFi should hence stay enabled and be configured.

However not a too big problem, for a single case at least, please do the following:

/boot/dietpi/func/dietpi-set_hardware wifimodules enable
sed -i "/allow-hotplug wlan/c\allow-hotplug wlan0" /etc/network/interfaces
sed -i "/allow-hotplug eth/c\#allow-hotplug eth0" /etc/network/interfaces
/boot/dietpi/func/dietpi-wifidb 1
/boot/dietpi/func/dietpi-set_hardware wificountrycode DE
reboot

On next login, setup should complete.

[tcurdt]

according your screen shot, it's adding dtoverlay=disable-wifi to /boot/config.txt. Removing this will enable WiFi. Somehow strange. As I can see you have set following, which should enable WiFi 🤔

AUTO_SETUP_NET_ETHERNET_ENABLED=0
AUTO_SETUP_NET_WIFI_ENABLED=1

Hence my confusion.

grep -cm1 '^[[:blank:]]*AUTO_SETUP_NET_WIFI_ENABLED=1' /boot/dietpi.txt

This should report 1 and WiFi should hence stay enabled and be configured.

I just tried that. It does report 1.

However not a too big problem, for a single case at least, please do the following:

Thanks for the workaround - but I am here to help fixing it :)
The goal is to have a config I can keep using.

[MichaIng]

I'll try to replicate tomorrow after I updated our image. The check didn't change but just to rule out any other fixed issues and concentrate testing on current code 😉.

[tcurdt]

Where is script located that does the check?

[MichaIng]

/var/lib/dietpi/services/dietpi-firstboot.bash

Here the relevant part of the code: https://github.com/MichaIng/DietPi/blob/dev/rootfs/var/lib/dietpi/services/dietpi-firstboot.bash#L216-L250

[tcurdt]

I added some debugging but it seems a reboot did not re-run the first-run script.
When I ran it manually I was able to see it doing the right thing - but it cannot find the nl80211 module.

A manual modprobe nl80211 did not work either.
Neither did find /lib/modules -name nl8* give any results.

[MichaIng]

Probably it is builtin instead a module. Yes firstboot script should not be re-triggered, but the commands above should have been all that is required. After login, firstrun update and installs run instead.

[tcurdt]

@MichaIng did you arrive at any further suggestions yet?

[MichaIng]

I should be able to create the new image tomorrow to start the replication attempt with.

[tcurdt]

@MichaIng I don't want to come across pushy - just checking in. Anything else I can help with in this matter?

[MichaIng]

New image uploaded, after 1-2 positive feedback I'll move it to stable downloads: https://dietpi.com/downloads/images/testing/DietPi_RPi-ARMv6-Buster.7z

[tcurdt]

Flashed, copied over the two files, booted up - and all works.
Still wondering what was wrong with the other setup, but all seems fine now. Thanks!!

[MichaIng]

Great, many thanks for the quick test. Indeed I applied a change to the way how default route is detected on boot, that probably had an effect. I wonder how the less reliable method could survive for 5 or 6 DietPi versions 😄.

[Joulinar]

probably it has something to do with latency. In normal case all goes well, but in critical environments it failed?? 🤔

[MichaIng]

Yeah not sure, or something changed the way the DHCP lease is applied, although cannot see any recent related package update.
