DietPi-Drive_Manager | Allow custom bind and tmpfs mounts

Created on 15 Aug 2018  ·  32Comments  ·  Source: MichaIng/DietPi

Creating a feature request:

Reference

Is your feature request related to a problem? Please describe:

  • When users create custom bind or tmpfs mounts, next DietPi-Drive_Manager call removes them from fstab.

Describe the solution you'd like:

  • Allow custom entries, e.g. scrape them and readd or allow adding custom entries via dietpi.txt or other settings file.
Bug Feature Request
Source
picture MichaIng
👍1

Most helpful comment

Maybe that will help https://unix.stackexchange.com/questions/195293/bind-mounting-and-df-output
Seems to be the same issue.

picture paradix on 23 Aug 2018
❤1 👍1

All 32 comments

bind scrape and re-dump into fstab is a little risky, could pull in unintentional mounts with bind in the name. Although, cant see another way currently
https://serverfault.com/questions/613179/how-do-i-do-mount-bind-in-etc-fstab

tmpfs scrape and dump should be fine ~if we exclude /DietPi /tmp /var/log, else PREP will not generate the entry.~

Fourdee picture Fourdee on 15 Aug 2018

@Fourdee
Eg: /mount/source /mount/target none defaults,bind 0 0

awk '{print $4}' | grep -q '[[:blank:],]bind[[:blank:],]' should work reliably?

MichaIng picture MichaIng on 15 Aug 2018
❤1 👍1

@MichaIng

Legend, works a charm 👍

root@DietPi:~# grep '[[:blank:],]bind[[:blank:],]' /etc/fstab
/mount/source /mount/target none defaults,bind 0 0
/mount/source /mount/target none defaults,bind,test 0 0
/mount/source /mount/target none bind 0 0
Fourdee picture Fourdee on 15 Aug 2018

I believe for our current user base, we should not allow tmpfs/bind entries to be listed in main menu, or, allow for additions/removal.

Leave this down to manual /etc/fstab via advanced users.

Fourdee picture Fourdee on 15 Aug 2018

Passed testing, marking as completed.

Nice one @MichaIng with https://github.com/Fourdee/DietPi/issues/2013#issuecomment-413212699 👍

Fourdee picture Fourdee on 15 Aug 2018

Guys thnx for the effort on that but unfortunately it is still not working properly.
When I run DietPi-Drive_Manager it than changes the mount points for my HDD when there is a bind mount in the fstab.

Here is my /etc/fstab

#-----------------------------------------------------------
#TMPFS, MISC
#-----------------------------------------------------------
proc /proc proc defaults 0 0
tmpfs /tmp tmpfs defaults,size=1023M,noatime,nodev,nosuid,mode=1777 0 0
tmpfs   /DietPi         tmpfs   defaults,size=10m,noatime,nodev,nosuid,mode=1777                                        0 0
/mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75/downloads/site /jail/glftpd/site none defaults,nofail,bind 0 0

#-----------------------------------------------------------
#SWAPFILE
#-----------------------------------------------------------
/var/swap    none    swap    sw    0   0

#-----------------------------------------------------------
#PHYSICAL DRIVES
#-----------------------------------------------------------
UUID=e139ce78-9841-40fe-8823-96a304a09859 / auto defaults,noatime,rw 0 1
UUID=0966-01D4 /boot auto defaults,noatime,rw,nofail,x-systemd.automount 0 0
UUID=6940d1c0-8dcd-4386-b726-0cda8cb87b75 /mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75/ auto defaults,noatime,rw,nofail,x-systemd.automount 0 0

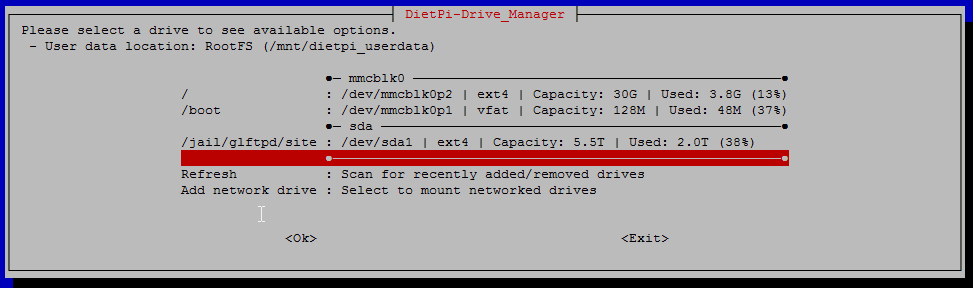

When I run dietpi-drive_manager with the upper /etc/fstab it shows the following
obraz

After exiting dietpi-drive_manager the TMPFS, MISC section is untouched, but PHYSICAL DRIVES change to

UUID=e139ce78-9841-40fe-8823-96a304a09859 / auto defaults,noatime,rw 0 1
UUID=0966-01D4 /boot auto defaults,noatime,rw,nofail,x-systemd.automount 0 0
UUID=6940d1c0-8dcd-4386-b726-0cda8cb87b75 /jail/glftpd/site auto defaults,noatime,rw,nofail,x-systemd.automount 0 0
paradix picture paradix on 22 Aug 2018

@paradix

Thanks for the report 👍

I believe I know what the cause is, leave it with me, will hopefully reply with a fixed script soon.

Fourdee picture Fourdee on 22 Aug 2018

Strange, unable to replicate the issue.

Ok, we'll need to debug your system please use the following /etc/fstab (which removes the additional / from /mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75/:

#-----------------------------------------------------------
#TMPFS, MISC
#-----------------------------------------------------------
proc /proc proc defaults 0 0
tmpfs /tmp tmpfs defaults,size=1023M,noatime,nodev,nosuid,mode=1777 0 0
tmpfs   /DietPi         tmpfs   defaults,size=10m,noatime,nodev,nosuid,mode=1777                                        0 0
/mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75/downloads/site /jail/glftpd/site none defaults,nofail,bind 0 0

#-----------------------------------------------------------
#SWAPFILE
#-----------------------------------------------------------
/var/swap    none    swap    sw    0   0

#-----------------------------------------------------------
#PHYSICAL DRIVES
#-----------------------------------------------------------
UUID=e139ce78-9841-40fe-8823-96a304a09859 / auto defaults,noatime,rw 0 1
UUID=0966-01D4 /boot auto defaults,noatime,rw,nofail,x-systemd.automount 0 0
UUID=6940d1c0-8dcd-4386-b726-0cda8cb87b75 /mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75 auto defaults,noatime,rw,nofail,x-systemd.automount 0 0

Once completed, please run

systemctl daemon-reload
mount -a
DEBUG=1 dietpi-drive_manager

And paste results please.

Then

  • run dietpi-drive_manager again normally
  • exit
  • verify fstab entries

Notes to self, my testing fstab:

#-----------------------------------------------------------
#TMPFS, MISC
#-----------------------------------------------------------
proc /proc proc defaults 0 0
tmpfs /tmp tmpfs defaults,size=1023M,noatime,nodev,nosuid,mode=1777 0 0
tmpfs   /DietPi         tmpfs   defaults,size=10m,noatime,nodev,nosuid,mode=1777                                        0 0
/mnt/C0F3-5D6B/test /jail/glftpd/site none defaults,nofail,bind 0 0

#-----------------------------------------------------------
#SWAPFILE
#-----------------------------------------------------------
/var/swap    none    swap    sw    0   0

#-----------------------------------------------------------
#PHYSICAL DRIVES
#-----------------------------------------------------------
UUID=e139ce78-9841-40fe-8823-96a304a09859 / auto defaults,noatime,rw 0 1
UUID=0966-01D4 /boot auto defaults,noatime,rw,nofail,x-systemd.automount 0 0
UUID=C0F3-5D6B /mnt/C0F3-5D6B auto defaults,noatime,rw,nofail,x-systemd.automount 0 0
Fourdee picture Fourdee on 22 Aug 2018

Here is the debug log from running dietpi-drive_manager after removing the trailing / and demon-reload

[  OK  ] DietPi-Drive_Manager | Root access verified.
[ SUB1 ] DietPi-Services > stop
[  OK  ] DietPi-Services | stop : cron
[  OK  ] DietPi-Services | stop : gogs
[  OK  ] DietPi-Services | stop : nginx
[ INFO ] DietPi-Drive_Manager | Detecting drives, please wait...
[  OK  ] DietPi-Drive_Manager | Detecting currently mounted drives, please wait...
[ INFO ] DietPi-Drive_Manager |  - Detected: /dev/mmcblk0p2 > /
[ INFO ] DietPi-Drive_Manager |  - Detected: /dev/mmcblk0p1 > /boot
[ INFO ] DietPi-Drive_Manager |  - Detected: /dev/sda1 > /jail/glftpd/site
[  OK  ] DietPi-Drive_Manager | Detecting unmounted drives, please wait...
[  OK  ] DietPi-Drive_Manager | DEBUG INFO:
[  OK  ] DietPi-Drive_Manager | Index=0
aDRIVE_UUID e139ce78-9841-40fe-8823-96a304a09859
aDRIVE_PART_UUID d3630000-02
aDRIVE_MOUNT_SOURCE /dev/mmcblk0p2
aDRIVE_MOUNT_TARGET /
aDRIVE_SOURCE_DEVICE mmcblk0
aDRIVE_FSTYPE ext4
aDRIVE_APM
aDRIVE_SIZE_TOTAL 30G
aDRIVE_SIZE_USED 3.8G
aDRIVE_SIZE_PERCENTUSED 13%
aDRIVE_SIZE_FREE 26G
aDRIVE_ISFILESYSTEM 1
aDRIVE_ISMOUNTED 1
aDRIVE_ISREADONLY_CURRENTLY 0
aDRIVE_ISNETWORKED 0
aDRIVE_ISROM 0
aDRIVE_ISPARTITIONTABLE 1

[  OK  ] DietPi-Drive_Manager | Index=1
aDRIVE_UUID 0966-01D4
aDRIVE_PART_UUID d3630000-01
aDRIVE_MOUNT_SOURCE /dev/mmcblk0p1
aDRIVE_MOUNT_TARGET /boot
aDRIVE_SOURCE_DEVICE mmcblk0
aDRIVE_FSTYPE vfat
aDRIVE_APM
aDRIVE_SIZE_TOTAL 128M
aDRIVE_SIZE_USED 48M
aDRIVE_SIZE_PERCENTUSED 37%
aDRIVE_SIZE_FREE 81M
aDRIVE_ISFILESYSTEM 1
aDRIVE_ISMOUNTED 1
aDRIVE_ISREADONLY_CURRENTLY 0
aDRIVE_ISNETWORKED 0
aDRIVE_ISROM 0
aDRIVE_ISPARTITIONTABLE 1

[  OK  ] DietPi-Drive_Manager | Index=2
aDRIVE_UUID 6940d1c0-8dcd-4386-b726-0cda8cb87b75
aDRIVE_PART_UUID 7e9d79a1-f45a-42a3-be1b-bf131c00cb05
aDRIVE_MOUNT_SOURCE /dev/sda1
aDRIVE_MOUNT_TARGET /jail/glftpd/site
aDRIVE_SOURCE_DEVICE sda
aDRIVE_FSTYPE ext4
aDRIVE_APM
aDRIVE_SIZE_TOTAL 5.5T
aDRIVE_SIZE_USED 2.0T
aDRIVE_SIZE_PERCENTUSED 38%
aDRIVE_SIZE_FREE 3.3T
aDRIVE_ISFILESYSTEM 1
aDRIVE_ISMOUNTED 1
aDRIVE_ISREADONLY_CURRENTLY 0
aDRIVE_ISNETWORKED 0
aDRIVE_ISROM 0
aDRIVE_ISPARTITIONTABLE 1

Here it is before running dietpi-drive_manager

#-----------------------------------------------------------
#TMPFS, MISC
#-----------------------------------------------------------
proc /proc proc defaults 0 0
tmpfs /tmp tmpfs defaults,size=1023M,noatime,nodev,nosuid,mode=1777 0 0
tmpfs   /DietPi         tmpfs   defaults,size=10m,noatime,nodev,nosuid,mode=1777                                        0 0
/mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75/downloads/site /jail/glftpd/site none defaults,nofail,bind 0 0

#-----------------------------------------------------------
#SWAPFILE
#-----------------------------------------------------------
/var/swap    none    swap    sw    0   0

#-----------------------------------------------------------
#PHYSICAL DRIVES
#-----------------------------------------------------------
UUID=e139ce78-9841-40fe-8823-96a304a09859 / auto defaults,noatime,rw 0 1
UUID=0966-01D4 /boot auto defaults,noatime,rw,nofail,x-systemd.automount 0 0
UUID=6940d1c0-8dcd-4386-b726-0cda8cb87b75 /mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75 auto defaults,noatime,rw,nofail,x-systemd.automount 0 0

The fstab keeps changing even when I remove the trailing /

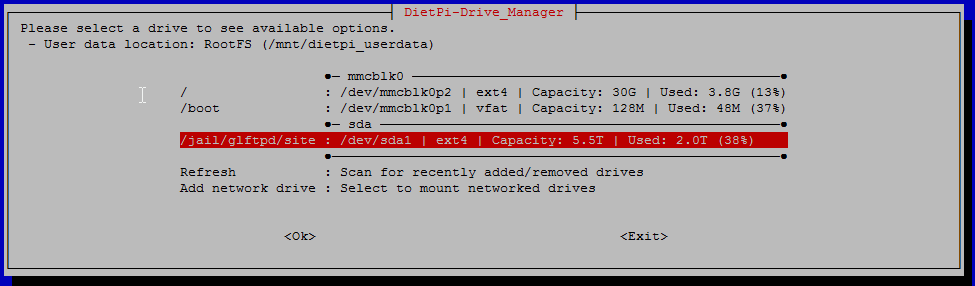

Running dietpi-drive_manager shows this
obraz

And /etc/fstab is changed again

#-----------------------------------------------------------
#TMPFS, MISC
#-----------------------------------------------------------
proc /proc proc defaults 0 0
tmpfs /tmp tmpfs defaults,size=1023M,noatime,nodev,nosuid,mode=1777 0 0
tmpfs   /DietPi         tmpfs   defaults,size=10m,noatime,nodev,nosuid,mode=1777                                        0 0
/mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75/downloads/site /jail/glftpd/site none defaults,nofail,bind 0 0

#-----------------------------------------------------------
#SWAPFILE
#-----------------------------------------------------------
/var/swap    none    swap    sw    0   0

#-----------------------------------------------------------
#PHYSICAL DRIVES
#-----------------------------------------------------------
UUID=e139ce78-9841-40fe-8823-96a304a09859 / auto defaults,noatime,rw 0 1
UUID=0966-01D4 /boot auto defaults,noatime,rw,nofail,x-systemd.automount 0 0
UUID=6940d1c0-8dcd-4386-b726-0cda8cb87b75 /jail/glftpd/site auto defaults,noatime,rw,nofail,x-systemd.automount 0 0

Additional info is that after rebooting with the "correct" fstab in /proc/mounts I find the following entries regardig /dev/sda1

/dev/sda1 /mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75 ext4 rw,noatime,data=ordered 0 0
/dev/sda1 /jail/glftpd/site ext4 rw,noatime,data=ordered 0 0
/dev/sda1 /jail/glftpd/site ext4 rw,noatime,data=ordered 0 0
/dev/sda1 /mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75/downloads/site ext4 rw,noatime,data=ordered 0 0
paradix picture paradix on 22 Aug 2018
👍1

@paradix

Many thanks. Ok, so it appears the df result is showing the jail as mounting point for /dev/sda1. DietPi then generates the fstab based on that information, for mounted drives.

If i'am correct, we'll need to find a method to exclude jailed items, or, include check for multiple possible mounts via a single device.

Please can you paste results:

df -h
Fourdee picture Fourdee on 22 Aug 2018

Yeah, I have been checking out the dietpi-drive-manager script and realized already that it is due to df but couldn't google out anything helpful why this happens.

Here you go with the df output

Filesystem      Size  Used Avail Use% Mounted on
/dev/mmcblk0p2   30G  3.8G   26G  13% /
udev             10M     0   10M   0% /dev
tmpfs           344M   10M  334M   3% /run
tmpfs           859M     0  859M   0% /dev/shm
tmpfs           5.0M     0  5.0M   0% /run/lock
tmpfs           859M     0  859M   0% /sys/fs/cgroup
/dev/mmcblk0p1  128M   48M   81M  37% /boot
/dev/sda1       5.5T  2.0T  3.3T  38% /jail/glftpd/site
tmpfs            10M  1.6M  8.5M  16% /DietPi
tmpfs          1023M  536K 1023M   1% /tmp
paradix picture paradix on 23 Aug 2018

Maybe that will help https://unix.stackexchange.com/questions/195293/bind-mounting-and-df-output
Seems to be the same issue.

paradix picture paradix on 23 Aug 2018
❤1 👍1

@paradix

Maybe that will help https://unix.stackexchange.com/questions/195293/bind-mounting-and-df-output
Seems to be the same issue.

Legend 👍

Ok we can try changing our scrape to df -a or cat /proc/mounts.

Please can you paste results of both those commands?

Fourdee picture Fourdee on 24 Aug 2018

@paradix

I've updated our script to use df -a scrape. Hopefully this resolves, please update the script with:

wget https://raw.githubusercontent.com/Fourdee/DietPi/testing/dietpi/dietpi-drive_manager -O /DietPi/dietpi/dietpi-drive_manager
Fourdee picture Fourdee on 24 Aug 2018

works kind of :) does not mess up the mount path of the bind mounts after running dietpi-drive_manager

here are the results.

df -a

Filesystem      1K-blocks       Used  Available Use% Mounted on
rootfs                  -          -          -    - /
sysfs                   0          0          0    - /sys
proc                    0          0          0    - /proc
udev                10240          0      10240   0% /dev
devpts                  0          0          0    - /dev/pts
tmpfs              351820       5764     346056   2% /run
/dev/mmcblk0p2   30639116    3973556   26649176  13% /
securityfs              0          0          0    - /sys/kernel/security
tmpfs              879544          0     879544   0% /dev/shm
tmpfs                5120          0       5120   0% /run/lock
tmpfs              879544          0     879544   0% /sys/fs/cgroup
cgroup                  0          0          0    - /sys/fs/cgroup/systemd
cgroup                  0          0          0    - /sys/fs/cgroup/cpuset
cgroup                  0          0          0    - /sys/fs/cgroup/debug
cgroup                  0          0          0    - /sys/fs/cgroup/cpu,cpuacct
cgroup                  0          0          0    - /sys/fs/cgroup/memory
cgroup                  0          0          0    - /sys/fs/cgroup/devices
cgroup                  0          0          0    - /sys/fs/cgroup/freezer
cgroup                  0          0          0    - /sys/fs/cgroup/net_cls,net_prio
cgroup                  0          0          0    - /sys/fs/cgroup/blkio
cgroup                  0          0          0    - /sys/fs/cgroup/perf_event
cgroup                  0          0          0    - /sys/fs/cgroup/hugetlb
systemd-1               0          0          0    - /proc/sys/fs/binfmt_misc
systemd-1               -          -          -    - /boot
systemd-1               -          -          -    - /mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75
debugfs                 0          0          0    - /sys/kernel/debug
hugetlbfs               0          0          0    - /dev/hugepages
mqueue                  0          0          0    - /dev/mqueue
configfs                0          0          0    - /sys/kernel/config
tmpfs               10240       1544       8696  16% /DietPi
tmpfs             1047552        536    1047016   1% /tmp
/dev/mmcblk0p1     130798      48218      82580  37% /boot
/dev/sda1      5814215184 2046120560 3475052192  38% /mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75
/dev/sda1      5814215184 2046120560 3475052192  38% /jail/glftpd/site
/dev/sda1      5814215184 2046120560 3475052192  38% /jail/glftpd/site
/dev/sda1      5814215184 2046120560 3475052192  38% /mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75/downloads/site

/etc/fstab before running dietpi-drive_manager

#-----------------------------------------------------------
#NETWORK
#-----------------------------------------------------------
#Please use DietPi-Drive_Manager to setup network mounts




#-----------------------------------------------------------
#TMPFS, MISC
#-----------------------------------------------------------
proc /proc proc defaults 0 0
tmpfs /tmp tmpfs defaults,size=1023M,noatime,nodev,nosuid,mode=1777 0 0
tmpfs   /DietPi         tmpfs   defaults,size=10m,noatime,nodev,nosuid,mode=1777                                        0 0
/mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75/downloads/site /jail/glftpd/site none defaults,nofail,bind 0 0

#-----------------------------------------------------------
#SWAPFILE
#-----------------------------------------------------------
/var/swap    none    swap    sw    0   0

#-----------------------------------------------------------
#PHYSICAL DRIVES
#-----------------------------------------------------------
UUID=e139ce78-9841-40fe-8823-96a304a09859 / auto defaults,noatime,rw 0 1
UUID=0966-01D4 /boot auto defaults,noatime,rw,nofail,x-systemd.automount 0 0
UUID=6940d1c0-8dcd-4386-b726-0cda8cb87b75 /mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75 auto defaults,noatime,rw,nofail,x-systemd.automount 0 0

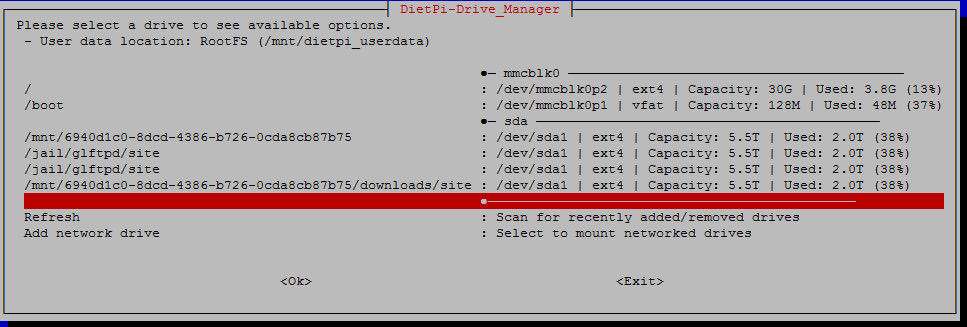

When running dietpi-drive_manager you see

obraz

And /etc/fstab looks like that after running dietpi-drive_manager

#-----------------------------------------------------------
#NETWORK
#-----------------------------------------------------------
#Please use DietPi-Drive_Manager to setup network mounts




#-----------------------------------------------------------
#TMPFS, MISC
#-----------------------------------------------------------
proc /proc proc defaults 0 0
tmpfs /tmp tmpfs defaults,size=1023M,noatime,nodev,nosuid,mode=1777 0 0
tmpfs   /DietPi         tmpfs   defaults,size=10m,noatime,nodev,nosuid,mode=1777                                        0 0
/mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75/downloads/site /jail/glftpd/site none defaults,nofail,bind 0 0

#-----------------------------------------------------------
#SWAPFILE
#-----------------------------------------------------------
/var/swap    none    swap    sw    0   0

#-----------------------------------------------------------
#PHYSICAL DRIVES
#-----------------------------------------------------------
UUID=e139ce78-9841-40fe-8823-96a304a09859 / auto defaults,noatime,rw 0 1
UUID=0966-01D4 /boot auto defaults,noatime,rw,nofail,x-systemd.automount 0 0
UUID=6940d1c0-8dcd-4386-b726-0cda8cb87b75 /mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75 auto defaults,noatime,rw,nofail,x-systemd.automount 0 0
UUID=6940d1c0-8dcd-4386-b726-0cda8cb87b75 /jail/glftpd/site auto defaults,noatime,rw,nofail,x-systemd.automount 0 0
UUID=6940d1c0-8dcd-4386-b726-0cda8cb87b75 /jail/glftpd/site auto defaults,noatime,rw,nofail,x-systemd.automount 0 0
UUID=6940d1c0-8dcd-4386-b726-0cda8cb87b75 /mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75/downloads/site auto defaults,noatime,rw,nofail,x-systemd.automount 0 0
paradix picture paradix on 25 Aug 2018

@paradix

Thanks for testing and results 👍

Ok, so it appears its unable to detect if the mount is a bind from df -a scrape, thus, fstab entries are set to standard physical drive mount options.

I'll need to see if we can find a way to detect if the mount is a bind/jail, then apply the correct mount options. then we can remove the bind/jail detection for #TMPFS, MISC which is causing the dupe entry.

Detect:

root@DietPi:~# findmnt --kernel -n --list | grep '\['
/jail/glftpd/site               /dev/mmcblk0p2[/mnt/C0F3-5D6B/test] ext4        rw,noatime
Fourdee picture Fourdee on 26 Aug 2018

Notes:
🈴 https://superuser.com/questions/617403/can-i-hide-bind-mount-points-from-df
C2

/dev/sda1      vfat         14998200  349088  14649112   3% /jail/glftpd/site
/dev/sda1      vfat         14998200  349088  14649112   3% /jail/glftpd/site2

root@DietPi:~# echo "$bind_mounts"
/mnt/C0F3-5D6B/test /jail/glftpd/site none defaults,nofail,bind 0 0
/mnt/C0F3-5D6B/test2 /jail/glftpd/site2 none defaults,nofail,bind 0 0

root@DietPi:~# findmnt --kernel -n --list | grep '\['
/jail/glftpd/site               /dev/sda1[/test]  vfat        rw,noatime,fmask=0022,dmask=0022,codepage=437,iocharset=iso8859-1,shortname=mixed,errors=remount-ro
/jail/glftpd/site2              /dev/sda1[/test2] vfat        rw,noatime,fmask=0022,dmask=0022,codepage=437,iocharset=iso8859-1,shortname=mixed,errors=remount-ro

awk $2 on bind mounts, remove from df -list via awk $6 check

🈯️ Using df scrape with a. Else does not show binds in df results on Odroid C2.

[ INFO ] DietPi-Drive_Manager | Detecting drives, please wait...
[  OK  ] DietPi-Drive_Manager | Detecting currently mounted drives, please wait...
[  OK  ] DietPi-Drive_Manager | BIND: match removed from df scrape: /jail/glftpd/site
[  OK  ] DietPi-Drive_Manager | BIND: match removed from df scrape: /jail/glftpd/site2
[ INFO ] DietPi-Drive_Manager |  - Detected: /dev/mmcblk0p2 > /
[ INFO ] DietPi-Drive_Manager |  - Detected: /dev/mmcblk0p1 > /boot
[ INFO ] DietPi-Drive_Manager |  - Detected: /dev/sda1 > /mnt/C0F3-5D6B
Fourdee picture Fourdee on 28 Aug 2018

@paradix

Apologies for the delay.

Resolved for v6.15.
In short, we exclude bind mounts from being detected, post initial fstab generation with the bind scrape added under TMPFS/MISC.

Testing will need to be completed on the testing branch, due to global var name changes. To test, please run:

#Create full system backup
dietpi-backup 1

#Install testing branch
G_DEV_1

#Please paste results of this
DEBUG=1 dietpi-drive_manager

#Then run the program normally and verify /etc/fstab is how it should be
dietpi-drive_manager

To revert to previous state:

#Restore backup
dietpi-backup -1

I'll mark this as completed, as my testing has passed. However @paradix if you are able to test and verify, I would be grateful.

Fourdee picture Fourdee on 28 Aug 2018

@Fourdee What delay? :) I wish all project open source or commercial would have that responsiveness :+1:

So, I have done the testing on the test branch. Semms all fine. fstab look fine after running dietpi-drive_manager.

Here are the logs you guys wanted
DEBUG=1 dietpi-drive_manager
```[ OK ] DietPi-Drive_Manager | Root access verified.
[ SUB1 ] DietPi-Services > stop
[ OK ] DietPi-Services | stop : cron
[ OK ] DietPi-Services | stop : gogs
[ OK ] DietPi-Services | stop : nginx
[ INFO ] DietPi-Drive_Manager | Detecting drives, please wait...
[ OK ] DietPi-Drive_Manager | Detecting currently mounted drives, please wait...
[ OK ] DietPi-Drive_Manager | BIND: match removed from df scrape: /jail/glftpd/site
[ INFO ] DietPi-Drive_Manager | - Detected: /dev/mmcblk0p2 > /
[ INFO ] DietPi-Drive_Manager | - Detected: /dev/mmcblk0p1 > /boot
[ OK ] DietPi-Drive_Manager | Detecting unmounted drives, please wait...
[ INFO ] DietPi-Drive_Manager | - Detected unmounted drive: /dev/sda1, updating fstab
[ OK ] DietPi-Drive_Manager | DEBUG INFO:
[ OK ] DietPi-Drive_Manager | Index=0
aDRIVE_UUID e139ce78-9841-40fe-8823-96a304a09859
aDRIVE_PART_UUID d3630000-02
aDRIVE_MOUNT_SOURCE /dev/mmcblk0p2
aDRIVE_MOUNT_TARGET /
aDRIVE_SOURCE_DEVICE mmcblk0
aDRIVE_FSTYPE ext4
aDRIVE_APM
aDRIVE_SIZE_TOTAL 30G
aDRIVE_SIZE_USED 3.7G
aDRIVE_SIZE_PERCENTUSED 13%
aDRIVE_SIZE_FREE 26G
aDRIVE_ISFILESYSTEM 1
aDRIVE_ISMOUNTED 1
aDRIVE_ISREADONLY_CURRENTLY 0
aDRIVE_ISNETWORKED 0
aDRIVE_ISROM 0
aDRIVE_ISPARTITIONTABLE 1

[ OK ] DietPi-Drive_Manager | Index=1
aDRIVE_UUID 0966-01D4
aDRIVE_PART_UUID d3630000-01
aDRIVE_MOUNT_SOURCE /dev/mmcblk0p1
aDRIVE_MOUNT_TARGET /boot
aDRIVE_SOURCE_DEVICE mmcblk0
aDRIVE_FSTYPE vfat
aDRIVE_APM
aDRIVE_SIZE_TOTAL 128M
aDRIVE_SIZE_USED 48M
aDRIVE_SIZE_PERCENTUSED 37%
aDRIVE_SIZE_FREE 81M
aDRIVE_ISFILESYSTEM 1
aDRIVE_ISMOUNTED 1
aDRIVE_ISREADONLY_CURRENTLY 0
aDRIVE_ISNETWORKED 0
aDRIVE_ISROM 0
aDRIVE_ISPARTITIONTABLE 1

[ OK ] DietPi-Drive_Manager | Index=2
aDRIVE_UUID 6940d1c0-8dcd-4386-b726-0cda8cb87b75
aDRIVE_PART_UUID 7e9d79a1-f45a-42a3-be1b-bf131c00cb05
aDRIVE_MOUNT_SOURCE /dev/sda1
aDRIVE_MOUNT_TARGET /mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75
aDRIVE_SOURCE_DEVICE sda
aDRIVE_FSTYPE ext4
aDRIVE_APM
aDRIVE_SIZE_TOTAL
aDRIVE_SIZE_USED
aDRIVE_SIZE_PERCENTUSED
aDRIVE_SIZE_FREE
aDRIVE_ISFILESYSTEM 1
aDRIVE_ISMOUNTED 0
aDRIVE_ISREADONLY_CURRENTLY 0
aDRIVE_ISNETWORKED 0
aDRIVE_ISROM 0
aDRIVE_ISPARTITIONTABLE 1


```/etc/fstab``` after  running ```dietpi-drive_manager```
```#-----------------------------------------------------------
#NETWORK
#-----------------------------------------------------------
#Please use DietPi-Drive_Manager to setup network mounts




#-----------------------------------------------------------
#TMPFS, MISC
#-----------------------------------------------------------
proc /proc proc defaults 0 0
tmpfs /tmp tmpfs defaults,size=1023M,noatime,nodev,nosuid,mode=1777 0 0
tmpfs   /DietPi         tmpfs   defaults,size=10m,noatime,nodev,nosuid,mode=1777                                        0 0
/mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75/downloads/site /jail/glftpd/site none defaults,nofail,bind 0 0

#-----------------------------------------------------------
#SWAPFILE
#-----------------------------------------------------------
/var/swap    none    swap    sw    0   0

#-----------------------------------------------------------
#PHYSICAL DRIVES
#-----------------------------------------------------------
UUID=e139ce78-9841-40fe-8823-96a304a09859 / auto defaults,noatime,rw 0 1
UUID=0966-01D4 /boot auto defaults,noatime,rw,nofail,x-systemd.automount 0 0
#UUID=6940d1c0-8dcd-4386-b726-0cda8cb87b75 /mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75 auto defaults,x-systemd.automount,noatime,rw,nofail 0 0

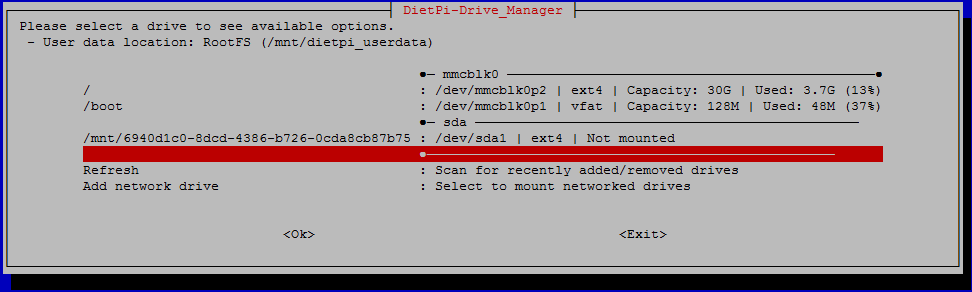

The only minor thing is that dietpi-drive_manager shows the drive as not mounted
obraz

Great job guys. Thnx a lot again.

paradix picture paradix on 28 Aug 2018

@paradix

[ OK ] DietPi-Drive_Manager | Index=2
aDRIVE_UUID 6940d1c0-8dcd-4386-b726-0cda8cb87b75
aDRIVE_PART_UUID 7e9d79a1-f45a-42a3-be1b-bf131c00cb05
aDRIVE_MOUNT_SOURCE /dev/sda1
aDRIVE_MOUNT_TARGET /mnt/6940d1c0-8dcd-4386-b726-0cda8cb87b75
aDRIVE_SOURCE_DEVICE sda
aDRIVE_FSTYPE ext4
aDRIVE_ISMOUNTED 0

Thanks for testing, but this is very strange.

If you are still using the testing branch:

  • is the drive mounted in df -h ?
  • what happens if you try mounting/unmounting the drive in dietpi-drive_manager?
Fourdee picture Fourdee on 29 Aug 2018

is the drive mounted in df -h ?

Filesystem      Size  Used Avail Use% Mounted on
/dev/mmcblk0p2   30G  3.7G   26G  13% /
udev             10M     0   10M   0% /dev
tmpfs           344M   10M  334M   3% /run
tmpfs           859M     0  859M   0% /dev/shm
tmpfs           5.0M     0  5.0M   0% /run/lock
tmpfs           859M     0  859M   0% /sys/fs/cgroup
/dev/mmcblk0p1  128M   48M   81M  37% /boot
/dev/sda1       5.5T  2.0T  3.3T  38% /jail/glftpd/site
tmpfs            10M  1.6M  8.5M  16% /DietPi
tmpfs          1023M  536K 1023M   1% /tmp

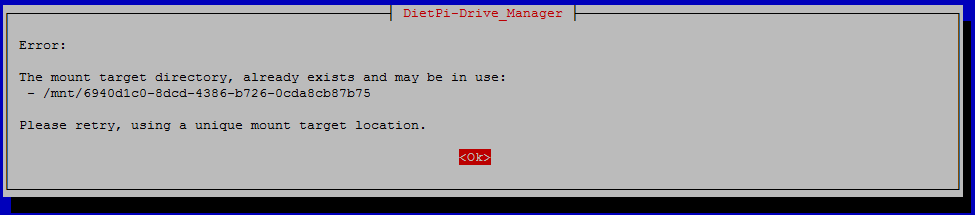

what happens if you try mounting/unmounting the drive in dietpi-drive_manager?
obraz

paradix picture paradix on 30 Aug 2018

@paradix

Filesystem      Size  Used Avail Use% Mounted on
/dev/mmcblk0p2   30G  3.7G   26G  13% /
udev             10M     0   10M   0% /dev
tmpfs           344M   10M  334M   3% /run
tmpfs           859M     0  859M   0% /dev/shm
tmpfs           5.0M     0  5.0M   0% /run/lock
tmpfs           859M     0  859M   0% /sys/fs/cgroup
/dev/mmcblk0p1  128M   48M   81M  37% /boot
/dev/sda1       5.5T  2.0T  3.3T  38% /jail/glftpd/site
tmpfs            10M  1.6M  8.5M  16% /DietPi
tmpfs          1023M  536K 1023M   1% /tmp

Strange how this is not showing the original and true /dev/sda1 mount, only the jail. Maybe we do need to move back to df -a.

Dupe results:

/dev/sda1       14998200  349088  14649112   3% /mnt/C0F3-5D6B
root@DietPi:~# mount -a
root@DietPi:~# df -a
/dev/sda1       14998200  349088  14649112   3% /mnt/C0F3-5D6B
/dev/sda1       14998200  349088  14649112   3% /jail/glftpd/site
/dev/sda1       14998200  349088  14649112   3% /mnt/C0F3-5D6B/test
/dev/sda1       14998200  349088  14649112   3% /jail/glftpd/site
Fourdee picture Fourdee on 30 Aug 2018

@paradix

Script updated in testing branch, should be good to go this time 😃

Fourdee picture Fourdee on 30 Aug 2018

Note to self:

~Current state breaks ASUS TB testing:~ Resolved with https://github.com/Fourdee/DietPi/commit/806ccd09a7b3dfee3301ac4025dde75c5909c9da

root@DietPi:~# DEBUG=1 dietpi-drive_manager
[ SUB1 ] DietPi-Services > stop
[  OK  ] DietPi-Services | stop : cron
[ INFO ] DietPi-Drive_Manager | Detecting drives, please wait...
[  OK  ] DietPi-Drive_Manager | Detecting currently mounted drives, please wait...
[  OK  ] DietPi-Drive_Manager | BIND: match removed from df scrape:  >
[  OK  ] DietPi-Drive_Manager | Detecting unmounted drives, please wait...
[ INFO ] DietPi-Drive_Manager |  - Detected drive with no partitions: mmcblk1
[  OK  ] DietPi-Drive_Manager | DEBUG INFO:
[  OK  ] DietPi-Drive_Manager | Index=0
aDRIVE_UUID
aDRIVE_PART_UUID
aDRIVE_MOUNT_SOURCE /dev/mmcblk1
aDRIVE_MOUNT_TARGET /tmp/mmcblk1
aDRIVE_SOURCE_DEVICE mmcblk1
aDRIVE_FSTYPE
aDRIVE_APM
aDRIVE_SIZE_TOTAL
aDRIVE_SIZE_USED
aDRIVE_SIZE_PERCENTUSED
aDRIVE_SIZE_FREE
aDRIVE_ISFILESYSTEM 0
aDRIVE_ISMOUNTED 0
aDRIVE_ISREADONLY_CURRENTLY 0
aDRIVE_ISNETWORKED 0
aDRIVE_ISROM 0
aDRIVE_ISPARTITIONTABLE 0
Fourdee picture Fourdee on 1 Sep 2018

🈯️Final testing:

  • Testing with 2 binds
  • All fstab entries are correct after running the main application
  • Bind entries are not show in dietpi-drive_manager menu (as per design)
root@DietPi:~# DEBUG=1 dietpi-drive_manager
[  OK  ] DietPi-Drive_Manager | Root access verified.
[ SUB1 ] DietPi-Services > stop
[  OK  ] DietPi-Services | stop : cron
[ INFO ] DietPi-Drive_Manager | Detecting drives, please wait...
[  OK  ] DietPi-Drive_Manager | Detecting currently mounted drives, please wait...
[  OK  ] DietPi-Drive_Manager | BIND: match removed from df scrape: /mnt/C0F3-5D6B/test > /jail/glftpd/site
[  OK  ] DietPi-Drive_Manager | BIND: match removed from df scrape: /mnt/C0F3-5D6B/test2 > /jail/glftpd/site2
[ INFO ] DietPi-Drive_Manager |  - Detected: /dev/mmcblk0p2 > /
[ INFO ] DietPi-Drive_Manager |  - Detected: /dev/mmcblk0p1 > /boot
[ INFO ] DietPi-Drive_Manager |  - Detected: /dev/sda1 > /mnt/C0F3-5D6B
[  OK  ] DietPi-Drive_Manager | Detecting unmounted drives, please wait...
[  OK  ] DietPi-Drive_Manager | DEBUG INFO:
[  OK  ] DietPi-Drive_Manager | Index=0
aDRIVE_UUID e139ce78-9841-40fe-8823-96a304a09859
aDRIVE_PART_UUID d3630000-02
aDRIVE_MOUNT_SOURCE /dev/mmcblk0p2
aDRIVE_MOUNT_TARGET /
aDRIVE_SOURCE_DEVICE mmcblk0
aDRIVE_FSTYPE ext4
aDRIVE_APM
aDRIVE_SIZE_TOTAL 115G
aDRIVE_SIZE_USED 1.4G
aDRIVE_SIZE_PERCENTUSED 2%
aDRIVE_SIZE_FREE 114G
aDRIVE_ISFILESYSTEM 1
aDRIVE_ISMOUNTED 1
aDRIVE_ISREADONLY_CURRENTLY 0
aDRIVE_ISNETWORKED 0
aDRIVE_ISROM 0
aDRIVE_ISPARTITIONTABLE 1

[  OK  ] DietPi-Drive_Manager | Index=1
aDRIVE_UUID 0966-01D4
aDRIVE_PART_UUID d3630000-01
aDRIVE_MOUNT_SOURCE /dev/mmcblk0p1
aDRIVE_MOUNT_TARGET /boot
aDRIVE_SOURCE_DEVICE mmcblk0
aDRIVE_FSTYPE vfat
aDRIVE_APM
aDRIVE_SIZE_TOTAL 128M
aDRIVE_SIZE_USED 45M
aDRIVE_SIZE_PERCENTUSED 36%
aDRIVE_SIZE_FREE 83M
aDRIVE_ISFILESYSTEM 1
aDRIVE_ISMOUNTED 1
aDRIVE_ISREADONLY_CURRENTLY 0
aDRIVE_ISNETWORKED 0
aDRIVE_ISROM 0
aDRIVE_ISPARTITIONTABLE 1

[  OK  ] DietPi-Drive_Manager | Index=2
aDRIVE_UUID C0F3-5D6B
aDRIVE_PART_UUID 87b427d4-c076-4a64-a02f-0f6f4a758508
aDRIVE_MOUNT_SOURCE /dev/sda1
aDRIVE_MOUNT_TARGET /mnt/C0F3-5D6B
aDRIVE_SOURCE_DEVICE sda
aDRIVE_FSTYPE vfat
aDRIVE_APM
aDRIVE_SIZE_TOTAL 15G
aDRIVE_SIZE_USED 24K
aDRIVE_SIZE_PERCENTUSED 1%
aDRIVE_SIZE_FREE 15G
aDRIVE_ISFILESYSTEM 1
aDRIVE_ISMOUNTED 1
aDRIVE_ISREADONLY_CURRENTLY 0
aDRIVE_ISNETWORKED 0
aDRIVE_ISROM 0
aDRIVE_ISPARTITIONTABLE 1

Resolved for v6.15.

Fourdee picture Fourdee on 2 Sep 2018

@MichaIng
Sorry for hijacking the old topic. Do you know if Drive Manager will allow custom entries in /etc/fstab? There is a user on the board who like to mount file systems using sshfs. As Drive Manager is not supporting sshfs, the only way is to create custom entry within /etc/fstab

https://dietpi.com/phpbb/viewtopic.php?f=9&t=7781

On my test, the manual created /etc/fstab entry was working fine as well as Drive Manager was detecting the mount correctly

                ┌───────────────────────────────────────────────┤ DietPi-Drive_Manager ├───────────────────────────────────────────────┐
                │ Please select a drive to see available options.                                                                      │
                │  - User data location: RootFS (/mnt/dietpi_userdata)                                                                 │
                │                                                                                                                      │
                │                    ●─ mmcblk0 ───────────────────────────────────────────────────────                                │
                │  /                 : /dev/mmcblk0p2 | ext4 | Capacity: 29G | Used: 2.5G (9%)                                         │
                │  /boot             : /dev/mmcblk0p1 | vfat | Capacity: 252M | Used: 52.5M (21%)                                      │
                │                    ●─ 192.168.0.13:/ ─────────────────────────────────────────────────────                           │
                │  /mnt/nfs_client   : 192.168.0.13:/ | Net | Capacity: 9.8G                                                           │
                │                    ●─ [email protected]:/mnt/dietpi_userdata ─────────────────────────────────────────────           │
                │  /mnt/sshfs        : [email protected]:/mnt/dietpi_userdata | Net | Capacity: 9.8G                                   │
                │                    ●─ //192.168.0.10/Share ───────────────────────────────────────────────────                       │
                │  /mnt/samba        : //192.168.0.10/Share | Net | Capacity: 2.6T | Used: 583.8G (22%)                                │
                │                    ●─ Global Options ─────────────────────────────────────────────────────                           │
                │  Idle Spindown     : Set a global idle duration, before drives power down                                            │
                │                    ●─ Add / Refresh Drives ───────────────────────────────────────────────────                       │
                │  Add network drive : Select to mount networked drives                                                                │
                │  Refresh           : Scan for recently added/removed drives                                                          │
                │                                                                                                                      │
                │                                                                                                                      │
                │                                  <Ok>                                      <Exit>                                    │
                │                                                                                                                      │
                └──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┘

However Drive Manager is deleting the line within /etc/fstab

Joulinar picture Joulinar on 16 Jun 2020

sshfs mounts are something I wanted to add for a long time as replacement for the insecure FTP mounts to be used for mounts across www, as NFS and Samba are designed for local network shares only.

Good to see that drive manager detect it correctly, but is the entry preserved correctly? For this the a UUID must exist and it is added with some default mount options aimed for physical drives. I guess automated mount on boot would be broken at least since SSH credentials are missing. I'll add it to network drive exclusions, so the entry won't be touched and added to the network drive part of fstab.

MichaIng picture MichaIng on 16 Jun 2020

I was testing it yesterday and indeed automatic mount on reboot is not working ootb. It was needed to exchange keys between client and server to allow password free access. I was following this guide

https://www.linode.com/docs/networking/ssh/using-sshfs-on-linux/

Joulinar picture Joulinar on 16 Jun 2020
👍1

Based on guides there are two ways to add the fstab entry:

sshfs#user@host:/remote/path /local/path fuse options

and

user@host/remote:/path /local/path fuse.sshfs options

Could you verify that both work just the same?

It was needed to exchange keys between client and server to allow password free access.

Yes that makes sense, although I guess there is a way to add credentials right into the fstab entry as well, e.g. via user:pass@host:/remote/path which is usual SSH syntax. But this is nothing that I'd ship like that since highly insecure (reminds me of curlftpfs which worked like that). But probably it is possible to add password stored in a file. (€: Nope not possible, besides hacking it inside via ssh_command mount option) Else key authentication is anyway the better solution for SSH in general.

The following should preserve SSHFS entries with both syntax and sort them to the NETWORK section in /etc/fstab: https://github.com/MichaIng/DietPi/commit/be14aff29e0dab8c7a2b8ec5b97e2083ca0022e3
Changelog: https://github.com/MichaIng/DietPi/commit/60d529685d8eaaea79ea7e2fc9d82e7371c29743

MichaIng picture MichaIng on 16 Jun 2020

ok will do some test. Should I create a new request for sshfs or should we stay on this old topic.

Joulinar picture Joulinar on 16 Jun 2020

We'd create a new topic for full SSHFS support, means that there is a menu entry to add SSHFS mounts like it exist for NFS and Samba.

MichaIng picture MichaIng on 16 Jun 2020

done #3610

Joulinar picture Joulinar on 16 Jun 2020
Was this page helpful?
0 / 5 - 0 ratings

Related issues

MichaIng picture MichaIng  ·  3Comments
k-plan picture k-plan  ·  3Comments
Fourdee picture Fourdee  ·  3Comments
oshank picture oshank  ·  3Comments
Fourdee picture Fourdee  ·  3Comments
