Dietpi: PREP_SYSTEM_FOR_DIETPI.sh exits with error "Failed to get D-Bus connection: No connection to service manager."

Created on 20 May 2018  ·  26Comments  ·  Source: MichaIng/DietPi

Just tried to follow the procedure to prepare a freshly installed Debian system for DietPi (https://github.com/Fourdee/DietPi/issues/1285#issue-280771944).
During the process, it terminated returning the following error:
Failed to get D-Bus connection: No connection to service manager.

SBC Device: Odroid-XU (yes, the first of the name)
Distro: Debian Jessie (https://forum.odroid.com/viewtopic.php?f=62&t=2070)

External Bug PREP
Source
picture Nakda

Most helpful comment

@MichaIng
Ok, so I flashed again a fresh image, updated the kernel following the official procedure, and systemctl is not working.

After reaching the apt-get dist-upgrade step you suggested, systemctl status returned

Failed to get D-Bus connection: Unknown error -1

Should I try apt install systemd-sysv once again, since my system is now up-to-date?

EDIT: Actually, after rebooting the systemctl command succeeded !

Do you think I should go for Debian Stretched when asked by DietPi, or stick with Jessie ?

EDIT2: I picked Stretched, just out of curiosity, and it went well. I'm running DietPi! I'll let you know if it runs well the following days. Thanks a lot guys!

picture Nakda on 21 May 2018
🎉1 👍1

All 26 comments

@Nakda

Thanks for the report 👍

Odroid-XU

Nice, always wanted one of those, no longer in production.

Ok, any chance you could copy/paste the entire SSH terminal output, when the error occurs? Will assist us in tracking down the area this occurs in code.

_Note to self: enable log output of PREP?_

Fourdee picture Fourdee on 20 May 2018

Nice, always wanted one of those, no longer in production.

Found ten of them in the office few months ago. Thought it would be nice to see how well they perform, starting with a Plex Media Server. Succeeded in installing the whole thing but got few issues. That's why I want to go for another try using DietPi this time.

Ok, any chance you could copy/paste the entire SSH terminal output, when the error occurs? Will assist us in tracking down the area this occurs in code

Sure! Here it is..


root@odroid-jessie:~# sudo GIT_BRANCH=$GIT_BRANCH ./PREP_SYSTEM_FOR_DIETPI.sh
Git Branch: master
Ign http://ftp.debian.org jessie InRelease
Hit http://ftp.debian.org jessie Release.gpg
Hit http://ftp.debian.org jessie Release
Hit http://ftp.debian.org jessie/main armhf Packages
Hit http://ftp.debian.org jessie/contrib armhf Packages
Hit http://ftp.debian.org jessie/non-free armhf Packages
Hit http://ftp.debian.org jessie/contrib Translation-en
Hit http://ftp.debian.org jessie/main Translation-en
Hit http://ftp.debian.org jessie/non-free Translation-en
Reading package lists... Done
W: There is no public key available for the following key IDs:
7638D0442B90D010
 NO_PUBKEY CBF8D6FD518E17E1
Generating locales (this might take a while)...
  en_GB.UTF-8... done
Generation complete.
--2018-05-20 19:26:47--  https://raw.githubusercontent.com/Fourdee/DietPi/master/dietpi/func/dietpi-globals
Resolving raw.githubusercontent.com (raw.githubusercontent.com)... 151.101.120.133
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|151.101.120.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 47162 (46K) [text/plain]
Saving to: ‘dietpi-globals’

dietpi-globals      100%[=====================>]  46.06K  --.-KB/s   in 0.03s

2018-05-20 19:26:48 (1.41 MB/s) - ‘dietpi-globals’ saved [47162/47162]


[ INFO ] DietPi-PREP | -----------------------------------------------------------------------------------
[  OK  ] DietPi-PREP | Step 0: Detecting existing DietPi system:
[ INFO ] DietPi-PREP | -----------------------------------------------------------------------------------
Failed to get D-Bus connection: No connection to service manager.
[ INFO ] DietPi-PREP | Non-DietPi system

[ INFO ] DietPi-PREP | -----------------------------------------------------------------------------------
[  OK  ] DietPi-PREP | Step 1: Initial prep to allow this script to function:
[ INFO ] DietPi-PREP | -----------------------------------------------------------------------------------
[ INFO ] DietPi-PREP | Updating APT:
[  OK  ] DietPi-PREP | Root access verified.
[  OK  ] DietPi-PREP | mkdir -p /var/tmp/dietpi/logs
[ INFO ] DietPi-PREP | Installing core packages, required for next stage of this script:
[  OK  ] DietPi-PREP | APT installation for: apt-transport-https unzip whiptail, please wait...

[  OK  ] DietPi-PREP | G_AGI: apt-transport-https unzip whiptail

[ INFO ] DietPi-PREP | -----------------------------------------------------------------------------------
[  OK  ] DietPi-PREP | Step 2 (inputs): Image info / Hardware / WiFi / Distro:
[ INFO ] DietPi-PREP | -----------------------------------------------------------------------------------
[ INFO ] DietPi-PREP | Setting G_HW_MODEL index of: 22
[ INFO ] DietPi-PREP | CPU ARCH = 2 : armv7l
[ INFO ] DietPi-PREP | WiFi selection

[ INFO ] DietPi-PREP | -----------------------------------------------------------------------------------
[  OK  ] DietPi-PREP | Step 3: Downloading and installing DietPi sourcecode:
[ INFO ] DietPi-PREP | -----------------------------------------------------------------------------------
[  OK  ] DietPi-PREP | wget https://github.com/Fourdee/DietPi/archive/master.zip -O package.zip
[ INFO ] DietPi-PREP | Extracting DietPi sourcecode
[  OK  ] DietPi-PREP | unzip -o package.zip
[ INFO ] DietPi-PREP | Removing files not required
[ INFO ] DietPi-PREP | Creating /boot
[  OK  ] DietPi-PREP | mkdir -p /boot
[ INFO ] DietPi-PREP | Moving to /boot
[  OK  ] DietPi-PREP | cp -R DietPi-master/dietpi DietPi-master/dietpi.txt DietPi-master/README.md /boot/
[ INFO ] DietPi-PREP | Cleaning up extracted files
[  OK  ] DietPi-PREP | rm -R DietPi-master
[ INFO ] DietPi-PREP | Setting execute permissions for /boot/dietpi
[  OK  ] DietPi-PREP | chmod -R +x /boot/dietpi
[ INFO ] DietPi-PREP | Installing DietPi-RAMDISK
Failed to get D-Bus connection: No connection to service manager.
[ INFO ] DietPi-PREP | Starting DietPi-RAMDISK
[.     ] sed: can't read /DietPi/dietpi/.version: No such file or directory
sed: can't read /DietPi/dietpi/.version: No such file or directory
[FAILED] DietPi-PREP | systemctl start dietpi-ramdisk.service
[ INFO ] DietPi-PREP | If problems persist, please report this to DietPi for investigation, including a screenshot of this error! (https://github.com/Fourdee/DietPi/issues).
sed: can't read /DietPi/dietpi/.version: No such file or directory
sed: can't read /DietPi/dietpi/.version: No such file or directory


--------------------------------------------------------------------
- DietPi has encounted an error, and, is unable to continue        -
- Please create a ticket: https://github.com/Fourdee/DietPi/issues -
- Copy and paste the BLUE lines below, into the ticket             -
--------------------------------------------------------------------


#### Details:
- Date           | Sun 20 May 19:27:31 CEST 2018
- DietPi version | v.
- Img creator    |
- Pre-image      |
- SBC device     | NULL (index=22)
- Distro         | jessie (index=3)
- Command        | systemctl start dietpi-ramdisk.service
- Exit code      | 1
- Software title | DietPi-PREP

#### Expected behaviour:
<!-- What SHOULD be happening? -->

#### Actual behaviour:
<!-- What IS happening? -->

#### Steps to reproduce:
<!-- Explain how to reproduce the issue -->

#### Additional Information:
<!-- if applicable -->

#### Additional logs:
Log file contents:
Failed to get D-Bus connection: No connection to service manager.


--------------------------------------------------------------------

[FAILED] DietPi-PREP | Unable to continue, DietPi-PREP will now terminate.
Nakda picture Nakda on 20 May 2018

@Nakda @Fourdee
I am wondering why D-Bus is actually called on systemctl start or better why it fails, if D-Bus connections fails. It works perfectly completely without D-Bus.

But first some other questions @Nakda:

  • Did I see it right that you ran the preparation script two times, or is it just some copy&paste issue?
  • Same about the funny characters, do they show up correctly on real terminal/SSH client, colourized as expected?
  • I first thought that localepurge might interfere here in a bad way, which then often leads to broken output, as current session locale is reset to POSIX e.g. Could you verify that after PREP stops, en_GB.UTF-8 is available? Run to check: locale -a
  • In case try to purge localepurge and run the script again: apt purge localepurge
  • Also try to purge dbus, if actually the final error is not related to locales at all: apt purge dbus
MichaIng picture MichaIng on 20 May 2018

@MichaIng

I ran it once on a fresh install but didn't have logging enable in Putty settings (forgot I could simply copy/paste). So I ran the process a second time, just to ouput the logs, and the funny characters are coming from the Putty log file (they were displayed correctly in the terminal).

I just edited my post fixing characters, by simply copy/pasting the terminal output but you were probably already answering. Sorry about that.

Nakda picture Nakda on 20 May 2018
👍1

@Nakda
Ah yeah color/font format codes are problematic when forwarded to log. In case of terminal output, it is best to just copy&paste from there, though not always possible, if not accessed via SSH.
👍 Way better readable now, thanks!

Okay, locales/localepurge seems to be not the issue. Purging dbus as stated above would be the fast fix to go, but actually dbus "should" cause no errors. If you find time to further debug/investigate:

systemctl status dbus
systemctl restart dbus
systemctl daemon-reload
systemctl restart systemd-logind
systemctl status systemd-logind
  • Just to see output, possible broken dbus service status and check if systemd service handling generally throws these errors or if other services can be treated as expected.

€: If dbus is actually not installed, apt install dbus could be tested as well, although this would be strange as well, as dbus should be (was never) needed to handle systemd units.

_Not to self: Test localepurge, just to be sure, also as "strange behaviour" for dpkg related programs is mentioned in package description: https://packages.debian.org/en/stretch/localepurge_

MichaIng picture MichaIng on 20 May 2018

@MichaIng

Yep strange one, the only thing I can think is the following somehow requires dbus:

WantedBy=local-fs.target

Or, SystemD full install is not present on the pre-image? Unsure will need to wait for @Nakda's reply from: https://github.com/Fourdee/DietPi/issues/1787#issuecomment-390505650

Fourdee picture Fourdee on 20 May 2018

@Fourdee
Ah of course, I just thought about broken dbus, but missing dbus of course could be the issue as well. But actually all my pre-images and all my running systems are dbus-free and I never faces an issue like this when treating systemd units. I add apt install dbus to fix test above 😉.

MichaIng picture MichaIng on 20 May 2018

@Fourdee @MichaIng

Thank you both for the suggestions.

Any command starting with "systemctl" did return the same error code "Failed to get D-Bus connection: No connection to service manager." So I proceed to the installation of dbus. After that, I did try again the systemctl related commands, but the output was the same error (even after rebooting, in case that matters).

Here is the output of the installation:

root@odroid-jessie:~# apt-get install dbus
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following packages were automatically installed and are no longer required:
  ant ant-optional g++-4.6 gir1.2-folks-0.6 gir1.2-gee-0.8 gir1.2-gee-1.0
  gnome-session-fallback gstreamer0.10-ffmpeg libamd2.2.0 libapache-pom-java
  libarchive12 libavcodec53 libavformat53 libavutil51 libboost-date-time1.49.0
  libcamel-1.2-33 libclass-isa-perl libcmis-0.2-0 libcolamd2.7.1
  libcommons-beanutils-java libcommons-collections3-java
  libcommons-compress-java libcommons-digester-java libcommons-logging-java
  libcommons-parent-java libdb-java libdb-je-java libdb5.1-java
  libdb5.1-java-jni libdconf0 libdevmapper-event1.02.1 libdrm-nouveau1a
  libebackend-1.2-2 libecal-1.2-11 libedata-cal-1.2-15 libedataserver-1.2-16
  libgcr-3-1 libgd2-xpm libgdu0 libglew1.7 libgnome-bluetooth10
  libgnome-desktop-3-2 libgnutls28 libgweather-3-0 libhsqldb-java
  libicu4j-java libimobiledevice2 libjaxp1.3-java libjline-java libjson0
  libjtidy-java libkms1 libllvm3.2 liblucene2-java liblvm2app2.2 libmozjs10d
  libmpc2 libobrender27 libobt0 libparted0debian1 libpostproc52 libproxy0
  libpthread-stubs0 libregexp-java libreoffice-emailmerge libsgutils2-2
  libstdc++6-4.6-dev libswitch-perl libtiff4-dev libtiffxx0c2 libumfpack5.4.0
  libusbmuxd1 libwebp2 libx264-123 libxalan2-java libxerces2-java
  libxml-commons-external-java libxml-commons-resolver1.1-java
  libxmmsclient-glib1 libxmmsclient6 libxz-java openbox-themes
  python-aptdaemon python-aptdaemon.gtk3widgets python-defer python-gconf
  python-glade2 python-gnome2 python-gnupginterface python-notify
  python-pkg-resources python-pyorbit python-software-properties
  ttf-liberation ttf-sil-gentium-basic udisks xmms2-core xmms2-plugin-alsa
  xmms2-plugin-id3v2 xmms2-plugin-mad xmms2-plugin-vorbis xulrunner-10.0
Use 'apt-get autoremove' to remove them.
The following extra packages will be installed:
  libdbus-1-3 libdbus-1-dev libgcrypt20 libgpg-error0 libsystemd0
Suggested packages:
  rng-tools
The following NEW packages will be installed:
  libgcrypt20 libsystemd0
The following packages will be upgraded:
  dbus libdbus-1-3 libdbus-1-dev libgpg-error0
4 upgraded, 2 newly installed, 0 to remove and 1319 not upgraded.
Need to get 1,122 kB of archives.
After this operation, 800 kB of additional disk space will be used.
Do you want to continue? [Y/n] Y
Get:1 http://ftp.debian.org/debian/ jessie/main libgpg-error0 armhf 1.17-3 [91.1 kB]
Get:2 http://ftp.debian.org/debian/ jessie/main libgcrypt20 armhf 1.6.3-2+deb8u4 [354 kB]
Get:3 http://ftp.debian.org/debian/ jessie/main libdbus-1-dev armhf 1.8.22-0+deb8u1 [191 kB]
Get:4 http://ftp.debian.org/debian/ jessie/main libdbus-1-3 armhf 1.8.22-0+deb8u1 [150 kB]
Get:5 http://ftp.debian.org/debian/ jessie/main libsystemd0 armhf 215-17+deb8u7 [83.1 kB]
Get:6 http://ftp.debian.org/debian/ jessie/main dbus armhf 1.8.22-0+deb8u1 [253 kB]
Fetched 1,122 kB in 0s (1,507 kB/s)
(Reading database ... 132280 files and directories currently installed.)
Preparing to unpack .../libgpg-error0_1.17-3_armhf.deb ...
Unpacking libgpg-error0:armhf (1.17-3) over (1.12-0.2) ...
Selecting previously unselected package libgcrypt20:armhf.
Preparing to unpack .../libgcrypt20_1.6.3-2+deb8u4_armhf.deb ...
Unpacking libgcrypt20:armhf (1.6.3-2+deb8u4) ...
Preparing to unpack .../libdbus-1-dev_1.8.22-0+deb8u1_armhf.deb ...
Unpacking libdbus-1-dev:armhf (1.8.22-0+deb8u1) over (1.6.18-2) ...
Preparing to unpack .../libdbus-1-3_1.8.22-0+deb8u1_armhf.deb ...
Unpacking libdbus-1-3:armhf (1.8.22-0+deb8u1) over (1.6.18-2) ...
Setting up libgpg-error0:armhf (1.17-3) ...
Setting up libgcrypt20:armhf (1.6.3-2+deb8u4) ...
Processing triggers for libc-bin (2.19-18+deb8u10) ...
Selecting previously unselected package libsystemd0:armhf.
(Reading database ... 132294 files and directories currently installed.)
Preparing to unpack .../libsystemd0_215-17+deb8u7_armhf.deb ...
Unpacking libsystemd0:armhf (215-17+deb8u7) ...
Preparing to unpack .../dbus_1.8.22-0+deb8u1_armhf.deb ...
Unpacking dbus (1.8.22-0+deb8u1) over (1.6.18-2) ...
Processing triggers for man-db (2.6.5-2) ...
Setting up libdbus-1-3:armhf (1.8.22-0+deb8u1) ...
Setting up libdbus-1-dev:armhf (1.8.22-0+deb8u1) ...
Setting up libsystemd0:armhf (215-17+deb8u7) ...
Setting up dbus (1.8.22-0+deb8u1) ...
Installing new version of config file /etc/dbus-1/session.conf ...
Installing new version of config file /etc/dbus-1/system.conf ...
Installing new version of config file /etc/init.d/dbus ...
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
[ ok ] system message bus already started; not starting..
Processing triggers for libc-bin (2.19-18+deb8u10) ...

Trying a purge of dbus right after (just to see what the output would be) led to this:


root@odroid-jessie:~# apt-get purge dbus
Reading package lists... Done
Building dependency tree
Reading state information... Done
Some packages could not be installed. This may mean that you have
requested an impossible situation or if you are using the unstable
distribution that some required packages have not yet been created
or been moved out of Incoming.
The following information may help to resolve the situation:

The following packages have unmet dependencies:
 gsettings-desktop-schemas : Breaks: gnome-settings-daemon (< 3.10.0) but 3.8.5-2 is to be installed
E: Error, pkgProblemResolver::Resolve generated breaks, this may be caused by held packages.

Note: I don't know if that matters or not because I'm really a noob when it comes to Linux systems, but looking for information regarding systemctl I found out that three "init" systems are somewhat available. My distro seems to react to the command "service dbus status" so that would mean it's based on SystemV instead of SystemD. Does it help in any way?
(link: https://askubuntu.com/a/678872)

Note2:

A (at least partly) populated /dev is required. Depending on your setup (e.g. on embedded systems), check that the Linux kernel config options CONFIG_DEVTMPFS and CONFIG_DEVTMPFS_MOUNT are set. Also support for cgroups and fanotify is recommended for a flawless operation, so check that the Linux kernel config options CONFIG_CGROUPS and CONFIG_FANOTIFY are set. The message "Failed to get D-Bus connection: No connection to service manager." during various systemctl operations is an indicator that these are missing.

(link: https://freedesktop.org/wiki/Software/systemd/Debugging/)

Again, sorry if that is completely not related.

Nakda picture Nakda on 20 May 2018

@Nakda
Thanks for testing. Ah you have a desktop image. Okay the desktops usually need dbus to work. No idea why systemctl does as well in your case.
Your commands did upgrade dbus as well as other system packages. What I find strange is, that libsystemd0 got installed, thus was not installed before, even that it is base dependency of systemd itself 🤔. Looks like @Fourdee was right with incomplete systemd image.

So now you should be able to run the systemctl commands, perhaps also try a reboot to re-initiate the whole system with systemd. Hmm or better check if systemd is actually installed?
apt install systemd-sysv

MichaIng picture MichaIng on 20 May 2018

@MichaIng

Didn't know it was a desktop image, sorry if that would have helped. I simply grabbed the one available on the Odroid forum.

I already did try a reboot without success, so I installed systemd-sysv as suggested, but after the reboot the odroid is not visible to the network so I can't access it using SSH. I will probably have to plug it to the TV tomorrow. I will get back at you as soon as possible !

root@odroid-jessie:~# apt-get install systemd-sysv
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following packages were automatically installed and are no longer required:
  ant ant-optional g++-4.6 gir1.2-folks-0.6 gir1.2-gee-0.8 gir1.2-gee-1.0
  gnome-session-fallback gstreamer0.10-ffmpeg libamd2.2.0 libapache-pom-java
  libarchive12 libavcodec53 libavformat53 libavutil51 libboost-date-time1.49.0
  libcamel-1.2-33 libclass-isa-perl libcmis-0.2-0 libcolamd2.7.1
  libcommons-beanutils-java libcommons-collections3-java
  libcommons-compress-java libcommons-digester-java libcommons-logging-java
  libcommons-parent-java libdb-java libdb-je-java libdb5.1-java
  libdb5.1-java-jni libdconf0 libdevmapper-event1.02.1 libdrm-nouveau1a
  libebackend-1.2-2 libecal-1.2-11 libedata-cal-1.2-15 libedataserver-1.2-16
  libgcr-3-1 libgd2-xpm libgdu0 libglew1.7 libgnome-bluetooth10
  libgnome-desktop-3-2 libgnutls28 libgweather-3-0 libhsqldb-java
  libicu4j-java libimobiledevice2 libjaxp1.3-java libjline-java libjson0
  libjtidy-java libkms1 libllvm3.2 liblucene2-java liblvm2app2.2 libmozjs10d
  libmpc2 libobrender27 libobt0 libparted0debian1 libpostproc52 libproxy0
  libpthread-stubs0 libregexp-java libreoffice-emailmerge libsgutils2-2
  libstdc++6-4.6-dev libswitch-perl libsystemd-daemon0 libtiff4-dev
  libtiffxx0c2 libumfpack5.4.0 libusbmuxd1 libwebp2 libx264-123 libxalan2-java
  libxerces2-java libxml-commons-external-java libxml-commons-resolver1.1-java
  libxmmsclient-glib1 libxmmsclient6 libxz-java openbox-themes
  python-aptdaemon python-aptdaemon.gtk3widgets python-defer python-gconf
  python-glade2 python-gnome2 python-gnupginterface python-notify
  python-pkg-resources python-pyorbit python-software-properties
  ttf-liberation ttf-sil-gentium-basic udisks xmms2-core xmms2-plugin-alsa
  xmms2-plugin-id3v2 xmms2-plugin-mad xmms2-plugin-vorbis xulrunner-10.0
Use 'apt-get autoremove' to remove them.
The following extra packages will be installed:
  alsa-base initscripts kmod libglib2.0-0 libglib2.0-bin libglib2.0-dev
  libgudev-1.0-0 libkmod2 libmount1 libpam-systemd libpcre3 libpcre3-dev
  libpcrecpp0 libsmartcols1 libudev1 mount startpar systemd sysvinit-utils
  udev
Suggested packages:
  libglib2.0-doc nfs-common systemd-ui bootlogd sash
The following NEW packages will be installed:
  libsmartcols1 startpar systemd-sysv
The following packages will be upgraded:
  alsa-base initscripts kmod libglib2.0-0 libglib2.0-bin libglib2.0-dev
  libgudev-1.0-0 libkmod2 libmount1 libpam-systemd libpcre3 libpcre3-dev
  libpcrecpp0 libudev1 mount systemd sysvinit-utils udev
18 upgraded, 3 newly installed, 0 to remove and 1301 not upgraded.
Need to get 11.2 MB of archives.
After this operation, 6,573 kB of additional disk space will be used.
Do you want to continue? [Y/n] Y
Get:1 http://ftp.debian.org/debian/ jessie/main libmount1 armhf 2.25.2-6 [153 kB                                                         ]
Get:2 http://ftp.debian.org/debian/ jessie/main libsmartcols1 armhf 2.25.2-6 [10                                                         4 kB]
Get:3 http://ftp.debian.org/debian/ jessie/main mount armhf 2.25.2-6 [165 kB]
Get:4 http://ftp.debian.org/debian/ jessie/main startpar armhf 0.59-3 [20.2 kB]
Get:5 http://ftp.debian.org/debian/ jessie/main sysvinit-utils armhf 2.88dsf-59                                                          [82.1 kB]
Get:6 http://ftp.debian.org/debian/ jessie/main libpcre3-dev armhf 2:8.35-3.3+de                                                         b8u4 [418 kB]
Get:7 http://ftp.debian.org/debian/ jessie/main libpcrecpp0 armhf 2:8.35-3.3+deb                                                         8u4 [140 kB]
Get:8 http://ftp.debian.org/debian/ jessie/main libpcre3 armhf 2:8.35-3.3+deb8u4                                                          [305 kB]
Get:9 http://ftp.debian.org/debian/ jessie/main libkmod2 armhf 18-3 [41.3 kB]
Get:10 http://ftp.debian.org/debian/ jessie/main alsa-base all 1.0.27+1 [54.3 kB                                                         ]
Get:11 http://ftp.debian.org/debian/ jessie/main kmod armhf 18-3 [78.5 kB]
Get:12 http://ftp.debian.org/debian/ jessie/main systemd-sysv armhf 215-17+deb8u                                                         7 [36.7 kB]
Get:13 http://ftp.debian.org/debian/ jessie/main libpam-systemd armhf 215-17+deb                                                         8u7 [115 kB]
Get:14 http://ftp.debian.org/debian/ jessie/main initscripts armhf 2.88dsf-59 [8                                                         7.0 kB]
Get:15 http://ftp.debian.org/debian/ jessie/main systemd armhf 215-17+deb8u7 [2,                                                         316 kB]
Get:16 http://ftp.debian.org/debian/ jessie/main udev armhf 215-17+deb8u7 [853 k                                                         B]
Get:17 http://ftp.debian.org/debian/ jessie/main libglib2.0-dev armhf 2.42.1-1+b                                                         1 [2,555 kB]
Get:18 http://ftp.debian.org/debian/ jessie/main libglib2.0-bin armhf 2.42.1-1+b                                                         1 [1,334 kB]
Get:19 http://ftp.debian.org/debian/ jessie/main libglib2.0-0 armhf 2.42.1-1+b1                                                          [2,270 kB]
Get:20 http://ftp.debian.org/debian/ jessie/main libgudev-1.0-0 armhf 215-17+deb                                                         8u7 [40.8 kB]
Get:21 http://ftp.debian.org/debian/ jessie/main libudev1 armhf 215-17+deb8u7 [5                                                         3.1 kB]
Fetched 11.2 MB in 5s (2,164 kB/s)
Preconfiguring packages ...
(Reading database ... 132302 files and directories currently installed.)
Preparing to unpack .../libmount1_2.25.2-6_armhf.deb ...
Unpacking libmount1:armhf (2.25.2-6) over (2.20.1-5.5) ...
Setting up libmount1:armhf (2.25.2-6) ...
Processing triggers for libc-bin (2.19-18+deb8u10) ...
Selecting previously unselected package libsmartcols1:armhf.
(Reading database ... 132302 files and directories currently installed.)
Preparing to unpack .../libsmartcols1_2.25.2-6_armhf.deb ...
Unpacking libsmartcols1:armhf (2.25.2-6) ...
Setting up libsmartcols1:armhf (2.25.2-6) ...
Processing triggers for libc-bin (2.19-18+deb8u10) ...
(Reading database ... 132308 files and directories currently installed.)
Preparing to unpack .../mount_2.25.2-6_armhf.deb ...
Unpacking mount (2.25.2-6) over (2.20.1-5.5) ...
Processing triggers for man-db (2.6.5-2) ...
Setting up mount (2.25.2-6) ...
(Reading database ... 132313 files and directories currently installed.)
Preparing to unpack .../sysvinit-utils_2.88dsf-59_armhf.deb ...
Unpacking sysvinit-utils (2.88dsf-59) over (2.88dsf-43) ...
Selecting previously unselected package startpar.
Preparing to unpack .../startpar_0.59-3_armhf.deb ...
Unpacking startpar (0.59-3) ...
Processing triggers for man-db (2.6.5-2) ...
Setting up startpar (0.59-3) ...
Installing new version of config file /etc/init/startpar-bridge.conf ...
(Reading database ... 132320 files and directories currently installed.)
Preparing to unpack .../libpcre3-dev_2%3a8.35-3.3+deb8u4_armhf.deb ...
Unpacking libpcre3-dev:armhf (2:8.35-3.3+deb8u4) over (1:8.31-2) ...
Preparing to unpack .../libpcrecpp0_2%3a8.35-3.3+deb8u4_armhf.deb ...
Unpacking libpcrecpp0:armhf (2:8.35-3.3+deb8u4) over (1:8.31-2) ...
Preparing to unpack .../libpcre3_2%3a8.35-3.3+deb8u4_armhf.deb ...
Unpacking libpcre3:armhf (2:8.35-3.3+deb8u4) over (1:8.31-2) ...
Processing triggers for man-db (2.6.5-2) ...
Setting up libpcre3:armhf (2:8.35-3.3+deb8u4) ...
Processing triggers for libc-bin (2.19-18+deb8u10) ...
(Reading database ... 132351 files and directories currently installed.)
Preparing to unpack .../libkmod2_18-3_armhf.deb ...
Unpacking libkmod2:armhf (18-3) over (9-3) ...
Preparing to unpack .../alsa-base_1.0.27+1_all.deb ...
Moving obsolete conffile /etc/modprobe.d/alsa-base.conf out of the way...
Moving obsolete conffile /etc/modprobe.d/alsa-base-blacklist.conf out of the way                                                         ...
Moving obsolete conffile /etc/default/alsa-base out of the way...
Unpacking alsa-base (1.0.27+1) over (1.0.25+3) ...
Preparing to unpack .../archives/kmod_18-3_armhf.deb ...
Unpacking kmod (18-3) over (9-3) ...
Selecting previously unselected package systemd-sysv.
Preparing to unpack .../systemd-sysv_215-17+deb8u7_armhf.deb ...
Unpacking systemd-sysv (215-17+deb8u7) ...
Replacing files in old package sysvinit (2.88dsf-43) ...
Preparing to unpack .../libpam-systemd_215-17+deb8u7_armhf.deb ...
Unpacking libpam-systemd:armhf (215-17+deb8u7) over (204-5) ...
Preparing to unpack .../initscripts_2.88dsf-59_armhf.deb ...
Unpacking initscripts (2.88dsf-59) over (2.88dsf-43) ...
Processing triggers for man-db (2.6.5-2) ...
Setting up sysvinit-utils (2.88dsf-59) ...
Setting up initscripts (2.88dsf-59) ...
Installing new version of config file /etc/init.d/bootmisc.sh ...
Installing new version of config file /etc/init.d/checkfs.sh ...
Installing new version of config file /etc/init.d/checkroot.sh ...
Installing new version of config file /etc/init.d/checkroot-bootclean.sh ...
Installing new version of config file /etc/init.d/halt ...
Installing new version of config file /etc/init.d/killprocs ...
Installing new version of config file /etc/init.d/mountall.sh ...
Installing new version of config file /etc/init.d/mountall-bootclean.sh ...
Installing new version of config file /etc/init.d/mountnfs.sh ...
Installing new version of config file /etc/init.d/mountnfs-bootclean.sh ...
Installing new version of config file /etc/init.d/mountdevsubfs.sh ...
Installing new version of config file /etc/init.d/mountkernfs.sh ...
Installing new version of config file /etc/init.d/rc.local ...
Installing new version of config file /etc/init.d/reboot ...
Installing new version of config file /etc/init.d/sendsigs ...
Installing new version of config file /etc/init.d/single ...
Installing new version of config file /etc/init.d/umountfs ...
Installing new version of config file /etc/init.d/umountnfs.sh ...
Installing new version of config file /etc/init.d/umountroot ...
Installing new version of config file /etc/network/if-up.d/mountnfs ...
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
(Reading database ... 132345 files and directories currently installed.)
Preparing to unpack .../systemd_215-17+deb8u7_armhf.deb ...
Unpacking systemd (215-17+deb8u7) over (204-5) ...
dpkg: warning: unable to delete old directory '/etc/systemd/system/multi-user.ta                                                         rget.wants': Directory not empty
Preparing to unpack .../udev_215-17+deb8u7_armhf.deb ...
Moving obsolete conffile /etc/udev/links.conf out of the way...
Unpacking udev (215-17+deb8u7) over (204-5) ...
dpkg: warning: unable to delete old directory '/lib/firmware': Directory not empty
Preparing to unpack .../libglib2.0-dev_2.42.1-1+b1_armhf.deb ...
Unpacking libglib2.0-dev (2.42.1-1+b1) over (2.36.4-1) ...
Preparing to unpack .../libglib2.0-bin_2.42.1-1+b1_armhf.deb ...
Unpacking libglib2.0-bin (2.42.1-1+b1) over (2.36.4-1) ...
Preparing to unpack .../libglib2.0-0_2.42.1-1+b1_armhf.deb ...
Unpacking libglib2.0-0:armhf (2.42.1-1+b1) over (2.36.4-1) ...
Preparing to unpack .../libgudev-1.0-0_215-17+deb8u7_armhf.deb ...
Unpacking libgudev-1.0-0:armhf (215-17+deb8u7) over (204-5) ...
Preparing to unpack .../libudev1_215-17+deb8u7_armhf.deb ...
Unpacking libudev1:armhf (215-17+deb8u7) over (204-5) ...
Processing triggers for dbus (1.8.22-0+deb8u1) ...
Processing triggers for man-db (2.6.5-2) ...
Setting up libpcrecpp0:armhf (2:8.35-3.3+deb8u4) ...
Setting up libpcre3-dev:armhf (2:8.35-3.3+deb8u4) ...
Setting up libkmod2:armhf (18-3) ...
Setting up kmod (18-3) ...
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
Setting up alsa-base (1.0.27+1) ...
Removing obsolete conffile /etc/modprobe.d/alsa-base.conf ...
Removing obsolete conffile /etc/modprobe.d/alsa-base-blacklist.conf ...
Removing obsolete conffile /etc/default/alsa-base ...
Setting up libudev1:armhf (215-17+deb8u7) ...
Setting up udev (215-17+deb8u7) ...
Installing new version of config file /etc/init.d/udev ...
Installing new version of config file /etc/init/udev-finish.conf ...
Installing new version of config file /etc/init/udev.conf ...
Installing new version of config file /etc/modprobe.d/fbdev-blacklist.conf ...
Adding group `input' (GID 121) ...
Done.
[ ok ] Stopping the hotplug events dispatcher: udevd.
[ ok ] Starting the hotplug events dispatcher: udevd.
update-initramfs: deferring update (trigger activated)
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'K01exynos5-hwcomposer' missing LSB tags and overrides
insserv: warning: script 'exynos5-hwcomposer' missing LSB tags and overrides
Removing obsolete conffile /etc/udev/links.conf ...
Setting up systemd (215-17+deb8u7) ...
Installing new version of config file /etc/dbus-1/system.d/org.freedesktop.login1.conf ...
Installing new version of config file /etc/dbus-1/system.d/org.freedesktop.systemd1.conf ...
Installing new version of config file /etc/systemd/bootchart.conf ...
Installing new version of config file /etc/systemd/journald.conf ...
Installing new version of config file /etc/systemd/logind.conf ...
Installing new version of config file /etc/systemd/system.conf ...
Installing new version of config file /etc/systemd/user.conf ...
Adding group `systemd-journal' (GID 122) ...
Done.
Created symlink from /etc/systemd/system/getty.target.wants/[email protected] to /lib/systemd/system/[email protected].
Created symlink from /etc/systemd/system/multi-user.target.wants/remote-fs.target to /lib/systemd/system/remote-fs.target.
Created symlink from /etc/systemd/system/reboot.target.wants/hwclock-save.service to /lib/systemd/system/hwclock-save.service.
Created symlink from /etc/systemd/system/halt.target.wants/hwclock-save.service to /lib/systemd/system/hwclock-save.service.
Created symlink from /etc/systemd/system/poweroff.target.wants/hwclock-save.service to /lib/systemd/system/hwclock-save.service.
Setting up systemd-sysv (215-17+deb8u7) ...
Setting up libpam-systemd:armhf (215-17+deb8u7) ...
Setting up libglib2.0-0:armhf (2.42.1-1+b1) ...
Setting up libglib2.0-bin (2.42.1-1+b1) ...
Setting up libglib2.0-dev (2.42.1-1+b1) ...
Setting up libgudev-1.0-0:armhf (215-17+deb8u7) ...
Processing triggers for libc-bin (2.19-18+deb8u10) ...
Processing triggers for initramfs-tools (0.115) ...
/boot/initrd.img-3.8.13.3 does not exist. Cannot update.
Processing triggers for dbus (1.8.22-0+deb8u1) ...
Some new locales have appeared on your system:

tt@iqtelif

They will not be touched until you reconfigure localepurge
with the following command:

    dpkg-reconfigure localepurge

localepurge: Disk space freed in /usr/share/locale: 84 KiB
localepurge: Disk space freed in /usr/share/man: 4 KiB
localepurge: Disk space freed in /usr/share/gnome/help: 0 KiB
localepurge: Disk space freed in /usr/share/omf: 0 KiB

Total disk space freed by localepurge: 88 KiB
Nakda picture Nakda on 20 May 2018

@Fourdee @MichaIng

Just gave it a try this morning. Odroid still not visible on the network since I installed sysv, and I got "no signal" when plugging it to the TV. It's strange because it was working before doing a clean install. I did try to edit boot.ini, to make sure it was outputing to HDMI with a correct resolution, but it didn't help.

I'll investigate and let you know.

Nakda picture Nakda on 21 May 2018

@Nakda
Perhaps the first thing, that you should do with the fresh image, before running DietPi-PREP:

  • Cleaning the system: apt-get update && apt-mark auto gnome lxde openbox localepurge && apt-get autoremove --purge, the more e.g. desktop related packages you can automark/autoremove, the better: apt-mark showmanual
  • Then upgrading all packages to current version: apt-get upgrade
  • Including changed dependencies: apt-get dist-upgrade
  • Cleaning again: apt-get autoremove --purge
  • Check if systemctl runs as expected: systemctl status dbus

DietPi-PREP basically does the same, with the only difference that it assures en_GB.UTF-8 locales first to guarantee correct output scraping and starts a RAMdisk to add DietPi code for some basic bash message and APT related functions. Nothing special needed for this, just systemctl which is a basic functionality of "modern" Debian and should run on every system anyway.

  • As your image is more than 4 years old, there seems something broken in between, or let's say the APT upgrade seems to be not possible without issues with the pre-installed packages.
  • Does systemctl actually work on the fresh image?
MichaIng picture MichaIng on 21 May 2018

@MichaIng
Ok, so I flashed again a fresh image, updated the kernel following the official procedure, and systemctl is not working.

After reaching the apt-get dist-upgrade step you suggested, systemctl status returned

Failed to get D-Bus connection: Unknown error -1

Should I try apt install systemd-sysv once again, since my system is now up-to-date?

EDIT: Actually, after rebooting the systemctl command succeeded !

Do you think I should go for Debian Stretched when asked by DietPi, or stick with Jessie ?

EDIT2: I picked Stretched, just out of curiosity, and it went well. I'm running DietPi! I'll let you know if it runs well the following days. Thanks a lot guys!

Nakda picture Nakda on 21 May 2018
🎉1 👍1

@Nakda
Thanks for testing this. Yes Stretch is preferred, as Jessie support will slowly fade out. The distro upgrade can always cause issues though, similar to the one you faced with systemd, even that it was still Jessie 😉.
But DietPi-PREP at least minimizes risk by purging down to image to a bare minimum. Less packages means less risk that any of them will cause issues/create a non-resolvable dependency loop or something like that. Great that it went well.

If you don't mind and find the time, would you create and share your current upgraded image for other XU owners? I could offer some server for upload in case.

MichaIng picture MichaIng on 22 May 2018
👍1

Yes, sure! Since I'm new to this, would you mind sharing how to create an image of my system? I can probably find a procedure on the Internet but is a specific tool or parameters preferred?

I'll forward you a link to download my image this week!

Nakda picture Nakda on 22 May 2018
❤1

Perhaps @Fourdee can add his image creation procedure best?

I will also add it to: https://github.com/Fourdee/DietPi/issues/1505
And better we enable the github wiki to add info like this, as well as other static info to move them out of "issues"?

MichaIng picture MichaIng on 22 May 2018

@Nakda

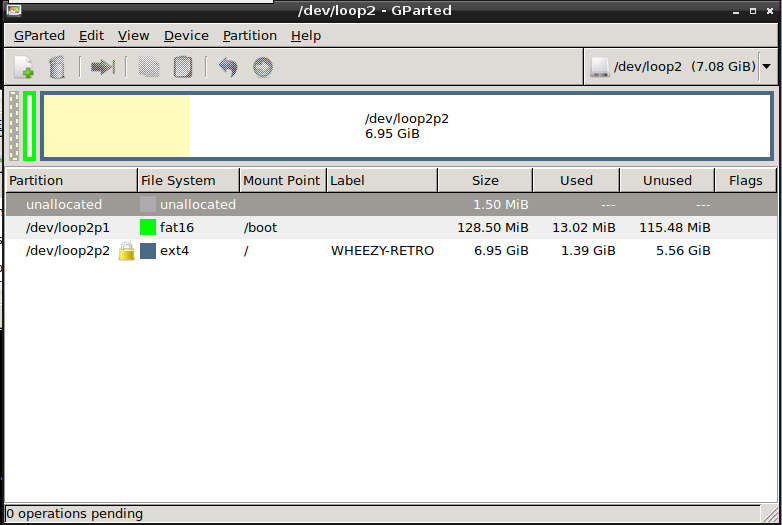

To save to image:

  • Run through PREP and complete it
  • Once PREP is completed, power off the system
  • Read the SDcard to an image file (eg: win32diskimager, or, dd if=/dev/sda of=/myimage.img (where sda is SD card)
  • Save the following script to a file
#!/bin/bash
{

    #check packages are installed
    if (( ! $(dpkg -l | grep -ci -m1 'gparted') )); then

        apt-get install gparted gpart zerofree -y

    fi

    #-------------------------------------------------------------------------------
    #MUST LEAVE 50MB+ space or automation autologin may fail due to 0 free space!!!
    #-------------------------------------------------------------------------------

    IMAGE_FP='/mnt/samba/#Backups/_Daniel/Projects/DietPi'

    IMAGE_NAME='DietPi_v6.8_RPi-ARMv6-Stretch'
    IMAGE_NAME+='.img'

    INDEX_BOOT_PART=1 #rock64 = 6 # comment out for 1 FS images and set INDEX_ROOTFS_PART=1
    INDEX_ROOTFS_PART=2 #rock64 = 7

    if [ ! -f "$IMAGE_FP/$IMAGE_NAME" ]; then

        read -p "No file found..."
        exit

    fi

    #resize2fs /dev/loop2p7 500M
    #dumpe2fs -h /dev/loop2p7 | grep 'Block count'
    #Block count * Block size / 1024 / 1024 =MB?

    modprobe loop
    losetup -f
    losetup /dev/loop2 "$IMAGE_FP/$IMAGE_NAME"
    partprobe /dev/loop2

    if [ -n "$INDEX_BOOT_PART" ]; then

        e2fsck -f /dev/loop2p$INDEX_BOOT_PART

    fi
    e2fsck -f /dev/loop2p$INDEX_ROOTFS_PART

    #Optional, copy
    # mkdir -p /mnt/loop2p1
    # mkdir -p /mnt/loop2p2
    # mount /dev/loop2p$INDEX_BOOT_PART /mnt/loop2p1
    # mount /dev/loop2p$INDEX_ROOTFS_PART /mnt/loop2p2

    # echo -e "\ncopying data to $HOME\n"
    # rm -R $HOME/loop2p1
    # rm -R $HOME/loop2p2

    # cp -R /mnt/loop2p1 $HOME/
    # cp -R /mnt/loop2p2 $HOME/
    # rm -R $HOME/loop2p1/lost+found
    # rm -R $HOME/loop2p2/lost+found

    sync

    umount /mnt/loop2p1
    umount /mnt/loop2p2

    #Resize partitions
    echo -e "\Resize partitions\n"
    gparted /dev/loop2

    sync

    #Mount for file changes, if required
    mkdir -p /mnt/loop2p1
    mkdir -p /mnt/loop2p2
    if [ -n "$INDEX_BOOT_PART" ]; then

        mount /dev/loop2p$INDEX_BOOT_PART /mnt/loop2p1

    fi
    mount /dev/loop2p$INDEX_ROOTFS_PART /mnt/loop2p2

    # echo -e "\nCopying data back\n"
    # cp -R $HOME/loop2p1/* /mnt/loop2p1/
    # cp -R $HOME/loop2p2/* /mnt/loop2p2/

    read -p "Partitions mounted to /mnt/loop2px, make changes to files if required..."

    sync

    umount /mnt/loop2p1
    umount /mnt/loop2p2

    #Resize partitions
    # echo -e "Resize partitions"
    # gparted /dev/loop2

    # sync

    read -p "If failed press CTRL+C to exit and prevent further action, else, press any key to continue..."

    if [ -n "$INDEX_BOOT_PART" ]; then

        zerofree -v /dev/loop2p$INDEX_BOOT_PART

    fi
    zerofree -v /dev/loop2p$INDEX_ROOTFS_PART

    losetup -d /dev/loop2

    END_PARTITION=$(( $(fdisk -l "$IMAGE_FP/$IMAGE_NAME" | grep ".img$INDEX_ROOTFS_PART" | awk '{print $3}') + 1 ))
    END_PARTITION=$(( 512 * ( $END_PARTITION + 128 ) )) #34 bytes for secondary GPT + safety net

    truncate --size=$END_PARTITION "$IMAGE_FP/$IMAGE_NAME"

    echo -e "\nCleaning up $HOME/loop2px\n"
    rm -R $HOME/loop2p1
    rm -R $HOME/loop2p2

    read -p "Done, press any key to continue..."

    exit

}

#ROCK 64 after reading the image AND after shrinking
#to fix:
#   GPT PMBR size mismatch (4458495 != 15523839) will be corrected by w(rite).
#   15523806
#RUN
#gdisk "$IMAGE_FP/$IMAGE_NAME"
#   w | y
#
  • Edit the file,
  • Change IMAGE_FP= to where the directory of the saved image is (eg: /root)
  • Change IMAGE_NAME= to the name of the image you saved (without .img extension)
  • chmod +x script
  • Make sure you are in a desktop env (eg: mate/lxde)
  • Run script
  • Follow on screen instructions
  • When GPARTED loads up. Resize the last partition to the smallest size + 50MB
  • Exit GPARTED and follow onscreen instructions

Once completed, you should have a image ready for writing/compressing.

Fourdee picture Fourdee on 22 May 2018

Thanks @Fourdee ! By chance, do you got any alternative that can be run from a terminal ? I can move the SBC and plug it to the TV if needed, but CLI is more convenient.

Nakda picture Nakda on 24 May 2018

@MichaIng @Fourdee

I played with DietPi for a bit to make sure the system runs well, and it does.

Since I messed a bit with the system, I wanted to do a clean install before creating an image that I'll share with you. Last time, I didn't have my eMMC adapter so I did flash the SD Card.
Today, I wanted to follow the same procedure but targeting the eMMC. Apart from the fact that my root partition had been set to 7 GB while my eMMC is 64GB large, I encountered an error during PREP_SYSTEM_FOR_DIETPI.SH.

Purging configuration files for ucf (3.0030) ...
Processing triggers for libc-bin (2.19-18+deb8u10) ...
Processing triggers for install-info (5.2.0.dfsg.1-6) ...
Processing triggers for udev (215-17+deb8u7) ...
Processing triggers for ca-certificates (20141019+deb8u3) ...
Updating certificates in /etc/ssl/certs... 0 added, 0 removed; done.
Running hooks in /etc/ca-certificates/update.d....done.
Errors were encountered while processing:
 lightdm
E: Sub-process /usr/bin/dpkg returned an error code (1)

[FAILED] DietPi-PREP | G_AGA
[ INFO ] DietPi-PREP | If problems persist, please report this to DietPi for investigation, including a screenshot of this error! (https://github.com/Fourdee/DietPi/issues).

───────────────────────────┤ DietPi Error Handler: ├────────────────────────────

DietPi-PREP: G_AGA
 - Exit code: 100
 - DietPi version: v6.8 | HW_MODEL:22 | HW_ARCH:2 | DISTRO:3
 - Image creator:
 - Pre-image:

Log file contents:
Removing libxrender1:armhf (1:0.9.8-1+b1) ...^M
Purging configuration files for libxrender1:armhf (1:0.9.8-1+b1) ...^M
Removing perl-modules (5.20.2-3+deb8u9) ...^M
Purging configuration files for perl-modules (5.20.2-3+deb8u9) ...^M
Removing dconf-gsettings-backend:armhf (0.22.0-1) ...^M
Removing dconf-service (0.22.0-1) ...^M
Removing libpango-1.0-0:armhf (1.36.8-3) ...^M
Purging configuration files for libpango-1.0-0:armhf (1.36.8-3) ...^M
Removing fontconfig (2.11.0-6.3+deb8u1) ...^M

                                     <Ok>

────────────────────────────────────────────────────────────────────────────────

After selecting "OK" here is the full detail:

#### Details:
- Date           | Thu 24 May 13:35:08 CEST 2018
- DietPi version | v6.8
- Img creator    |
- Pre-image      |
- SBC device     | NULL (index=22)
- Distro         | jessie (index=3)
- Command        | G_AGA
- Exit code      | 100
- Software title | DietPi-PREP

#### Expected behaviour:
<!-- What SHOULD be happening? -->

#### Actual behaviour:
<!-- What IS happening? -->

#### Steps to reproduce:
<!-- Explain how to reproduce the issue -->

#### Additional Information:
<!-- if applicable -->

#### Additional logs:

Log file contents:
Removing libxrender1:armhf (1:0.9.8-1+b1) ...
Purging configuration files for libxrender1:armhf (1:0.9.8-1+b1) ...
Removing perl-modules (5.20.2-3+deb8u9) ...
Purging configuration files for perl-modules (5.20.2-3+deb8u9) ...
Removing dconf-gsettings-backend:armhf (0.22.0-1) ...
Removing dconf-service (0.22.0-1) ...
Removing libpango-1.0-0:armhf (1.36.8-3) ...
Purging configuration files for libpango-1.0-0:armhf (1.36.8-3) ...
Removing fontconfig (2.11.0-6.3+deb8u1) ...
Purging configuration files for fontconfig (2.11.0-6.3+deb8u1) ...
Removing libfontconfig1:armhf (2.11.0-6.3+deb8u1) ...
Purging configuration files for libfontconfig1:armhf (2.11.0-6.3+deb8u1) ...
Removing fontconfig-config (2.11.0-6.3+deb8u1) ...
Purging configuration files for fontconfig-config (2.11.0-6.3+deb8u1) ...
Removing fonts-liberation (1.07.4-1) ...
Removing libthai0:armhf (0.1.21-1) ...
Purging configuration files for libthai0:armhf (0.1.21-1) ...
Removing libdatrie1:armhf (0.2.8-1) ...
Purging configuration files for libdatrie1:armhf (0.2.8-1) ...
Removing libdconf1:armhf (0.22.0-1) ...
Purging configuration files for libdconf1:armhf (0.22.0-1) ...
Removing libexpat1:armhf (2.1.0-6+deb8u4) ...
Purging configuration files for libexpat1:armhf (2.1.0-6+deb8u4) ...
Removing libfreetype6:armhf (2.5.2-3+deb8u2) ...
Purging configuration files for libfreetype6:armhf (2.5.2-3+deb8u2) ...
Removing libglib2.0-0:armhf (2.42.1-1+b1) ...
Purging configuration files for libglib2.0-0:armhf (2.42.1-1+b1) ...
Removing libpng12-0:armhf (1.2.50-2+deb8u3) ...
Purging configuration files for libpng12-0:armhf (1.2.50-2+deb8u3) ...
Removing libthai-data (0.1.21-1) ...
Removing libx11-6:armhf (2:1.6.2-3+deb8u1) ...
Purging configuration files for libx11-6:armhf (2:1.6.2-3+deb8u1) ...
Removing libx11-data (2:1.6.2-3+deb8u1) ...
Removing libxcb1:armhf (1.10-3+b1) ...
Purging configuration files for libxcb1:armhf (1.10-3+b1) ...
Removing libxau6:armhf (1:1.0.8-1) ...
Purging configuration files for libxau6:armhf (1:1.0.8-1) ...
Removing libxdmcp6:armhf (1:1.1.1-1+b1) ...
Purging configuration files for libxdmcp6:armhf (1:1.1.1-1+b1) ...
Removing ucf (3.0030) ...
Purging configuration files for ucf (3.0030) ...
Processing triggers for libc-bin (2.19-18+deb8u10) ...
Processing triggers for install-info (5.2.0.dfsg.1-6) ...
Processing triggers for udev (215-17+deb8u7) ...
Processing triggers for ca-certificates (20141019+deb8u3) ...
Updating certificates in /etc/ssl/certs... 0 added, 0 removed; done.
Running hooks in /etc/ca-certificates/update.d....done.
Errors were encountered while processing:
 lightdm
E: Sub-process /usr/bin/dpkg returned an error code (1)


--------------------------------------------------------------------

[FAILED] DietPi-PREP | Unable to continue, DietPi-PREP will now terminate.
Nakda picture Nakda on 24 May 2018

@Nakda

By chance, do you got any alternative that can be run from a terminal ? I can move the SBC and plug it to the TV if needed, but CLI is more convenient.

Not currently, I've not found a way to automate the gparted resize yet.
I use a remote desktop (EG: VNC) currently.

I encountered an error during PREP_SYSTEM_FOR_DIETPI.SH.

Strange, try killing the process then manually removing it:

killall -w lightdm
apt-get purge lightdm

If not errors, re-reun prep again, should go through.

Fourdee picture Fourdee on 25 May 2018

@Fourdee

Killing the process and removing it worked! DietPi is successfully installed on the emmc.

I did try to create an image of the system, but I'm stuck following your procedure.

When GPARTED loads up. Resize the last partition to the smallest size + 50MB

The last partition displayed by gparted is root, so I can't resize it.
gparted

It does not detect the full capacity of the emmc card (64GB) so even if I could resize there would be no sufficient space. Should I send you the Win32DiskImager image instead?

EDIT: Successfully restored full emmc capacity thanks to an odroid-utility script.

Nakda picture Nakda on 26 May 2018

@Nakda

It does not detect the full capacity of the emmc card (64GB) so even if I could resize there would be no sufficient space.

Strange, our resize script should do this during 1st run of the device. We'll need to debug, please paste results:

cat /var/tmp/dietpi/logs/fs_partition_resize.log
Fourdee picture Fourdee on 26 May 2018

@Fourdee

Here is the log output:

root@DietPi:~# cat /var/tmp/dietpi/logs/fs_partition_resize.log

Welcome to fdisk (util-linux 2.29.2).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.
Nakda picture Nakda on 26 May 2018

@Nakda @Fourdee
Our first run script just extends drives with /dev/mmcblk or /dev/sda name scheme, but yours is /dev/loop?

You can go through the fdisk steps manually: https://github.com/Fourdee/DietPi/blob/update-rootfs-merge/rootfs/var/lib/dietpi/services/fs_partition_resize.sh#L48-L66
But be careful, as this can break all data on the drive.

fdisk /dev/loop2                #enters partitioning console
p             #will show you the current partition table
d             #will delete a partition to choose
2             #choose second partition to delete
n             #create new partition
p             #set it up as primary partition (should be also offered as default)
2             #give it partition number 2 (should be also offered as default)
              #It should ask you at which sector the partition should start. The offered default should be located just some sectors behind the end of the first partition, so just hit <return> here.
              #Hit return again, to choose the default last sector, which will be the last available.
              #When manually executed it might be necessary to hit again enter to remove ext4 flag or something.
p             #Just to check again the partition table
w             #Write partition table to disk, if everything is fine.
q             #Exit fdisk console
partprobe /dev/loop2           #Inform kernel about partition changes
resize2fs /dev/loop2p2         #Extend the file system to use full new partition size
MichaIng picture MichaIng on 29 May 2018

Further research about /dev/loop devices: https://en.wikipedia.org/wiki/Loop_device

Hmm, I am not familiar with those kind of fs devices, but if I understand it correctly, there need to be somewhere image files containing them. Confusing that there are no other devices found (or just not mounted after boot?) that contain those image files. Also I guess in this case they cannot be expended, as the fs size should be fix within the image file.

MichaIng picture MichaIng on 18 Jun 2018

Initial issue is solved, right? Drive manager detection and fs rewrite script have been reworked in between. DietPi-PREP now needs systemd(-sysv) as pre-requirement. Images which come without systemd, are either too old or too much customized from default Debian/Raspbian. We do not want to automatically apply an init system change, which thus in case needs to be applied by user first, before running DietPi-PREP.

MichaIng picture MichaIng on 29 Jul 2018
👍1
Was this page helpful?
0 / 5 - 0 ratings

Related issues

Invictaz picture Invictaz  ·  3Comments
Fourdee picture Fourdee  ·  3Comments
MichaIng picture MichaIng  ·  3Comments
Fourdee picture Fourdee  ·  3Comments
bhaveshgohel picture bhaveshgohel  ·  3Comments
