Dietpi: Configuration de la sécurité des transports Strict

[ludji49]

Creating a bug report/issue:

Required Information:

• DietPi Version | ```cat /DietPi/dietpi/.version 6.2
• SBC Device (EG: RPi 3)
• Power supply used (EG: 5v 1A RAVpower) yes
• SD card used EG: Sandisk ultra 32 Go

• Distro (EG: Jessie) | françois

  Additional Information (if applicable):

• Software title?

• Can this issue be replicated on a fresh installation of DietPi yes

Expected behaviour:

Actual behaviour:

Steps to reproduce:

Did you submit a dietpi-bugreport?

Extra details:

[ludji49]

would it be possible to get help on this subject
thanks
http://dietpi.com/phpbb/viewtopic.php?f=11&t=2804

[MichaIng]

Answered: http://dietpi.com/phpbb/viewtopic.php?f=11&t=2804&p=11153#p11153

[ludji49]

_I think I have a new problem creating a new certificate._

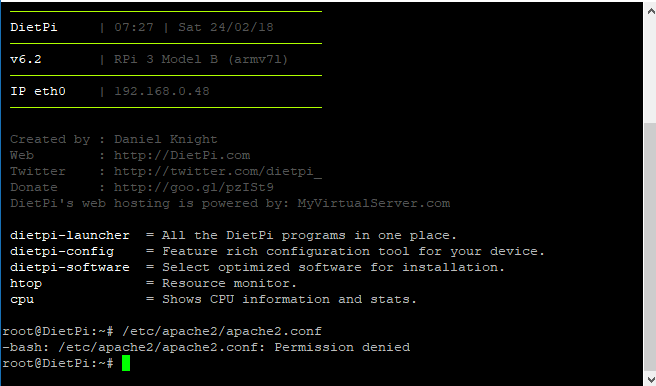

_and following your tuto I don't have permission to modify_

[MichaIng]

@Virusdead49

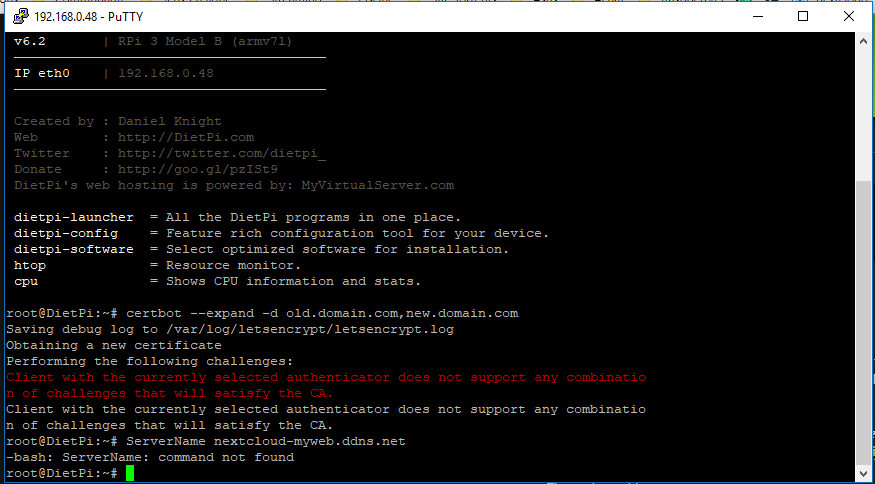

Respect the side note I gave 😉: Please replace the strings old.domain.com and new.domain.com with your actual old and new domain names 🙂. Especially old.domain.com explicitly NEEDs to be exactly the same domain, that you used, when you ran dietpi-letsencrypt first!

If this went fine, then try to access your Nextcloud via new domain. The Apache configuration can be left out, I think. Otherwise to edit those, you need to open via text editor, e.g. nano:
nano /etc/apache2/apache.conf, but you should know what you are doing there, so let me give you some safer replacement commands:

sed -i '/^[[:blank:]]*ServerName/c\ServerName nextcloud-myweb.ddns.net/' /etc/apache2/apache2.conf
sed -i '/^[[:blank:]]*ServerName/c\ServerName nextcloud-myweb.ddns.net/' /etc/apache2/sites-available/000-default.conf
sed -i '/^[[:blank:]]*ServerName/c\ServerName nextcloud-myweb.ddns.net/' /etc/apache2/sites-available/000-default-le-ssl.conf

[ludji49]

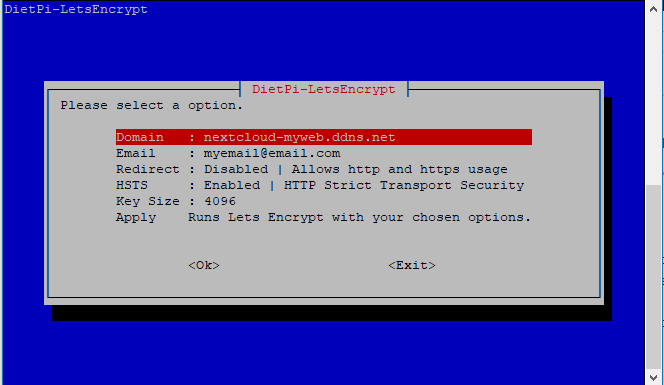

So I wrote down the address on dietpi-letsencrypt, search on google google.
I wrote on the order:
cd /etc/apache2/sites-available-sites
Is

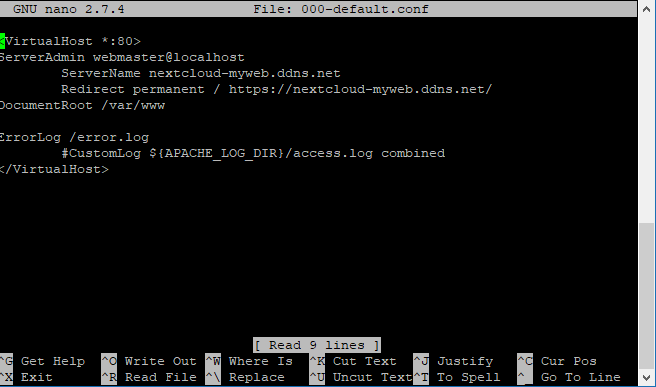

sudo nano 000-default. conf

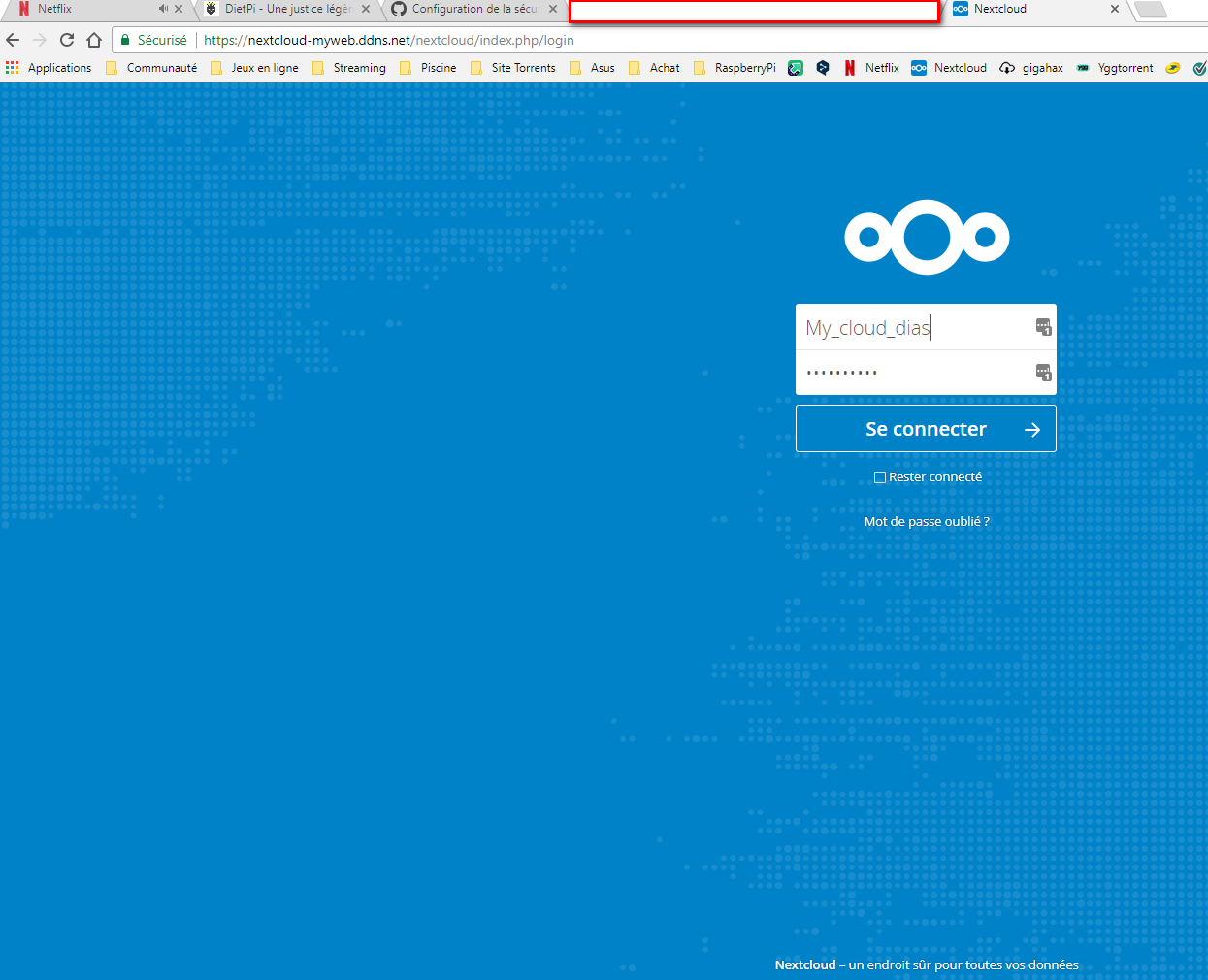

and by writing this command I got the site

[MichaIng]

@Virusdead49
So looks good, the redirection method is not the one, implemented by CertBot by default (via mod_rewrite), but it is even better/native (via mod_alias), if there is no special configuration necessary. I use the same on my server 😉.

I would remove the line ErrorLog /error.log, as this is set already to the more common log files location /var/log/apache2/error.log within /etc/apache2/apache2.conf: https://github.com/Fourdee/DietPi/blob/master/dietpi/conf/apache2_jessie.conf#L18

Btw:
If you only use Nextcloud on your server, and no other web service besides, you could make your Nextcloud reachable via nextcloud-myweb.ddns.net instead of nextcloud-myweb.ddns.net/nextcloud, by changing the Apache2 document root to the nextcloud subfolder:

sed -i '\|^[[:blank:]]*DocumentRoot|c\DocumentRoot /var/www/nextcloud' /etc/apache2/apache2.conf
sed -i '\|^[[:blank:]]*DocumentRoot|c\DocumentRoot /var/www/nextcloud' /etc/apache2/sites-available/000-default.conf
sed -i '\|^[[:blank:]]*DocumentRoot|c\DocumentRoot /var/www/nextcloud' /etc/apache2/sites-available/000-default-le-ssl.conf
sed -i '/^[[:blank:]]*Alias/d' /etc/apache2/sites-available/nextcloud.conf

But this will break other web services and their installations via dietpi-software, as for flexibility we expect and place most web services into their own sub folder.

€: Whoopsie, I accidentally gave you wrong sed commands above 🙈, sorry for that, I corrected them.

[ludji49]

I _just deleted ErrorLog /error. log

Then I have to write it's cmd line._

> sed -i '\|^[[:blank:]]*DocumentRoot|c\DocumentRoot /var/www/nextcloud' /etc/apache2/apache2.conf
> sed -i '\|^[[:blank:]]*DocumentRoot|c\DocumentRoot /var/www/nextcloud' /etc/apache2/sites-available/000-default.conf
> sed -i '\|^[[:blank:]]*DocumentRoot|c\DocumentRoot /var/www/nextcloud' /etc/apache2/sites-available/000-default-le-ssl.conf
> sed -i '/^[[:blank:]]*Alias/d' /etc/apache2/sites-available/nextcloud.conf

[MichaIng]

@ludji49
Jep, of course web server restart afterwards: service apache2 restart, then your web server root should be switched to /nextcloud subdirectory, thus Nextcloud accessible directly at your domain.

One thing to do, if it works correctly, switch Nextcloud cli requests to root as well then:
sed -i 's|localhost/nextcloud|localhost|' /var/www/nextcloud/config/config.php

[ludji49]

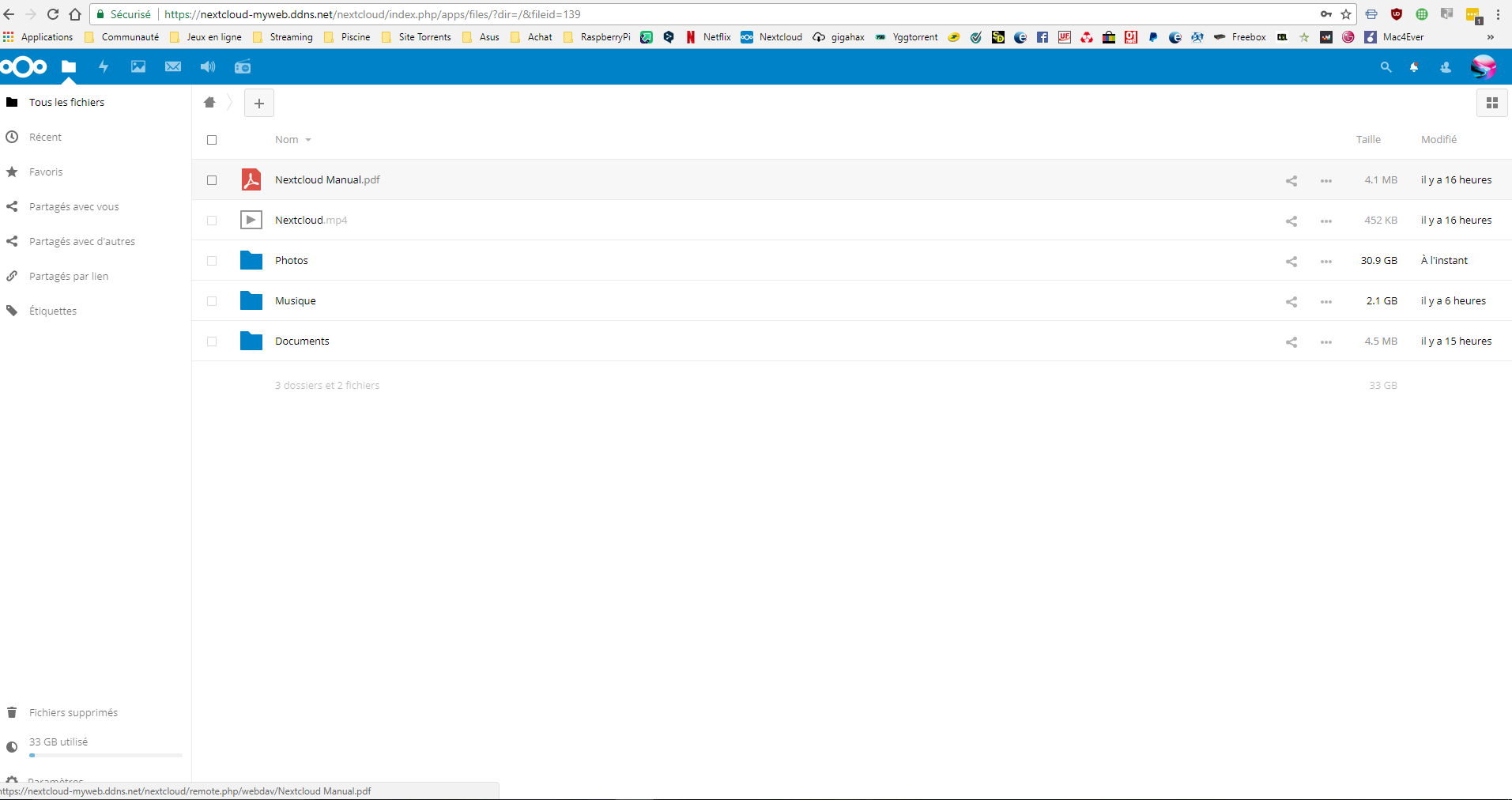

I just put the line commands everything seems to be working normally.
one thing I don't understand: you say
if it works correctly, switch Nextcloud cli requests to root
what I've been through and what to do next
must I place this order
sed -i' s|localhost/nextcloud|localhost|' /var/www/nextcloud/config/config. php"

[MichaIng]

@ludji49
Yes, run this please, otherwise you will see errors in Nextcloud log, on every cron job execution:
sed -i 's|localhost/nextcloud|localhost|' /var/www/nextcloud/config/config.php

[ludji49]

Thank you a lot for your valued assistance

I have another question about nextcloud cache memory.

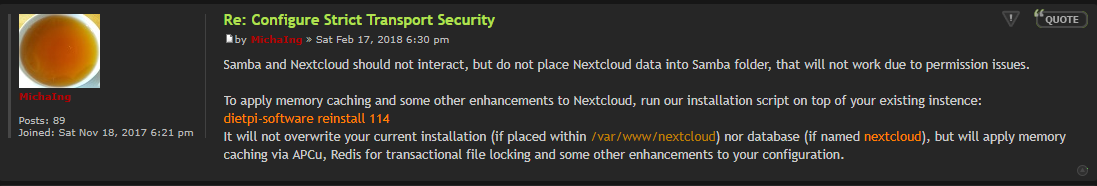

on page 2 of the forum, except this procedure doesn't work I still have this message

_my second question_

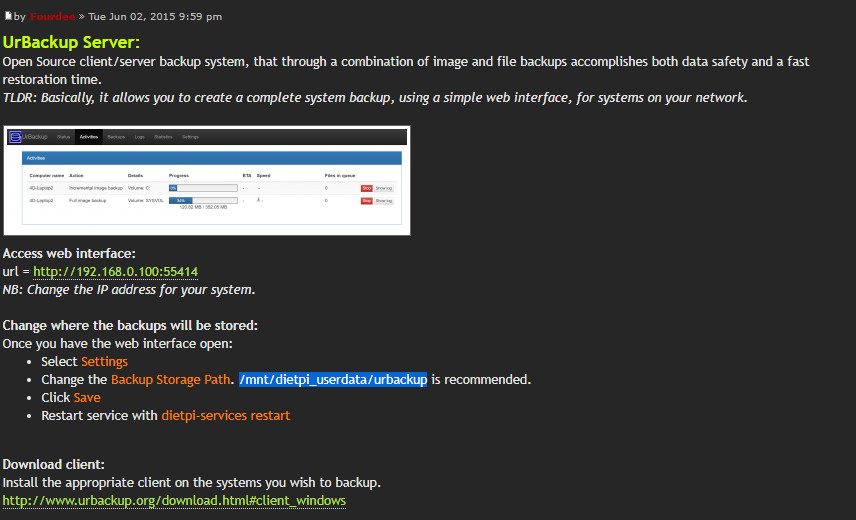

How UrBackup server works
as a precaution if an error this product I would like to save but given.

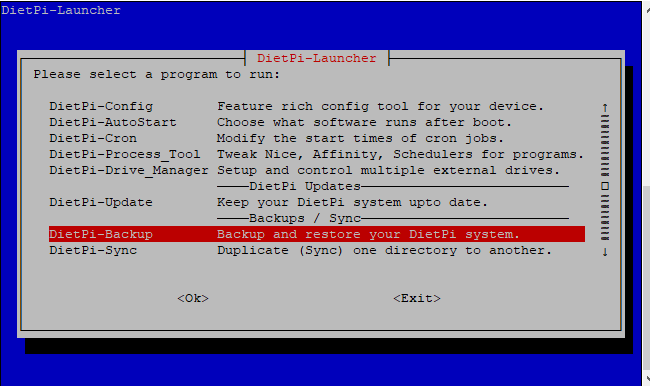

I have tried to back up by your programs and twice I crash my dietpi server.
In my opinion I save on my card sd instead of on my USB disk.

[MichaIng]

@ludji49
About memory caching:
Could you please copy&paste the content of your /var/www/nextcloud/config/config.php? Leave private information, passwords etc. out of course.

About dietpi-backup:

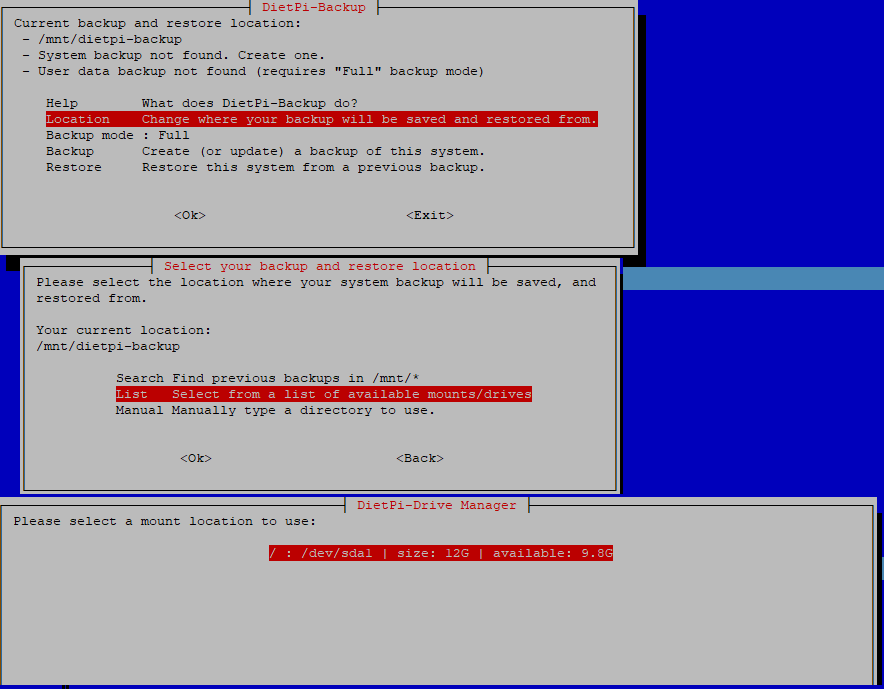

By default the backup will be stored within /mnt/dietpi-backup, which is indeed on your SD card. Please select dietpi-backup > Location > List, where you should see all mounted drives, including your USB drive. Select it and run backup. The backup should be stored on your USB drive within dietpi-backup/ folder.

[ludji49]

copy&paste the content of your /var/www/nextcloud/config/config.php
Do I need to remove my SD card?

[MichaIng]

@ludji49
Nope, leave your SD card in place, just do

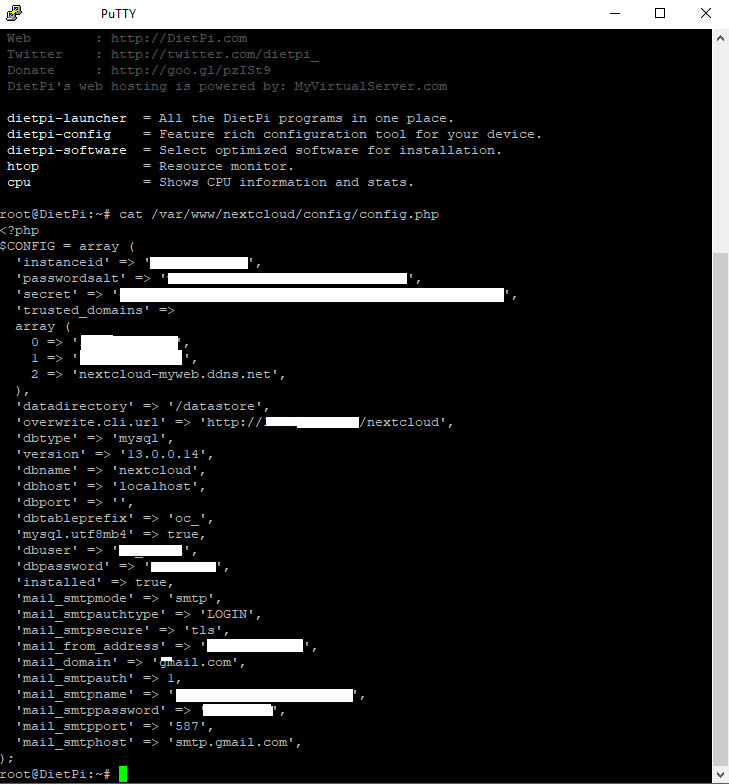

cat /var/www/nextcloud/config/config.php and paste the text output on your terminal here, erasing sensible information.

[ludji49]

_here but information_

[MichaIng]

@ludji49
Huh, okay, yeah I see now the problem. The guide you used (https://www.novaspirit.com/2018/01/19/raspberry-pi-owncloud-install-with-diet-pi/) is outdated (even that it was posted not too long ago), in terms that it suggests to do all the database creation and userdata manually, outside of dietpi_userdata. Since end of last year already, this is not necessary any more, furthermore the steps from the guide make it difficult to recreate intended installation state of ownCloud/Nextcloud, the deletion of /var/www/owncloud/config/config.php purge all settings and optimizations: memory cache, redis file locking and some others...
I left a comment about that and hope for rework.

Okay let me see how to fix this best for you:

sed -i '\|SOFTWARE_NEXTCLOUD_DATADIR|c\SOFTWARE_NEXTCLOUD_DATADIR=/datastore' /DietPi/dietpi.txt
sed -i "\|'overwrite.cli.url'|c\  'overwrite.cli.url' => 'https://nextcloud-myweb.ddns.net'," /var/www/nextcloud/config/config.php
dietpi-software reinstall 114

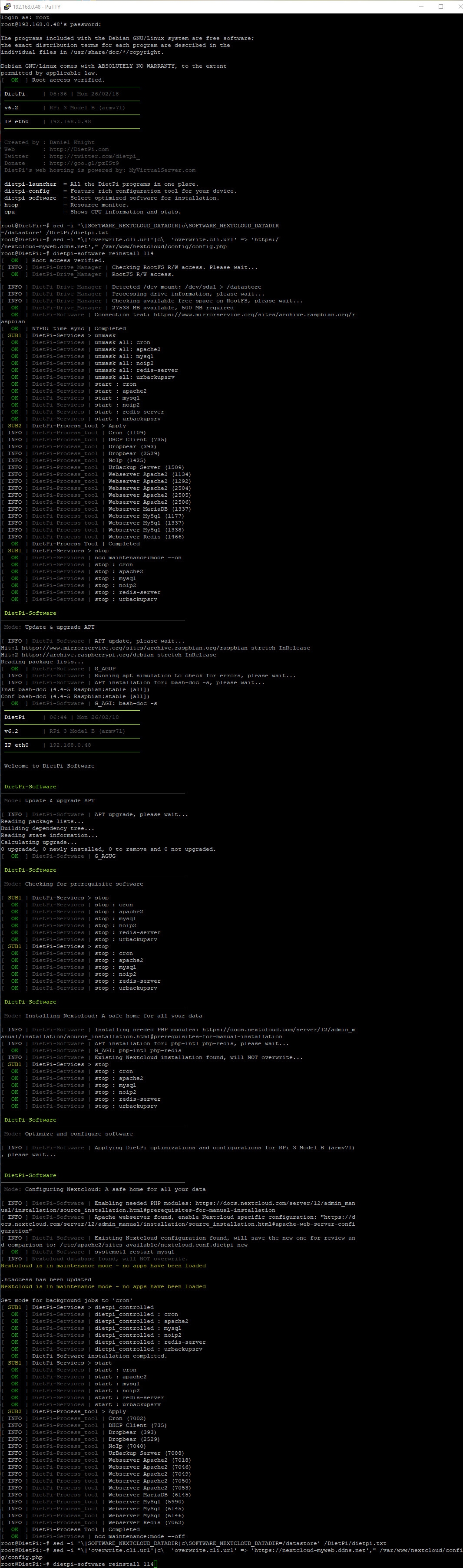

Please report, if you see any error message of failure within reinstallation process. But as far as I reviewed the guide and our installation script, this should work well.

[ludji49]

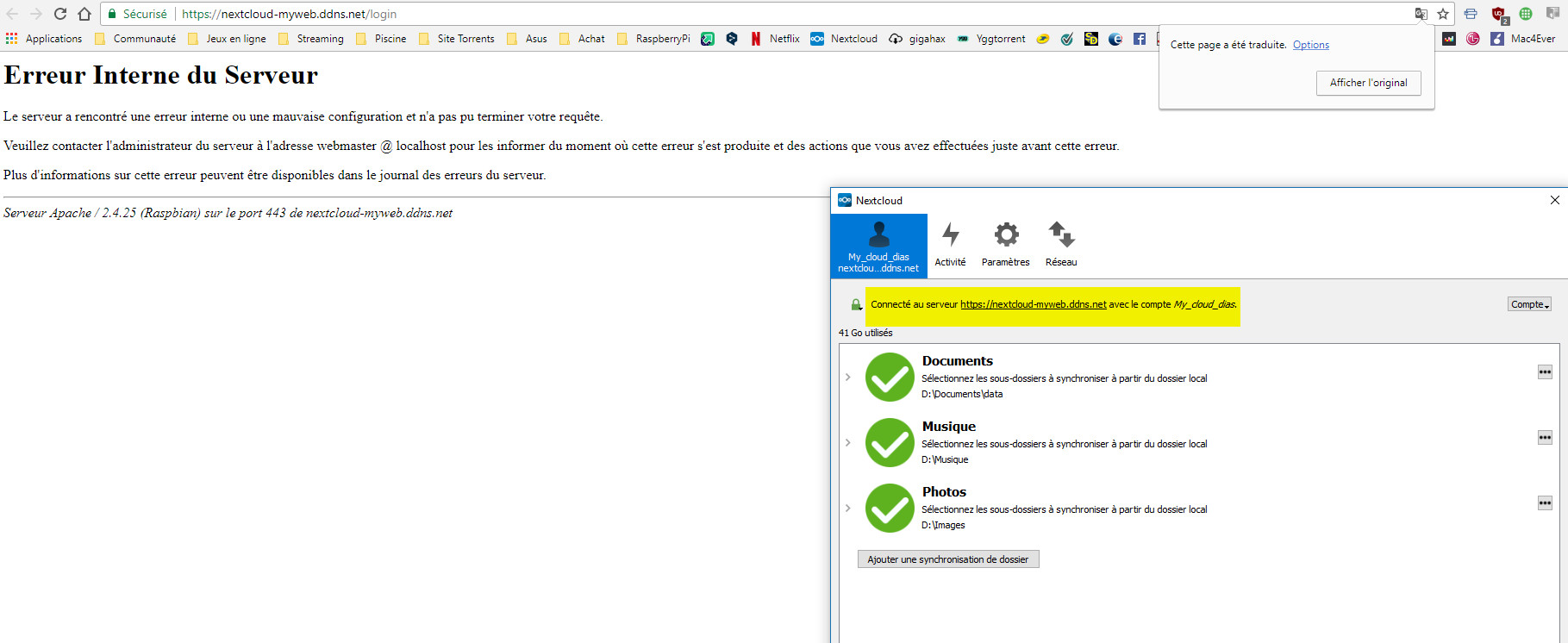

I have the page but it doesn't open.

and if I go through the windows software I have an error

[MichaIng]

@ludji49
Okay installation looks good, access via https generally works (webserver works), this seems to be now some left PHP/Nextcloud config issue:

Could you please give output of:

php -m
cat /var/www/nextcloud/config/config.php
tail /var/log/apache2/error.log
tail /datastore/nextcloud.log

[ludji49]

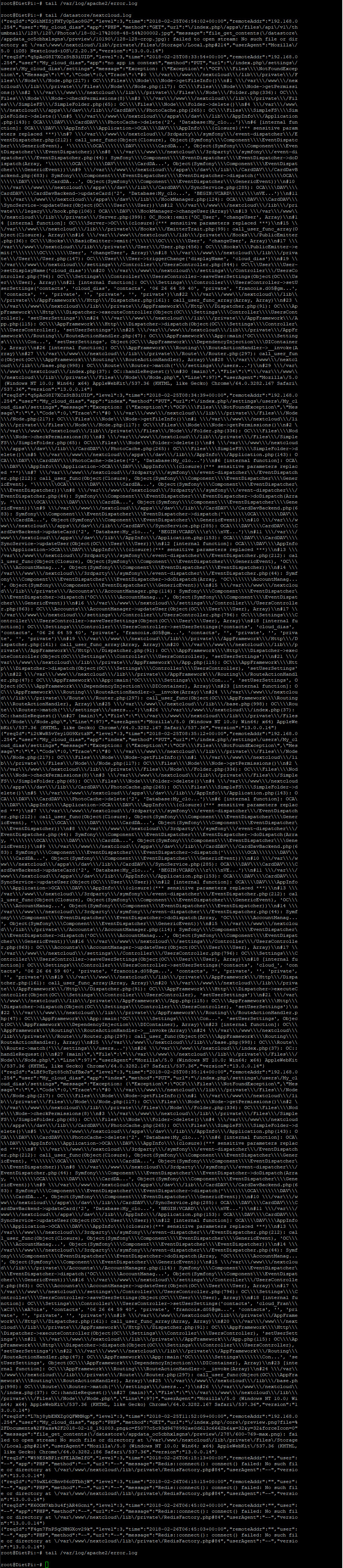

Here is the result

[MichaIng]

@ludji49

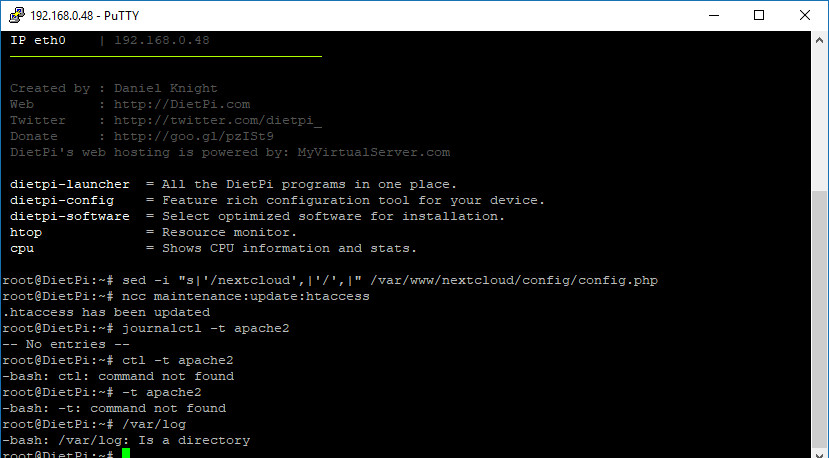

€: Ah found one issue in combination with nextcloud in web server root, do:
sed -i "s|'/nextcloud',|'/',|" /var/www/nextcloud/config/config.php
ncc maintenance:update:htaccess

---

Hmm no current error. Your apache error log seems on a different location? Check out /var/log where it is or try
journalctl -t apache2

Otherwise maybe it's just browser cache: try ctrl+F5 to force reload with clearing browser cache.

[ludji49]

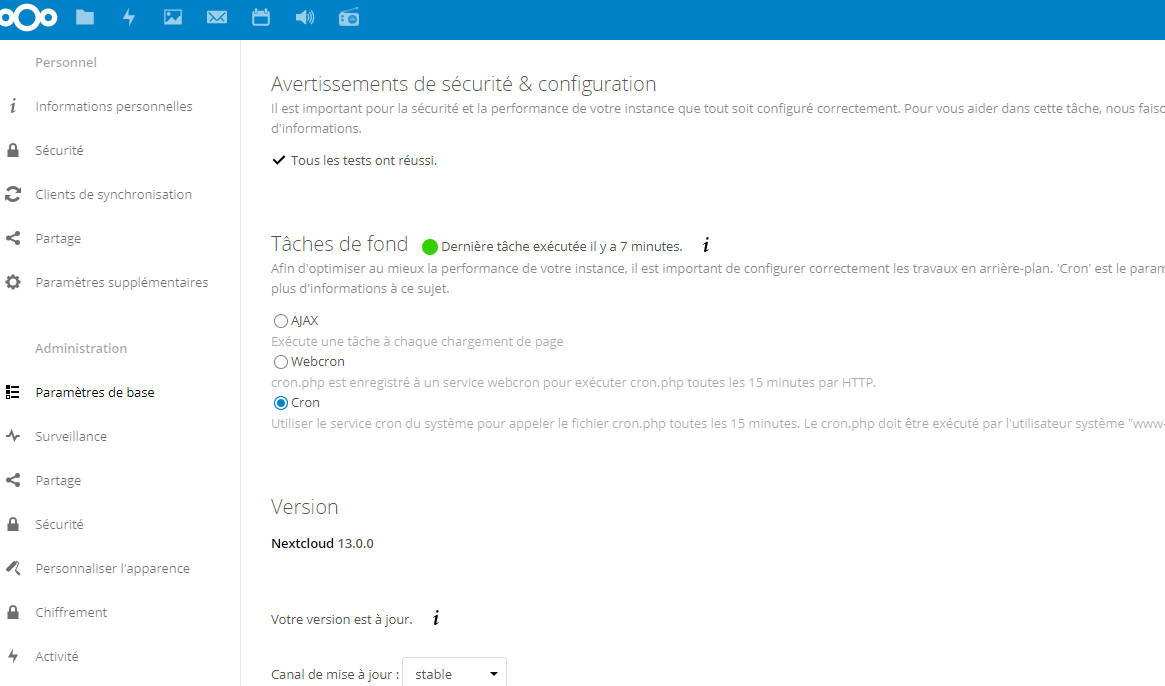

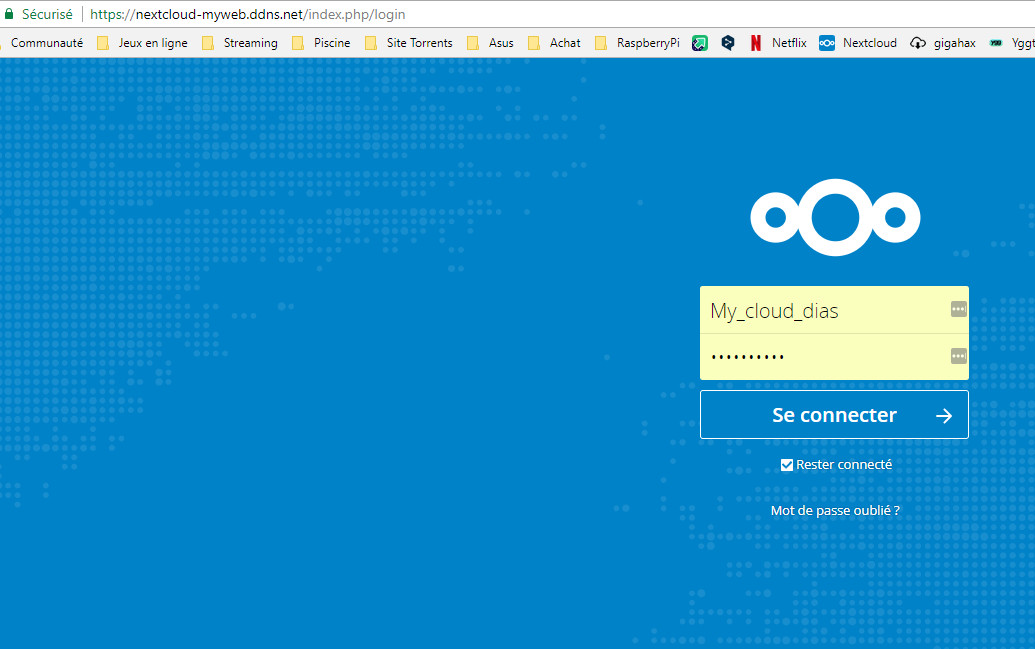

by putting this line the site is open + /var/log
sed -i "s|'/nextcloud',|'/',|" /var/www/nextcloud/config/config.php

[ludji49]

everything all right?

For my backup is it possible to send it to a USB flash drive instead of my 1t hard disk or is it advisable to send it to my disk?
I tried to make a backup by my USB flash drive it didn't work because it isn't mounted in ext4 and that's not what I'm doing and I don't know the command line.
I don't insist before I crash the Dietpi Server I come to you for advice.

And will it be possible for you to write me or email me the right lines for a nexcloud installation on a hard drive, if one day I ever have trouble that I can manage on my own.
Like https://www.novaspirit.com/2018/01/19/raspberry-pi-owncloud-install-with-diet-pi/ has the wrong line.

[MichaIng]

@ludji49
Ah great finally 😄.
As this, making Nextcloud available directly on domain, instead of my.domain.org/nextcloud is a usual reasonable wish, I will collect the necessary steps here.
But as this currently breaks other web service software we offer (relying on web server root at /var/www), we need to make this clear, with need to revert the previous steps to re-enable installation of other web software

---

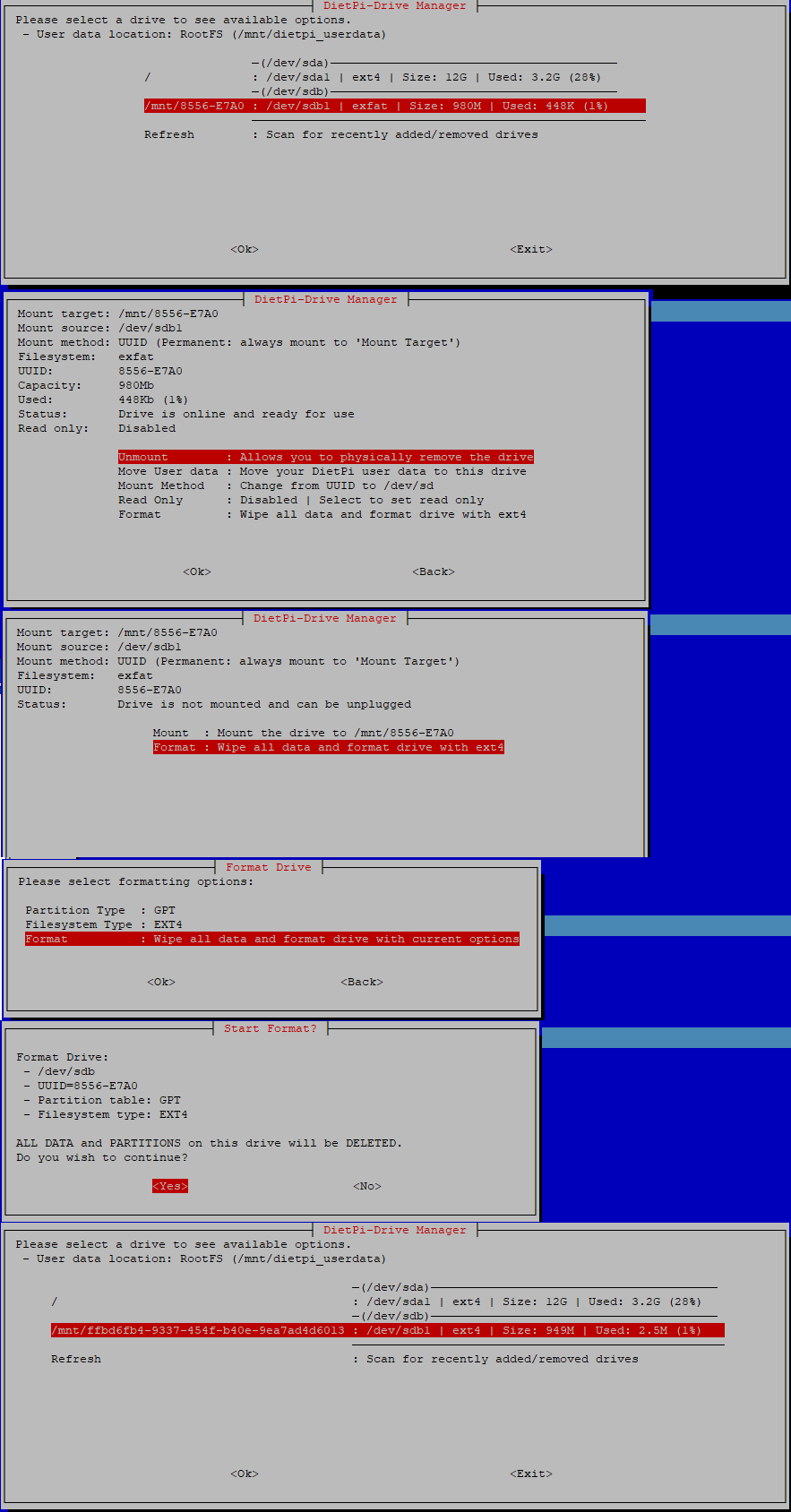

To format your USB flash drive, start:
dietpi-drive_manager

Select your USB flash there, assure that it is really the desired USB drive not root, boot or your nextcloud data storage 😉. Then you can format there to ext4 filesystem.

[ludji49]

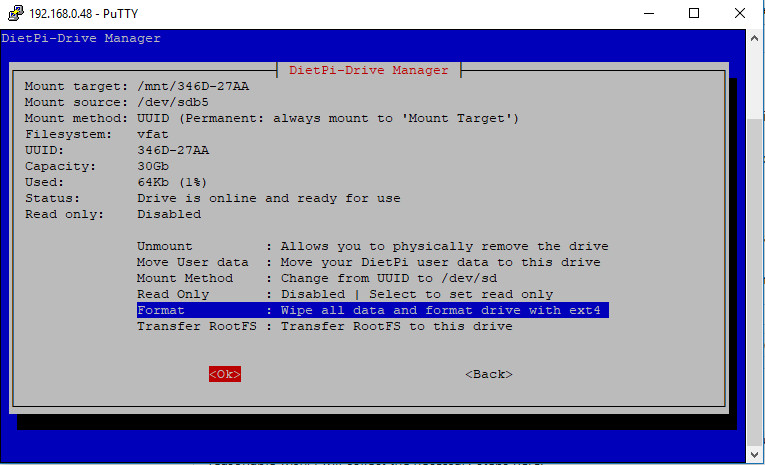

_format my USB flash drive:_
_But after formatting my USB flash drive is still not in ext4_

[MichaIng]

@ludji49
You first need to unmount the drive, as noted on the screen, after hitting "Format" 😉.
Select "Unmount" above first, then "Format".

I guess the mount point gets changed, thus within dietpi-backup afterwards, you need to select the Location again.

---

@Fourdee
Why dietpi-drive_manager does not support VMs? Works very well on my VirtualBox, I commented blocking code in script.
What I am missing actually is the possibility to individually set the mount point, at least within /mnt 🙂.

[ludji49]

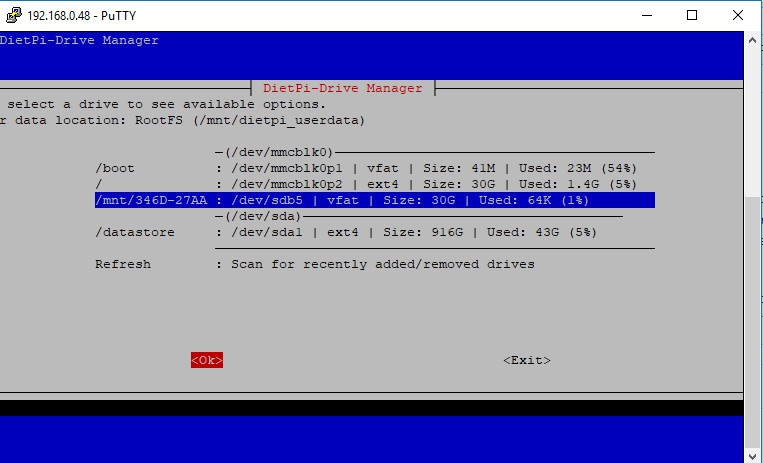

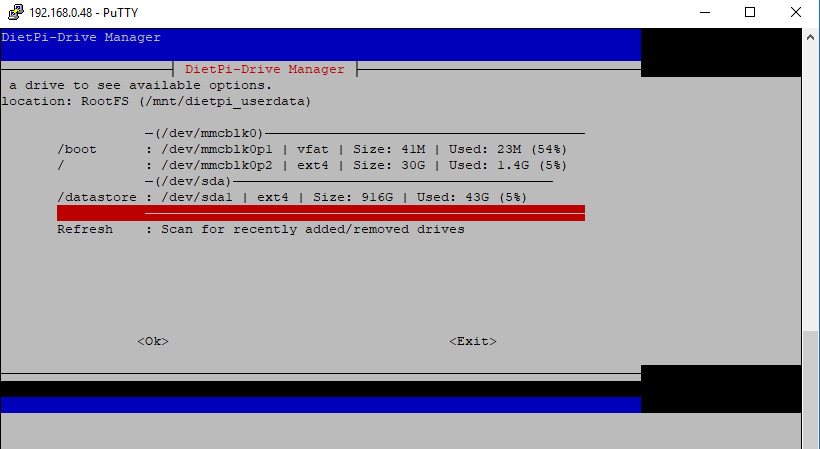

Hi, I can't see my flash drive anymore.

[MichaIng]

@ludji49

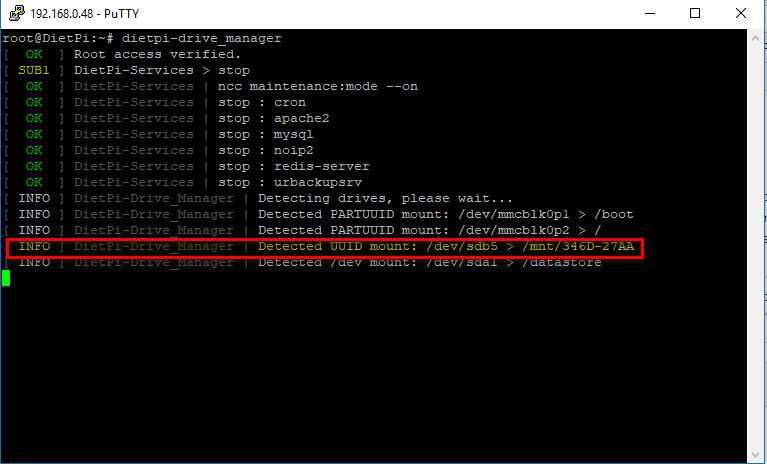

Ah, jep after unmounting, if you are going back into overview, you see just the mounted drives. Exit drive manager, then remount:
mount /dev/sdb5 /mnt/346D-27AA
dietpi-drive_manager
then do the same, BUT: after unmount the drive, directly go on format:

[ludji49]

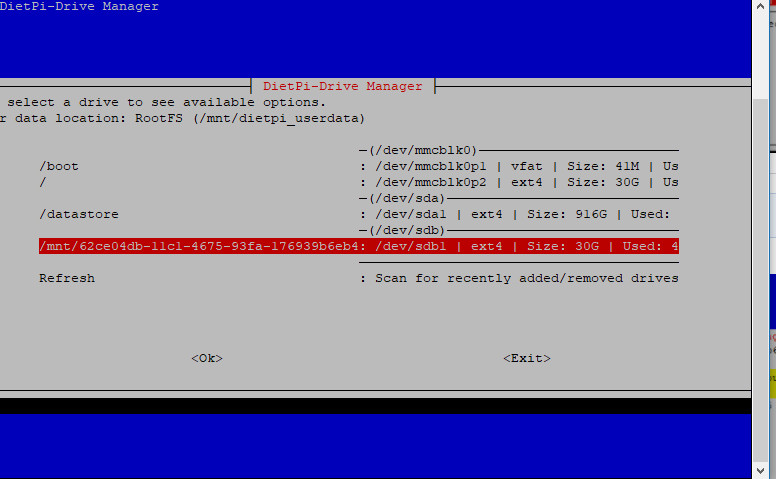

I did it again from the beginning, according to you.

[MichaIng]

@ludji49

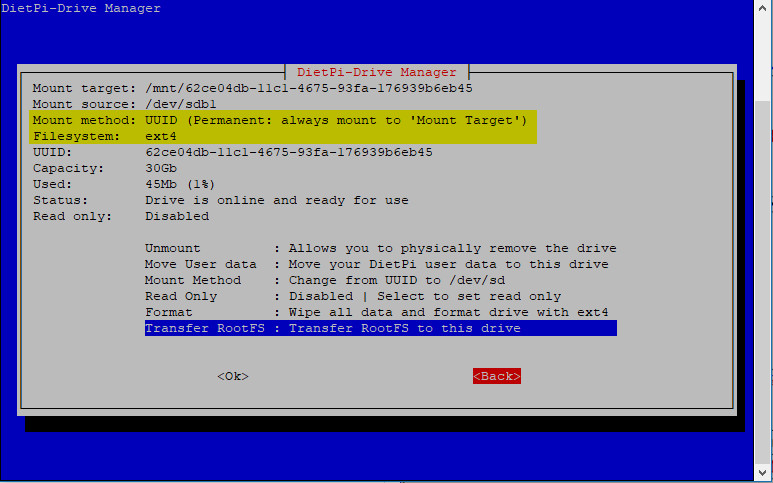

Jep 👍. As you can see, the name/mount point of the drive has changed into a long so called "UUID". You have to reset your backup location to this according: https://github.com/Fourdee/DietPi/issues/1554#issuecomment-368311492

[ludji49]

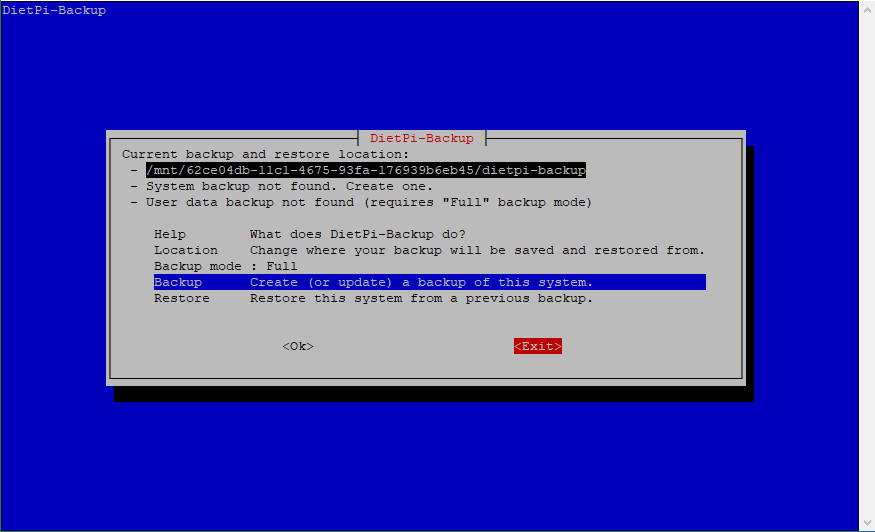

Hi, tell me if I'm on the right track.

[MichaIng]

@ludji49
Jep that is right

[ludji49]

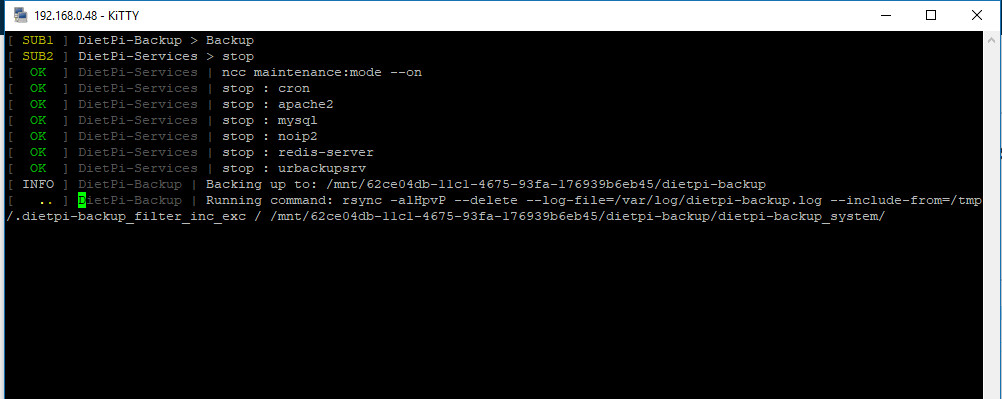

He's working, I hope it'll be good and no mistakes.

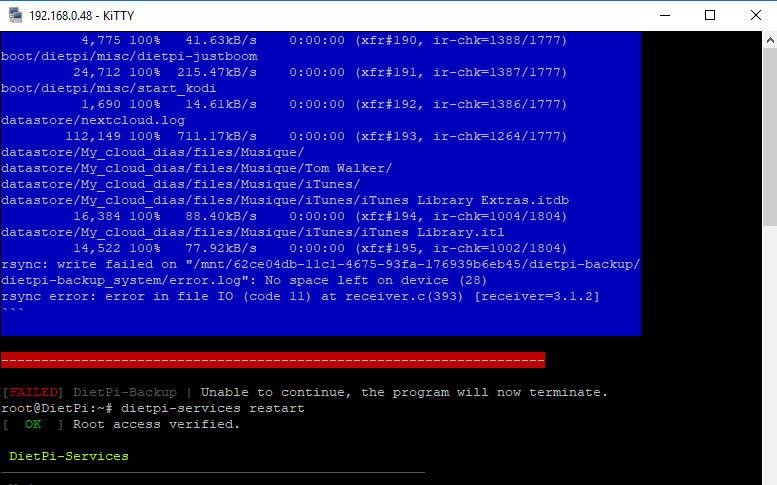

I have mistakes

[ludji49]

Do you think that this program is useful or not I installed it with all my programs like nextcloud, apache.........

as we see the picture above.

[MichaIng]

@ludji49
Your USB flash drive has not enough space to take whole system backup + Nextcloud data. Actually I see now the issue with placing Nextcloud data directory mount point to /datastore instead of into usual mount point location /mnt/.... The backup tries to copy your whole Nextcloud data onto the USB flash drive as well.

But dietpi-backup has an own include/exclude method: http://dietpi.com/phpbb/viewtopic.php?f=8&t=5&p=256#p255
In your case, do the following:

echo '/datastore' >> /DietPi/dietpi/.dietpi-backup_exclude
rm -R /mnt/62ce04db-11c1-4675-93fa-176939b6eb45/*
dietpi-backup 1

Or do you actually want to backup your Nextcloud data as well? In this case I would recommend a separate external hard drive, as I can see your Nextcloud data drive has 1 GB size 😉.

---

UrBackup, if I get it right, only makes sense, if you want to backup several other NAS/server/storage devices initialized from your RPi. For only doing backups of the system, UrBackup is installed on, it is an overkill from my point of view.
But in case just try it out, maybe it suites you. I never used it, so can't say more 😉.

[MichaIng]

I'll mark this as closed, as TOs issues have been resolved. Feel free to reopen if needed.
