DietPi-Config | DietPi - Filesystem benchmarks - RAM | Fails on devices without /tmp mounted as tmpfs
Creating a bug report/issue:

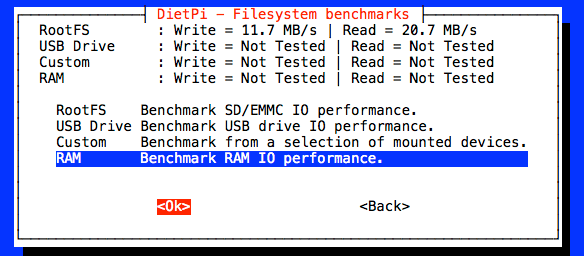

Fail to execute: DietPi - Filesystem benchmarks - RAM
(EE): Insufficient space to run RAM filesystem benchmark.
- Available space: -10 MB
- Space required: 10 MB
Press any key to continue.....
Required Information:
DietPi Version |
v 155SBC Device |
NanoPi Neo (armv7l)
───────────────────────────────────────
DietPi | 14:50 | Sun 03/09/17
───────────────────────────────────────
V155 | NanoPi Neo (armv7l)
───────────────────────────────────────
Power supply used :
5.1V / 2.5A - Official Raspberry Pi Power Supply (Stontronics)SD card used :
Verbatim 8GB Class 10 Micro SDHCDistro (EG: Jessie) |
Linux NanoPi-Neo 3.4.113-sun8i # 18 SMP PREEMPT Thu Jun 15 02:16:06 CEST 2017 armv7l GNU/Linux
Additional Information (if applicable):
- Can this issue be replicated on a fresh installation of DietPi?
Yes
Expected behaviour:
Actual behaviour:
(EE): Insufficient space to run RAM filesystem benchmark.
- Available space: -10 MB
- Space required: 10 MB
Press any key to continue.....
Steps to reproduce:
root@NanoPi-Neo:~# dietpi-config 12
Extra details:
root@NanoPi-Neo:~# cat /proc/meminfo
MemTotal: 506768 kB
MemFree: 410400 kB
Buffers: 2292 kB
Cached: 25200 kB
SwapCached: 0 kB
Active: 52140 kB
Inactive: 19560 kB
Active(anon): 44212 kB
Inactive(anon): 11276 kB
Active(file): 7928 kB
Inactive(file): 8284 kB
Unevictable: 0 kB
Mlocked: 0 kB
HighTotal: 0 kB
HighFree: 0 kB
LowTotal: 506768 kB
LowFree: 410400 kB
SwapTotal: 1591292 kB
SwapFree: 1591292 kB
Dirty: 268 kB
Writeback: 0 kB
AnonPages: 44328 kB
Mapped: 16172 kB
Shmem: 11284 kB
Slab: 11812 kB
SReclaimable: 3960 kB
SUnreclaim: 7852 kB
KernelStack: 704 kB
PageTables: 1092 kB
NFS_Unstable: 0 kB
Bounce: 0 kB
WritebackTmp: 0 kB
CommitLimit: 1844676 kB
Committed_AS: 150476 kB
VmallocTotal: 499712 kB
VmallocUsed: 17076 kB
VmallocChunk: 253036 kB
cu
k-plan
k-plan
All 10 comments
@k-plan
Thanks for the report 👍
This is a limitation with the way we benchmark memory. We use the /tmp directory for the benchmark, which is mounted to RAM. It has a fixed size in most cases (usually 50% of total RAM), and we rely on a filesystem (of some kind) for all tests.
Command used to calc available space for RAM test (returns MB):
df -m | grep -m1 '/tmp' | awk '{print $4}'
I'am unable to think of another method we could use, that does not rely on a file-system /tmp (mounted to RAM) :frowning_face:
Fourdee
on 3 Sep 2017
@Fourdee
Okay.
Sorry, but then I don't understand, why dietpi-config 12 => RAM works in previous versions of DietPi .
_< be at a loss >_
k-plan
on 6 Sep 2017
@Fourdee
Command used to calc available space for RAM test (returns MB):
df -m | grep -m1 '/tmp' | awk '{print $4}'
Yes, sorry, and this is part of the problem.
There is no 'tmp' (in RAM 'tmpfs')
Notice this first on both of my Allwinner H3 ARMbian based devices.
root@NanoPi-Neo:~# df -m | grep -m1 '/tmp' | awk '{print $4}'
root@NanoPi-Neo:~#
root@NanoPi-Neo:~# df -h
Dateisystem Größe Benutzt Verf. Verw% Eingehängt auf
/dev/mmcblk0p2 3,6G 1,3G 2,4G 35% /
udev 10M 0 10M 0% /dev
tmpfs 99M 4,5M 95M 5% /run
tmpfs 248M 0 248M 0% /dev/shm
tmpfs 5,0M 0 5,0M 0% /run/lock
tmpfs 248M 0 248M 0% /sys/fs/cgroup
tmpfs 10M 1,4M 8,7M 14% /DietPi
tmpfs 20M 72K 20M 1% /var/log
/dev/mmcblk0p1 64M 18M 47M 27% /boot
tmpfs 50M 0 50M 0% /run/user/999
Same behaviour with RPi Zero W:
root@RPi-Zero-W:~# df -m | grep -m1 '/tmp' | awk '{print $4}'
root@RPi-Zero-W:~#
root@RPi-Zero-W:~# df -h
Filesystem Size Used Avail Use% Mounted on
/dev/root 3.6G 758M 2.8G 22% /
devtmpfs 237M 0 237M 0% /dev
tmpfs 241M 0 241M 0% /dev/shm
tmpfs 241M 4.3M 237M 2% /run
tmpfs 5.0M 0 5.0M 0% /run/lock
tmpfs 241M 0 241M 0% /sys/fs/cgroup
tmpfs 10M 1.5M 8.6M 15% /DietPi
tmpfs 20M 28K 20M 1% /var/log
/dev/mmcblk0p1 63M 23M 41M 36% /boot
Cross-check:
RPi3
root@RPi3:~# df -m | grep -m1 '/tmp' | awk '{print $4}'
470
root@RPi3:~# df -h
Dateisystem Größe Benutzt Verf. Verw% Eingehängt auf
/dev/root 15G 4,6G 9,7G 32% /
devtmpfs 466M 0 466M 0% /dev
tmpfs 470M 0 470M 0% /dev/shm
tmpfs 470M 6,4M 464M 2% /run
tmpfs 5,0M 4,0K 5,0M 1% /run/lock
tmpfs 470M 0 470M 0% /sys/fs/cgroup
tmpfs 10M 1,5M 8,6M 15% /DietPi
tmpfs 20M 32K 20M 1% /var/log
tmpfs 470M 32K 470M 1% /tmp
/dev/mmcblk0p1 63M 23M 41M 36% /boot
tmpfs 94M 0 94M 0% /run/user/0
and
Odroid C2 (and Odroid C1)
root@Odroid-C2:~# df -m | grep -m1 '/tmp' | awk '{print $4}'
860
root@Odroid-C2:~# df -h
Filesystem Size Used Avail Use% Mounted on
/dev/mmcblk0p2 15G 1.6G 13G 11% /
udev 10M 0 10M 0% /dev
tmpfs 344M 15M 330M 5% /run
tmpfs 860M 0 860M 0% /dev/shm
tmpfs 5.0M 0 5.0M 0% /run/lock
tmpfs 860M 0 860M 0% /sys/fs/cgroup
tmpfs 10M 1.2M 8.9M 12% /DietPi
tmpfs 20M 3.8M 17M 19% /var/log
tmpfs 860M 0 860M 0% /tmp
/dev/mmcblk0p1 128M 46M 82M 36% /boot
root@Odroid-C2:~#
But better we close this old issue.
k-plan
on 7 Dec 2017
Please reopen, if needed or someone will work on it. Thanks.
k-plan
on 8 Dec 2017
@k-plan
Yes, sorry, and this is part of the problem.
There is no 'tmp' (in RAM 'tmpfs')
Notice this first on both of my Allwinner H3 ARMbian based devices.
Yep, we disable /tmp as RAM for <= 512MB devices, during 1st run: https://github.com/Fourdee/DietPi/issues/1027
Fourdee
on 8 Dec 2017

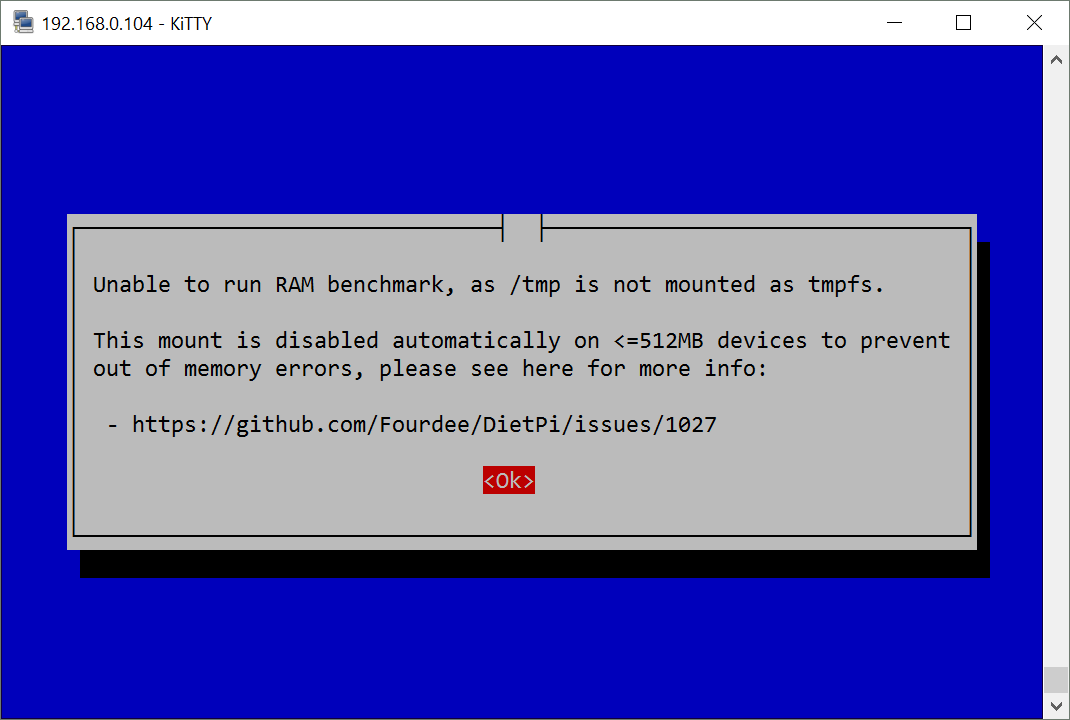

I'll add a check in for /tmp as tmpfs before allowing to run RAM bench.
Fourdee
on 8 Dec 2017
@Fourdee
👍 thanks for the link! 😃
😢 who the hell needs Microsoft's .NET Framework on his linux SBC ?
I'm happy to to be rid of this on my desktop ! 👍 😄
Will be nice you disable this for the affected devices. 👏
k-plan
on 8 Dec 2017
Fourdee
on 8 Dec 2017
Wow, that was now a super quick fix after 4 month!
Many thanks! 💯 👍
k-plan
on 8 Dec 2017
🈯️ Tested on RPi Zero.
Completed.
Fourdee
on 8 Dec 2017
