Detectron2: Incorrect output from pairwise_iou_rotated

[alekseynp]

I believe I have found a bug in pairwise_iou_rotated. Of course it could be that the visualizer is wrong, but I don't think that's the case.

Instructions To Reproduce the Issue:

import cv2
import numpy as np
import torch

from detectron2.structures import Instances, pairwise_iou_rotated, RotatedBoxes
from detectron2.utils.visualizer import Visualizer

boxes1 = torch.tensor([[160.0, 153.0, 230.0,  23.0, -37.0]], device='cuda')
boxes2 = torch.tensor([[190.0, 127.0,  80.0,  21.0, -46.0]], device='cuda')
print(pairwise_iou_rotated(RotatedBoxes(boxes1), RotatedBoxes(boxes2)))

instances = Instances((300, 300))
instances.pred_boxes = torch.cat((boxes1, boxes2)).cpu()
instances.scores = torch.tensor([1.0, 1.0])
instances.pred_classes = torch.tensor([0, 0])

viz = Visualizer(np.full((300, 300, 3), 127, dtype=np.uint8), {'thing_classes': ['thing']})
image = viz.draw_instance_predictions(instances).get_image()[:, :, ::-1]

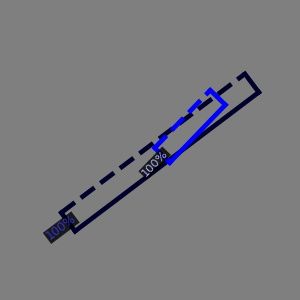

cv2.imwrite('out.png', image)

Behavior:

tensor([[0.2655]], device='cuda:0')

Expected behavior:

tensor([[0.0]], device='cuda:0')

Environment:

Provide your environment information using the following command:

------------------------  --------------------------------------------------------------------------
sys.platform              linux
Python                    3.7.7 (default, Mar 26 2020, 15:48:22) [GCC 7.3.0]
numpy                     1.18.1
detectron2                0.1.1 @zzzzzzz/detectron2/detectron2
detectron2 compiler       GCC 7.5
detectron2 CUDA compiler  10.1
detectron2 arch flags     sm_75
DETECTRON2_ENV_MODULE     <not set>
PyTorch                   1.4.0 @zzzzzzz/lib/python3.7/site-packages/torch
PyTorch debug build       False
CUDA available            True
GPU 0                     GeForce RTX 2080 Ti
CUDA_HOME                 /usr/local/cuda
NVCC                      Cuda compilation tools, release 10.1, V10.1.243
Pillow                    7.0.0
torchvision               0.5.0 @zzzzzzz/lib/python3.7/site-packages/torchvision
torchvision arch flags    sm_35, sm_50, sm_60, sm_70, sm_75
cv2                       4.2.0
------------------------  --------------------------------------------------------------------------
PyTorch built with:
  - GCC 7.3
  - Intel(R) Math Kernel Library Version 2020.0.0 Product Build 20191122 for Intel(R) 64 architecture applications
  - Intel(R) MKL-DNN v0.21.1 (Git Hash 7d2fd500bc78936d1d648ca713b901012f470dbc)
  - OpenMP 201511 (a.k.a. OpenMP 4.5)
  - NNPACK is enabled
  - CUDA Runtime 10.1
  - NVCC architecture flags: -gencode;arch=compute_37,code=sm_37;-gencode;arch=compute_50,code=sm_50;-gencode;arch=compute_60,code=sm_60;-gencode;arch=compute_61,code=sm_61;-gencode;arch=compute_70,code=sm_70;-gencode;arch=compute_75,code=sm_75;-gencode;arch=compute_37,code=compute_37
  - CuDNN 7.6.3
  - Magma 2.5.1
  - Build settings: BLAS=MKL, BUILD_NAMEDTENSOR=OFF, BUILD_TYPE=Release, CXX_FLAGS= -Wno-deprecated -fvisibility-inlines-hidden -fopenmp -DUSE_FBGEMM -DUSE_QNNPACK -DUSE_PYTORCH_QNNPACK -O2 -fPIC -Wno-narrowing -Wall -Wextra -Wno-missing-field-initializers -Wno-type-limits -Wno-array-bounds -Wno-unknown-pragmas -Wno-sign-compare -Wno-unused-parameter -Wno-unused-variable -Wno-unused-function -Wno-unused-result -Wno-strict-overflow -Wno-strict-aliasing -Wno-error=deprecated-declarations -Wno-stringop-overflow -Wno-error=pedantic -Wno-error=redundant-decls -Wno-error=old-style-cast -fdiagnostics-color=always -faligned-new -Wno-unused-but-set-variable -Wno-maybe-uninitialized -fno-math-errno -fno-trapping-math -Wno-stringop-overflow, DISABLE_NUMA=1, PERF_WITH_AVX=1, PERF_WITH_AVX2=1, PERF_WITH_AVX512=1, USE_CUDA=ON, USE_EXCEPTION_PTR=1, USE_GFLAGS=OFF, USE_GLOG=OFF, USE_MKL=ON, USE_MKLDNN=ON, USE_MPI=OFF, USE_NCCL=ON, USE_NNPACK=ON, USE_OPENMP=ON, USE_STATIC_DISPATCH=OFF,

[alekseynp]

CPU too

# tensor([[0.2655]])
print(pairwise_iou_rotated(RotatedBoxes(boxes1.cpu()), RotatedBoxes(boxes2.cpu())))

[alekseynp]

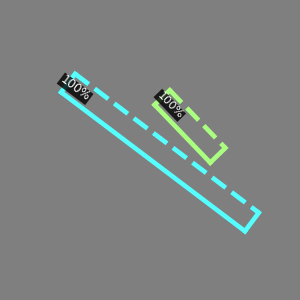

Reversing the rotation directions to 37.0 and 46.0

tensor([[0.]], device='cuda:0')

[SuperIRabbit]

Thanks a lot for the report and the example!
A simplified test case would be
boxes1 = torch.tensor([[3, 3, 8, 2, -45.0]], device=device)
boxes2 = torch.tensor([[6, 0, 8, 2, -45.0]], device=device)
(the expected ious should be 0)
We have found the bug related to xywha to 4-pts conversion for rotated box, and a fix is on the way.

[alekseynp]

Yes, I think get_rotated_vertices has its CW/CCW rotation direction mixed up.
As a quick hack I negated the angles in single_box_iou_rotated on lines 324 and 329 and I got dramatically better results in training.
Probably get_rotated_vertices is fixed by flipping the sign in front of all the sinTheta2?

Given that my val MAP just went from 78 to 84, this is important for people working with rotated boxes.
