Deconz-rest-plugin: Node disappears after a reboot of the deconz container
Describe the bug
Problem: some device cant not persistent after restart deconz container.

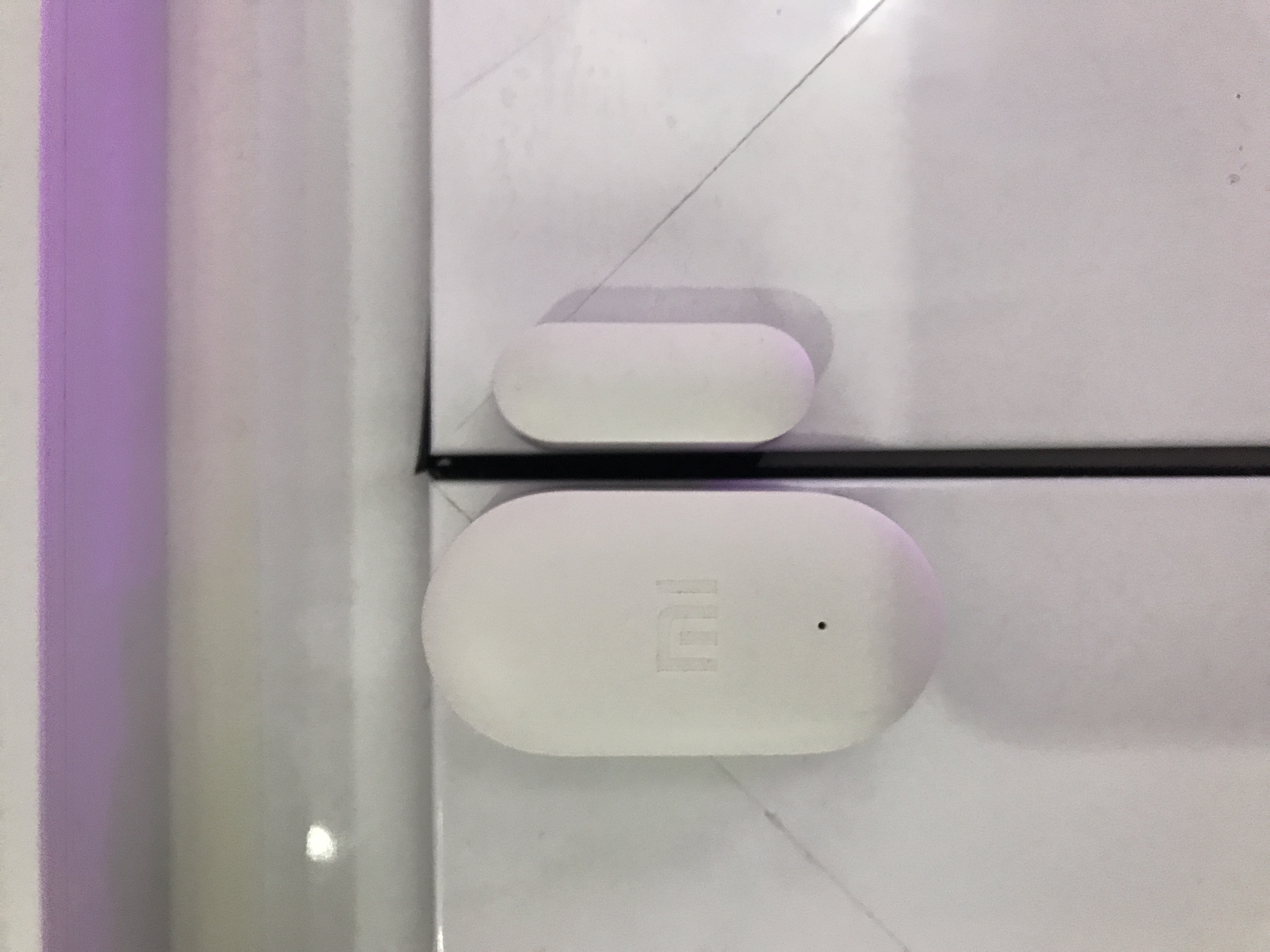

The node of the xiomi window and door sensors is not maintained. The failure is random, sometimes the node of a sensor is lost and in another reboot after adding it, a different one is lost.
Steps to reproduce the behavior
1- Add several sensors to a new installation, three is enough.
2- When they are already added, changed the name, restart the deconz container.
3- When you return to deconz, a node will be missing that will no longer appear.
If the problem can't be reproduced and is sporadic, please provide some details
on how often and when the issue happens.
Environment
- Host system: NUC INTEL
- Running method: HassOS runing proxmox
- Firmware version: (26660700)
- deCONZ version: (2.05.84)
- Device: ConBee II
- Do you use an USB extension cable: Yes
- Is there any other USB or serial devices connected to the host system? If so: Which? No
deCONZ Logs
19:25:36:823 skip device discovery while end devices is added
19:25:37:303 skip device discovery while end devices is added
19:25:37:620 Current channel 25
19:25:37:628 Device TTL 6620 s flags: 0x7
19:25:37:784 skip device discovery while end devices is added
172.30.32.2 - - [18/Oct/2020:17:25:38 +0000] "GET /pwa/library/bootstrap/fonts/glyphicons-halflings-regular.woff2 HTTP/1.1" 200 18047 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/css/themes/de-default/theme.min.css?a2e39b" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
19:25:38:264 skip device discovery while end devices is added
19:25:38:744 skip device discovery while end devices is added
19:25:39:224 skip device discovery while end devices is added
19:25:39:704 skip device discovery while end devices is added
19:25:40:183 skip device discovery while end devices is added
172.30.32.2 - - [18/Oct/2020:17:25:40 +0000] "GET /api/B62B11D007/sensors?_=1603041834840 HTTP/1.1" 200 814 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
19:25:40:663 skip device discovery while end devices is added
19:25:41:144 skip device discovery while end devices is added
172.30.32.2 - - [18/Oct/2020:17:25:41 +0000] "GET /api/B62B11D007/sensors/new?_=1603041834841 HTTP/1.1" 200 64 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
172.30.32.2 - - [18/Oct/2020:17:25:41 +0000] "PUT /api/B62B11D007/config HTTP/1.1" 200 54 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
19:25:41:623 skip device discovery while end devices is added
172.30.32.2 - - [18/Oct/2020:17:25:41 +0000] "PUT /api/B62B11D007/sensors/2 HTTP/1.1" 200 53 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
172.30.32.2 - - [18/Oct/2020:17:25:42 +0000] "GET /api/B62B11D007/sensors/2 HTTP/1.1" 200 366 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
19:25:42:104 skip device discovery while end devices is added
19:25:42:583 skip device discovery while end devices is added
19:25:43:063 skip device discovery while end devices is added
19:25:43:543 skip device discovery while end devices is added
19:25:44:023 skip device discovery while end devices is added
19:25:44:503 skip device discovery while end devices is added
19:25:44:984 skip device discovery while end devices is added
19:25:45:463 skip device discovery while end devices is added
172.30.32.2 - - [18/Oct/2020:17:25:45 +0000] "GET /api/B62B11D007/sensors?_=1603041834842 HTTP/1.1" 200 795 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
19:25:45:944 skip device discovery while end devices is added
172.30.32.2 - - [18/Oct/2020:17:25:46 +0000] "GET /api/B62B11D007/sensors/new?_=1603041834843 HTTP/1.1" 200 64 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
19:25:46:424 skip device discovery while end devices is added
19:25:46:904 skip device discovery while end devices is added
19:25:47:384 skip device discovery while end devices is added
19:25:47:864 skip device discovery while end devices is added
19:25:48:344 skip device discovery while end devices is added
19:25:48:823 skip device discovery while end devices is added
19:25:49:303 skip device discovery while end devices is added
19:25:49:784 skip device discovery while end devices is added
19:25:50:264 skip device discovery while end devices is added
172.30.32.2 - - [18/Oct/2020:17:25:50 +0000] "GET /api/B62B11D007/sensors?_=1603041834844 HTTP/1.1" 200 795 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
19:25:50:744 skip device discovery while end devices is added
19:25:51:224 skip device discovery while end devices is added
172.30.32.2 - - [18/Oct/2020:17:25:51 +0000] "PUT /api/B62B11D007/config HTTP/1.1" 200 54 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
172.30.32.2 - - [18/Oct/2020:17:25:51 +0000] "GET /api/B62B11D007/sensors/new?_=1603041834845 HTTP/1.1" 200 64 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
19:25:51:703 skip device discovery while end devices is added
19:25:52:184 skip device discovery while end devices is added
19:25:52:664 skip device discovery while end devices is added
19:25:53:144 skip device discovery while end devices is added
19:25:53:623 skip device discovery while end devices is added
19:25:54:103 skip device discovery while end devices is added
19:25:54:583 skip device discovery while end devices is added
19:25:55:063 skip device discovery while end devices is added
172.30.32.2 - - [18/Oct/2020:17:25:55 +0000] "GET /api/B62B11D007/sensors?_=1603041834846 HTTP/1.1" 200 795 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
19:25:55:544 skip device discovery while end devices is added
19:25:56:023 skip device discovery while end devices is added
172.30.32.2 - - [18/Oct/2020:17:25:56 +0000] "GET /api/B62B11D007/sensors/new?_=1603041834847 HTTP/1.1" 200 64 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
172.30.32.2 - - [18/Oct/2020:17:25:56 +0000] "PUT /api/B62B11D007/config HTTP/1.1" 200 54 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
19:25:56:503 skip device discovery while end devices is added
19:25:56:983 skip device discovery while end devices is added
19:25:57:463 skip device discovery while end devices is added
19:25:57:943 skip device discovery while end devices is added
19:25:58:424 skip device discovery while end devices is added
19:25:58:904 skip device discovery while end devices is added
19:25:59:384 skip device discovery while end devices is added
19:25:59:864 skip device discovery while end devices is added
19:26:00:344 skip device discovery while end devices is added
172.30.32.2 - - [18/Oct/2020:17:26:00 +0000] "GET /api/B62B11D007/sensors?_=1603041834848 HTTP/1.1" 200 795 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
19:26:00:823 skip device discovery while end devices is added
172.30.32.2 - - [18/Oct/2020:17:26:01 +0000] "PUT /api/B62B11D007/config HTTP/1.1" 200 54 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
172.30.32.2 - - [18/Oct/2020:17:26:01 +0000] "GET /api/B62B11D007/sensors/new?_=1603041834849 HTTP/1.1" 200 64 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
19:26:01:304 skip device discovery while end devices is added
19:26:01:783 skip device discovery while end devices is added
19:26:02:264 skip device discovery while end devices is added
19:26:02:744 skip device discovery while end devices is added
19:26:03:223 skip device discovery while end devices is added
19:26:03:703 skip device discovery while end devices is added
19:26:04:183 skip device discovery while end devices is added
19:26:04:664 skip device discovery while end devices is added
19:26:05:144 skip device discovery while end devices is added
19:26:05:623 skip device discovery while end devices is added
172.30.32.2 - - [18/Oct/2020:17:26:05 +0000] "GET /api/B62B11D007/sensors?_=1603041834850 HTTP/1.1" 200 795 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
19:26:06:103 skip device discovery while end devices is added
19:26:06:583 skip device discovery while end devices is added
19:26:06:603 APS-DATA.request id: 105, addrmode: 0x02, addr: 0xfffc, profile: 0x0000, cluster: 0x0036, ep: 0x00 -> 0x00 queue: 0 len: 3 tx.options 0x00
19:26:06:603 send permit join, duration: 0
172.30.32.2 - - [18/Oct/2020:17:26:06 +0000] "GET /api/B62B11D007/sensors/new?_=1603041834851 HTTP/1.1" 200 64 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
172.30.32.2 - - [18/Oct/2020:17:26:06 +0000] "PUT /api/B62B11D007/config HTTP/1.1" 200 54 "http://192.168.200.5:8123/api/hassio_ingress/L0R771sTV5Eo9k0sRtaY4uZ2u2vGTatG_X9XmCF1240/pwa/devices-sensors.html?_v=61826e5f8164073a2f2966706f479fe8020f9de6,9,0,19&gwid=00212EFFFF05DA3B" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.75 Safari/537.36"
19:26:07:174 Search sensors done
19:26:07:269 APS-DATA.confirm id: 105, status: 0x00 SUCCESS
19:26:07:304 aps request id: 105 finished, erase from queue
19:26:07:544 Mgmt_Lqi_req zdpSeq: 60 to 0x00212EFFFF05DA3B start index 0
19:26:07:544 APS-DATA.request id: 110, addrmode: 0x03, addr: 0x00212effff05da3b, profile: 0x0000, cluster: 0x0031, ep: 0x00 -> 0x00 queue: 0 len: 2 tx.options 0x00
19:26:07:558 APS-DATA.confirm id: 110, status: 0x00 SUCCESS
19:26:07:558 APS-DATA.confirm request id: 110 -> confirmed, timeout 1603041967
19:26:07:562 APS-DATA.indication srcAddr: 0x0000, srcEp: 0x00 dstAddrMode: 2, profile: 0x0000, cluster: 0x8031, lqi: 117, rssi: 32
19:26:07:562 APS-DATA.indication request id: 110 -> finished
19:26:07:562 APS-DATA.request id: 110 erase from queue
19:26:07:562 ZDP status = 0x00 -> SUCCESS
19:26:07:562 ZDP Mgmt_Lqi_rsp zdpSeq: 60 from 0x00212EFFFF05DA3B total: 1, startIndex: 0, listCount: 1
19:26:07:562 * neighbor: 0x00158D0002A1B54B (0xC5DF), LQI: 255, relation: 0x01 rxOnWHenIdle: 0
========================== RESTART ============= with 4 contact
Info
Documentation
Configuration
Log
deCONZ
19:39:08:799 Device protocol version: 0x010C
19:39:08:806 new node - ext: 0x00212effff05da3b, nwk: 0x0000
19:39:08:826 SensorNode 2 set node 0x00158d0002a1b54b
19:39:08:826 SensorNode 3 set node 0x00158d0002d707a4
19:39:08:827 SensorNode 4 set node 0x00158d0002d68069
19:39:08:827 SensorNode 5 set node 0x00158d00011246a0
19:39:08:872 ZDP node descriptor request to 0x00212EFFFF05DA3B
19:39:08:872 APS-DATA.request id: 4, addrmode: 0x02, addr: 0x0000, profile: 0x0000, cluster: 0x0002, ep: 0x00 -> 0x00 queue: 0 len: 3 tx.options 0x04
19:39:08:872 ZDP send request id: 0x03 to 0x00212effff05da3b
19:39:08:880 Current channel 25
19:39:08:897 CTRL ANT_CTRL 0x03
19:39:08:922 Device protocol version: 0x010C
19:39:08:970 Current channel 25
19:39:08:986 CTRL ANT_CTRL 0x03
19:39:09:028 APS-DATA.confirm id: 4, status: 0x00 SUCCESS
19:39:09:028 APS-DATA.confirm request id: 4 -> confirmed, timeout 1603042748
19:39:09:032 APS-DATA.indication srcAddr: 0x0000, srcEp: 0x00 dstAddrMode: 2, profile: 0x0000, cluster: 0x8002, lqi: 117, rssi: 32
19:39:09:032 APS-DATA.indication request id: 4 -> finished
19:39:09:032 APS-DATA.request id: 4 erase from queue
19:39:09:032 ZDP status = 0x00 -> SUCCESS
19:39:09:032 ZDP Node_Descriptor_rsp 0x00212EFFFF05DA3B - 0x0000
19:39:09:032 APS-DATA.request id: 6, addrmode: 0x02, addr: 0x0000, profile: 0x0000, cluster: 0x0005, ep: 0x00 -> 0x00 queue: 0 len: 3 tx.options 0x00
19:39:09:033 skip Mgtm_Lqi_req to node 0x00212EFFFF05DA3B (node busy) cl: 0x0005 confirmed: 0
19:39:09:046 APS-DATA.confirm id: 6, status: 0x00 SUCCESS
19:39:09:046 APS-DATA.confirm request id: 6 -> confirmed, timeout 1603042749
19:39:09:050 APS-DATA.indication srcAddr: 0x0000, srcEp: 0x00 dstAddrMode: 2, profile: 0x0000, cluster: 0x8005, lqi: 117, rssi: 32
19:39:09:050 APS-DATA.indication request id: 6 -> finished
19:39:09:050 APS-DATA.request id: 6 erase from queue
19:39:09:050 ZDP status = 0x00 -> SUCCESS
19:39:09:050 ZDP active ep response for 0x00212effff05da3b
19:39:09:050 ep: 0x01
19:39:09:050 ep: 0xF2
19:39:09:511 Mgmt_Lqi_req zdpSeq: 3 to 0x00212EFFFF05DA3B start index 0
19:39:09:511 APS-DATA.request id: 10, addrmode: 0x03, addr: 0x00212effff05da3b, profile: 0x0000, cluster: 0x0031, ep: 0x00 -> 0x00 queue: 0 len: 2 tx.options 0x00
19:39:09:523 APS-DATA.confirm id: 10, status: 0x00 SUCCESS
19:39:09:523 APS-DATA.confirm request id: 10 -> confirmed, timeout 1603042749
19:39:09:527 APS-DATA.indication srcAddr: 0x0000, srcEp: 0x00 dstAddrMode: 2, profile: 0x0000, cluster: 0x8031, lqi: 117, rssi: 32
19:39:09:527 APS-DATA.indication request id: 10 -> finished
19:39:09:527 APS-DATA.request id: 10 erase from queue
19:39:09:527 ZDP status = 0x00 -> SUCCESS
19:39:09:527 ZDP Mgmt_Lqi_rsp zdpSeq: 3 from 0x00212EFFFF05DA3B total: 3, startIndex: 0, listCount: 1
19:39:09:527 * neighbor: 0x00158D0002D707A4 (0x3BF2), LQI: 255, relation: 0x01 rxOnWHenIdle: 0
19:39:09:616 APS-DATA.request id: 13, addrmode: 0x02, addr: 0xfffc, profile: 0x0000, cluster: 0x0036, ep: 0x00 -> 0x00 queue: 0 len: 3 tx.options 0x00
19:39:09:616 send permit join, duration: 0
19:39:09:644 GW update firmware found: /usr/share/deCONZ/firmware/deCONZ_ConBeeII_0x26660700.bin.GCF
19:39:09:644 GW firmware version: 0x26660700
19:39:09:644 GW firmware version is up to date: 0x26660700
19:39:09:831 APS-DATA.request id: 14, addrmode: 0x02, addr: 0x0000, profile: 0x0000, cluster: 0x0004, ep: 0x00 -> 0x00 queue: 1 len: 4 tx.options 0x00
19:39:09:831 ZDP send request id: 0x05 to 0x00212effff05da3b
19:39:09:843 APS-DATA.confirm id: 14, status: 0x00 SUCCESS
19:39:09:843 APS-DATA.confirm request id: 14 -> confirmed, timeout 1603042749
19:39:09:847 APS-DATA.indication srcAddr: 0x0000, srcEp: 0x00 dstAddrMode: 2, profile: 0x0000, cluster: 0x8004, lqi: 117, rssi: 32
19:39:09:847 APS-DATA.indication request id: 14 -> finished
19:39:09:847 APS-DATA.request id: 14 erase from queue
19:39:09:847 ZDP status = 0x00 -> SUCCESS
19:39:09:847 ZDP Simple_Descriptor_rsp 0x00212EFFFF05DA3B - 0x0000
19:39:09:848 LightNode 1: Configuration tool 1 added
19:39:09:899 Announced to internet https://phoscon.de/discover
19:39:09:912 APS-DATA.request id: 17, addrmode: 0x02, addr: 0x0000, profile: 0x0000, cluster: 0x0004, ep: 0x00 -> 0x00 queue: 1 len: 4 tx.options 0x00
19:39:09:912 ZDP send request id: 0x05 to 0x00212effff05da3b
19:39:09:927 APS-DATA.confirm id: 17, status: 0x00 SUCCESS
19:39:09:927 APS-DATA.confirm request id: 17 -> confirmed, timeout 1603042749
19:39:09:931 APS-DATA.indication srcAddr: 0x0000, srcEp: 0x00 dstAddrMode: 2, profile: 0x0000, cluster: 0x8004, lqi: 117, rssi: 32
19:39:09:931 APS-DATA.indication request id: 17 -> finished
19:39:09:931 APS-DATA.request id: 17 erase from queue
19:39:09:931 ZDP status = 0x00 -> SUCCESS
19:39:09:931 ZDP Simple_Descriptor_rsp 0x00212EFFFF05DA3B - 0x0000
19:39:09:991 CTRL restore cached node 0x00158d0002d707a4
19:39:09:991 Node zombie state changed 0x00158d0002d707a4
19:39:09:993 new node - ext: 0x00158d0002d707a4, nwk: 0x3BF2
19:39:10:306 APS-DATA.confirm id: 13, status: 0x00 SUCCESS
19:39:10:312 aps request id: 13 finished, erase from queue
19:39:11:912 Mgmt_Lqi_req zdpSeq: 7 to 0x00212EFFFF05DA3B start index 1
19:39:11:912 APS-DATA.request id: 27, addrmode: 0x03, addr: 0x00212effff05da3b, profile: 0x0000, cluster: 0x0031, ep: 0x00 -> 0x00 queue: 0 len: 2 tx.options 0x00
19:39:11:918 APS-DATA.confirm id: 27, status: 0x00 SUCCESS
19:39:11:918 APS-DATA.confirm request id: 27 -> confirmed, timeout 1603042751
19:39:11:921 APS-DATA.indication srcAddr: 0x0000, srcEp: 0x00 dstAddrMode: 2, profile: 0x0000, cluster: 0x8031, lqi: 117, rssi: 32
19:39:11:921 APS-DATA.indication request id: 27 -> finished
19:39:11:921 APS-DATA.request id: 27 erase from queue
19:39:11:921 ZDP status = 0x00 -> SUCCESS
19:39:11:921 ZDP Mgmt_Lqi_rsp zdpSeq: 7 from 0x00212EFFFF05DA3B total: 3, startIndex: 1, listCount: 1
19:39:11:921 * neighbor: 0x00158D0002D68069 (0x52F7), LQI: 255, relation: 0x01 rxOnWHenIdle: 0
19:39:12:392 CTRL restore cached node 0x00158d0002d68069
19:39:12:392 Node zombie state changed 0x00158d0002d68069
19:39:12:393 new node - ext: 0x00158d0002d68069, nwk: 0x52F7
19:39:14:312 Mgmt_Lqi_req zdpSeq: 8 to 0x00212EFFFF05DA3B start index 2
19:39:14:312 APS-DATA.request id: 38, addrmode: 0x03, addr: 0x00212effff05da3b, profile: 0x0000, cluster: 0x0031, ep: 0x00 -> 0x00 queue: 0 len: 2 tx.options 0x00
19:39:14:324 APS-DATA.confirm id: 38, status: 0x00 SUCCESS
19:39:14:324 APS-DATA.confirm request id: 38 -> confirmed, timeout 1603042754
19:39:14:328 APS-DATA.indication srcAddr: 0x0000, srcEp: 0x00 dstAddrMode: 2, profile: 0x0000, cluster: 0x8031, lqi: 117, rssi: 32
19:39:14:328 APS-DATA.indication request id: 38 -> finished
19:39:14:328 APS-DATA.request id: 38 erase from queue
19:39:14:328 ZDP status = 0x00 -> SUCCESS
19:39:14:328 ZDP Mgmt_Lqi_rsp zdpSeq: 8 from 0x00212EFFFF05DA3B total: 3, startIndex: 2, listCount: 1
19:39:14:328 * neighbor: 0x00158D00011246A0 (0x6E9B), LQI: 255, relation: 0x01 rxOnWHenIdle: 0
[19:39:14] INFO: Successfully send discovery information to Home Assistant.
19:39:14:792 CTRL restore cached node 0x00158d00011246a0
19:39:14:792 Node zombie state changed 0x00158d00011246a0
19:39:14:792 new node - ext: 0x00158d00011246a0, nwk: 0x6E9B
Additional context
My installation consists of 31 devices.
The only nodes that are lost are the window and door sensors.
Xiaomi Temperature Sensors: 6 Model - WSDCGQ11LM
Xiaomi Window & Door Magnetic Sensors: 11model - MCCGQ01LM
Xiaomi flood sensors: 2 model - SJCGQ11LM
Xiaomi smoke sensor: 1 model - JTYJ-GD-01LM / BW
Xiaomi motion sensors: 3 model - RTCGQ11LM
Xiaomi plug: 1 model - ZNCZ02LM
Philips hue bulbs: 6 model - 8718696598283
Philips color hue bulb: 1 model - 9290012573A
Jaguaza
All 27 comments
@dn0sar - Thanks for your interest. For me it is frustrating that this happens with my xiaomi devices. I hope they find the cause and can correct it soon.
Jaguaza
on 28 Oct 2020
Nobody knows why it doesn't work?
Jaguaza
on 29 Oct 2020
You don't have a PC to make a test ? (windows or ubuntu)
Install deconz on it and:
First make the try with a empty database (with a clean instal)
And the second time with using the backup/restaure feature availalble in phoscon to transfert your database ?
Smanar
on 29 Oct 2020
¿No tienes una PC para hacer una prueba? (windows o ubuntu)
Instale deconz en él y:
Primero intente con una base de datos vacÃa (con una instalación limpia) ¿
Y la segunda vez con el uso de la función de respaldo / restauración disponible en phoscon para transferir su base de datos?
In windows it is the same, I already tested. With other software it does not happen to me, only with deconz, therefore I decline to a denocz error.
Jaguaza
on 29 Oct 2020
Xiaomi sensors tend to behave odd if they are connected to the coordinator. If the coordinator then powers off/ reboots they either:
- Drop off
- Come back after 1 hour.
Fix? Put some routers in there.
Ps: Bumping doesn't work on github 😉
Mimiix
on 29 Oct 2020
Los sensores de Xiaomi tienden a comportarse de manera extraña si están conectados al coordinador. Si el coordinador luego se apaga / reinicia:
- Bajar ó dejar algo
- Vuelve después de 1 hora.
¿Reparar? Ponga algunos enrutadores allÃ.
Ps: golpear no funciona en github 😉
I have routers there
Xiaomi Temperature Sensors: 6 Model - WSDCGQ11LM
Xiaomi Window & Door Magnetic Sensors: 11model - MCCGQ01LM
Xiaomi flood sensors: 2 model - SJCGQ11LM
Xiaomi smoke sensor: 1 model - JTYJ-GD-01LM / BW
Xiaomi motion sensors: 3 model - RTCGQ11LM
Xiaomi plug: 1 model - ZNCZ02LM
Philips hue bulbs: 6 model - 8718696598283
Philips color hue bulb: 1 model - 9290012573A
Jaguaza
on 29 Oct 2020
Xiaomi sensors tend to behave odd if they are connected to the coordinator. If the coordinator then powers off/ reboots they either:
- Drop off
- Come back after 1 hour.
Fix? Put some routers in there.
Ps: Bumping doesn't work on github 😉
Why doesn't this happen with zigbee2mqtt?
Jaguaza
on 29 Oct 2020
Xiaomi sensors tend to behave odd if they are connected to the coordinator. If the coordinator then powers off/ reboots they either:
- Drop off
- Come back after 1 hour.
Fix? Put some routers in there.
Ps: Bumping doesn't work on github 😉Why doesn't this happen with zigbee2mqtt?
I have no clue, as i don't use that 😅 . I created a internal ticket. Manuel should reply later on.
Mimiix
on 30 Oct 2020
The node of the xiomi window and door sensors is not maintained. The failure is random, sometimes the node of a sensor is lost and in another reboot after adding it, a different one is lost.
Hi can you please tell how "lost" is meant here:
1) The device in deCONZ GUI is not there anymore;
2) The device is there but doesn't communicate;
3) The device isn't visible anymore in Phoscon App.
When working are the sensors connected directly to the coordinator (green line) or through a router?
manup
on 30 Oct 2020
El nodo de los sensores de puertas y ventanas xiomi no se mantiene. La falla es aleatoria, a veces se pierde el nodo de un sensor y en otro reinicio después de agregarlo se pierde uno diferente.
Hola, ¿puedes decir qué significa "perdido" aqu�
- El dispositivo en deCONZ GUI ya no está allÃ;
- El dispositivo está ahà pero no se comunica;
- El dispositivo ya no está visible en la aplicación Phoscon.
En funcionamiento, ¿los sensores están conectados directamente al coordinador (lÃnea verde) oa través de un enrutador?
- The device in deCONZ GUI is not there anymore;
Jaguaza
on 30 Oct 2020
Hmm that's very odd, this would indicate that the database is not or could not saved properly.
How long did you wait after device pairing and restart? According to the code the database should be written within 1 minute (usually after 5 seconds) after adding a new sensor.
Can you show a screenshot of the faulty device Node Info and Endpoint list: example can be found in https://github.com/dresden-elektronik/deconz-rest-plugin/wiki/Request-Device-Support
manup
on 30 Oct 2020
How long did you wait after device pairing and restart?
Tnanks @manup
How long did you wait after device pairing and restart? - Several minutes from 5 to 10 minutes for 31 device.

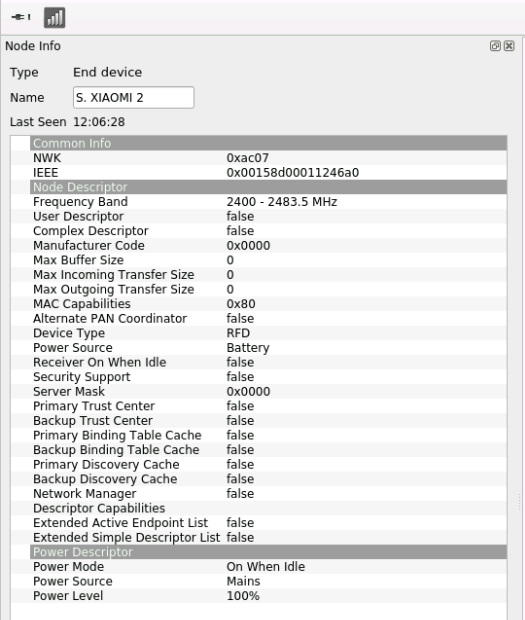

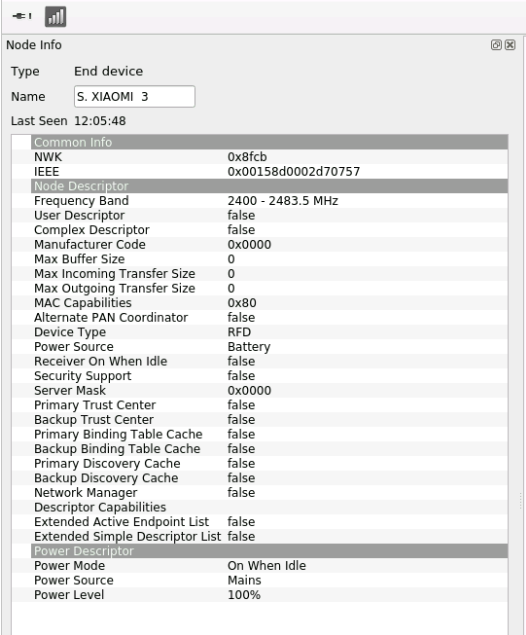

Can you show a screenshot of the faulty device Node Info and Endpoint list:
Jaguaza
on 2 Nov 2020
Hu ?
What is the model id of one of those device ?
I m not sure but it seem deconz have skipped some informations, manufacture code = 0 ?
Smanar
on 2 Nov 2020
Hu ?
What is the model id of one of those device ?
I m not sure but it seem deconz have skipped some informations, manufacture code = 0 ?
They are all window and door sensors from xiaomi. Higher up I put the model.
@manup
In the last reboot I lost 6 nodes, I have been waiting two hours after the reboot of the container and they have not returned. (I'm talking about nodes missing in deconz, not unconnected devices).

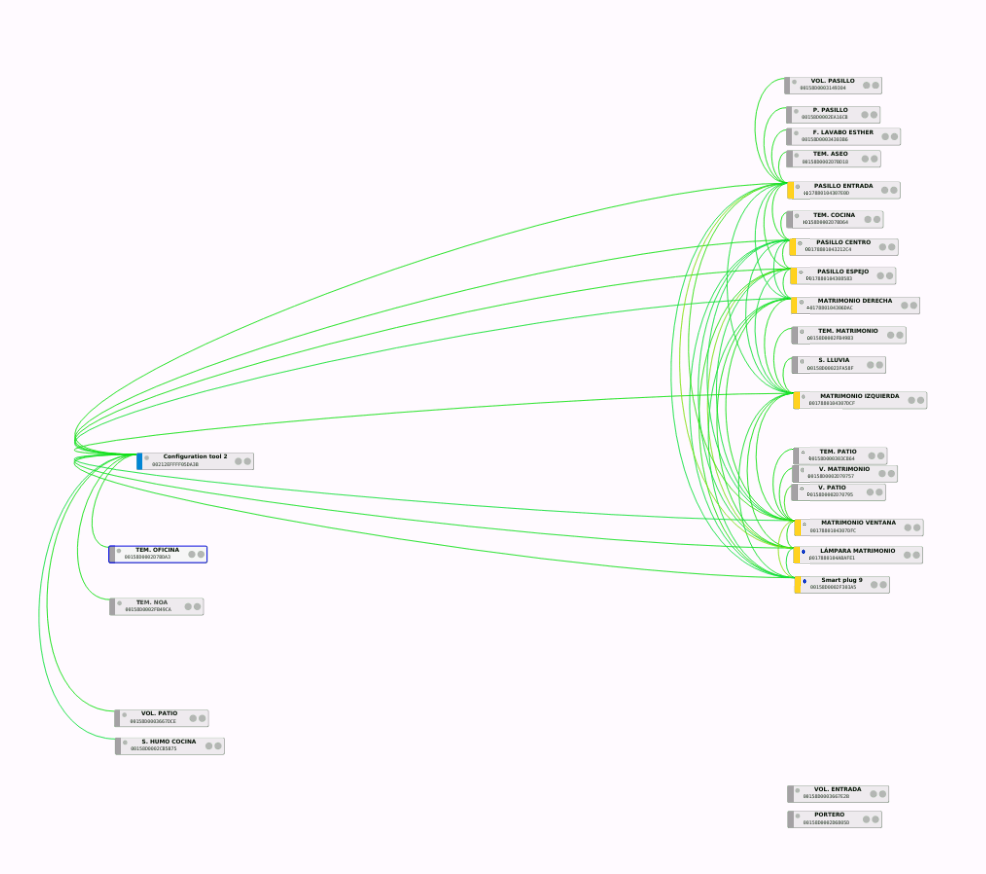

Before reboot:

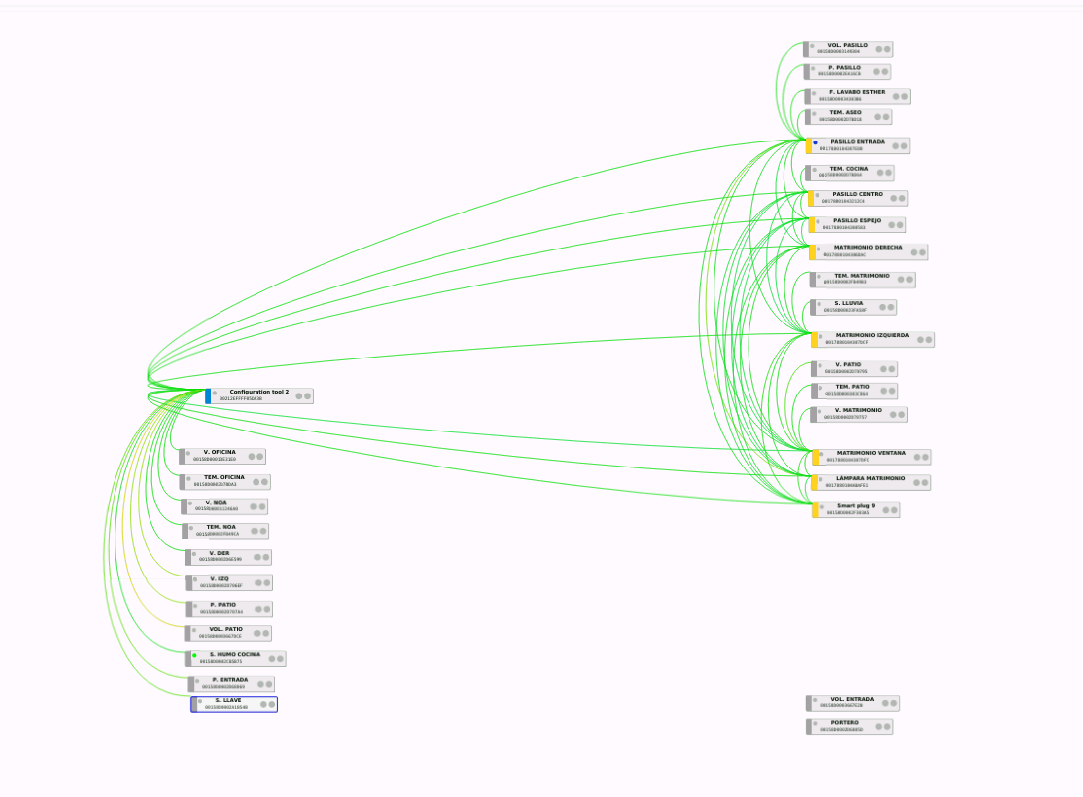

After reboot:
Jaguaza
on 2 Nov 2020
I don't see the model id (it s in the basic cluster panel 0x0000)
If It s "lumi.sensor_magnet", the device is not correctly included in deconz, it have missed some information for it.
Smanar
on 2 Nov 2020
Xiaomi Window & Door Magnetic Sensors: 11model - MCCGQ01LM
These are @Smanar
Jaguaza
on 2 Nov 2020
You knwow there is 3 versions of WXKG02LM for exemple and all are working differently ?
To be sure we are talking about the same device, the only method is the model id send by the firmware, but for me there is a problem during the device inclusion, you have the same result when making the inclusion close the gateway ?
Smanar
on 2 Nov 2020
You knwow there is 3 versions of WXKG02LM for exemple and all are working differently ?
To be sure we are talking about the same device, the only method is the model id send by the firmware, but for me there is a problem during the device inclusion, you have the same result when making the inclusion close the gateway ?
I don't understand, my English is terrible
Jaguaza
on 2 Nov 2020
@Smanar Those devices disappearing are the round Mija ones.
SwoopX
on 3 Nov 2020

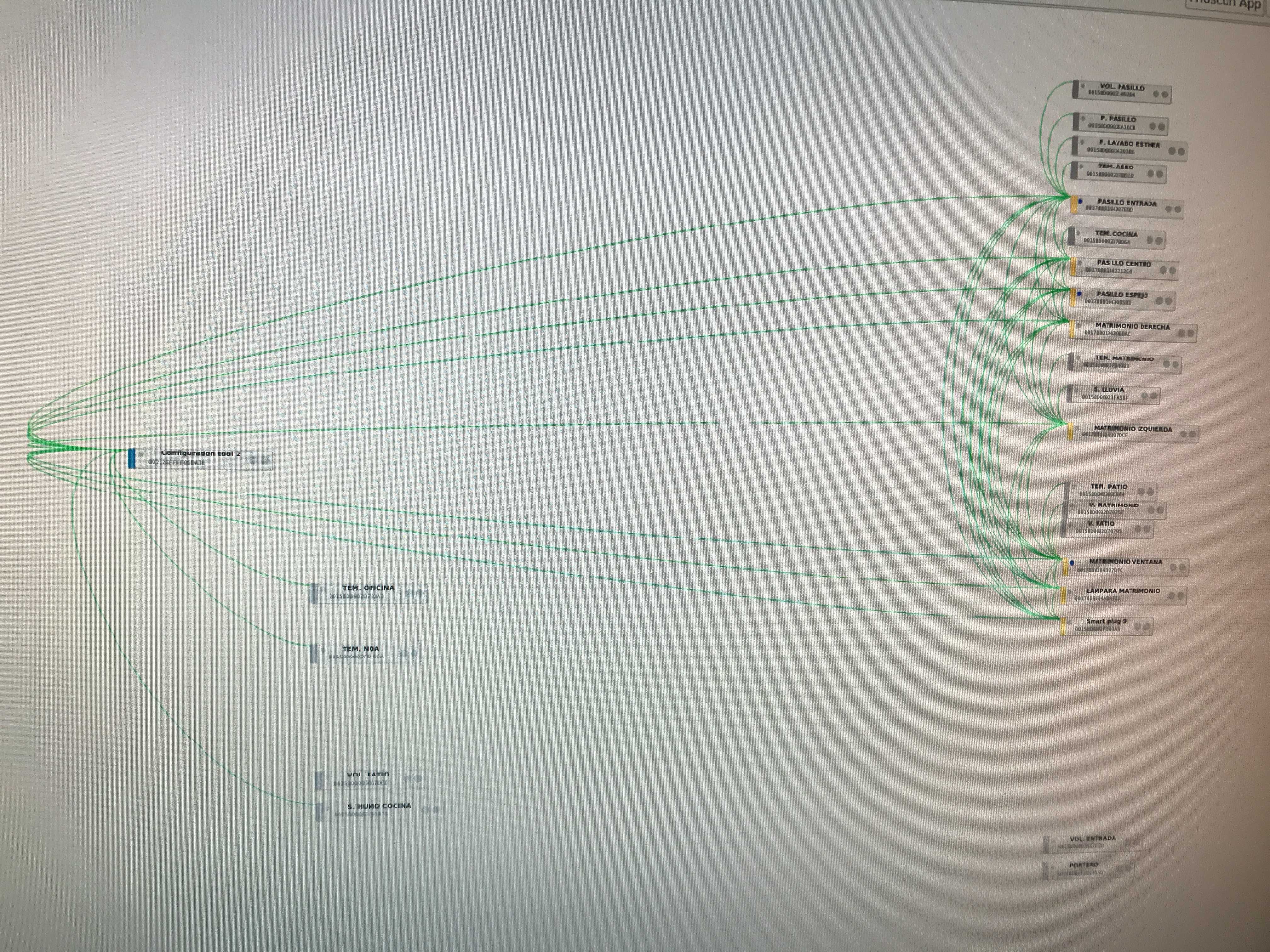

These are. Let's see if we can find out why it disappears. If @manup or someone found the problem. Thanks for trying to help @Smanar and @SwoopX.
17 hours later the nodes are still missing. As I said, it is not that they do not connect, it is that they disappear.
Of 31 node 6 missing.
Jaguaza
on 3 Nov 2020
Have you tried to include them close the gateway ?
I can find the correct picture, but you need to have different result, for exemple
- A real manufacture number
- A real type, not FFFF
- More cluster
I have found a similar issue https://github.com/dresden-elektronik/deconz-rest-plugin/issues/1224
Can you make a try with disabling the API ? to be sure the problem is from deconz or the API ?
- On the deconz menu disable the api
- set deconz in permit join
- include the device.
Smanar
on 3 Nov 2020
One more question, were the sensors which are gone after reboot listed in the Phoscon App and in there with proper model id?
manup
on 17 Nov 2020
I have the exact same problem!
I have the same sensor exactly - and I tried to add about 5 or 6 of them and they they disappear from deconz after restart - sometime they stay (and I have one that is always there), but in most cases they just disappear from deconz.
couple more observations:
- they disappear from deconz, but stay on the web app (but of course not working)
- if I pair them again - they re-appear in deconz in the exact same place they were before - but with the default name and in exact same place in the list of sensors in the web app. to me it indicates that they are not completely forgotten
- I also see manufacturer 0000 and other details exactly like the screeshots from @Jaguaza
eserero
on 17 Nov 2020
One more question, were the sensors which are gone after reboot listed in the Phoscon App and in there with proper model id?
@manup Yes.
Jaguaza
on 17 Nov 2020
We need to have the full log of a deconz restart here. The logs above have stripped the important part where devices are loaded from DB. So a log starting deconz + having it run for 2-3 mins where you also try to trigger your devices vanished should hopefully give us more insights.
SwoopX
on 18 Nov 2020
here is the log from my system.
After restart of deconz I lost both door sensors. - i can see some "no button handlers" for them in the logs.
I also noticed I lost a couple more sensors (smoke detector and motion sensor) -
in the logs below I can see all of them with the "no button handlers" message.
10:40:39:419 HTTP Server listen on address 0.0.0.0, port: 8081, root: /usr/share/deCONZ/webapp/
10:40:39:429 CTRL. 3.27.210:40:39:462 COM: /dev/ttyACM0 / serialno:
10:40:39:462 COM: --dev: /dev/ttyACM0 (ConBee II)
10:40:39:462 ZCLDB init file /root/.local/share/dresden-elektronik/deCONZ/zcldb.txt
10:40:39:519 parent process /bin/sh
10:40:39:519 gw run mode: docker
10:40:39:519 GW sd-card image version file does not exist: /root/.local/share/dresden-elektronik/deCONZ/gw-version
10:40:39:520 DB sqlite version 3.27.2
10:40:39:520 DB PRAGMA page_count: 46
10:40:39:520 DB PRAGMA page_size: 4096
10:40:39:520 DB PRAGMA freelist_count: 2
10:40:39:520 DB file size 188416 bytes, free pages 2
10:40:39:520 DB PRAGMA user_version: 7
10:40:39:520 DB cleanup
10:40:39:521 DB create temporary views
10:40:39:546 started websocket server at port 8443
10:40:39:547 [INFO] - Found file containing button maps. Parsing data...
10:40:39:547 [ERROR] - Button map 'sunricherCCTMap' in JSON file has no assigned ModelIDs. Skip loading button map...
10:40:39:549 [INFO] - Button maps loaded.
10:40:39:550 dlg action: Read binding table
10:40:39:550 found node plugin: libde_rest_plugin.so - REST API Plugin
10:40:39:550 found node plugin: libde_signal_plugin.so - Signal Monitor Plugin
10:40:39:554 found node plugin: libstd_otau_plugin.so - STD OTAU Plugin
10:40:39:570 COM: /dev/ttyACM0 / serialno:
10:40:39:570 COM: --dev: /dev/ttyACM0 (ConBee II)
10:40:40:596 COM: /dev/ttyACM0 / serialno:
10:40:40:596 COM: --dev: /dev/ttyACM0 (ConBee II)
10:40:40:604 New websocket 10.0.0.111:62710 (state: 3)
10:40:40:611 COM check bootloader
10:40:40:621 COM detected application
10:40:40:636 Device firmware version 0x26660700 ConBee II
10:40:40:642 unlocked max nodes: 200
10:40:40:712 Device protocol version: 0x010C
10:40:40:723 new node - ext: 0x00212effff04dce2, nwk: 0x0000
10:40:40:768 LightNode 1: Living Room Center Light added
10:40:40:770 LightNode 3: Computer Light added
10:40:40:771 LightNode 2: Kids Light 1 added
10:40:40:772 LightNode 4: Parent Room Light 1 added
10:40:40:773 LightNode 5: Parent Room light 2 added
10:40:40:774 LightNode 6: Arbel Light 1 added
10:40:40:775 LightNode 7: Arbel Light 2 added
10:40:40:776 SensorNode 4 set node 0x00158d00029bf2e6
10:40:40:776 SensorNode 3 set node 0x00158d00029bf2e6
10:40:40:778 SensorNode 5 set node 0x00158d0001243f52
10:40:40:779 LightNode 8: Parents Light 3 (entry) added
10:40:40:780 SensorNode 6 set node 0x00158d00015b5e79
10:40:40:780 SensorNode 10 set node 0x04cf8cdf3c773ce1
10:40:40:781 SensorNode 7 set node 0x00158d0002720ca7
10:40:40:781 SensorNode 8 set node 0x00158d0002720ca7
10:40:40:781 SensorNode 9 set node 0x00158d0002720ca7
10:40:40:782 SensorNode 15 set node 0x00158d0002434415
10:40:40:782 SensorNode 16 set node 0x00158d0002386200
10:40:40:783 SensorNode 19 set node 0x00158d0001c19f9a
10:40:40:783 SensorNode 20 set node 0x00158d0001c19f9a
10:40:40:785 SensorNode 24 set node 0x04cf8cdf3c77c1a4
10:40:40:786 SensorNode 21 set node 0x04cf8cdf3c75b783
10:40:40:786 SensorNode 22 set node 0x04cf8cdf3c77b465
10:40:40:787 SensorNode 23 set node 0x04cf8cdf3c77b629
10:40:40:788 SensorNode 26 set node 0x00158d00027264b1
10:40:40:788 SensorNode 27 set node 0x00158d00027264b1
10:40:40:788 SensorNode 28 set node 0x00158d00027264b1
10:40:40:789 SensorNode 33 set node 0x00158d00024e8ee7
10:40:40:789 SensorNode 34 set node 0x00158d0002484b80
10:40:40:790 SensorNode 35 set node 0x00158d00015b5e60
10:40:40:791 SensorNode 37 set node 0x00158d00019dc16f
10:40:40:791 SensorNode 38 set node 0x00158d00019dc16f
10:40:40:792 SensorNode 39 set node 0x00158d0002009d07
10:40:40:792 SensorNode 40 set node 0x00158d0002009d07
10:40:40:794 SensorNode 41 set node 0x00158d0001c1ea44
10:40:40:795 SensorNode 42 set node 0x04cf8cdf3c77bbe5
10:40:40:796 LightNode 11: Smart plug 11 added
10:40:40:796 SensorNode 36 set node 0x04cf8cdf3c7e508a
10:40:40:796 SensorNode 43 set node 0x04cf8cdf3c7e508a
10:40:40:798 SensorNode 44 set node 0x00158d0001307e43
10:40:40:804 SensorNode 31 set node 0x00158d00016c004a
10:40:40:804 SensorNode 18 set node 0x00158d0003ce13c9
10:40:40:804 SensorNode 46 set node 0x00158d0003d48128
10:40:40:805 SensorNode 2 set node 0x00158d0003d49e76
10:40:40:865 Current channel 15
10:40:40:881 CTRL ANT_CTRL 0x03
10:40:40:905 Device protocol version: 0x010C
10:40:40:953 Current channel 15
10:40:40:969 CTRL ANT_CTRL 0x03
10:40:41:975 New websocket 10.0.0.1:60720 (state: 3)
10:40:44:573 GW update firmware found: /usr/share/deCONZ/firmware/deCONZ_ConBeeII_0x26660700.bin.GCF
10:40:44:573 GW firmware version: 0x26660700
10:40:44:573 GW firmware version is up to date: 0x26660700
10:40:44:708 LightNode 9: Unknown 9 added
10:40:45:555 Announced to internet https://phoscon.de/discover
10:40:48:971 New websocket 127.0.0.1:53144 (state: 3)
10:41:09:003 ZCL attribute report 0x00158D000396E112 for cluster: 0x0000, ep: 0x01, frame control: 0x1C, mfcode: 0x115F
10:41:10:003 0x00158D000396E112 extract Xiaomi special attribute 0xFF01
10:41:10:003 03 temperature 46 °C
10:41:10:003 05 RSSI dB (?) 1040 (0x0410)
10:41:10:003 07 unknown 0 (0x0000000000000000)
10:41:10:004 08 unknown 279 (0x0117)
10:41:10:004 09 unknown 2563 (0x0A03)
10:41:10:004 0a unknown 0 (0x0000)
10:41:10:004 64 lift 0 (100%)
10:41:10:004 64 somke/gas density 0 (-1323625161%)
10:41:10:004 65 unsupported tag (data type 0x20)
10:41:10:004 66 unsupported tag (data type 0x21)
10:41:11:594 Bind response success for 0x00158d000396e112 ep: 0x01 cluster: 0x0102
10:41:11:595 skip configure report for cluster: 0x0102 attr: 0x0008 of node 0x00158D000396E112 (wait reading or unsupported)
10:41:12:586 Bind response success for 0x00158d000396e112 ep: 0x01 cluster: 0x0006
10:41:12:587 skip configure report for cluster: 0x0006 attr: 0x0000 of node 0x00158D000396E112 (wait reading or unsupported)
10:41:13:288 [INFO] - No button handler for: lumi.sensor_smoke endpoint: 0x01 cluster: BASIC (0x0000) command: 0x0A payload[0]: 001
10:41:13:288 ZCL attribute report 0x00158D0001307E43 for cluster: 0x0000, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:41:13:288 0x00158D0001307E43 extract Xiaomi special attribute 0xFF01
10:41:13:288 01 battery 3125 (0x0C35)
10:41:13:288 03 temperature 28 °C
10:41:13:288 04 unknown 5032 (0x13A8)
10:41:13:288 05 RSSI dB (?) 28 (0x001C)
10:41:13:288 06 LQI (?) 4294967296 (0x0100000000)
10:41:13:288 0a unknown 5831 (0x16C7)
10:41:13:288 64 lift 4 (96%)
10:41:13:288 64 somke/gas density 4 (-1323625161%)
10:41:13:288 96 unknown 0 (0x00000000)
10:41:13:603 Bind response success for 0x00158d000396e112 ep: 0x01 cluster: 0x0008
10:41:13:603 skip configure report for cluster: 0x0008 attr: 0x0000 of node 0x00158D000396E112 (wait reading or unsupported)
10:41:14:626 Bind response success for 0x00158d000396e112 ep: 0x01 cluster: 0x0300
10:41:14:626 skip configure report for cluster: 0x0300 attr: 0x0007 of node 0x00158D000396E112 (wait reading or unsupported)
10:41:14:626 skip configure report for cluster: 0x0300 attr: 0x0003 of node 0x00158D000396E112 (wait reading or unsupported)
10:41:14:626 skip configure report for cluster: 0x0300 attr: 0x0004 of node 0x00158D000396E112 (wait reading or unsupported)
10:41:14:626 skip configure report for cluster: 0x0300 attr: 0x0008 of node 0x00158D000396E112 (wait reading or unsupported)
10:41:16:526 CTRL restore cached node 0x00158d00016c004a
10:41:16:526 Node zombie state changed 0x00158d00016c004a
10:41:16:527 new node - ext: 0x00158d00016c004a, nwk: 0xA928
10:41:26:449 ZCL attribute report 0x00158D000396E6ED for cluster: 0x0000, ep: 0x01, frame control: 0x1C, mfcode: 0x115F
10:41:26:449 0x00158D000396E6ED extract Xiaomi special attribute 0xFF01
10:41:26:449 03 temperature 45 °C
10:41:26:449 05 RSSI dB (?) 1019 (0x03FB)
10:41:26:449 07 unknown 0 (0x0000000000000000)
10:41:26:450 08 unknown 279 (0x0117)
10:41:26:450 09 unknown 2050 (0x0802)
10:41:26:450 0a unknown 0 (0x0000)
10:41:26:450 64 lift 0 (100%)
10:41:26:450 64 somke/gas density 0 (-1323625161%)
10:41:26:450 65 unsupported tag (data type 0x20)
10:41:26:450 66 unsupported tag (data type 0x21)
10:41:36:590 Bind response success for 0x00158d000396e6ed ep: 0x01 cluster: 0x0102
10:41:36:590 skip configure report for cluster: 0x0102 attr: 0x0008 of node 0x00158D000396E6ED (wait reading or unsupported)
10:41:37:598 Bind response success for 0x00158d000396e6ed ep: 0x01 cluster: 0x0006
10:41:37:598 skip configure report for cluster: 0x0006 attr: 0x0000 of node 0x00158D000396E6ED (wait reading or unsupported)
10:41:38:754 Bind response success for 0x00158d000396e6ed ep: 0x01 cluster: 0x0008
10:41:38:754 skip configure report for cluster: 0x0008 attr: 0x0000 of node 0x00158D000396E6ED (wait reading or unsupported)
10:41:39:562 Current channel 15
10:41:39:570 Device TTL 748 s flags: 0x7
10:41:39:754 Bind response success for 0x00158d000396e6ed ep: 0x01 cluster: 0x0300
10:41:39:754 skip configure report for cluster: 0x0300 attr: 0x0003 of node 0x00158D000396E6ED (wait reading or unsupported)
10:41:39:754 skip configure report for cluster: 0x0300 attr: 0x0004 of node 0x00158D000396E6ED (wait reading or unsupported)
10:41:39:791 ZCL configure reporting rsp seq: 44 0x00158D000396E6ED for ep: 0x01 cluster: 0x0300 attr: 0x0007 status: 0x8C
10:41:39:791 ZCL configure reporting rsp seq: 44 0x00158D000396E6ED for ep: 0x01 cluster: 0x0300 attr: 0x0008 status: 0x8C
10:41:47:181 ZCL attribute report 0x00158D000399387C for cluster: 0x0000, ep: 0x01, frame control: 0x1C, mfcode: 0x115F
10:41:47:181 0x00158D000399387C extract Xiaomi special attribute 0xFF01
10:41:47:181 03 temperature 44 °C
10:41:47:181 05 RSSI dB (?) 1583 (0x062F)
10:41:47:181 07 unknown 0 (0x0000000000000000)
10:41:47:182 08 unknown 279 (0x0117)
10:41:47:182 09 unknown 1793 (0x0701)
10:41:47:182 0a unknown 0 (0x0000)
10:41:47:182 64 lift 0 (100%)
10:41:47:182 64 somke/gas density 0 (-1323625161%)
10:41:47:182 65 unsupported tag (data type 0x20)
10:41:47:182 66 unsupported tag (data type 0x21)
10:41:47:629 Bind response success for 0x00158d000399387c ep: 0x01 cluster: 0x0102
10:41:47:629 skip configure report for cluster: 0x0102 attr: 0x0008 of node 0x00158D000399387C (wait reading or unsupported)
10:41:48:654 Bind response success for 0x00158d000399387c ep: 0x01 cluster: 0x0006
10:41:48:654 skip configure report for cluster: 0x0006 attr: 0x0000 of node 0x00158D000399387C (wait reading or unsupported)
10:41:49:687 Bind response success for 0x00158d000399387c ep: 0x01 cluster: 0x0008
10:41:49:687 skip configure report for cluster: 0x0008 attr: 0x0000 of node 0x00158D000399387C (wait reading or unsupported)
10:41:50:696 Bind response success for 0x00158d000399387c ep: 0x01 cluster: 0x0300
10:41:50:696 skip configure report for cluster: 0x0300 attr: 0x0007 of node 0x00158D000399387C (wait reading or unsupported)
10:41:50:696 skip configure report for cluster: 0x0300 attr: 0x0003 of node 0x00158D000399387C (wait reading or unsupported)
10:41:50:696 skip configure report for cluster: 0x0300 attr: 0x0004 of node 0x00158D000399387C (wait reading or unsupported)
10:41:50:696 skip configure report for cluster: 0x0300 attr: 0x0008 of node 0x00158D000399387C (wait reading or unsupported)
10:41:56:609 Bind response success for 0x00158d000396e6ed ep: 0x01 cluster: 0x0300
10:41:56:610 skip configure report for cluster: 0x0300 attr: 0x0007 of node 0x00158D000396E6ED (seems to be active)
10:41:56:610 skip configure report for cluster: 0x0300 attr: 0x0003 of node 0x00158D000396E6ED (wait reading or unsupported)
10:41:56:610 skip configure report for cluster: 0x0300 attr: 0x0004 of node 0x00158D000396E6ED (wait reading or unsupported)
10:41:56:610 skip configure report for cluster: 0x0300 attr: 0x0008 of node 0x00158D000396E6ED (seems to be active)
10:41:57:715 APS-DATA.indication from unknown node 0x00158D0003D48128
10:41:57:716 [INFO] - No button handler for: lumi.sensor_magnet endpoint: 0x01 cluster: ONOFF (0x0006) command: 0x0A payload[0]: 000
10:41:57:716 ZCL attribute report 0x00158D0003D48128 for cluster: 0x0006, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:41:58:964 APS-DATA.indication from unknown node 0x00158D0003D48128
10:41:58:965 [INFO] - No button handler for: lumi.sensor_magnet endpoint: 0x01 cluster: ONOFF (0x0006) command: 0x0A payload[0]: 000
10:41:58:965 ZCL attribute report 0x00158D0003D48128 for cluster: 0x0006, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:41:59:279 APS-DATA.indication from unknown node 0x00158D0003D48128
10:41:59:280 [INFO] - No button handler for: lumi.sensor_magnet endpoint: 0x01 cluster: ONOFF (0x0006) command: 0x0A payload[0]: 000
10:41:59:280 ZCL attribute report 0x00158D0003D48128 for cluster: 0x0006, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:42:00:236 APS-DATA.indication from unknown node 0x00158D0003D48128
10:42:00:236 [INFO] - No button handler for: lumi.sensor_magnet endpoint: 0x01 cluster: ONOFF (0x0006) command: 0x0A payload[0]: 000
10:42:00:236 ZCL attribute report 0x00158D0003D48128 for cluster: 0x0006, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:42:03:656 ZCL attribute report 0x00158D000396ABA7 for cluster: 0x0000, ep: 0x01, frame control: 0x1C, mfcode: 0x115F
10:42:03:656 0x00158D000396ABA7 extract Xiaomi special attribute 0xFF01
10:42:03:656 03 temperature 46 °C
10:42:03:656 05 RSSI dB (?) 1593 (0x0639)
10:42:03:656 07 unknown 0 (0x0000000000000000)
10:42:03:656 08 unknown 279 (0x0117)
10:42:03:656 09 unknown 1793 (0x0701)
10:42:03:656 0a unknown 0 (0x0000)
10:42:03:656 64 lift 0 (100%)
10:42:03:657 64 somke/gas density 0 (-1323625161%)
10:42:03:657 65 unsupported tag (data type 0x20)
10:42:03:657 66 unsupported tag (data type 0x21)
10:42:05:625 Bind response success for 0x00158d000396aba7 ep: 0x01 cluster: 0x0102
10:42:05:625 skip configure report for cluster: 0x0102 attr: 0x0008 of node 0x00158D000396ABA7 (wait reading or unsupported)
10:42:06:650 Bind response success for 0x00158d000396aba7 ep: 0x01 cluster: 0x0006
10:42:06:650 skip configure report for cluster: 0x0006 attr: 0x0000 of node 0x00158D000396ABA7 (wait reading or unsupported)
10:42:07:702 Bind response success for 0x00158d000396aba7 ep: 0x01 cluster: 0x0008
10:42:07:702 skip configure report for cluster: 0x0008 attr: 0x0000 of node 0x00158D000396ABA7 (wait reading or unsupported)
10:42:08:726 Bind response success for 0x00158d000396aba7 ep: 0x01 cluster: 0x0300
10:42:08:726 skip configure report for cluster: 0x0300 attr: 0x0007 of node 0x00158D000396ABA7 (wait reading or unsupported)
10:42:08:726 skip configure report for cluster: 0x0300 attr: 0x0003 of node 0x00158D000396ABA7 (wait reading or unsupported)
10:42:08:726 skip configure report for cluster: 0x0300 attr: 0x0004 of node 0x00158D000396ABA7 (wait reading or unsupported)
10:42:08:726 skip configure report for cluster: 0x0300 attr: 0x0008 of node 0x00158D000396ABA7 (wait reading or unsupported)
10:42:12:516 ZCL attribute report 0x00158D00039962BD for cluster: 0x0000, ep: 0x01, frame control: 0x1C, mfcode: 0x115F
10:42:12:517 0x00158D00039962BD extract Xiaomi special attribute 0xFF01
10:42:12:517 03 temperature 101 °C
10:42:12:517 05 RSSI dB (?) 1068 (0x042C)
10:42:12:517 07 unknown 0 (0x0000000000000000)
10:42:12:517 08 unknown 279 (0x0117)
10:42:12:517 09 unknown 1024 (0x0400)
10:42:12:517 0a unknown 0 (0x0000)
10:42:12:517 64 lift 1 (99%)
10:42:12:517 64 somke/gas density 1 (-1323625161%)
10:42:12:517 65 unsupported tag (data type 0x20)
10:42:12:517 66 unsupported tag (data type 0x21)
10:42:13:041 [INFO] - No button handler for: lumi.sensor_ht endpoint: 0x01 cluster: BASIC (0x0000) command: 0x0A payload[0]: 001
10:42:13:041 ZCL attribute report 0x00158D00019DC16F for cluster: 0x0000, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:42:13:042 0x00158D00019DC16F extract Xiaomi special attribute 0xFF01
10:42:13:042 01 battery 3005 (0x0BBD)
10:42:13:042 04 unknown 5032 (0x13A8)
10:42:13:042 05 RSSI dB (?) 1882 (0x075A)
10:42:13:042 06 LQI (?) 4294967296 (0x0100000000)
10:42:13:042 64 temperature -10000 (ignored)
10:42:13:042 65 humidity 65436
10:42:13:042 0a unknown 0 (0x0000)
10:42:13:596 Bind response success for 0x00158d00039962bd ep: 0x01 cluster: 0x0102
10:42:13:596 skip configure report for cluster: 0x0102 attr: 0x0008 of node 0x00158D00039962BD (wait reading or unsupported)
10:42:14:594 Bind response success for 0x00158d00039962bd ep: 0x01 cluster: 0x0006
10:42:14:594 skip configure report for cluster: 0x0006 attr: 0x0000 of node 0x00158D00039962BD (wait reading or unsupported)
10:42:15:581 Bind response success for 0x00158d00039962bd ep: 0x01 cluster: 0x0008
10:42:15:581 skip configure report for cluster: 0x0008 attr: 0x0000 of node 0x00158D00039962BD (wait reading or unsupported)
10:42:16:590 Bind response success for 0x00158d00039962bd ep: 0x01 cluster: 0x0300
10:42:16:590 skip configure report for cluster: 0x0300 attr: 0x0007 of node 0x00158D00039962BD (wait reading or unsupported)
10:42:16:590 skip configure report for cluster: 0x0300 attr: 0x0003 of node 0x00158D00039962BD (wait reading or unsupported)
10:42:16:590 skip configure report for cluster: 0x0300 attr: 0x0004 of node 0x00158D00039962BD (wait reading or unsupported)
10:42:16:591 skip configure report for cluster: 0x0300 attr: 0x0008 of node 0x00158D00039962BD (wait reading or unsupported)
10:42:18:806 [INFO] - No button handler for: lumi.sensor_ht endpoint: 0x01 cluster: 0x0402 command: 0x0A payload[0]: 000
10:42:18:806 ZCL attribute report 0x00158D00019DC16F for cluster: 0x0402, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:42:18:814 [INFO] - No button handler for: lumi.sensor_ht endpoint: 0x01 cluster: 0x0405 command: 0x0A payload[0]: 000
10:42:18:814 ZCL attribute report 0x00158D00019DC16F for cluster: 0x0405, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:42:39:563 Current channel 15
10:42:39:571 Device TTL 688 s flags: 0x7
10:42:44:576 verified group capacity: 6 and group count: 2 of LightNode 0x00158d00039962bd
10:42:44:576 0x00158d00039962bd found group 0xFFF0
10:42:44:577 0x00158d00039962bd found group 0x0009
10:42:45:359 verified group capacity: 6 and group count: 2 of LightNode 0x00158d000396aba7
10:42:45:359 0x00158d000396aba7 found group 0xFFF0
10:42:45:359 0x00158d000396aba7 found group 0x0003
10:42:46:133 verified group capacity: 6 and group count: 2 of LightNode 0x00158d000399387c
10:42:46:133 0x00158d000399387c found group 0xFFF0
10:42:46:133 0x00158d000399387c found group 0x0003
10:42:46:832 verified group capacity: 6 and group count: 2 of LightNode 0x00158d000396e6ed
10:42:46:832 0x00158d000396e6ed found group 0xFFF0
10:42:46:832 0x00158d000396e6ed found group 0x0004
10:42:47:607 verified group capacity: 6 and group count: 2 of LightNode 0x00158d000396e112
10:42:47:607 0x00158d000396e112 found group 0xFFF0
10:42:47:607 0x00158d000396e112 found group 0x0004
10:43:28:954 Websocket disconnected 10.0.0.1:60720, state: 0, close-code: 1001, reason:
10:43:30:167 New websocket 10.0.0.1:61460 (state: 3)
10:43:35:010 [INFO] - No button handler for: lumi.weather endpoint: 0x01 cluster: BASIC (0x0000) command: 0x0A payload[0]: 001
10:43:35:010 ZCL attribute report 0x00158D00027264B1 for cluster: 0x0000, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:43:35:010 0x00158D00027264B1 extract Xiaomi special attribute 0xFF01
10:43:35:010 01 battery 2845 (0x0B1D)
10:43:35:010 04 unknown 17320 (0x43A8)
10:43:35:010 05 RSSI dB (?) 34 (0x0022)
10:43:35:010 06 LQI (?) 4294967296 (0x0100000000)
10:43:35:010 64 temperature 2542
10:43:35:010 65 humidity 5920
10:43:35:010 66 pressure 101041 (1010)
10:43:35:011 0a unknown 18798 (0x496E)
10:43:39:561 Current channel 15
10:43:39:569 Device TTL 628 s flags: 0x7
10:43:49:216 [INFO] - No button handler for: lumi.sen_ill.mgl01 endpoint: 0x01 cluster: 0x0400 command: 0x0A payload[0]: 000
10:43:49:217 ZCL attribute report 0x04CF8CDF3C773CE1 for cluster: 0x0400, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:44:10:562 saved node state in 2 ms
10:44:10:569 sync() in 7 ms
10:44:28:431 [INFO] - No button handler for: lumi.sensor_motion endpoint: 0x01 cluster: 0x0406 command: 0x0A payload[0]: 000
10:44:28:431 ZCL attribute report 0x00158D00016C004A for cluster: 0x0406, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:44:28:546 Set sensor check interval to 100 milliseconds
10:44:31:475 APS-DATA.indication from unknown node 0x00158D0003CE13C9
10:44:31:475 [INFO] - No button handler for: lumi.sensor_motion endpoint: 0x01 cluster: 0x0406 command: 0x0A payload[0]: 000
10:44:31:475 ZCL attribute report 0x00158D0003CE13C9 for cluster: 0x0406, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:44:34:168 [INFO] - No button handler for: lumi.weather endpoint: 0x01 cluster: 0x0402 command: 0x0A payload[0]: 000
10:44:34:168 ZCL attribute report 0x00158D0002720CA7 for cluster: 0x0402, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:44:34:177 [INFO] - No button handler for: lumi.weather endpoint: 0x01 cluster: 0x0405 command: 0x0A payload[0]: 000
10:44:34:177 ZCL attribute report 0x00158D0002720CA7 for cluster: 0x0405, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:44:34:181 [INFO] - No button handler for: lumi.weather endpoint: 0x01 cluster: 0x0403 command: 0x0A payload[0]: 000
10:44:34:181 ZCL attribute report 0x00158D0002720CA7 for cluster: 0x0403, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:44:39:067 [INFO] - No button handler for: lumi.sen_ill.mgl01 endpoint: 0x01 cluster: 0x0400 command: 0x0A payload[0]: 000
10:44:39:068 ZCL attribute report 0x04CF8CDF3C773CE1 for cluster: 0x0400, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:44:39:562 Current channel 15
10:44:39:570 Device TTL 568 s flags: 0x7
10:44:39:570 Device reset watchdog 7200 s
10:44:41:377 ZCL attribute report 0x04CF8CDF3C7E508A for cluster: 0xFCC0, ep: 0x01, frame control: 0x1C, mfcode: 0x115F
10:44:41:378 0x04CF8CDF3C7E508A extract Xiaomi special attribute 0x00F7
10:44:41:378 64 on/off 0
10:44:41:378 03 temperature 25 °C
10:44:41:378 98 power 0.000000 (0)
10:44:41:378 95 consumption 1.697045 (1697)
10:44:41:378 96 voltage 2330.000000 (233)
10:44:41:378 97 current 0.000000 (0)
10:44:41:378 05 RSSI dB (?) 20 (0x0014)
10:44:41:378 9a unknown 0 (0x00)
10:44:41:378 08 unknown 278 (0x0116)
10:44:41:378 07 unknown 0 (0x0000000000000000)
10:44:41:378 09 unknown 2306 (0x0902)
10:44:41:378 0b unknown 0 (0x0000)
10:44:41:378 9b Consumer connected (yes/no) 1
10:44:44:053 [INFO] - No button handler for: lumi.sen_ill.mgl01 endpoint: 0x01 cluster: 0x0400 command: 0x0A payload[0]: 000
10:44:44:053 ZCL attribute report 0x04CF8CDF3C773CE1 for cluster: 0x0400, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:44:44:570 GW firmware version: 0x26660700
10:44:44:570 GW firmware version is up to date: 0x26660700
eserero
on 18 Nov 2020
here is the log from my system.
After restart of deconz I lost both door sensors. - i can see some "no button handlers" for them in the logs.
I also noticed I lost a couple more sensors (smoke detector and motion sensor) -
in the logs below I can see all of them with the "no button handlers" message.10:40:39:419 HTTP Server listen on address 0.0.0.0, port: 8081, root: /usr/share/deCONZ/webapp/
10:40:39:429 CTRL. 3.27.210:40:39:462 COM: /dev/ttyACM0 / serialno:
10:40:39:462 COM: --dev: /dev/ttyACM0 (ConBee II)
10:40:39:462 ZCLDB init file /root/.local/share/dresden-elektronik/deCONZ/zcldb.txt
10:40:39:519 parent process /bin/sh
10:40:39:519 gw run mode: docker
10:40:39:519 GW sd-card image version file does not exist: /root/.local/share/dresden-elektronik/deCONZ/gw-version
10:40:39:520 DB sqlite version 3.27.2
10:40:39:520 DB PRAGMA page_count: 46
10:40:39:520 DB PRAGMA page_size: 4096
10:40:39:520 DB PRAGMA freelist_count: 2
10:40:39:520 DB file size 188416 bytes, free pages 2
10:40:39:520 DB PRAGMA user_version: 7
10:40:39:520 DB cleanup
10:40:39:521 DB create temporary views
10:40:39:546 started websocket server at port 8443
10:40:39:547 [INFO] - Found file containing button maps. Parsing data...
10:40:39:547 [ERROR] - Button map 'sunricherCCTMap' in JSON file has no assigned ModelIDs. Skip loading button map...
10:40:39:549 [INFO] - Button maps loaded.
10:40:39:550 dlg action: Read binding table
10:40:39:550 found node plugin: libde_rest_plugin.so - REST API Plugin
10:40:39:550 found node plugin: libde_signal_plugin.so - Signal Monitor Plugin
10:40:39:554 found node plugin: libstd_otau_plugin.so - STD OTAU Plugin
10:40:39:570 COM: /dev/ttyACM0 / serialno:
10:40:39:570 COM: --dev: /dev/ttyACM0 (ConBee II)
10:40:40:596 COM: /dev/ttyACM0 / serialno:
10:40:40:596 COM: --dev: /dev/ttyACM0 (ConBee II)
10:40:40:604 New websocket 10.0.0.111:62710 (state: 3)
10:40:40:611 COM check bootloader
10:40:40:621 COM detected application
10:40:40:636 Device firmware version 0x26660700 ConBee II
10:40:40:642 unlocked max nodes: 200
10:40:40:712 Device protocol version: 0x010C
10:40:40:723 new node - ext: 0x00212effff04dce2, nwk: 0x0000
10:40:40:768 LightNode 1: Living Room Center Light added
10:40:40:770 LightNode 3: Computer Light added
10:40:40:771 LightNode 2: Kids Light 1 added
10:40:40:772 LightNode 4: Parent Room Light 1 added
10:40:40:773 LightNode 5: Parent Room light 2 added
10:40:40:774 LightNode 6: Arbel Light 1 added
10:40:40:775 LightNode 7: Arbel Light 2 added
10:40:40:776 SensorNode 4 set node 0x00158d00029bf2e6
10:40:40:776 SensorNode 3 set node 0x00158d00029bf2e6
10:40:40:778 SensorNode 5 set node 0x00158d0001243f52
10:40:40:779 LightNode 8: Parents Light 3 (entry) added
10:40:40:780 SensorNode 6 set node 0x00158d00015b5e79
10:40:40:780 SensorNode 10 set node 0x04cf8cdf3c773ce1
10:40:40:781 SensorNode 7 set node 0x00158d0002720ca7
10:40:40:781 SensorNode 8 set node 0x00158d0002720ca7
10:40:40:781 SensorNode 9 set node 0x00158d0002720ca7
10:40:40:782 SensorNode 15 set node 0x00158d0002434415
10:40:40:782 SensorNode 16 set node 0x00158d0002386200
10:40:40:783 SensorNode 19 set node 0x00158d0001c19f9a
10:40:40:783 SensorNode 20 set node 0x00158d0001c19f9a
10:40:40:785 SensorNode 24 set node 0x04cf8cdf3c77c1a4
10:40:40:786 SensorNode 21 set node 0x04cf8cdf3c75b783
10:40:40:786 SensorNode 22 set node 0x04cf8cdf3c77b465
10:40:40:787 SensorNode 23 set node 0x04cf8cdf3c77b629
10:40:40:788 SensorNode 26 set node 0x00158d00027264b1
10:40:40:788 SensorNode 27 set node 0x00158d00027264b1
10:40:40:788 SensorNode 28 set node 0x00158d00027264b1
10:40:40:789 SensorNode 33 set node 0x00158d00024e8ee7
10:40:40:789 SensorNode 34 set node 0x00158d0002484b80
10:40:40:790 SensorNode 35 set node 0x00158d00015b5e60
10:40:40:791 SensorNode 37 set node 0x00158d00019dc16f
10:40:40:791 SensorNode 38 set node 0x00158d00019dc16f
10:40:40:792 SensorNode 39 set node 0x00158d0002009d07
10:40:40:792 SensorNode 40 set node 0x00158d0002009d07
10:40:40:794 SensorNode 41 set node 0x00158d0001c1ea44
10:40:40:795 SensorNode 42 set node 0x04cf8cdf3c77bbe5
10:40:40:796 LightNode 11: Smart plug 11 added
10:40:40:796 SensorNode 36 set node 0x04cf8cdf3c7e508a
10:40:40:796 SensorNode 43 set node 0x04cf8cdf3c7e508a
10:40:40:798 SensorNode 44 set node 0x00158d0001307e43
10:40:40:804 SensorNode 31 set node 0x00158d00016c004a
10:40:40:804 SensorNode 18 set node 0x00158d0003ce13c9
10:40:40:804 SensorNode 46 set node 0x00158d0003d48128
10:40:40:805 SensorNode 2 set node 0x00158d0003d49e76
10:40:40:865 Current channel 15
10:40:40:881 CTRL ANT_CTRL 0x03
10:40:40:905 Device protocol version: 0x010C
10:40:40:953 Current channel 15
10:40:40:969 CTRL ANT_CTRL 0x03
10:40:41:975 New websocket 10.0.0.1:60720 (state: 3)
10:40:44:573 GW update firmware found: /usr/share/deCONZ/firmware/deCONZ_ConBeeII_0x26660700.bin.GCF
10:40:44:573 GW firmware version: 0x26660700
10:40:44:573 GW firmware version is up to date: 0x26660700
10:40:44:708 LightNode 9: Unknown 9 added
10:40:45:555 Announced to internet https://phoscon.de/discover
10:40:48:971 New websocket 127.0.0.1:53144 (state: 3)
10:41:09:003 ZCL attribute report 0x00158D000396E112 for cluster: 0x0000, ep: 0x01, frame control: 0x1C, mfcode: 0x115F
10:41:10:003 0x00158D000396E112 extract Xiaomi special attribute 0xFF01
10:41:10:003 03 temperature 46 °C
10:41:10:003 05 RSSI dB (?) 1040 (0x0410)
10:41:10:003 07 unknown 0 (0x0000000000000000)
10:41:10:004 08 unknown 279 (0x0117)
10:41:10:004 09 unknown 2563 (0x0A03)
10:41:10:004 0a unknown 0 (0x0000)
10:41:10:004 64 lift 0 (100%)
10:41:10:004 64 somke/gas density 0 (-1323625161%)
10:41:10:004 65 unsupported tag (data type 0x20)
10:41:10:004 66 unsupported tag (data type 0x21)
10:41:11:594 Bind response success for 0x00158d000396e112 ep: 0x01 cluster: 0x0102
10:41:11:595 skip configure report for cluster: 0x0102 attr: 0x0008 of node 0x00158D000396E112 (wait reading or unsupported)
10:41:12:586 Bind response success for 0x00158d000396e112 ep: 0x01 cluster: 0x0006
10:41:12:587 skip configure report for cluster: 0x0006 attr: 0x0000 of node 0x00158D000396E112 (wait reading or unsupported)
10:41:13:288 [INFO] - No button handler for: lumi.sensor_smoke endpoint: 0x01 cluster: BASIC (0x0000) command: 0x0A payload[0]: 001
10:41:13:288 ZCL attribute report 0x00158D0001307E43 for cluster: 0x0000, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:41:13:288 0x00158D0001307E43 extract Xiaomi special attribute 0xFF01
10:41:13:288 01 battery 3125 (0x0C35)
10:41:13:288 03 temperature 28 °C
10:41:13:288 04 unknown 5032 (0x13A8)
10:41:13:288 05 RSSI dB (?) 28 (0x001C)
10:41:13:288 06 LQI (?) 4294967296 (0x0100000000)
10:41:13:288 0a unknown 5831 (0x16C7)
10:41:13:288 64 lift 4 (96%)
10:41:13:288 64 somke/gas density 4 (-1323625161%)
10:41:13:288 96 unknown 0 (0x00000000)
10:41:13:603 Bind response success for 0x00158d000396e112 ep: 0x01 cluster: 0x0008
10:41:13:603 skip configure report for cluster: 0x0008 attr: 0x0000 of node 0x00158D000396E112 (wait reading or unsupported)
10:41:14:626 Bind response success for 0x00158d000396e112 ep: 0x01 cluster: 0x0300
10:41:14:626 skip configure report for cluster: 0x0300 attr: 0x0007 of node 0x00158D000396E112 (wait reading or unsupported)
10:41:14:626 skip configure report for cluster: 0x0300 attr: 0x0003 of node 0x00158D000396E112 (wait reading or unsupported)
10:41:14:626 skip configure report for cluster: 0x0300 attr: 0x0004 of node 0x00158D000396E112 (wait reading or unsupported)
10:41:14:626 skip configure report for cluster: 0x0300 attr: 0x0008 of node 0x00158D000396E112 (wait reading or unsupported)
10:41:16:526 CTRL restore cached node 0x00158d00016c004a
10:41:16:526 Node zombie state changed 0x00158d00016c004a
10:41:16:527 new node - ext: 0x00158d00016c004a, nwk: 0xA928
10:41:26:449 ZCL attribute report 0x00158D000396E6ED for cluster: 0x0000, ep: 0x01, frame control: 0x1C, mfcode: 0x115F
10:41:26:449 0x00158D000396E6ED extract Xiaomi special attribute 0xFF01
10:41:26:449 03 temperature 45 °C
10:41:26:449 05 RSSI dB (?) 1019 (0x03FB)
10:41:26:449 07 unknown 0 (0x0000000000000000)
10:41:26:450 08 unknown 279 (0x0117)
10:41:26:450 09 unknown 2050 (0x0802)
10:41:26:450 0a unknown 0 (0x0000)
10:41:26:450 64 lift 0 (100%)
10:41:26:450 64 somke/gas density 0 (-1323625161%)
10:41:26:450 65 unsupported tag (data type 0x20)
10:41:26:450 66 unsupported tag (data type 0x21)
10:41:36:590 Bind response success for 0x00158d000396e6ed ep: 0x01 cluster: 0x0102
10:41:36:590 skip configure report for cluster: 0x0102 attr: 0x0008 of node 0x00158D000396E6ED (wait reading or unsupported)
10:41:37:598 Bind response success for 0x00158d000396e6ed ep: 0x01 cluster: 0x0006
10:41:37:598 skip configure report for cluster: 0x0006 attr: 0x0000 of node 0x00158D000396E6ED (wait reading or unsupported)
10:41:38:754 Bind response success for 0x00158d000396e6ed ep: 0x01 cluster: 0x0008
10:41:38:754 skip configure report for cluster: 0x0008 attr: 0x0000 of node 0x00158D000396E6ED (wait reading or unsupported)
10:41:39:562 Current channel 15
10:41:39:570 Device TTL 748 s flags: 0x7
10:41:39:754 Bind response success for 0x00158d000396e6ed ep: 0x01 cluster: 0x0300
10:41:39:754 skip configure report for cluster: 0x0300 attr: 0x0003 of node 0x00158D000396E6ED (wait reading or unsupported)
10:41:39:754 skip configure report for cluster: 0x0300 attr: 0x0004 of node 0x00158D000396E6ED (wait reading or unsupported)
10:41:39:791 ZCL configure reporting rsp seq: 44 0x00158D000396E6ED for ep: 0x01 cluster: 0x0300 attr: 0x0007 status: 0x8C
10:41:39:791 ZCL configure reporting rsp seq: 44 0x00158D000396E6ED for ep: 0x01 cluster: 0x0300 attr: 0x0008 status: 0x8C
10:41:47:181 ZCL attribute report 0x00158D000399387C for cluster: 0x0000, ep: 0x01, frame control: 0x1C, mfcode: 0x115F
10:41:47:181 0x00158D000399387C extract Xiaomi special attribute 0xFF01
10:41:47:181 03 temperature 44 °C
10:41:47:181 05 RSSI dB (?) 1583 (0x062F)
10:41:47:181 07 unknown 0 (0x0000000000000000)
10:41:47:182 08 unknown 279 (0x0117)
10:41:47:182 09 unknown 1793 (0x0701)
10:41:47:182 0a unknown 0 (0x0000)
10:41:47:182 64 lift 0 (100%)
10:41:47:182 64 somke/gas density 0 (-1323625161%)
10:41:47:182 65 unsupported tag (data type 0x20)
10:41:47:182 66 unsupported tag (data type 0x21)
10:41:47:629 Bind response success for 0x00158d000399387c ep: 0x01 cluster: 0x0102
10:41:47:629 skip configure report for cluster: 0x0102 attr: 0x0008 of node 0x00158D000399387C (wait reading or unsupported)
10:41:48:654 Bind response success for 0x00158d000399387c ep: 0x01 cluster: 0x0006
10:41:48:654 skip configure report for cluster: 0x0006 attr: 0x0000 of node 0x00158D000399387C (wait reading or unsupported)
10:41:49:687 Bind response success for 0x00158d000399387c ep: 0x01 cluster: 0x0008
10:41:49:687 skip configure report for cluster: 0x0008 attr: 0x0000 of node 0x00158D000399387C (wait reading or unsupported)
10:41:50:696 Bind response success for 0x00158d000399387c ep: 0x01 cluster: 0x0300
10:41:50:696 skip configure report for cluster: 0x0300 attr: 0x0007 of node 0x00158D000399387C (wait reading or unsupported)
10:41:50:696 skip configure report for cluster: 0x0300 attr: 0x0003 of node 0x00158D000399387C (wait reading or unsupported)
10:41:50:696 skip configure report for cluster: 0x0300 attr: 0x0004 of node 0x00158D000399387C (wait reading or unsupported)
10:41:50:696 skip configure report for cluster: 0x0300 attr: 0x0008 of node 0x00158D000399387C (wait reading or unsupported)
10:41:56:609 Bind response success for 0x00158d000396e6ed ep: 0x01 cluster: 0x0300
10:41:56:610 skip configure report for cluster: 0x0300 attr: 0x0007 of node 0x00158D000396E6ED (seems to be active)
10:41:56:610 skip configure report for cluster: 0x0300 attr: 0x0003 of node 0x00158D000396E6ED (wait reading or unsupported)
10:41:56:610 skip configure report for cluster: 0x0300 attr: 0x0004 of node 0x00158D000396E6ED (wait reading or unsupported)
10:41:56:610 skip configure report for cluster: 0x0300 attr: 0x0008 of node 0x00158D000396E6ED (seems to be active)
10:41:57:715 APS-DATA.indication from unknown node 0x00158D0003D48128
10:41:57:716 [INFO] - No button handler for: lumi.sensor_magnet endpoint: 0x01 cluster: ONOFF (0x0006) command: 0x0A payload[0]: 000
10:41:57:716 ZCL attribute report 0x00158D0003D48128 for cluster: 0x0006, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:41:58:964 APS-DATA.indication from unknown node 0x00158D0003D48128
10:41:58:965 [INFO] - No button handler for: lumi.sensor_magnet endpoint: 0x01 cluster: ONOFF (0x0006) command: 0x0A payload[0]: 000
10:41:58:965 ZCL attribute report 0x00158D0003D48128 for cluster: 0x0006, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:41:59:279 APS-DATA.indication from unknown node 0x00158D0003D48128
10:41:59:280 [INFO] - No button handler for: lumi.sensor_magnet endpoint: 0x01 cluster: ONOFF (0x0006) command: 0x0A payload[0]: 000
10:41:59:280 ZCL attribute report 0x00158D0003D48128 for cluster: 0x0006, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:42:00:236 APS-DATA.indication from unknown node 0x00158D0003D48128
10:42:00:236 [INFO] - No button handler for: lumi.sensor_magnet endpoint: 0x01 cluster: ONOFF (0x0006) command: 0x0A payload[0]: 000
10:42:00:236 ZCL attribute report 0x00158D0003D48128 for cluster: 0x0006, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:42:03:656 ZCL attribute report 0x00158D000396ABA7 for cluster: 0x0000, ep: 0x01, frame control: 0x1C, mfcode: 0x115F
10:42:03:656 0x00158D000396ABA7 extract Xiaomi special attribute 0xFF01
10:42:03:656 03 temperature 46 °C
10:42:03:656 05 RSSI dB (?) 1593 (0x0639)
10:42:03:656 07 unknown 0 (0x0000000000000000)
10:42:03:656 08 unknown 279 (0x0117)
10:42:03:656 09 unknown 1793 (0x0701)
10:42:03:656 0a unknown 0 (0x0000)
10:42:03:656 64 lift 0 (100%)
10:42:03:657 64 somke/gas density 0 (-1323625161%)
10:42:03:657 65 unsupported tag (data type 0x20)
10:42:03:657 66 unsupported tag (data type 0x21)
10:42:05:625 Bind response success for 0x00158d000396aba7 ep: 0x01 cluster: 0x0102
10:42:05:625 skip configure report for cluster: 0x0102 attr: 0x0008 of node 0x00158D000396ABA7 (wait reading or unsupported)
10:42:06:650 Bind response success for 0x00158d000396aba7 ep: 0x01 cluster: 0x0006
10:42:06:650 skip configure report for cluster: 0x0006 attr: 0x0000 of node 0x00158D000396ABA7 (wait reading or unsupported)
10:42:07:702 Bind response success for 0x00158d000396aba7 ep: 0x01 cluster: 0x0008
10:42:07:702 skip configure report for cluster: 0x0008 attr: 0x0000 of node 0x00158D000396ABA7 (wait reading or unsupported)
10:42:08:726 Bind response success for 0x00158d000396aba7 ep: 0x01 cluster: 0x0300
10:42:08:726 skip configure report for cluster: 0x0300 attr: 0x0007 of node 0x00158D000396ABA7 (wait reading or unsupported)
10:42:08:726 skip configure report for cluster: 0x0300 attr: 0x0003 of node 0x00158D000396ABA7 (wait reading or unsupported)
10:42:08:726 skip configure report for cluster: 0x0300 attr: 0x0004 of node 0x00158D000396ABA7 (wait reading or unsupported)
10:42:08:726 skip configure report for cluster: 0x0300 attr: 0x0008 of node 0x00158D000396ABA7 (wait reading or unsupported)
10:42:12:516 ZCL attribute report 0x00158D00039962BD for cluster: 0x0000, ep: 0x01, frame control: 0x1C, mfcode: 0x115F
10:42:12:517 0x00158D00039962BD extract Xiaomi special attribute 0xFF01
10:42:12:517 03 temperature 101 °C
10:42:12:517 05 RSSI dB (?) 1068 (0x042C)
10:42:12:517 07 unknown 0 (0x0000000000000000)
10:42:12:517 08 unknown 279 (0x0117)
10:42:12:517 09 unknown 1024 (0x0400)
10:42:12:517 0a unknown 0 (0x0000)
10:42:12:517 64 lift 1 (99%)
10:42:12:517 64 somke/gas density 1 (-1323625161%)
10:42:12:517 65 unsupported tag (data type 0x20)
10:42:12:517 66 unsupported tag (data type 0x21)
10:42:13:041 [INFO] - No button handler for: lumi.sensor_ht endpoint: 0x01 cluster: BASIC (0x0000) command: 0x0A payload[0]: 001
10:42:13:041 ZCL attribute report 0x00158D00019DC16F for cluster: 0x0000, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:42:13:042 0x00158D00019DC16F extract Xiaomi special attribute 0xFF01
10:42:13:042 01 battery 3005 (0x0BBD)
10:42:13:042 04 unknown 5032 (0x13A8)
10:42:13:042 05 RSSI dB (?) 1882 (0x075A)
10:42:13:042 06 LQI (?) 4294967296 (0x0100000000)
10:42:13:042 64 temperature -10000 (ignored)
10:42:13:042 65 humidity 65436
10:42:13:042 0a unknown 0 (0x0000)
10:42:13:596 Bind response success for 0x00158d00039962bd ep: 0x01 cluster: 0x0102
10:42:13:596 skip configure report for cluster: 0x0102 attr: 0x0008 of node 0x00158D00039962BD (wait reading or unsupported)
10:42:14:594 Bind response success for 0x00158d00039962bd ep: 0x01 cluster: 0x0006
10:42:14:594 skip configure report for cluster: 0x0006 attr: 0x0000 of node 0x00158D00039962BD (wait reading or unsupported)
10:42:15:581 Bind response success for 0x00158d00039962bd ep: 0x01 cluster: 0x0008
10:42:15:581 skip configure report for cluster: 0x0008 attr: 0x0000 of node 0x00158D00039962BD (wait reading or unsupported)
10:42:16:590 Bind response success for 0x00158d00039962bd ep: 0x01 cluster: 0x0300
10:42:16:590 skip configure report for cluster: 0x0300 attr: 0x0007 of node 0x00158D00039962BD (wait reading or unsupported)
10:42:16:590 skip configure report for cluster: 0x0300 attr: 0x0003 of node 0x00158D00039962BD (wait reading or unsupported)
10:42:16:590 skip configure report for cluster: 0x0300 attr: 0x0004 of node 0x00158D00039962BD (wait reading or unsupported)
10:42:16:591 skip configure report for cluster: 0x0300 attr: 0x0008 of node 0x00158D00039962BD (wait reading or unsupported)
10:42:18:806 [INFO] - No button handler for: lumi.sensor_ht endpoint: 0x01 cluster: 0x0402 command: 0x0A payload[0]: 000
10:42:18:806 ZCL attribute report 0x00158D00019DC16F for cluster: 0x0402, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:42:18:814 [INFO] - No button handler for: lumi.sensor_ht endpoint: 0x01 cluster: 0x0405 command: 0x0A payload[0]: 000
10:42:18:814 ZCL attribute report 0x00158D00019DC16F for cluster: 0x0405, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:42:39:563 Current channel 15
10:42:39:571 Device TTL 688 s flags: 0x7
10:42:44:576 verified group capacity: 6 and group count: 2 of LightNode 0x00158d00039962bd
10:42:44:576 0x00158d00039962bd found group 0xFFF0
10:42:44:577 0x00158d00039962bd found group 0x0009
10:42:45:359 verified group capacity: 6 and group count: 2 of LightNode 0x00158d000396aba7
10:42:45:359 0x00158d000396aba7 found group 0xFFF0
10:42:45:359 0x00158d000396aba7 found group 0x0003
10:42:46:133 verified group capacity: 6 and group count: 2 of LightNode 0x00158d000399387c
10:42:46:133 0x00158d000399387c found group 0xFFF0
10:42:46:133 0x00158d000399387c found group 0x0003
10:42:46:832 verified group capacity: 6 and group count: 2 of LightNode 0x00158d000396e6ed
10:42:46:832 0x00158d000396e6ed found group 0xFFF0
10:42:46:832 0x00158d000396e6ed found group 0x0004
10:42:47:607 verified group capacity: 6 and group count: 2 of LightNode 0x00158d000396e112
10:42:47:607 0x00158d000396e112 found group 0xFFF0
10:42:47:607 0x00158d000396e112 found group 0x0004
10:43:28:954 Websocket disconnected 10.0.0.1:60720, state: 0, close-code: 1001, reason:
10:43:30:167 New websocket 10.0.0.1:61460 (state: 3)
10:43:35:010 [INFO] - No button handler for: lumi.weather endpoint: 0x01 cluster: BASIC (0x0000) command: 0x0A payload[0]: 001
10:43:35:010 ZCL attribute report 0x00158D00027264B1 for cluster: 0x0000, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:43:35:010 0x00158D00027264B1 extract Xiaomi special attribute 0xFF01
10:43:35:010 01 battery 2845 (0x0B1D)
10:43:35:010 04 unknown 17320 (0x43A8)
10:43:35:010 05 RSSI dB (?) 34 (0x0022)
10:43:35:010 06 LQI (?) 4294967296 (0x0100000000)
10:43:35:010 64 temperature 2542
10:43:35:010 65 humidity 5920
10:43:35:010 66 pressure 101041 (1010)
10:43:35:011 0a unknown 18798 (0x496E)
10:43:39:561 Current channel 15
10:43:39:569 Device TTL 628 s flags: 0x7
10:43:49:216 [INFO] - No button handler for: lumi.sen_ill.mgl01 endpoint: 0x01 cluster: 0x0400 command: 0x0A payload[0]: 000
10:43:49:217 ZCL attribute report 0x04CF8CDF3C773CE1 for cluster: 0x0400, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:44:10:562 saved node state in 2 ms
10:44:10:569 sync() in 7 ms
10:44:28:431 [INFO] - No button handler for: lumi.sensor_motion endpoint: 0x01 cluster: 0x0406 command: 0x0A payload[0]: 000
10:44:28:431 ZCL attribute report 0x00158D00016C004A for cluster: 0x0406, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:44:28:546 Set sensor check interval to 100 milliseconds
10:44:31:475 APS-DATA.indication from unknown node 0x00158D0003CE13C9
10:44:31:475 [INFO] - No button handler for: lumi.sensor_motion endpoint: 0x01 cluster: 0x0406 command: 0x0A payload[0]: 000
10:44:31:475 ZCL attribute report 0x00158D0003CE13C9 for cluster: 0x0406, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:44:34:168 [INFO] - No button handler for: lumi.weather endpoint: 0x01 cluster: 0x0402 command: 0x0A payload[0]: 000
10:44:34:168 ZCL attribute report 0x00158D0002720CA7 for cluster: 0x0402, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:44:34:177 [INFO] - No button handler for: lumi.weather endpoint: 0x01 cluster: 0x0405 command: 0x0A payload[0]: 000
10:44:34:177 ZCL attribute report 0x00158D0002720CA7 for cluster: 0x0405, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:44:34:181 [INFO] - No button handler for: lumi.weather endpoint: 0x01 cluster: 0x0403 command: 0x0A payload[0]: 000
10:44:34:181 ZCL attribute report 0x00158D0002720CA7 for cluster: 0x0403, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:44:39:067 [INFO] - No button handler for: lumi.sen_ill.mgl01 endpoint: 0x01 cluster: 0x0400 command: 0x0A payload[0]: 000
10:44:39:068 ZCL attribute report 0x04CF8CDF3C773CE1 for cluster: 0x0400, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:44:39:562 Current channel 15
10:44:39:570 Device TTL 568 s flags: 0x7
10:44:39:570 Device reset watchdog 7200 s
10:44:41:377 ZCL attribute report 0x04CF8CDF3C7E508A for cluster: 0xFCC0, ep: 0x01, frame control: 0x1C, mfcode: 0x115F
10:44:41:378 0x04CF8CDF3C7E508A extract Xiaomi special attribute 0x00F7
10:44:41:378 64 on/off 0
10:44:41:378 03 temperature 25 °C
10:44:41:378 98 power 0.000000 (0)
10:44:41:378 95 consumption 1.697045 (1697)
10:44:41:378 96 voltage 2330.000000 (233)
10:44:41:378 97 current 0.000000 (0)
10:44:41:378 05 RSSI dB (?) 20 (0x0014)
10:44:41:378 9a unknown 0 (0x00)
10:44:41:378 08 unknown 278 (0x0116)
10:44:41:378 07 unknown 0 (0x0000000000000000)
10:44:41:378 09 unknown 2306 (0x0902)
10:44:41:378 0b unknown 0 (0x0000)
10:44:41:378 9b Consumer connected (yes/no) 1
10:44:44:053 [INFO] - No button handler for: lumi.sen_ill.mgl01 endpoint: 0x01 cluster: 0x0400 command: 0x0A payload[0]: 000
10:44:44:053 ZCL attribute report 0x04CF8CDF3C773CE1 for cluster: 0x0400, ep: 0x01, frame control: 0x18, mfcode: 0x0000
10:44:44:570 GW firmware version: 0x26660700
10:44:44:570 GW firmware version is up to date: 0x26660700
Thanks for your log. Sorry I can't contribute right now, I'm out.
Jaguaza
on 18 Nov 2020
Related issues
kmplngj
·
121Comments
jsve
·
115Comments
Jopinder
·
122Comments
bkupidura
·
198Comments
hazcod
·
146Comments
