Deconz-rest-plugin: Xiaomi round push button WXKG01LM
At the moment I only get (1000, 1002, 1004, 1005, 1006) from the REST API. Model is Xiaomi WXKG01LM.
With zigbee2mqtt I could use this clicks: single, double, triple, quadruple, many, long, long_release click.
Right now click and long respond both with 1000.
deCONZ 2.05.49
_Originally posted by @alex0411 in https://github.com/dresden-elektronik/deconz-rest-plugin/issues/349#issuecomment-443799184_
alex0411
All 14 comments
Can you please provide the debug output while doing the above actions, we can check the code to add more actions.
deCONZ --dbg-aps=2 --dbg-zcl=1 --dbg-info=1
manup
on 3 Dec 2018
Yes, this is the debug output
single click
21:35:53:296 APS-DATA.indication srcAddr: 0x00158d0001f3ac97, srcEp: 0x01 dstAddrMode: 2, profile: 0x0104, cluster: 0x0006, lqi: 143, rssi: -73
21:35:53:296 asdu: 18070a00001000
21:35:53:296 button 1000 Normal press
21:35:53:296 ZCL attribute report 0x00158D0001F3AC97 for cluster 0x0006, ep 0x01
21:35:53:299 discard sensor state push for 11: state/lastupdated (already pushed)
21:35:53:504 APS-DATA.indication srcAddr: 0x00158d0001f3ac97, srcEp: 0x01 dstAddrMode: 2, profile: 0x0104, cluster: 0x0006, lqi: 143, rssi: -73
21:35:53:504 asdu: 18080a00001001
21:35:53:504 button 1002 Normal release
21:35:53:504 ZCL attribute report 0x00158D0001F3AC97 for cluster 0x0006, ep 0x01
21:35:53:507 discard sensor state push for 11: state/lastupdated (already pushed)
double
21:33:50:444 APS-DATA.indication srcAddr: 0x00158d0001f3ac97, srcEp: 0x01 dstAddrMode: 2, profile: 0x0104, cluster: 0x0006, lqi: 167, rssi: -70
21:33:50:445 asdu: 18050a00802002
21:33:50:445 button 1004 Double press
21:33:50:446 ZCL attribute report 0x00158D0001F3AC97 for cluster 0x0006, ep 0x01
21:33:50:449 discard sensor state push for 11: state/lastupdated (already pushed)
triple
21:35:12:115 APS-DATA.indication srcAddr: 0x00158d0001f3ac97, srcEp: 0x01 dstAddrMode: 2, profile: 0x0104, cluster: 0x0006, lqi: 119, rssi: -76
21:35:12:115 asdu: 18060a00802003
21:35:12:116 button 1005 Triple press
21:35:12:116 ZCL attribute report 0x00158D0001F3AC97 for cluster 0x0006, ep 0x01
21:35:12:119 discard sensor state push for 11: state/lastupdated (already pushed)
quad
21:36:20:616 APS-DATA.indication srcAddr: 0x00158d0001f3ac97, srcEp: 0x01 dstAddrMode: 2, profile: 0x0104, cluster: 0x0006, lqi: 135, rssi: -74
21:36:20:616 asdu: 18090a00802004
21:36:20:616 button 1006 Quad press
21:36:20:617 ZCL attribute report 0x00158D0001F3AC97 for cluster 0x0006, ep 0x01
21:36:20:619 discard sensor state push for 11: state/lastupdated (already pushed)
many
21:37:06:358 APS-DATA.indication srcAddr: 0x00158d0001f3ac97, srcEp: 0x01 dstAddrMode: 2, profile: 0x0104, cluster: 0x0006, lqi: 167, rssi: -70
21:37:06:358 asdu: 180c0a00802080
21:37:06:359 no button handler for: lumi.sensor_switch ep: 0x01 cl: 0x0006 cmd: 0x0A pl[0]: 000
21:37:06:359 ZCL attribute report 0x00158D0001F3AC97 for cluster 0x0006, ep 0x01
long
21:37:48:452 APS-DATA.indication srcAddr: 0x00158d0001f3ac97, srcEp: 0x01 dstAddrMode: 2, profile: 0x0104, cluster: 0x0006, lqi: 127, rssi: -75
21:37:48:452 asdu: 180f0a00001000
21:37:48:452 button 1000 Normal press
21:37:48:453 ZCL attribute report 0x00158D0001F3AC97 for cluster 0x0006, ep 0x01
21:37:48:455 discard sensor state push for 11: state/lastupdated (already pushed)
long_release
21:38:34:100 APS-DATA.indication srcAddr: 0x00158d0001f3ac97, srcEp: 0x01 dstAddrMode: 2, profile: 0x0104, cluster: 0x0006, lqi: 87, rssi: -80
21:38:34:100 asdu: 18140a00001001
21:38:34:100 button 1002 Normal release
21:38:34:100 ZCL attribute report 0x00158D0001F3AC97 for cluster 0x0006, ep 0x01
21:38:34:103 discard sensor state push for 11: state/lastupdated (already pushed)
alex0411
on 5 Dec 2018
I found out how it is done with zigbee2mqtt:
https://github.com/Koenkk/zigbee-shepherd-converters/blob/master/converters/fromZigbee.js#L237
alex0411
on 5 Dec 2018
Thanks that helps, so they basically zigbee2mqtt uses a timer to determine if it is a long press, when the release event isn't received within 300 ms. In that case they fire a virtual hold event.
manup
on 5 Dec 2018
No problem. And for many there is also no button handler at the moment (see debug output).
I also have the strang behavior, that a single click in rare cases gets recognized as 1002.
alex0411
on 5 Dec 2018
I've ordered two of these switches via Gearbest hopefully they arrive soon, then I can take a look and also finish support in Phoscon App Switch Editor.
manup
on 9 Dec 2018
Please do not implement a virtual hold for the rest API unless this can be implemented while still sending the 1000 (button down) and 1002 (button up) events, I'm using these buttons with Home Assistant and an appdaemon script where I can define custom virtual hold events: https://gist.github.com/cnrd/da1e4b970bfd3fee208a3014211736b6 this would not be possible without getting the 1000 and 1002 events.
EDIT: @manup any chance that you can also implement battery level for these? They report the battery level if connected to the xiaomi gateway, so they should be able to report it.
EDIT2: either there are multiple versions of the button switch or some of mine are not syncing correctly: https://imgur.com/a/AwkSzyH
cnrd
on 14 Dec 2018
+1 for @alex0411. I am used to using hold/long_press events in Home Assistant to dim lights so this functionality would be most welcome.
@manup Did your switches arrive safely? :)
chimpy
on 13 Jan 2019
@manup Did your switches arrive safely? :)
They did I have two for testing now.
EDIT: @manup any chance that you can also implement battery level for these? They report the battery level if connected to the xiaomi gateway, so they should be able to report it.
This should work since 2.05.54.
However implementation for proper hold (1001) and long release (1003) isn't done yet. I wanted to add this in 2.05.55 but looks like it will take until 2.05.56.
manup
on 13 Jan 2019
Mine only seems to report 100% battery and some of them haven't had a battery change for about 2 years.
cnrd
on 13 Jan 2019

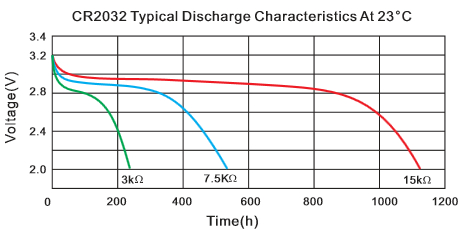

The battery level is based on a mapping of the reported voltage. The problem is that the voltage will only drop significantly shortly before the battery dies.
manup
on 13 Jan 2019
The switch now support all possible events as described in:
https://github.com/dresden-elektronik/deconz-rest-plugin/wiki/Xiaomi-WXKG01LM
Further the switch is supported in the Phoscon App switch editor since 2.05.57:
https://github.com/dresden-elektronik/deconz-rest-plugin/releases/tag/V2_05_57
Closing the issue for now.
manup
on 20 Jan 2019
You’re awesome!
On 20 Jan 2019, at 23:02, Manuel Pietschmann notifications@github.com wrote:
The switch now support all possible events as described in:
https://github.com/dresden-elektronik/deconz-rest-plugin/wiki/Xiaomi-WXKG01LMFurther the switch is supported in the Phoscon App switch editor since 2.05.57:
https://github.com/dresden-elektronik/deconz-rest-plugin/releases/tag/V2_05_57Closing the issue for now.
—
You are receiving this because you commented.
Reply to this email directly, view it on GitHub, or mute the thread.
chimpy
on 20 Jan 2019
Very nice, thanks!
alex0411
on 21 Jan 2019
