Deconz-rest-plugin: Orvibo Smoke Sensor

[hafffe]

Hi,
Would appreciate if someone could look into add support for Orvibo Smoke Sensor.

I run everything on headless Linux server, so can't provide any cluster info unfortunately.
But I think it's very much like Trust smoke detector & Heiman HS1SA Smoke detector

Maybe all those three devices can share most of the code?

[jonatanhost]

I have the same device connected but not recognized. Here is a screenshot of node info.

[jonatanhost]

@manup Do you guys need more information from us of this smoke sensor to implement it?

[manup]

@manup Do you guys need more information from us of this smoke sensor to implement it?

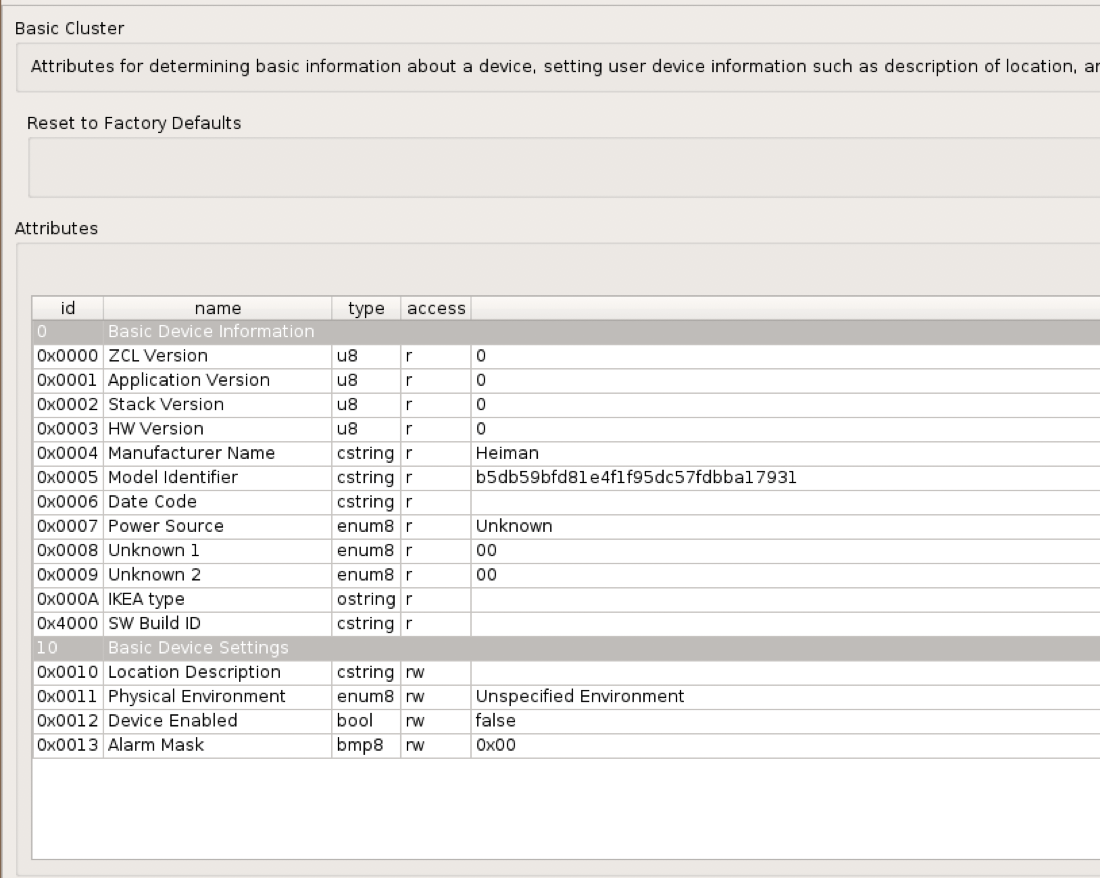

Some more screenshots as described here would be useful, especially model identifier from basic cluster is needed.

https://github.com/dresden-elektronik/deconz-rest-plugin/wiki/Request-Device-Support

[hafffe]

@jonatanhost is it possible for you to get the info manup asks for?

[jonatanhost]

@manup Do you guys need more information from us of this smoke sensor to implement it?

Some more screenshots as described here would be useful, especially model identifier from basic cluster is needed.

https://github.com/dresden-elektronik/deconz-rest-plugin/wiki/Request-Device-Support

I don't know how to get those attributes to show

[hafffe]

think i got it, does this help @manup ?

[jonatanhost]

@manup

Do you guys need any more information about the device or is this enough?

[jonatanhost]

@manup Hi, do you have any status on this? Have two sensor myself of this I would like to use as not just dumb smoke sensors :)

[manup]

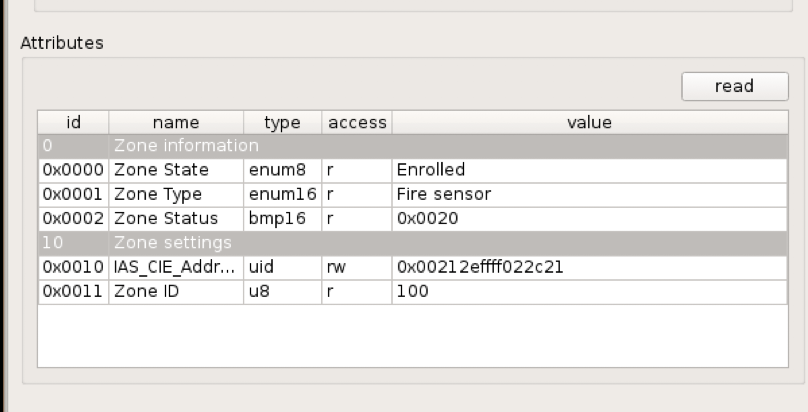

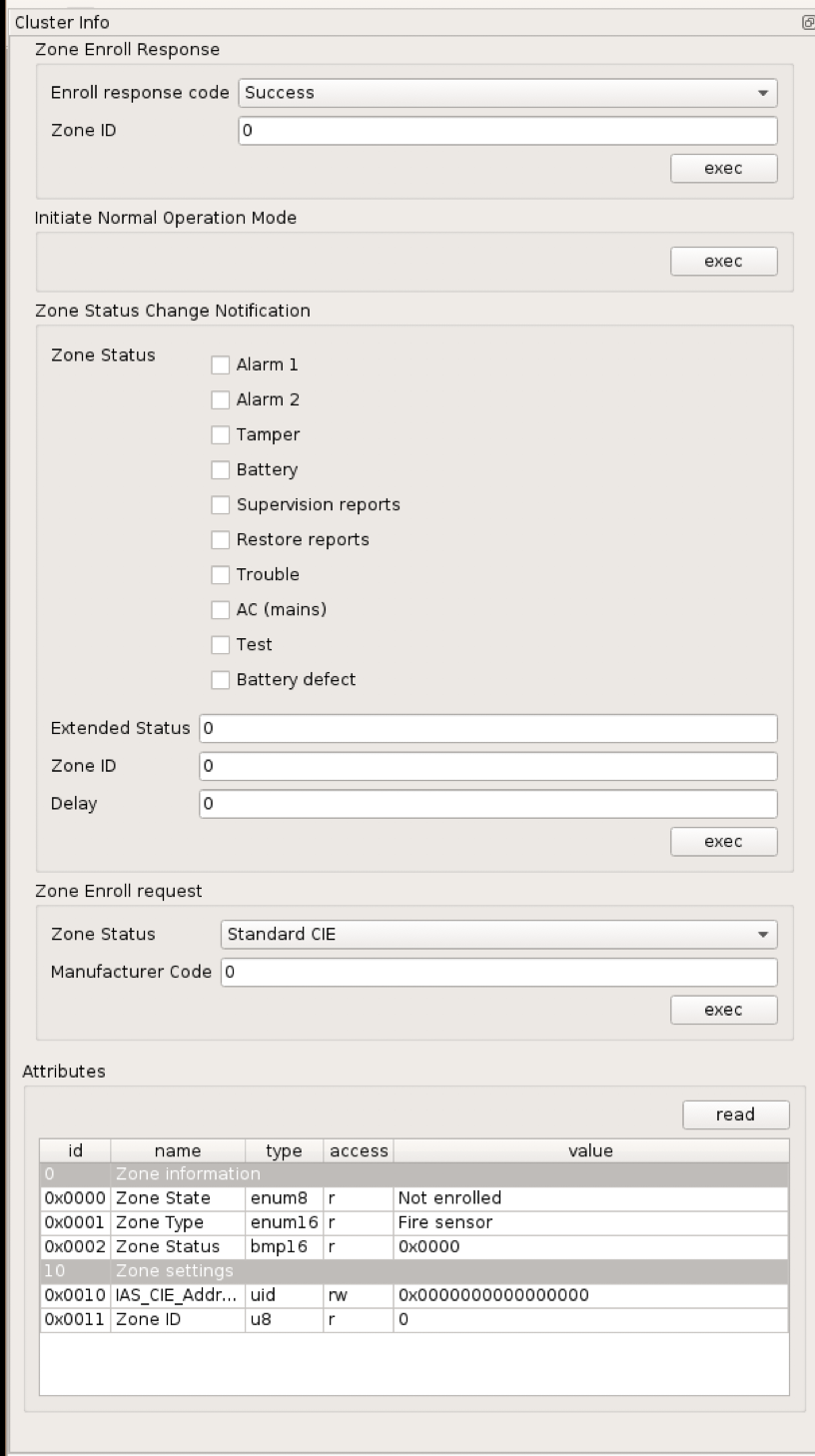

Hi, sorry for the late reply. Yes one more thing, please provide a screenshot of the IAS Zone cluster after reading the attributes.

The modelid looks a bit random so it would be helpful if we can pin point the sensor via its IAS cluster attributes.

[hafffe]

Got two different result for same device, the values changed during pairing process in deconz, don't know which is right

[hafffe]

@manup any news about this? :)

[hafffe]

1763 adds support for this, closing

[arnonel]

Could we add SF21 smoke sensor please

[mn26826]

I opened a new issue for this device in #1875 .
