Dashboard: Dashboard login does not authorize with valid config file

[ssubramanian123]

Environment

I have installed dashboard to my cluster using below URL.

kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/master/src/deploy/recommended/kubernetes-dashboard.yaml

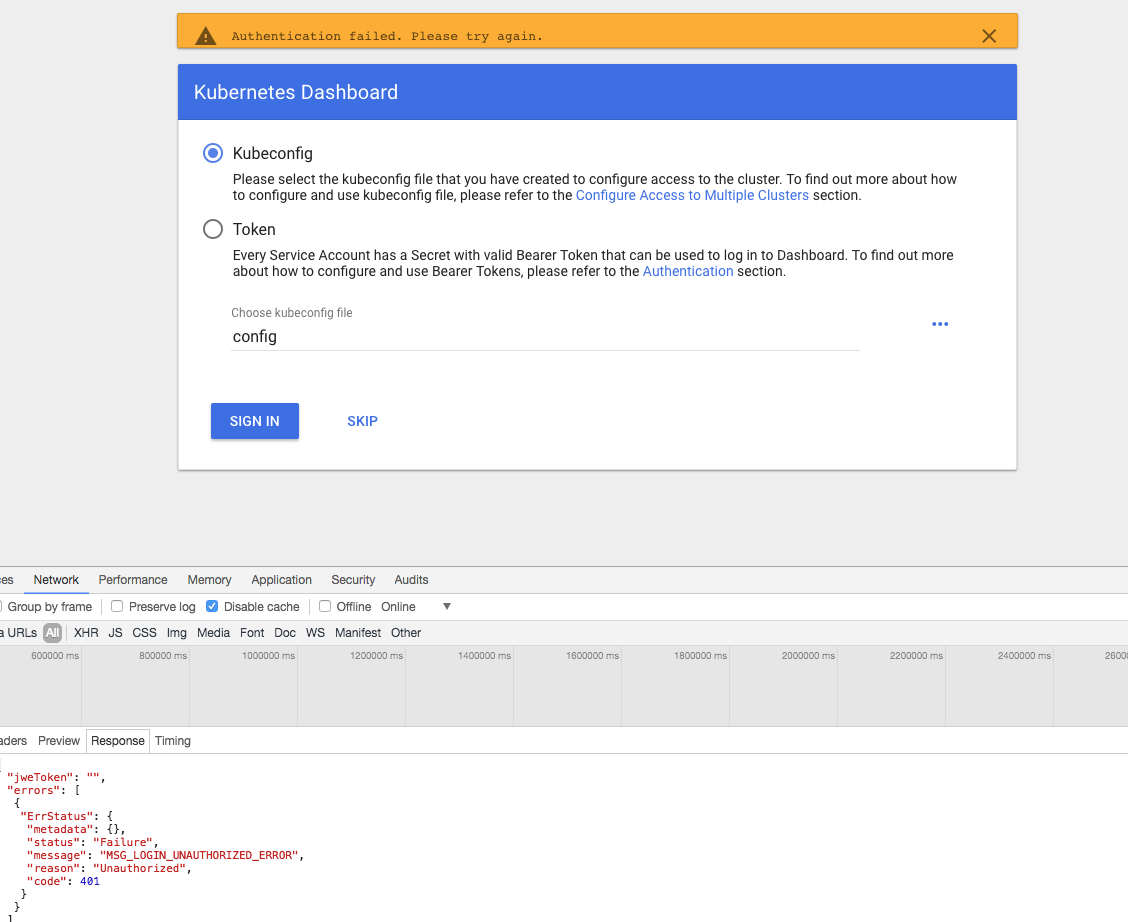

Now I am trying to login using my config file, but it is not allowing me to login and throws error as un-authrorized, attached screen shot with developer tool response.

My config file

apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: {{certdata}}
    server: https://api.{mycluster_name}
  name: {mycluster_name}
contexts:
- context:
    cluster: {mycluster_name}
    user: {mycluster_name}
  name: {mycluster_name}
current-context: {mycluster_name}
kind: Config
preferences: {}
users:
- name: {mycluster_name}
  user:
    as-user-extra: {}
    client-certificate-data: {{certdata}}
    password: GlFP7KHi8KokfqFE3NNbsSnzUQil3f2F
    username: admin
- name: {mycluster_name}-basic-auth
  user:
    as-user-extra: {}
    password: GlFP7KHi8KokfqFE3NNbsSnzUQil3f2F
    username: admin

Dashboard version: 1.8 (latest version)
Kubernetes version:  1.8.8
Operating system: Mac

Steps to reproduce

Install latest dashboard and try login with valid config file

Observed result

Throws un-authorzied access error

Expected result

Login should works

Comments

Please let me know for any additional details.

[ssubramanian123]

Here is the log from from kubernetes dashboard pod

2018/03/02 21:35:05 [2018-03-02T21:35:05Z] Incoming HTTP/2.0 GET /api/v1/csrftoken/login request from 100.117.190.64:49734: {}
2018/03/02 21:35:05 [2018-03-02T21:35:05Z] Outcoming response to 100.117.190.64:49734 with 200 status code
2018/03/02 21:35:05 [2018-03-02T21:35:05Z] Incoming HTTP/2.0 POST /api/v1/login request from 100.117.190.64:49734: {
  "kubeConfig": "apiVersion: v1\nclusters:\n- cluster:\n    certificate-authority-data: {cert}\n    server: https://api.{myclustername}\n  name: {myclustername}\ncontexts:\n- context:\n    cluster: {myclustername}\n    user: {myclustername}\n  name: {myclustername}\ncurrent-context: {myclustername}\nkind: Config\npreferences: {}\nusers:\n- name: {myclustername}\n  user:\n    as-user-extra: {}\n    client-certificate-data: {cert}\n    client-key-data: {cert}\n    password: GlFP7KHi8KokfqFE3NNbsSnzUQil3f2F\n    username: admin\n- name: {myclustername}-basic-auth\n  user:\n    as-user-extra: {}\n    password: GlFP7KHi8KokfqFE3NNbsSnzUQil3f2F\n    username: admin\n",
  "password": "",
  "token": "",
  "username": ""
}
2018/03/02 21:35:05 Non-critical error occurred during resource retrieval: the server has asked for the client to provide credentials
2018/03/02 21:35:05 [2018-03-02T21:35:05Z] Outcoming response to 100.117.190.64:49734 with 200 status code
2018/03/02 21:35:22 Metric client health check failed: the server could not find the requested resource (get services heapster). Retrying in 30 seconds

[floreks]

Your current context is set to user using client-certificate-data: {{certdata}} as part of user configuration. We are not supporting any kind of certificate-based authentication. Possibly it is not working because of that.

Another option is that this user has no access to server version endpoint. This is what we are using to check if used credentials are correct as there is no direct mechanism exposed by apiserver to make sure that user has logged in.

[ssubramanian123]

@floreks Thanks for your reply. I didnt get your reply completely.

Using this client-certificate-date, I am able to run any admin kubectl command. It works fine. This config is generated out of KOPs. I am completely able to manage the cluster using this config through kubectl.

Also I didnt get server version endpoint, what is that meant by and how to activate this?

Can you please help me with the steps to fix this config to work with dashboard?

Thanks in advance.

[floreks]

What I mean is that using client-certificate-data in kubeconfig file is not supported by Dashboard. If basic authentication is enabled in the cluster (username/password) then it is supported as long as you pass --authentication-mode basic argument to the Dashboard container. You'd need to modify Dashboard yaml used for deployment. This argument is described more deeply in here: https://github.com/kubernetes/dashboard/wiki/Dashboard-arguments

[ssubramanian123]

@floreks our cluster is RBAC enabled clusters. So we have authorization mode as RBAC.

As per dashboard arguments the cluster should be enabled with '--authorization-mode=ABAC' and '--basic-auth-file' flags set. So I am not sure how my cluster supports this feature.

Can you please help with the details.

[floreks]

In this case kubeconfig file you have shown is not valid from Dashboard perspective. Only token and basic auth are supported.
