Darknet: C++ DLL loading model problem

[Siset]

Hi @AlexeyAB ,

First of all, congratulations for the great job you are performing here!

I am currently trying to use yolo from C++ (and windows) in my own application. I have compiled the DLL and I even used it with Python. But now i am trying to speed up the application and I guess that with C++ might run faster.
My code at this point is very simple, I am trying to initialize the detector:

#include<opencv2/opencv.hpp>
#include<iostream>
#include "yolo_v2_class.hpp"
#pragma comment(lib, "yolo_cpp_dll.lib")
#include <string>
#include <vector>


int main()
{
    Detector detector("yolo-obj.cfg", "yolo-obj_4200.weights");
    return 0;
}

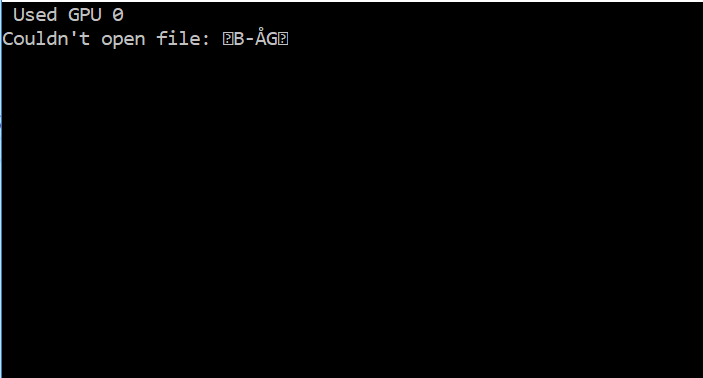

The results is the following one:

And it is generated in these lines (after debugging):

list *read_cfg(char *filename)
{
    FILE *file = fopen(filename, "r");
    if(file == 0) file_error(filename);

I don't know why the filename is not informed properly at this stage. Do I have to encode it or do something special for the DLL to read it? The configuration and the weights are in the same directory and I can read them using:

 FILE *file = fopen("yolo-obj.cfg", "r");

Thank you in advanced,
Siset

[AlexeyAB]

@Siset Hi,

I use

• Windows 7 x64
• MSVS 2015
• OpenCV 3.4.0
• CUDA 10.0 and cuDNN 7.x.x for CUDA 10.0

I used this code:

//#include<opencv2/opencv.hpp>
#include<iostream>
#include "yolo_v2_class.hpp"
#pragma comment(lib, "yolo_cpp_dll.lib")
#include <string>
#include <vector>

int main()
{
    Detector detector("yolo-obj.cfg", "yolo-obj_4200.weights");
    return 0;
}

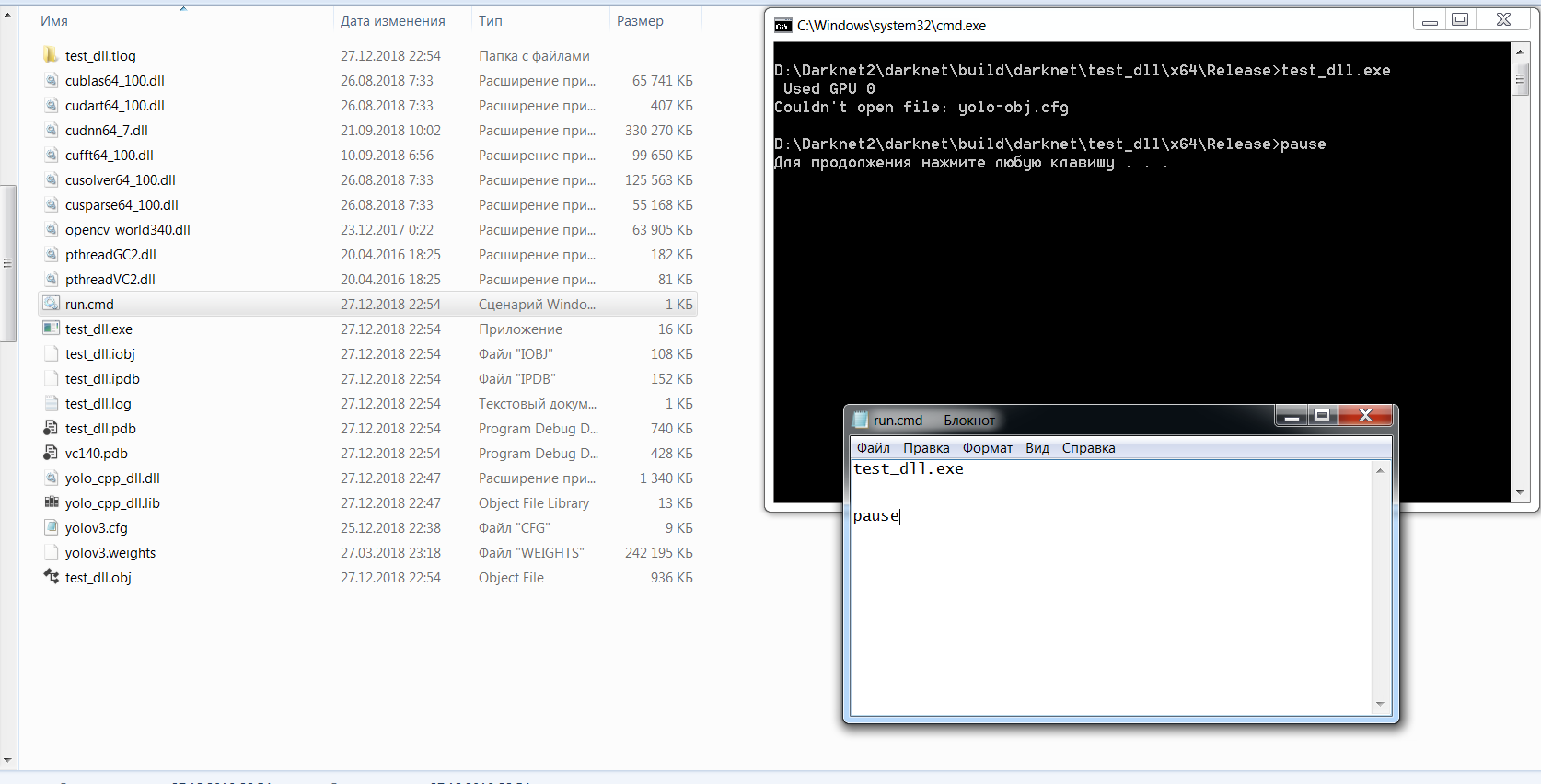

And get such result:

[AlexeyAB]

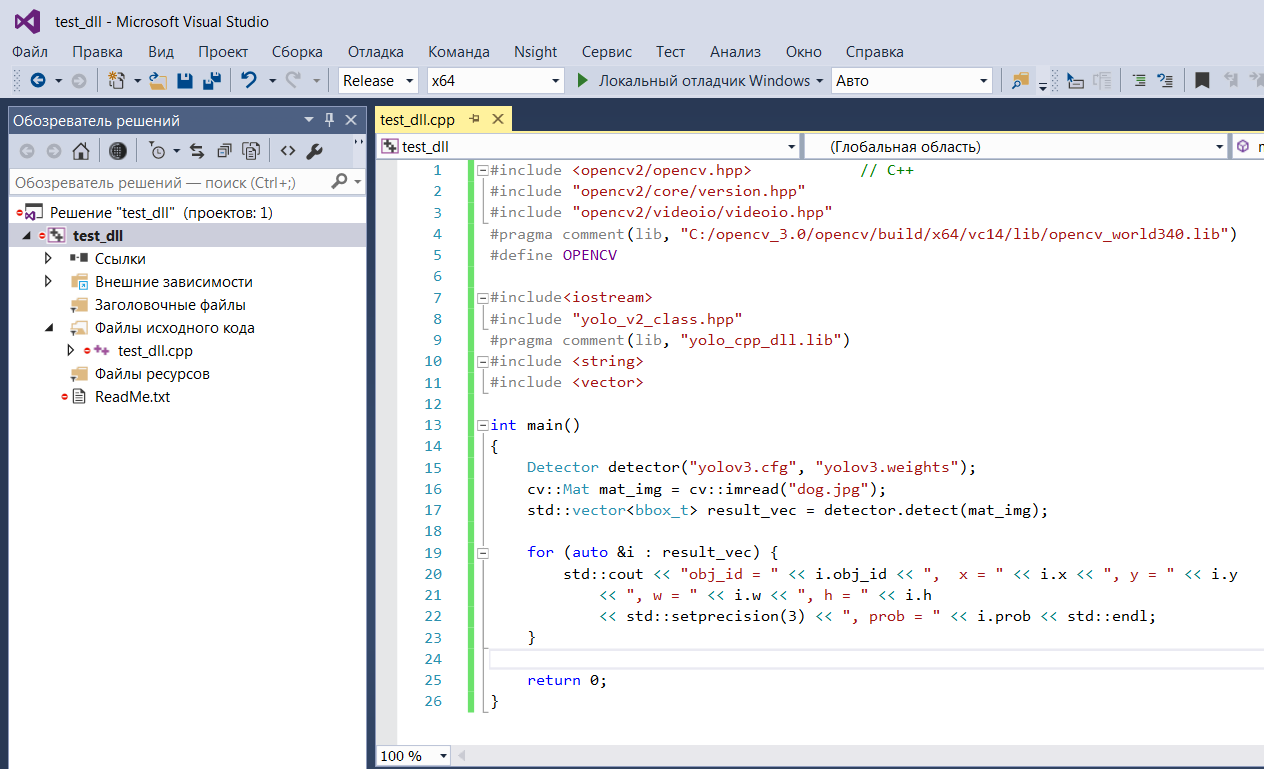

Also if I use this code:

#include <opencv2/opencv.hpp>            // C++
#include "opencv2/core/version.hpp"
#include "opencv2/videoio/videoio.hpp"
#pragma comment(lib, "C:/opencv_3.0/opencv/build/x64/vc14/lib/opencv_world340.lib")
#define OPENCV

#include<iostream>
#include "yolo_v2_class.hpp"
#pragma comment(lib, "yolo_cpp_dll.lib")
#include <string>
#include <vector>

int main()
{
    Detector detector("yolov3.cfg", "yolov3.weights");
    cv::Mat mat_img = cv::imread("dog.jpg");
    std::vector<bbox_t> result_vec = detector.detect(mat_img);

    for (auto &i : result_vec) {
        std::cout << "obj_id = " << i.obj_id << ",  x = " << i.x << ", y = " << i.y
            << ", w = " << i.w << ", h = " << i.h
            << std::setprecision(3) << ", prob = " << i.prob << std::endl;
    }

    return 0;
}

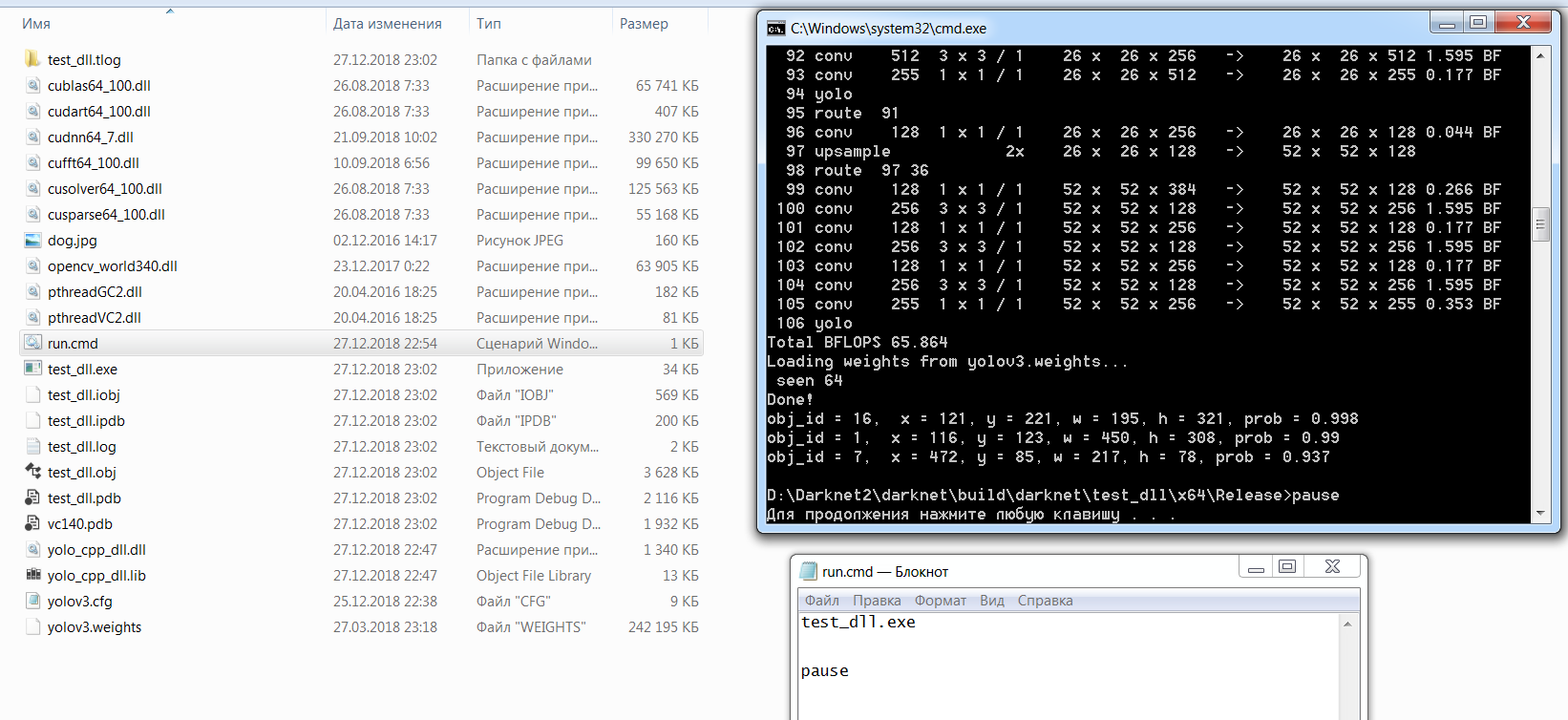

Then I get this correct result:

[Siset]

Hi @AlexeyAB ,

Thank you very much! Great example, it worked! :) I had the "debug" and no the "release".
By the way, I am working on:
Windows 10
MSVS 17

And it works as well, just in case it is useful to you.

Really appreciate your time!

[holger-prause]

On 27.12.2018 21:06, Alexey wrote:
>

Also if I use this code:

include // C++

include "opencv2/core/version.hpp"

include "opencv2/videoio/videoio.hpp"

pragma comment(lib, "C:/opencv_3.0/opencv/build/x64/vc14/lib/opencv_world340.lib")

define OPENCV

include

include "yolo_v2_class.hpp"

pragma comment(lib, "yolo_cpp_dll.lib")

include

include

int main()
{
Detectordetector("yolov3.cfg","yolov3.weights");
cv::Mat mat_img =cv::imread("dog.jpg");
std::vector result_vec = detector.detect(mat_img);

 for  (auto  &i : result_vec) {
     std::cout <<"obj_id = "  << i.obj_id  <<", x = "  << i.x  <<", y = "  << i.y
         <<", w = "  << i.w  <<", h = "  << i.h
         <<std::setprecision(3) <<", prob = "  << i.prob  << std::endl;
 }

 return  0;

}

Then I get this correct result:

https://user-images.githubusercontent.com/4096485/50492965-9ddeb300-0a2b-11e9-891c-02b4de0b549a.png

https://user-images.githubusercontent.com/4096485/50492990-bcdd4500-0a2b-11e9-824c-1efaa58b60b6.png

—
You are receiving this because you are subscribed to this thread.

Reply to this email directly, view it on GitHub
https://github.com/AlexeyAB/darknet/issues/2117#issuecomment-450221448,
or mute the thread
https://github.com/notifications/unsubscribe-auth/AHjhQy-AJtnPK4Jb1imf4dB7vu8V3f99ks5u9ShQgaJpZM4Zi_zJ.

Well if you compare the ouputs from the detector class - with the
outputs from the main program, there is a difference.
I blame the detector class (the yolov2 name is suspiciuos too) for not
generating a letter box image like the other code does.

Look at the main code or the python dll script - they both do the same
but behave differently from your(also my i did the same) code.

I think darknet does not like opencv at all.

[xjsxujingsong]

hi @Siset
I met the same problem.
If i use the original code, no matter in Debug or Release mode, it works.
But if i create a new project and put hpp file and lib and dll file, in Release mode, it works. But in Dubug mode, i met the same problem. Do you know what is going on here?
Thanks.
