Cutter: Graph mouse click highlight wrong position

[dmknght]

Work environment

| Questions | Answers
|------------------------------------------------------|--------------------
| OS/arch/bits (mandatory) | Parrot 4.2 64 bit
| File format of the file you reverse (mandatory) | ELF (happens to any format)
| Architecture/bits of the file (mandatory) | x86_64 (happens to any architecture)
| Cutter and r2 version, See About Cutter (mandatory) | Version 1.7.2 / Using r2 3.0.0
| Show version information full output (See About Cutter) in a pastebin document (mandatory) | https://pastebin.com/MSfrUAY6

Expected behavior

Cutter should display highlight color under selected object

Actual behavior

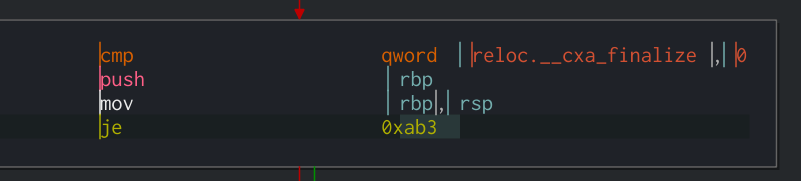

Cutter shows color from previous character: space, [ or any character before object; object last character does not have highlight color

Additional Logs, screenshots, source-code, configuration dump, ...

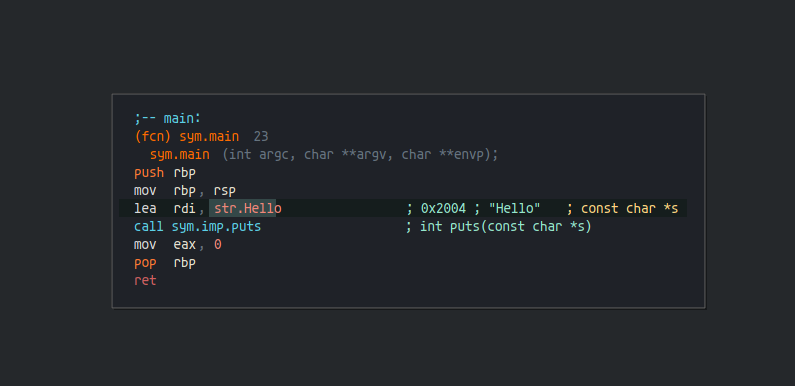

Screenshot:

Tested binary file
hello.zip

[ITAYC0HEN]

Sadly, I can't reproduce on:

| Cutter Version | OS |
|-----------------|-------------------|
| Release (1.7.2) | Windows 10 64-bit |
| Release (1.7.2) | Arch Linux 64-bit |
| Master (git) | Windows 10 64-bit |
| Master (git) | Arch Linux 64-bit |

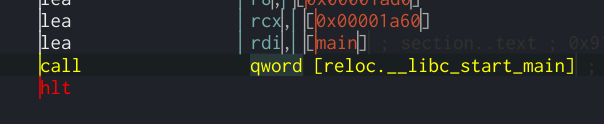

Screenshot, same binary:

I also tried with different binaries.

[dmknght]

That is super weird. I am using release version and it happens to me from previous versions. (it happens after clicking on object)

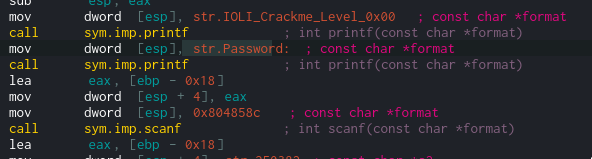

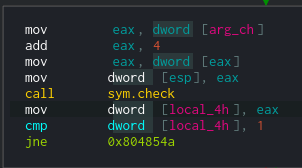

Here is a picture with Cutter 1.7.1, Debian 9 amd64 inside Virtualbox.

[ITAYC0HEN]

Indeed weird, and I totally believe you - thanks for letting us know!
Sadly I can't reproduce on the machines stated above and never heard of similar complains. 😕

Any chance you can debug it from source on your end and try to figure out what causes it?

[ITAYC0HEN]

Okay I was able to reproduce indeed! :)

Cutter version from git, another Arch64 machine

[dmknght]

Wow i am about cloning and building it. Hope you fix it soon. Thanks for fast supporting <3

[Adikso]

I wrote this highlighting code and from what I see this is happening with non-mono fonts. It is calculating position as if all letters have same width. I can fix it

[dmknght]

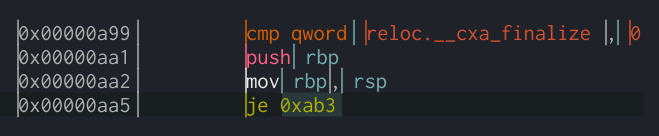

I've created a git version of cutter, and this problem has new issues

My font setting inside cutter

[ITAYC0HEN]

thanks @dmknght :)
@Adikso, any idea what failed here?

[Adikso]

This is probably problem with width calculation or rendering graph but I am not sure. You can see invalid width calculation on "[local_4h ]"

[dmknght]

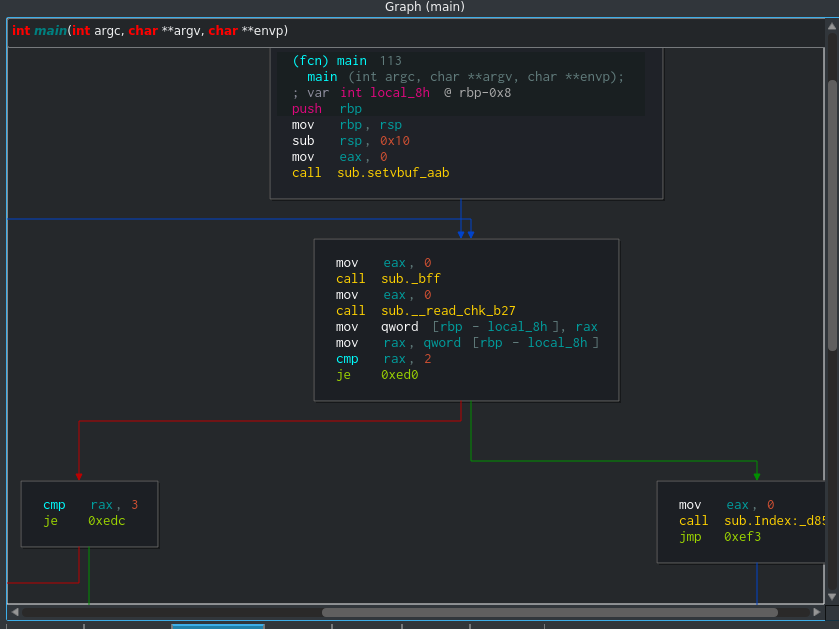

Ah rendering graph is having some problem too. I don't know what is it called (screenshot). Should i create new issue for this?

[Adikso]

From my observations there is problem with long "tokens". The more I increase asm.tabs the more off is highlight. It might be problem with width calculation as highlighting needs precise calculations but RichTextPainer don't as it is just drawing text and it does not care :')

[Adikso]

I forced it to use QFontMetrics directly rather than CachedFontMetrics and it works perfectly (it breaks token selection but it can be fixed).. so yes caching font width is broken.

[ITAYC0HEN]

great! would you be able to solve this and send PR, please? :)

[Adikso]

I don't know how to fix CachedFontMetrics. Every few characters width is 1px off. Like width of the same character can be later smaller. These 1px offs are accumulating and results later in big offset. I could make it use QFontMetrics but I understand that somebody created CachedFontMetrics for some performance reasons. Even if I could replace it with direct QFontMetrics->width() call I don't know what would be good option to find which letter was pressed. QFontMetrics don't have function to get text position at specified pixel offset so I would have to make something like binary search to find it.

[xarkes]

Hello,
I didn't understand the bug in CachedFontMetrics? (If you want to discuss this you can come on irc or Telegram)

[dmknght]

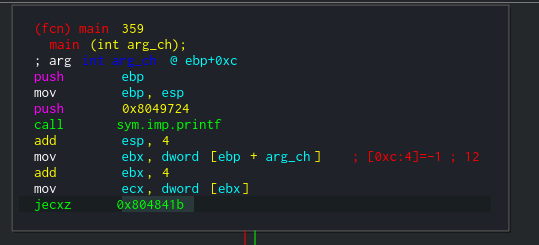

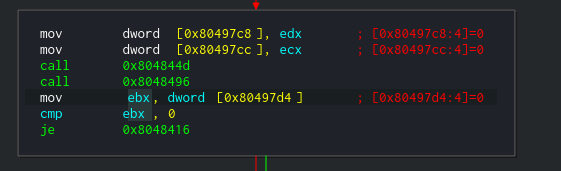

I've built cutter after pulling it, with radare2 3.1 and i found something similar this issue: i set asm.tabs = 11 and 2 screenshots bellow shows line call sym.imp.printf and jecxz .... stays wrong position. I think this is alignment problem.


Here is an other block where instruction has no address in it stays at wrong position too:

I think this problem is not only drawing highlight color wrong width but characters have alignment problem too.
@ITAYC0HEN @Adikso @xarkes

[Adikso]

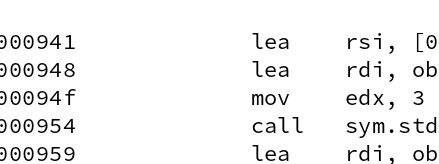

If you would copy this disassembly into eg. LibreOffice Write and change font to some non-mono one you will see this:

You see how incorrect is this "mov" aligned? We are just pasting exact output out of radare into this graph and radare2 is command line tool - it can't move text by few pixels, so in order to align text it is placing spaces. There is the same amount of spaces before both mov and lea above. The problem is that you use non-mono font so the text before this "mov" is not of the same width as text before "lea".

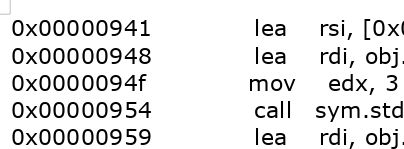

With mono font it looks like this (perfectly):

And I don't think that there is a need for making Cutter-side text alignment (It would have to know what part of the text is what). Just change font to mono one at least for now.

[xarkes]

So I think this can be closed :)
Feel free to reopen if not.

[dmknght]

I've built it. There are still some wrong positions.

[Adikso]

@xarkes Referenced pull request is for DisassemblyWidget not for DisassemblerGraphView. Problem is not solved. This can be easily fixed but might slow down already slow graph rendering.

[Maijin]

@Adikso thanks, reopened

[a1ext]

@xarkes Referenced pull request is for DisassemblyWidget not for DisassemblerGraphView. Problem is not solved. This can be easily fixed but might slow down already slow graph rendering.

Yep, I've noticed that in the PR description, just Disassembly widget :)

[a1ext]

@Adikso Have you figured out the problem? We can discuss that if you want

[ITAYC0HEN]

ping @a1ext and @Adikso , do you have solutions? I know you two worked on this

[a1ext]

Didn’t take a look

[ITAYC0HEN]

@dmknght some improvements were made, are you still experiencing the same?

[dmknght]

No it is still the same. Plus widget panels seems buggy in latest version

[ITAYC0HEN]

No it is still the same. Plus widget panels seems buggy in latest version

@dmknght not buggy, but changed the way you drag and drop. to support dragging groups. So to drag a widget you should do this from the tab. and to drag a group of widgets do this from the top bar

[dmknght]

No it is still the same. Plus widget panels seems buggy in latest version

@dmknght not buggy, but changed the way you drag and drop. to support dragging groups. So to drag a widget you should do this from the tab. and to drag a group of widgets do this from the top bar

I'm sure what do you mean because this is about text highlighting error.

[ITAYC0HEN]

You mentioned Widget Panels. What did you refer to?
