Cura: [4.8.0b] Tree support inconsistency

[VicOnTheBeach]

Bishop.zip

Application version
4.8.0b

Platform
Windows 10 Familly x64

Printer
CREALITY CR10s Pro

Reproduction steps
0.Download Cura project here.

1. Set up tree support with overhang angle of 70 degrees then slice. The support reach some model's spots.
2. Lowering the overhang angle value to 60 degrees makes the support not reaching those spots.

Screenshot(s)
See below

Expected results
Should be the opposite results

Project file
.3mf file attached here

Keep up the good work guys, Cura is the best slicer ever <3

[konskarm]

Hi @VicOnTheBeach. Could you please post your pictures here? The Facebook links don't work.

[VicOnTheBeach]

Hi Konstantinos,

Sure, here it is :)

Have a nice day

[konskarm]

Since they don't show up properly when they are sent via email, I am uploading them for visibility.

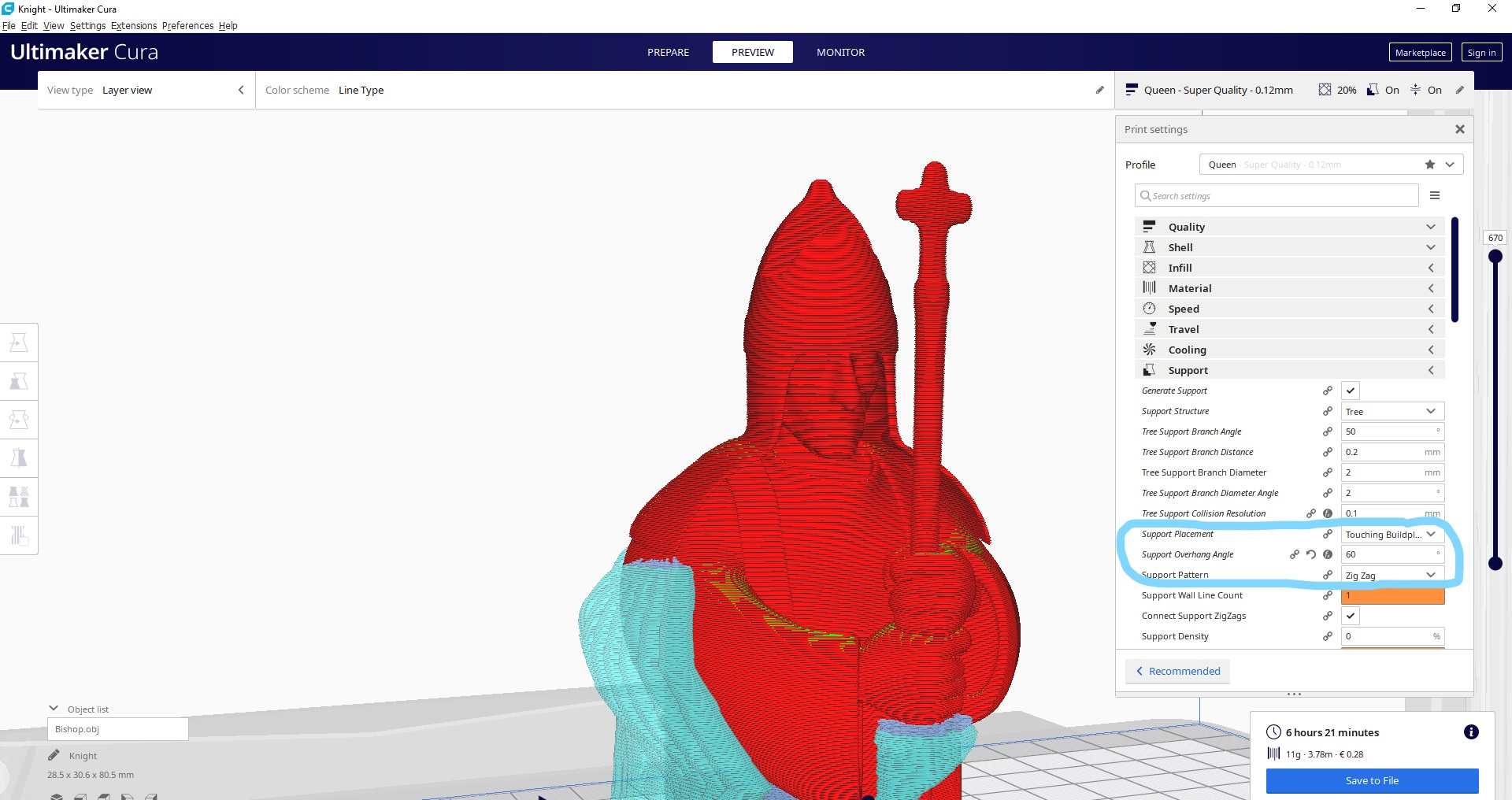

60 degrees:

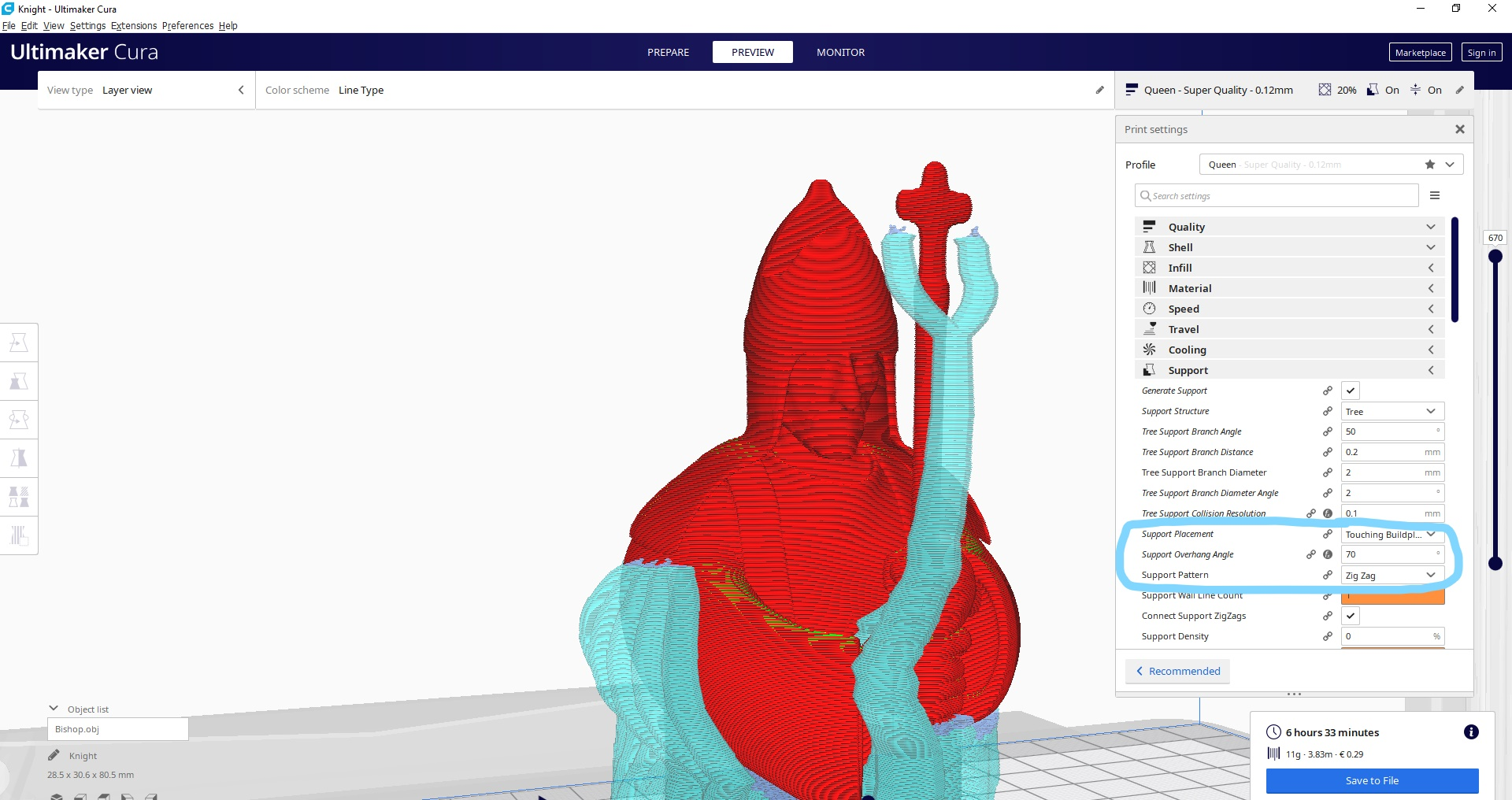

70 degrees:

[konskarm]

The file is also not available in the given thingiverse link. Could you create a Cura project file (File -> Save project...) and upload it?

[VicOnTheBeach]

Bishop.zip

[Ghostkeeper]

I'm not getting the same results with that project file. Here is the bishop at 70 degrees overhang (reduced support):

And here is the bishop at 60 degrees overhang (increased support):

It looks like the 60 degree overhang gets strictly more support than the 70 degree overhang.

Is this something that may have changed between the beta and stable? There were some changes to your printer's defaults in that time.

[VicOnTheBeach]

Hi,

You're right, I've installed the stable release and the issue does not occurs anymore. Thank you for your investigations anyway.
