Cura: [4.6.2] Support interface printed in midair using tree supports

[darkpoetry]

Application version
4.6.2

Platform
Windows 10

Printer
Ender 3 Pro

Reproduction steps

1. Sliced this figurine per the attached zipped .3mf file
   CE3PRO_Dwarf_Rogue.zip
2. Noticed significant support interface being printed where there are no tree branches beneath them.

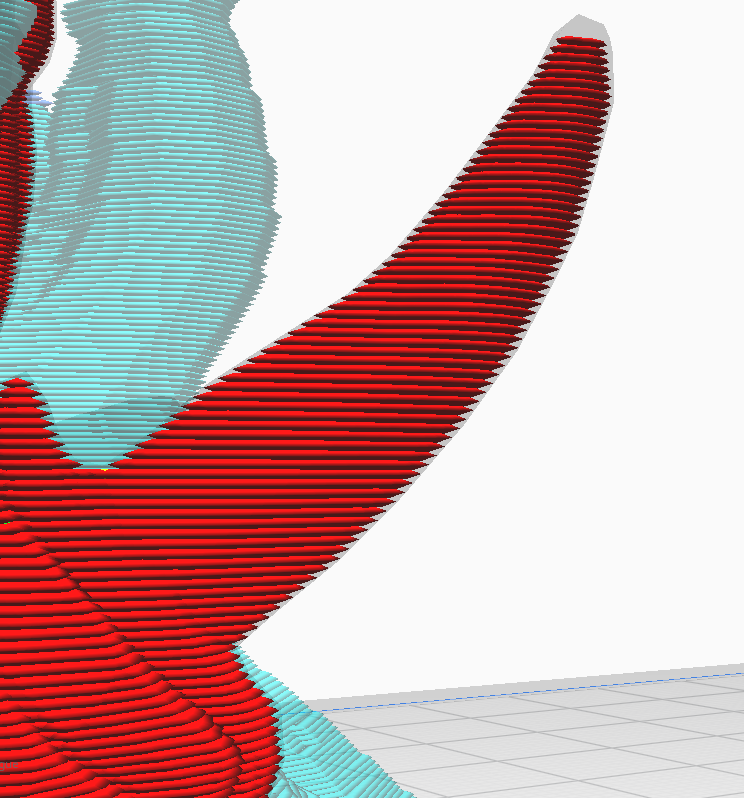

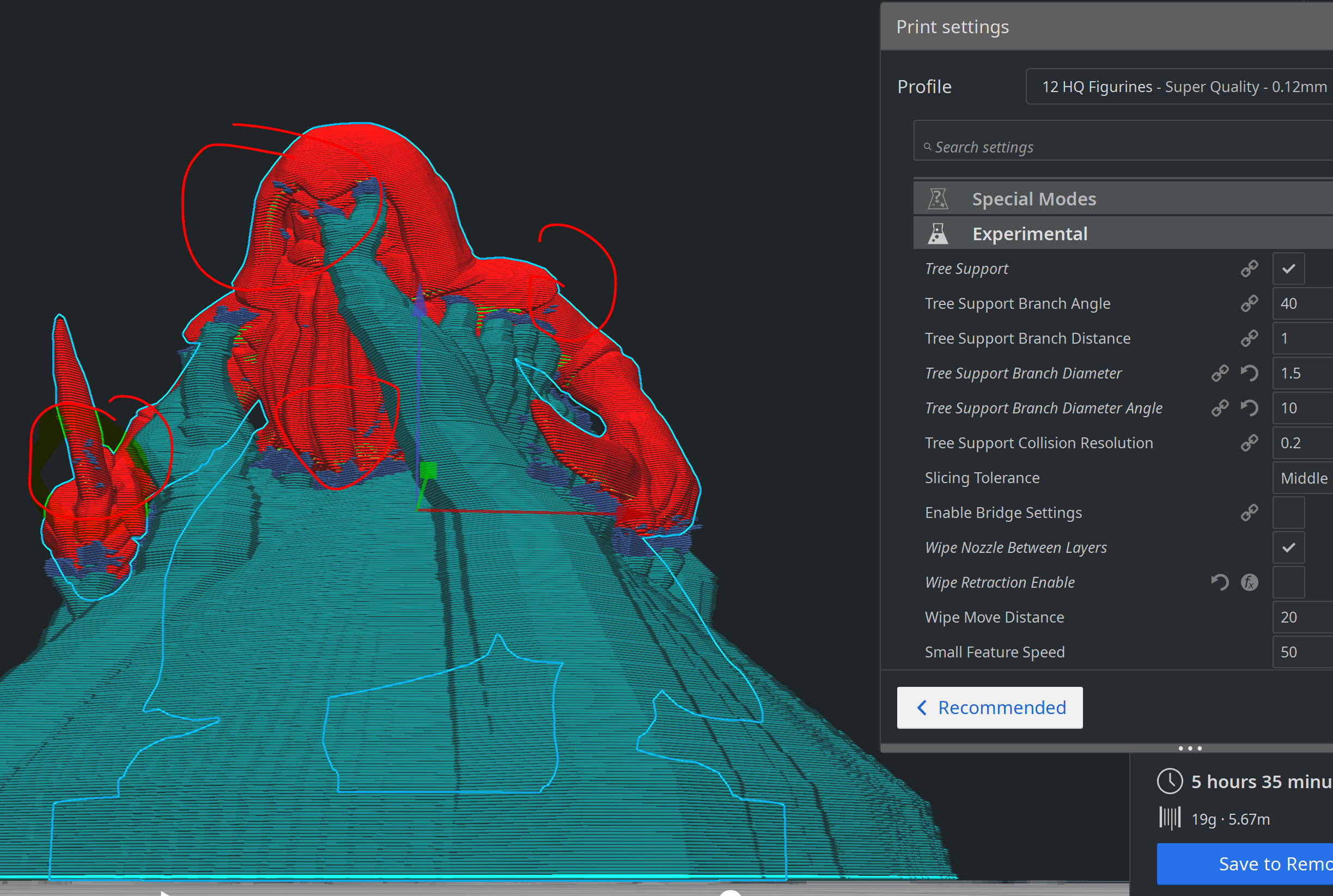

Screenshot(s)

Actual results

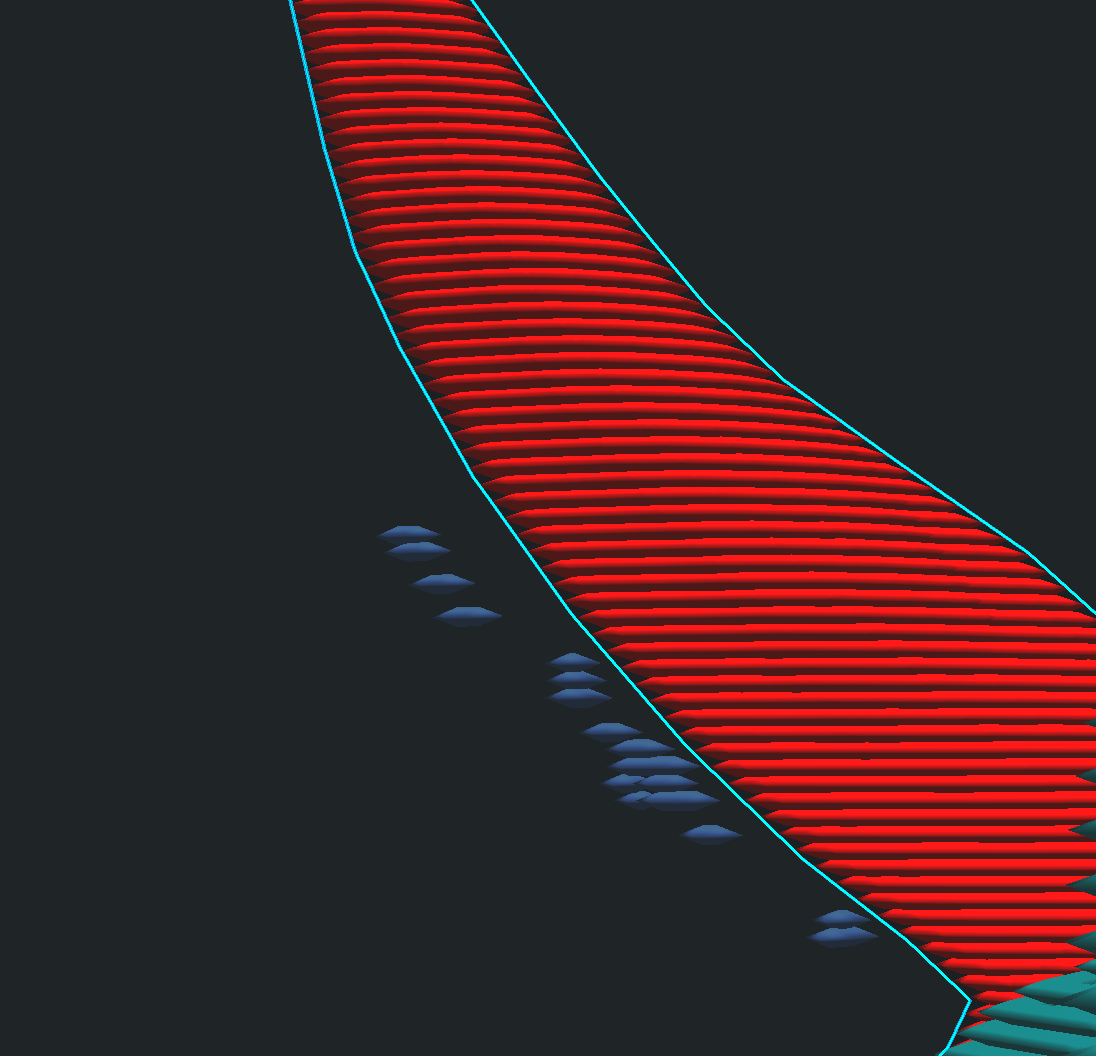

Support that becomes overextrusion-like zits on the the sides of the object

Expected results
No support interfaces should print without a support immediately below them.

Project file
CE3PRO_Dwarf_Rogue.zip

Log file
cura.log.zip

[Asterchades]

You should give the 4.7 beta a try - one of its main focuses is on tree supports. However, unless you have a specific need for the Support Interface (such as using a 2nd extruder with PVA so you can dissolve it) than I'd disable it entirely as it has issues with the newer tree supports, and possibly the older ones as well.

Unfortunately they're still not perfect in 4.7 as yet. But they're at least consistent now, so hopefully the next beta will show more improvements still.

[jellespijker]

Thank you for reporting the issue. As @Asterchades mentioned the 4.7 beta has a lot of fixes for tree support. This is one of them. You could try out the new beta https://github.com/Ultimaker/Cura/releases/tag/4.7-beta

The stable release should be out in just a few days
