4.6
Windows 10
Ender 3

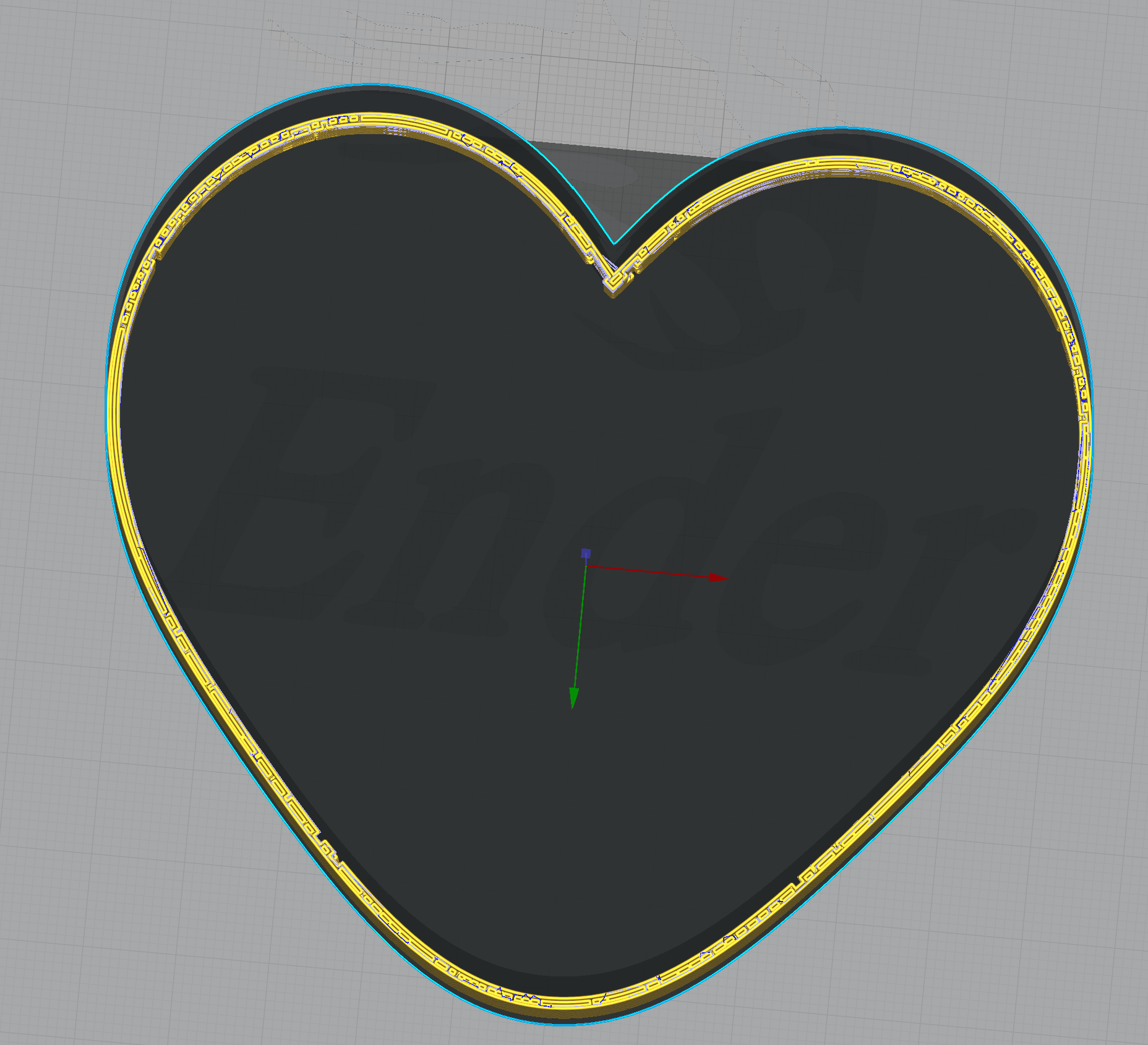

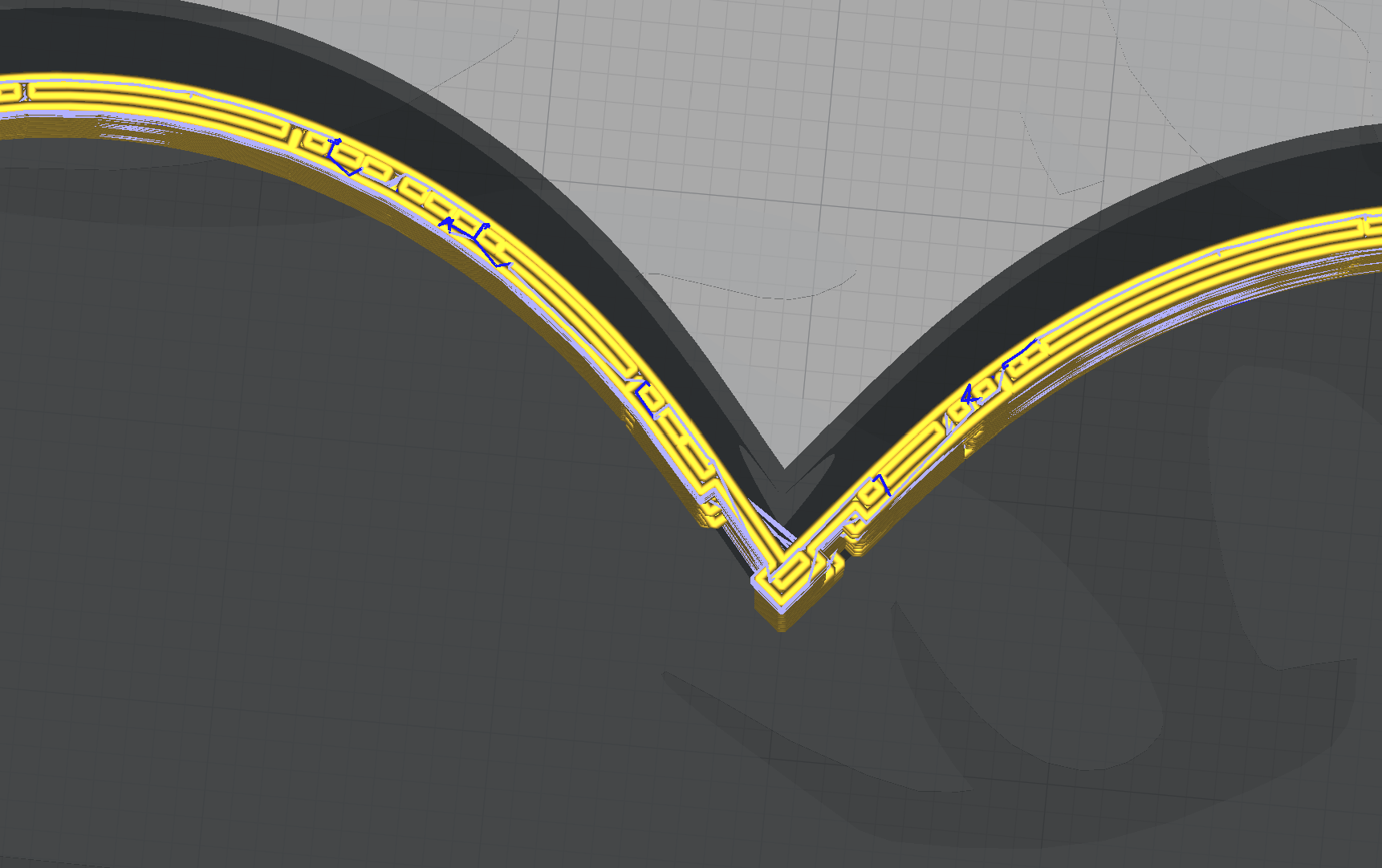

I have designed a heart shape mold with Autodesk Inventor. after I generate the G-code and print it I realized some surface problems on the model. when I rechecked the preview of the Cura I realized the walls didn't generate in some simple parallel lines.
Screenshot(s)

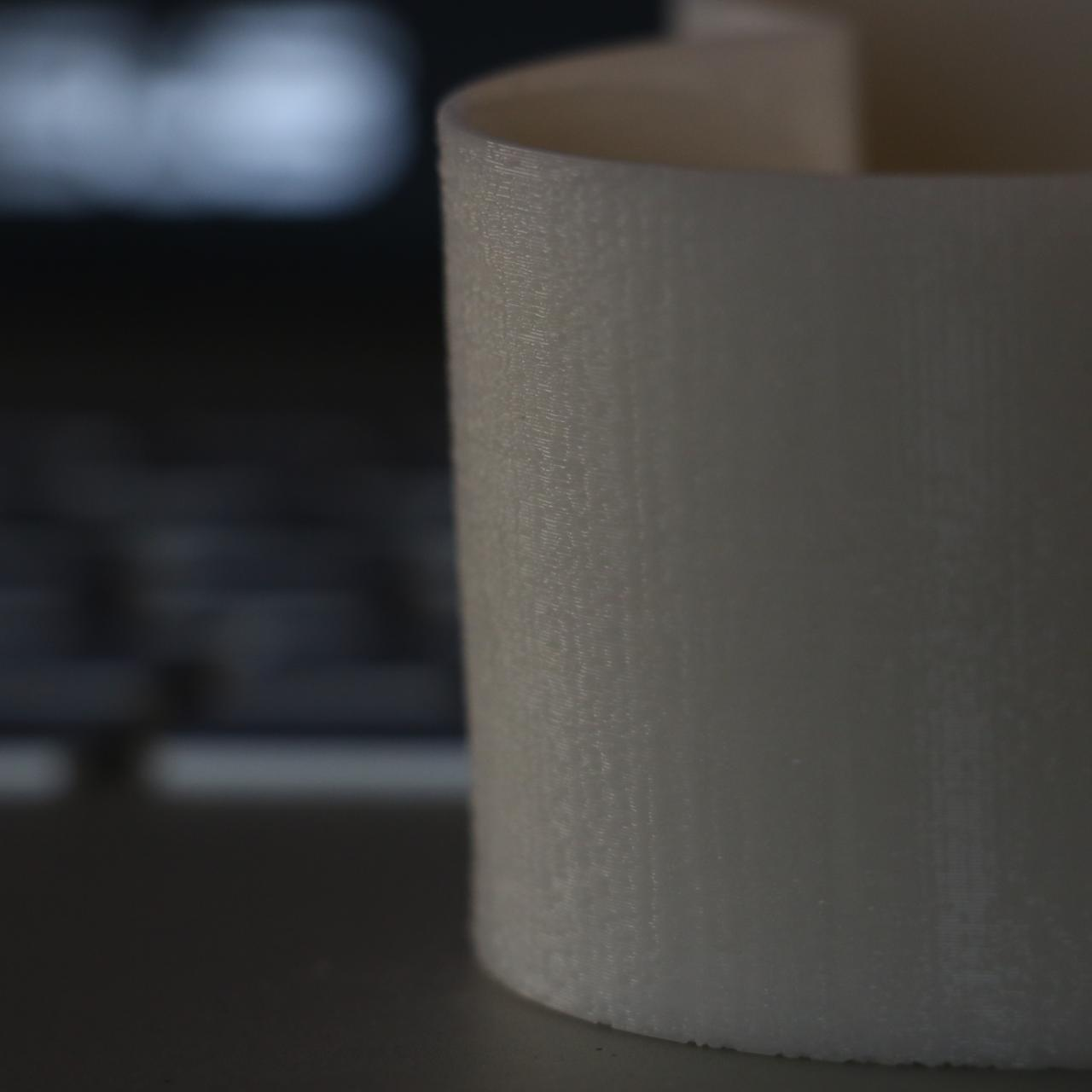

Generating this kind of wall increased the build time and ruin the quality of the surface.
Project file
CE3_Under side mold.zip
Bug
mehran-Bgh
All 2 comments

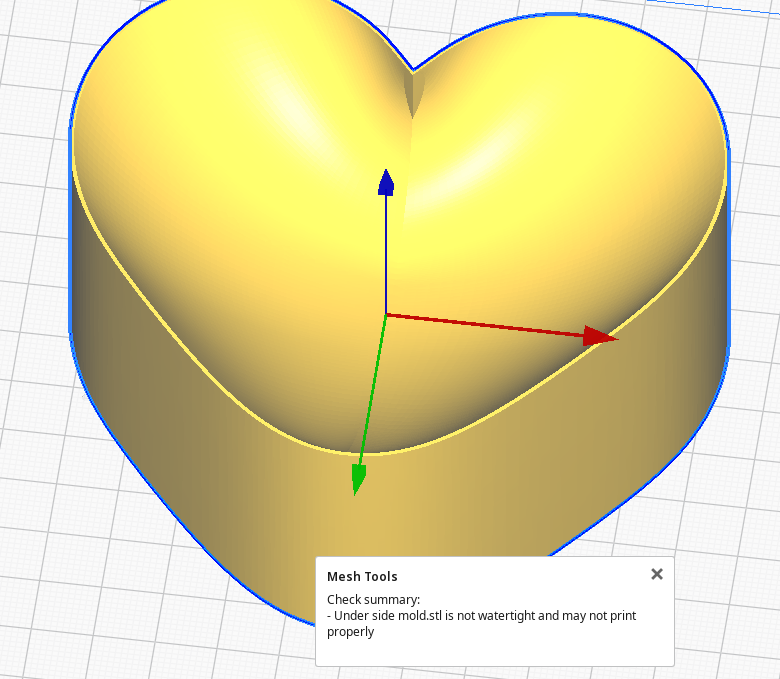

Unfortunately, the model has problems. Install the Mesh Tools plugin from the marketplace to get these warnings...

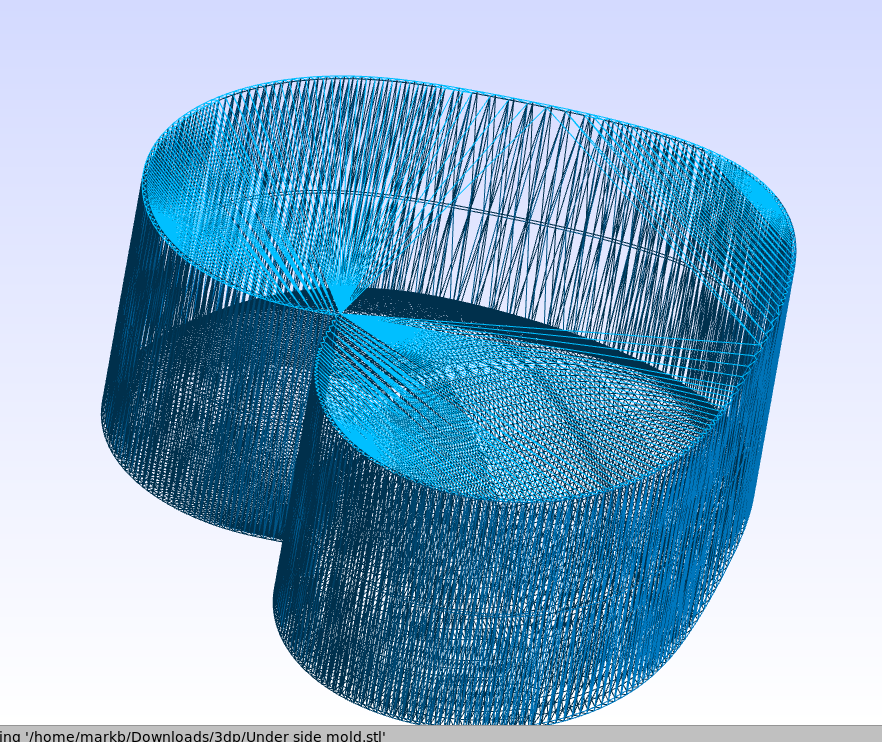

The model appears to have thickness to the walls but also a solid top and bottom, that's not going to work...
smartavionics
on 19 Jun 2020
👍2
you are absolutely right. thanks my friend
mehran-Bgh
on 19 Jun 2020
