Cura: [4.5.0] Machine settings unreadable

[njibhu]

Application version
4.4.0 and 4.5.0 (Did not test earlier)

Platform
Archlinux, both from community repo and AppImage.
KDE/Plasma 5.18.3 with default light theme, Xorg.

Reproduction steps

1. Open the machine settings

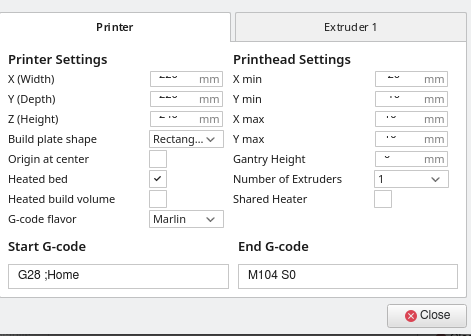

Screenshot(s)

Actual results
The settings previously set cannot be read, the text is offset up from the input field.

Expected results
Can read the previously entered settings.

Log file

2020-03-18 23:44:15,620 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/ComboBoxWithOptions.qml:74: TypeError: Cannot call method 'match' of undefined
2020-03-18 23:44:15,623 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/ComboBoxWithOptions.qml:74: TypeError: Cannot call method 'match' of undefined
2020-03-18 23:44:15,626 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/ComboBoxWithOptions.qml:74: TypeError: Cannot call method 'match' of undefined
2020-03-18 23:44:15,629 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/qml/UM/Dialog.qml:86:13: QML Loader: Binding loop detected for property "active"
2020-03-18 23:44:15,632 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/NumericTextFieldWithUnit.qml:43:34: Unable to assign [undefined] to QString
2020-03-18 23:44:15,636 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/NumericTextFieldWithUnit.qml:43:34: Unable to assign [undefined] to QString
2020-03-18 23:44:15,639 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/NumericTextFieldWithUnit.qml:43:34: Unable to assign [undefined] to QString
2020-03-18 23:44:15,642 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/ComboBoxWithOptions.qml:39:34: Unable to assign [undefined] to QString
2020-03-18 23:44:15,645 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/SimpleCheckBox.qml:35:30: Unable to assign [undefined] to QString
2020-03-18 23:44:15,648 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/SimpleCheckBox.qml:35:30: Unable to assign [undefined] to QString
2020-03-18 23:44:15,650 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/SimpleCheckBox.qml:35:30: Unable to assign [undefined] to QString
2020-03-18 23:44:15,651 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/ComboBoxWithOptions.qml:39:34: Unable to assign [undefined] to QString
2020-03-18 23:44:15,653 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/NumericTextFieldWithUnit.qml:43:34: Unable to assign [undefined] to QString
2020-03-18 23:44:15,655 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/PrintHeadMinMaxTextField.qml:56:16: Unable to assign [undefined] to QString
2020-03-18 23:44:15,657 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/PrintHeadMinMaxTextField.qml:38: SyntaxError: JSON.parse: Parse error
2020-03-18 23:44:15,658 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/NumericTextFieldWithUnit.qml:43:34: Unable to assign [undefined] to QString
2020-03-18 23:44:15,660 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/PrintHeadMinMaxTextField.qml:56:16: Unable to assign [undefined] to QString
2020-03-18 23:44:15,662 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/PrintHeadMinMaxTextField.qml:38: SyntaxError: JSON.parse: Parse error
2020-03-18 23:44:15,663 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/NumericTextFieldWithUnit.qml:43:34: Unable to assign [undefined] to QString
2020-03-18 23:44:15,665 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/PrintHeadMinMaxTextField.qml:56:16: Unable to assign [undefined] to QString
2020-03-18 23:44:15,667 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/PrintHeadMinMaxTextField.qml:38: SyntaxError: JSON.parse: Parse error
2020-03-18 23:44:15,668 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/NumericTextFieldWithUnit.qml:43:34: Unable to assign [undefined] to QString
2020-03-18 23:44:15,670 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/PrintHeadMinMaxTextField.qml:56:16: Unable to assign [undefined] to QString
2020-03-18 23:44:15,672 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/PrintHeadMinMaxTextField.qml:38: SyntaxError: JSON.parse: Parse error
2020-03-18 23:44:15,674 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/NumericTextFieldWithUnit.qml:43:34: Unable to assign [undefined] to QString
2020-03-18 23:44:15,675 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/ComboBoxWithOptions.qml:39:34: Unable to assign [undefined] to QString
2020-03-18 23:44:15,677 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/SimpleCheckBox.qml:35:30: Unable to assign [undefined] to QString
2020-03-18 23:44:15,679 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/GcodeTextArea.qml:27:30: Unable to assign [undefined] to QString
2020-03-18 23:44:15,680 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/GcodeTextArea.qml:27:30: Unable to assign [undefined] to QString
2020-03-18 23:44:15,694 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/NumericTextFieldWithUnit.qml:43:34: Unable to assign [undefined] to QString
2020-03-18 23:44:15,696 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/NumericTextFieldWithUnit.qml:43:34: Unable to assign [undefined] to QString
2020-03-18 23:44:15,697 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/NumericTextFieldWithUnit.qml:43:34: Unable to assign [undefined] to QString
2020-03-18 23:44:15,699 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/NumericTextFieldWithUnit.qml:43:34: Unable to assign [undefined] to QString
2020-03-18 23:44:15,701 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/NumericTextFieldWithUnit.qml:43:34: Unable to assign [undefined] to QString
2020-03-18 23:44:15,703 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/GcodeTextArea.qml:27:30: Unable to assign [undefined] to QString
2020-03-18 23:44:15,705 - WARNING - [MainThread] UM.Qt.QtApplication.__onQmlWarning [398]: file:///tmp/.mount_UltimaQnOyFf/usr/bin/resources/qml/MachineSettings/GcodeTextArea.qml:27:30: Unable to assign [undefined] to QString

Additional information
Change cura theme or QT scaling variable doesn't solve the issue.

[nallath]

I don't have the issue myself, so I'm not sure if my changes actually solve it.

[smartavionics]

That change made no difference for me although what I see isn't as bad as the example above.

[Mosher23]

same on Mac OS X Settings window is also not resisable

[njibhu]

I don't have the issue myself, so I'm not sure if my changes actually solve it.

Will try the patch this afternoon and will get back to you

same on Mac OS X Settings window is also not resisable

I actually can resize the window to make the G-Code input wider, I do not think that the bug is related. Though changing the window size for me doesn't change anything on my bug

[njibhu]

@nallath tested by rebuilding an appImage, the problem is still here..

[njibhu]

@nallath Found a fix and a way to reproduce it.
Using as a system font Noto Sans 10px, the bug is there. If i switch to Liberation Sans 11pt, it's gone. (with Liberation 10px, the input is still offset, but at least readable).
So it's definitely linked to font size
I switched to Droid Sans 10px, and the bug is gone.

[Ghostkeeper]

Not reproducing the problem with that on Ubuntu when running from source, but it is affected by it. This is my machine settings dialogue for Ender 3 using Noto Sans 10px:

And here is the dialogue using Liberation Sans 11pt:

But when you're using the AppImage, it should always use Noto Sans 10pt, so I wouldn't expect this to have any differences between systems on the builds.

[Pimentoso]

+1 for the problem on MacOS, please make this dialog resizable. Catalina 10.15.4, cura 4.5

[nallath]

The dialog has been made resizable already.

[Mosher23]

The dialog has been made resizable already.

But not on Mac OS or not in 4.5

[Pimentoso]

The dialog has been made resizable already.

Doesn't look like it. Also tried to resize it using a window manager (Rectangle) but it still doesn't change.

[nallath]

It wasn't done in 4.5 if I remember correctly (soo that means it will be in 4.6)

[Ghostkeeper]

The window is resizable in Cura 4.5 in Linux. If we made a change in 4.6 it must've been to fix something in MacOS only.

I also remember this coming back up recently, but I can't find the commits or any change that we made to fix it, and don't remember that we made any special handling for MacOS then.

[jlsjonas]

@rburema might know more? @Ghostkeeper

[Ghostkeeper]

This should be fixed in Cura 4.7, through this PR: https://github.com/Ultimaker/Cura/pull/7883
