Coturn: alt-listening-port & alt-tls-listening-port is not working.

[simon-india]

listening-port=3478
tls-listening-port=5349
alt-listening-port=80
alt-tls-listening-port=443
listening-ip=10.10.8.137
relay-ip=10.10.8.137
external-ip=<PUBLIC IP>
realm=turnstun.example.com
server-name=turnstun.example.com

fingerprint

lt-cred-mech
userdb=/var/lib/turn/turndb

total-quota=100
stale-nonce

#SSL
cert=/etc/letsencrypt/live/turnstun.example.com/fullchain.pem
pkey=/etc/letsencrypt/live/turnstun.example.com/privkey.pem
cipher-list="ECDH+AESGCM:DH+AESGCM:ECDH+AES256:DH+AES256:ECDH+AES128:DH+AES:ECDH+3DES:DH+3DES:RSA+AES:RSA+3DES:!ADH:!AECDH:!MD5"
dh2066
no-tlsv1
no-tlsv1_1

no-loopback-peers
no-multicast-peers

log-file=/var/log/coturn.log

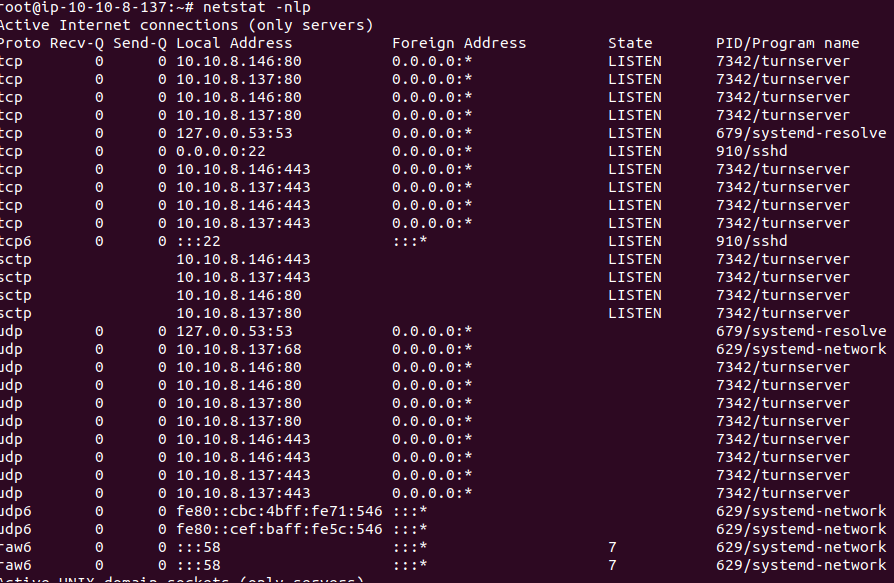

In my config I want the server to listen on four ports 80,443,3478 and 5349. But its not listening on alternate ports and my question is if I add an extra public IP to my instance will be listening on both external IP's on all four ports.

[misi]

Which user right you run coturn? Does this user has right to listen n a well known port range ( <1024)?

[simon-india]

It is running as root.

[simon-india]

Also the config is changed to for listening on 80 and 433 as primary and 3478, 5349 as alternative after adding a extra public ip in AWS. Even still its only listening in primary not alternative.

listening-port=80
alt-listening-port=3478

tls-listening-port=443
alt-tls-listening-port=5349

listening-ip=10.10.8.137
listening-ip=10.10.8.146
relay-ip=10.10.8.137
external-ip=<PUBLIC IP>
realm=turnstun.example.com
server-name=turnstun.example.com

fingerprint

lt-cred-mech
userdb=/var/lib/turn/turndb

#use-auth-secret
#static-auth-secret=a5b78c0a10af34d357dc2196dd8afc205a40d4743b6ff865300e74d69f11a5d7


total-quota=100
stale-nonce

#SSL
cert=/etc/letsencrypt/live/turnstun.example.com/fullchain.pem
pkey=/etc/letsencrypt/live/turnstun.example.com/privkey.pem
cipher-list="ECDH+AESGCM:DH+AESGCM:ECDH+AES256:DH+AES256:ECDH+AES128:DH+AES:ECDH+3DES:DH+3DES:RSA+AES:RSA+3DES:!ADH:!AECDH:!MD5"
#dh2066
#no-tlsv1
#no-tlsv1_1

no-loopback-peers
no-multicast-peers

#log-file=/var/log/coturn.log
verbose

[simon-india]

@misi Thanks for replying and caring for a stranger. I just read the documentation again in clear head and found that I needed to add the below snippet to make it listen in alternate ports. I hope it helps someone.

listening-port=80
alt-listening-port=3478

tls-listening-port=443
alt-tls-listening-port=5349

listening-ip=<PRIVATE IP 1>
listening-ip=<PRIVATE IP 2>
relay-ip=10.10.8.137
external-ip=<PUBLIC IP 1>/<PRIVATE IP 1>
external-ip=<PUBLIC IP 2>/<PRIVATE IP 2>
realm=turnstun.example.com
server-name=turnstun.example.com

fingerprint

lt-cred-mech
userdb=/var/lib/turn/turndb

total-quota=100
stale-nonce

#SSL
cert=/etc/letsencrypt/live/turnstun.example.com/fullchain.pem
pkey=/etc/letsencrypt/live/turnstun.example.com/privkey.pem
cipher-list="ECDH+AESGCM:DH+AESGCM:ECDH+AES256:DH+AES256:ECDH+AES128:DH+AES:ECDH+3DES:DH+3DES:RSA+AES:RSA+3DES:!ADH:!AECDH:!MD5"
#dh2066
#no-tlsv1
#no-tlsv1_1

no-loopback-peers
no-multicast-peers

#log-file=/var/log/coturn.log
verbose

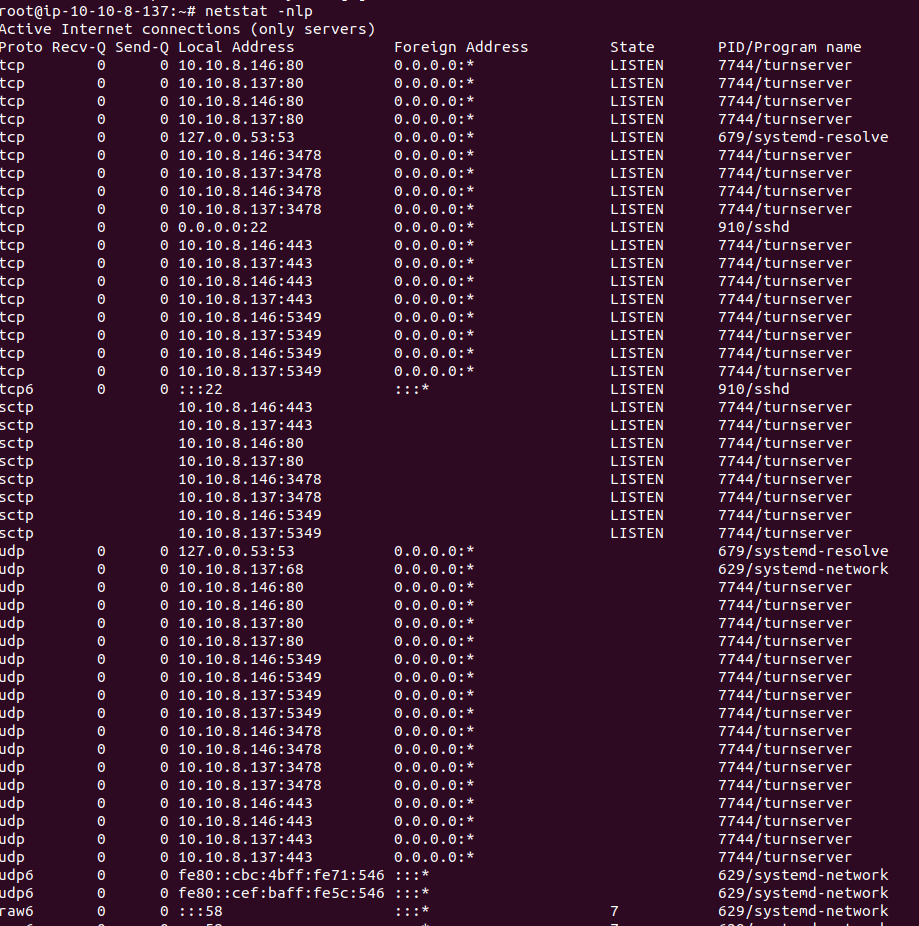

Ports listening as expected
