Core: Unable to setup Cloudflare integration

[maxcanna]

The problem

Hi guys,
I'm trying to migrate cloudflare to the new integration. I've created a new token with the right scopes but when I put it into the integration settings I receive Failed to connect error.

What am I doing wrong?

Environment

• Home Assistant Core release with the issue: 0.117.0
• Last working Home Assistant Core release (if known): 0.116.4
• Operating environment (OS/Container/Supervised/Core): Home Assistant Container
• Integration causing this issue: cloudflare
• Link to integration documentation on our website: https://www.home-assistant.io/integrations/cloudflare/

Problem-relevant configuration.yaml

Traceback/Error logs

Additional information

Token is active:

$ curl -s "https://api.cloudflare.com/client/v4/user/tokens/verify" \
-H "Authorization: Bearer MYTOKEN" \
-H "Content-Type:application/json" | jq -r .result.status
active

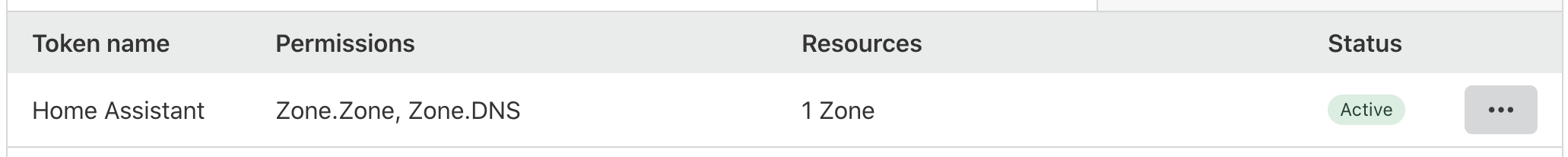

and with right scopes:

[probot-home-assistant[bot]]

cloudflare documentation
cloudflare source
_{^{(message by IssueLinks)}}

[probot-home-assistant[bot]]

Hey there @ludeeus, @ctalkington, mind taking a look at this issue as its been labeled with an integration (cloudflare) you are listed as a codeowner for? Thanks!
_{^{(message by CodeOwnersMention)}}

[ludeeus]

How far did you get?

[maxcanna]

I try to setup a new integration, I put the token, end 😅

[ludeeus]

The error points to a connection or timeout issue.
The curl you did, can you run that from inside the container as well?

[maxcanna]

The error points to a connection or timeout issue.

{
  "type": "form",
  "flow_id": "3e82c54283dd4e159121d25da3546c42",
  "handler": "cloudflare",
  "step_id": "user",
  "data_schema": [
    {
      "type": "string",
      "name": "api_token",
      "required": true
    }
  ],
  "errors": {
    "base": "cannot_connect"
  },
  "description_placeholders": null
}

The curl you did, can you run that from inside the container as well?

bash-5.0# curl -s "https://api.cloudflare.com/client/v4/user/tokens/verify" \
-H "Authorization: Bearer TOKEN" \
-H "Content-Type:application/json" | jq -r .result.status
active

[Chreece]

Same problem, thought it could be AdGuard Home but disabling it didn't help...
My token is also checked and active

[Chreece]

Just tried putting the token repeatedly (retry after Failed to connect) and worked!

[maxcanna]

Just tried putting the token repeatedly (retry after Failed to connect) and worked!

That's not normal at all. How many times did you try?

[maxcanna]

@ludeeus I tried again as @Chreece suggested and now the error message changed to _Invalid authentication_

{
  "type": "form",
  "flow_id": "b1f5732b41b14e5abae2bc4614e0ed6b",
  "handler": "cloudflare",
  "step_id": "user",
  "data_schema": [
    {
      "type": "string",
      "name": "api_token",
      "required": true
    }
  ],
  "errors": {
    "base": "invalid_auth"
  },
  "description_placeholders": null
}

[Chreece]

Just tried putting the token repeatedly (retry after Failed to connect) and worked!

That's not normal at all. How many times did you try?

I think 3 or 4 times.
When I tried before the success, the integration did something (saw some scrollbars left and under coming and going) but Failed to connect. Maybe it's a time out because connection problem thing. I'm using Adguard home, Wireguard and some other goodies that made my Internet connection a bit slower (at least at dns level).
Sorry for too much info, I'm trying only to give some thoughts on the problem 😀

[maxcanna]

I have no speed or filtering issue at all, cloudflare was (and is) reachable from my LAN

[ludeeus]

Invalid auth you get if you are not authorized for the requested enpoints

[maxcanna]

Invalid auth you get if you are not authorized for the requested enpoints

I added the requested scopes. Do you think I did something wrong?

[ludeeus]

Yes, you limited it to 1 zone, it needs to be able to list all zones.

[maxcanna]

Yes, you limited it to 1 zone, it needs to be able to list all zones.

Really? 🦉 Is there a specific reason for that? I think that from a security standpoint this could be improved.
There's no need to be able to edit all my zones. wdyt?

BTW I tried it again with the suggested scopes and it worked

[ludeeus]

It needs to be able to read/list all zones so you can choose the correct one on the second screen.

CF does not offer that level of granulated permissions in their UI.
You can create a token with their API if you want that.

[maxcanna]

I can have read on all zones and edit on a sigle one if I create the token via API? Good to know ty

[ludeeus]

Yes @maxcanna
https://api.cloudflare.com/#user-api-tokens-create-token

curl -X POST "https://api.cloudflare.com/client/v4/user/tokens" \
     -H "Authorization: Bearer xxxxxxxxxxxxxxx" \
     -H "Content-Type: application/json" \
     --data '{"name":"test","policies":[{"effect":"allow","resources":{"com.cloudflare.api.account.zone.*":"*"},"permission_groups":[{"id":"xxxxxxxxxxxxxxx","name":"Zone Read"}]},{"effect":"allow","resources":{"com.cloudflare.api.account.zone.xxxxxxxxxxxxxxx":"*"},"permission_groups":[{"id":"xxxxxxxxxxxxxxx","name":"Zone Write"},{"id":"xxxxxxxxxxxxxxx","name":"DNS Read"}]}]}'

The first policy is creating read access to all zones, the second policy is creating read/write to a single zone.

[maxcanna]

Awesome! TY @ludeeus
